Chery A11. Manual - part 39

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

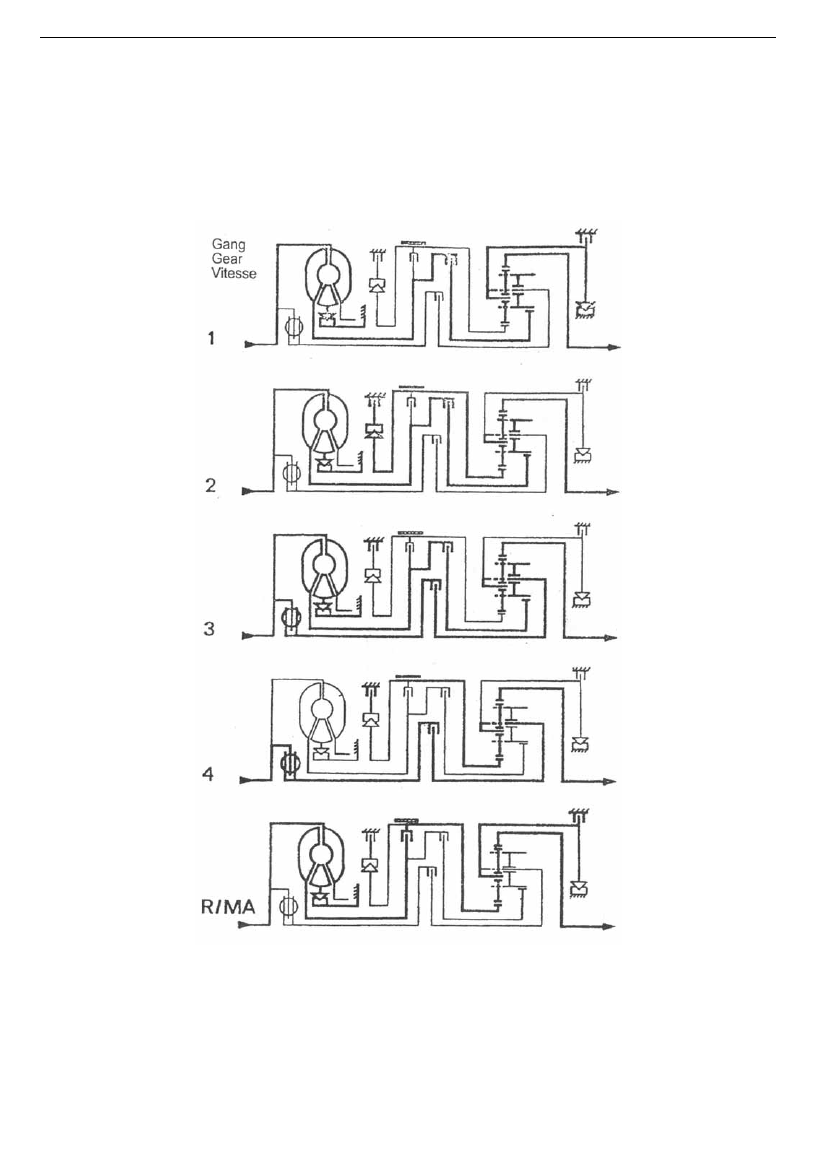

1.2、  4HP14 A/T power transfer schematic











-3-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

1.3、A/T clearence adjustment

1.3.1 Shift shaft clearence adjustment

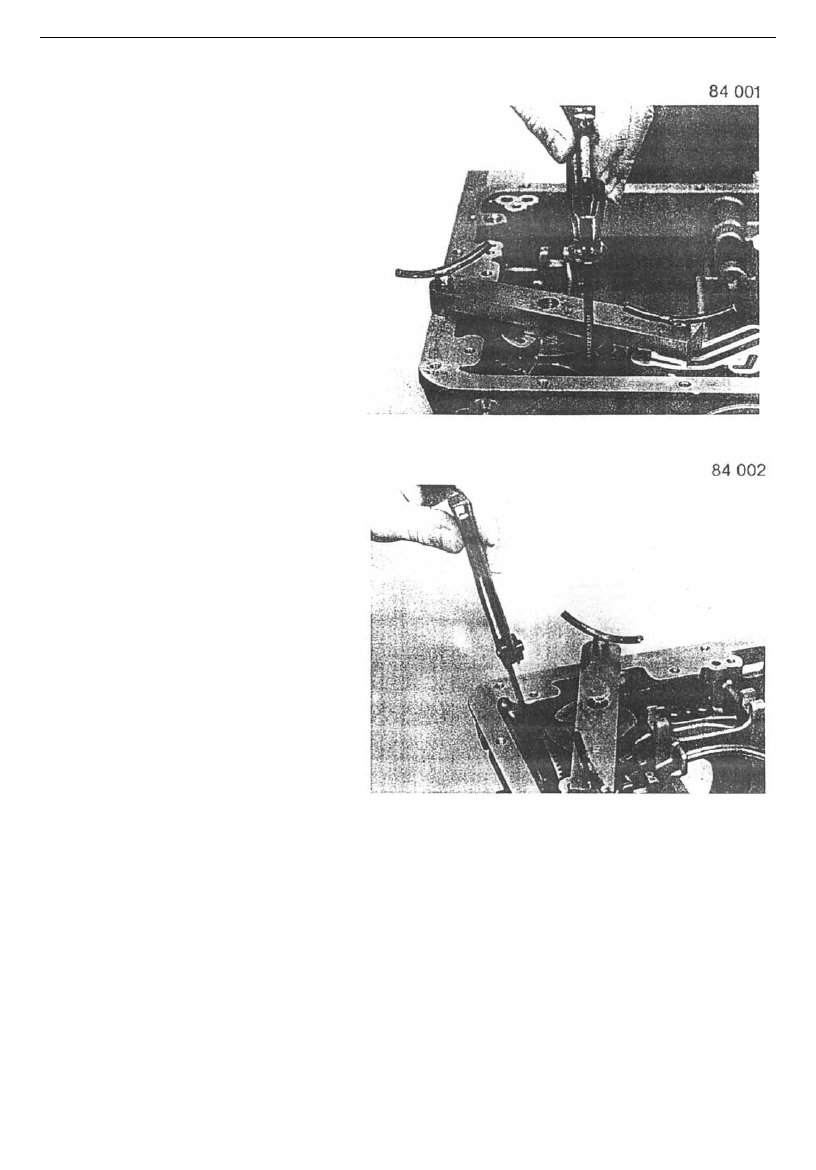

Install shift shaft clearence adjuster 5P 95 000

287 on housing surface, ensuring no clearence

between lock cam and shift cam.

















Measure the distance X from shift cam to

housing surface with measuring tool.

















Determine thickness of washer by following

formula:

S (mm) = X (mm) – 0.1 (mm)

S = washer thickness



X = Measured result

0.10 is selected clearance (selected clearance is within

0.10 ~ 0.2 according to table).

For example

Measured dimensions:

X=2.3mm

S=2.3mm-0.10mm

S=2.2mm

Therefore, need 2 washers with total thickness of 2.2 mm.



-4-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD



1.3.2、Rear output gear clearence

adjustment



1.3.2.1、Main sub output gear clearence

adjustment

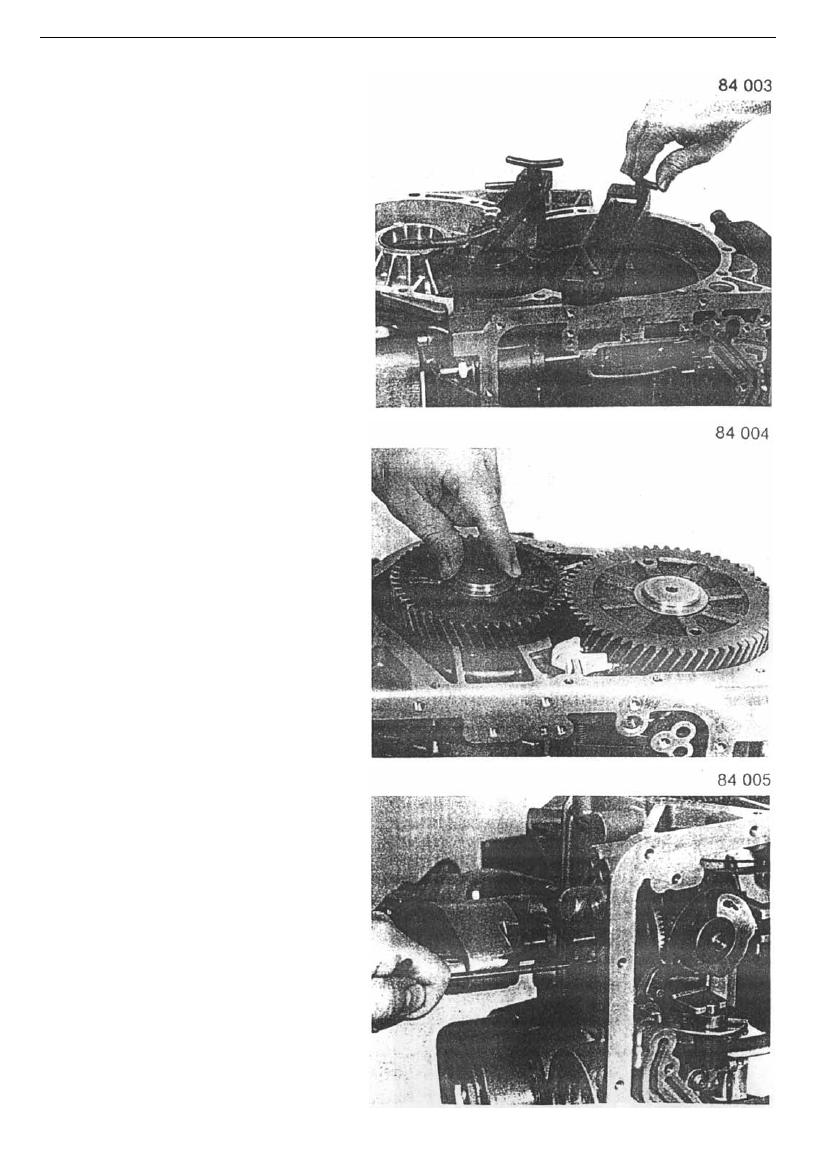

Hold driven shaft and output shaft with mounting

bracket 5P 96 000 288 and 5P 95 000 289.

Turn over the transmission body by 180

o

.

stall main rear output gear and mounting bolts.

stall parking mechanism and retain gear shifter

OTE: Keeping brake rotor downward (because









In

Install 1.75 mm thickness washer on driven shaft

and then install sub rear output gear and

mounting bolts.

















In

arm on position with adjusting pin 5P 95 000

285.



N

the brake rotor may move outside), then install

parking plunger.



-5-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

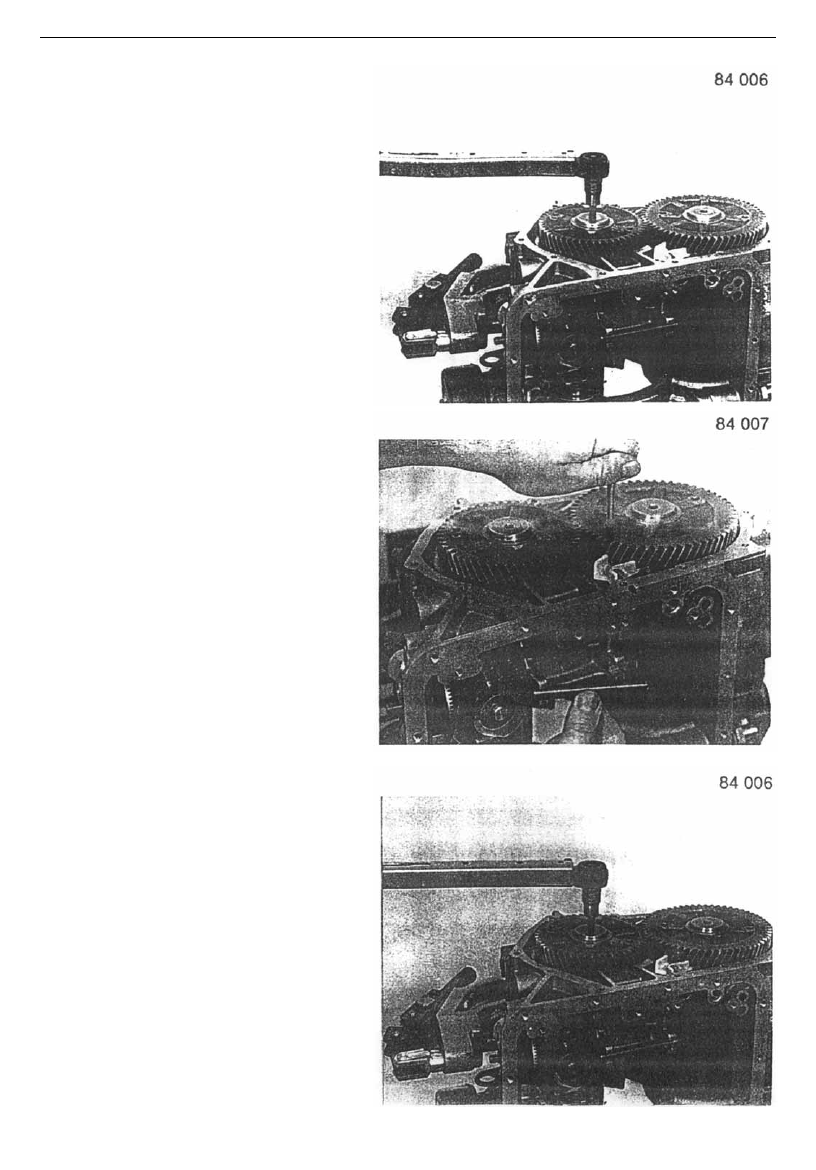

Tighten sub rear output gear mounting bolt to 10

Nm with torque wrench.























Only after both gears installed correctly can the

parking plunger be removed easily. Turn gear

with an appropriate bolt repeatly (as shown on

fig.).





















Install parking plunger, select stop position, then

tighten the bolt. Tighten torque is 20Nm.

Release stop position, turn the gear, and repeat the

above procedures.



-6-
