CAC Gasoline Engine Maintenance And Servicing Manual

103

——engine idling speed actuator doesn’t work

      ——shorted fuel injector +12V circuit
      ——opened or shorted ignition coil circuit
      also, monitor the following failure:
      ——with engine cycling start    or engine working,
signal wheel is not synchronous.
      ——opened or shorted  λsensor circuit
      ——opened fuel pump circuit
      If  a  sensor  failure(except  the  speed  sensor/  TDC  sensor)  is
indicated, ECU will substitute the preset value for the input data
from  the  faulted  sensor  to  keep  engine  operating.  Also  ECU
will  store  the  failure  in  the  memory  permanently.  At  the  same
time,  the  sensor  will  be  kept  out  of  the  system  until  the  sensor
signal    matches the signal from ECU again.
        If  the  actuator  or  the  corresponding  signal  channel  fails,
the above program is also applied.

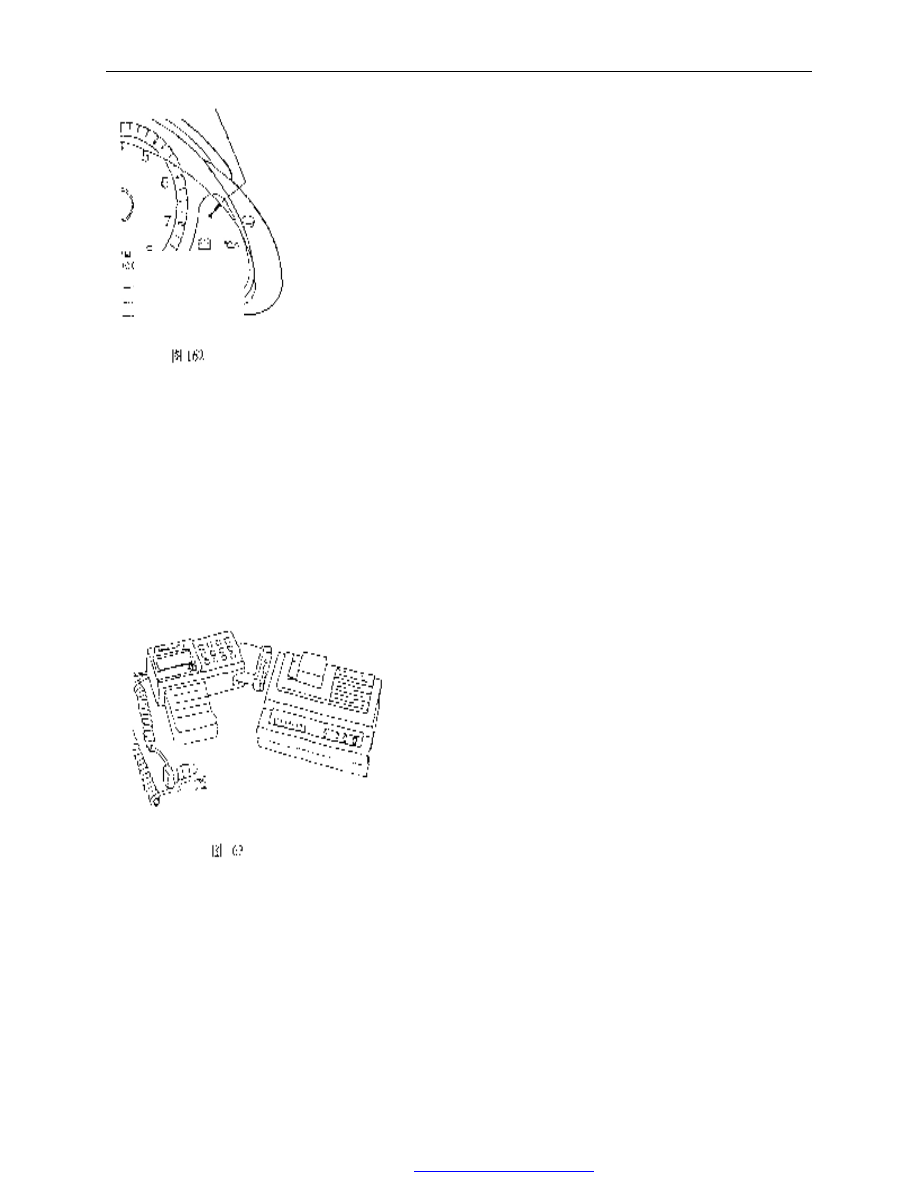

      When a failure is  detected and the corresponding substitute
value is applied, the warning light  on the instrument panel will
turn on.
        Warning  light  will  go  out  only  when  the  component  was
replaced by the dealer or the failure is non long-term .
      No  matter  whether  the  failure  is  long-term,  the  failure  data
will be stored permanently in the memory.

communicate with CHECK—UP1 actively

        Connecting  CHECK—UP1  diagnosis  tool  to  the  system
may fulfill the following operations:

——display  the  short-term  or  long-term  malfunctions  or

parameters
—— active diagnosis:
—— fuel injector
—— fuel pump

——

ignition module

—— idling

speed actuator

I.A.W

system warning light

——  fuel

vapor recirculation solenoid


Fig. 162

Fig. 163

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

104

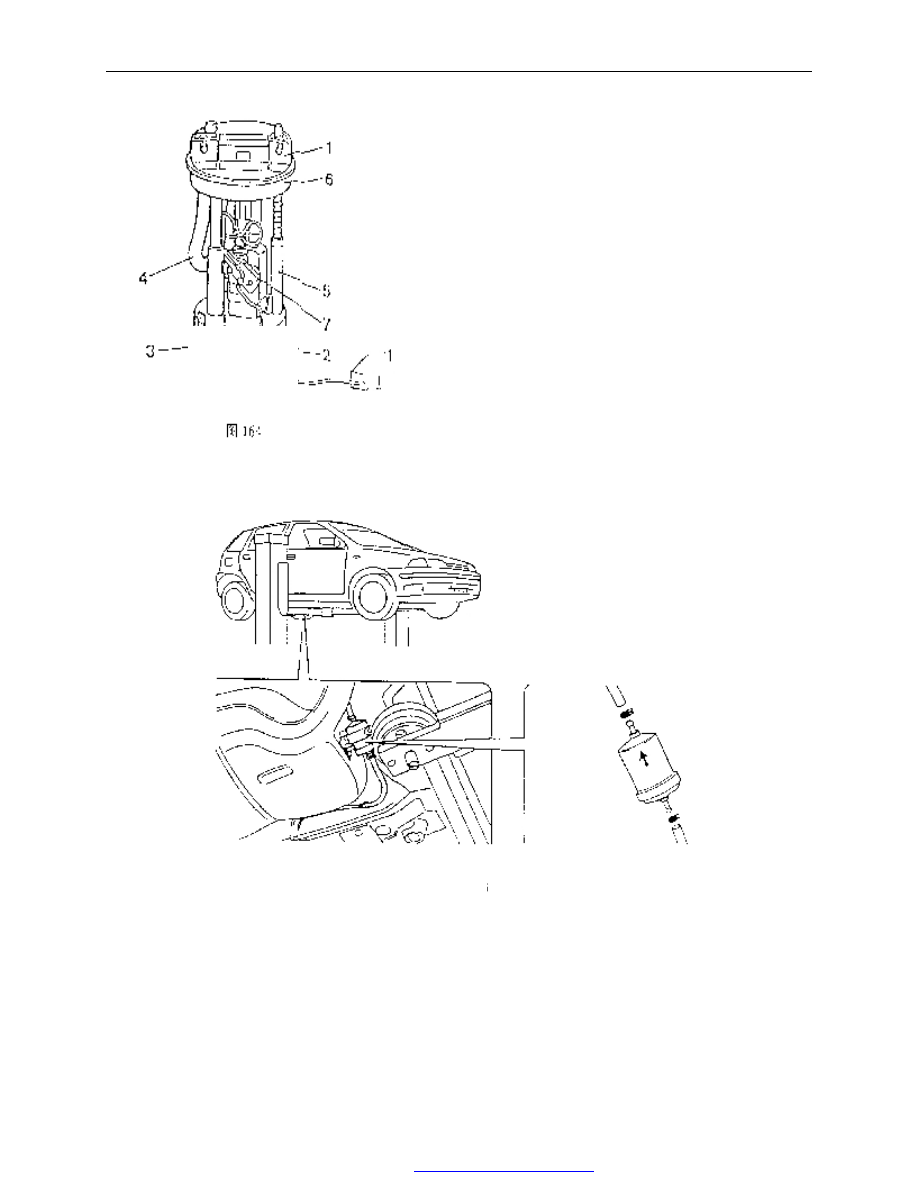

Removal and reinstallation for fuel pump:
Fuel pump is installed inside the fuel tank.
Removal procedure is as following:

—— switch off the power supply
—— remove quick release fuel

      Outlet pipe and fuel return pipe
      Remove and reinstall filter
        —— loosen and remove the filter mounting bolt from the
bracket
        —— remove the sealing clip of fuel pipe from the filter
        ——  during  operating,  use  an  appropriate  container  to
collect the      fuel drained

The fuel filter must be replaced every 30,000km.

        Note:  The  filter  must  not  be  installed  reversely  ,  it  must
be replaced even for the reverse installation of short time. The
arrow on the case indicates the direction of fuel flow .

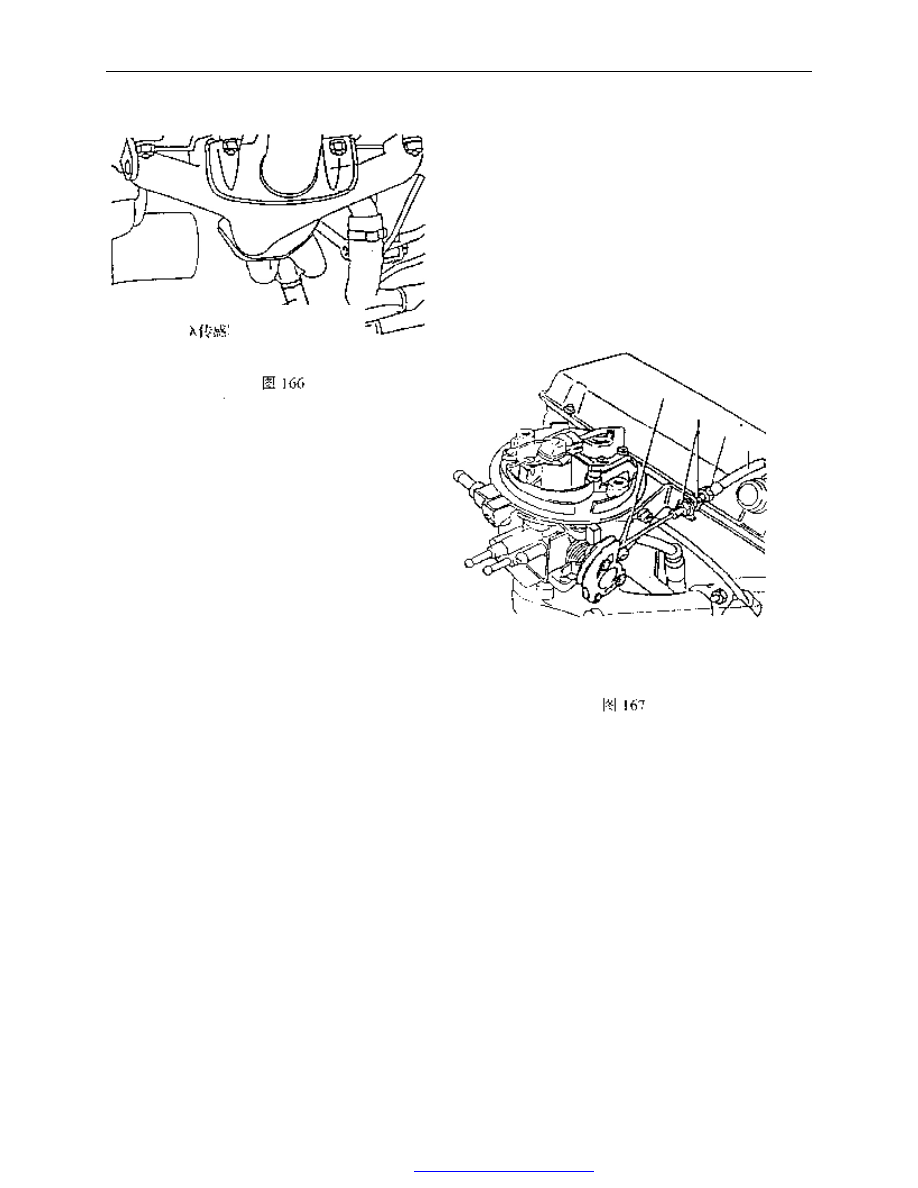

        replace oxygen sensor orλsensor:
——  remove  the  electric  connections  (1)  and  (2)  from  theλ
sensor

—— removeλsensor from the case
——during  reassembling,  grease  should  be  applied  on
threads. antiseize boron nitrogen grease is recommended.



Fig.164

Fig. 165

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

105





tightening torque 0.5—0.6Nm



at  ambient  temperature,  The  resistance  indicated  by
digital multimeter should be 2.5—4.5Ω.

Note:  Even  though  little  lead  exists  in  the  fuel,  the

sensor may fail soon. the function inspection is specified
every    45,000km and 90,000km.












The throttle valve cable adjustment


Adjust the throttle cable according to the following:

—— Loosen two lock nuts(2),hexagonal lever(3) is retained in the protective sleeve
—— tighten or loosen hexagonal lever (3)    to adjust the end position of protective boot (4) insuring the cable

(1) is not too loose or too tight when pedal is released.

—— tighten the two lock nuts (2) in the hexagonal lever (3)

—— depress accelerator pedal fully. Check for throttle valve operation while it is fully open.



sensor

Fig. 166

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

106

5.malfaction, cause and correction

Malfuction

cause

Correction

Fuel  pump.  fuel
injector IVM523

check for operation by CHECK—UP1

Tachometer
senser.

Check wring, sensor resistance and installation of    the sensor.

Dual relays

Check for function, connector connection and blown fuse.

Vehicle cannot start

35——pin
connection

Check for the wiring connection to ECU.

Difficult to start;

idling    speed    too

high or too low

Engine

idling

speed

control

solenoid.

check  for  solenoid  operation  and  4—pin  connection  by
CHECK—UP1.

warning light on

During idling,

λsensor

Check  for  the  wiring,  proper  sensor  tightening  torque  and  the
sensor heater’s operation

warning light on for

a long time

Diagnosis
warning light

Check for the signal wiring grounding.

warning light

doesn’t turn on

Diagnosis
warning light

The bulb is broken or circuit is open

Rough idling at high

temperature.

Throttle

valve

sensor  or  water
temperature
sensor

the  throttle  valve  opening  angle  and  water  temperature  signal
displayed by CHECK—UP1 should match the engine operation.

Rough idling at low

temperature.

coolant
temperature
sensor  or  intake
air  temperature
sensor

The  temperature  indicated  should  be  in  the  vicinity  of  the
ambient temperature.

Idle intermittent

wave

1—throttle
  valve body
  30MM4

1.check  the  throttle  valve  cable  for  proper  adjustment,  smooth
movement.
2.if  the  throttle  valve  cable  is  correctly  adjusted  and  may  move
smoothly,    remove it. Check the throttle valve for resistance by
turning it with a hand (for friction);
3.display the throttle valve position by CHECK—UP1. If both 1
and  2  are  correct  and  engine  speed  is  still  high  ,  while
CHECK—UP1  displays  “angle  is  greater  than  the  allowable
angle”,  then  the  malfunction  is  positively  determined.  It  is
necessary to replace the throttle valve potentiometer. If the angle
is within the specified range, sensor wiring and connector should
be checked.

Idling speed

fluctuates

continuously at high

temperature.

1.throttle valve

  body

1.2 seal
1.3

vacuum

  connection



1.  check  the  above  item  1,2,3  for  intermittent  idling  speed
functions;
1.2 check the seal between cylinder head and throttle valve body;
1.3check  the  vacuum  lines  to  the  two  vacuum  passages,
which  are  of  absolute  pressure.  check  the  fuel  vapor

recirculation

  passages,  which  are  connected  to  the  throttle

valve body and intake manifold.
    Check  the  vacuum  tube  sealing  in  intake  manifold  for  brake
servo .

Vehicle performance

deteriorates

1—fuel  supply
system

1. Check for fuel supply. If fuel pressure is 1±0.1bar,    it is ok;
2.  If  malfunction  still  remains  after  upper  throttle  body
(30mm12)  is  replaced,  with  a  pressure  regulator  in  the  upper
throttle body, check fuel filter and fuel pipes.
