Service Manual

773 BICS Loader

CONTROL HANDLE



(ADVANCED HAND CONTROL)

(AHC) W/PUSH BUTTON FLOAT (Cont’d)

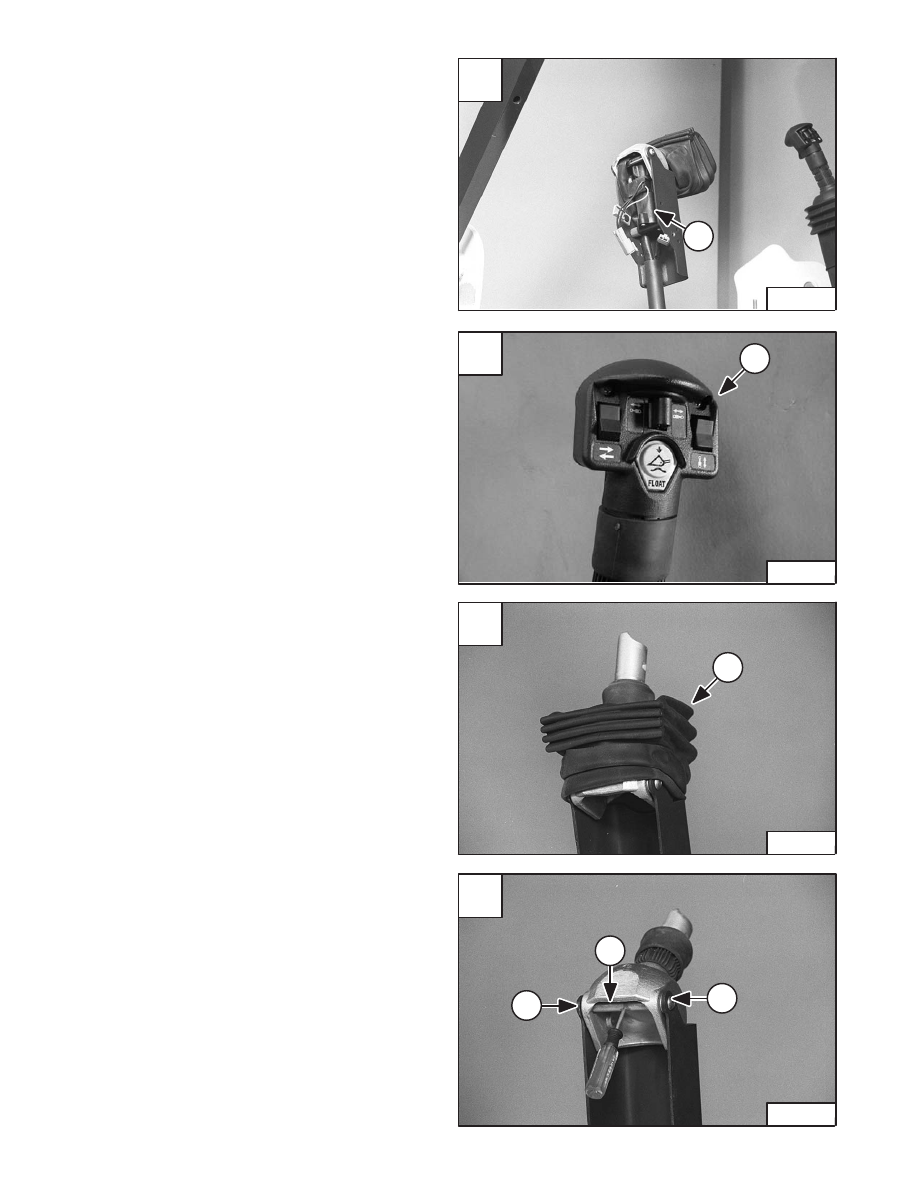

Control Handle Removal And Installation

Remove the handle sensor (Item 1) [A]. (See Page 10–34.)

Remove the switch handle (Item 1) [B]. (See Page 10–37.)

Remove the rubber handle cover (Item 1) [C] from the
handle.

Using a small screwdriver, hold the handle spacer (Item 1)
[D] and remove the allen head screws (Item 2) [D] from the
handle assembly.

Installation:  Tighten the allen head screws to 35 in.–lbs.
(4 Nm) torque.

Revised Nov. 01

B

P–16534

1

D

N–17385

1

2

2

A

N–17394

1

2

2

Service Manual

–10–41–

773 BICS Loader

CONTROL HANDLE



(ADVANCED HAND CONTROL)

(AHC) W/PUSH BUTTON FLOAT (Cont’d)

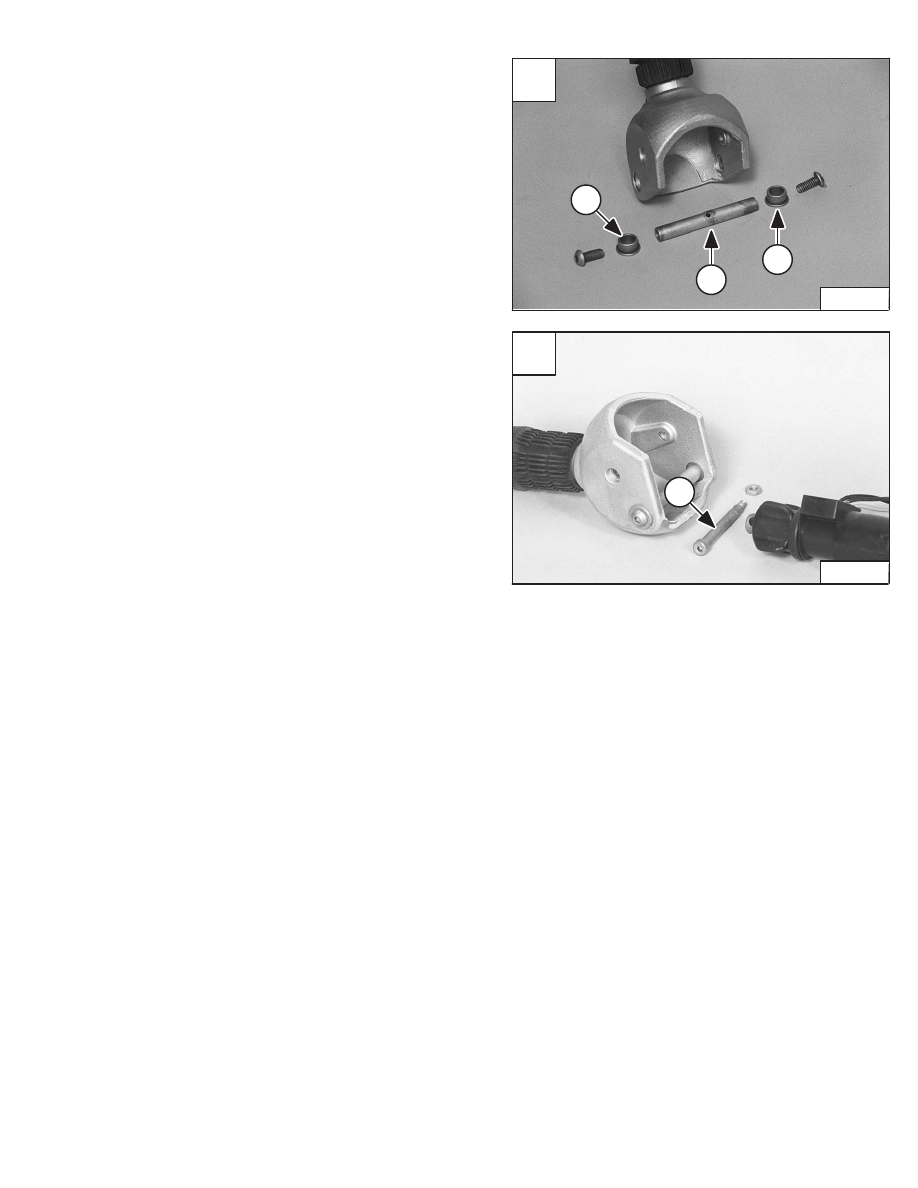

Control Handle Disassembly And Assembly

Remove the handle sleeve (Item 1) [A] and bushings (Item
2) [A] from the handle.

Check all parts for wear and replace as needed.

Check the mounting bolt (Item 1) [B] that connects the
handle to the handle sensor unit for wear, replace as
needed.

Revised June 01

B

N–22796

1

C

18.25”

A

N–22667

1

1

1

1

B

N–22658

1

–10–42–

Service Manual

773 BICS Loader

CONTROL HANDLE



(ADVANCED HAND CONTROL)

(AHC) W/PUSH BUTTON FLOAT (Cont’d)

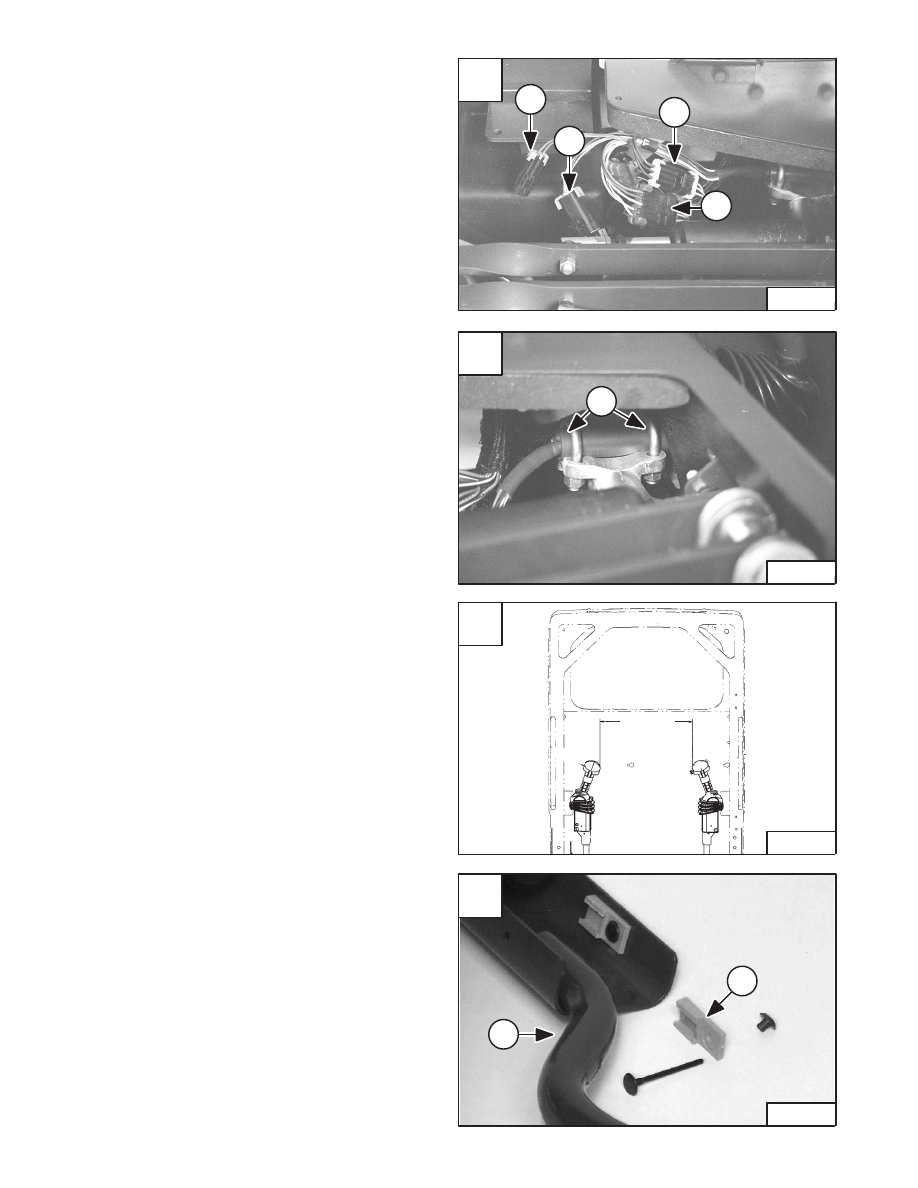

Control Lever Removal And Installation

Disconnect the electrical connectors (Item 1) [A] from the
control lever switch handle.

Remove the electrical connectors from the control lever
switch handle. (See Page 10–38.)

Loosen the two u–clamps (Item 1) [B] nuts.

Installation: Tighten the u–bolts so the lever can not be
moved either right or left when seated in the operator seat.
Control lever end (Item 2) [B] should be flush with
bellcrank. Be sure the control lever does not interfere with
the operator cab when lowering or raising the cab. The
distance between handles should be 18.25 inches [C].

Remove the control lever from the cross shaft and control
panel.

The control lever (Item 1) [D] must be replaced as a
complete unit.

The connector clip (Item 2) [D] can be replaced separately
from the control lever.

Revised Nov. 01

D

P–13734

1

2

A

N–22659

1

2

Service Manual

–10–43–

773 BICS Loader

CONTROL HANDLE



(ADVANCED HAND CONTROL)

(AHC) W/PUSH BUTTON FLOAT (Cont’d)

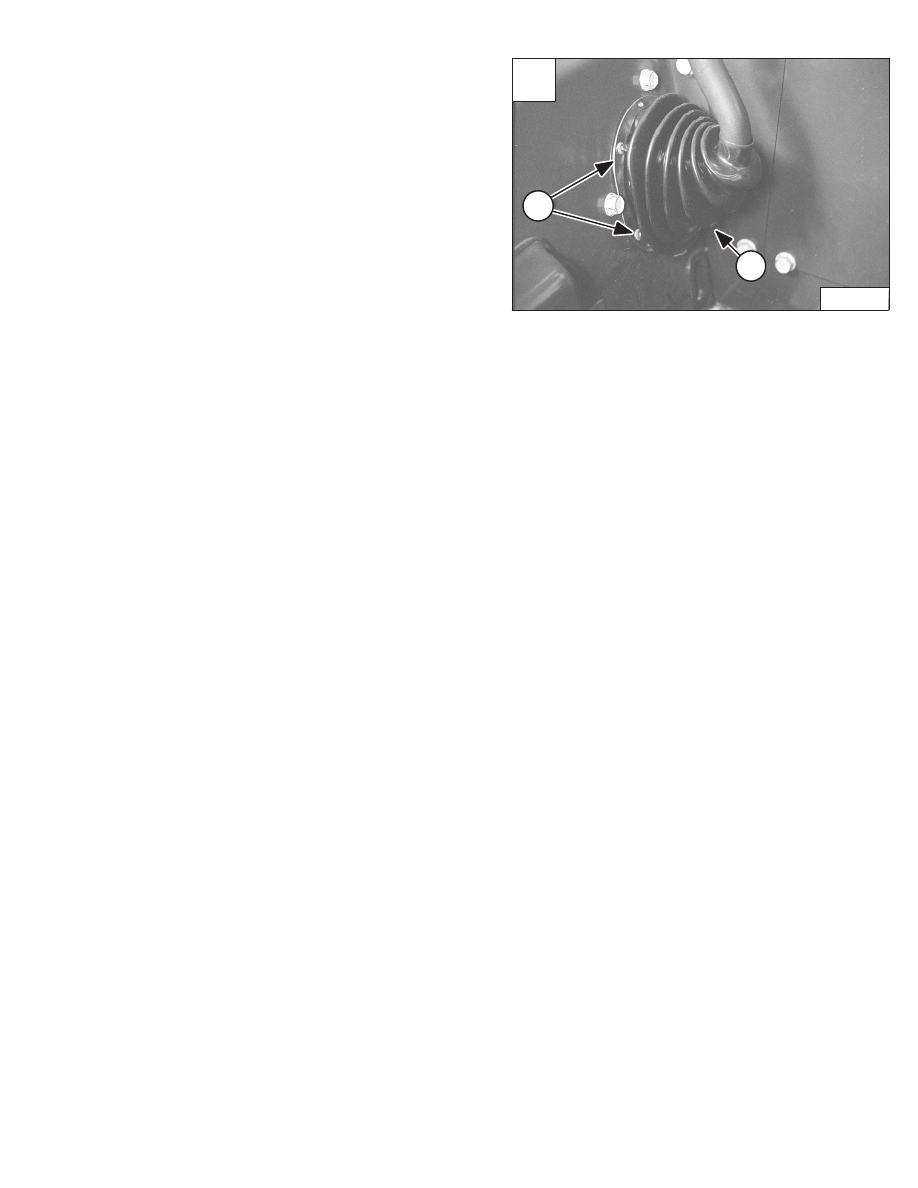

Control Lever Boot

To replace the rubber boot (Item 1) [A] on the control panel,
remove the control lever. (See Page 10–42.)

Drill out the four rivets (Item 2) [A] located on the flange of
the rubber boot and remove the old boot.

Install the new boot and reinstall the control lever. (See
Page 10–42 for control lever installation.)

Revised Nov. 01
