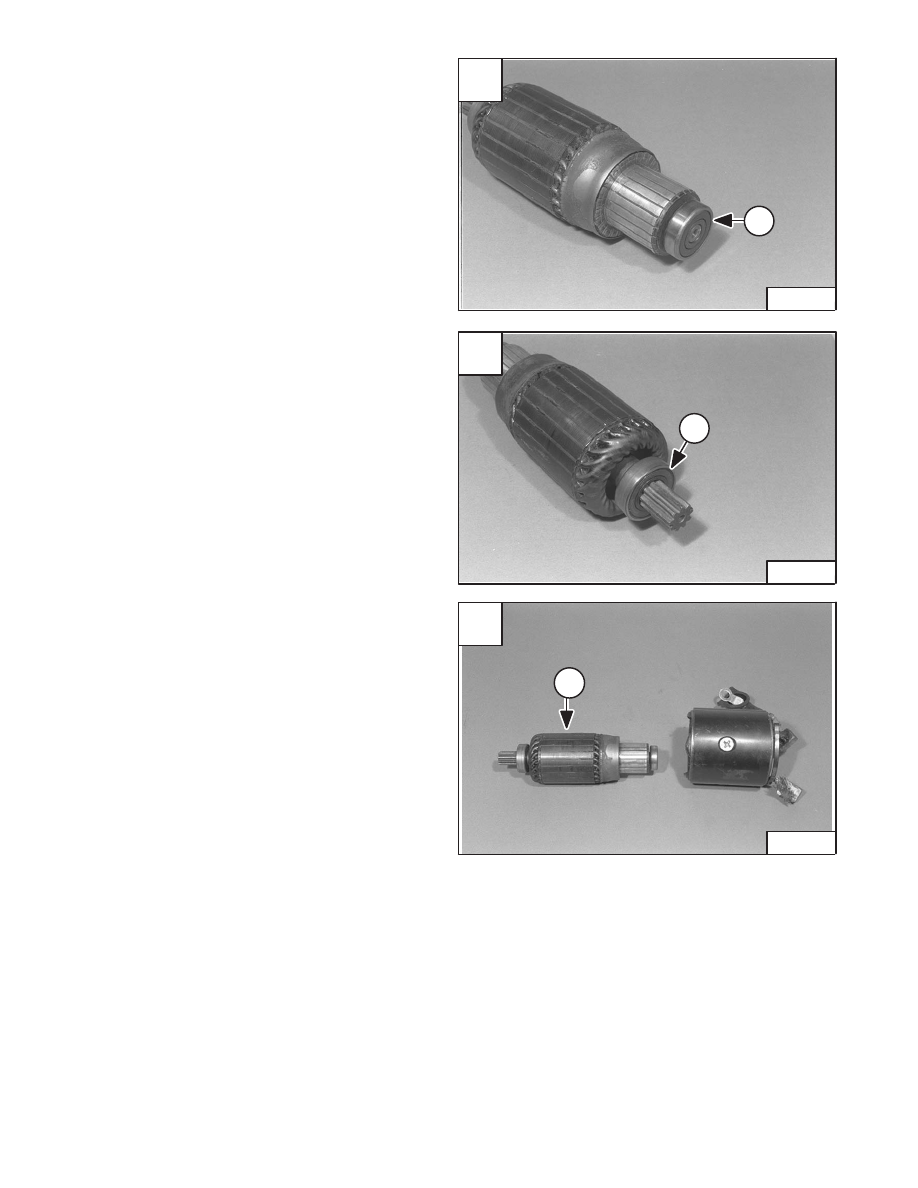

STARTER (DENSO) (Cont’d)

Assembly (Cont’d)

Install the bearings (Item 1) [A] & [B] on both ends of the
armature.

Install the armature (Item 1) [C] in the frame.

A

N–15013

1

C

N–00981

1

–6–32–

773 BICS Loader

Service Manual

B

N–15014

1

STARTER (DENSO) (Cont’d)

Assembly (Cont’d)

Install the frame/armature assembly (Item 1) [A] on the
housing.

NOTE: Make sure the notch (Item 1) [B] in the frame

matches up with the notch (Item 2) [B] in the
housing.

Install the brush holder (Item 1) [C] on the end of the
armature.

Using the needle nose pliers, pull the brush springs (Item
1) [D] back and install the brushes (Item 2) [D].

A

N–15154

1

C

N–15156

1

D

N–15157

2

1

773 BICS Loader

–6–33–

Service Manual

B

N–15155

1

2

STARTER (DENSO) (Cont’d)

Assembly (Cont’d)

Install the brush cover (Item 1) [A] and bolts (Item 2) [A].
Tighten the bolts to 23–40 in.–lbs. (3,0–5,0 Nm) torque.

Install the thru bolts (Item 3) [A]. Tighten the bolts to
60–104 in.–lbs. (7–12 Nm) torque.

Install the cable (Item 1) [B] on the magnetic switch.
Tighten the nut to 18–26 ft.–lbs. (24–35 Nm) torque.

A

N–15159

3

1

2

3

2

–6–34–

773 BICS Loader

Service Manual

B

N–15158

1

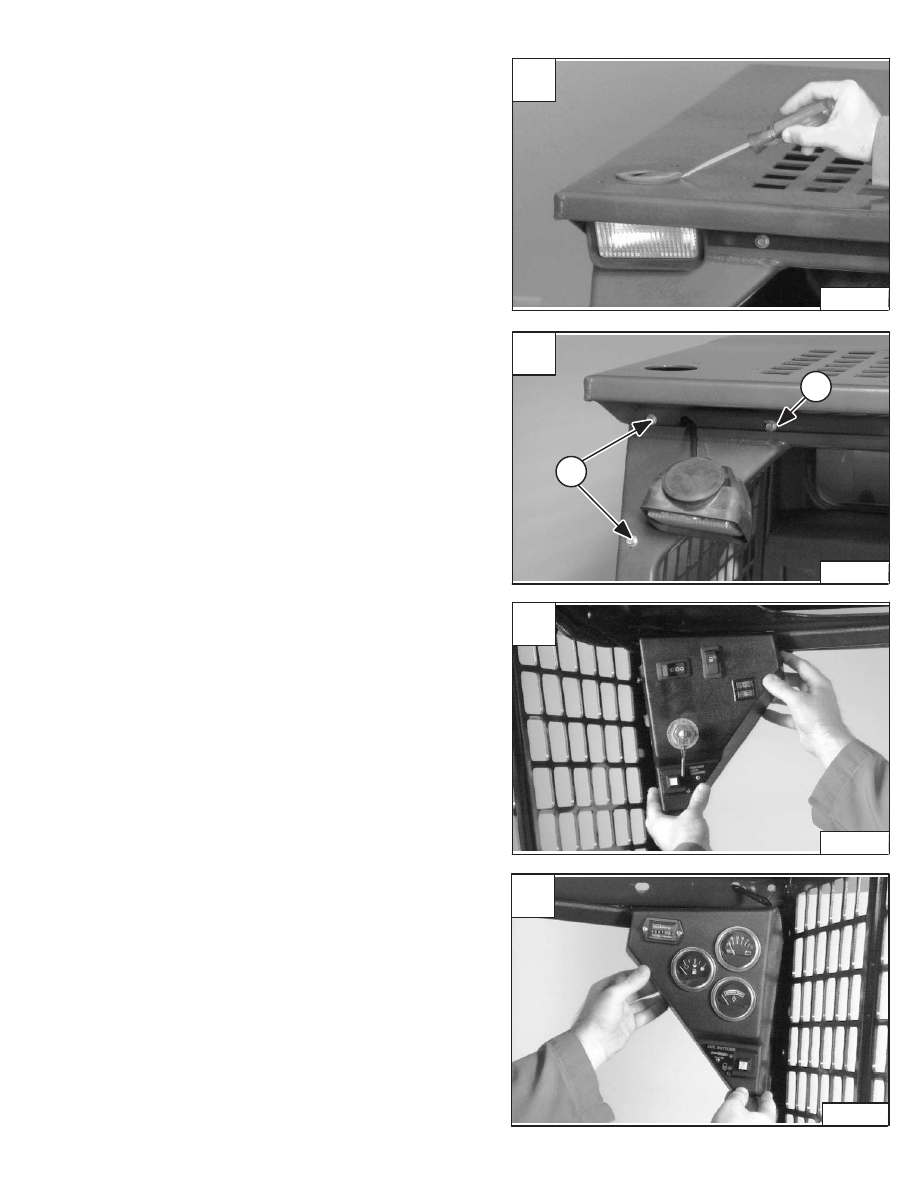

STANDARD INSTRUMENT PANEL

Removal And Installation

Pry the rubber light mount loose from the operator cab
(both sides) [A].

Lower the light from the operator cab and locate the three
instrument panel mounting bolts (Item 1) [B] (both sides).

Remove the three mounting bolts (Item 1) [B].

Installation: Be careful to not overtighten the instrument
panel mounting bolts to prevent stripping of the threaded
holes in the panels.

Pull the left instrument panel down and disconnect the
wire harness connectors from the panel. Remove the
panel [C].

Repeat steps [A] and [B]. Pull the right instrument panel
down and disconnect the wire harness connectors from
the panel. Remove the panel [D].

Reverse the removal procedure to install the instrument
panel.

A

P–03995

C

P–03951

D

P–03953

773 BICS Loader

–6–35–

Service Manual

B

P–03955

1

1
