The development tools "Simulation" and "Testing" were used for design.

383_035

Lower legform

(leg impact)

Headform

(head impact)

Head impact

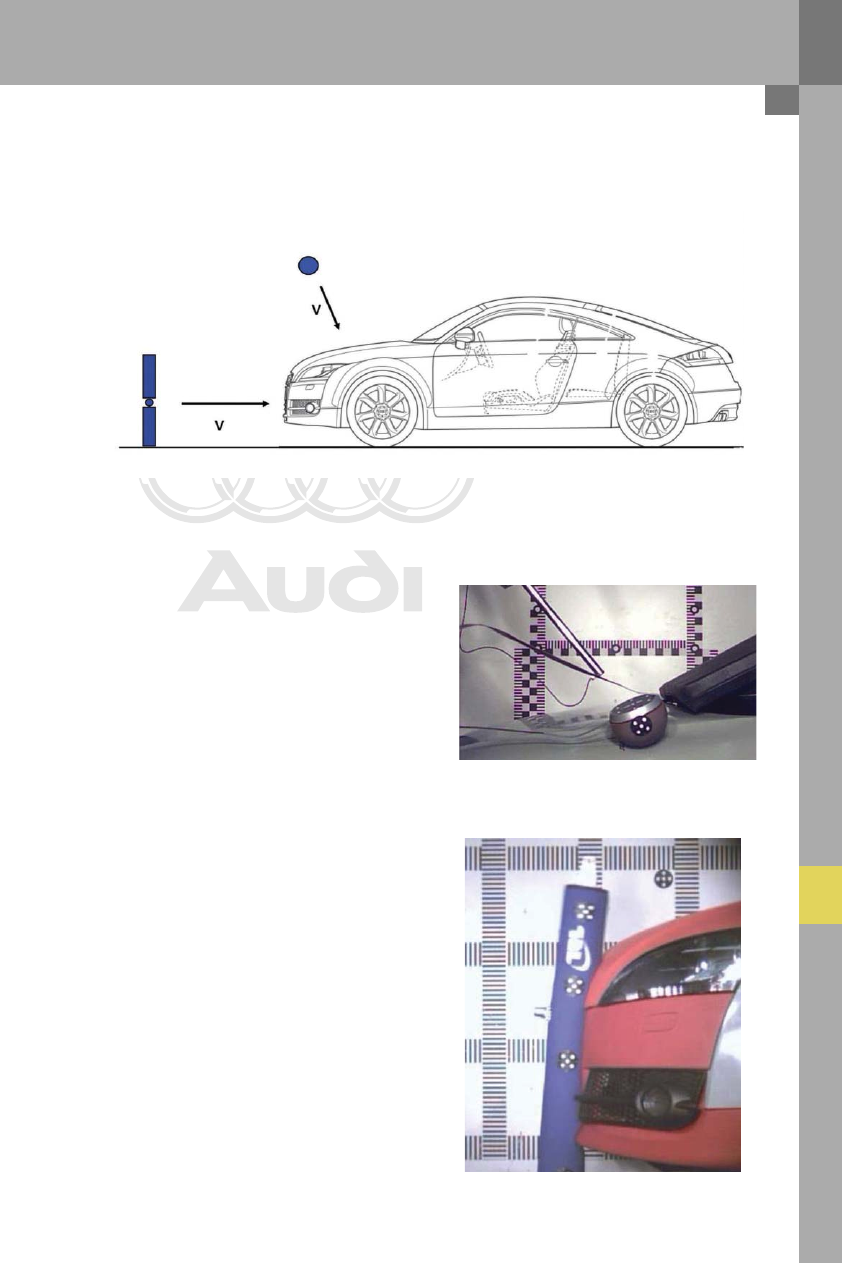

To test the head impact a hemisphere which repre-
sents the head is catapulted onto the bonnet.
The relevant physical variables are determined, on
the basis of which conclusions are drawn regarding
impact loads.

383_036

Leg impact

Leg impact is simulated by means of a test configu-
ration in which a test body similar to the actual body
part impacts the vehicle bumper.

383_037

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

30

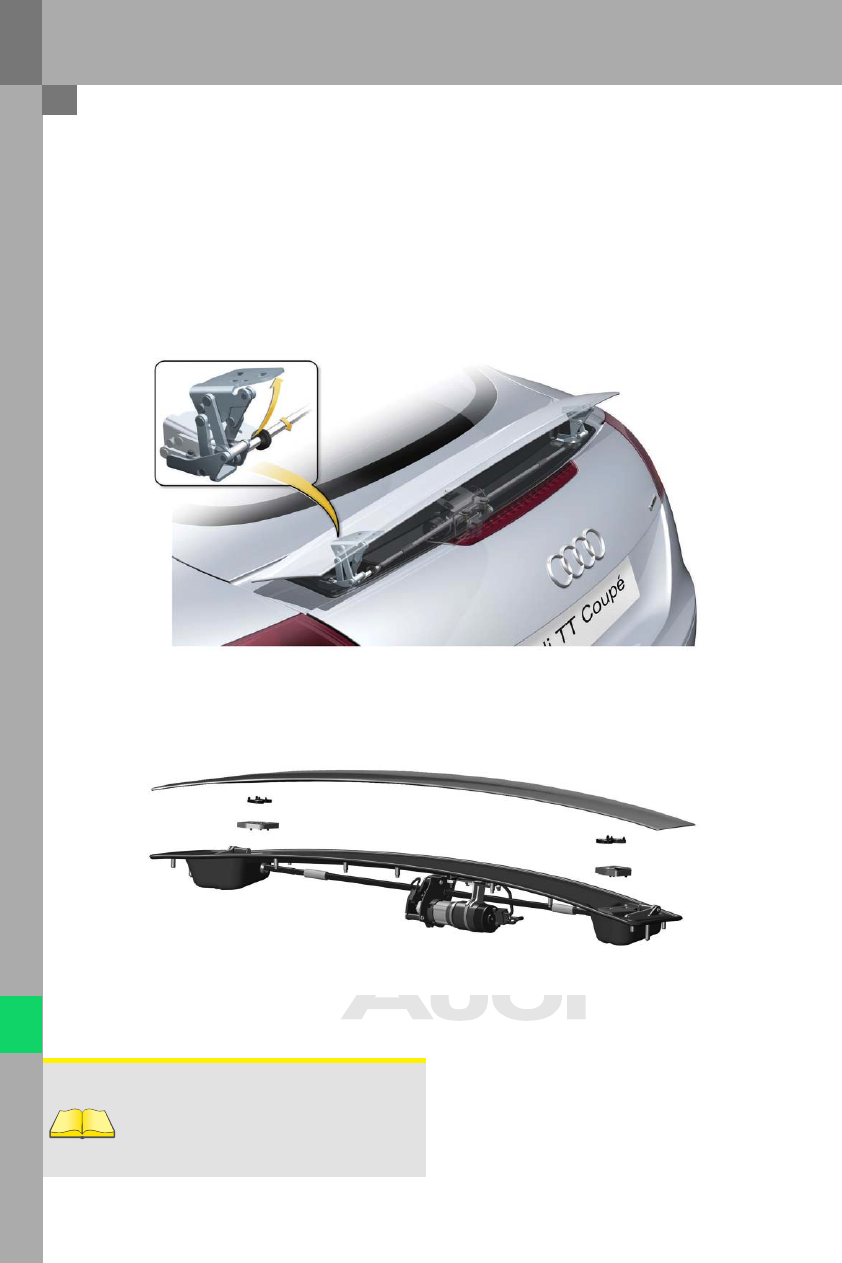

Electromechanical rear spoiler

The new Audi TT has as standard an electrically
extendable rear spoiler. The extended rear spoiler
significantly increases driving stability at high
speeds. The spoiler extends automatically at a
speed of 120 kph and retracts at a speed of 80 kph.
At speeds of less then 120 kph, the rear spoiler can
be actuated manually with a switch in the centre
console.

The unit consisting of the rear spoiler module and
the spoiler wing is integrated in the boot lid of the
Audi TT. The rear spoiler module with drive unit,
input shaft and reversing mechanism (hinge) is
bolted with self-adjusting elements to the sheet-
steel spoiler wing painted in the body colour.

383_038

383_045

When repair work is needed, the spoiler wing can
be replaced separately. The rear spoiler module is
replaced completely in case of damage.

Reference

For further information on operation, function
and diagnosis, refer to Self-study
Programme 382 "Audi TT Coupé ‘07 -
Electrical and Infotainment Systems“.
