25

383_049

EX 351

Welding

Aluminium Certificate

Repeat exam

EX 353

Audi TT

Aluminium technology

AB 352

Aluminium technology

BT 350

Welding

Aluminium technology

Welding Certificate

BT 351

Basics

Body

BT 352

Basics

Vehicle electrical

systems for car body

technology

BS 301

Occupant protection, airbags and belt ten-
sioners

BS 310

Selective use of technical information

BS 360

Vehicle diagnosis, testing and information
system VAS 5051

A special knowledge and special skills are required
to repair aluminium bodyshells. A prerequisite for
successful body repairs is participation in the rele-
vant training courses.

Particularly for welding work, certification of
employees according to international standard DIN
EN ISO 9606-2 is important.

Qualification of aluminium

Reference

For further information on the qualifications in
aluminium technology, refer to the Audi Service
Net.

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

26

Car body safety concept

Head-on collision, side impact and rear collision

Likewise, in terms of crash safety, the new TT makes
no compromises. The front beams consist of alu-
minium extruded sections and aluminium castings.
In combination with the front beams and a sub-
frame, they reduce and distribute the forces which
act on the car body during a head-on collision.
Large-sized beams in the rear end protect the occu-
pant cell.High-strength aluminium beams in the
doors provide side impact protection. The alumin-
ium bonnet is designed to all requirements for
pedestrian safety.

The simulation provides information on the collision
behaviour of the body structure at a very early stage
in the development process. For this purpose, calcu-
lations are done on the basis of the available car
body data using the Finite Elements Method. The
results are incorporated into the ongoing design
process, thus allowing the body structure design to
be optimised in respect of the relevant crash loads.

383_031

Simulation Euro NCAP head-on collision

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

27

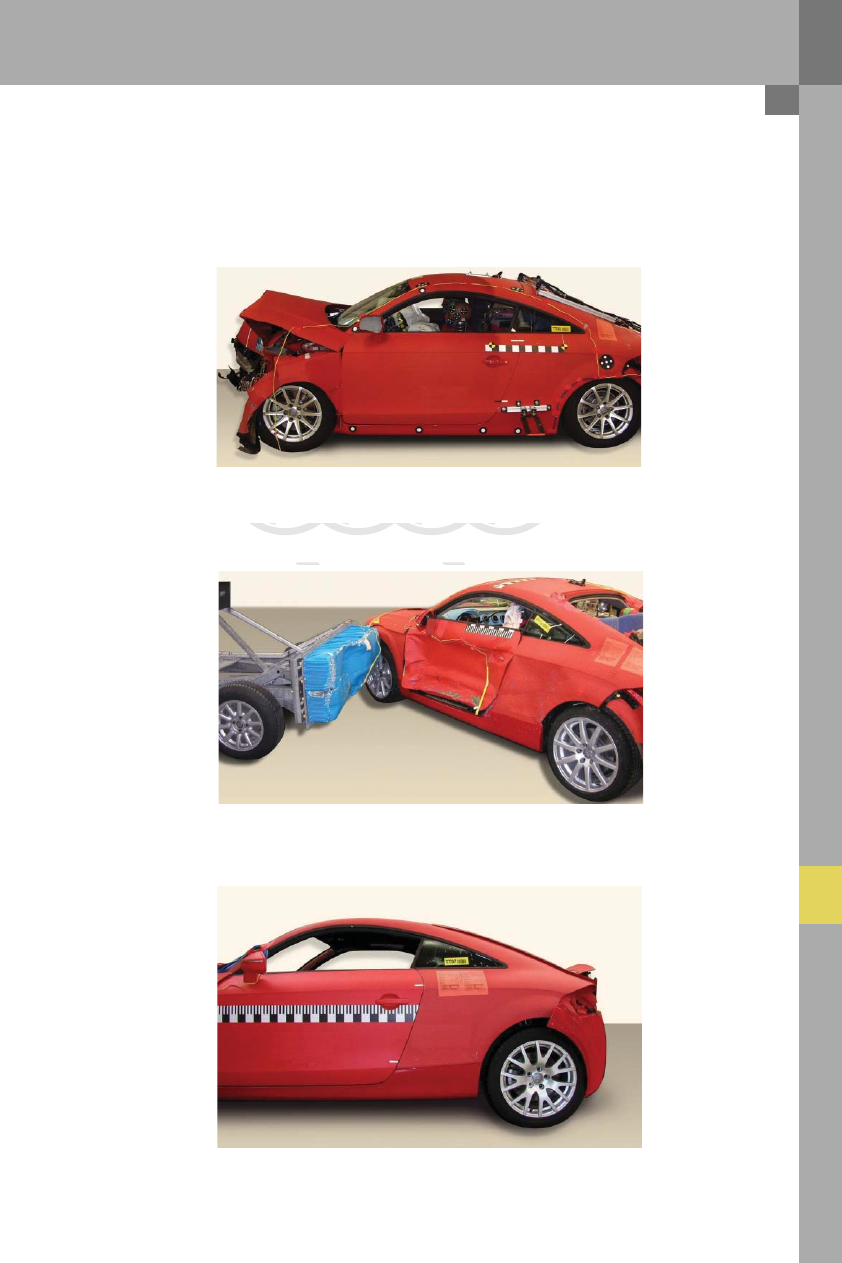

383_041

Euro NCAP head-on collision (64 kph with partial overlap)

To check the theoretical results and to meet statu-
tory requirements, actual tests are conducted.

Various test conditions are simulated on the basis of
the applicable standard.

383_042

Euro NCAP side impact (50 kph)

383_043

ECE and Japan rear collision (50 kph)

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

28

Car body safety concept

Pedestrian safety

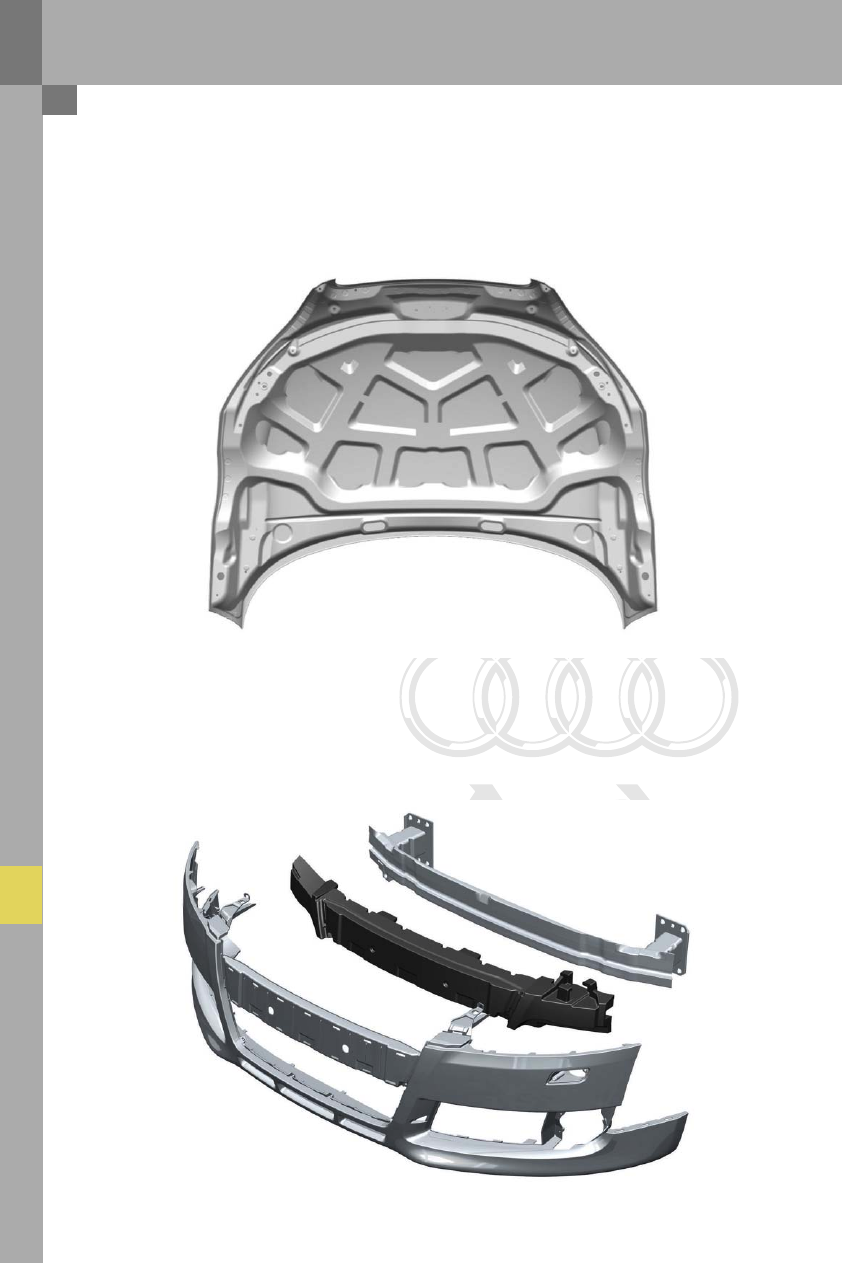

When designing the bonnet, importance was
attached to a stable design which yields to absorb
head impacts. This is achieved by the honeycomb-
like structure of the car body inner panelling.

383_034

The overall concept provides for deformation zones
between the bonnet and the units or car body struc-
tural parts.

To reduce leg impact force at the front end, the
bumper cover has been decoupled and an impact-
absorbing foam part has been integrated between
the bumper beam and bumper cover.

383_044

Pedestrian safety is an increasingly important fac-
tor. Various measures were implemented in the new
Audi TT in order to meet the safety requirements.
