1

Routing in the vehicle

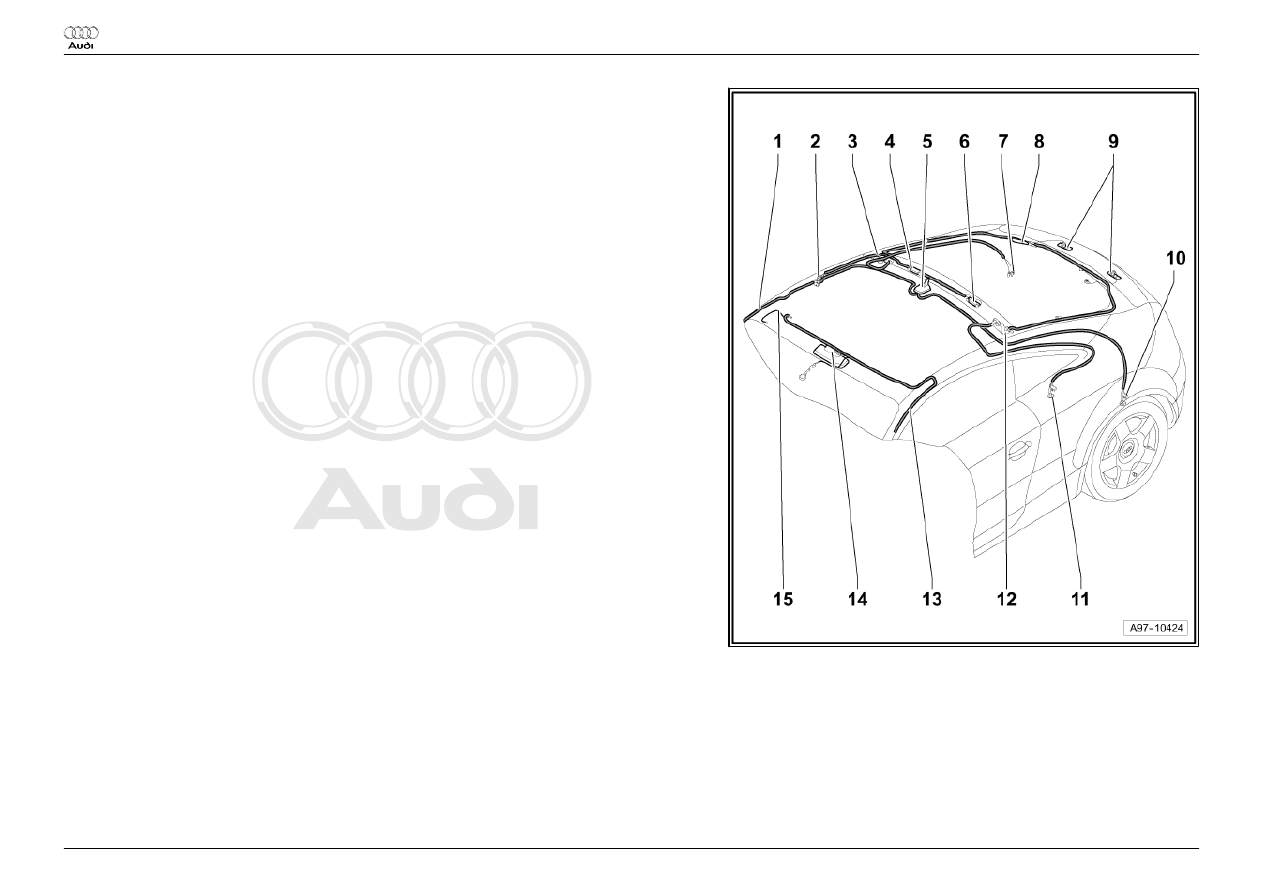

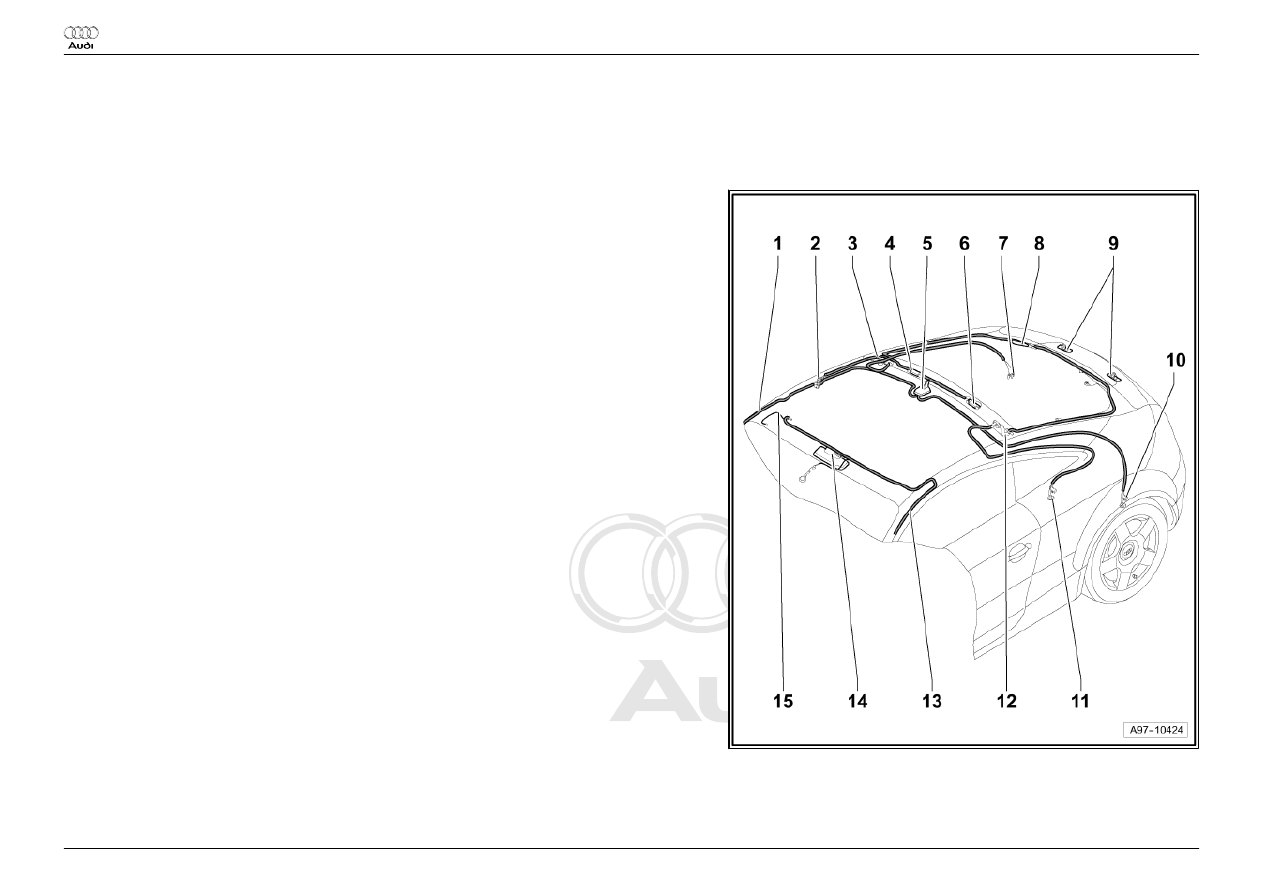

1.1

Routing rear lid/roof

1 - Aerial wires to right A-pillar
2 - Coupling station right rear lid, in rear right roof frame
3 - Transition rear lid to luggage compartment
4 - Aerial amplifier -R24- on rear lid upper right
5 - Radio, telephone and navigation system aerial -R52- (GSM/GPS)
- Radio, telephone and navigation system aerial -R52- (Sat/GPS/GSM) only USA
6 - Aerial amplifier 4 -R113- on rear lid upper left
7 - Aerial connections TV tuner -R78- on right in luggage compartment

 Audi TT

Fitting Locations

No.  806 / 1

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

8 - Aerial amplifier 2 -R111- on rear lid bottom right
9 -

Left number plate light -X4-, right number plate light -X5-
10 - Aerial connections aerial amplifier for mobile telephone -R86-
-

Aerial connections satellite radio -R146- only USA
11 - Coupling station left rear lid behind side panel
12 - Transition rear lid to luggage compartment
13 - Wiring harness to A-pillar left
14 - Front interior light -W1-
15 - Sun blind, right illuminated vanity mirror

 Audi TT

Fitting Locations

No.  806 / 2

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

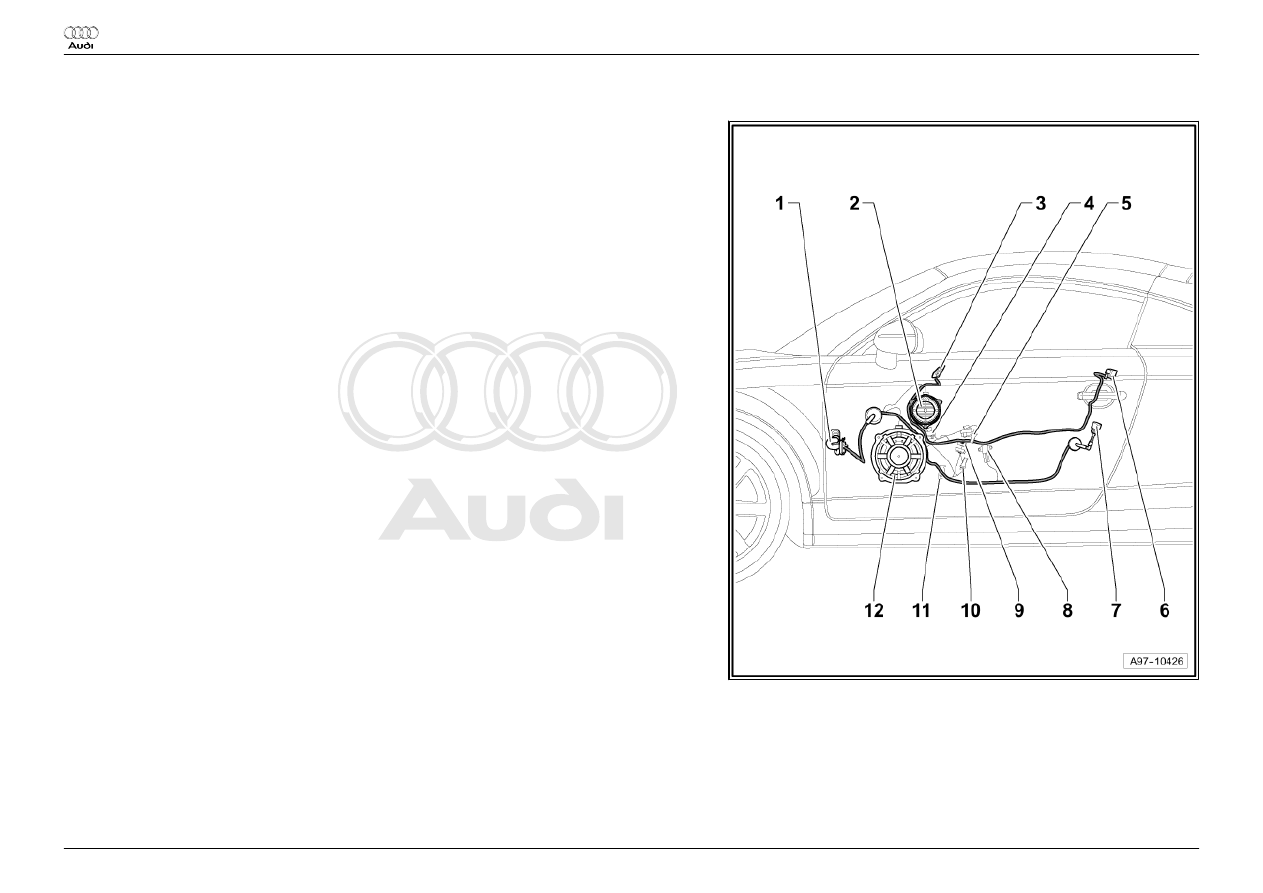

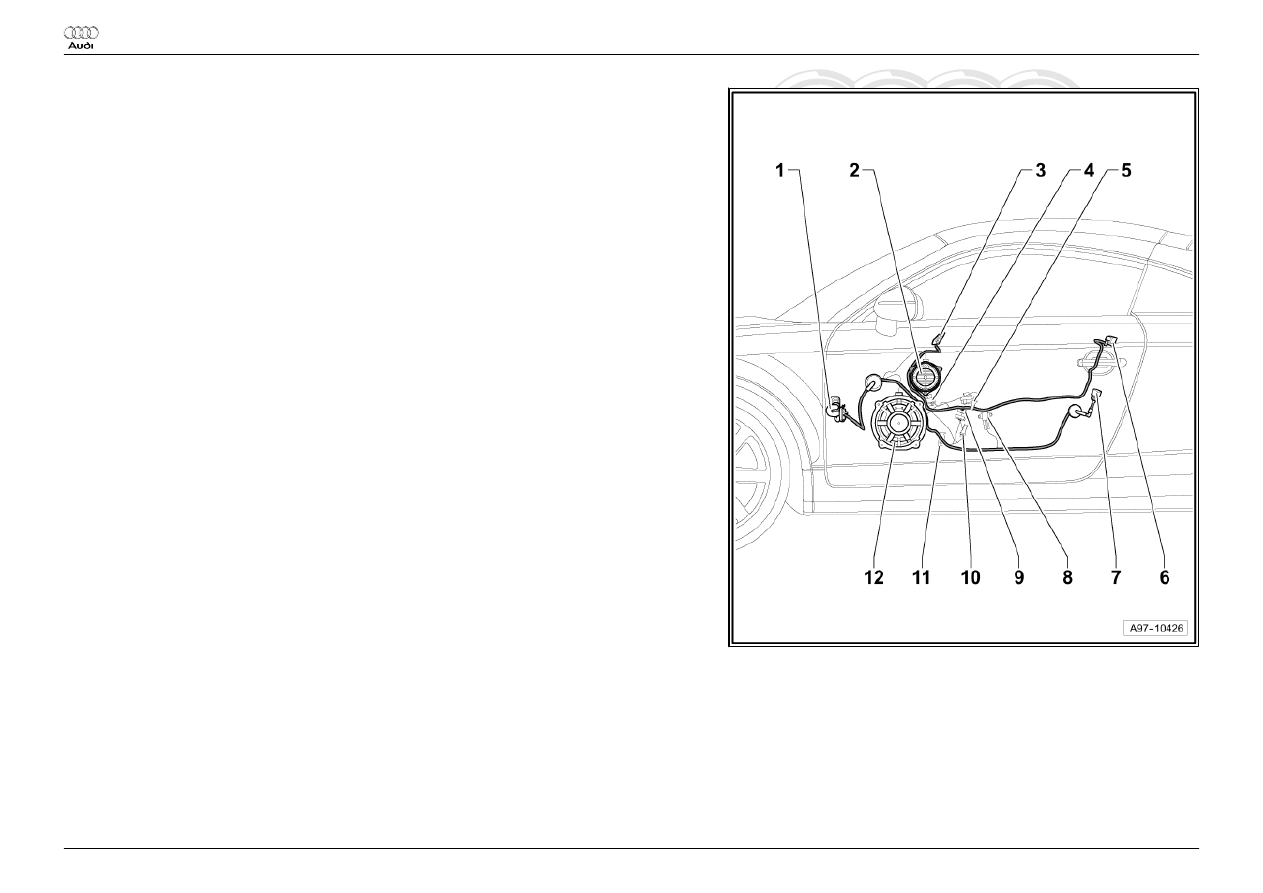

1.2

Routing door

1 - Coupling door - A-pillar
2 -

Front left mid-range loudspeaker -R103-, front right mid-range loudspeaker -R104- in the centre doors
3 -

Driver side interior locking button -E308-, front passenger side interior locking button for central

locking system -E309-
4 -

Mirror adjustment switch -E43-, mirror adjustment change-over switch -E48-
5 -

Operating unit for window regulator in driver door -E512-, window regulator switch in front passenger

door -E107-
6 -

Alarm system off switch -E217-, interior monitoring deactivation switch -E183-
7 -

Driver side central locking lock unit -F220-, rear left central locking lock unit -F222-
8 -

Side airbag crash sensor on driver side -G179-, side airbag crash sensor on front passenger side -

G180-

 Audi TT

Fitting Locations

No.  806 / 3

Edition  09.2007

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

9 - Driver side door control unit -J386-, front passenger door control unit -J387-
10 - Driver side door control unit -J386-, front passenger door control unit -J387-
11 -

Fuel tank flap release button -E319-, rear lid remote release button -E233-
12 -

Front left bass loudspeaker -R21-, front right bass loudspeaker -R23- in the bottom doors
