Audi TT (2007 year). Manual - part 212

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.16.2

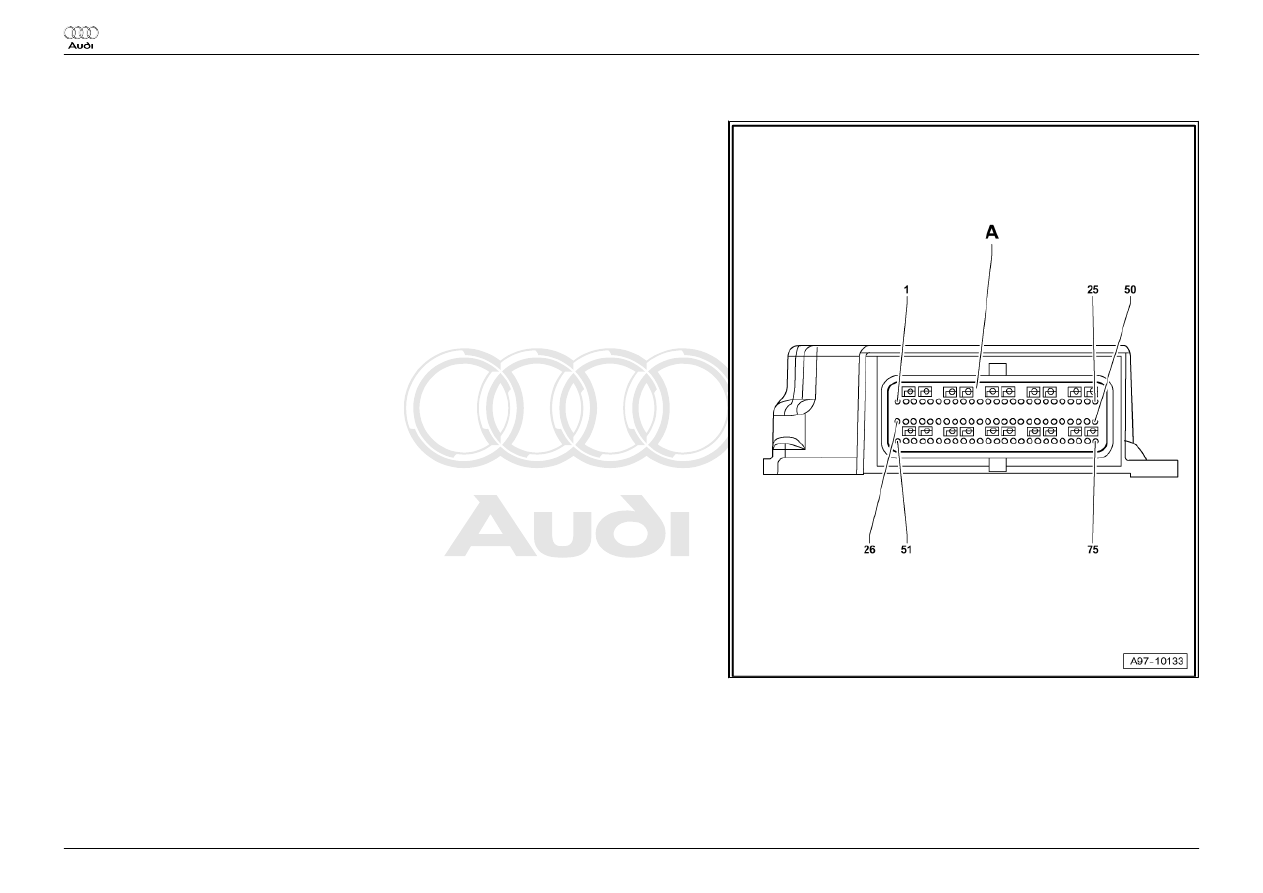

Connector assigment of airbag control unit -J234-

A - 75-pin connector -T75- , yellow

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.17

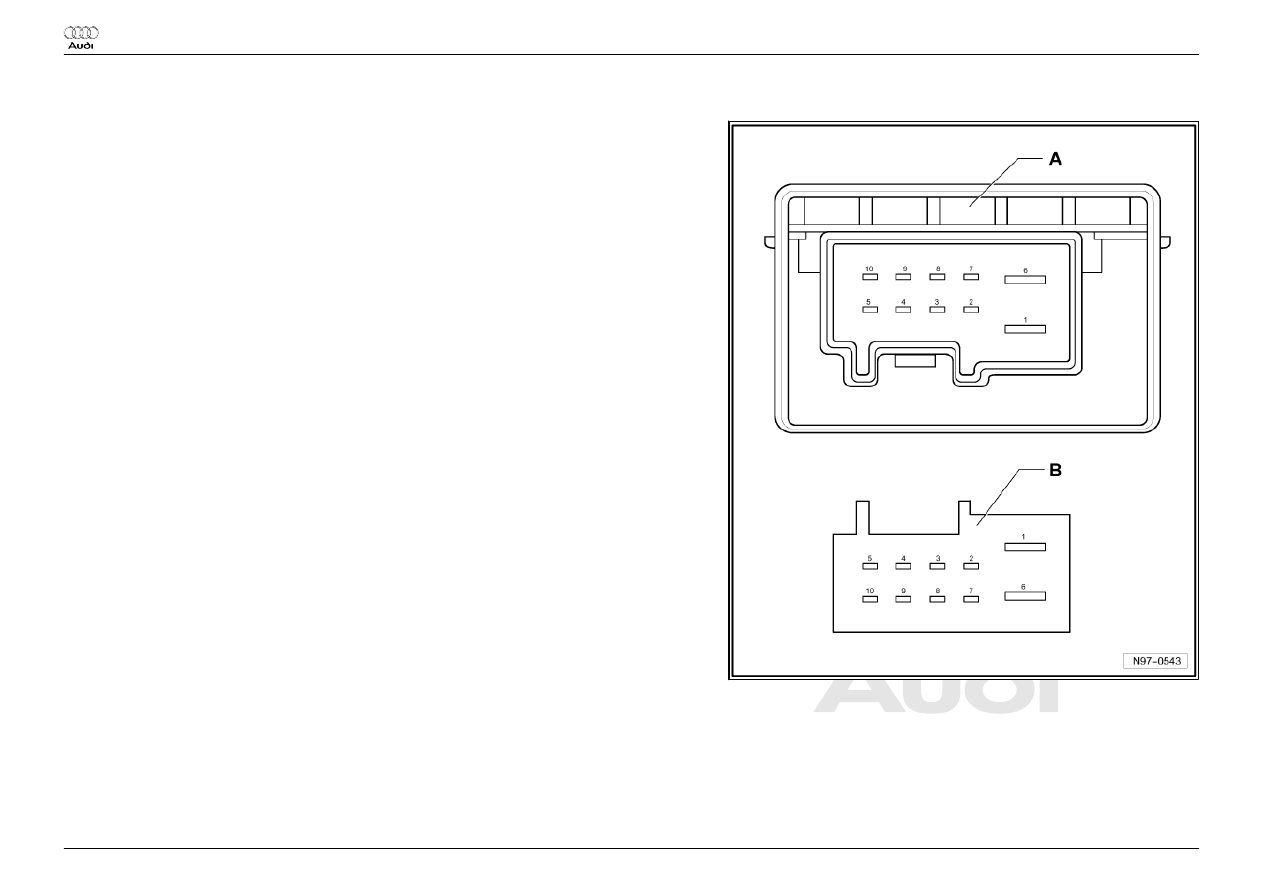

Fuel pump control unit -J538-

A - Fuel pump control unit -J538-
Pin connector

B - 10-pin connector -T10k- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.18

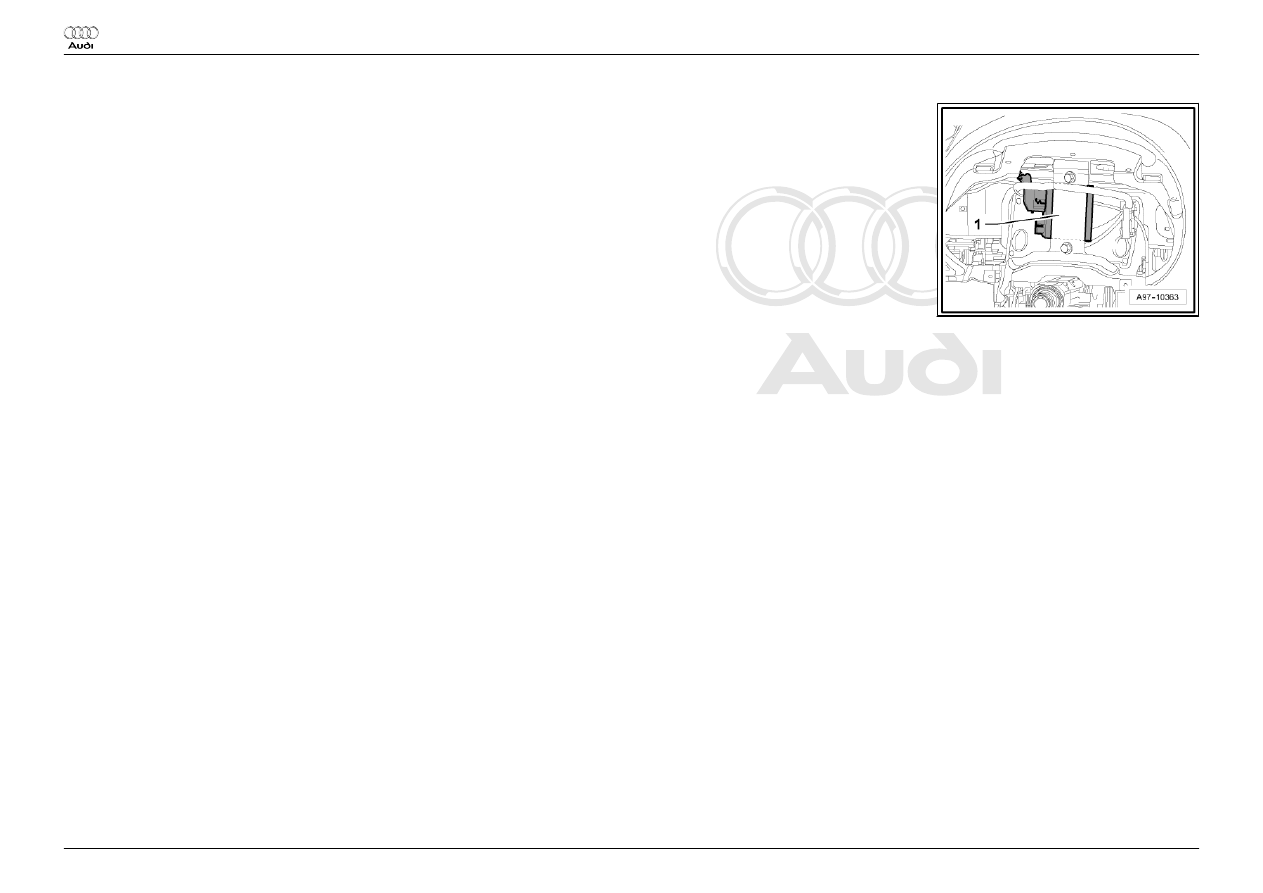

Tyre pressure monitor control unit 2 -J793-

1.18.1

Location:

Behind the instrument cluster -Item 1-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1

Relay

1.1

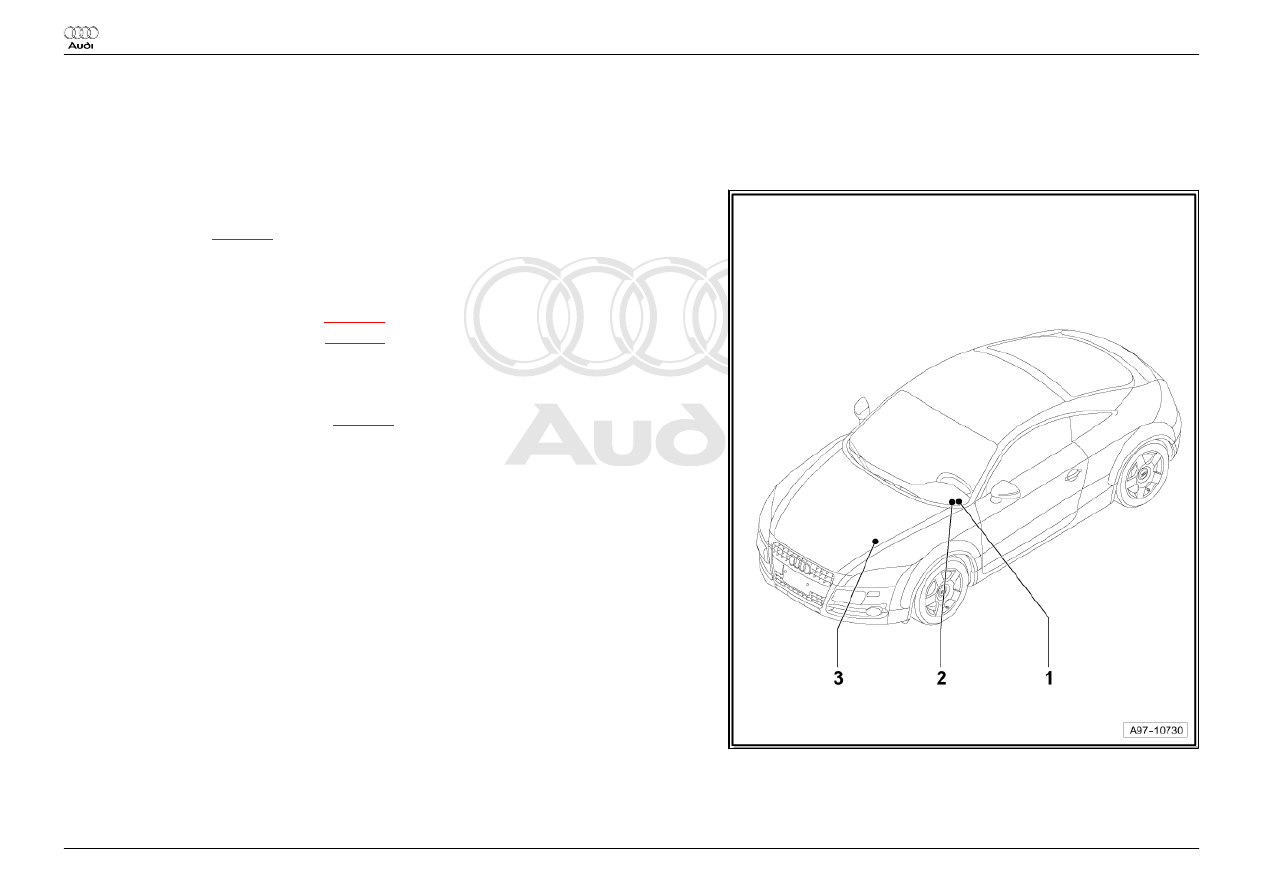

Overview of relay carrier

1 -

Relay carrier on left under dash panel

❑ Relay positions

⇒ page 2

2 -

Relay carrier on onboard power supply control unit

❑ Left under dash panel
❑ Relay positions, up to May 2009

⇒ page 4

❑ Relay positions, from June 2009

⇒ page 5

3 -

Relay carrier on electronics box

❑ Location in engine compartment, front left
❑ Relay positions of electronics box

⇒ page 3

 Audi TT

Fitting Locations

No.  805 / 1

Edition  04.2009
