1.12

Onboard supply control unit -J519-

1.12.1

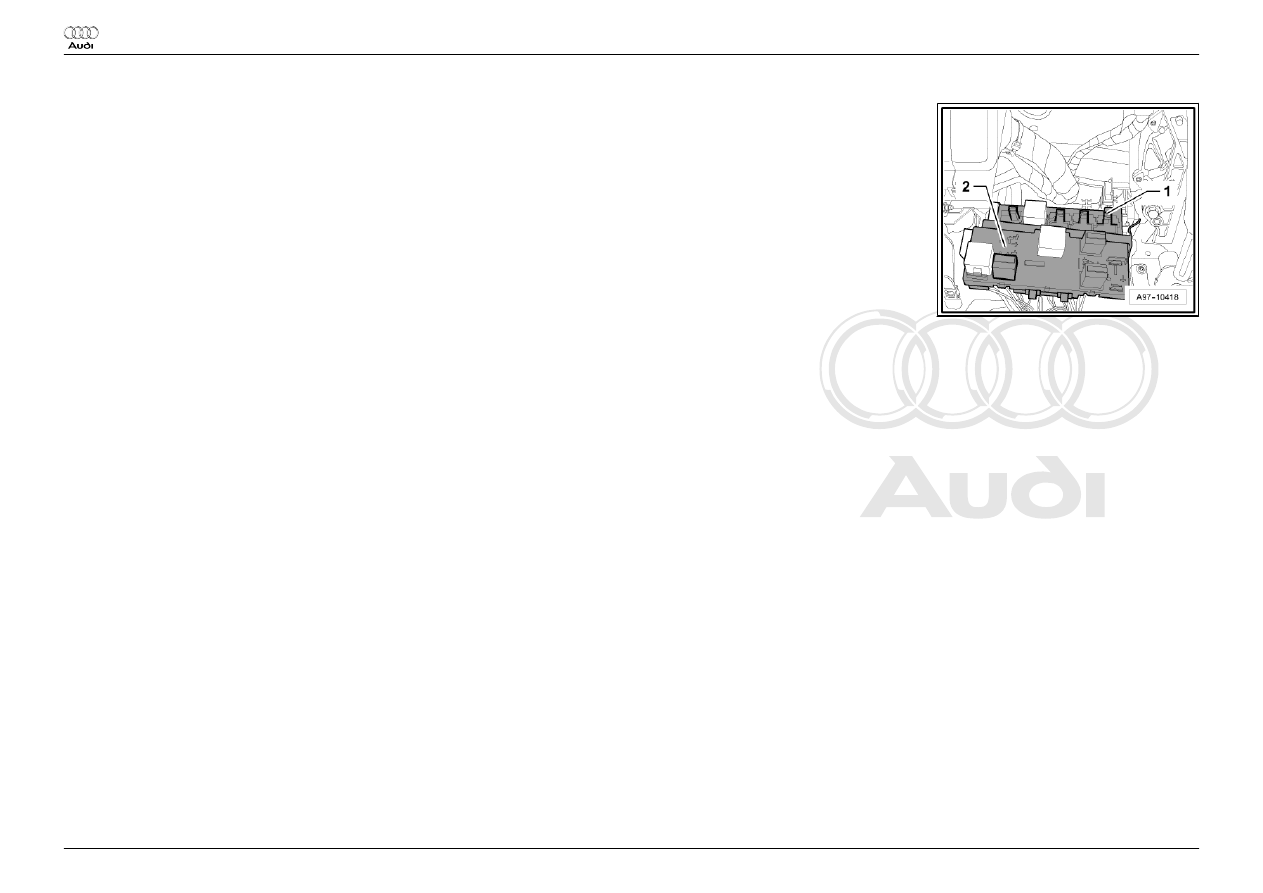

Location, up to May 2009:

Behind the shelf on the driver's side left, next to the steering

-Item 2-
1 - Relay carrier on left under dash panel
2 - Onboard supply control unit -J519-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.12.2

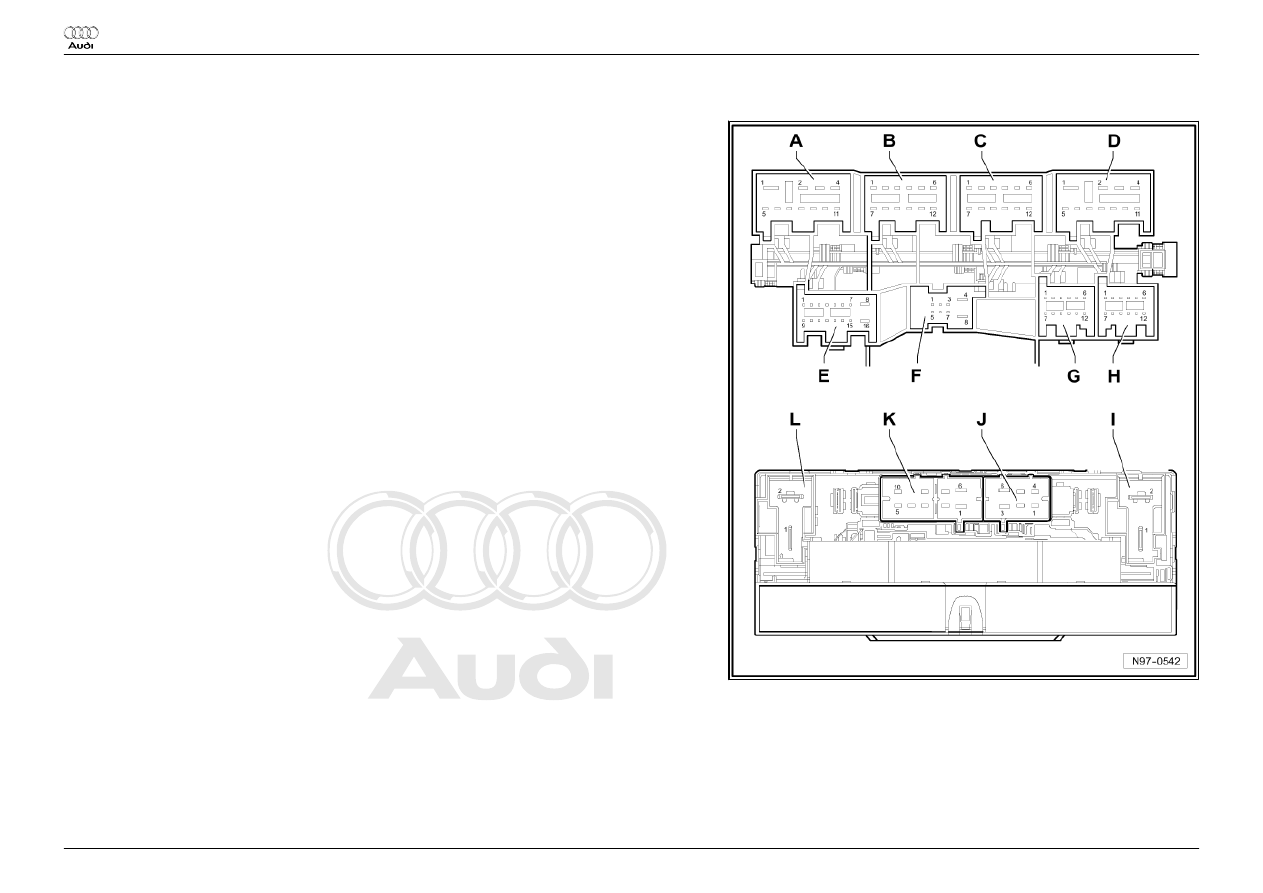

Connector assigment, up to May 2009:

A - 11-pin connector -T11b- , black
B - 12-pin connector -T12c- , black
C - 12-pin connector -T12d- , brown
D - 11-pin connector -T11c- , brown
E - 16-pin connector -T16a- , black
F - 8-pin connector -T8h- , black
G - 12-pin connector -T12e- , black
H - Vacant
I - Vacant
J - 6-pin connector -T6h- , black
K - 10-pin connector -T10d- , black
L - 2-pin connector -T2t- , black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.12.3

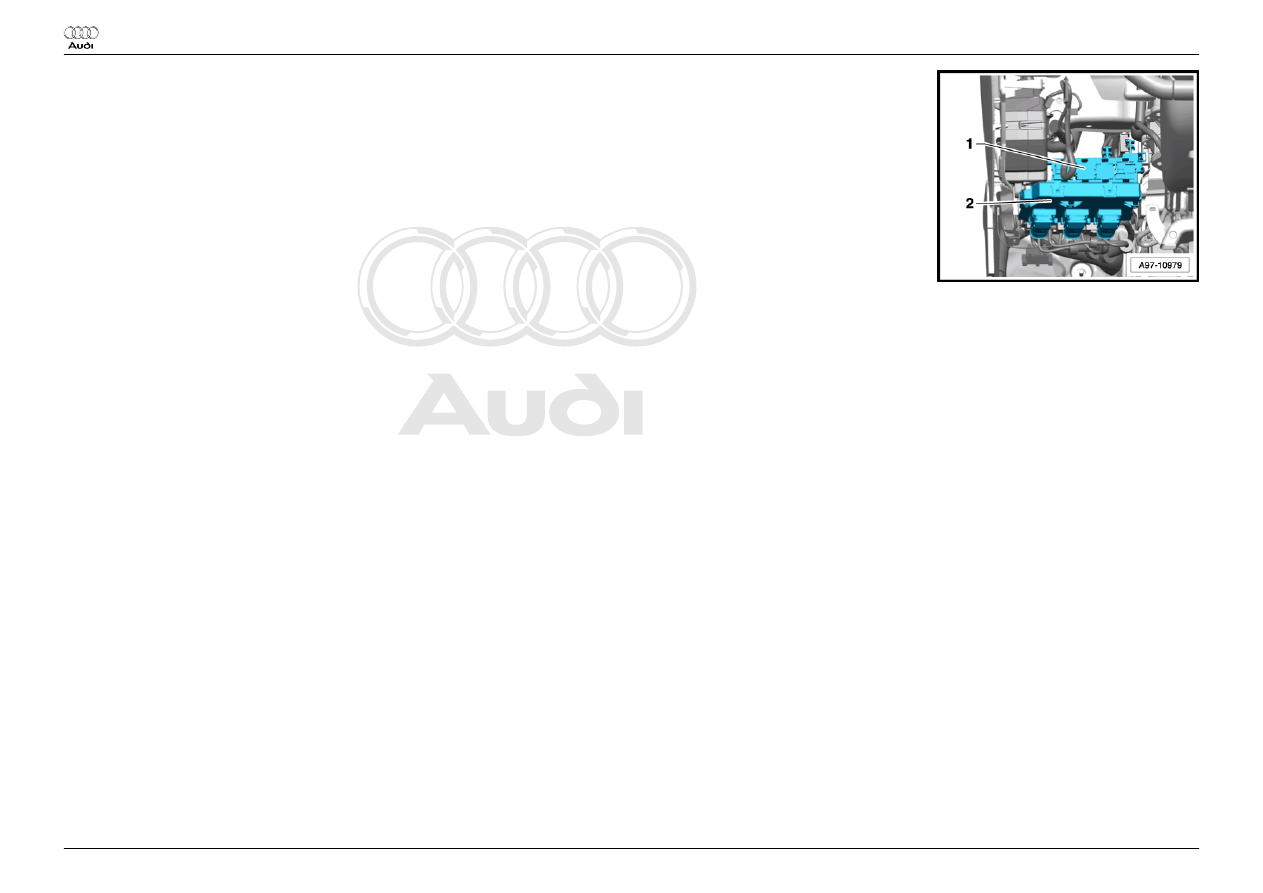

Location, from June 2009:

Behind shelf on driver side -Item 2-
1 - Relay carrier on left under dash panel
2 - Onboard supply control unit -J519-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.12.4

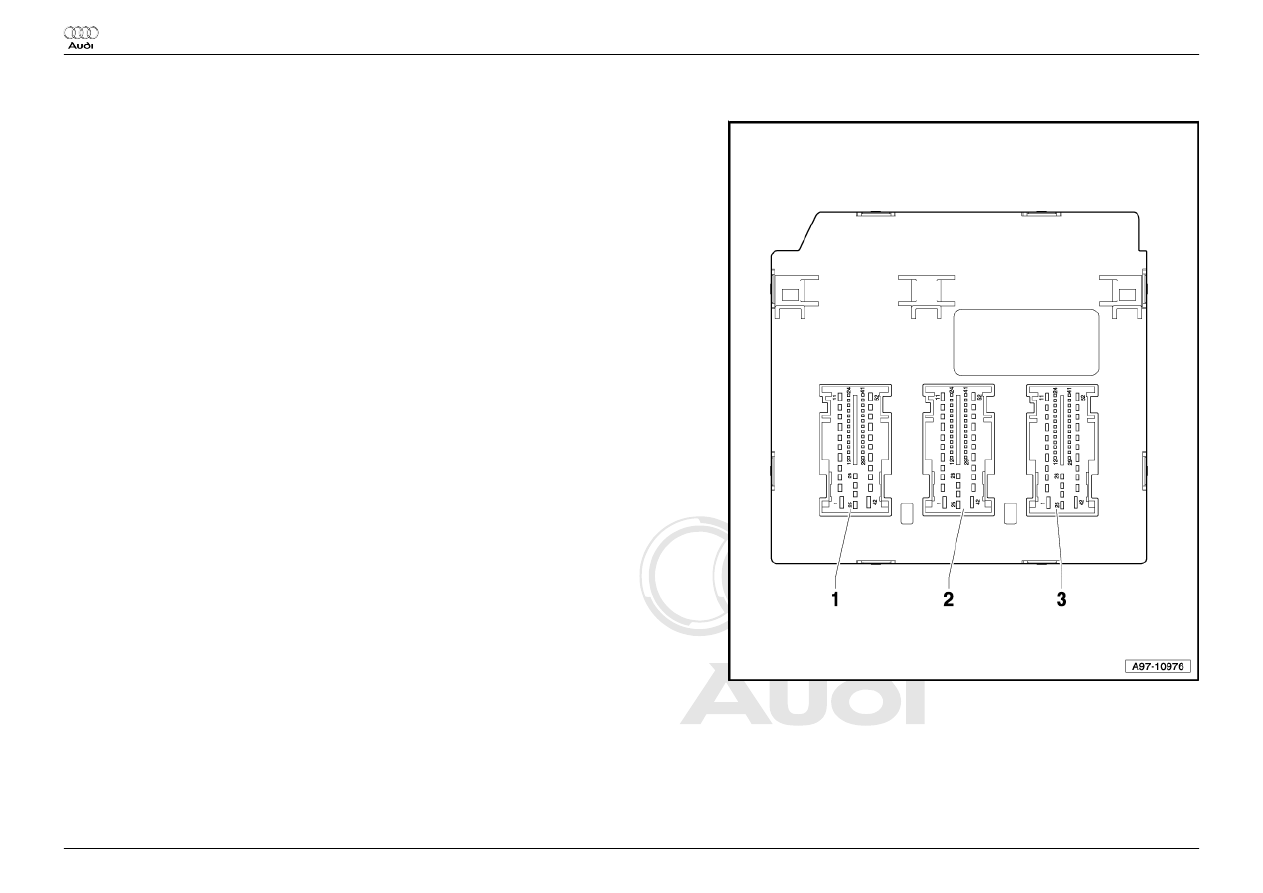

Connector assigment, from June 2009:

1 - 52-pin connector -T52a- , black
2 - 52-pin connector -T52b- , yellow
3 - 52-pin connector -T52c- , brown
