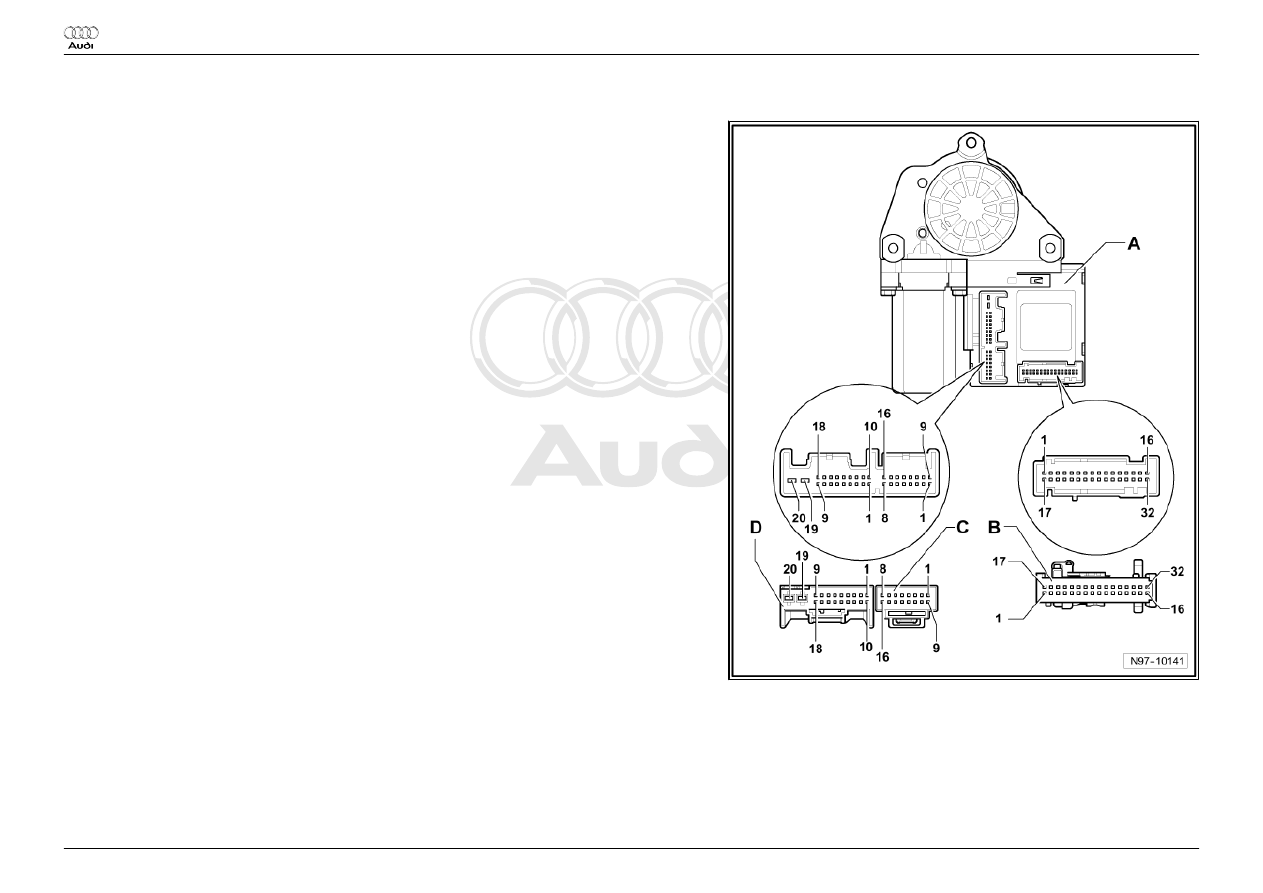

Connector assigment of front passenger door control unit -J387-

A - Front passenger door control unit -J387-
Pin connector

B - 32-pin connector -T32g- , on wiring harness grey
C - 16-pin connector -T16g- , on wiring harness, black
D - 20-pin connector -T20g- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.8

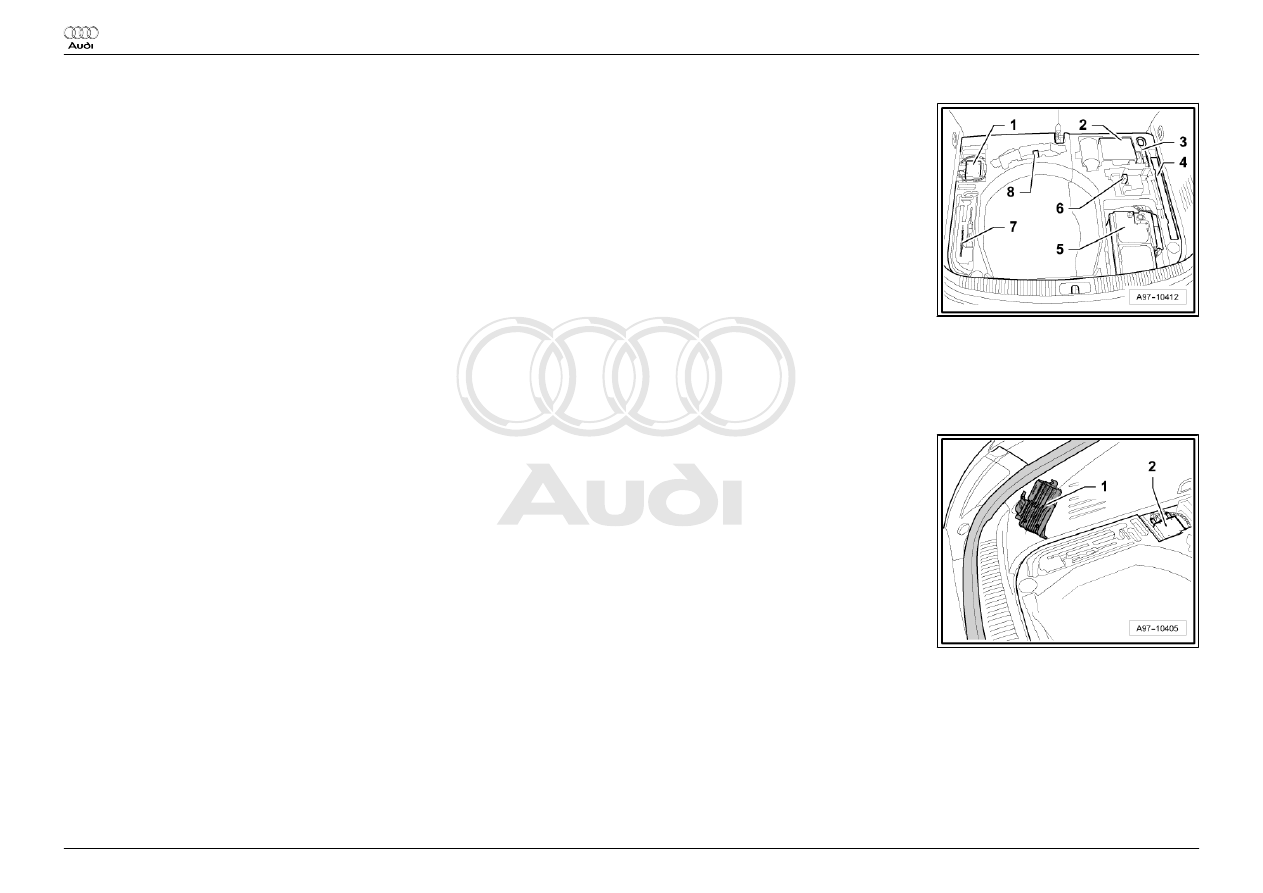

Convertible roof actuation control unit -J256- (Roadster)

1.8.1

Location:

in insert luggage compartment -Item 6-
1 - Aerial amplifier for mobile telephone -R86- (not USA)
- Satellite radio -R146- (only USA)
2 - Breakdown set
3 - Towline anchorage
4 - Warning triangle
5 - Battery -A-
6 - Convertible roof actuation control unit -J256- (only Roadster)
7 - Tools
8 - Jack

1.9

Digital sound package control unit -J525-

1.9.1

Location:

on left in luggage compartment -Item 1-
1 - Digital sound package control unit -J525-
2 - Satellite radio -R146- (only USA)
- Aerial amplifier for mobile telephone -R86- (not USA)
- Aerial filter -R87- (only USA, up to October 2006)

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.10

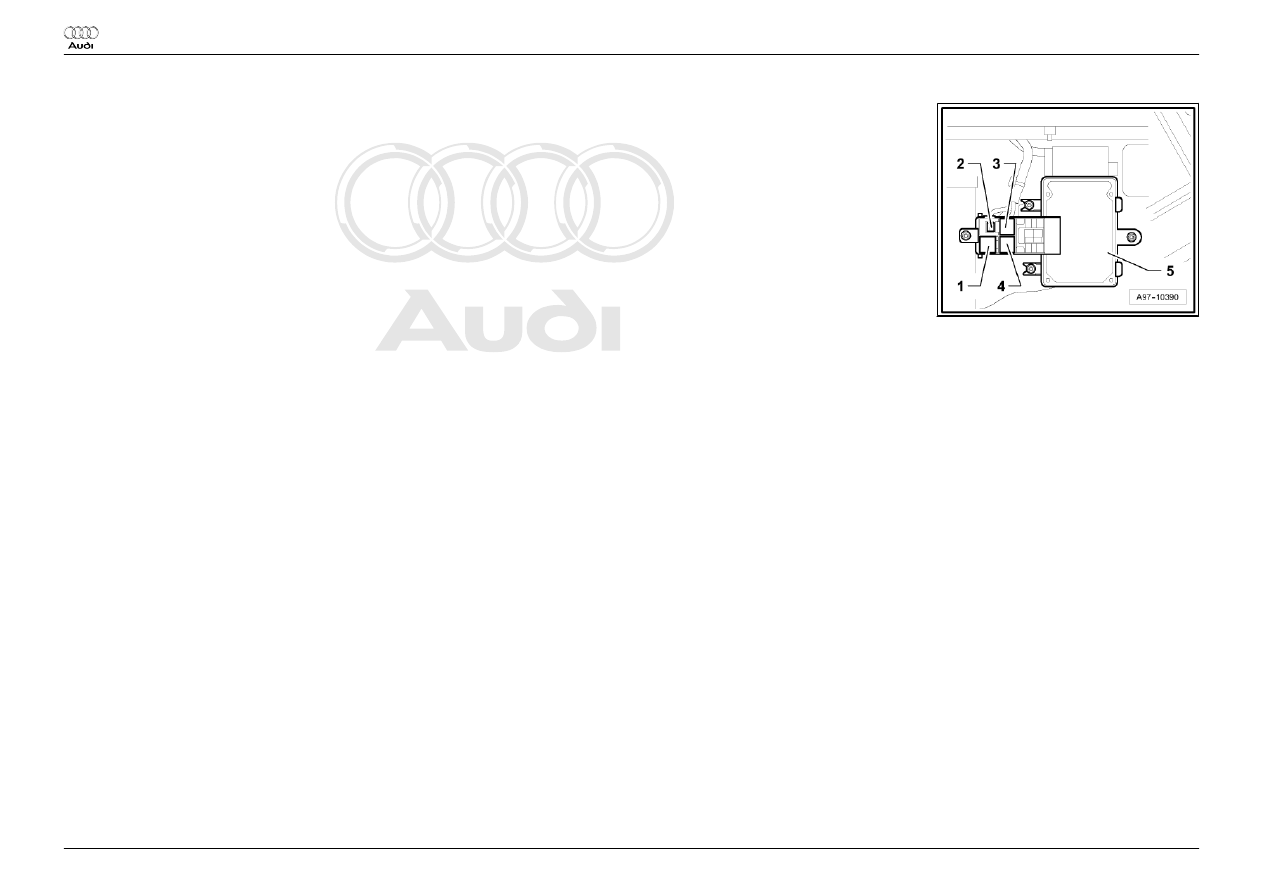

Electronically controlled damping control unit -J250-

1.10.1

Location:

under front passenger seat -Item 5-
1 - 10-pin connector -T10i- , black
2 - 3-pin connector -T3d- , yellow
3 - 6-pin connector -T6e- , green
4 - 10-pin connector -T10g- , red
5 - Electronically controlled damping control unit -J250-

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.10.2

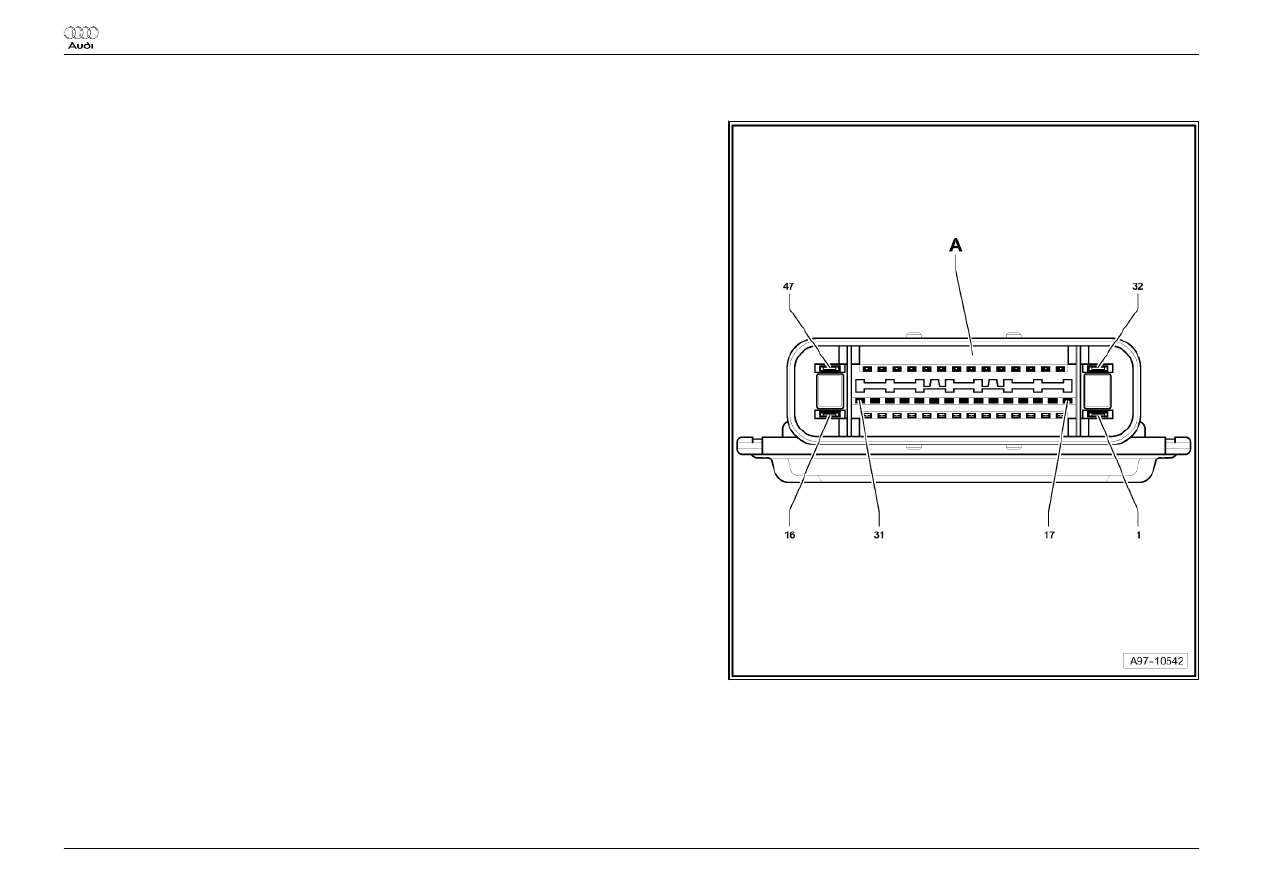

Connector assigment of electronically controlled damping control unit -J250-

A - Electronically controlled damping control unit -J250-
A - 47-pin connector -T47- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009
