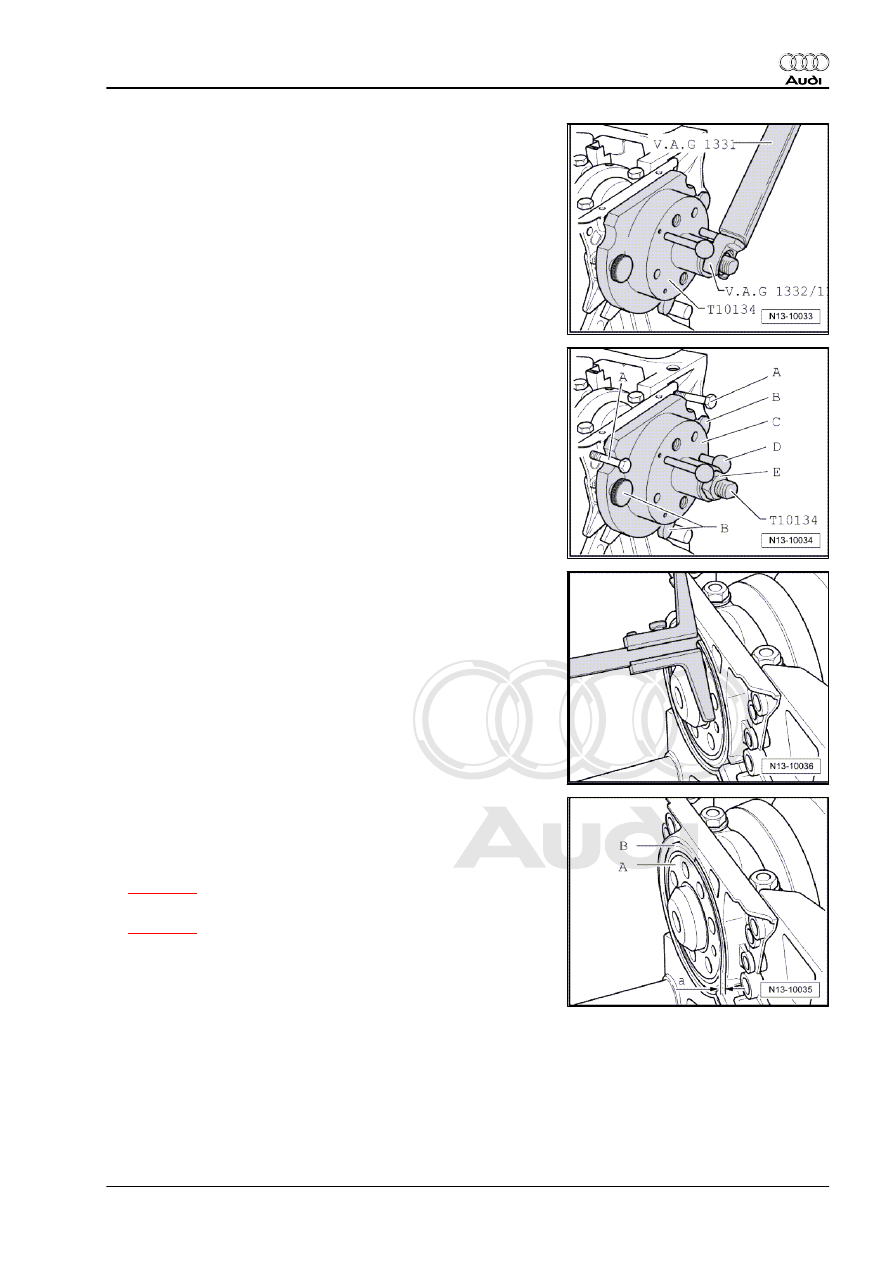

D - Pressing sender wheel onto crankshaft flange with assembly

tool -T10134- :
– Tighten hexagon nut on assembly tool -T10134- to 35 Nm.
• A small air gap must be present between cylinder block and

sealing flange after tightening hexagon nut to 35 Nm.

E - Checking installation position of sender wheel on crankshaft:
– Screw hexagon nut -E- to end of threaded spindle.
– Remove bolts -A- from cylinder block.
– Unscrew knurled screws -B- from sealing flange.
– Detach assembly tool -T10134- .
– Detach sealing lip support ring.

– Apply depth gauge -VAS 6082- to crankshaft flange.

– Measure distance between crankshaft flange -A- and sender

wheel -B-.

• Specification: Distance -a- = 0.5 mm.
– Press sender wheel in further if distance -a- is too small

⇒ page 68

– If reading matches specification, continue with assembly

⇒ page 68

2. Cylinder block (gearbox end)

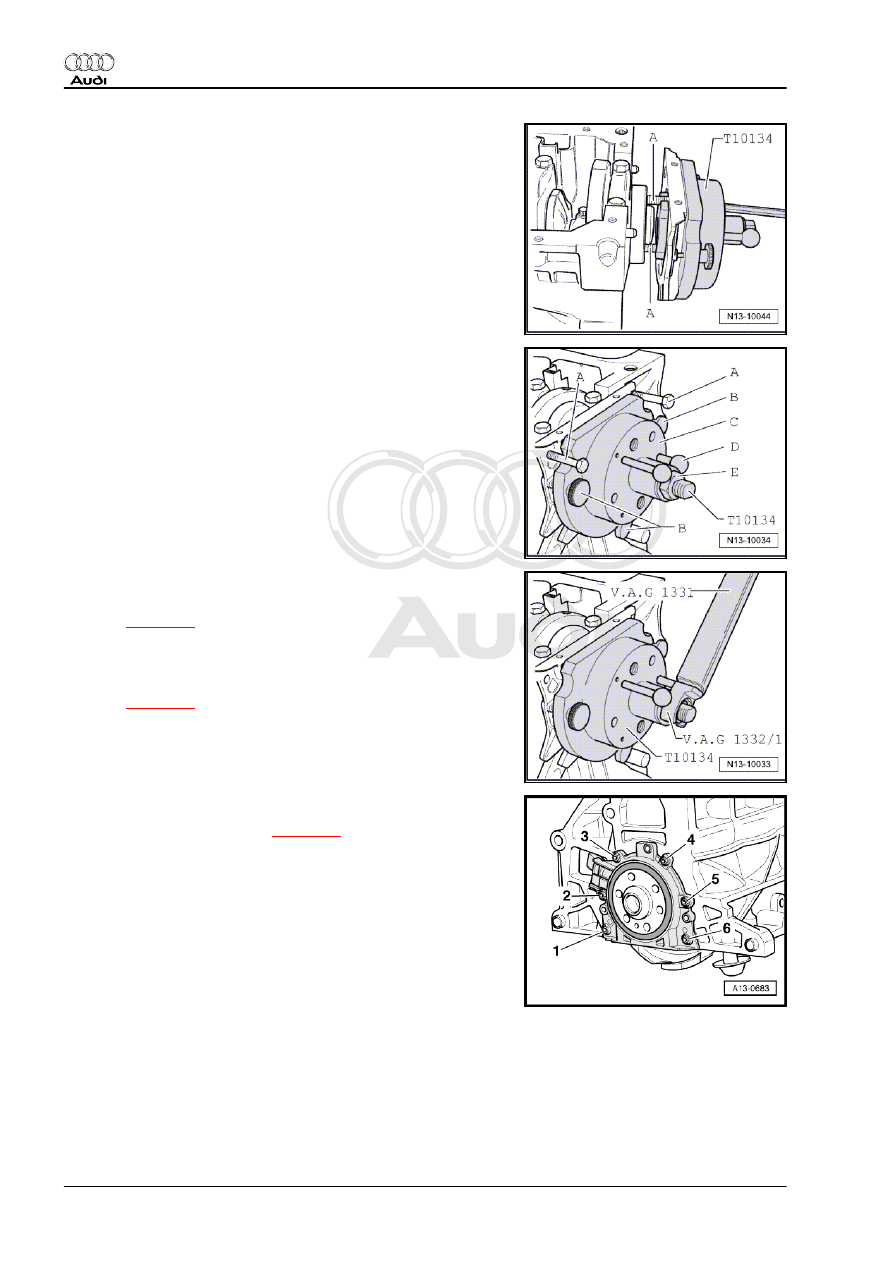

F - Pressing sender wheel in further:
– Secure assembly tool -T10134- -item A- to crankshaft flange

by tightening hexagon socket head bolts hand-tight.

– Press assembly tool onto sealing flange by hand.

– Screw hexagon nut -E- onto threaded spindle by hand until it

lies against the assembly housing -C-.

– Tighten hexagon nut on assembly tool -T10134- to 40 Nm.
– Check installation position of sender wheel on crankshaft

again

⇒ page 67

– If distance “a” is still to small, tighten hexagon nut on assembly

tool -T10134- to 45 Nm.

– Check installation position of sender wheel on crankshaft

again

⇒ page 67

Assembling:
– Tighten sealing flange bolts

⇒ page 60

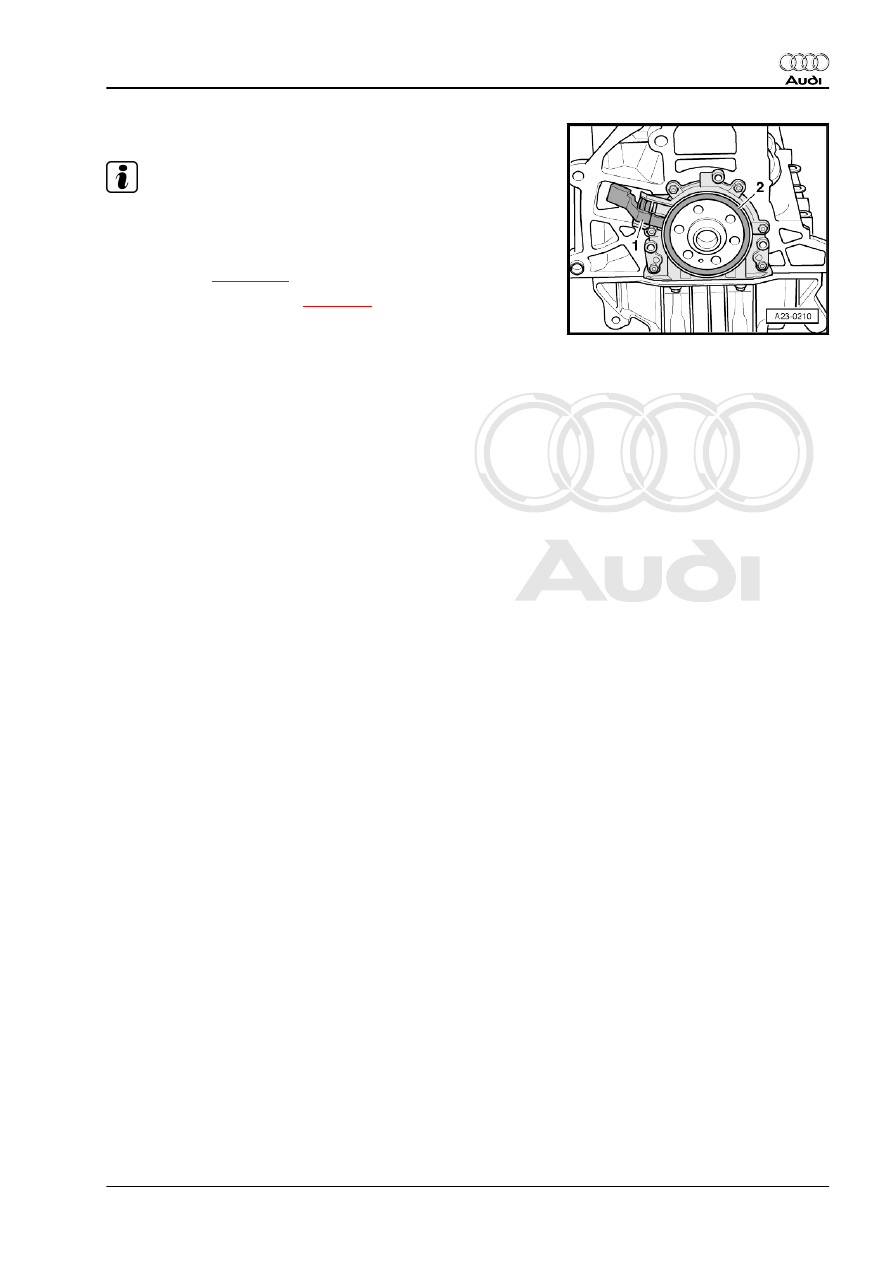

– Install engine speed sender -G28- -item 1-.

Note

Disregard -item 2-.

Installation is carried out in the reverse order; note the following:
– Install sump

⇒ page 139

– Install dual-mass flywheel

⇒ page 60

2. Cylinder block (gearbox end)

Crankshaft

Note

When carrying out repairs, secure engine with engine and gear‐

box support -VW 540- to engine and gearbox support

⇒ page 30

3.1

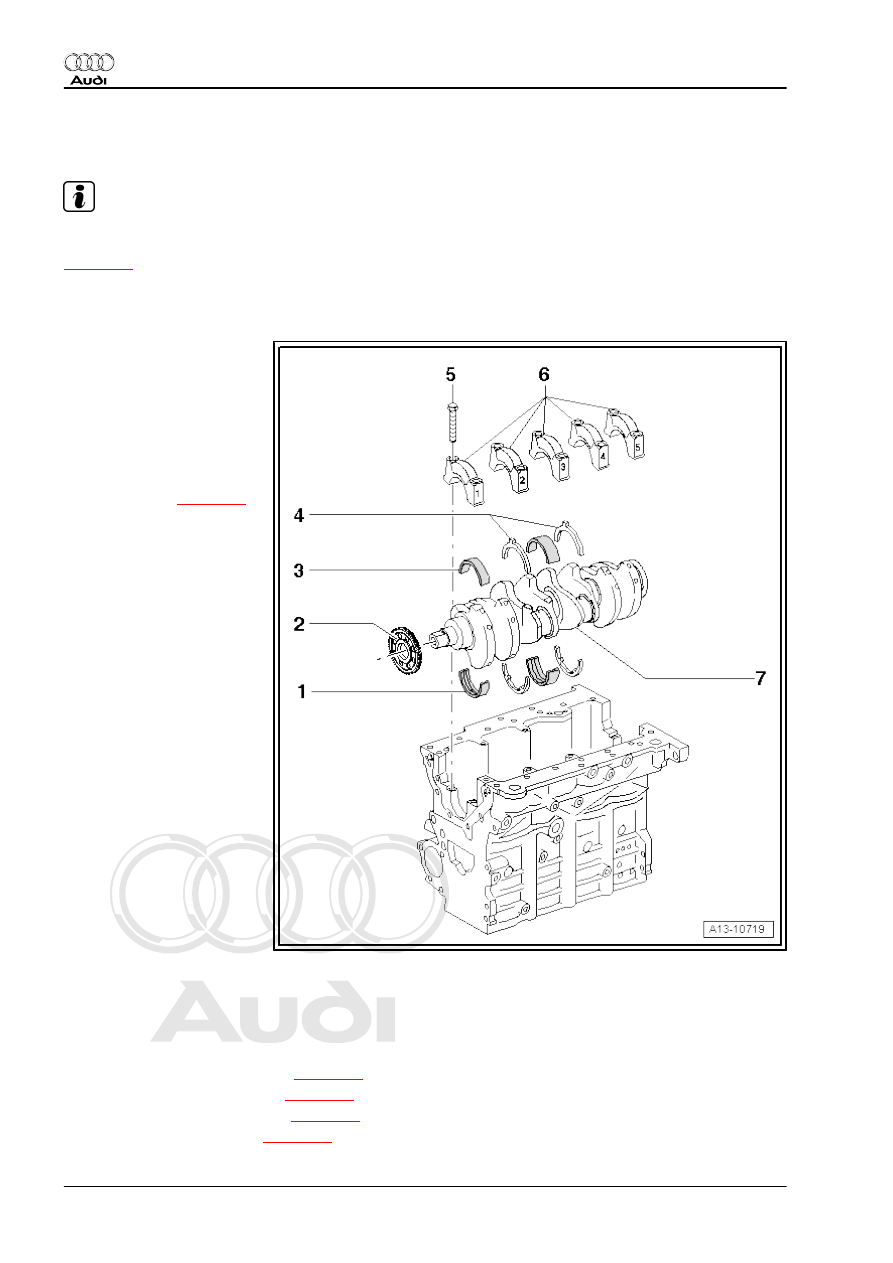

Crankshaft - exploded view

1 - Bearing shell

❑ For cylinder block (with

oil groove)

❑ Mark used bearing

shells for re-installation

but not on bearing sur‐

face

2 - Drive chain sprocket

❑ Renewing

⇒ page 74

3 - Bearing shell

❑ For bearing cap (without

oil groove)

❑ Mark used bearing

shells for re-installation

but not on bearing sur‐

face

4 - Thrust washers

❑ For bearing No. 3
❑ Different types for cylin‐

der block and bearing

cap

❑ Note location

5 - Bolts

❑ Renew
❑ 65 Nm + 90°
❑ For measuring radial

clearance of crankshaft

tighten to 65 Nm, but not

further

6 - Bearing cap

❑ Bearing cap 1: Pulley

end

❑ Bearing cap 3 with re‐

cesses for thrust washers

❑ Installation position: retaining lugs on bearing shells in cylinder block and bearing caps must be on the

same side

7 - Crankshaft

❑ There should be no needle bearing fitted in the crankshaft on vehicles with manual gearbox; remove

needle bearing if necessary

⇒ page 72

❑ Measuring axial clearance

⇒ page 71

❑ Measuring radial clearance

⇒ page 71

❑ Crankshaft dimensions

⇒ page 71
