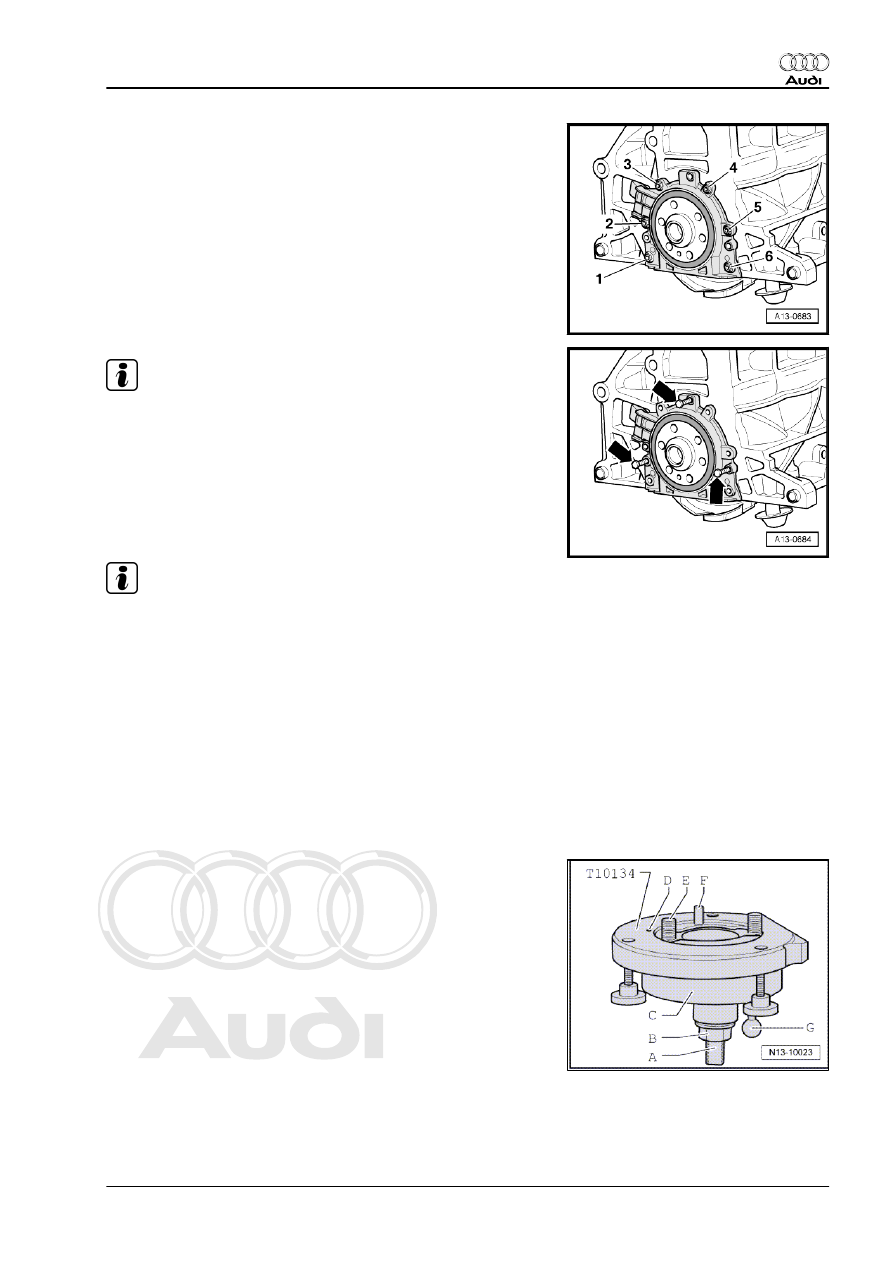

– Remove bolts -1 ... 6- for sealing flange.

Note

The sealing flange is pressed off the crankshaft together with the

sender wheel.

– To press off, screw 3 bolts M6x35 -arrows- alternately into

sealing flange not more than

1

/2 turn at a time.

– Take off sealing flange with sender wheel.
Pressing in sealing flange with sender wheel

Note

♦

The sealing flange with PTFE oil seal is fitted with a sealing lip

support ring. This support ring acts as an assembly sleeve and

must not be removed before installation.

♦

Sealing flange and sender wheel must not be separated or

rotated out of position after removal from packaging.

♦

The sender wheel is held in its installation position by a locat‐

ing pin on the assembly tool -T10134- .

♦

The sealing flange and oil seal are one unit and must always

be replaced together with the sender wheel.

♦

The assembly tool -T10134- is held in the correct position rel‐

ative to the crankshaft by a guide pin which is inserted into a

hole in the crankshaft.

Construction of assembly tool -T10134-
A - Tightening flats
B - Hexagon nut
C - Assembly housing
D - Locating pin
E - Hexagon socket-head bolt
F - Guide pin for diesel engines (black handle)
G - Guide pin for petrol engines (red handle)

2. Cylinder block (gearbox end)

63

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

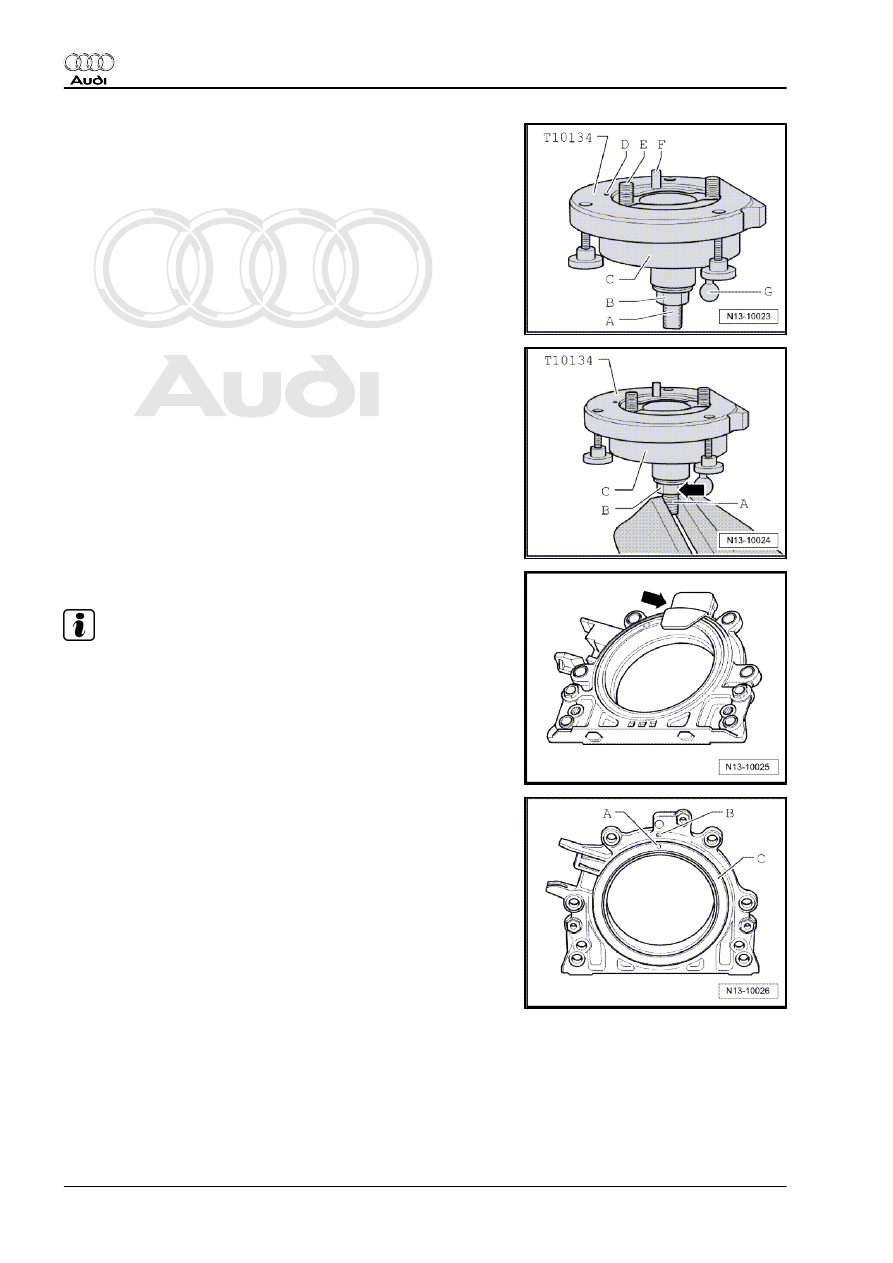

A - Fitting sealing flange with sender wheel onto assembly tool -

T10134- :
– Turn hexagon nut -B- on threaded spindle until it is just in front

of flats -A-.

– Clamp assembly tool -T10134- in a vice on tightening flats

-A- of threaded spindle.

– Press assembly housing -C- downwards so that it lies on hex‐

agon nut -arrow-.

• Inner part of assembly device and assembly housing must

align (be level) with each other.

– Remove the securing clip -arrow- from new sealing flange.

Note

The sender wheel must not be taken out of the sealing flange or

rotated out of position.

• The locating hole -A- on the sender wheel -C- must align with

the marking -B- on the sealing flange.

– Place the sealing flange (with the front side downwards) on a

clean flat surface.

64

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

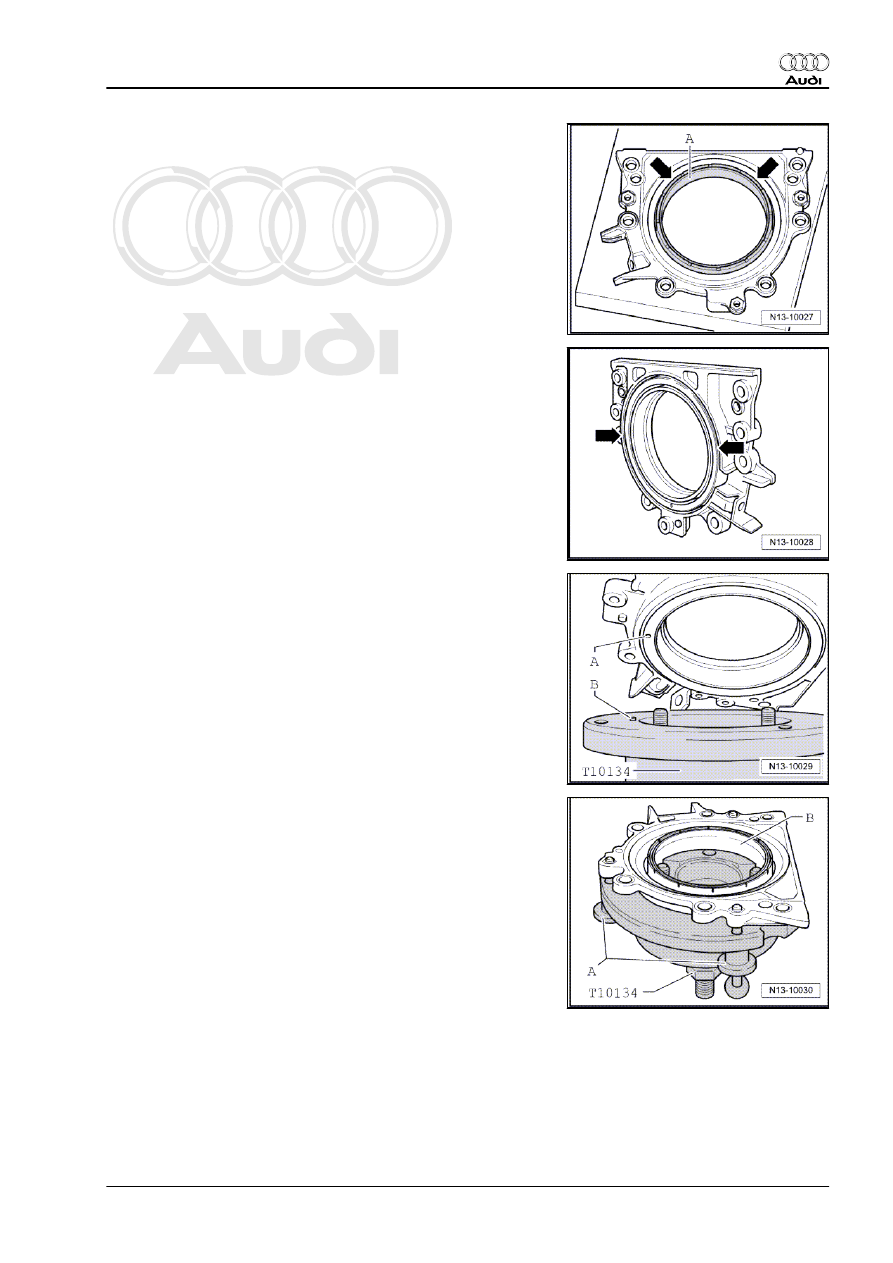

– Press the sealing lip support ring -A- downwards in direction

of -arrows- until it lies against the flat surface.

• The upper edge of the sender wheel and the front edge of the

sealing flange must align -arrows-.

– Place front side of sealing flange on assembly tool -T10134- ,

so that locating pin -B- can be inserted in hole -A- in sender

wheel.

• Ensure the sealing flange lies flat on the assembly tool.

– Press the sealing flange and sealing lip support ring -B- onto

the surface of the assembly tool -T10134- while tightening the

3 knurled screws -A- so that the locating pin will not slip out of

the hole in the sender wheel.

• Ensure that the sender wheel remains fixed on the assembly

tool when installing the sealing flange.

2. Cylinder block (gearbox end)

65

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

B - Installing assembly tool -T10134- with sealing flange on crank‐

shaft flange:
• Crankshaft flange must be free of oil or grease.
• Engine is at “TDC” position.
– Screw hexagon nut -B- to end of threaded spindle.
– Press the threaded spindle of assembly tool -T10134- in di‐

rection of -arrow- until the hexagon nut -B- lies on the assem‐

bly housing -A-.

– Position flat edge of assembly housing towards sealing sur‐

face for sump on cylinder block.

– Secure assembly tool -T10134- to crankshaft flange by screw‐

ing hexagon socket head bolts -A- approx. 5 threads into

crankshaft flange.

– Screw two bolts M7×35 mm -item A- into cylinder block to

guide sealing flange.

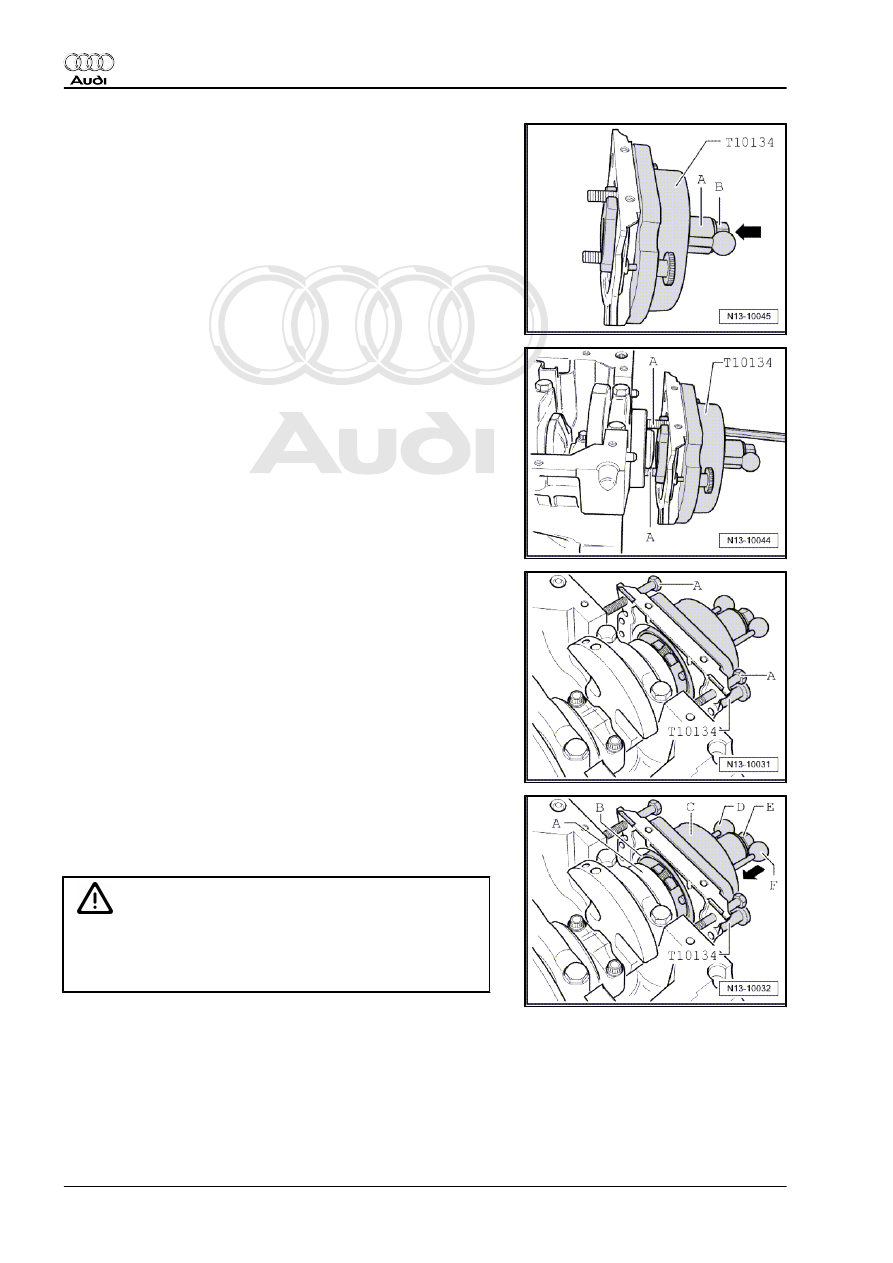

C - Securing assembly tool -T10134- onto crankshaft flange:
– Press the assembly housing -C- by hand in the direction of the

-arrow- until the sealing lip support ring -B- lies on the surface

of the crankshaft flange -A-.

Caution

Do not interchange components.

♦ The guide pin for PETROL engines (red handle) -F- MUST

NOT be inserted into the threaded hole in the crankshaft.

– Push guide pin for diesel engine (black handle) -D- into hole

in crankshaft. This brings the sender wheel into its final instal‐

lation position.

– Tighten the two hexagon socket head bolts on assembly tool

hand-tight.

– Screw hexagon nut -E- onto threaded spindle by hand until it

lies against the assembly housing -C-.
