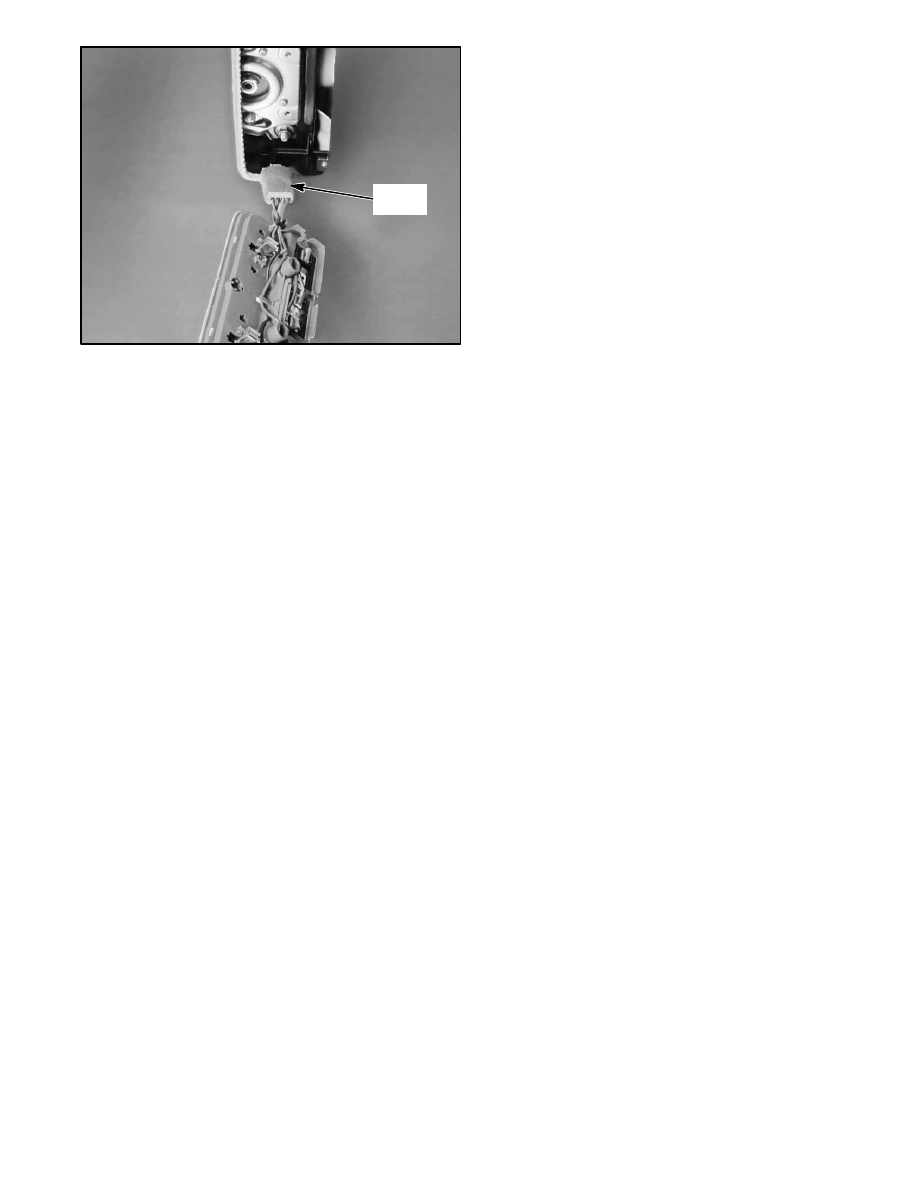

115. Center Rear of Roof

C545
(4-GRY)

2004 American Honda Motor Co., Inc.

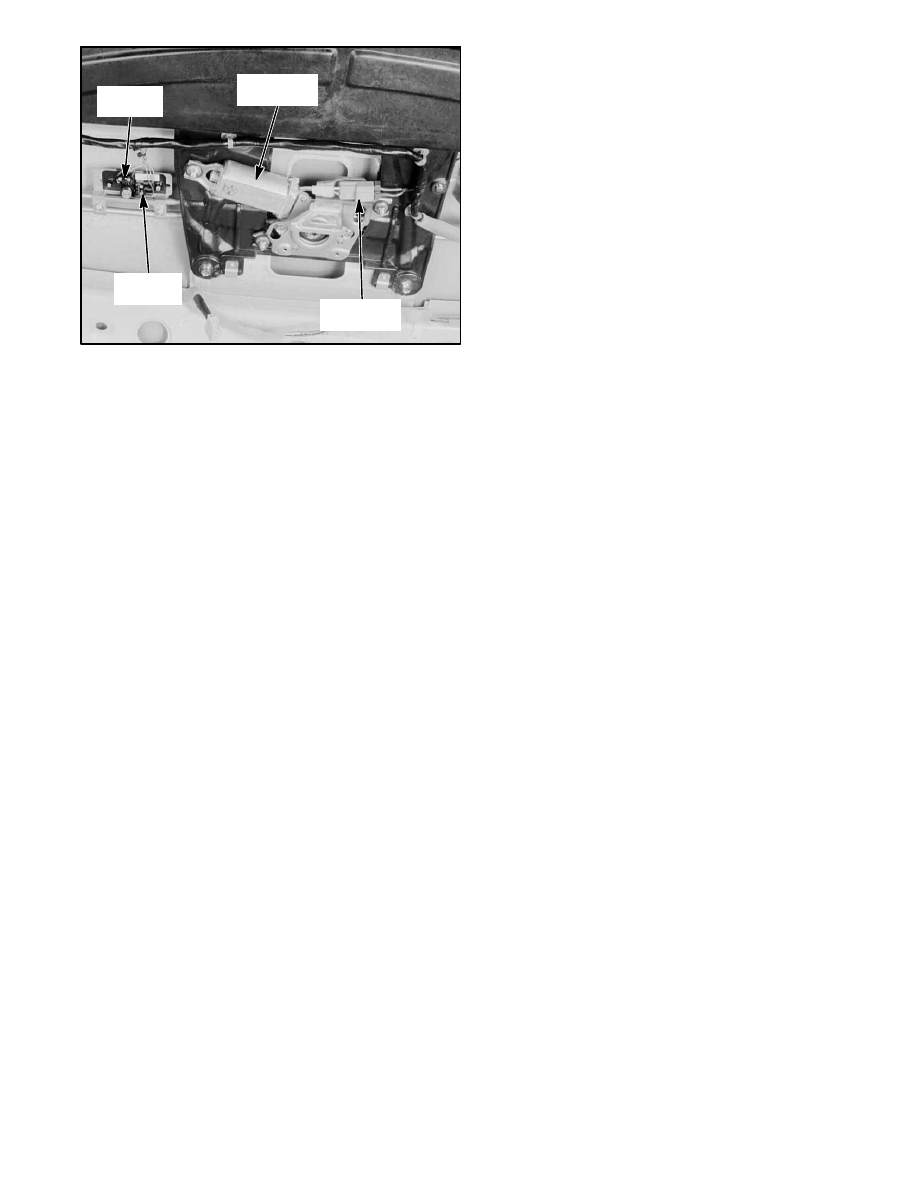

116. Center Rear of Roof

LIMIT
SWITCH 1

LIMIT
SWITCH 2

MOONROOF
MOTOR

C5
(2-BLU/BRN)

2004 American Honda Motor Co., Inc.

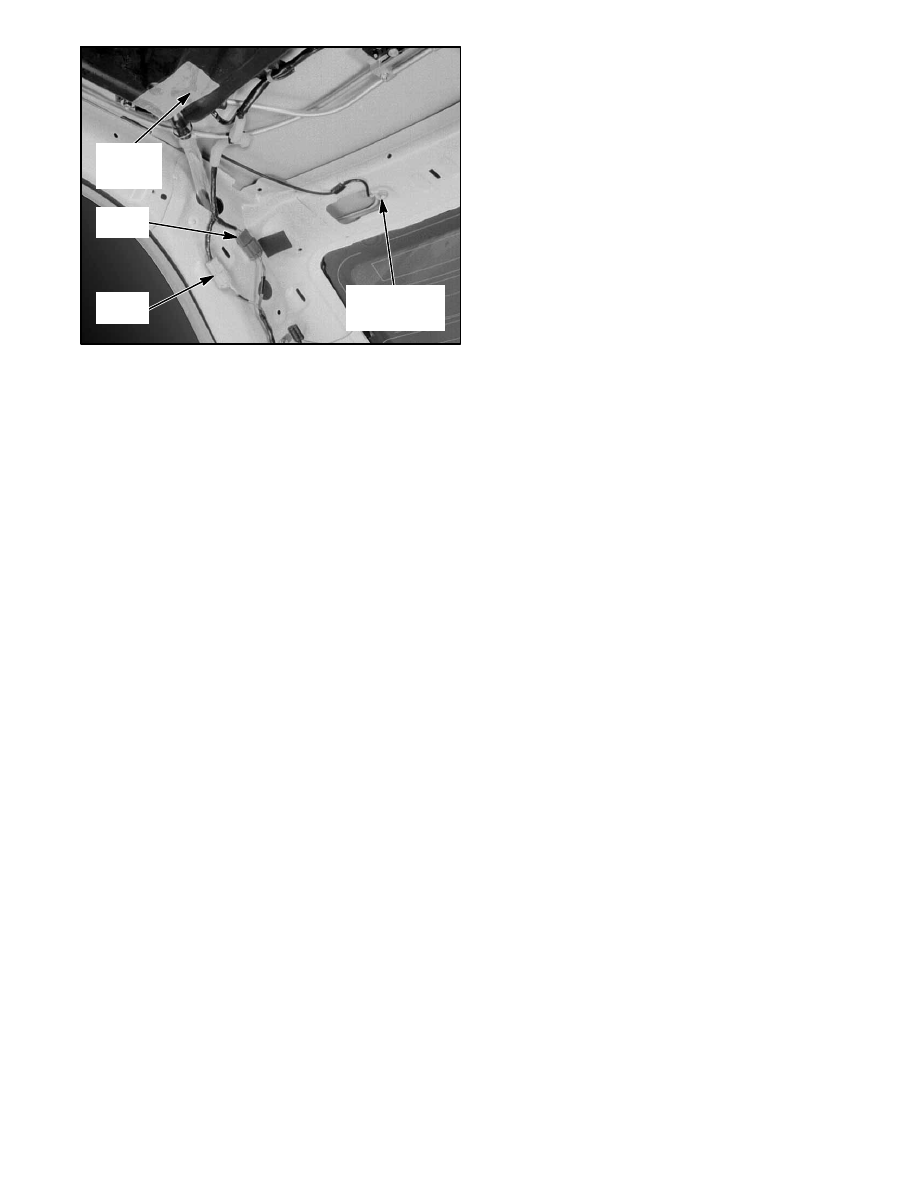

117. Center Rear of Roof

LIMIT
SWITCH 3

MOONROOF
CONTROL
UNIT

2004 American Honda Motor Co., Inc.

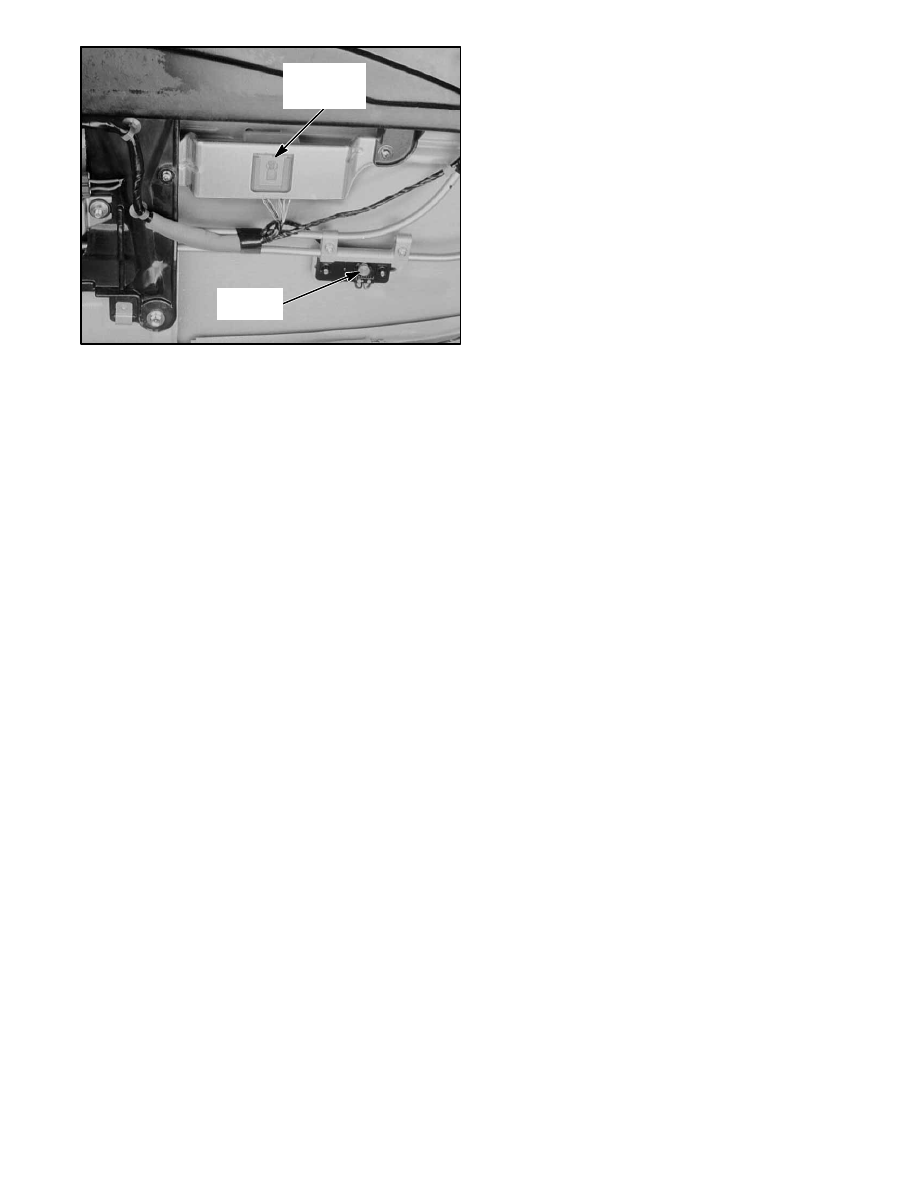

118. Right Rear of Roof

C617
(3-GRY)

C618
(2-BRN)

MOONROOF
CONTROL UNIT
GROUND

LIMIT
SWITCH 4
(BEHIND)
