Lotus Service Notes





    Section DJ

10.  Release the two bolts securing the spring top abutment plate to the inside of the subframe tower, and the

single bolt (captive nut) securing a leg on the plate to the front face of the tower.  Withdraw the complete

spring/damper/abutment plate assembly.

11.  Using spring compressor clamps and taking all suitable safety precautions, unload the spring seats and

remove the bolt securing the damper top eye to the spring top abutment plate and separate the three

components, noting the spring top seat cushion.  Unload the spring compressor clamps.



Anti-Roll Bar

12.  Release the drop link from each lower wishbone and/or the anti-roll bar.

13.  Remove the two bolts securing each of the two alloy clamps to the subframe (riveted nut plates), and

withdraw the ARB.

Upper and Lower Wishbones

14.  Remove the two pivot bolts securing the top wishbone, and withdraw the wishbone.  Note that the top

wishbone is not handed, so should be marked accordingly if both sides are removed and are to be refit-

ted.

15.  Before releasing the lower wishbone rear pivot, match mark the eccentric cam to aid re-assembly.  Remove

the cam bolt and cam, release the front pivot bolt and withdraw the lower wishbone.

16.  Release the inboard pivot bolt and withdraw the toe-link.  Note that the toe-link is not handed, so should

be marked accordingly if both sides are removed and are to be refitted.  The shorter toe-link tube is fitted

outboard.



Reassembly



Re-assemble the suspension in reverse order to disassembly with the following notes:

Take care to assemble each pivot bolt with the correct washers/snubbers/spacers as noted on removal.

Smear the shank of each pivot bolt with PBC grease to inhibit corrosion and facilitate subsequent servic-

ing, but do not allow grease contamination of the threads.

Where bolts are threaded into captive nuts with no secondary locking mechanism, apply a suitable thread-

locking compound.  If separate self-locking nuts are used, assess the locking torque and renew the nuts

in any case of doubt.  The ARB drop link ball pin self locking nuts should always be renewed.

Take care to match mark and refit the eccentric cam adjusters on the lower wishbone rear pivot to facilitate

subsequent geometry checking and adjustment.

Lubricate the rubber type anti-roll bar mountings with rubber grease on assembly.

Adjust the brake shoes and pump the brake pedal to re-position the pads before driving the car.

If the car suffers a suspension impact sufficient to damage a wheel rim, careful attention should be paid

to all related suspension components, and replacement parts fitted in any cases of doubt.

The Service Schedule specifies that the security of the front and rear suspension is checked at each service.

For cars used on race tracks, or in similar conditions, suspension components and torque checks should be

carried out between sessions.  This operation requires that all the principal suspension pivot bolts are torque

checked, noting the following points:

Where a bolt is tapped into a housing or weldnut, and relies on a thread locking compound for security, be

aware that if the bolt is disturbed, the locking compound must be re-applied.  The following procedure should

be adopted for all such fixings:

Check the torque of the fixing.

If the specified torque is attained without the fixing being disturbed (moving), take no further action.

If the bolt moves, the locking action of the thread adhesive will have been compromised.  Remove the

bolt completely, clean off all old adhesive using a wire brush and acetone, and apply new adhesive as

specified.

Refit the bolt and tighten to the specified torque.



If for any reason a bolt is found to have become loose, and the car has been operated for any period in

this condition, the bolt should be renewed as a standard precaution and related components carefully

inspected for hole ovality or wear.





Lotus Service Notes





    Section DJ

Torque Settings:                            Nm

Upper and lower wishbone pivot bolts             86

Upper wishbone to hub carrier                135

Lower wishbone to hub carrier                135

Toe-link outer ball joint to hub carrier             135

Toe-link inner ball joint to subframe              135

Toe-link turnbuckle locknuts                  45

Damper to lower wishbone                   135

Damper to upper abutment bracket              86

Spring top abutment bracket to subframe  - upper    24

                            - lower    45

Anti-roll bar drop link ball joints                38

Anti-roll bar clamps to subframe                45

hub bearing unit to hub carrier                70  Use Permabond A130

Brake calliper to hub carrier                  86  Use Permabond A130

Speed sensor to hub carrier                  5

-

Driveshaft nut to hub                      300

Parking brake backplate to hub carrier            45

Brake disc retaining screw                   10

Wheel bolts                            105

DJ.6 - REAR WhEEL BEARINGS

The hub bearing unit, which is common to all four wheels, is fixed to the hub carrier by 4 hex. head bolts,

and incorporates a double row ball bearing with the inner race of the outboard bearing formed directly in the hub

forging, and the inner race of the inboard bearing retained by a swaging operation on the hub flange.  Inboard

and outboard grease seals are included in the assembly, with a 48 pole vehicle speed sensor ring integrated

into the inboard seal, whose signal is picked up by a sensor mounted in the rear of the hub carrier.

If there is found to be any discernible free play in the hub bearing, or any roughness, or if tight spots can

be felt, or any untoward noise heard, or any signs of lubricant expulsion are evident, the hub assembly should

be replaced - there is no provision for adjustment or replacement of the bearings.



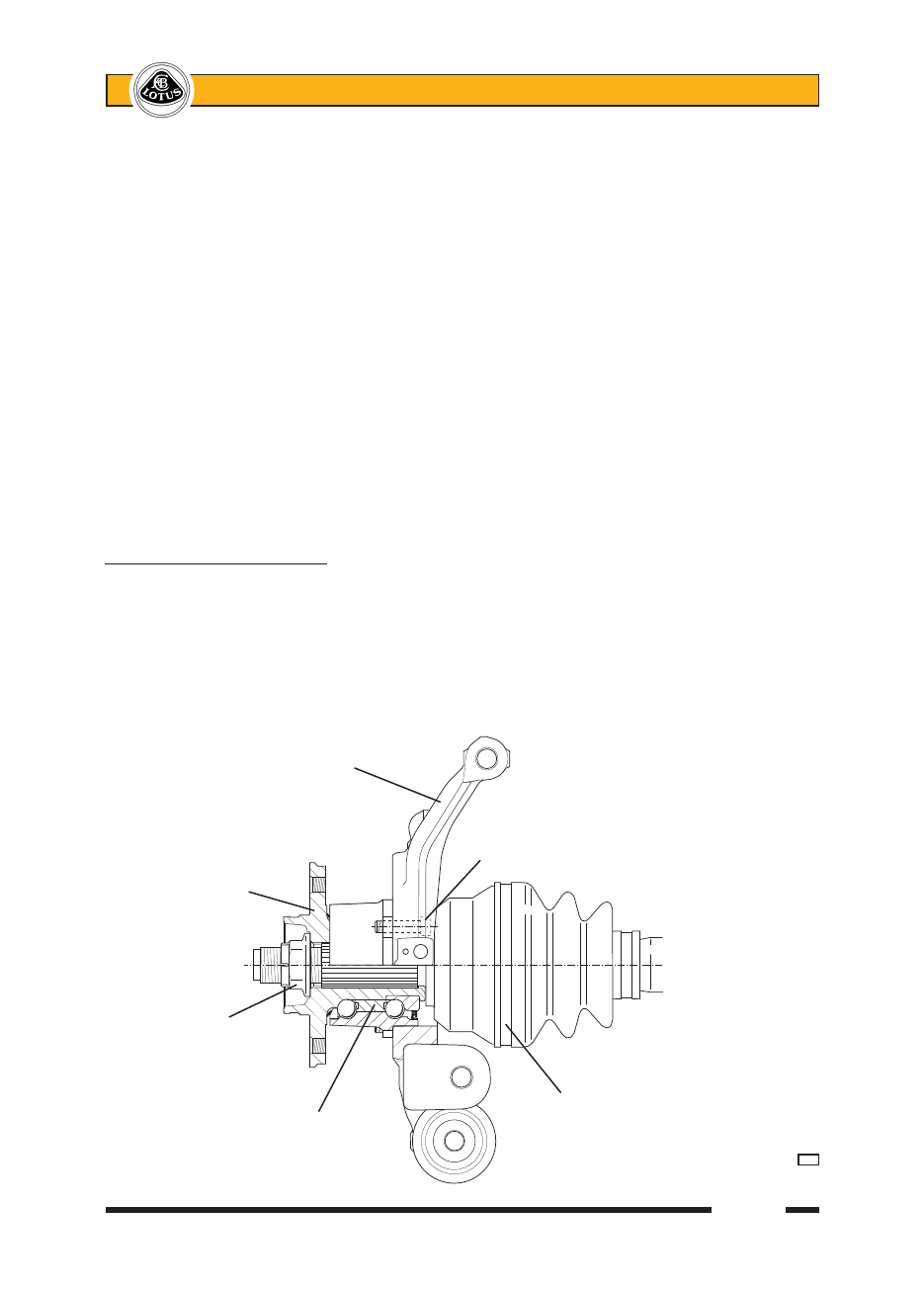

                Hub carrier

                                   Hub unit fixing bolt

  Hub bearing unit

  Driveshaft nut

                                          Driveshaft outboard C.V. joint

      Double row ball bearing





d52





Lotus Service Notes





    Section DJ

To Replace hub Bearing Assembly

With the car on a wheel free lift and with the rear wheel and engine undertray removed:

1.  Firmly apply the parking and footbrakes, and remove the driveshaft nut (both Rh thread).

2.  Release the two fixing bolts, and remove the brake calliper from the hub carrier.  Support clear of the brake

disc without straining the flexible hose.  Check that the parking brake is released, back off the brake shoe

adjuster, remove the two countersunk retaining screws and withdraw the brake disc/drum from the hub.

3.  Using a Torx socket, release the four bolts securing the hub bearing unit to the hub carrier, and with-

draw.

4.  Fit the new hub bearing unit to the hub carrier and driveshaft, apply Permabond A130 (A912E7033) to the

threads and retain the unit with the four Torx bolts tightened to 70 Nm.

5.  Refit the brake disc and calliper, using Permabond A130 (A912E7033) on the threads of the calliper fixing

bolts and torque tightening to 86 Nm.

6.  Adjust the parking brake shoes and pump the brake pedal to reposition the pads before driving the car.





Lotus Service Notes





     Section EJ







ENGINE

SECTION EJ

                                                    Sub-Section       Page

        Introduction                                    EJ.1        3

        Air Cleaner Element Inspection/Replacement              EJ.2        3



        Engine Oil & Filter Change                          EJ.3        4

        Auxiliary Drive Belt                               EJ.4        5

        Engine Removal/Replacement                        EJ.5        5

        Engine Special Tools                              EJ.6        7

        Engine Repair (CD T000T1506)                       EJ.7        7
