Page 15
Lotus Service Notes

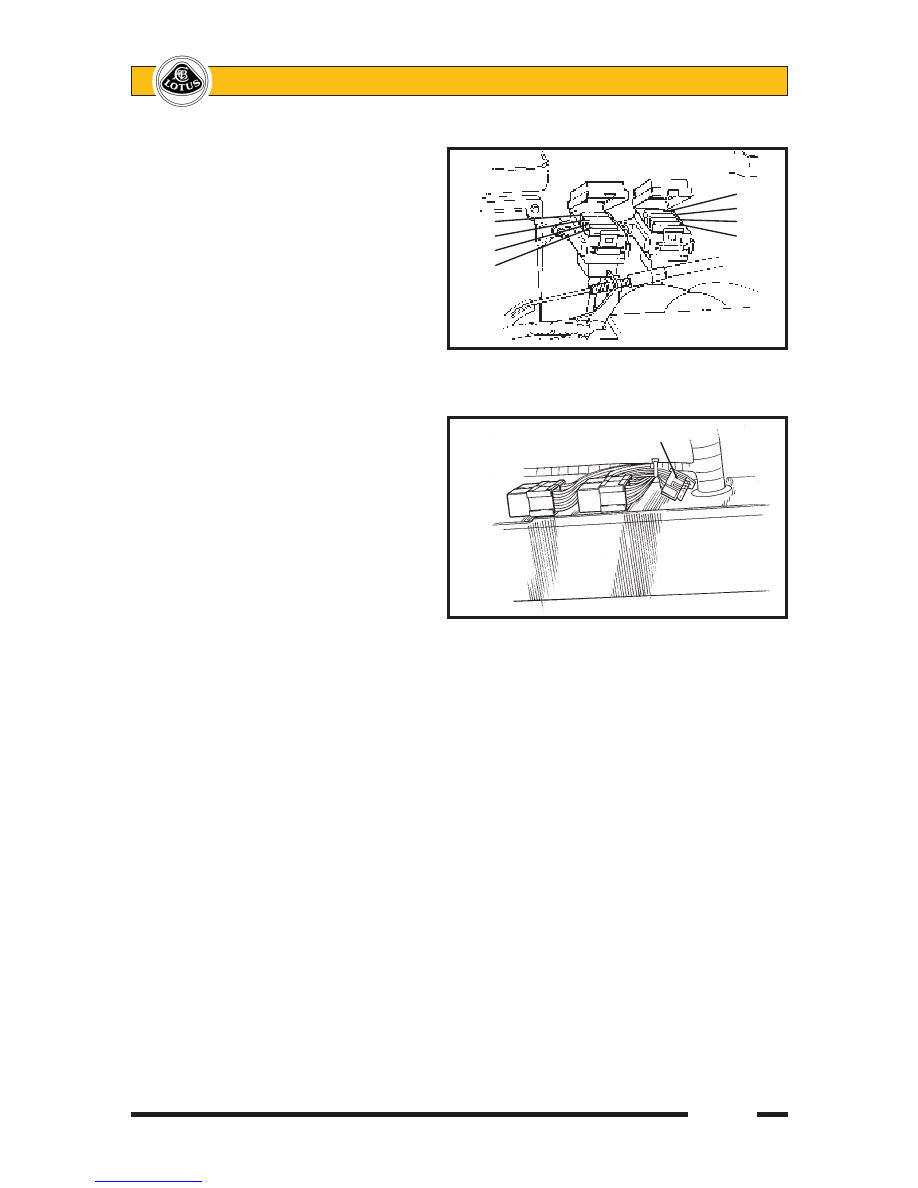

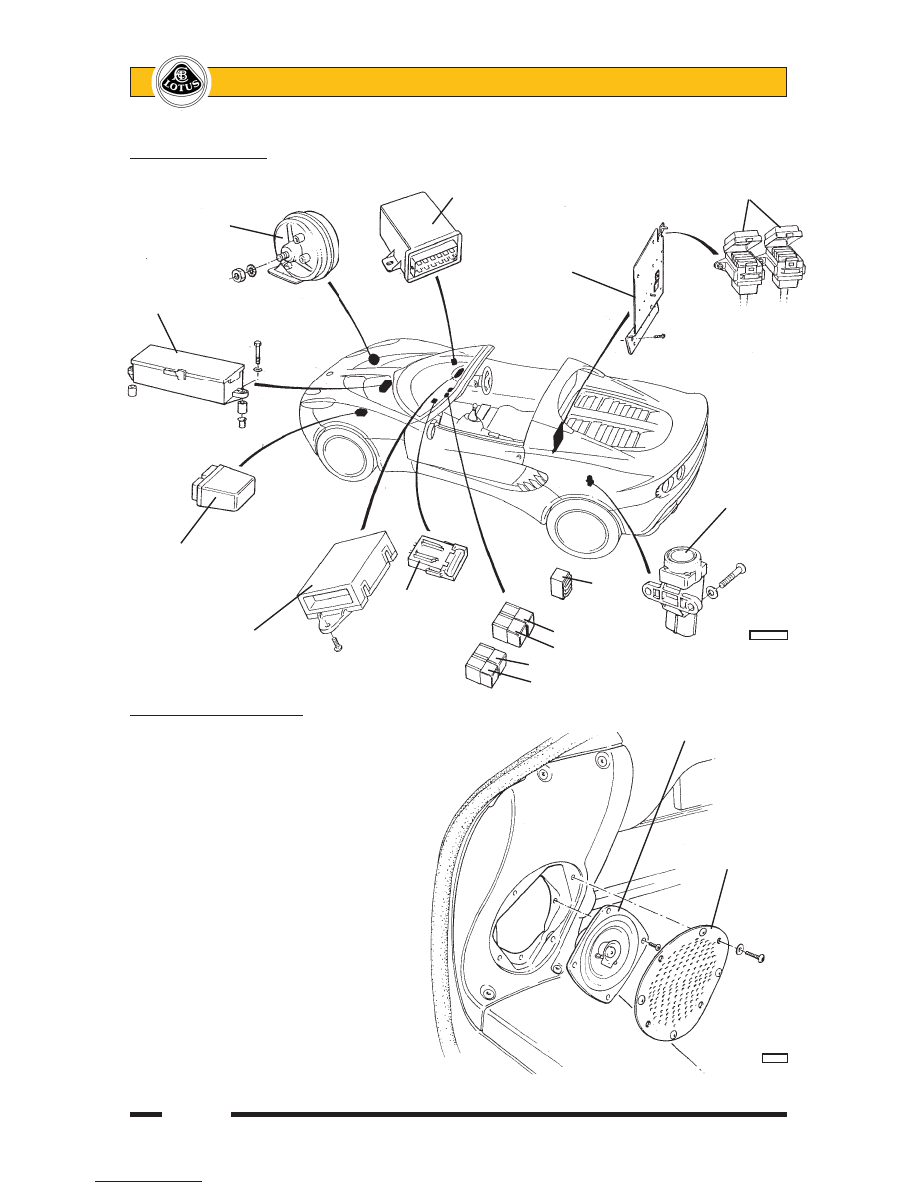

Section MP Engine Compartment Fuses and relays associated with the engine management system are contained in two 4-position fuse holders located at the front of the engine bay on the cabin bulkhead, adjacent to the engine ECM. To access the fuses, unclip rear edge of the cover. Fuse no. Rating Circuit R1 20A Fuel pump R2 3A Immobiliser R3 5A Alternator sense R4 5A ECU battery feed R5 5A O2 heaters R6 7.5A VSV's VVT, VVL, IAC R7 10A Injectors, ignition coils R8 5A Re-circ. pump Interior Fuses & Relays The wash/wipe module, turn/hazard flasher relay, horn relay and a relay for inertia switch activation of the central door locking, are mounted on the scuttle beam above the passenger footwell, with four fuses secured to the harness in that area. Fuse no. Rating Circuit C1 20A Interior fan C2 15A Wiper motor C3 7.5A Audio key-in C4 10A A.C. compressor A 60A Maxi fuse protecting the ABS circuit is located beneath the passenger side fascia top, adjacent to the positive post. A multi-function relay unit containing the engine control relay, fuel pump relay and starter relay is mounted in the engine bay near the ECU. A similar relay unit is mounted in the front services compartment alongside the fusebox, and operates the a.c. compressor and radiator fans. Important Note: Although the two modules are identical in appearance, their function is different and they must not be transposed. The a.c. relay module A117M0038F has a brown label marked YWB100800; The engine relay module A111E6024F has a white label marked YWB100970. For the location of the vehicle alarm system components, see sub-section MP.1. Fuse colours: 2A - Black 3A - Violet 4A - Pink 5A - Orange 7.5A - Brown 10A - Red 15A - Light Blue 20A - Yellow 25A - Clear Relay Position RHD: Inboard top; Wiper
Inboard bottom; Flasher
Outboard top; CDL trip
Outboard bottom; Horn LHD: Inboard top; Flasher
Inboard bottom; Wiper
Outboard top; Horn
Outboard bottom; CDL trip ENGINE BAY FUSES 8 7 4 6 3 5 2 1
ohs136

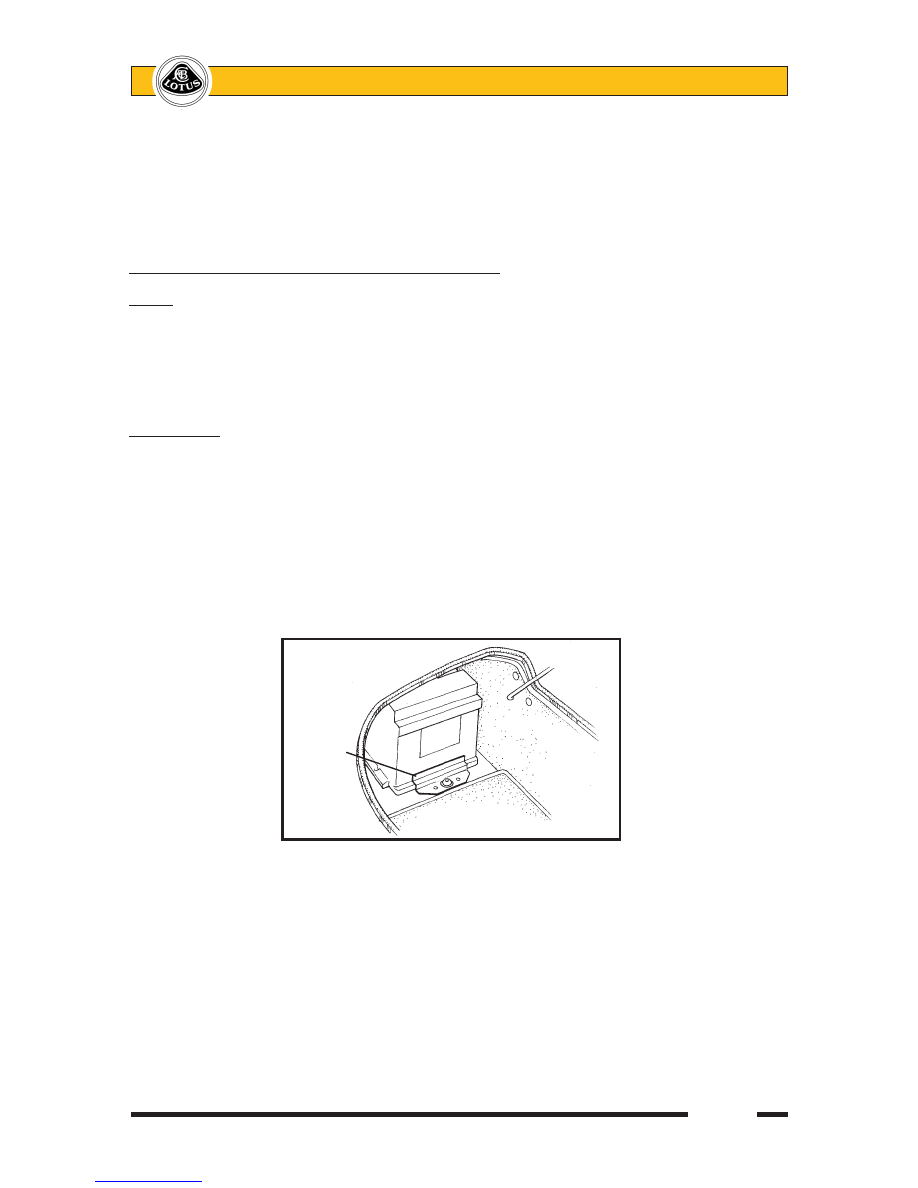

Front Fusebox ‘C’ Viewed from beneath
m248a
|
