Lotus Eleven/Elise/Exige. Manual - part 79





Page 11





Lotus Service Notes





    Section MP

LCD Panel

A liquid crystal display (LCD) panel is provided below the instruments in order to display fuel level, coolant

temperature, total mileage and trip functions.  The panel is blank until the ignition is switched on.

Fuel Contents Display

An indication of the level fuel in the tank is

displayed in the form of a bar graph at the right

hand top of the LCD panel in the instrument

cluster.  When completely full (approximately

43.5 litres (9.6 U.K. gal), the display will show

six  black  segments.   As  the  fuel  level  falls,

a  white  band  will  extend  from  the  right  to

represent the empty portion.

When  only  a  single  segment  remains,

representing approximately 5 litres, the amber

low fuel tell tale will flash.  Refuel at the next

opportunity.

Coolant Temperature Display

The engine coolant temperature will be displayed at the bottom right hand corner of the panel as soon

as the temperature reaches 72°C.  The running temperature will fluctuate a certain amount as the operating

conditions change, and during periods of idling or in heavy traffic, the temperature may rise to over 100°C, with

the cooling fans switching on at half speed at approximately 98°C and at full speed at approximately 103°C.

The display will flash at temperatures over 110°C in order to prompt closer monitoring of high temperatures,

but as the pressurised cooling system has a boiling point of over 120°C, only if the temperature approaches

this level need there be any cause for concern.  If this should occur, allow the engine to idle for a few minutes

whilst monitoring the temperature, and if it continues to rise, switch off and seek qualified assistance.

After a heavy snowfall, ensure that the radiator cooling outlet grilles in the front body are cleared of snow

before driving the car, or overheating may occur.



Odometer

An odometer (total distance recorder) reading is displayed at the bottom left hand corner of the panel, and

is calibrated in the same units (miles or kilometres) as is the speedometer.

Trip Recorder

A trip recorder is provided at the top left hand corner of the panel, calibrated in the same units as is the

speedometer.

In order to zero the trip display, switch on the ignition, and press for a moment (less than 1 second), the

small button on the steering column shroud between the ignition switch and steering wheel.  This dual function

button also controls the panel illumination - see ‘Instrument & Switch Illumination’.



Fascia Switches

Lighting functions are controlled by a vertical row of three push button switches mounted in the fascia

outboard of the steering column.  Each switch is pressed once to switch on, and pressed a second time to

switch off.  A symbol is positioned alongside each switch to indicate its function, and is backlit orange when

the lights are switched on.

Sidelamp Switch

The topmost switch functions with or without ignition, and switches on the sidelamps.  A tell tale in the

switch button lights up green to indicate when the circuit is active.  Note that the headlamps must be off before

the sidelamps can be switched off.

Headlamp Switch

The centre switch functions with or without ignition, and switches on the headlamps together with the side-

lamps if not already selected by the sidelamps switch.  A tell tale in the switch button lights up green to indicate

when the circuit is active.  The steering column lever switch (see later) is used to select main beam or dip.

 Pressing the switch a second time will switch off the headlamps, but leave on the sidelamps.

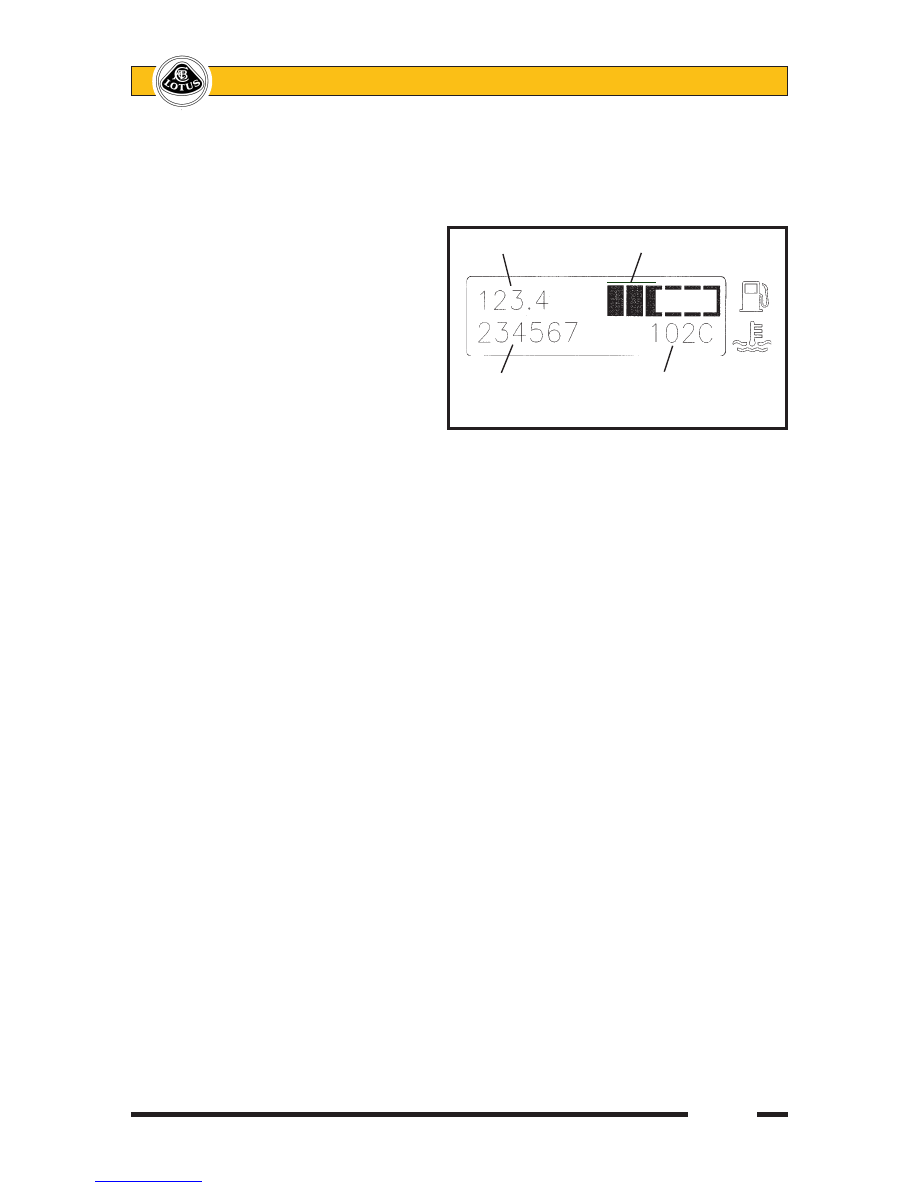

  Trip distance       Proportion of fuel remaining

  Odometer          Coolant temperature

  LCD DISPLAY PANEL

                    m253

Page 12





Lotus Service Notes





    Section MP

Lights On’ Buzzer

A ‘lights on’ reminder buzzer will sound if the lights are on when the ignition is switched off and the driver’s

door is opened.

Rear Fog Lamp Switch

The lowermost switch controls the two rear fog lamps (where fitted), and may be selected only after first

switching on the ignition, and then the headlamps.   A tell tale in the switch button lights up amber to indicate

when the circuit is active.

Note that the switch will default 'off' whenever the headlamps or ignition are switched off, requiring re-

selection if lamp acivation is again desired.

In some territories, rear fog lamps may be used legally only in conditions of ‘seriously reduced visibility’.

Be aware that indiscriminate or forgetful use of the rear fog lamps can cause distraction and discomfort to fol-

lowing traffic.

Hazard Warning Lamps Switch

The hazard warning switch is located immediately ahead of the gear lever in the centre shroud, and has

an icon in the switch button which is back lit when the ignition is switched on.  The switch is operative at all

times, and when pressed flashes all the turn indicator lamps, and the switch tell tale, in unison.  Press a second

time to switch off.

This facility should be used when the vehicle has to be stopped on the highway in abnormal circumstances,

where a warning to other traffic would be judicious.  Use of the hazard warning lamps may be subject to local

traffic laws, with which drivers should familiarise themselves.

Instrument Illumination

A small button is provided on the steering column shroud, between the ignition switch and steering wheel,

by which the  brightness of the instrument illumination may be adjusted.  To cycle through the range of bright-

ness, press and hold the button, and release at the desired setting.

This dual function button also resets the trip distance recorder - see ‘Trip Recorder’.

Auxiliary Power Socket

An auxiliary power socket is fitted in the

centre trim shroud below the oddments pocket

on the rear bulkhead.  The socket is operative

at all times, and is provided with a protective

hinged flap and an illumination ring which is

backlit red when the lights are switched on.

The  format  of  the  socket  allows  a

standard cigarette lighter element to be used,

or other electrical accessories requiring this

type of fitting.  Maximum current draw should

not exceed 15 amps.

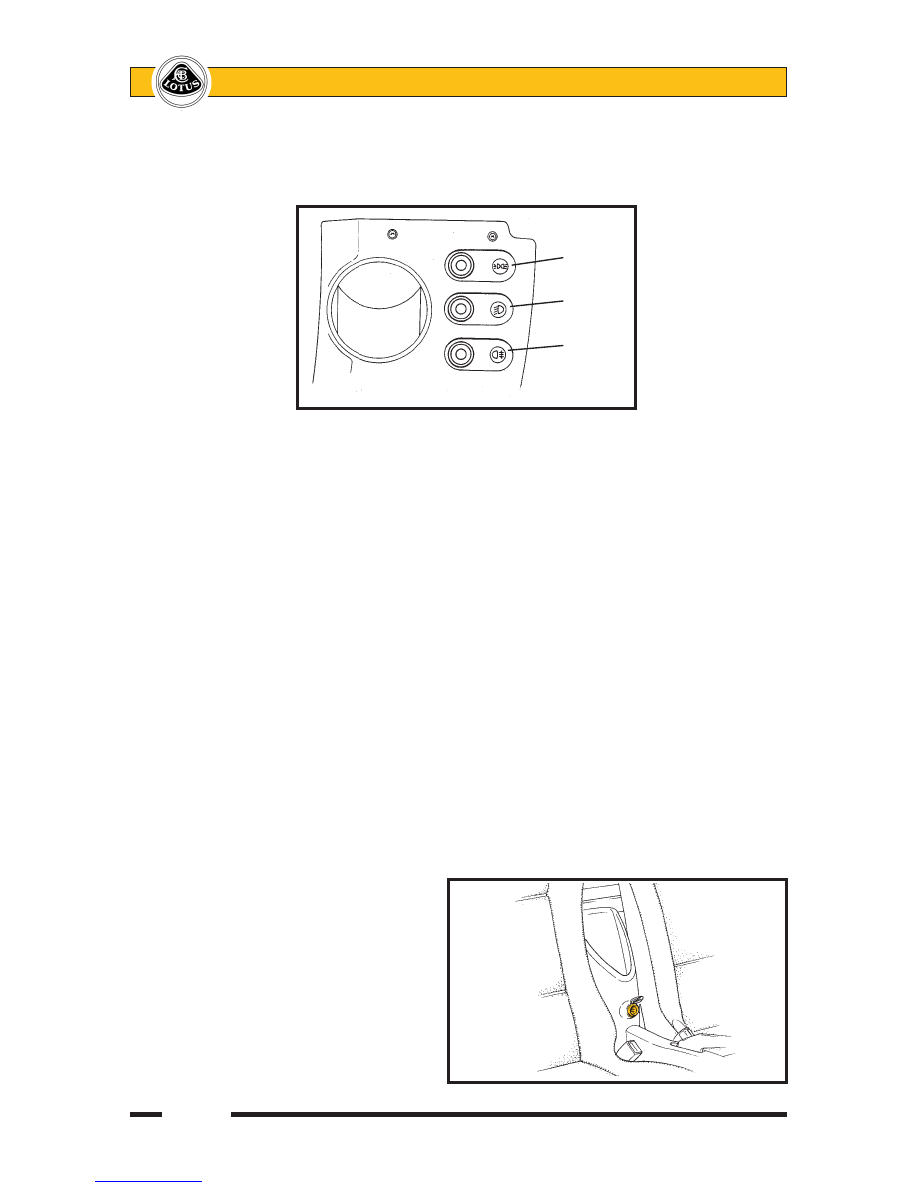

                            Sidelamps



                            Headlamps



                            Rear Fog



ohs109a

AUXILIARY

POWER

SOCKET









 ohs144

Page 13





Lotus Service Notes





    Section MP

WARNING: Do not leave small children unattended in the car since careless interference with the power

socket could be dangerous.

Headlamp Dipswitch/Flasher/Turn Indicators

The steering column left hand lever switch controls the headlamps main beam/dip, headlamp flash and

turn indicators.

Headlamp Dipswitch:  To switch on the headlamps,

press the headlamp switch in the fascia outboard

of the steering column.  The left hand lever switch

is then used to select main or dip beam.  Main

beam is obtained with the lever furthest forward,

away from the steering wheel, and dip beam with

the lever moved back towards the wheel.  The

main beam tell tale lamp in the instrument panel

lights when main beam is operating.

Note:  i)  When  main  beam  is  selected,  the  dip

beam lamps remain lit.  ii) On cars equipped with

optional auxiliary main beam lamps mounted in

the radiator air intake, the auxiliary  lamps operate

in conjunction with the body mounted headlamp

main beams.

Headlamp Flasher:  The headlamp flasher is operative at all times.  If the lever is pulled towards the steering

wheel against spring pressure, the headlamp main beams will light.

Turn Indicators:  The turn indicators operate only with the ignition switched on.  Move the lever down to indicate

a left hand turn, and up for a right hand turn.  The switch will be cancelled when the steering wheel is returned

to the straight ahead position.



For convenience, when signalling a lane change, lightly pressing the switch up or down will allow its return

under spring action.

Windscreen Wiper/Washer

The steering column right hand lever switch controls the windscreen wiper and washer, and is operative

only with the ignition switched on.  Never use the wiper on a dry screen.

Windscreen Wiper:  The wiper is controlled by

the up/down position of the lever switch, which

operates as follows:



Moved  fully  down,  the  wiper  is

switched  off.



Move  up  to  the  first  position  for

intermittent wipe.  The wiper will make

one sweep about every five seconds.



Select the next position for normal wiper

operation.



Move fully upwards for quick wipe, to

be used only in heavy rain.

Windscreen Washer:  Two windscreen washer jets are provided, one each side of the wiper spindle.   Pulling

the control lever towards the steering wheel will operate both the washer  pump and the wiper.  When the switch

is released, the wiper will continue for a further four sweeps.

Horn

The windtone horn, which functions at all times, is operated by a central button in the steering wheel

boss.

Interior Lamp

An interior lamp is mounted centrally in the rear bulkhead trim panel and is equipped with a three position

rocking lens:

   Right

   turn

                  Main beam

      Left

      turn            Dip beam



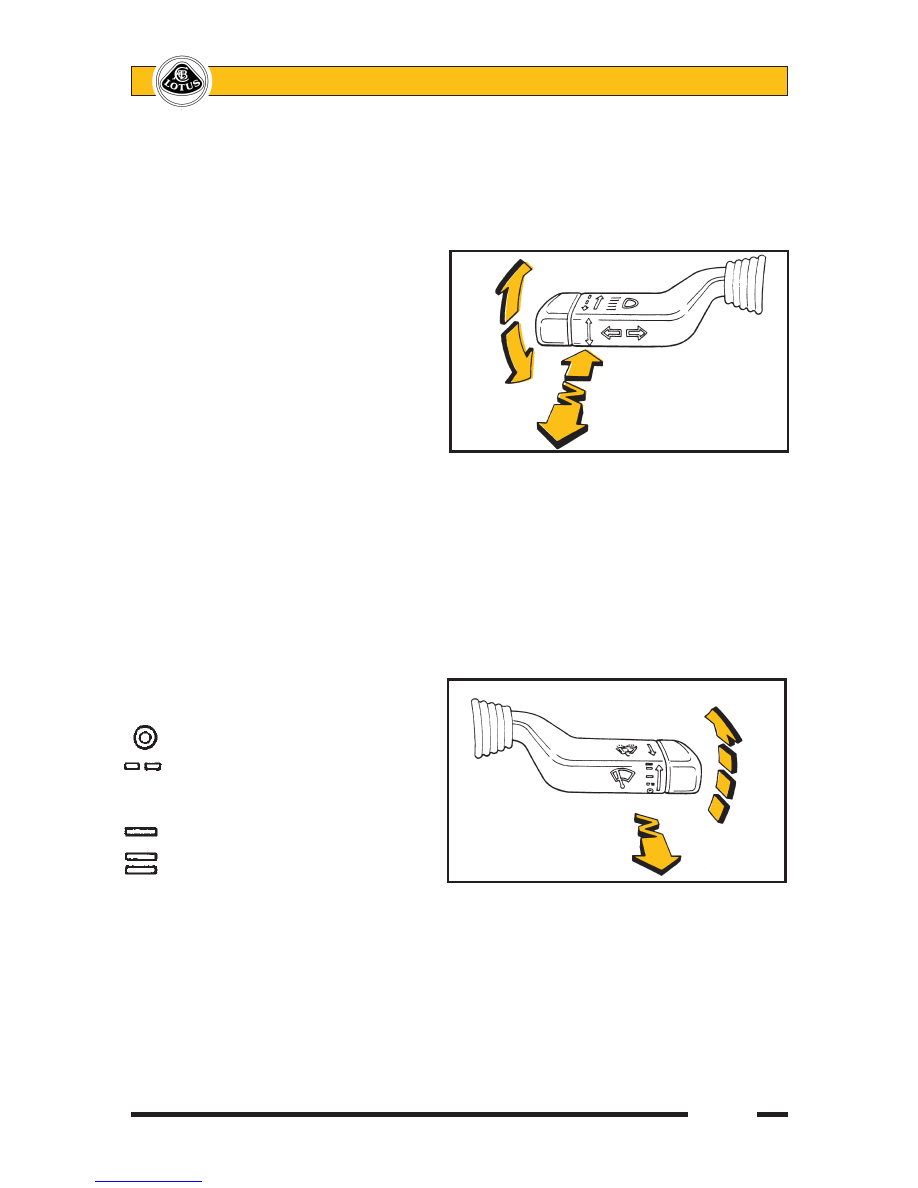

                 Flash













ohs32













ohs33

                              Wiper



          Washer

Page 14





Lotus Service Notes





    Section MP

-

Lens rocked upwards; lamp is switched off.

 NOTE: On USA cars, arming the alarm with the interior

lamp switched off may exclude the doors from activating the alarm.

-

Lens central; lamp is switched on, with or without ignition.

-

Lens rocked downwards; a courtesy mode applies, where the lamp is switched on whenever a door is

opened, and goes out when the doors are closed.  In addition, the alarm disarm command will also light

the interior lamp for a period of 30 seconds, or until the ignition is switched on.

Inertia Switch

The safety inertia switch is designed to

operate on impact, typified by vehicle collision,

to switch off the fuel pump, and thus minimise

any fire hazard.  The inertia switch is mounted

at the left hand rear corner of the engine bay,

and is reset by pressing the rubber diaphragm

button on the top of the unit.

MP.5 - COMPONENT LOCATION & FUSE RATINGS

Main Fusebox

The main fusebox is located in the front services compartment, on the passenger side, and is protected

by a plastic cover.  For access, remove the passenger side front body access panel, and unclip the fusebox lid.

Twenty two slots are provided for ‘Littel’ type fuses which are numbered, and coloured according to their am-

perage rating, and may be pulled out from their slots using the fuse extractor tool provided on the fusebox lid.

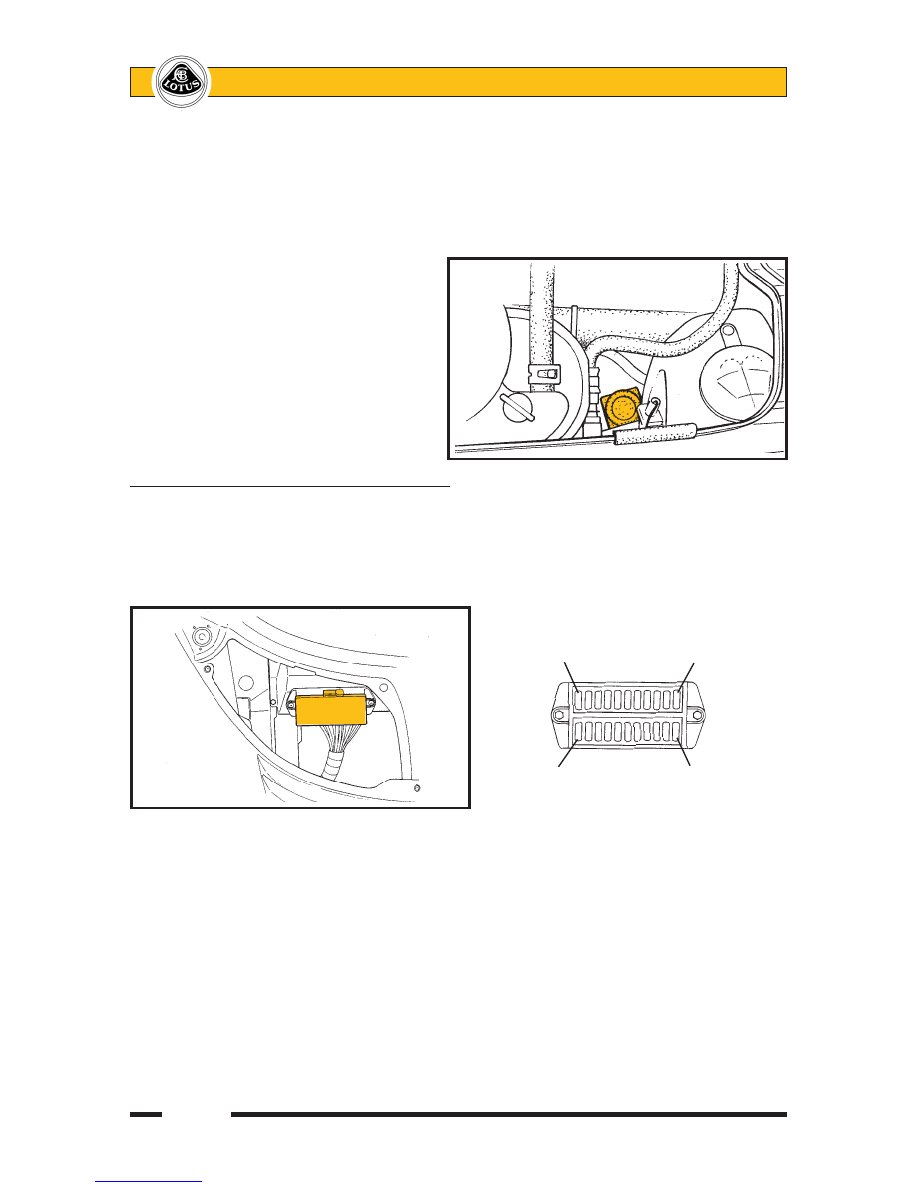

  INERTIA

  SWITCH















   ohs137



As viewed from in front of Elise:



Fuse 1                Fuse 11





m255

      Fuse 12            Fuse 22

Slot   Rate   Circuit







1     20A    Aux. power socket



2     2A    non USA:  Alarm siren



  USA: Reverse lamps

3     20A    Driver window





4     20A    Passenger window

5     7.5A   Stoplamps



  non USA: Reverse lamps





6     7.5A   Turn indicators



7     10A    Ignition services



8     7.5A   Battery services



9     10A    Hazard lamps





10     7.5A   Horn







11     10A    Alarm power, interior lamp

12     10A    ABS







Slot   Rate   Circuit







13     3A    ECU ignition

14    20A    Rad. fans;



  1&2 slow, 1 fast



15     7.5A   Radio, switch

pack module

16     10A    Sidelamps



  non USA: Rear fog

17     10A    Dip beam LH

18     10A    Dip beam RH

19     20A    A.C. comp. relay,









  rad fan 2 fast

20     15A    Main beam LH

21     15A    Main beam RH

22     7.5A   CDL



m254





  MAIN FUSEBOX
