Disconnecting coolant hoses of heat exchanger

1. Release the two fastening clamps for the coolant hoses of the heat exchanger and slide them back over the

hoses.

2. Carefully lift off the cover of the heat exchanger and remove from the body.

Note

If the cover of the heat exchanger is damaged during removal, it must be replaced.

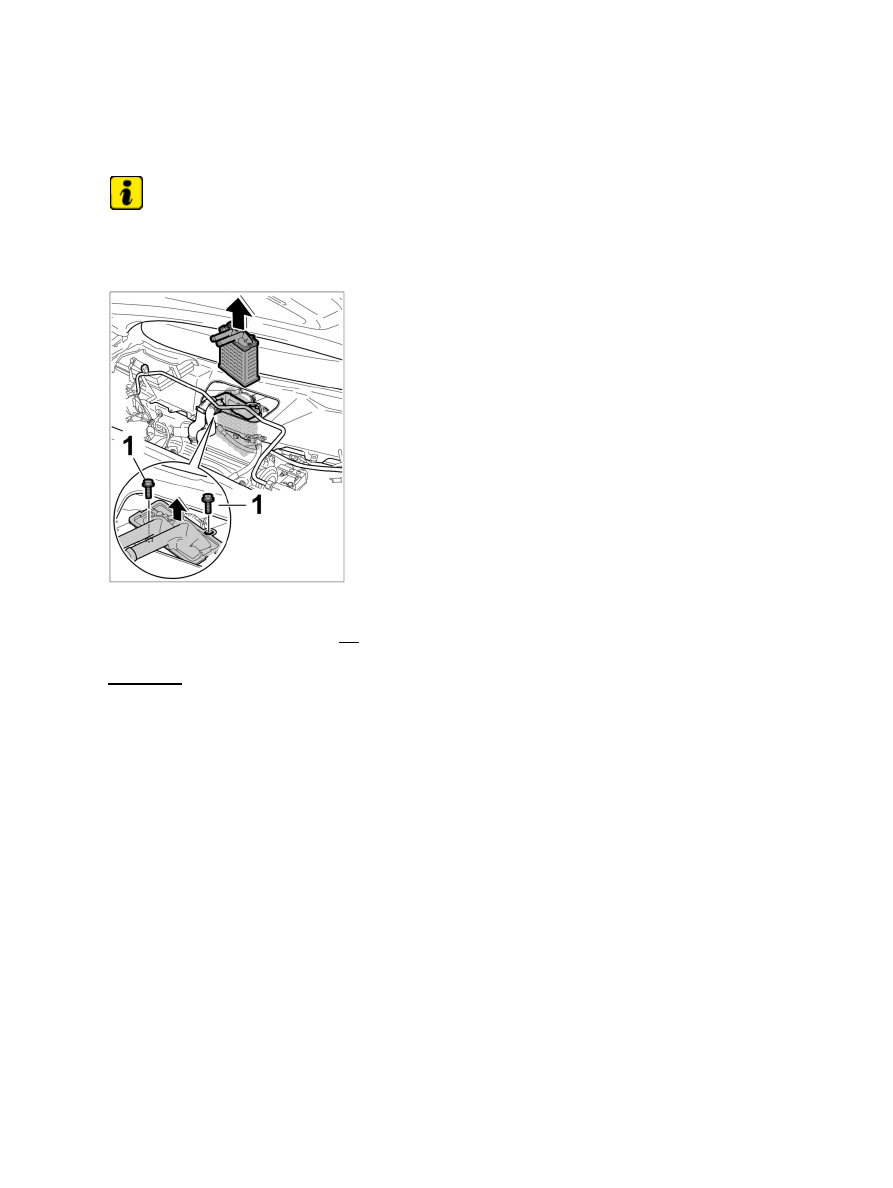

Removing the heat exchanger.

3. Undo the two fastening screws -1- and carefully lift the heat exchanger up and out.

Installing heat exchanger

Installing heat exchanger

Diagnostic system: reading out fault memory and activating systems

Removing heat exchanger

3453

Inserting heat exchanger into the heating/air-conditioning unit.

1. Carefully insert heat exchanger from above into the heating/air-conditioning unit and secure with the

fastening screws -1- . → Tightening torque: 1.0 ftlb.

Note

If the cover of the heat exchanger is damaged during removal, it must be replaced.

Seal of heat exchanger cover

2. Check the seal at the cover of the heat exchanger and repair using a commercially available butyl adhesive

or replace if necessary.

Diagnostic system: reading out fault memory and activating systems

Installing heat exchanger

3454

Securing coolant hoses of heat exchanger

3. Push the cover over the connections of the heat exchanger and press into place against the body, making

sure it fits securely.

4. Push coolant hoses onto the heat exchanger and secure with fastening clamps.

Subsequent work

Subsequent work for heat exchanger

→ 193817 Draining and topping up with coolant - chapter on "topping up"
→ 921919 Removing and installing wiper link - chapter on "installing"
Install left and right dome strut.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
