Porshe 911 (997). Manual - part 1027

Overview of connectors for main wire harness in passenger compartment

33-34

- Plug connection between main wire harness and rear end wire harness, left and right

35-36

- Connector for loudspeaker, rear left and right

37-38

- Connector for seat-belt tensioner, front left and right

39-40

- Rubber sleeve

41

- Tiptronic control module connector

42-43

- Connector for airbag sensor, centre left and right

44-45

- Connector for ParkAssist control unit

46-48

- Connector for rear end convenience systems control unit

49

- Ground point under driver's seat

50-53

- Connector for telephone control unit

54

- Ground point under passenger's seat

55-56

- Connector for front seat, left and right

57

- Connector for driver's seat with memory

58

- Connector for door sill button module

Diagnostic system: reading out fault memory and activating systems

Installing main wire harness in passenger compartment

4265

59-60

- Plug connection between main wire harness and wire harness for door, left and right

61

- Fuse box

62

- Relay carrier

63-64

- Connector for vehicle electrical system control unit

65

- Connector for gateway control unit

66-67

- Connector for KESSY/PAS control unit

68

- Connector for stop light switch

69

- Connector for pedal sensor

70

- Plug connection between main wire harness and wire harness for centre console

71

- Plug connection for telephone handset

72

- Connector for airbag triggering unit

73

- Connector for parking-brake lever contact switch

74-75

- Tiptronic position switch

76

- Ground point under unit carrier

77

- Connector for tilt sensor control unit

78

- Power distributor

79-80

- Plug connection between main wire harness and wire harness for heater/air-conditioning unit

81-82

- Connector for garage door opener control unit

83

- Connector for sunroof switch

84

- Connector for interior light

85

- Connector for sunroof motor

86

- Plug connection for rain sensor

87-88

- Plug connection for make-up mirror, left and right

89-93

- Connector for antenna unit, left and right

Fastening main wire harness at centre dashboard bracket

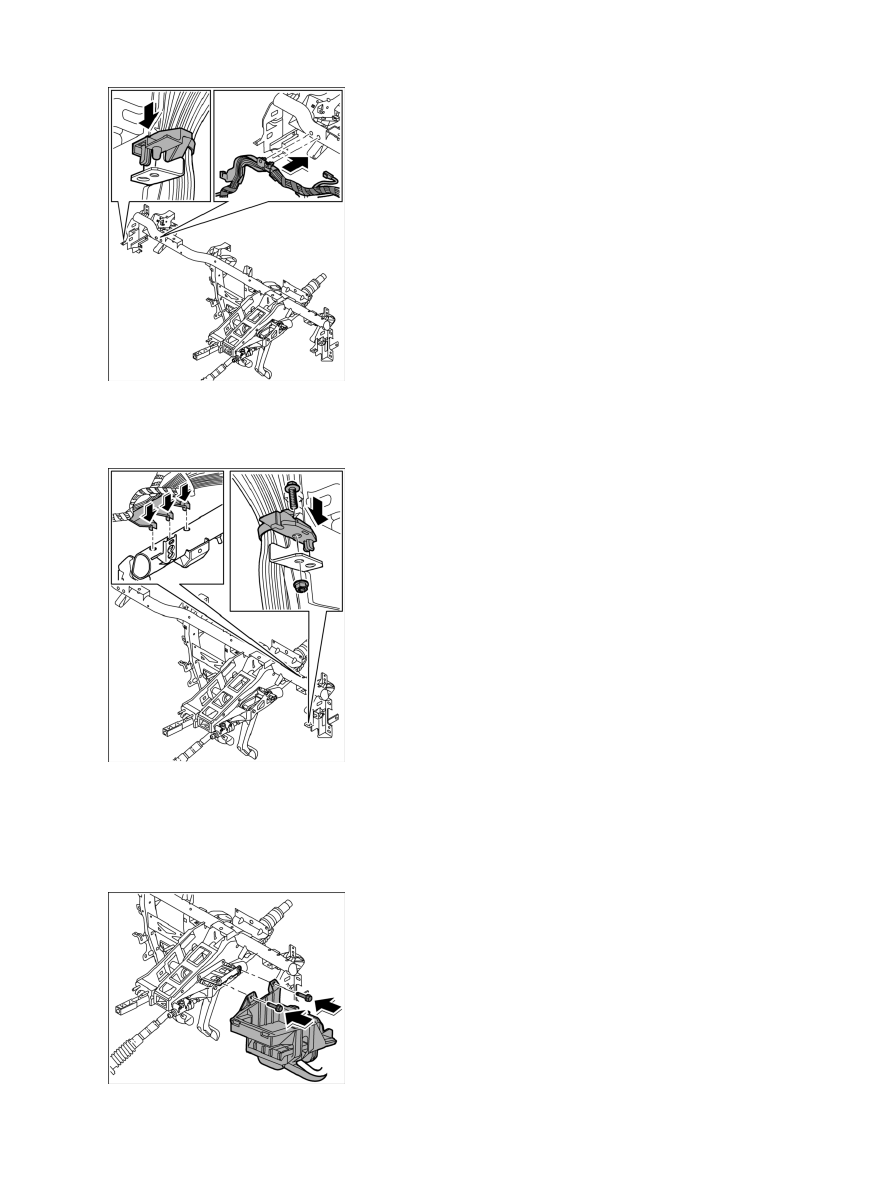

1. Fasten main wire harness at centre dashboard bracket.

1.1. Lay main wire harness and fasten with four new tie-wraps .

Diagnostic system: reading out fault memory and activating systems

Installing main wire harness in passenger compartment

4266

Fastening main wire harness at right dashboard bracket

2. Fasten main wire harness at right dashboard bracket.

2.1. Clip in main wire harness on both cable guides.

Fastening main wire harness at left dashboard bracket

3. Fasten main wire harness at left dashboard bracket.

3.1. Clip in main wire harness on cable

guide.

3.2. Insert fastening screw and tighten fastening nut. → Tightening torque: 3.5 (2.5 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing main wire harness in passenger compartment

4267

Fastening holder for relay carrier

4. Fasten holder for relay carrier.

4.1. Position holder for relay carrier and tighten with the two fastening screws to the dashboard

bracket. → Tightening torque: 3.5 (2.5 ftlb.) Nm

Clipping in cable guide

5. Clip in cable guide on dashboard bracket.

Clipping in length compensation

6. Clip in length compensation at the steering column.

6.1. Position length compensation at the steering column and fasten with the expansion rivet.

Fastening ground points on dashboard bracket

7. Fasten ground points on dashboard bracket.

7.1. Fit ground straps and tighten with fastening nuts. → Tightening torque: 9 (6.5 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing main wire harness in passenger compartment

4268
