TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 66

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 240 HEATER CONTROL MOUNTING AND
CABLE

1

PAOZZ

96906

MS35489-5

GROMMET,NONMETALLIC

1

2

PAOZZ

11862

3816659

STRAP,LINE SUPPORTI

1

3

PAOZZ

11862

3982098

NUT,PLAIN,HEXAGON

4

4

PAOZZ

96906

MS90728-3

SCREW,CAP,HEXAGON H

3

5

PAOZZ

11862

14072415

BRACKET,MOUNTING

1

6

PAOZZ

96906

MS9549-10

WASHER,FLAT

2

7

PAOZZ

96906

MS90728-6

SCREW,CAP,HEXAGON H

4

8

PAOZZ

96906

MS35338-44

WASHER,LOCK

3

9

PAOZZ

96906

MS35691-406

NUT,PLAIN,HEXAGON

3

10

PAOOO

11862

14076284

CONTROL ASSEMBLY,HE

1

END OF FIGURE

240-1

SECTION II

TM 9-2320-289-20P

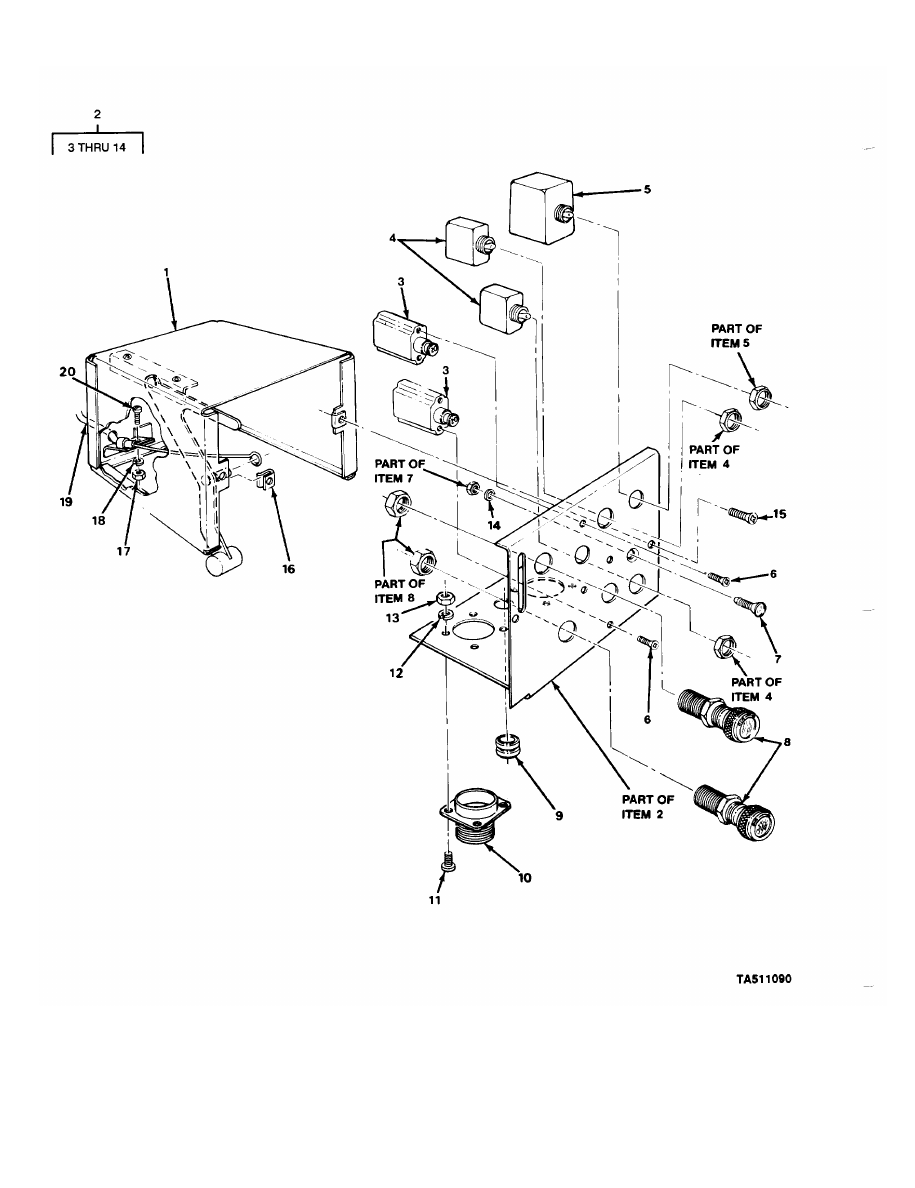

FIGURE 241. HEATER CONTROL ASSEMBLY COMPONENT PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 241 HEATER CONTROL ASSEMBLY
COMPONENT PARTS

1

PAOZZ

11862

14076285

HOUSING,HEATER CONT

1

2

PAOOO

11862

14076287

PANEL ASSEMBLY,HEAT

1

3

PAOZZ

96906

MS25244-P-20

.CIRCUIT BREAKER

2

4

PAOZZ

96906

MS35058-22

.SWITCH,TOGGLE

2

5

PAOZZ

96906

MS25307-312

.SWITCH,TOGGLE

1

6

PAOZZ

96906

MS51957-26

.SCREW,MACHINE

4

7

PAOZZ

81640

L30200R

.LIGHT,INDICATOR

1

8

PAOZZ

96906

MS25331-4-313S

.LIGHT,INDICATOR

2

9

PAOZZ

96906

MS35489-6

.GROMMET,NONMETALLIC

1

10

PAOZZ

96906

MS3452W18-11P

.CONNECTOR,RECEPTACL

2

11

PAOZZ

96906

MS51957-17

.SCREW,MACHINE

8

12

PAOZZ

96906

MS35333-70

.WASHER,LOCK

8

13

PAOZZ

96906

MS35649-244

.NUT,PLAIN,HEXAGON

8

14

PAOZZ

96906

MS27183-42

.WASHER,FLAT

1

15

PAOZZ

96906

MS51957-45

SCREW,MACHINE

2

16

PAOZZ

96906

MS90724-7

NUT,SHEET SPRING

2

17

PAOZZ

96906

MS35649-202

NUT,PLAIN,HEXAGON

1

18

PAOZZ

96906

MS35338-43

WASHER,LOCK

1

19

PFOZZ

11862

14076295

CABLE,HEATER CONTRO

1

20

PAOZZ

96906

MS35206-263

SCREW,MACHINE

1

END OF FIGURE

241-1

SECTION II

TM 9-2320-289-20P

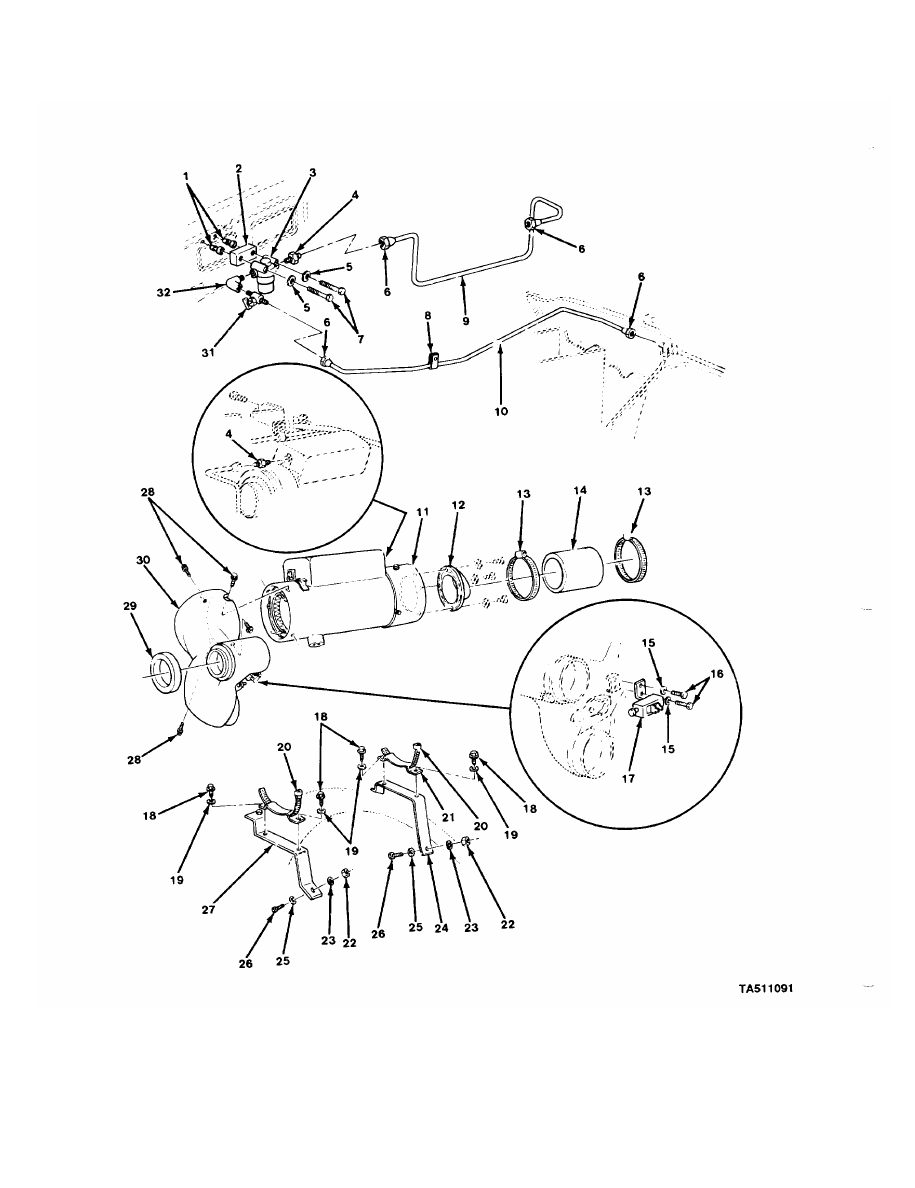

FIGURE 242. HEATER AND MOUNTING PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 242 HEATER AND MOUNTING PARTS

1

PAOZZ

00613

C-5139-2

RECEPTACLE,TURNLOCK

2

2

PAOZZ

11862

14072374

SPACER,HEATER FUEL

1

3

PAOZZ

96906

MS51085-1

FILTER,FLUID

1

4

PAOZZ

81240

GM118749

ADAPTER,STRAIGHT,PI

2

5

PAOZZ

96906

MS27183-8

WASHER,FLAT

2

6

PAOZZ

81343

5 010111B

NUT,TUBE COUPLING

4

7

PAOZZ

24617

456748

SCREW,CAP,HEXAGON H

2

8

PAOZZ

96906

MS21333-110

CLAMP,LOOP

1

9

MFOZZ

11862

14072378

PIPE F/F;TR OUTLT  (29.99" LG) MAKE

1

FROM TUBE, P/N 1324714

10

MFOZZ

11862

15599203

PIPE  (43.79" LG) MAKE FROM TUBE, P/

1

N 1324714

11

PAOFF

78385

10530B

HEATER,VEHICULAR,CO

1

12

PAOZZ

11862

14074466

ADAPTER,HEATER,VEHI

1

13

PAOZZ

96906

MS35842-14

CLAMP,HOSE

2

14

PAOZZ

16632

CHE2015-0001

HOSE,AIR DUCT

1

15

PAOZZ

96906

MS27183-10

WASHER,FLAT

2

16

PAOZZ

24617

9419663

SCREW,TAPPING

2

17

PAOZZ

11862

15599972

SWITCH,PUSH

1

18

PAOZZ

11862

9439771

BOLT,ASSEMBLED WASH

4

19

PAOZZ

19207

5287638

WASHER,FLAT

4

20

PAOZZ

96906

MS35842-16

CLAMP,HOSE

2

21

PAOZZ

11862

14074469

BRACKET,HEATER,VEHI

2

22

PAOZZ

96906

MS51967-6

NUT,PLAIN,HEXAGON

4

23

PAOZZ

96906

MS35338-45

WASHER,LOCK

4

24

PAOZZ

11862

14074471

BRACKET,MOUNTING

1

25

PAOZZ

24617

9418924

WASHER,FLAT

4

26

PAOZZ

96906

MS90728-32

BOLT,MACHINE

4

27

PAOZZ

11862

14074470

BRACKET,HEATER FRON

1

28

PAOZZ

24617

423532

SCREW,ASSEMBLED WAS

4

29

PAOZZ

16632

CHE2017

GASKET

1

30

PAOZZ

11862

14074473

VALVE ASSEMBLY,HEAT

1

31

XDOZZ

11862

9440173

VALVE FUEL SHUTOFF

1

32

PAOZZ

96906

MS51952-1

ELBOW,PIPE

1

END OF FIGURE

242-1

SECTION II

TM 9-2320-289-20P

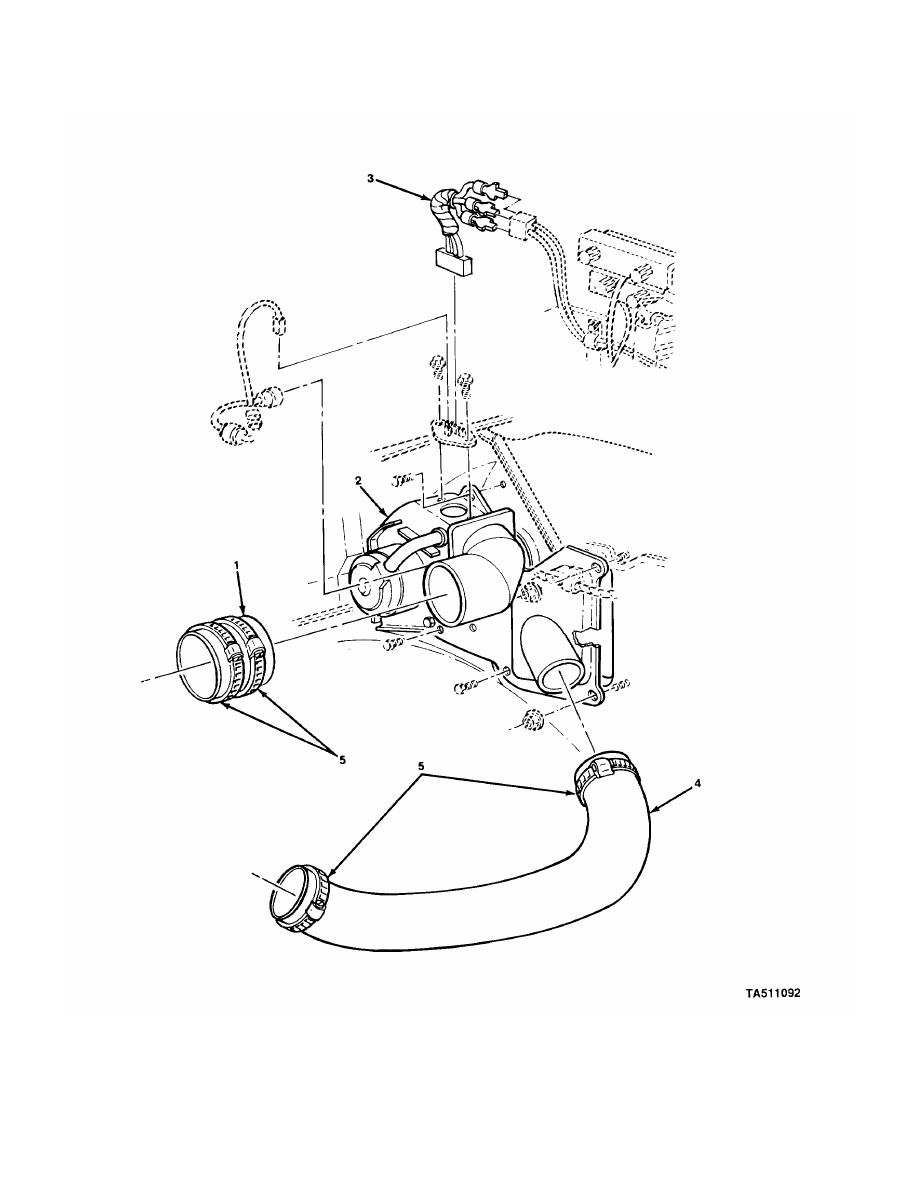

FIGURE 243. HEATER BLOWER AND HOSES.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 243 HEATER BLOWER AND HOSES

1

PAOZZ

16632

CHE2015-0001

HOSE,AIR DUCT

1

2

PAOOO

11862

14074465

BLOWER ASSEMBLY,HEA  FOR COMPONENT

1

PARTS SEE FIG 244

3

PAOZZ

11862

14076237

LEAD ASSEMBLY,ELECT

1

UOC:194,208,209,210,230,231,252,254

4

PAOZZ

16632

CHE2015-0002

HOSE,AIR DUCT

1

5

PAOZZ

96906

MS35842-15

CLAMP,HOSE

4

END OF FIGURE

243-1

SECTION II

TM 9-2320-289-20P

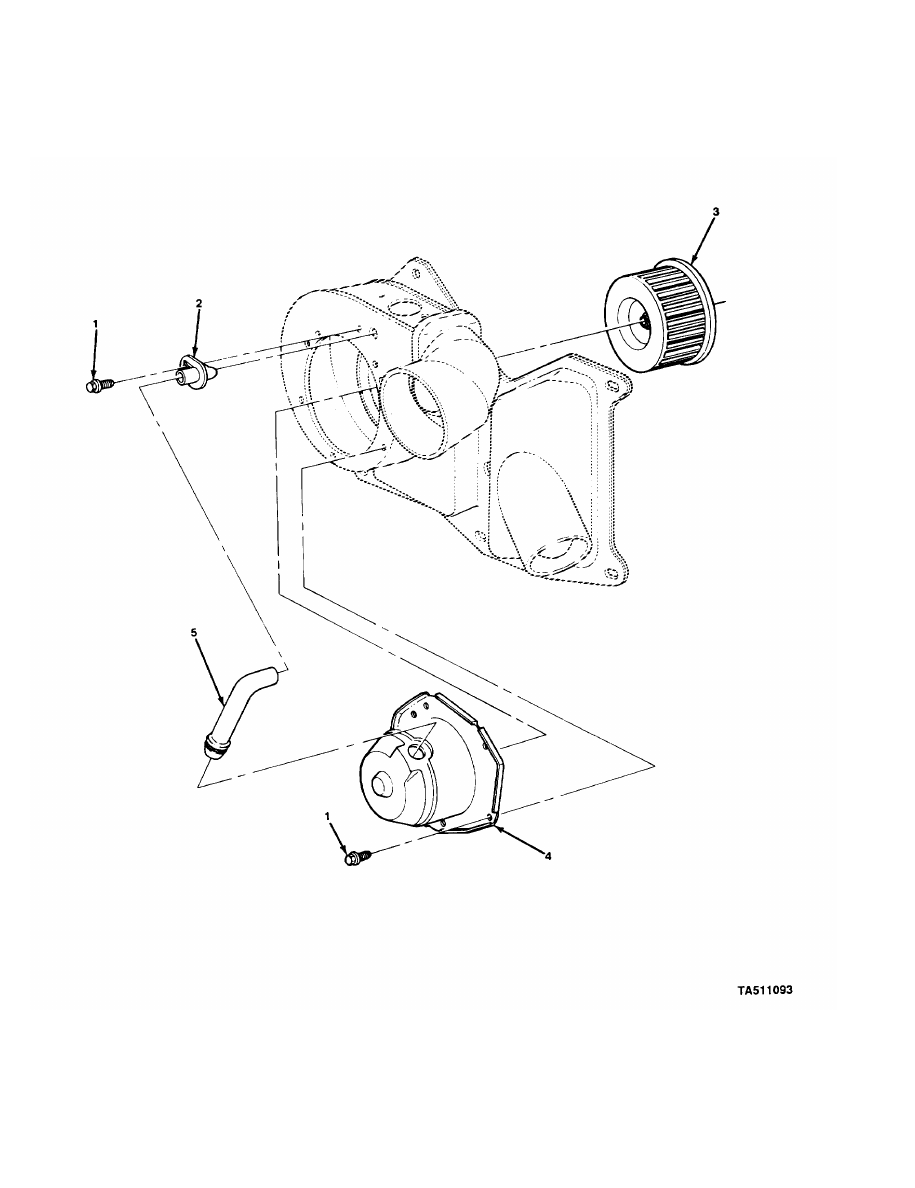

FIGURE 244. BLOWER COMPONENT PARTS.
