SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 2202 ACCESSORY ITEMS

FIG. 199 WIPER MOTOR COMPONENT PARTS

7

PAOZZ

11862

22049531

SPACER AND GROMMET

3

8

PAOZZ

11862

22054153

NUT,SELF-LOCKING,EX

1

9

PAOZZ

11862

22038927

LEVER,REMOTE CONTRO

1

10

PAOZZ

11862

22054156

GASKET

1

12

PAOZZ

11862

22021679

GROMMET

1

28

PAOZZ

11862

22038928

COVER,WASHER,WINDSH

1

END OF FIGURE

199-1

SECTION II

TM9-2320-289-20P

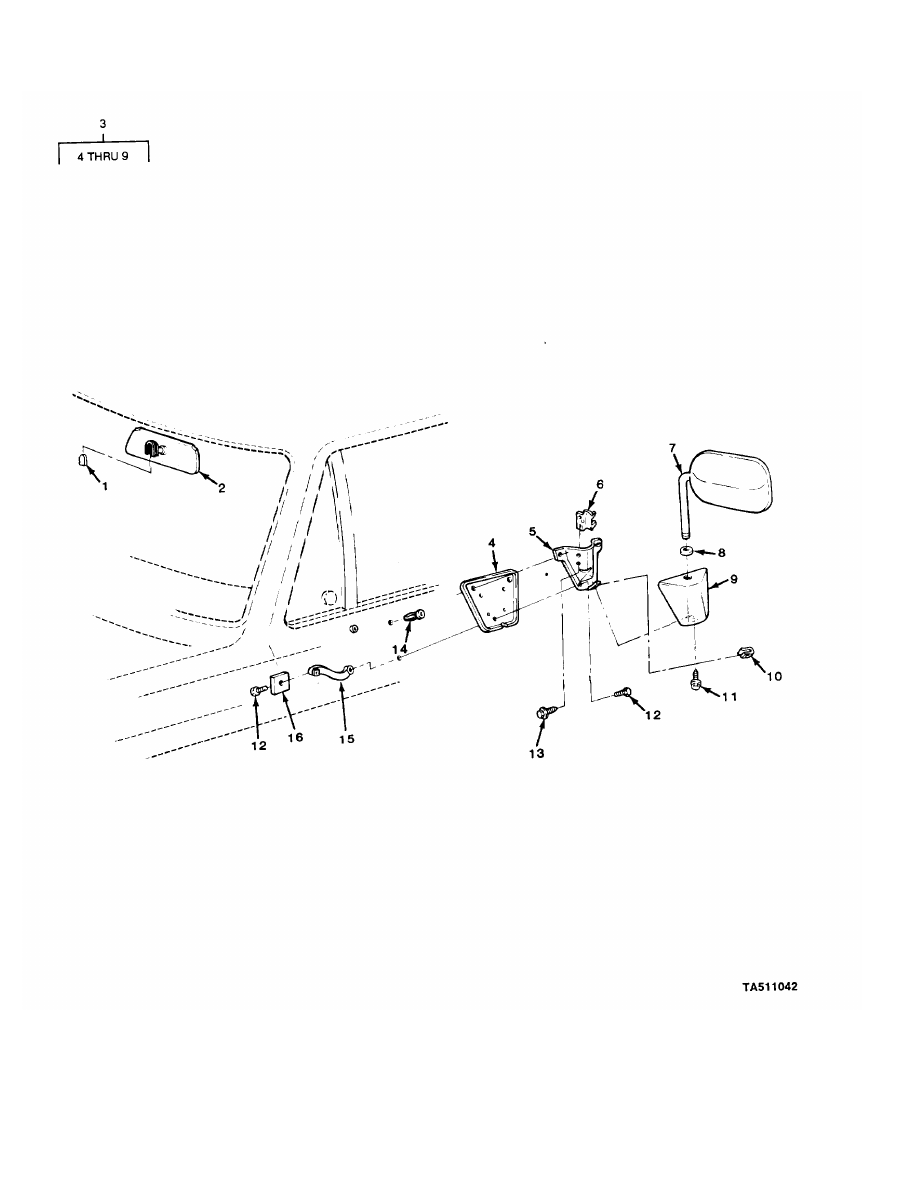

FIGURE 200. REARVIEW MIRRORS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 2202 ACCESSORY ITEMS

FIG. 200 REARVIEW MIRRORS

1

PAOZZ

11862

9831062

SUPPORT,REARVIEW MI INCLUDES GLUE

1

UOC:194,208,209,231

2

PAOZZ

11862

918656

MIRROR ASSEMBLY,REA

1

UOC:194,208,209,231

3

ACOOO

11862

14072485

MIRROR ASSEMBLY,REA LEFT

1

UOC:194,208,209,210,230,231,252

3

ACOOO

11862

14072486

MIRROR ASSEMBLY,REA RIGHT

1

UOC:194,208,209,210,230,231,252

4

PAOZZ

11862

14008191

.GASKET

1

UOC:194,208,209,210,230,231,252

5

PAOZZ

11862

14007429

.BRACKET,MIRROR

1

UOC:194,208,209,210,230,231,252

6

PAOZZ

11862

14007430

.CLAMP,REAR VIEW MIR

1

UOC:194,208,209,210,230,231,252

7

PAOZZ

11862

14072487

.MIRROR ASSEMBLY, REA

1

UOC:194,208,209,210,230,231,252

7

PAOZZ

11862

15634659

.MIRROR,ASSEMBLY,REA

1

UOC:254,256

7

PAOZZ

11862

15634660

.MIRROR ASSEMBLY,REA

1

UOC:254,256

8

PAOZZ

11862

14007435

.GROMMET,NONMETALLIC

1

UOC:194,208,209,210,230,231,252

9

PAOZZ

11862

14072489

.COVER,MIRROR,REAR V LEFT

1

UOC:194,208,209,210,230,231,252

10

PAOZZ

11862

52351724

NUT,SHEET SPRING

2

11

PAOZZ

11862

15554576

SCREW,ASSEMBLED WAS

2

12

PAOZZ

11862

14007511

BOLT,ASSEMBLED WASH

8

13

PAOZZ

24617

9426277

BOLT

4

14

PAOZZ

11862

14005953

SHIELD,EXPANSION

4

UOC:194,208,209,210,230,231,252

15

PAOZZ

11862

14007541

ARM,REARVIEW MIRROR LEFT

1

UOC:194,208,209,210,230,231,252

15

PAOZZ

11862

14007542

ARM,REARVIEW MIRROR RIGHT

1

UOC:194,208,209,210,230,231,252

16

PAOZZ

11862

14007539

WASHER,FLAT

2

END OF FIGURE

200-1

SECTION II

TM 9-2320-289-20P

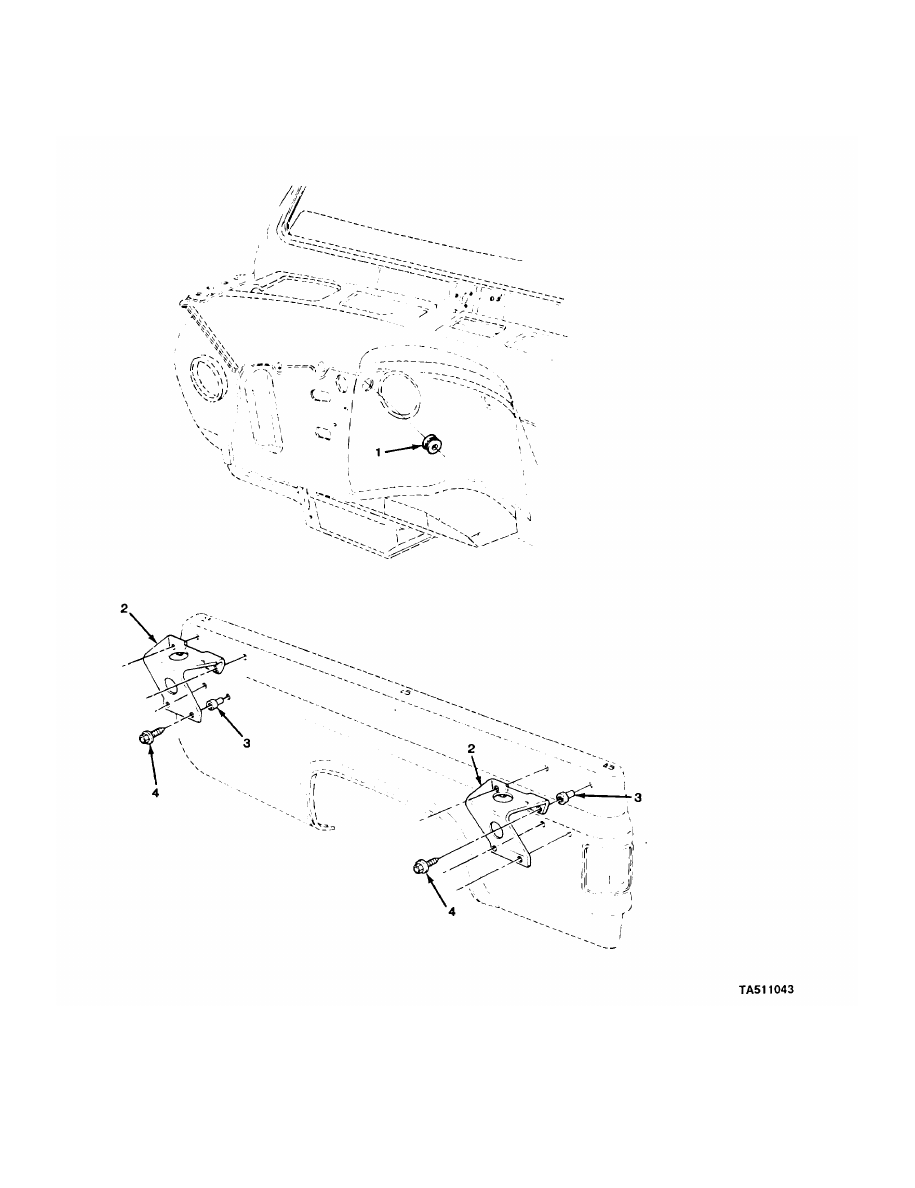

FIGURE 201. ANTENNA MOUNTING (ALL EXCEPT M1009 AND M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 2202 ACCESSORY ITEMS

FIG. 201 ANTENNA MOUNTING (ALL
EXCEPT M1009 AND M1010)

1

PAOZZ

11862

14076298

GROMMET,NOMETALLIC

1

UOC:194,208,230,252,254,256

2

PAOZZ

11862

14072445

BRACKET,ANGLE

4

UOC:194,208,230,252,254,256

3

PAOZZ

11862

15599994

NUT,PLAIN,BLIND RIV

16

UOC:194,208,230,231,252,254,256

4

PAOZZ

11862

9440300

SCREW,CAP,HEXAGON H

16

UOC:194,208,230,252,254,256

END OF FIGURE

201-1

SECTION II

TM 9-2320-289-20P

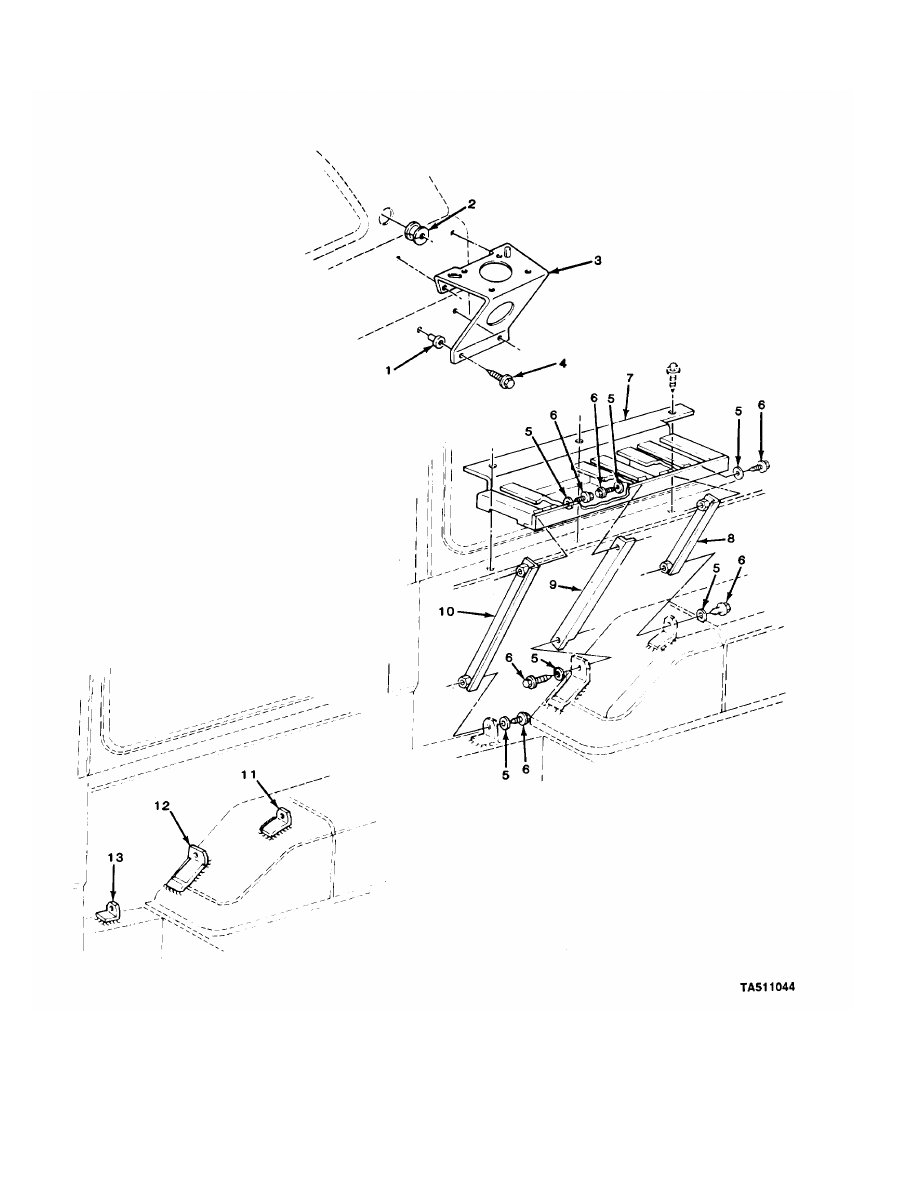

FIGURE 202. RADIO AND ANTENNA BRACKETS (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 2202 ACCESSORY ITEMS

FIG. 202 RADIO AND ANTENNA BRACKETS
(M1009)

1

PAOZZ

11862

15599994

NUT,PLAIN,BLIND RIV

8

UOC:209

2

PAOZZ

11862

15599990

GROMMET,NONMETALLIC

2

UOC:209

3

PAOZZ

11862

14072445

BRACKET,ANGLE

2

UOC:209

4

PAOZZ

11862

9440300

SCREW,CAP,HEXAGON H

8

UOC:209

5

PAOZZ

96906

MS35340-45

WASHER,LOCK

6

UOC:209

6

PAOZZ

96906

MS90728-34

BOLT,MACHINE

6

UOC:209

7

PAOZZ

11862

15599962

BRACKET

1

UOC:209

8

PAOZZ

11862

14072441

BRACKET,ANGLE

1

UOC:209

9

PAOZZ

11862

14072440

BRACKET,ANGLE

1

UOC:209

10

PAOZZ

11862

14072439

BRACKET,ANGLE

1

UOC:209

11

PAOZZ

11862

15599964

BRACKET,ANGLE

1

UOC:209

12

PAOZZ

11862

15599963

BRACKET,DOUBLE ANGL

1

UOC:209

13

PAOZZ

11862

14072442

BRACKET,ANGLE

1

UOC:209

END OF FIGURE

202-1

SECTION II

TM 9-2320-289-20P

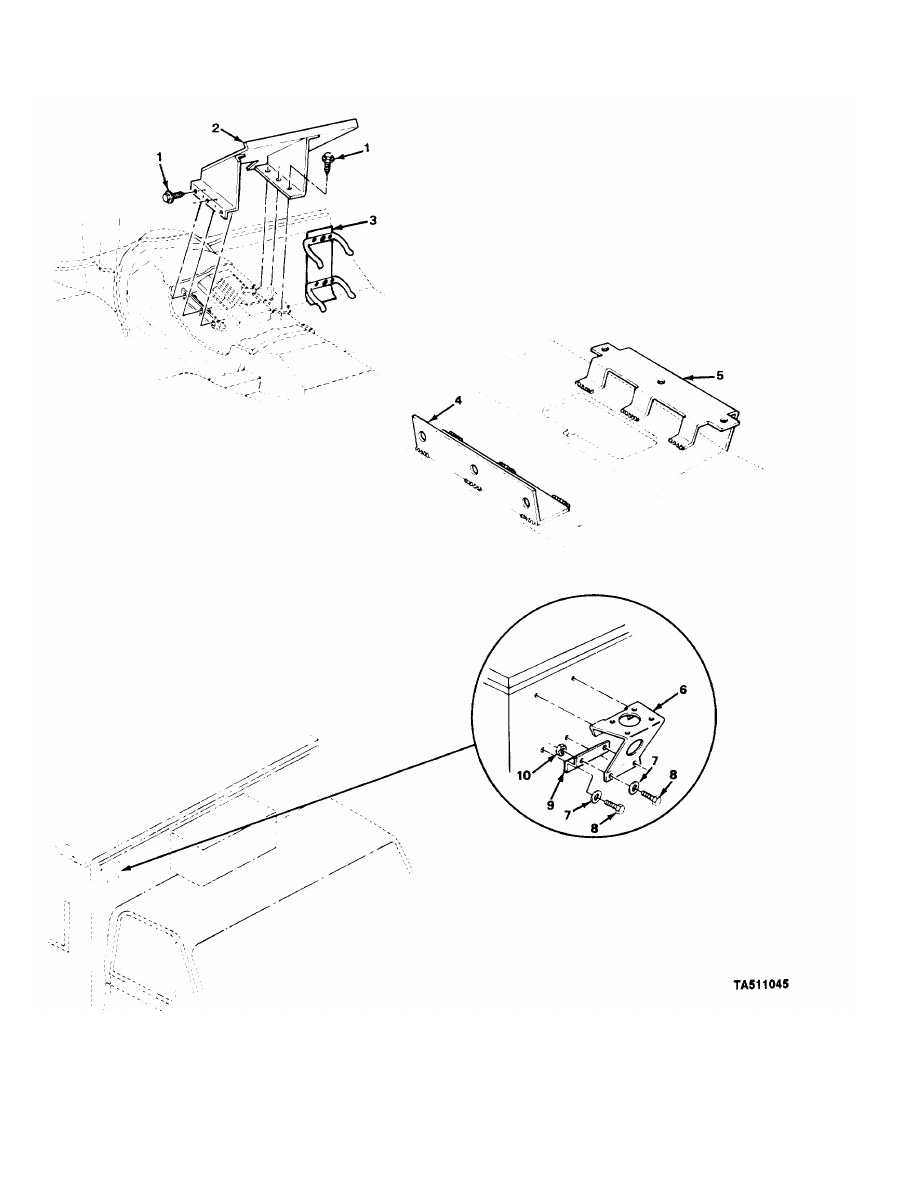

FIGURE 203. RADIO, FIRE EXTINGUISHER, AND ANTENNA BRACKETS (M1010).
