TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 37

SECTION II

TM 9-2320-289-20P

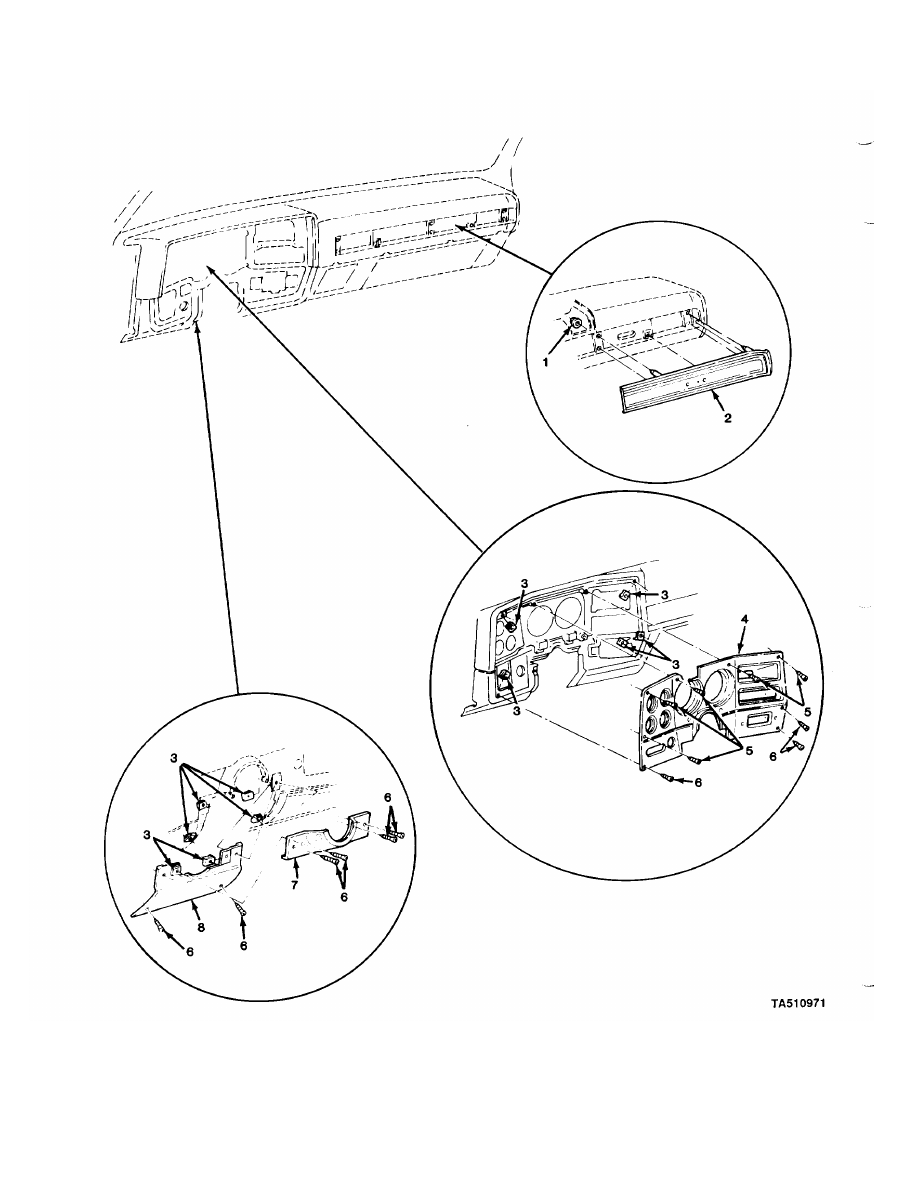

F I G U R E   1 3 1 .   I N S T R U M E N T   P A N E L   T R I M .

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 131 INSTRUMENT PANEL TRIM

1

PAOZZ

11862

11501047

NUT

5

2

PFOZZ

11862

14023039

PANEL,INSTRUMENT,PA

1

3

PAOZZ

96906

MS90724-34

NUT,SHEET SPRING

11

4

PAOZZ

11862

14072405

PLATE,INSTRUMENT PA

1

5

PAOZZ

24617

11501153

SCREW,ASSEMBLED WAS

5

6

PAOZZ

24617

11501151

SCREW,TAPPING

9

7

PAOZZ

11862

14023008

SUPPORT,STEERING CO

1

8

PAOZZ

11862

6274970

COVER,PANEL

1

END OF FIGURE

131-1

SECTION II

TM 9-2320-289-20P

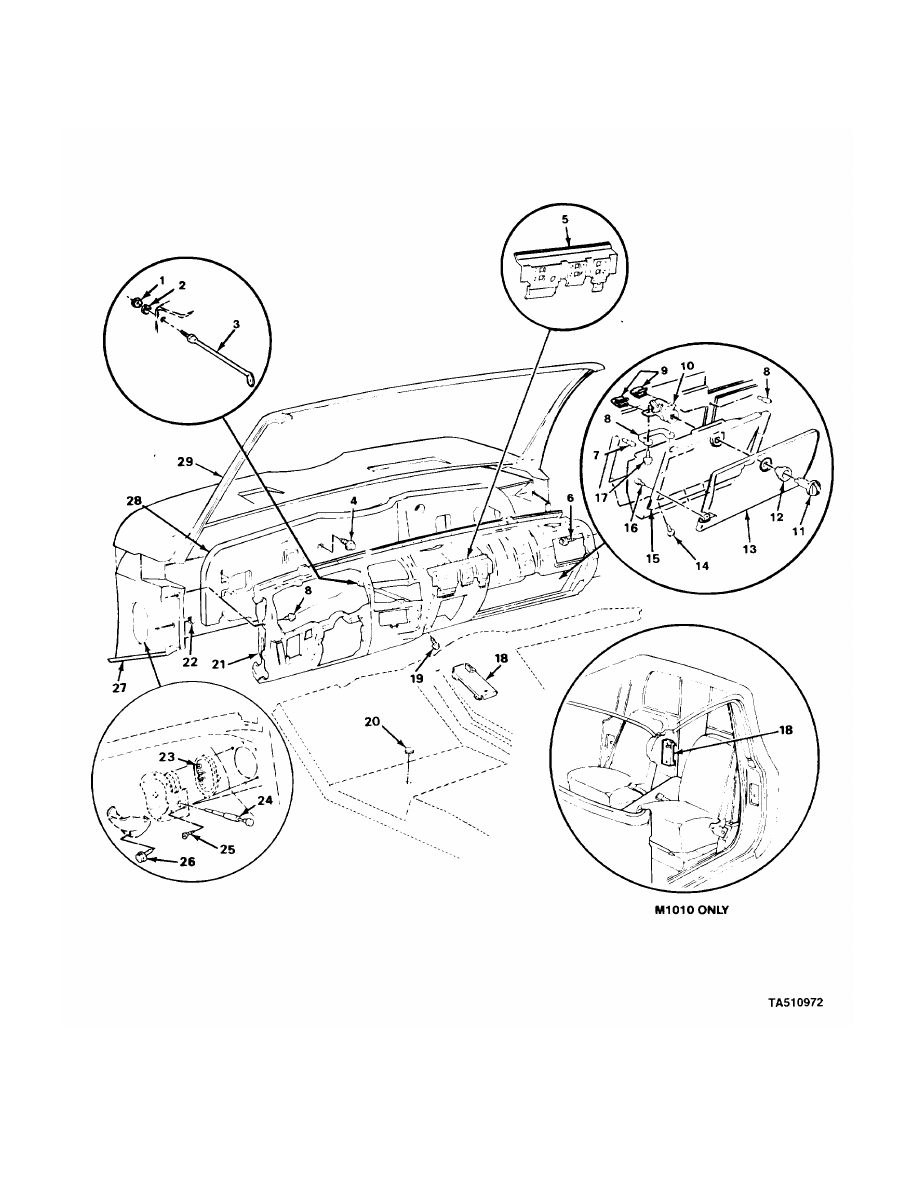

FIGURE 132. INSTRUMENT PANEL COMPONENTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 132 INSTRUMENT PANEL COMPONENTS

7

PAOZZ

11862

3765243

BUMPER,NONMETALLIC

2

8

PAOZZ

11862

6274550

STRIKE,CATCH

1

UOC:194,208,209,210,230,231,252

9

PAOZZ

96906

MS90724-34

NUT,SHEET SPRING

2

10

PAOZZ

11862

14044471

CYLINDER,LOCK,VEHIC

1

11

PAOZZ

11862

6260421

CYLINDER,LOCK,VEHIC

1

12

PAOZZ

11862

3957093

MOLDING,METAL

1

13

PAOZZ

11862

6264131

DOOR,ACCESS

1

14

PAOZZ

11862

11509135

SCREW,ASSEMBLED WAS

4

15

PAOZZ

11862

343915

GLOVE BOX

1

16

PAOZZ

24617

9420408

SCREW,TAPPING

4

17

PAOZZ

24617

9415163

SCREW,ASSEMBLED WAS

2

29

PAOZZ

11862

15598706

FRAME,WINDOW,VEHICU

1

END OF FIGURE

132-1

SECTION II

TM 9-2320-289-20P

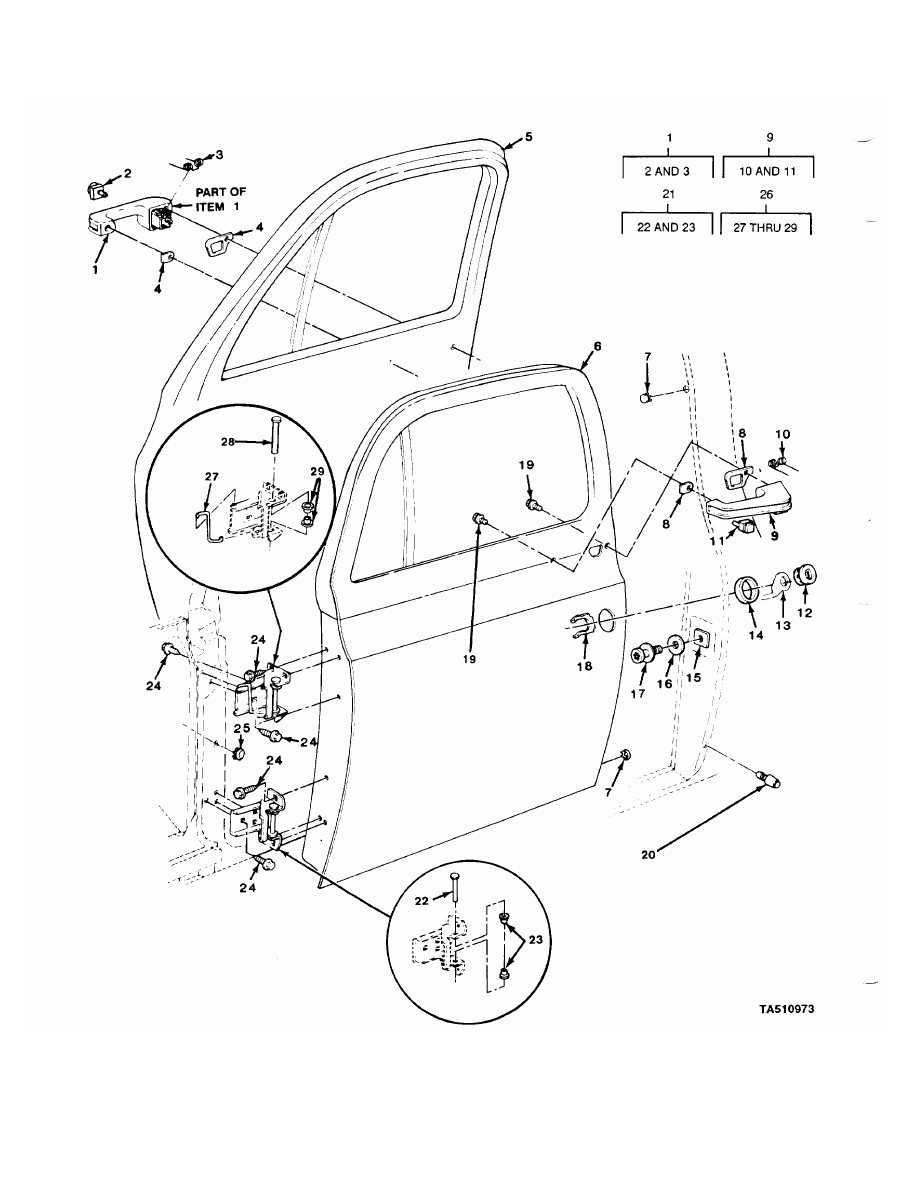

FIGURE 133. SIDE DOORS AND COMPONENTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 133 SIDE DOORS AND COMPONENTS

1

PAOOO

11862

14072494

HANDLE,DOOR

1

2

PAOZZ

11862

327062

.BUTTON,DOOR HANDLE

1

3

PAOZZ

11862

327065

.SPRING,HELICAL,TORS

1

4

PAOZZ

11862

6258562

GASKET SET

2

5

PAOZZ

11862

15593230

DOOR ASSEMBLY,CAB  RIGHT

1

6

PAOZZ

11862

15571643

DOOR,VEHICULAR  LEFT

1

7

PAOZZ

11862

4410574

PLUG,PROTECTIVE,DOS

4

8

PAOZZ

11862

6258561

GASKET SET

2

9

PAOOO

11862

14072493

HANDLE,DOOR

1

10

PAOZZ

11862

327065

.SPRING,HELICAL,TORS

1

11

PAOZZ

11862

327062

.BUTTON,DOOR HANDLE

1

12

PAOZZ

11862

15599677

CYLINDER,LOCK,VEHIC

2

13

PAOZZ

11862

7040173

PAWL  LEFT

1

13

PAOZZ

11862

7040174

PAWL  RIGHT

1

14

PAOZZ

11862

4587931

GASKET

2

15

XDOZZ

11862

6272627

STRIKE,CATCH

2

16

AOZZ

11862

1260895

WASHER,FLAT

2

17

PAOZZ

11862

9601750

BOLT,SHOULDER

2

18

PAOZZ

11862

9728247

RETAINER

2

19

PAOZZ

11862

9439771

BOLT,ASSEMBLED WASH

4

20

PAOZZ

11862

3900684

BUMPER,NONMETALLIC

4

21

PAOOO

11862

14000091

HINGE,ACCESS DOOR  LEFT

1

21

PAOOO

11862

14000092

HINGE,DOOR VEHICULA  RIGHT

1

22

PAOZZ

11862

6271989

.PIN,STRAIGHT,HEADED

1

23

PAOZZ

11862

9721917

.BEARING,SLEEVE

2

24

PAOZZ

11862

9438916

SCREW,TAPPING

24

25

PAOZZ

11862

3944769

CAP-PLUG,PROTECTIVE

2

26

PAOOO

11862

14000093

HINGE,ACCESS DOOR  LEFT

1

26

PAOOO

11862

14000094

HINGE  RIGHT

1

27

PAOZZ

11862

327960

.ROD,HINGE TORQUE RH

1

27

PAOZZ

11862

327959

.ROD,HINGE TORQUE LH  LEFT

1

28

PAOZZ

11862

6271989

.PIN,STRAIGHT,HEADED

1

29

PAOZZ

11862

9721917

.BEARING,SLEEVE

2

END OF FIGURE

133-1

SECTION II

TM 9-2320-289-20P

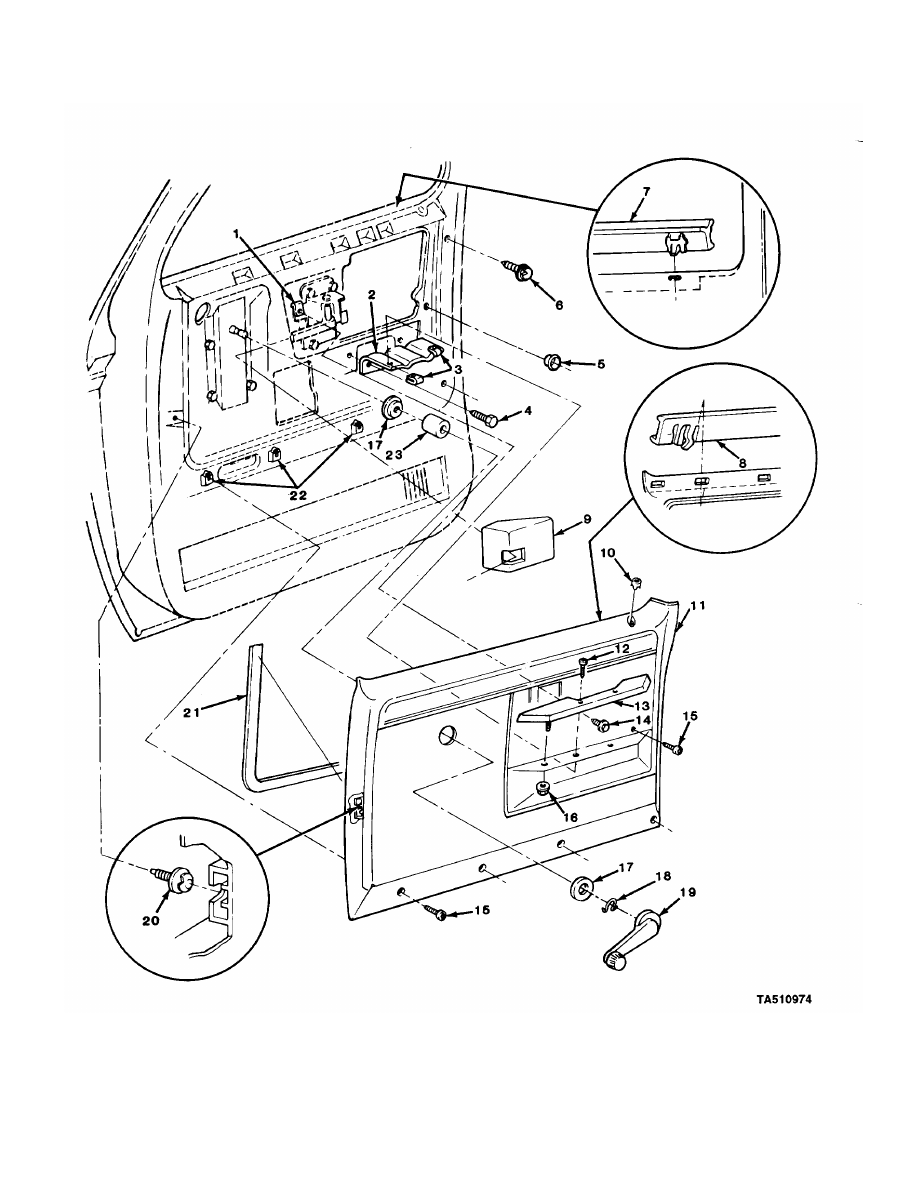

FIGURE 134. INSIDE DOOR TRIM PANEL AND RELATED PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 134 INSIDES DOOR TRIM PANEL AND
RELATED PARTS

1

PAOZZ

96906

MS90724-34

NUT,SHEET SPRING

2

2

PAOZZ

11862

362433

BRACKET,ANGLE  LEFT

1

2

PAOZZ

11862

362434

BRACKET,ANGLE  RIGHT

1

3

PAOZZ

96906

MS90724-40

NUT,SHEET SPRING

4

4

PAOZZ

11862

9439770

BOLT,ASSEMBLED WASH

4

5

PAOZZ

11862

1355003

NUT

4

6

PAOZZ

11862

20696927

FASTENER,SPRING TEN

2

7

PAOZZ

11862

14027775

SEAL,RUBBER SPECIAL  LEFT

1

7

PAOZZ

11862

14027776

SEAL,RUBBER SPECIAL  OUTER RIGHT

1

8

PAOZZ

11862

15569071

SEAL

1

8

PAOZZ

11862

15569072

SEAL,NONMETALLIC SP  INNER RIGHT

1

9

PAOZZ

11862

14026383

SEAL,NONMETALLIC SP  LEFT

1

9

PAOZZ

11862

14026384

SEAL,NONMETALLIC SP  RIGHT

1

10

PAOZZ

11862

330485

GROMMET

2

11

PAOZZ

11862

15597667

PANEL,BODY,VEHICULA  LEFT

1

11

PAOZZ

11862

15597668

PANEL,BODY,VEHICULA  RIGHT

1

12

PAOZZ

24617

9414724

SCREW,TAPPING

4

13

PAOZZ

11862

14026409

PAD,CUSHIONING  LEFT

1

13

PAOZZ

11862

14026410

PAD,CUSHIONING  RIGHT

1

14

PAOZZ

11862

11503537

SCREW,ASSEMBLED WAS

2

15

PAOZZ

24617

1640810

SCREW,TAPPING

10

16

PAOZZ

24617

9420621

PUSH ON NUT

2

17

PAOZZ

11862

14010954

ESCUTCHEON PLATE

4

18

PAOZZ

11862

4168122

RETAINER,SPECIAL

2

19

PAOZZ

11862

14030586

HANDLE,WINDOW REGUL

2

20

PAOZZ

11862

363137

FASTENER,SPRING TEN

2

21

MOOZZ

11862

15590415

SEAL,FRONT DOOR  (46.5" X 0.36" X

2

0.50") MAKE FROM SEAL, P/N 363139

22

PAOZZ

11862

15590422

RETAINER,DOOR TRIM

6

23

PAOZZ

11862

364372

BUSHING,NONMETALLIC

2

END OF FIGURE

134-1
