SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0710 TRANSMISSION ASSEMBLY AND
ASSOCIATED PARTS

FIG. 59 TRANSMISSION ASSEMBLY AND
MOUNTS

1

PAOZZ

11862

1635490

BOLT,SELF-LOCKING

6

8

PAOZZ

11862

15522022

COVER,ACCESS

1

9

PAOZZ

96906

MS90728-83

SCREW,CAP,HEXAGON H

2

UOC:194,208,209,210,230,231,252,254

END OF FIGURE

59-1

SECTION II

TM 9-2320-289-20P

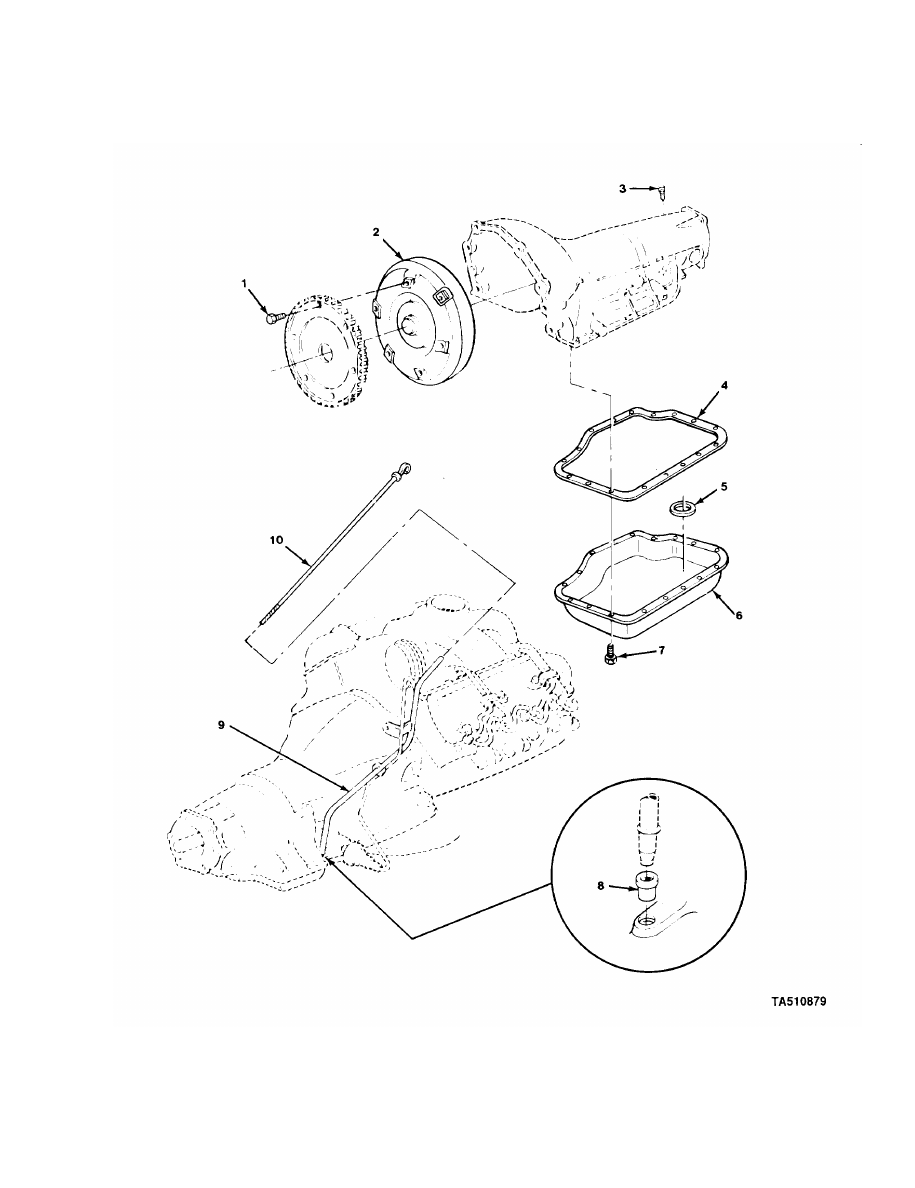

FIGURE 60. TORQUE CONVERTER, OIL PAN, AND FILLER TUBE.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0710 TRANSMISSION ASSEMBLY AND
ASSOCIATED PARTS

FIG. 60 TORQUE CONVERTER, OIL PAN,
AND FILLER TUBE

4

PAOZZ

11862

8655625

GASKET USE WITH P/N 8633203

1

5

PBOZZ

11862

3787240

MAGNET,CHIP COLLECT

1

6

PAOZZ

11862

8633203

OIL PAN

1

6

PAOZZ

11862

8655020

OIL PAN

1

7

PAOZZ

11862

9440224

BOLT,MACHINE

13

8

PAOZZ

11862

1259475

SEAL,OIL FILLER PIP

1

9

PAOZZ

11862

14045642

TUBE,BENT,METALLIC

1

UOC:194,208,209,210,230,231,252,254

10

PAOZZ

11862

334532

GAGE ROD-CAP,LIQUID

1

END OF FIGURE

60-1

SECTION II

TM 9-2320-289-20P

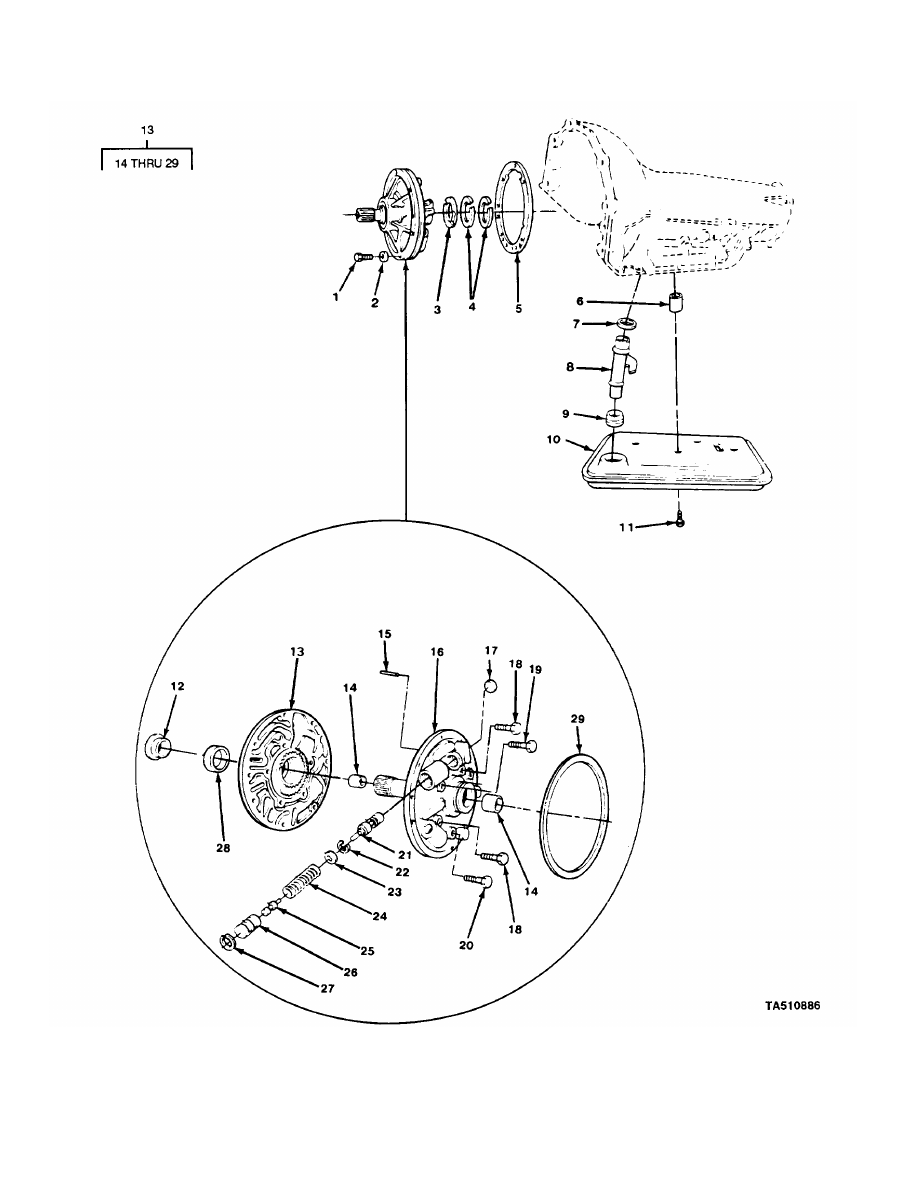

FIGURE 61. OIL PUMP ASSEMBLY AND TRANSMISSION FILTER.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0721 COOLERS, PUMPS, MOTORS

FIG. 61 OIL PUMP ASSEMBLY AND
TRANSMISSION FILTER

7

PAOZZ

73342

6771005

SEAL,NONMETALLIC RO PART OF KIT P/N

1

8625905

8

PAOZZ

11862

8629526

TUBE,BENT,METALLIC

1

9

PAOZZ

11862

6437746

GROMMET,TRANSMISSION

1

10

PAOZZ

11862

6259423

PARTS KIT,FLUID PRE

1

11

PAOZZ

11862

8633208

BOLT,SHOULDER

1

END OF FIGURE

61-1

SECTION II

TM 9-2320-289-20P

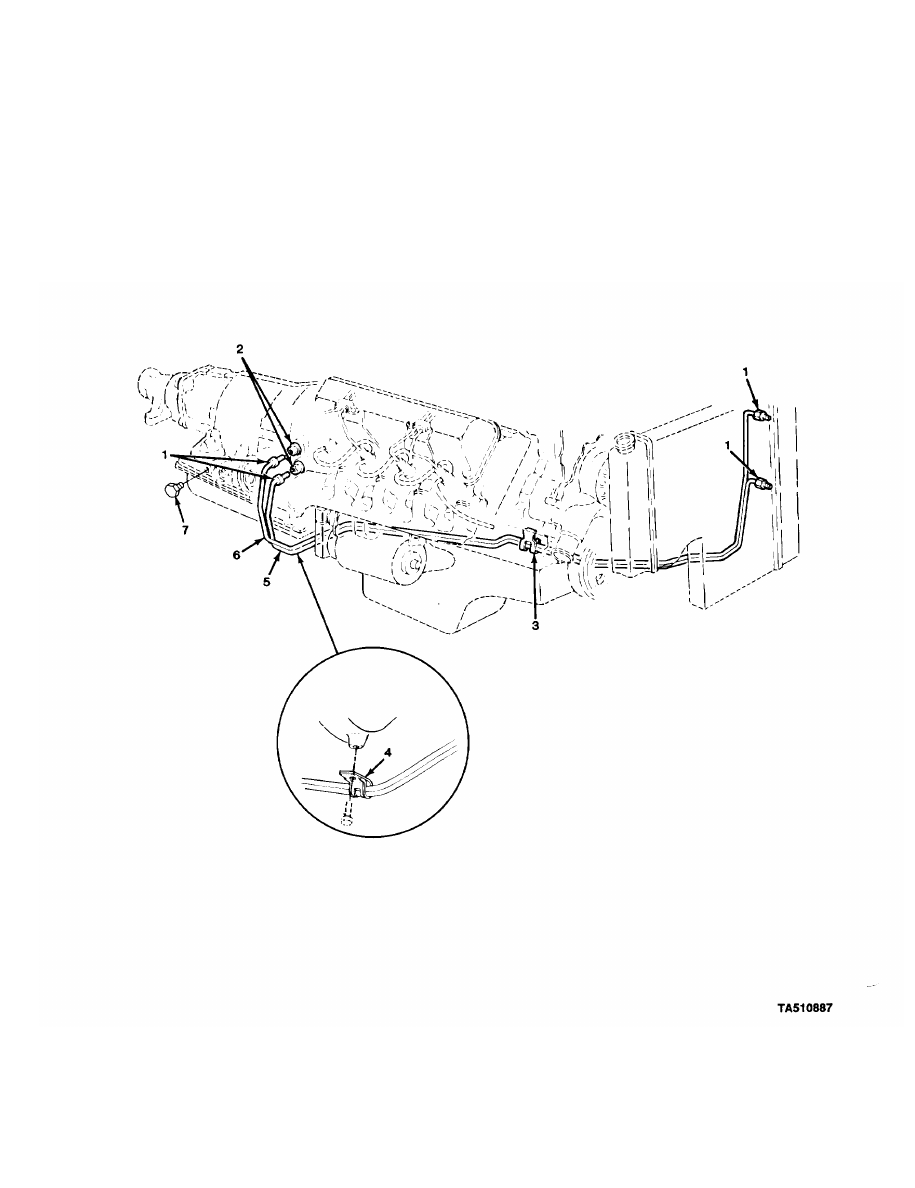

FIGURE 62. TRANSMISSION OIL COOLER LINES.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0721 COOLERS, PUMPS, MOTORS

FIG. 62 TRANSMISSION OIL COOLER
LINERS

1

PAOZZ

72582

137398

INVERTED NUT,TUBE C

4

2

PAOZZ

11862

8637742

ADAPTER,STRAIGHT,PI (5" FLARED)

2

3

PAOZZ

11862

3997718

CLIP,SPRING TENSION

1

4

PAOZZ

11862

15517986

CLAMP,LOOP

1

5

MOOZZ

11862

14045626

TUBE,METALLIC (73.95"LG) MAKE FROM

1

TUBE, P/N 1324714

6

MOOZZ

11862

14045628

PIPE ASM-TRNS OIL C (80.64"LG)

1

MAKE FROM TUBE, P/N 1324714

7

PAOZZ

14569

1007-2

PLUG,PIPE (1/8 PIPE)

1

END OF FIGURE

62-1

S E C T I O N   I I

TM 9-2320-289-20P

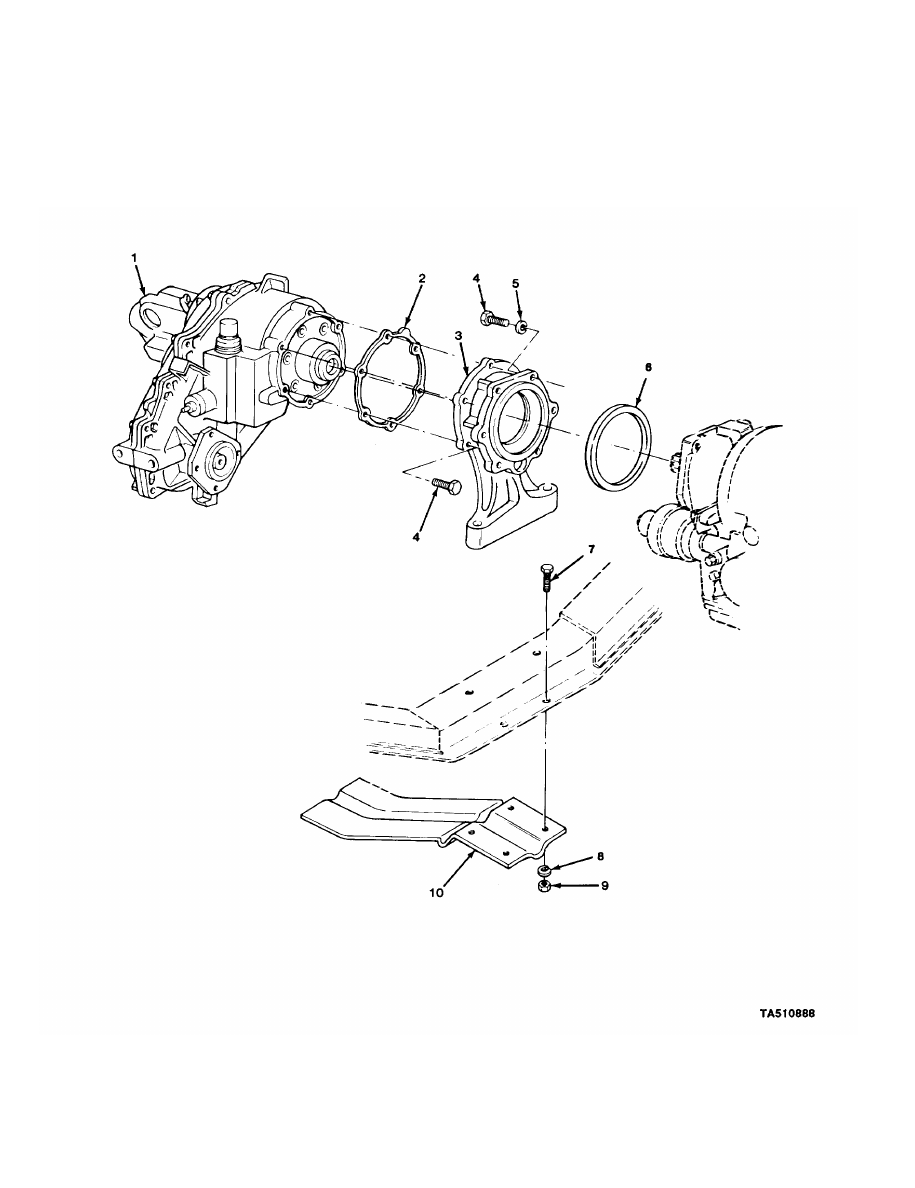

FIGURE 63. TRANSFER CASE ASSEMBLY AND ADAPTER (MODEL 208).
