GROUP 0613 HULL OR CHASSIS WIRING
HARNESS

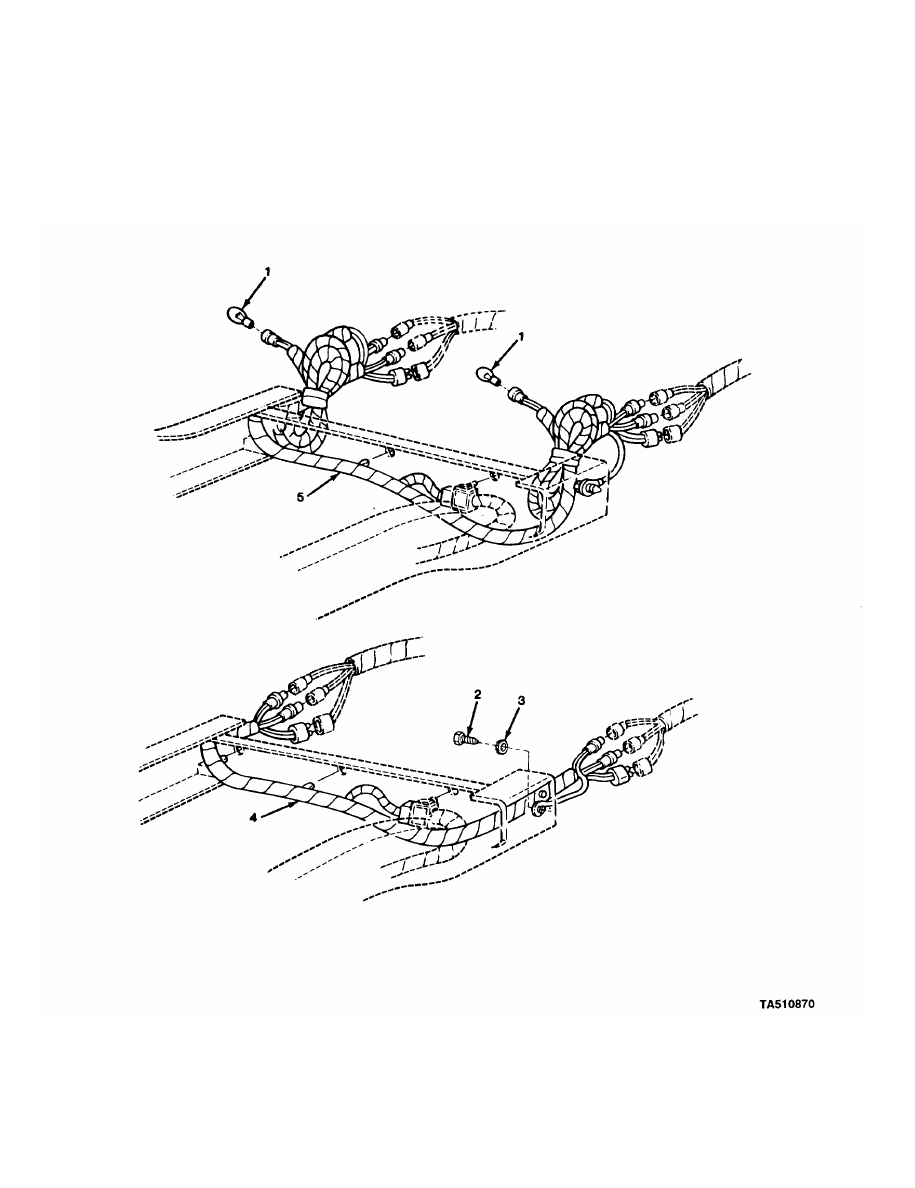

FIG. 51 BLACKOUT AND TAILLAMP WIRING
HARNESS (ALL EXCEPT M1010 AND M1031)
AND TRAILER WIRING HARNESS (ALL
EXCEPT M1010)

1

PAOZZ

96906

MS51850-86

SCREW,TAPPING

2

UOC:194,208,209,230,252,254,256

2

PAOZZ

96906

MS35335-33

WASHER,LOCK

1

UOC:194,208,230,252,254,256

3

PAOZZ

11862

6298886

LAMPHOLDER

2

UOC:194,208,209,230,252,254,256

4

XDOZZ

11862

8914822

SOCKET,TAIL LAMP

2

UOC:194,208,209,230,252,254,256

5

PAOZZ

11862

8909518

LAMPHOLDER

2

UOC:194,208,209,230,252,254,256

6

PAOZZ

11862

8906150

WIRING HARNESS,BRAN

2

UOC:194,208,209,230,252,254,256

7

PAOZZ

11862

12039205

WIRING HARNESS,BRAN

1

UOC:194,208,230,252,254,256

8

PAOZZ

11862

12039208

WIRING HARNESS,BRAN

1

UOC:194,208,209,230,252,254,256

9

PAOZZ

19207

7731428

COVER,ELECTRICAL CO

1

UOC:194,208,209,230,252,254,256

10

PAOZZ

96906

MS90728-6

SCREW,CAP,HEXAGON H

4

UOC:194,208,209,230,252,254,256

11

PAOZZ

96906

MS27183-10

WASHER,FLAT

4

UOC:194,209,230,252,254,256

12

PAOZZ

96906

MS35691-406

NUT,PLAIN,HEXAGON

4

UOC:194,208,209,230,252,254,256

END OF FIGURE

51-1

SECTION II

TM 9-2320-289-20P

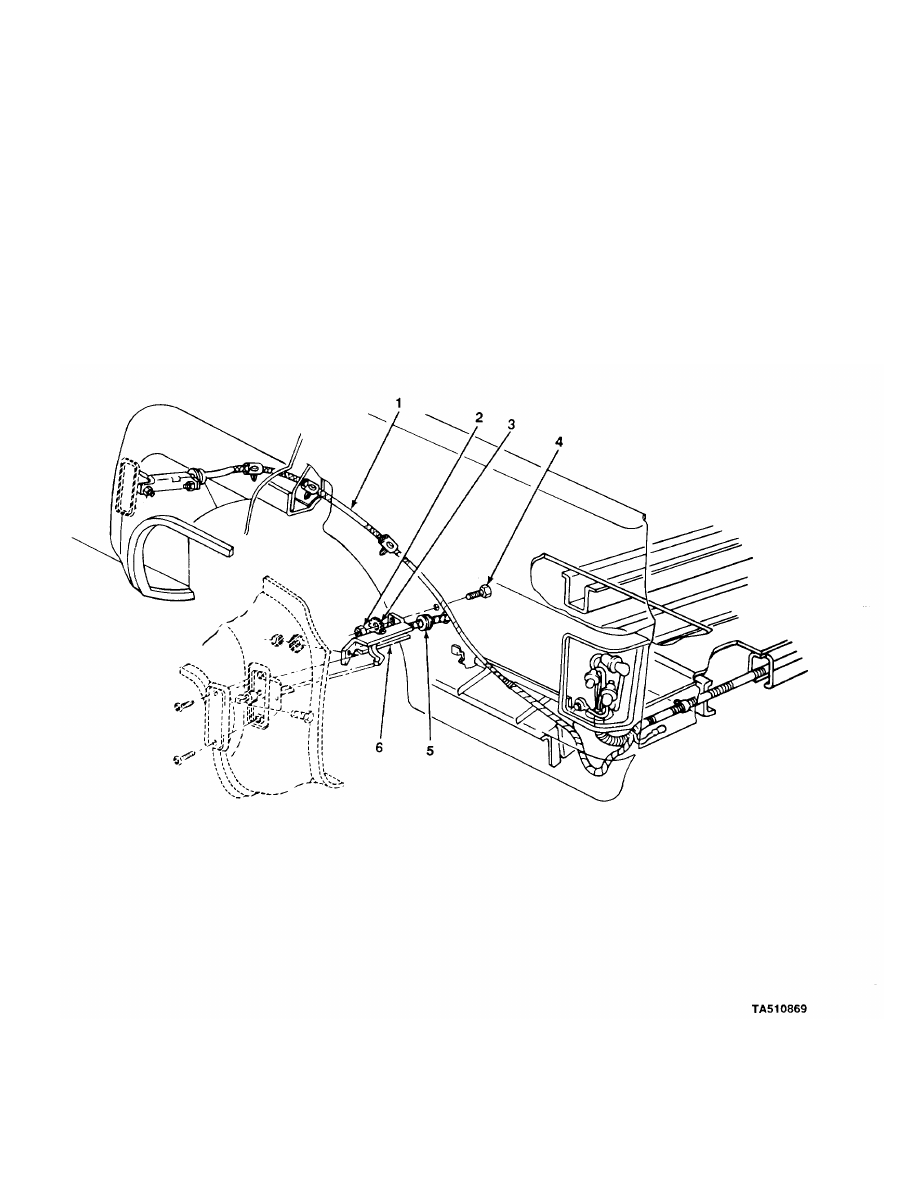

FIGURE 52. REAR FENDER WIRING HARNESS (M1028A2 AND M1028A3).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0613 HULL OR CHASSIS WIRING
HARNESS

FIG.52 REAR FENDER WIRING HARNESS
(M1028112 AND M1028A3)

2

PAOZZ

96906

MS51967-2

NUT,PLAIN,HEXAGON

2

UOC:254,256

3

PAOZZ

96906

MS35335-33

WASHER,LOCK

2

UOC:254,256

4

PAOZZ

11862

9440033

BOLT,MACHINE

2

UOC:254,256

5

PAOZZ

11862

15591130

GROMMET,NONMETALLIC

8

UOC:254,256

END OF FIGURE

52-1

SECTION II

TM 9-2320-289-20P

FIGURE 53. BLACKOUT AND TAlLLAMP WIRING HARNESSES (M1010 AND M1031).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0613 HULL OR CHASSIS WIRING
HARNESS

FIG. 53 BLACKOUT AND TAILLAMP WIRING
HARNESS (M1010 AND M1031)

1

PAOZZ

08806

194

LAMP,INCANDESCENT

2

UOC:210,231

2

PAOZZ

11862

11504447

SCREW,TAPPING

1

UOC:210,231

3

PAOZZ

96906

MS35335-34

WASHER,LOCK

1

UOC:210,231

END OF FIGURE

53-1

SECTION II

TM 9-2320-289-20P

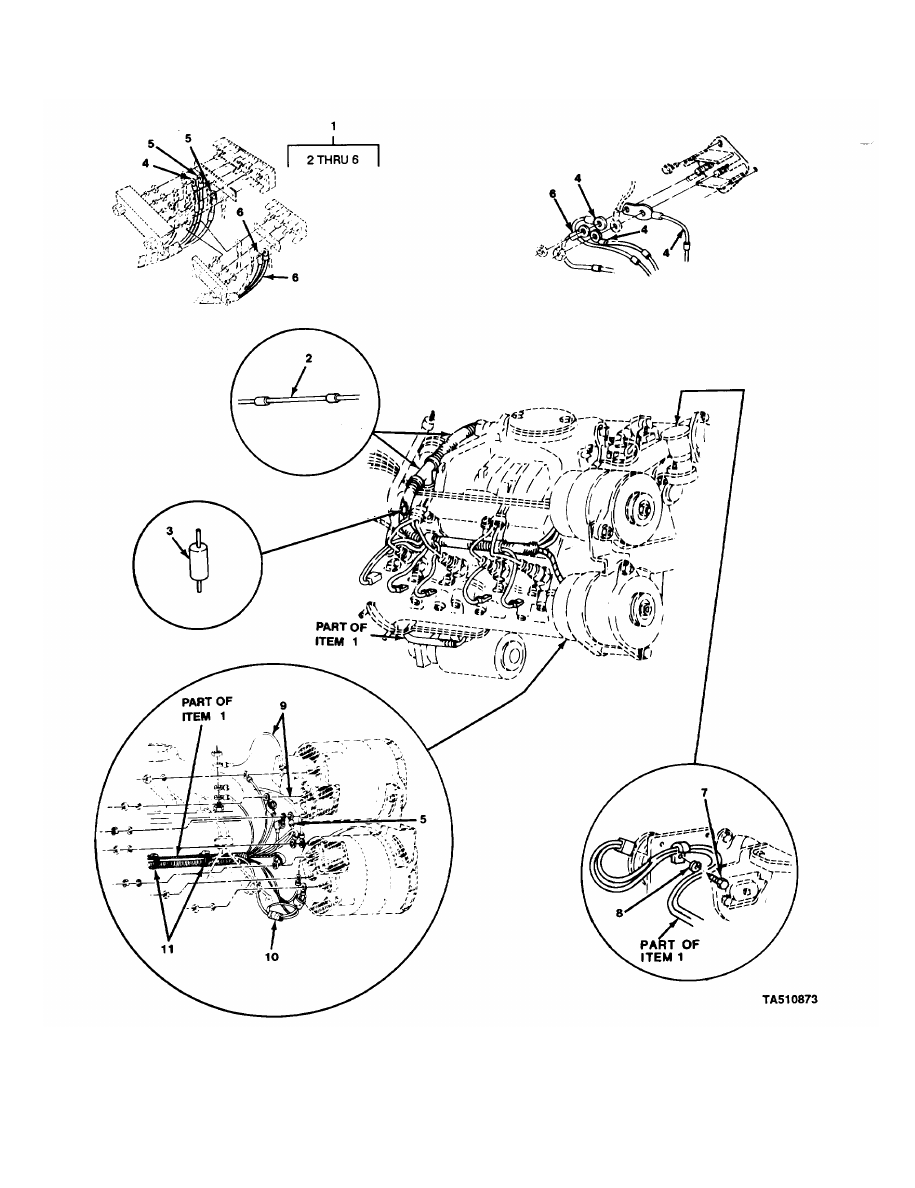

FIGURE 54. ENGINE WIRING HARNESS (ALL EXCEPT M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0613 HULL OR CHASSIS WIRING
HARNESS

FIG. 54 ENGINE WIRING HARNESS (ALL
EXCEPT M1010)

1

PAOZZ

24617

11508687

BOLT,MACHINE

1

UOC:194,208,209,230,231,252,254,256

2

PAOZZ

24617

11506003

NUT,PLAIN,ASSEMBLED

2

UOC:194,208,209,230,231,252,254,256

3

PAOZZ

11862

1988380

CAPACITOR.,FIXED,PAP

1

UOC:194,208,209,230,231,252,254,256

4

PAOZZ

24617

271166

NUT,PLAIN,ASSEMBLED

1

5

PAOZZ

24617

271172

NUT,SELF-LOCKING,AS

1

6

PAOZZ

24617

1640810

SCREW,TAPPING

2

7

PAOZZ

11862

3996270

TERMINAL BOARD

1

10

PAOZZ

11862

12006377

.RECTIFIER,CONNECTOR

1

UOC:194,208,209,230,231,252,254,256

14

PAOZZ

11862

9437702

BOLT,MACHINE

1

15

PAOZZ

11862

14005953

SHIELD,EXPANSION

1

16

PAOZZ

11862

15599222

CAPACITOR ASSEMBLY

1

19

PAOZZ

11862

12039253

LEAD,ELECTRICAL

1

UOC:194,208,209,230,231,252,254,256

20

PAOZZ

11862

14005953

SHIELD,EXPANSION

1

UOC:194,208,209,210,230,231,252,254

21

PAOZZ

96906

MS35335-36

WASHER,LOCK

1

22

PAOZZ

96906

MS35335-33

WASHER,LOCK

1

END OF FIGURE

54-1

SECTION II

TM 9-2320-289-20P

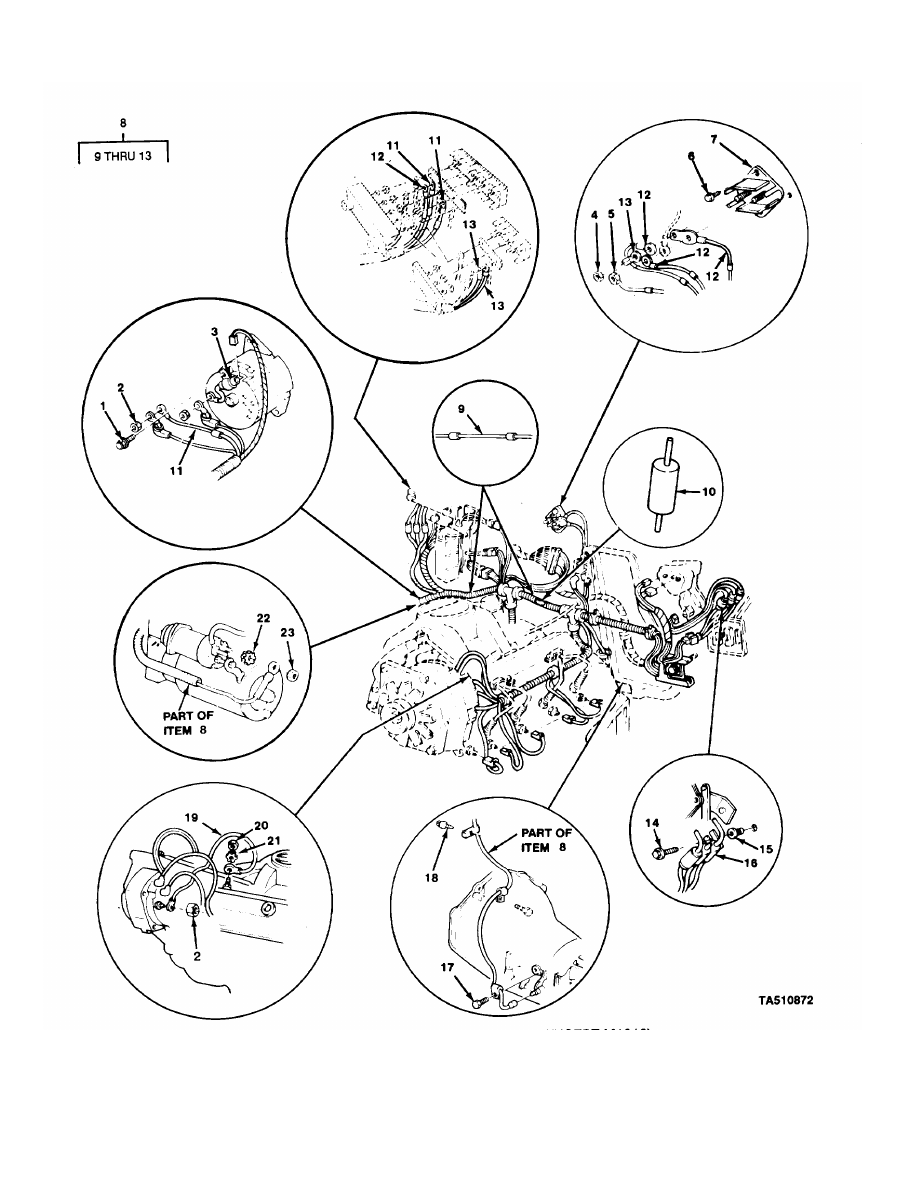

FIGURE 55. ENGINE WIRING HARNESS (M1010).
