GROUP 05 COOLING SYSTEM

GROUP 0501 RADIATOR, EVAPORATIVE
COOLER, OR HEAT EXCHANGER

FIG. 23 RADIATOR, COOLANT RECOVERY
RESERVOIR, AND RELATED PARTS

1

PAOZZ

11862

11508566

SCREW,TAPPING

2

2

PAOZZ

11862

11504115

SCREW,TAPPING

2

3

PAOZZ

11862

6410785

CAP,FILLER OPENING

1

4

PFOZZ

11862

14039948

PANEL,RADIATOR

1

5

PAOZZ

11862

6264100

PAD,RADIATOR RETAIN

4

6

PFOZZ

11862

14039950

BRACKET,MOUNTING RA

1

7

PAOZZ

11862

358375

PROBE ASSEMBLY,TRAN

1

8

PAOZZ

96906

MS35842-10

CLAMP,HOSE

2

9

PAOZZ

11862

3816659

STRAP,LINE SUPPORTI

1

10

PAOZZ

96906

MS21333-114

CLAMP,LOOP

1

11

PAOZZ

11862

14011345

CAP ASSY

1

12

PAOZZ

11862

2014469

BOLT,ASSEMBLED WASH

7

13

PFOZZ

11862

14052221

TANK,RADIATOR,OVERF

1

14

MOOZZ

11862

14072430

HOSE COLLANT RES  (59.00"LG) MAKE

1

FROM HOSE,P/N 9438373

15

PAOFF

61928

3058966

RADIATOR,ENGINE COO

1

16

PAOZZ

11862

9437207

COCK,DRAIN

1

17

PFOZZ

11862

14072427

BRACKET,RESERVOIR,C

1

18

PFOZZ

11862

14072426

BRACKET,RESERVOIR,C

1

19

PAOZZ

24617

1494253

NUT,CLIP-ON

1

20

PFOZZ

11862

14039949

BRACKET,MOUNTING

1

21

PAOZZ

11862

3792287

NUT,PLAIN,BLIND RIV

1

END OF FIGURE

23-1

SECTION II

TM 9-2320-289-20P

TA510836

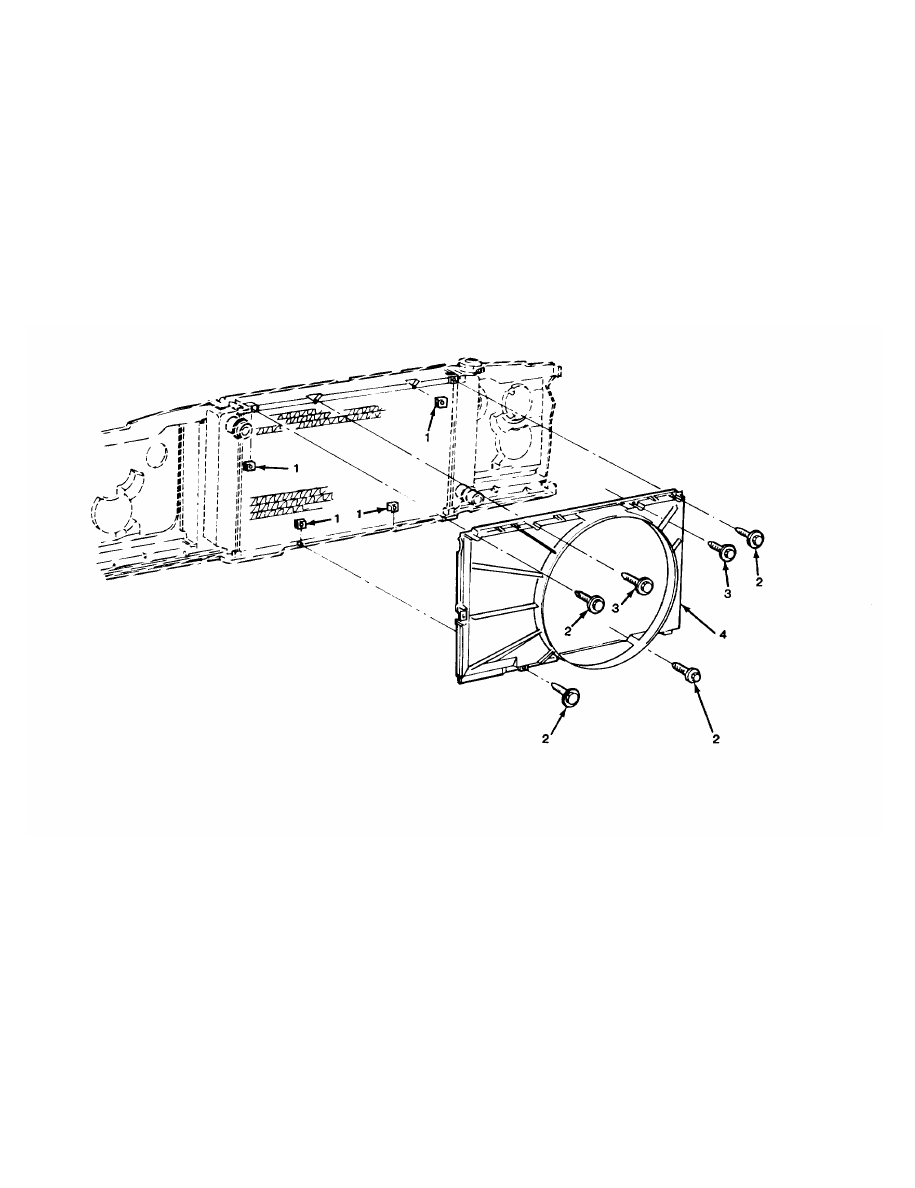

FIGURE 24. RADIATOR SHROUD.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0502 COWLING, DEFELCTORS, AIR
DUCTS, SHROUDS, ETC.

FIG. 24 RADIATOR SHROUD

1

PAOZZ

11862

3982098

NUT,PLAIN,HEXAGON

4

2

PAOZZ

11862

9440334

BOLT,ASSEMBLED WASH

4

3

PAOZZ

11862

11508566

SCREW,TAPPING

2

4

PFOZZ

11862

15522697

SHROUD,FAN,RADIATOR  APPLIES TO

1

VEHICLES STARTING WITH VIN FF136169
AND VIN FF300021

END OF FIGURE

24-1

SECTION II

TM 9-2320-289-20P

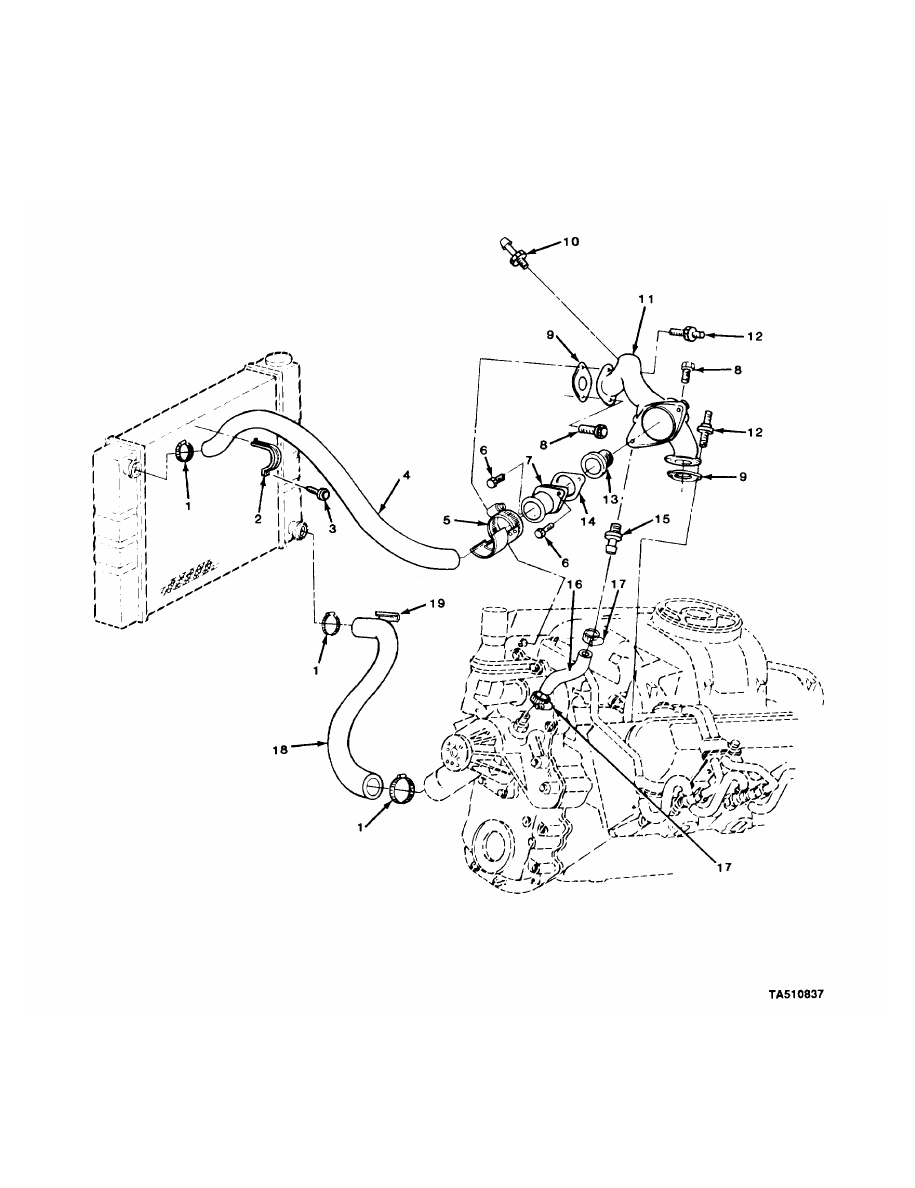

FIGURE 25. ENGINE THERMOSTAT AND HOSES.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0503 WATER MANIFOLD, HEADERS,
THERMOSTATS, AND HOUSING GASKET

FIG. 25 ENGINE THERMOSTAT AND HOSES

1

PAOZZ

96906

MS35842-13

CLAMP,HOSE

3

UOC:194,208,209,210,230,231,252,254

2

PAOZZ

11862

14036779

STRAP,RETAINING

1

3

PAOZZ

11862

11508566

SCREW,TAPPING

1

4

PAOZZ

11862

14036744

HOSE,PREFORMED

1

5

PAOZZ

11862

14071983

CLAMP,HOSE

1

6

PAOZZ

11862

11513606

BOLT,MACHINE

2

7

PAOZZ

11862

14028918

FLANGE,WATER OUTLET

1

8

PAOZZ

11862

1635490

BOLT,SELF-LOCKING

2

9

PAOZZ

11862

23500846

GASKET PART OF KIT P/N 12516166

2

10

PAOZZ

11862

14067737

ELBOW,PIPE TO HOSE

1

UOC:194,208,209,230,231,252,254,256

10

PAOZZ

11862

14067727

ELBOW,PIPE TO HOSE

1

UOC:210,230

11

PAOZZ

11862

14028917

WATER OUTLET,ENGINE

1

12

PAOZZ

11862

22535073

STUD,CONTINOUS THR

2

UOC:194,208,209,210,230,231,252,254

13

PAOZZ

11862

14077122

THERMOSTAT,FLOW CON

1

14

PAOZZ

11862

14028916

GASKET PART OF KIT P/N 12516166

1

15

PAOZZ

11862

354501

ADAPTER,STRAIGHT,PI

1

16

MOOZZ

11862

14033823

HOSE,NONMETALLIC  (4.25" LG) MAKE

1

FROM HOSE, P/N MS521304B203R

17

PAOZZ

96906

MS35842-11

CLAMP,HOSE

2

18

PAOZZ

11862

14067763

HOSE,PREFORMED

1

19

PAOZZ

11862

14000217

GUARD,RADIATOR HOSE

1

END OF FIGURE

25-1

SECTION II

TM 9-2320-289-20P

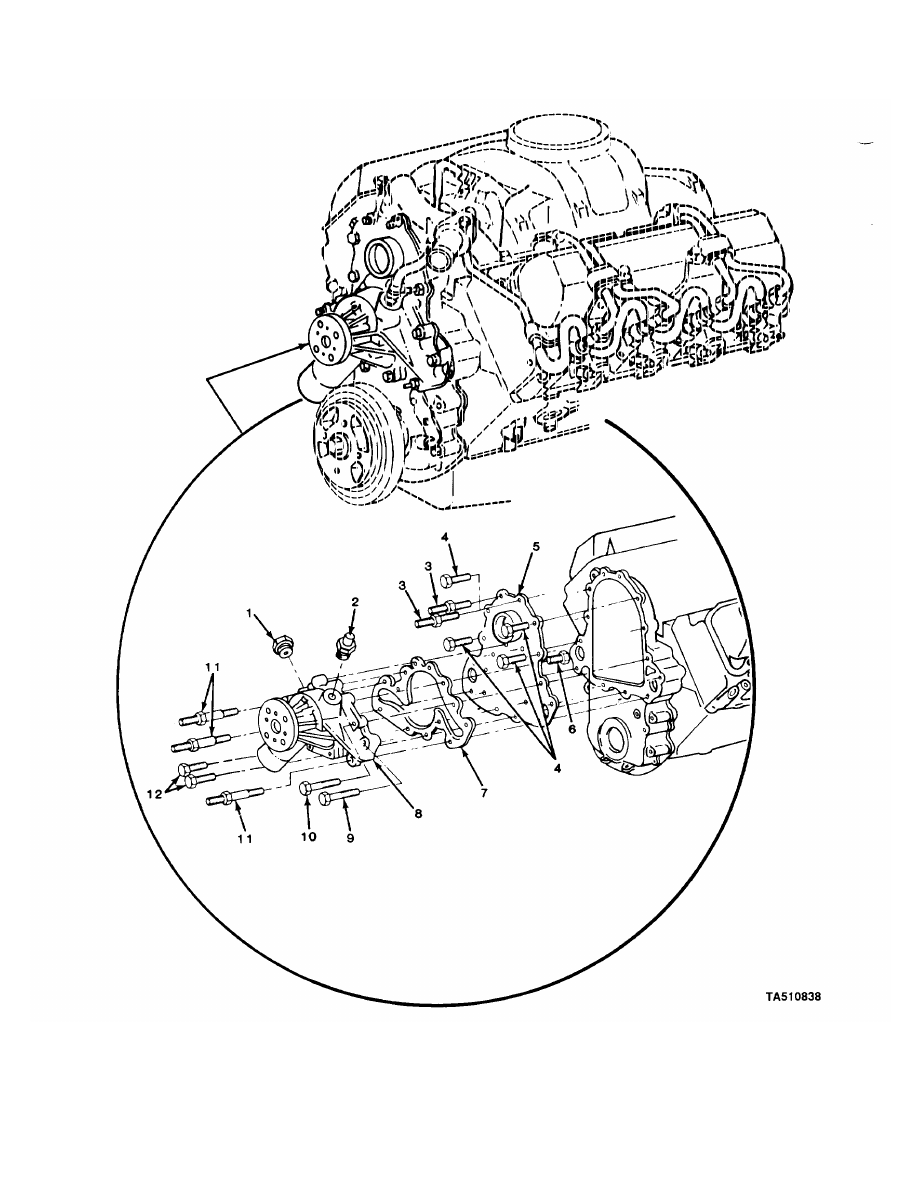

FIGURE 26. WATER PUMP.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0504 WATER PUMP

FIG. 26 WATER PUMP

1

PAOZZ

30379

444789

PLUG,PIPE

1

2

PAOZZ

11862

354501

ADAPTER,STRAIGHT,PI

1

END OF FIGURE

26-1

SECTION II

TM 9-2320-289-20P

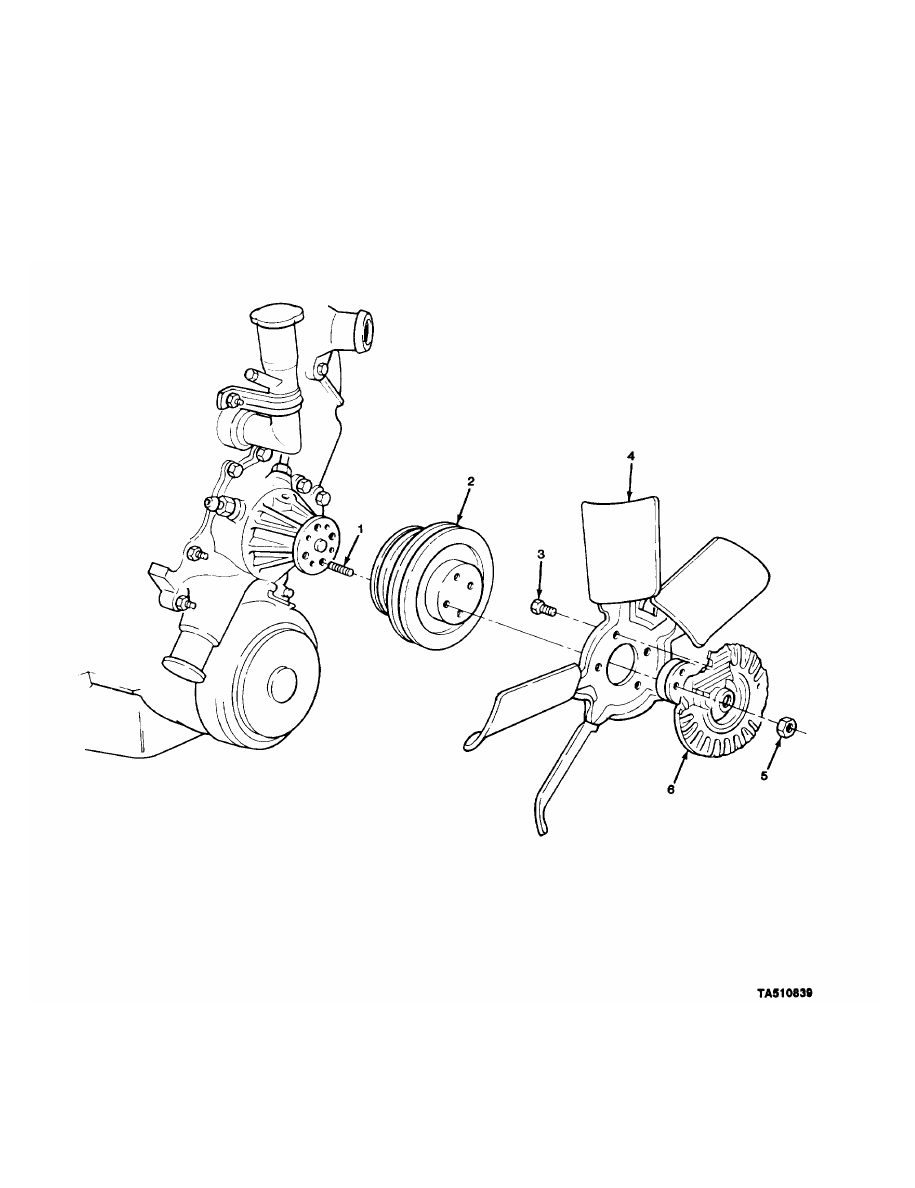

FIGURE 27. ENGINE FAN ASSEMBLY
