GROUP 0302 FUEL PUMPS

FIG. 9 SUPPLY PUMP, INJECTOR PUMP,
AND RELATED PARTS

7

PAOZZ

96906

MS90728-64

SCREW,CAP,HEXAGON H

2

8

PAOZZ

11862

6471831

PUMP,FUEL,CAM ACTUA

1

9

PAOZZ

11862

9776705

GASKET PART OF KIT P/N 15633467

1

10

PAOZZ

11862

14050425

PIN,STRAIGHT,HEADLE

1

11

PAOZZ

11862

3705044

GASKET PART OF KIT P/N 15633467

1

12

PAOZZ

11862

3719599

PLATE,FUEL PUMP

1

13

PAOZZ

11862

11509669

BOLT,ASSEMBLED WASH

2

END OF FIGURE

9-1

S E C T I O N   I I

TM 9-2320-289-20P

FIGURE 10. VACUUM VALVE AND HOSES.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0302 FUEL PUMPS

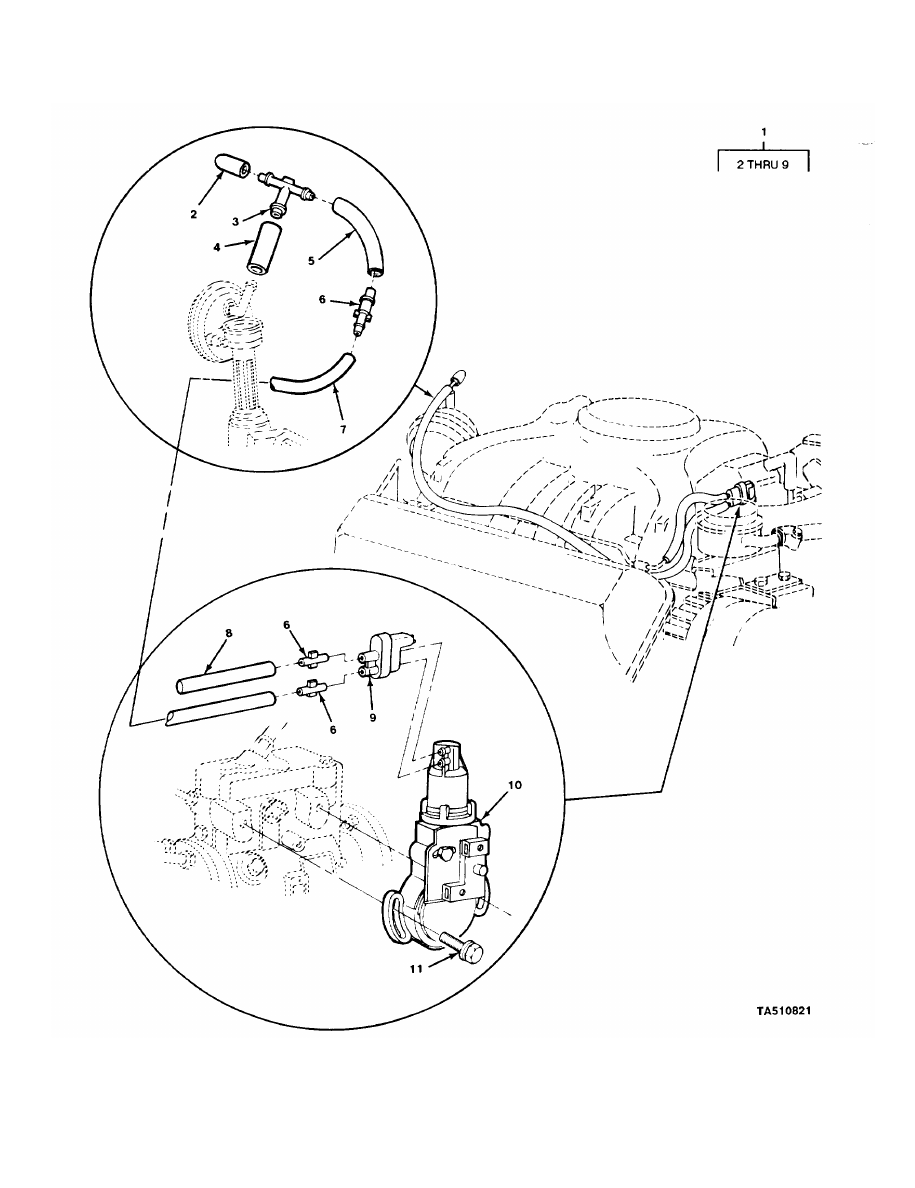

FIG. 10 VACUUM VALVE AND HOSES

1

XDOOO

11862

14045233

DUPLEX HOSE,RUBBER

1

2

PAOZZ

11862

343350

.CAP,PROTECTIVE,DUST

1

3

PAOZZ

11862

3970076

.TEE

1

4

MOOZZ

11862

M51

.HOSE,RUBBER  (2" LG) MAKE FROM

1

HOSE,P/N 9438124

5

MOOZZ

11862

M140

.HOSE,RUBBER  (5.51" LG) MAKE FROM

1

HOSE,P/N 3987364

6

PAOZZ

11862

560625

.CONNECTOR,HOSE

3

7

MOOZZ

11862

M495

.HOSE,RUBBER  (19.49" LG) MAKE FROM

1

HOSE,P/N 9738381

8

MOOZZ

11862

M127

.HOSE,RUBBER  (5" LG) MAKE FROM

1

HOSE,P/N 9438381

9

PAOZZ

11862

22506637

.ADAPTER

1

10

PAOZZ

11862

14057219

VALVE,VACUUM REGULA

1

11

PAOZZ

96906

MS51869-28

SCREW,TAPPING

2

END OF FIGURE

10-1

SECTION II

TM 9-2320-289-20P

FIGURE 11. INJECTOR LINES AND RELATED PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0302 FUEL PUMPS

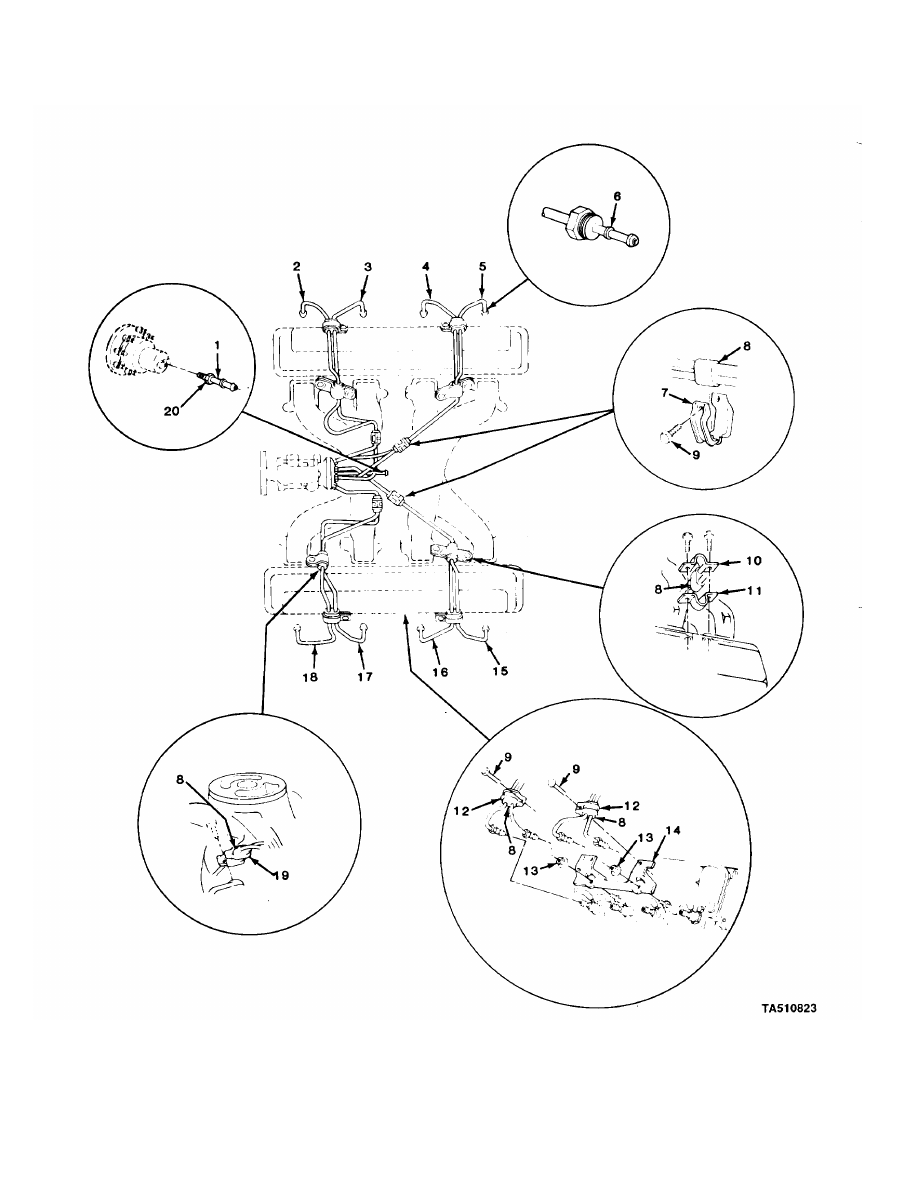

FIG. 11 INJECTOR LINES AND RELATED
PARTS

7

PAOZZ

11862

14033955

CLAMP,LOOP

4

8

PAOZZ

11862

560614

GROMMET,NONMETALLIC

12

9

PAOZZ

11862

11503617

SCREW,TAPPING

8

10

PAOZZ

11862

14033921

STRAP,RETAINING

3

11

PAOZZ

11862

14033922

STRAP,RETAINING

3

12

PAOZZ

11862

560613

CLAMP,LOOP

4

13

PAOZZ

11862

22521550

NUT,PLAIN,HEXAGON

4

19

PAOZZ

11862

14033953

CLAMP,LOOP

1

END OF FIGURE

11-1

SECTION II

TM 9-2320-289-20P

FIGURE 12. AIR CLEANER.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0304 AIR CLEANER

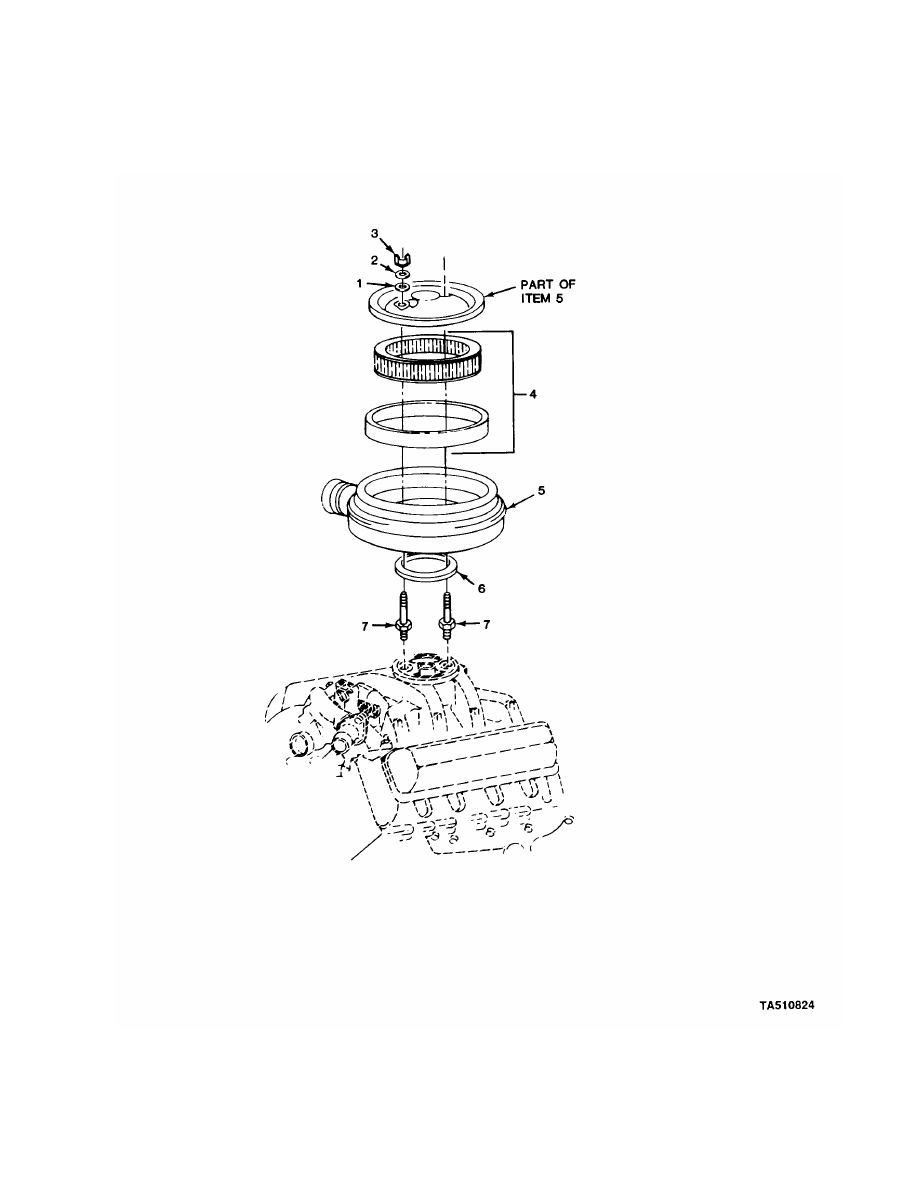

FIG. 12 AIR CLEANER

1

PAOZZ

11862

3827499

WASHER,FLAT

2

2

PAOZZ

11862

3790768

WASHER,FLAT

2

3

PAOZZ

11862

14001197

NUT,PLAIN,WING

2

4

PAOZZ

70040

A644C

FILTER ELEMENT,INTA

1

5

PAOZZ

11862

25041910

AIR CLEANER,INTAKE INCLUDES ITEM #4

1

6

PAOZZ

11862

15530620

GROMMET,NONMETALLIC

1

7

PAOZZ

11862

14033948

STUD,SHOULDERED AND

2

END OF FIGURE

12-1

SECTION II

TM 9-2320-289-20P

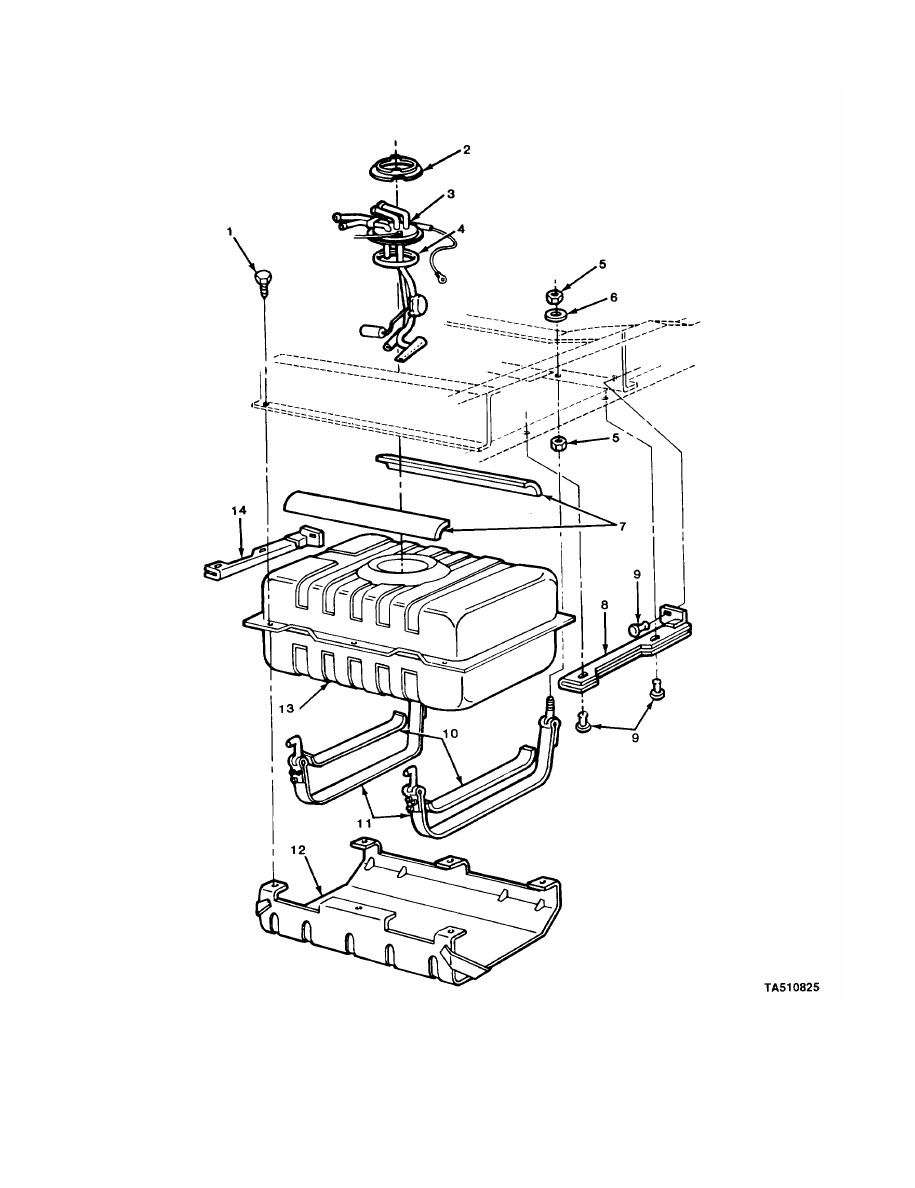

FIGURE 13. FUEL TANK AND RELATED PARTS (M1009).
