GROUP 0106 ENGINE LUBRICATION SYSTEM

FIG. 5 OIL COOLER LINES, SAMPLING
VALVE, AND RELATED PARTS

1

PAOZZ

11862

14055585

SEAL RING,METAL

6

2

PAOZZ

11862

14061344

TUBE ASSEMBLY,METAL

1

3

PAOZZ

96906

MS90728-8

SCREW,CAP,HEXAGON H

1

4

PAOZZ

11862

137396

INVERTED NUT,TUBE C

2

5

PAOZZ

72582

224425

ELBOW,PIPE TO TUBE

1

6

PAOZZ

79470

6820

COCK,SHUTOFF,SCREW

1

7

PAOZZ

11862

15599988

BRACKET,DOUBLE ANGL

1

8

PAOZZ

72582

118754

ELBOW,PIPE TO TUBE

1

9

PAOZZ

70411

SP2489-FM

CAP,FILLER OPENING

1

10

PAOZZ

11862

15548901

HOSE ASSEMBLY,NONME

1

UOC:194,208,209,230,231,252,254,256

10

PAOZZ

11862

14063336

HOSE ASSEMBLY,NONME

1

UOC:210,230

11

PAOZZ

96906

MS35691-406

NUT,PLAIN,HEXAGON

1

12

PAOZZ

11862

14061350

DISK,OIL COOLER

1

13

PAOZZ

96906

MS35338-44

WASHER,LOCK

1

14

PAOZZ

96906

MS90728-6

SCREW,CAP,HEXAGON H

1

15

PAOZZ

11862

14055586

ADAPTER,STRAIGHT,PI

2

16

PAOZZ

11862

14047899

CLAMP,LOOP

1

17

PAOZZ

11862

14061348

BRACKET,ANGLE

1

18

PAOZZ

11862

22521550

NUT,PLAIN,HEXAGON

2

19

PAOZZ

11862

14061352

STRAP,RETAINING

2

20

PAOZZ

96906

MS90728-10

SCREW,CAP,HEXAGON H

1

21

PAOZZ

11862

15548902

HOSE ASSEMBLY,NONME

1

UOC:194,208,209,230,231,252,254,256

21

PAOZZ

11862

14063337

HOSE ASSEMBLY,NONME

1

UOC:210,230

22

MFOZZ

11862

15599986

PIPE ASM (9-68"LG) MAKE FROM PIPE,

1

P/N 3696822

23

PAOZZ

11862

15599987

TEE,TUBE

1

24

PAOZZ

11862

14036784

STRAP,RETAINING

1

25

PAOZZ

11862

14061345

TUBE ASSEMBLY,METAL

1

END OF FIGURE

5-1

TM 9-2320-289-20P

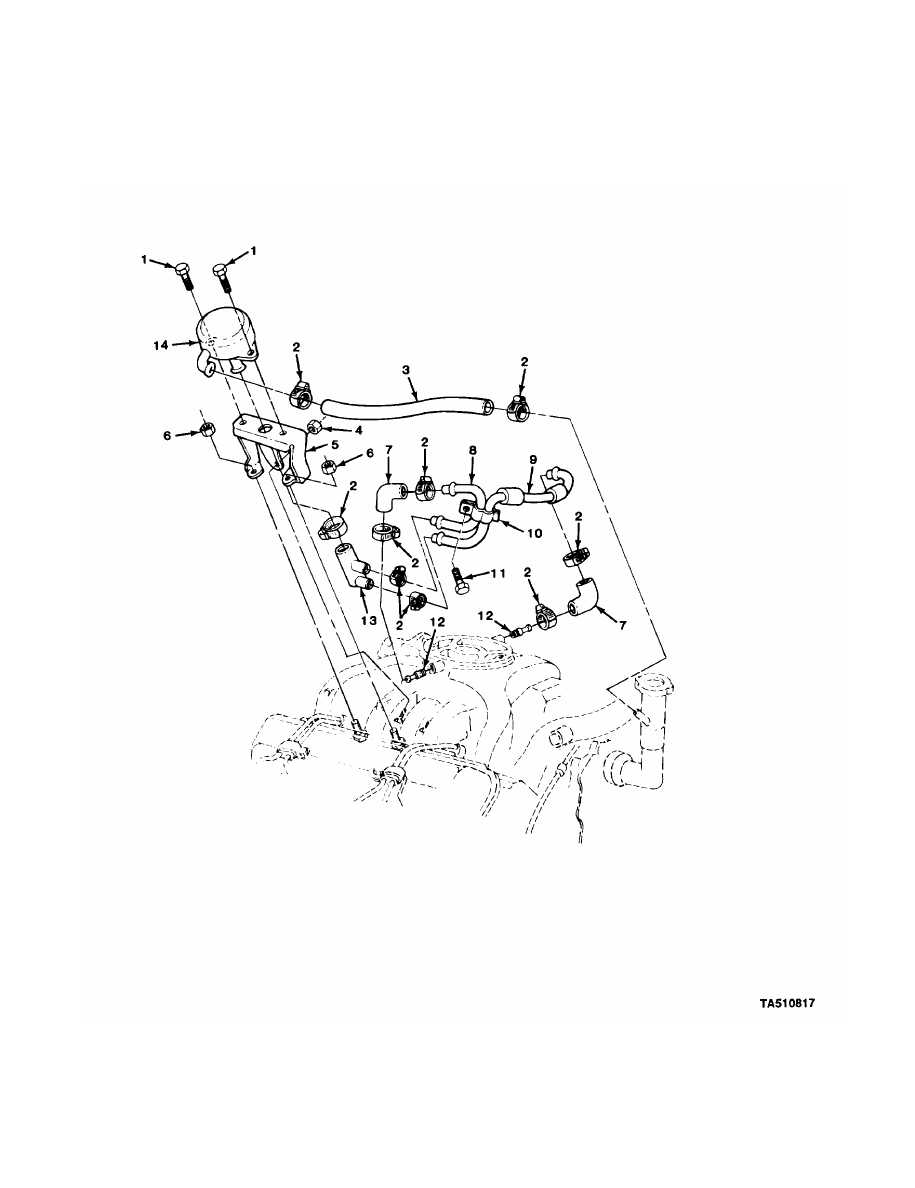

FIGURE 6. CRANKCASE DEPRESSION VALVE AND RELATED PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0106 ENGINE LUBRICATION SYSTEM

FIG. 6 CRANKCASE DEPRESSION VALVE
AND RELATED PARTS

1

PAOZZ

11862

11508353

BOLT,MACHINE

2

2

PAOZZ

96906

MS35842-11

CLAMP,HOSE

9

3

PAOZZ

11862

14067732

HOSE,PREFORMED

1

4

PAOZZ

24617

11502488

NUT,PLAIN,HEXAGON

1

5

PAOZZ

11862

14067733

BRACKET ASSEMBLY,CR

1

6

PAOZZ

11862

22521550

NUT,PLAIN,HEXAGON

2

7

PAOZZ

11862

14050445

HOSE,PREFORMED

2

8

PAOZZ

11862

14050442

TUBE,BENT,METALLIC

1

9

PAOZZ

11862

14050443

TUBE,BENT,METALLIC

1

10

PAOZZ

11862

14050441

CLAMP,LOOP

1

11

PAOZZ

11862

11509135

SCREW,ASSEMBLED WAS

1

12

PAOZZ

11862

14050444

ADAPTER,STRAIGHT,TU

2

13

PAOZZ

11862

14050446

CONNECTOR,CRANKCASE

1

14

PAOZZ

11862

25042462

SENSOR,AIR CHARGED

1

END OF FIGURE

6-1

SECTION II

TM 9-2320-289-20P

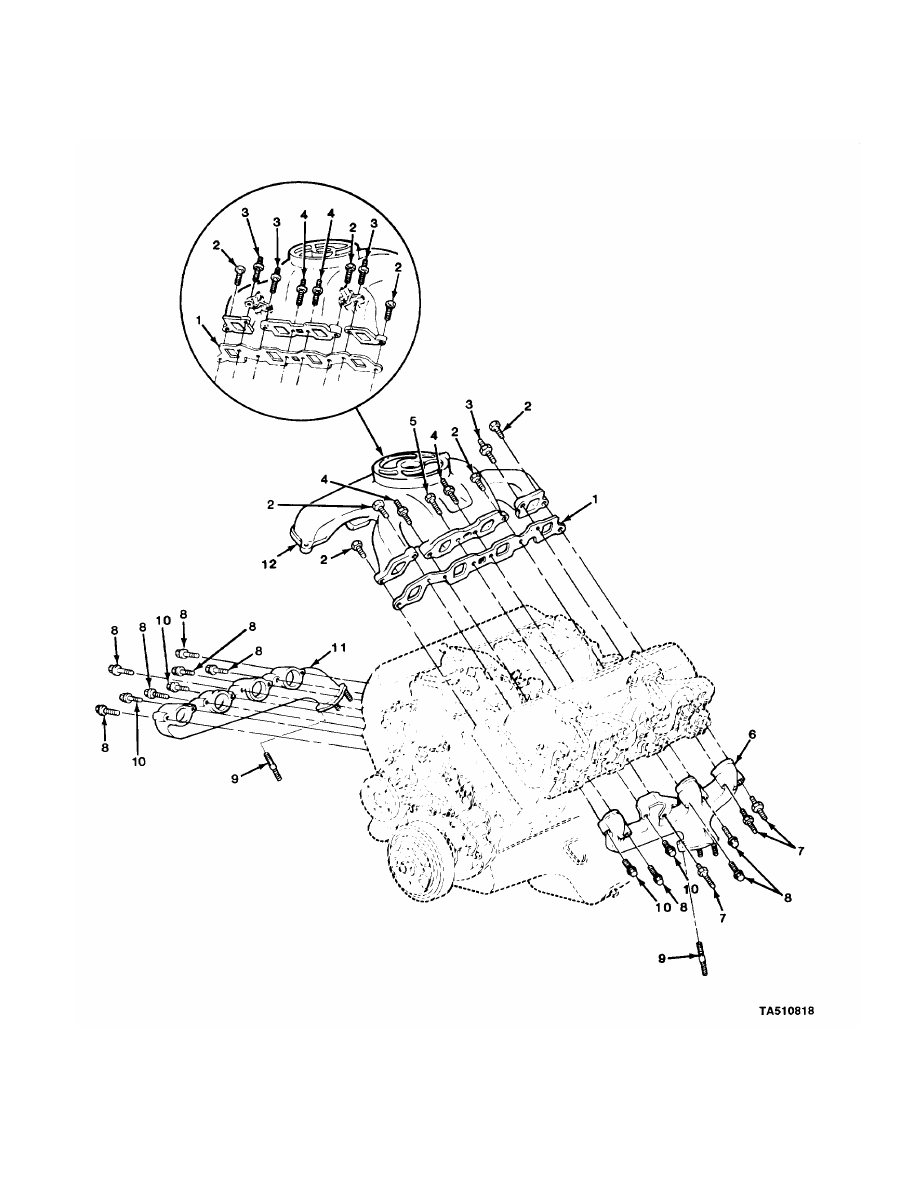

FIGURE 7. INTAKE AND EXHAUST MANIFOLDS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 0108 MANIFOLDS

FIG. 7 INTAKE AND EXHAUST MANIFOLDS

6

PAOZZ

11862

14022657

MANIFOLD,EXHAUST  LEFT

1

7

PAOZZ

11862

14028924

STUD,SHOULDERED AND

3

8

PAOZZ

11862

14028922

BOLT,MACHINE

9

9

PAOZZ

11862

14022654

STUD,PLAIN

6

10

PAOZZ

11862

14028923

SCREW,CAP,HEXAGON H

4

11

PAOZZ

11862

14025568

MANIFOLD,EXHAUST  RIGHT

1

END OF FIGURE

7-1

SECTION

II

TM 9-2320-289-20P

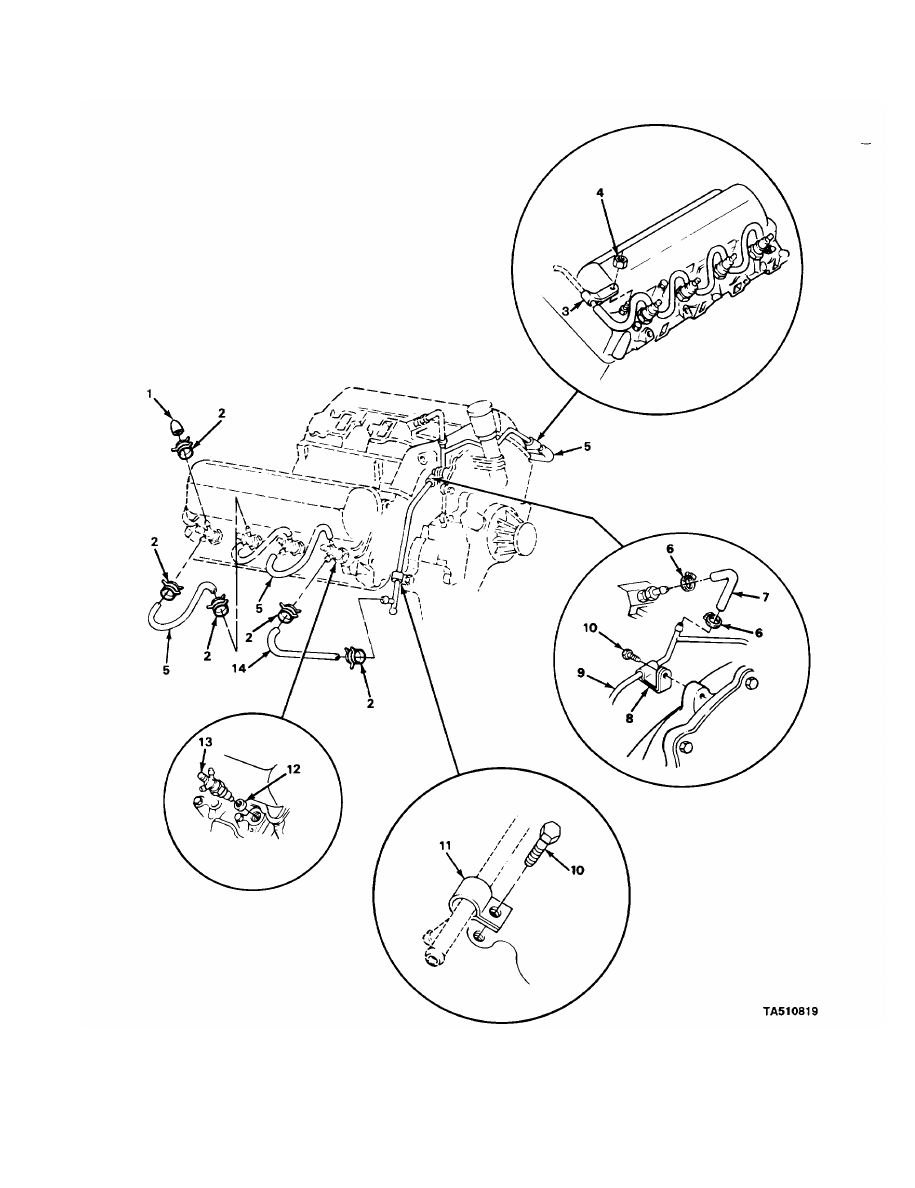

FIGURE 8. FUEL INJECTOR AND RELATED PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 03 FUEL SYSTEM

GROUP 0301 CARBURETOR, FUEL INJECTOR

FIG. 8 FUEL INJECTOR AND RELATED
PARTS

1

PAOZZ

11862

14066301

CAP

2

2

PAOZZ

11862

11663000

CLAMP

18

3

PAOZZ

11862

14033893

CLAMP,LOOP

1

4

PAOZZ

11862

22521550

NUT,PLAIN,HEXAGON

1

5

MOOZZ

11862

14066306

HOSE,NONMETALLIC  (7" LG) MAKE FROM

7

P/N 14066305

6

PAOZZ

11862

25518880

CLAMP,HOSE

2

7

MOOZZ

11862

9439363

HOSE, NON MET (3" LG)  MAKE FROM

1

HOSE,P/N 9439402

8

PAOZZ

11862

14033895

CLAMP,LOOP

1

9

PAOZZ

11862

14061569

TUBE,BENT,METALLIC

1

10

PAOZZ

11862

11504512

BOLT,MACHINE

2

11

PAOZZ

96906

MS21333-45

CLAMP,LOOP

1

14

PAOZZ

11862

14066305

TUBING,NONMETALLIC  (7.01" LG) CUT

1

TO SIZE

END OF FIGURE

8-1

SECTION II

TM 9-2320-289-20P

TA510820

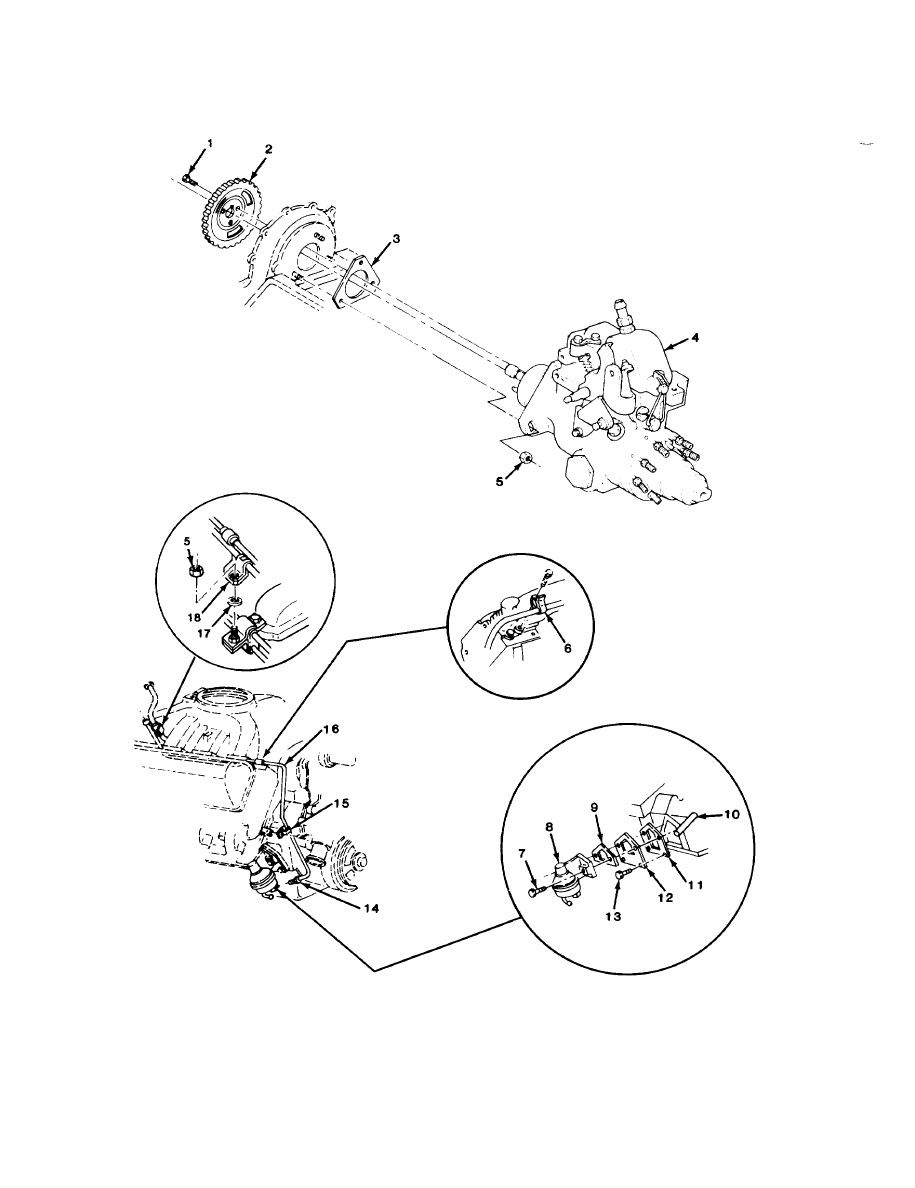

FIGURE 9. SUPPLY PUMP, INJECTOR PUMP, AND RELATED PARTS.
