MAINTENANCE AND SERVICE

}}

* Option/accessory.

643

Function

Ampere

Type

Medium voltage module

A

10

Micro

–

–

MCase

B

–

–

Micro

Movement sensor

*

5

Micro

–

–

Micro

Instrument panel

5

Micro

Center console buttons

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and parking brake controls

5

Micro

Heated steering wheel

*

 module

15

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

644

Function

Ampere

Type

Climate system control module

10

Micro

–

–

Micro

Data link connector OBD-II

10

Micro

Center display

5

Micro

Climate system blower module (front)

40

MCase

B

USB HUB

5

Micro

Instrument lighting; Interior lighting; Rearview mirror auto-dim function

*

; Rain and light sensors

*

; Rear tunnel console

keypad, second row of seats

*

; Power front seats

*

; Rear door control panels; Climate system blower module left/right

7.5

Micro

Control module for driver support functions

5

Micro

Panoramic roof with sun curtain

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

Wireless charging pad

5

Micro

Ceiling console display (seat belt reminder/front passenger side airbag indicator)

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

645

Function

Ampere

Type

–

–

Micro

Control module for Internet-connected vehicle; Control module for Volvo On Call

5

Micro

–

–

Micro

Infotainment control module (amplifier)

40

MCase

B

Climate system blower module (rear)

*

40

MCase

B

Multi-band antenna module

5

Micro

Front seat massage function

*

5

Micro

–

–

Micro

Rear window wiper

15

Micro

Fuel pump control module

15

Micro

Relay coil for transmission oil pump

Converter medium voltage; Integrated starter motor

5

Micro

Opening trunk/tailgate with foot movement

*

5

Micro

Driver's seat heating

15

Micro

Front passenger's seat heating

15

Micro

Coolant pump

7.5

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

646

Function

Ampere

Type

Power driver's seat

*

20

Micro

Active chassis control module

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Power front passenger seat

*

20

Micro

–

–

Micro

TV

*

 (certain markets only)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Vehicles with 48 V support battery only.

B

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 632)

•

Replacing fuses (p. 633)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

647

Fuses in the cargo compartment

The fuses in the cargo compartment help pro-
tect electrical components such as the power
seats

*

, airbags and seat belt tensioners.

||

MAINTENANCE AND SERVICE

648

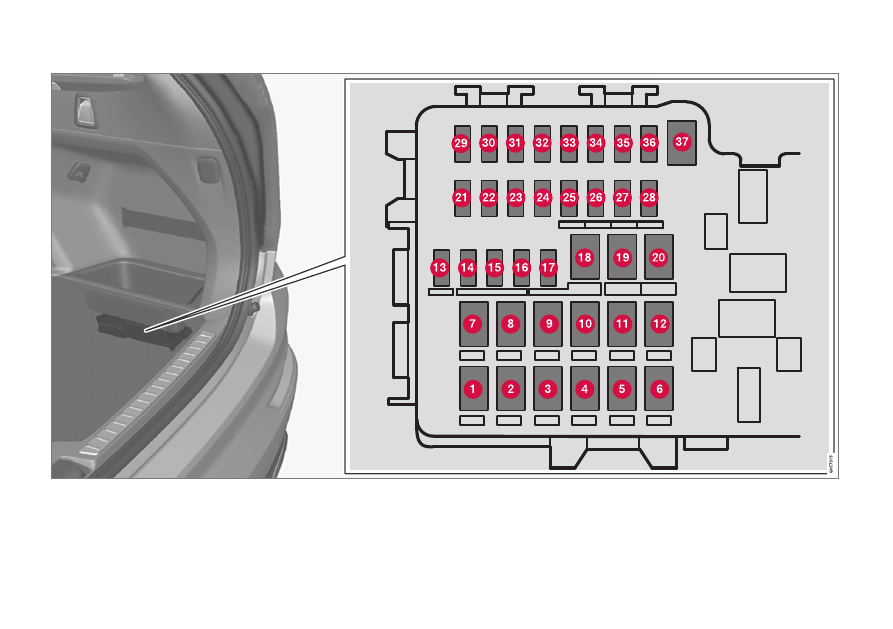

The fuse box is located under the storage compartment on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

649

Positions

Function

Ampere

Type

–

–

MCase

A

Central electrical module

40

MCase

A

Pneumatic suspension

*

 compressor

40

MCase

A

Rear auxiliary electric heater (right-hand side)

*

30

MCase

A

–

–

MCase

A

Rear auxiliary electric heater (left-hand side)

*

30

MCase

A

Door module right side, rear

20

MCase

A

–

–

MCase

A

–

–

–

–

Power tailgate

*

25

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

650

Function

Ampere

Type

–

–

Micro

–

–

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

Module for electrically folding third-row seats

*

20

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left side, front

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Feed when ignition is on

10

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

MAINTENANCE AND SERVICE

* Option/accessory.

651

Function

Ampere

Type

–

–

Micro

Blind Spot Information (BLIS)

*

Exterior reverse signal control module

5

Micro

–

–

Micro

Seat belt tensioner module, left

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 632)

•

Replacing fuses (p. 633)

MAINTENANCE AND SERVICE

* Option/accessory.

652

Replacing bulbs

This vehicle is equipped with only LED

15

lights, which means it does not have any
replaceable bulbs. Contact a workshop

14

 if

you experience any problems with the light-
ing.

If there is a problem with an LED

15

 light, the

entire lamp unit will normally need to be
replaced.

NOTE

NOTE

Exterior lighting such as headlights and
taillights may develop temporary conden-
sation on the inside of the lens. This is nor-
mal. All exterior lighting is designed to
resist this. Condensation is normally ven-
ted out of the lamp housing once the light
has been lit for some period of time.

NOTE

Bulbs for Active Bending Lights

*

 contain

traces of mercury and should therefore
always be deposited at an authorized Volvo
workshop.

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

CAUTION

•

Some colored clothing (for example,
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the inte-
rior as this can damage the upholstery
as well as other interior materials.

•

Never spray cleaning agent directly
onto components that have electrical
buttons and controls. Wipe instead
with a damp cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

•

Only use cleaning agent on the type of
material it is intended for.

15

LED (Light Emitting Diode)

14

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

653

Related information

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

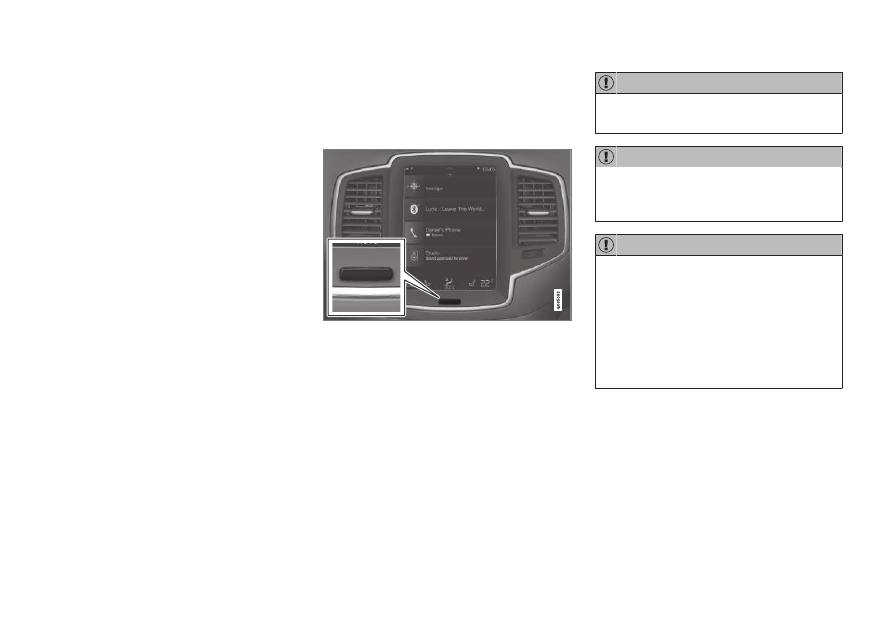

Cleaning the center display

Marks, stains, finger smudges etc. on the
center display may affect its performance and
readability. Clean the screen regularly with a
microfiber cloth.

1. Turn off the center display by pressing and

holding the Home button.

2. Wipe the screen clean with the microfiber

cloth provided or use another microfiber
cloth of similar quality. Wipe the screen
with a clean, dry microfiber cloth using
small, circular motions. If necessary, mois-
ten the cloth slightly.

3. Reactivate the display by pressing the

Home button briefly.

CAUTION

The microfiber cloth must be free of sand
and dirt when cleaning the center display.

CAUTION

When cleaning the center display, apply
only light pressure to the screen. Pressing
too hard could damage the screen.

CAUTION

Do not spray liquid or corrosive chemicals
directly onto the center display. Do not use
window cleaners, cleaning agents, aerosol
sprays, solvents, alcohol, ammonia or
detergents that contain abrasives.

Never use abrasive cloths, paper towels or
tissue paper, as these may scratch the cen-
ter display.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

MAINTENANCE AND SERVICE

* Option/accessory.

654

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

Cleaning the head-up display

*

 and

instrument panel

Carefully wipe the glass covering the head-up
display unit with a clean and dry microfiber
cloth. If necessary, the cloth may be slightly
moistened.

Never use strong stain removers. For difficult
cleaning conditions, a special cleaning agent
can be purchased at a Volvo retailer.

Related information

•

Activating and deactivating the head-up
display

*

 (p. 148)

•

Head-up display

*

 (p. 146)

Cleaning fabric upholstery and

ceiling liner

Use of textile cleaner is recommended when
cleaning textile materials. Clean as needed
and treat stains immediately.

CAUTION

Never scrape or rub a stain because this
may damage the upholstery.

CAUTION

Never use stain removers or strong sol-
vents because these may damage the
upholstery.

Cleaning textile upholstery

1. Start by vacuuming the upholstery.
2. Follow the instructions of the textile

cleaner.

3. When cleaning upholstery, a spray extrac-

tion cleaner is recommended for sucking
up cleaning fluids and rinse water.

CAUTION

Certain dyed clothing (such as denim and
suede garments) may stain the upholstery.
Difficult stains, like oil, can be difficult to
remove.

MAINTENANCE AND SERVICE

* Option/accessory.

655

CAUTION

Always clean all of the upholstery, even if it
only has isolated stains. This helps to pre-
vent permanent water rings.

NOTE

Do not remove the upholstery when clean-
ing.

Cleaning the ceiling liner

1. Carefully brush the ceiling liner using a

soft brush.

2. Follow the instructions of the textile

cleaner.

3. Then use a soft, lint-free cloth to wipe the

ceiling liner.

CAUTION

Failure to take care during cleaning could
lead to damage to the ceiling liner.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

Cleaning the seat belt

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Use water and a synthetic soap solution. Spe-
cially designed textile cleaning agents are
available for purchase at Volvo retailers. Make
sure the belt is dry before it is retracted.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

MAINTENANCE AND SERVICE

* Option/accessory.

656

Cleaning textile floor and inlay

mats

Use of textile cleaner is recommended when
cleaning textile mats. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Remove the inlay mats to clean the floor mats
and inlay mats separately. Each inlay mat is
secured into place with pins.

1. Remove the inlay mat by grasping the

inlay mat at each pin and lifting the mat
straight up.

2. Use a vacuum to remove dust and dirt.

NOTE

Do not swing or strike the inlay mats vio-
lently against another object to remove dirt
as this could damage the mats.

3. After vacuuming, a specially designed tex-

tile cleaning agent should be used to
remove stains on floor mats.

4. After cleaning, put the inlay mat back into

place by pressing it in at each pin.

WARNING

•

Never use more than one inlay mat at a
time on the driver's floor. If any other
type of floor mat is used, remove the
original mat from the driver's seat floor
before driving. All types of mats must
be securely anchored in the attach-
ment points in the floor. Make sure the
floor mat does not impede the move-
ment of the brake pedal or accelerator
pedal in any way, as this could be a
serious safety hazard.

•

Volvo's floor mats are specially manu-
factured for your vehicle. They must be
properly secured in the attachment
points in the floor to help ensure they
cannot slide and become trapped
under the pedals.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

Cleaning leather upholstery

*

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Volvo's leather upholstery

*

 is treated to pro-

tect its original appearance. Over time, sun-
light, grease, dirt, etc. could break down the
protective layer. This could result in scratches
and cracking.

Leather upholstery

*

 is a natural product that

changes and acquires a beautiful patina over
time. Regular cleaning and treatments are
required to preserve the qualities and color of
the leather. Volvo offers a comprehensive
product, Volvo Leather Care KitWipes, for
cleaning and treating leather upholstery.
When used as directed, it helps preserve the
leather's protective coating.

For optimal results, Volvo recommends clean-
ing and applying protective cream one to four
times a year (or more often as needed). Volvo
Leather Care Kit 951 0251 and Volvo Leather
Softener 943 7429 are available for purchase
at Volvo retailers.

Cleaning the leather upholstery

1. Apply the leather cleaner to a damp

sponge and squeeze it until the cleaner
foams.

MAINTENANCE AND SERVICE

* Option/accessory.

657

2. Move the sponge in circular motions to

apply the foam to the stain.

3. Dampen the stain thoroughly with the

sponge. Let the sponge absorb the stain
and do not rub.

4. Dry the stain using a soft towel and let the

leather dry completely.

Protecting the leather upholstery

1. Apply a small amount of leather protector

to a cloth and then apply the protector to
the leather using light circular movements.

2. Let it dry for approximately 20 minutes.

> Protecting the leather upholstery

makes it better able to withstand sun-
light's harmful UV rays.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning the leather steering wheel
(p. 657)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

Cleaning the leather steering

wheel

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Leather needs to breathe. Never cover the
leather steering wheel with a plastic protector.
Volvo Leather Care Kit 951 0251 and Leather
Softener 943 7429 are recommended for
cleaning the leather steering wheel. First,
remove dirt, dust, etc. with a damp sponge or
cloth.

CAUTION

Sharp objects such as rings could damage
the leather on the steering wheel.

Treating stains on the steering wheel:

Type 1

 (ink, wine, coffee, milk, sweat or blood)

–

Use a soft cloth or sponge. Wipe the
steering wheel using a solution of 5%
ammonia. For blood stains, mix approxi-
mately 2 dl (1 cup) of water with 25 g
(one ounce) of salt and wipe the stain.

Type 2

 (grease, oil, sauces or chocolate)

1. Same procedure as for Type 1 stains.

2. Finish by wiping the wheel with an

absorbent paper or towel.

Type 3

 (dry dirt or dust)

1. Remove the dirt/dust using a soft brush.

2. Same procedure as for Type 1 stains.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning interior plastic, metal and wood
surfaces (p. 658)

MAINTENANCE AND SERVICE

* Option/accessory.

658

Cleaning interior plastic, metal and

wood surfaces

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately.

A lightly dampened microfiber cloth is recom-
mended for cleaning interior details and surfa-
ces. These cloths are available for purchase at
Volvo retailers.

Never scrape or rub a stain. Never use strong
stain removers.

CAUTION

Do not use solvent containing alcohol to
clean the instrument panel glass.

CAUTION

Keep in mind that glossy surfaces can be
easily scratched. Wipe these surfaces with
a clean and dry microfiber cloth using
small, circular motions. If necessary, mois-
ten the cloth lightly with clean water.

Related information

•

Cleaning the interior (p. 652)

•

Cleaning the center display (p. 653)

•

Cleaning fabric upholstery and ceiling liner
(p. 654)

•

Cleaning the seat belt (p. 655)

•

Cleaning textile floor and inlay mats
(p. 656)

•

Cleaning leather upholstery

*

 (p. 656)

•

Cleaning the leather steering wheel
(p. 657)

Cleaning the exterior

The vehicle should be washed as soon as it
becomes dirty. This makes the vehicle easier
to clean because dirt does not attach as
strongly. It also reduces the risk of scratches
and keeps the vehicle looking new. Wash the
rims at a car wash or garage with an oil sepa-
rator. Use a car washing detergent recom-
mended by Volvo.

Related information

•

Cleaning the exterior (p. 658)

•

Polishing and waxing (p. 659)

•

Hand washing (p. 660)

•

Automatic car washes (p. 661)

•

High-pressure washing (p. 662)

•

Cleaning the wiper blades (p. 663)

•

Cleaning exterior plastic, rubber and trim
components (p. 663)

•

Cleaning rims (p. 664)

•

Corrosion protection (p. 665)
