Certificate for wireless charger (p. 540)

•

Using the wireless phone charger

The rubber pad in the tunnel console can be
used to charge a phone without having to
connect its cord.

Wireless phone charger in the tunnel console.

WARNING

Wireless charging can affect the operation

of an implanted pacemaker or other medi-

cal devices. If you have one, it is recom-

mended to consult with your doctor before

using the wireless charging system.

The charging plate can be switched on and off
via the center display's Function view. The
charging plate's default mode is activated.
When the charging plate is switched on, a
message will appear describing the risks for
users with pacemakers or other implanted
devices who could be affected by the plate.

Tap the center display to confirm that the
charging plate should be switched on.

To use the wireless charging plate:

1. Make sure that the charging plate is

switched on in the center display's Func-
tion view.

2. Remove all objects from the charging pad

and place the phone in the center of the
pad.
> The phone will begin charging and the

symbol will appear at the top of

the center display.

CAUTION

Do not place cards with NFC (Near Field
Communication), e.g. debit cards for con-
tactless payment, next to the phone. This
type of card could be destroyed during
charging.

Some cellular phones may become warm
during wireless charging. This is normal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

539

If the phone is not charging:

•

Make sure that the charging plate is
switched on in the center display's Func-
tion view.

•

Make sure there are no other objects on
the charging pad.

•

Make sure the phone supports wireless
charging (Qi).

•

If the phone has a phone case, remove it.

•

Lift up the phone and then put it back on
the center of the charging pad.

•

Make sure the ignition is on.

If the phone is incorrectly positioned or an
object prevents charging on the charge pad, a
message is shown on the center display.

CAUTION

Keep cellular phones and charger stations
away from other objects while charging to
help avoid overheating.

Related information

•

Phone (p. 529)

•

Wireless phone charger

Certificate for wireless charger (p. 540)

•

•

Symbols in the center display status bar
(p. 128)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

540

Certificate for wireless charger

Country/
Area

Mexico:

RCPVAPVO 18-1919

Paraguay:

2018-11-1-000541

Taiwan:

根據

NCC

低率電波輻射性電機管理辦法

規定

第十二條

經型式認證合格之低率射頻電機，非經許可，公司商號或使用者均不得擅自變更頻率

大率或變更原設計之特性及

能

第十四條
低率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用
前項合法通信，指依電信法規定作業之無線電通信
低率射頻電機須忍受合法通信或工業科學及醫療用電波輻射性電機設備之干擾

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

541

Country/
Area

Ukraine:

: 107

- 115

: 5

(

), 63

(

є ь

)

: N / A

: 2

NFC

: 13,56

+/- 0,01%

: 10

–

.(LG Electronics Inc) 10,

10- ,

- ,

, 07796,

Frequency range 111

: 42

WC510MVV20

;

:https://www.lg.com/

global/support/cedoc/cedoc.

, 5- , .

, 08112,

.: +38(044) 585 63 00

: Alla Haidai (ahaidai@winner.ua)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

542

Country/
Area

US/
Canada

FCC ID : BEJWC510MVV20

IC : 2703H-WC510MVV20

This device complies with part 15 of the FCC rules and with RSS-Gen,RSS-216 rules of Canada. Operation is subject to the following
two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changed or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 15cm between the radiator and your body.

–

IDéclaration d'avertissement ISED

Son fonctionnement est soumis aux deux conditions suivantes:

(1) Cet appareil ne doit pas provoquerd'interferences nuisibles, et

(2) Cet appareil doit accepter toute interference recue, y compris les interferences pouvant entrainerun fonctionnement indesirable.

Les changements ou modifications non expressement approuves par LG Vehicle Components Company pourraient annuler l'autorite
de l'utilisateura utilizer l'equipement.

Déclaration d'exposition aux radiations RF de l'ISED: Cet équipement est conforme aux limites d'exposition aux rayonnements RF de
l'ISED définies pour un environnement non contrôlé. Cet appareil et son antenne ne doivent pas être situés ou fonctionner
conjointement avec une autre antenne ou un autre émetteur.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

543

Country/
Area

Cet équipement doit être installé pour fonctionner avec une distance minimale de 10cm entre le radiateuret le corps de l'utilisateur
final.

Related information

•

Wireless phone charger

Using the wireless phone charger

•

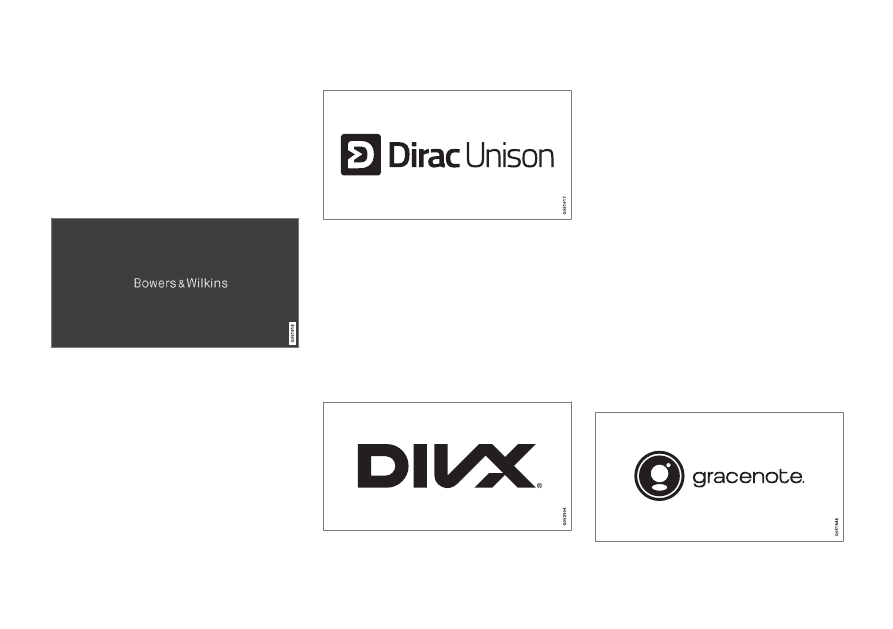

License agreement for audio and media
(p. 553)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

544

Internet-connected vehicle

When the vehicle is connected to the Inter-
net, it is possible to use web radio and music
services via apps, download software and
contact retailers from the vehicle.

The vehicle can be connected to the Internet
using Bluetooth, Wi-Fi or the vehicle's inte-
grated modem (SIM card).

When the vehicle is connected to the Internet,
it is possible to share the vehicle's Internet
connection (Wi-Fi hotspot) so that other devi-
ces, e.g. tablets, can access the Internet

The Internet status is shown by a symbol in
the center display's status bar.

Data (data traffic) is transfered when using
the internet, which can incur additional
costs.

Activating data roaming can cause addi-
tional charges.

Contact your network operator about data
traffic costs.

When using Apple CarPlay, it is only possi-
ble to connect the vehicle to the Internet
using Wi-Fi or the vehicle's modem.

Symbols in the center display status bar
(p. 128)

When using Android Auto, it is possible to
connect the vehicle to the Internet using
Wi-Fi, Bluetooth or the vehicle's modem.

Before the vehicle is connected to the Inter-
net, search for support information about
terms and conditions for services and the cus-
tomer privacy policy at volvocars.com.

Related information

•

•

Connecting the vehicle to the Internet via
a Bluetooth-connected phone (p. 545)

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 545)

•

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 546)

•

Apps (p. 494)

•

Sharing Internet from the vehicle via Wi-Fi
hotspot (tethering) (p. 548)

•

•

Deleting Wi-Fi networks (p. 549)

•

Wi-Fi technology and security (p. 550)

•

Volvo ID (p. 26)

•

This is not possible when the vehicle is connected to another Wi-Fi hotspot.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

* Option/accessory.

545

Connecting the vehicle to the

Internet via a Bluetooth-connected

phone

Establish an Internet connection using
Bluetooth and tethering from a phone and
get access to multiple connected services in
your vehicle.

1. To connect the vehicle to the Internet via a

Bluetooth-connected phone, the phone
must first be paired with the vehicle via
Bluetooth.

2. Make sure that the phone supports Inter-

net sharing (tethering) and that the func-
tion is activated. In an iPhone, the function
is called "personal hotspot". In Android
phones, the function can have different
names, but is often called "hotspot". For
iPhone phones, the "personal hotspot"
menu page must also be open until the
Internet connection has been made.

3. If the phone has been connected via Blue-

tooth previously, tap

Settings

in the cen-

ter display's Top view.

4. Tap

Communication

Bluetooth

Devices

5. Mark the window for

Bluetooth Internet

connection

under the heading

Internet

connection

6. If a different connection is being used,

confirm the connection change.
> Your vehicle is now connected to the

Internet via your Bluetooth-connected
phone.

The cellular phone and network operator
must support tethering (sharing of Internet
connection) and the subscription must
include data traffic.

When using Apple CarPlay, it is only possi-
ble to connect the vehicle to the Internet
using Wi-Fi or the vehicle's modem.

Related information

•

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 546)

•

•

Connecting a phone to the car via Blue-
tooth for the first time (p. 530)

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 545)

•

Apple

CarPlay

(p. 522)

•

Settings for Bluetooth devices (p. 537)

•

Connecting the vehicle to the

Internet via a phone (Wi-Fi)

Establish an Internet connection using Wi-Fi
through Internet sharing (tethering) from a
phone and get access to the connected servi-
ces in your vehicle.

1. Make sure that the phone supports Inter-

2. Tap

Settings

in the Top view.

3. Proceed to

Communication

Wi-Fi

4. Activate/deactivate by tapping to check/

uncheck the Wi-Fi box.

5. If a different connection is being used,

confirm the connection change.

6. Tap the name of the network you would

like to connect.

7. Enter the network password.

> The vehicle will connect to the network.

Please note that certain cellular phones will
disable Internet sharing (tethering) when the
connection to the vehicle has been broken,
e.g. when the phone has been removed from

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

546

the vehicle. The phone's tethering function will
then need to be reactivated the next time the
phone's hotspot is used to connect to the
Internet.

When a phone is connected to the vehicle, it
will be saved for future use. To display a list of
saved networks or to manually delete saved
networks, tap

Settings

Communication

Wi-Fi

Saved networks

The cellular phone and network operator
must support tethering (sharing of Internet
connection) and the subscription must
include data traffic.

Technical and security requirements for Wi-Fi
connection are described in a separate sec-
tion.

Related information

•

Deleting Wi-Fi networks (p. 549)

•

•

Wi-Fi technology and security (p. 550)

•

Connecting the vehicle to the

Internet via vehicle modem (SIM

card)

It is possible to establish an Internet connec-
tion via the vehicle modem and a personal
SIM card (P-SIM).

Vehicles equipped with Volvo On Call will use
the vehicle modem Internet connection for the
services.

Insert a personal SIM card in the holder.

Note that the vehicle's card reader
requires

mini SIM

cards.

2. Tap

Settings

in the Top view.

3. Tap

Communication

Vehicle Modem

Internet

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

547

4. Activate/deactivate by tapping to check/

uncheck the

Vehicle modem Internet

box.

5. If a different connection is being used,

confirm the connection change.

6. Enter the SIM card's PIN code.

> The vehicle will connect to the network.

Please note that the SIM card used for
Internet connection via P-SIM cannot have
the same telephone number as the SIM
card used in the cellular phone. If the same
card is used for both, phone calls will not
be connected properly to the cellular
phone. Use a SIM card with a separate
phone number for the Internet connection
or a data card that does not handle phone
calls and can therefore not interfere with
phone function.

Related information

•

•

Vehicle modem settings (p. 547)

•

Vehicle modem settings

Your vehicle is equipped with a modem that
can be used to connect the vehicle to the
Internet. It is also possible to share this Inter-
net connection over Wi-Fi.

1. Tap

Settings

in the Top view.

2. Tap

Communication

Vehicle Modem

Internet

and select settings:

•

Vehicle modem Internet

- select this to

use the vehicle's modem to connect to the
Internet.

•

Data usage.

- tap

Reset

to reset the

counter for the amount of data received
and sent.

•

Network

Select carrier

- select a service provider

manually or automatically.

Data roaming

- if the box is checked, the

vehicle modem will attempt to connect to
the Internet when the vehicle is outside its
home network (e.g. if you are in another
country). Please note that this could entail
additional charges. Consult with your serv-
ice provider for data roaming terms under
your contract.

•

SIM card PIN

Change PIN

- a maximum of 4 digits can

be entered.

Disable PIN

- select whether a PIN code

will be required to access the SIM card.

•

Send request code

- used to e.g. down-

load or check the balance remaining on a
prepaid phone card. This function is spe-
cific to your service provider.

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 546)

Related information

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

548

Sharing Internet from the vehicle

via Wi-Fi hotspot (tethering)

When the vehicle is connected to the Inter-
net, other devices may share the vehicle's
Internet connection

The network service provider (SIM card) must
support Internet sharing (tethering).

1. Tap

Settings

in the Top view.

2. Tap

Communication

Vehicle Wi-Fi

Hotspot

3. Tap

Network name

to assign a name to

the hotspot.

4. Tap

Password

and create a password.

This password can then be used to con-
nect other devices to this hotspot.

5. Tap

Frequency band

and select a fre-

quency for the hotspot to use to transmit
data. Please note that selecting a fre-
quency is not possible on all markets.

6. Activate/deactivate by tapping to check/

uncheck the

Vehicle Wi-Fi Hotspot

box.

7. If Wi-Fi is being used to connect to the

Internet, confirm the change of connec-
tions.
> It is now possible for external devices

to connect to the vehicle's Wi-Fi hot-
spot.

Symbols in the center display status bar
(p. 128)

Activation of Wi-Fi hotspot can cause addi-
tional charges from your network operator.

Contact your network operator about data
traffic costs.

The connection status is shown by a symbol in
the center display's status bar.

Tap

Connected devices

to see a list of cur-

rently connected devices.

Related information

•

•

•

This does not apply when the vehicle is connected to the Internet via Wi-Fi.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

549

No or poor Internet connection

Factors affecting the Internet connection.

The amount of data transmitted depends on
the services or apps currently in use in the
vehicle. Streaming music, for example,
involves the transmission of a large amount of
data, and this requires a good connection and
a strong signal.

Phone to vehicle

Internet connection speed may vary depend-
ing on the location of the cellular phone in the
vehicle. Move the phone closer to the center
display to increase signal strength. Make sure
that nothing is between the phone and center
display that could be blocking the signal.

Phone to network operator

The speed of the mobile network varies
depending on the coverage in the vehicle's
current location. Coverage may be poorer in
e.g. tunnels, mountainous areas, deep valleys
or indoors. Connection speed is also depend-
ent on the subscription you have with your
service provider.

If you experience any problems with data
traffic, contact your network service pro-
vider.

Restarting the phone

If you experience any Internet connection
problems, it may help to restart your phone.

Related information

•

Wi-Fi technology and security (p. 550)

•

Deleting Wi-Fi networks

Networks that are not needed can be
deleted.

1. Tap

Settings

in the Top view.

2. Proceed to

Communication

Wi-Fi

Saved networks

3. Tap

Forget

to delete the network.

4. Confirm the selection.

> The vehicle will no longer connect to

the deleted network.

Deleting all networks

All networks can be deleted at once by per-
forming a factory reset. Please note that all
user data and system settings will be restored
to original default factory settings.

Related information

•

•

Resetting center display settings (p. 138)

•

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 545)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

550

Wi-Fi technology and security

Networks must meet certain criteria in order
for the vehicle to connect.

It is possible to connect to the following types
of networks:

•

Frequency - 2.4 or 5 GHz

•

Standards - 802.11 a/b/g/n.

•

Security type - WPA2-AES-CCMP.

The vehicle's Wi-Fi system is designed to han-
dle Wi-Fi devices inside the vehicle.

Performance may be impaired if multiple devi-
ces are using a frequency at the same time.

Related information

•

The first time certain services and apps are
started, a pop-up window with the heading

Terms and conditions

and

Data sharing

may open.

The aim is to inform the user about Volvo's
terms of use and data sharing policy. By
accepting data sharing, the user accepts that
certain information will be sent from the vehi-
cle. This is required for certain services and
apps to work with full functionality.

The data sharing function for connected servi-
ces and apps is disabled by default

. For cer-

tain connected services and apps in the vehi-
cle to work, data sharing must be activated.
Data sharing can be set from the center dis-
play's settings menu or when the services or
apps are started in the center display.

Privacy and data sharing

The software update that became available in
November 2017 introduced privacy and data
sharing settings for connected services and
downloaded apps. These settings can be
found under

Privacy and data

in the settings

menu in the vehicle's center display.

There, you can choose which connected servi-
ces will be allowed to share data. Data sharing
for downloaded apps can also be disabled

there. Note that services and apps cannot be
used as intended if data sharing is disabled.

After a factory reset or e.g. a workshop visit or
a software update, your data sharing preferen-
ces may be reset to default settings. You will
then need to reactivate data sharing for con-
nected services and downloaded apps.

Activating and deactivating data sharing
(p. 551)

Settings for privacy and data sharing are
unique for each driver profile.

Related information

•

Selecting a frequency is not possible on all markets.

Does not apply to Volvo On Call.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

551

Activating and deactivating data

sharing

Data sharing for relevant services and apps
can be set via the Settings menu in the center
display.

1. Tap

Settings

in the center display's Top

view.

2. Tap

System

Privacy and data

3. Select to activate or deactivate data shar-

ing for individual services and all apps.

If data sharing for a connected service or
downloaded apps is not activated, this can be
done when they are started in the center dis-
play. If this is the first time that a service is
started, or e.g. after a factory reset or certain
software updates, Volvo's terms and condi-
tions for connected services must be accep-
ted. Note that data sharing will then also be
activated for other services or apps that shar-
ing has already been accepted for.
