DISPLAYS AND VOICE CONTROL

* Option/accessory.

94

Example of trip computer information in a 12-inch
instrument panel

*

. The illustration is generic - details

may vary according to vehicle model.

Example of trip computer information in an 8-inch

instrument panel. The illustration is generic - details

may vary according to vehicle model.

The trip computer includes the following
gauges:

•

Trip odometer

•

Odometer

•

Current fuel consumption

•

Distance to empty tank

•

Tourist - alternative speedometer

Unit standards for distance, speed, etc. can be
changed via system settings in the center dis-
play.

Trip odometer

There are two trip odometers: TM and TA.

TM can be reset manually and TA is reset
automatically if the vehicle is not used for four
hours.

During a drive, the trip odometer registers
data on:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The readings since the trip odometer's last
reset are displayed.

Odometer

The odometer records the vehicle's total mile-
age. This reading cannot be reset.

Current fuel consumption

This gauge shows the vehicle's fuel consump-
tion at that moment. The reading is updated
about once a second.

Distance to empty tank

The trip computer calculates the dis-
tance that can be driven on the fuel
remaining in the tank.

This calculation is based on average fuel con-
sumption during the last 30 km (20 miles)
and the amount of fuel remaining in the tank.

When the gauge displays "----", there is not
enough fuel remaining to calculate the remain-
ing mileage. Refuel as soon as possible.

NOTE

The information will change based on your
driving style.

An economical driving style will generally
increase how far you can drive on a certain
amount of fuel.

Tourist - alternative speedometer

The alternative digital speedometer makes it
easier to drive in countries where speed limit
signs are shown in a different measurement
unit than the one shown in the vehicle's
gauges.

DISPLAYS AND VOICE CONTROL

}}

95

When used, the digital speed is displayed in
the opposite unit to that shown in the analog
speedometer. If

mph

 is used in the analog

speedometer, the equivalent speed in

km/h

will be shown in the digital speedometer.

Related information

•

Displaying trip data in the instrument
panel (p. 95)

•

Resetting the trip odometer (p. 96)

•

Displaying trip statistics in the center dis-
play (p. 96)

•

Instrument panel (p. 88)

•

Changing system units of measurement
(p. 136)

Displaying trip data in the

instrument panel

Data recorded and calculated by the trip
computer can be displayed on the instrument
panel.

This data is stored in a trip computer app. You
can choose which information the instrument
panel will display in the app menu.

Open and navigate in the app menu

2

 using the right-

hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the instrument

panel by pressing (1).

(The App menu cannot be opened while
there is an unacknowledged message in
the instrument panel. The message must
be acknowledged by pressing the

O

 but-

ton (4) before the App menu can be
opened).

2. Navigate to the trip computer app by mov-

ing left or right using (2).
> The top four menu rows show meas-

ured values for trip odometer TM. The
next four menu rows show measured
values for trip odometer TA. Scroll up or
down in the list using (3).

2

The illustration is generic - details may vary according to vehicle model.

||

DISPLAYS AND VOICE CONTROL

96

3. Scroll down to the option buttons to

choose which information to show in the
instrument panel:

•

Odometer

•

Distance to empty tank

•

Tourist (alternative speedometer)

•

Mileage for trip odometer TM, TA or no
display of mileage

•

Current fuel consumption, average fuel
consumption for TM or TA, or no dis-
play of fuel consumption

Select or clear a selection using the

O

 but-

ton (4). The change will apply immedi-
ately.

Related information

•

Trip computer (p. 93)

•

Resetting the trip odometer (p. 96)

Resetting the trip odometer

Resetting the trip odometer using the left-
side steering wheel lever.

–

Reset all information in trip odometer TM
(i.e. mileage, average fuel consumption,
average speed and driving time) by press-
ing and holding the

RESET

 button on the

left-hand steering wheel lever.

Pressing the

RESET

 button only resets

the distance driven.

The TA trip odometer can not be manually
reset. It resets automatically if the vehicle is
not used for four hours or more.

Related information

•

Trip computer (p. 93)

Displaying trip statistics in the

center display

Trip computer statistics can be displayed
graphically in the center display, providing an
overview that facilitates more fuel-efficient
driving.

Open the

Driver

performance

 app in the App

view to display trip statistics.

Each bar in the graph repre-
sents a driving distance of 1
kilometers, 10 kilometers or

100 kilometers (or miles). The bars are added
from the right as you drive. The bar at the far
right shows the data for the current trip.

Average fuel consumption and total driving
time are calculated from the most recent reset
of the trip statistics.

DISPLAYS AND VOICE CONTROL

97

Trip computer statistics

3

.

Related information

•

Trip statistics settings (p. 97)

•

Trip computer (p. 93)

Trip statistics settings

Trip statistics settings can be reset or
adjusted.

1. Open the

Driver performance

 app in the

App view to display trip statistics.

2. Tap

Preferences

 to

•

change the graph scale. Select 1, 10 or
100 km/miles for the bar.

•

reset data after each trip. Performed
when the vehicle remains stationary for
more than 4 hours.

•

reset data for current trip.

Trip statistics, calculated average con-
sumption, and total driving time are
always reset simultaneously.

Unit standards for distance, speed, etc. can be
changed via system settings in the center dis-
play.

Related information

•

Displaying trip statistics in the center dis-
play (p. 96)

•

Trip computer (p. 93)

•

Resetting the trip odometer (p. 96)

3

The illustration is generic - details may vary according to vehicle model.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

98

Date and time

The clock is displayed in both the instrument
panel and the center display.

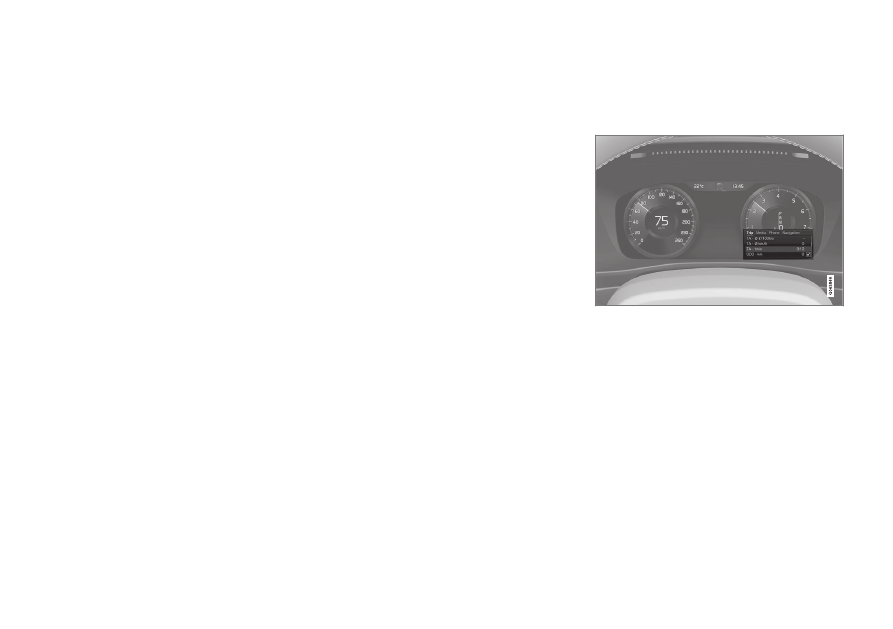

Location of clock

Location of clock in 12"

*

 and 8" instrument panels.

The illustration is generic - details may vary accord-

ing to vehicle model.

Certain messages and other information may
obscure the clock in the instrument panel.

In the center display, the clock is located on
the upper right-hand side in the status bar.

Settings for date and time

–

Select

Settings

System

Date and

Time

 in the center display's Top view to

change settings for time and date format.

Adjust the date and time by tapping the
up or down arrows on the touchscreen.

Automatic time for vehicles with GPS

When the vehicle is equipped with a naviga-
tion system,

Auto Time

 is also available. The

time zone will then be automatically set to the
vehicle's location. In some navigation systems,
the current location must also be set to deter-
mine the correct time zone. If

Auto Time

 is

not selected, the time and date can be
adjusted using the up and down arrows on the
touchscreen.

Daylight savings time

In some countries, the

Auto Daylight Saving

Time

 setting can be selected to automatically

change to daylight savings time. For other
countries, the

Daylight Saving Time

 setting

can be selected manually.

Related information

•

Instrument panel (p. 88)

•

Changing settings in the center display's
Top view (p. 136)

Ambient temperature sensor

The ambient temperature is shown in the
instrument panel.

The sensor detects the temperature outside
the vehicle.

Location of the ambient temperature sensor in 12"

*

and 8" instrument panels. The illustration is generic -

details may vary according to vehicle model.

If the vehicle has been stationary, the sensor
reading may be higher than the actual tem-
perature.

When the ambient temperature is
between –5 °C and +2 °C (23

°

F

and 36

°

F), a snowflake symbol will

illuminate to alert the driver of the

risk of slippery conditions.

The symbol is also temporarily lit in the head-
up display

*

 if the vehicle is equipped with one.

DISPLAYS AND VOICE CONTROL

}}

99

Change the measurement standard for the
temperature sensor etc. via system settings in
the center display's Top view.

Related information

•

Instrument panel (p. 88)

•

Changing system units of measurement
(p. 136)

Indicator and warning symbols

Indicator and warning symbols alert the
driver that a function is active, that a symbol
is working, or that an error or serious fault
has occurred.

Red symbols

WARNING

The red warning symbol illumi-
nates to indicate that a fault has
been detected that could affect
safety or driveability. An explana-
tory message will be simultane-
ously displayed in the instrument
panel.

The warning symbol may also
illuminate in combination with
other symbols.

Seat belt reminder

Lights up or flashes when a
someone in the vehicle has not
fastened their seat belt.

Airbags

A fault has been detected in one
of the vehicle's safety systems.

Read the message in the instru-
ment panel and contact a work-
shop. Volvo recommends con-
tacting an authorized Volvo
workshop.

A

B

Fault in brake system

A fault has occurred in the brake
system.

Read the message in the instru-
ment panel and contact a work-
shop. Volvo recommends con-
tacting an authorized Volvo
workshop.

A

B

Parking brake

Steady glow: the parking brake is
activated.

Flashing: a fault has occurred in
the parking brake. Read the mes-
sage in the instrument panel.

||

DISPLAYS AND VOICE CONTROL

100

Fault in electrical system

A fault has occurred in the elec-
trical system.

Read the message in the instru-
ment panel and contact a work-
shop. Volvo recommends con-
tacting an authorized Volvo
workshop.

High engine temperature

The engine's temperature is too
high. Read the message in the
instrument panel.

Collision risk

City Safety warns the driver if
there is a risk of a collision with
another vehicle, pedestrian,
cyclist or large animal.

Low oil pressure

The engine's oil pressure is too
low. Stop the engine immedi-
ately and check the engine oil
level. Add oil if necessary.

If this symbol lights up and the
oil level is normal, read the mes-
sage in the instrument panel and
contact a workshop. Volvo rec-
ommends contacting an author-
ized Volvo workshop.

A

Canadian models.

B

US models.

Amber symbols

Information

A problem has occurred in one of
the vehicle's systems. Read the
message in the instrument panel.

The information symbol may also
illuminate in combination with
other symbols.

A

B

Fault in brake system

A fault has occurred in the brake
system. Read the message in the
instrument panel.

A

B

Fault in ABS system

The system is not functioning
properly. The vehicle's regular
brakes will still work, but without
the ABS function.

DISPLAYS AND VOICE CONTROL

}}

101

Emission control system

Fault in emission control system.
Have the vehicle checked by a
workshop. Volvo recommends
contacting an authorized Volvo
workshop.

Rear fog light

Rear fog light on.

Tire pressure system

Tire pressure low.

If there is a fault in the tire pres-
sure system, the symbol will first
flash for approximately 1 minute
and then glow steadily. This may
occur if the system cannot detect
or alert the driver of low tire pres-
sure as intended.

Fault in headlight system

A fault has occurred in the head-
light system. Read the message
in the instrument panel.

Lane Keeping Aid

Lane Keeping Aid is alerting/
intervening.

Stability system

Steady glow: a fault has occurred
in the system.

Flashing: the system is working.

Stability system, Sport mode

Sport mode is activated.

Blue symbols

Active high beam

Active high beam is activated
and on.

High beams

High beams on.

Green symbols

A

Auto-hold brake

The function is activated and the
brakes or the parking brake are
being used.

Front fog light

Front fog light on.

Parking lights

Parking lights on.

Left/right turn signals

Turn signal in use.

White/gray symbols

Active high beam

Active high beam is activated but
not on.

Preconditioning

Engine and passenger compart-
ment heater/air conditioning is
preconditioning the vehicle.

||

DISPLAYS AND VOICE CONTROL

102

Lane Keeping Aid

White symbol: Lane Keeping Aid
is on and lane marker lines are
detected.

Gray symbol: Lane Keeping Aid
is on but no lane marker lines are
detected.

Rain sensor

The rain sensor is activated.

Related information

•

Instrument panel (p. 88)

Instrument panel licenses

A license is an agreement on the right to con-
duct a certain activity or the right to use
someone else's right according to terms and
conditions specified in the agreement. The
following text is Volvo's agreement with the
manufacturer or developer.

Boost Software License 1.0

Permission is hereby granted, free of charge,
to any person or organization obtaining a copy
of the software and accompanying
documentation covered by this license (the
"Software") to use, reproduce, display,
distribute, execute, and transmit the Software,
and to prepare derivative works of the
Software, and to permit third-parties to whom
the Software is furnished to do so, all subject
to the following: The copyright notices in the
Software and this entire statement, including
the above license grant, this restriction and
the following disclaimer, must be included in
all copies of the Software, in whole or in part,
and all derivative works of the Software,
unless such copies or derivative works are
solely in the form of machine-executable
object code generated by a source language
processor.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE AND NON-
INFRINGEMENT. IN NO EVENT SHALL THE
COPYRIGHT HOLDERS OR ANYONE
DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY,
WHETHER IN CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

DISPLAYS AND VOICE CONTROL

}}

103

BSD 4-clause "Original" or "Old" License

Copyright (c) 1982, 1986, 1990, 1991, 1993
The Regents of the University of California. All
rights reserved.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

3. All advertising materials mentioning

features or use of this software must
display the following acknowledgement:
This product includes software developed
by the University of California, Berkeley
and its contributors.

4. Neither the name of the University nor the

names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 3-clause "New" or "Revised" License

Copyright (c) 2011-2014, Yann Collet.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following

disclaimer in the documentation and/or
other materials provided with the
distribution.

3. Neither the name of the organisation nor

the names of its contributors may be used
to endorse or promote products derive
from this software without specific prior
written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
HOLDER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

||

DISPLAYS AND VOICE CONTROL

104

BSD 2-clause “Simplified” license

Copyright (c)

<

YEAR

>

,

<

OWNER

>

 All rights

reserved.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS

OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

The views and conclusions contained in the
software and documentation are those of the
authors and should not be interpreted as
representing official policies, either expressed
or implied, of the FreeBSD Project.

FreeType Project License

1. 1 Copyright 1996-1999 by David Turner,

Robert Wilhelm, and Werner Lemberg
Introduction The FreeType Project is
distributed in several archive packages;
some of them may contain, in addition to
the FreeType font engine, various tools
and contributions which rely on, or relate
to, the FreeType Project. This license
applies to all files found in such packages,
and which do not fall under their own
explicit license. The license affects thus
the FreeType font engine, the test
programs, documentation and makefiles,
at the very least. This license was inspired
by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses,
which all encourage inclusion and use of

free software in commercial and freeware
products alike. As a consequence, its main
points are that: o We don't promise that
this software works. However, we are be
interested in any kind of bug reports. (`as
is' distribution) o You can use this
software for whatever you want, in parts
or full form, without having to pay us.
(`royalty-free' usage) o You may not
pretend that you wrote this software. If
you use it, or only parts of it, in a program,
you must acknowledge somewhere in
your documentation that you've used the
FreeType code. (`credits') We specifically
permit and encourage the inclusion of this
software, with or without modifications, in
commercial products, provided that all
warranty or liability claims are assumed by
the product vendor. Legal Terms 0.
Definitions Throughout this license, the
terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner
Lemberg) as the `FreeType project', be
they named as alpha, beta or final release.
`You' refers to the licensee, or person
using the project, where `using' is a
generic term including compiling the
project's source code as well as linking it
to form a `program' or `executable'. This
program is referred to as `a program using
the FreeType engine'. This license applies

DISPLAYS AND VOICE CONTROL

}}

105

to all files distributed in the original
FreeType archive, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the
original archive. If you are unsure whether
or not a particular file is covered by this
license, you must contact us to verify this.
The FreeType project is copyright (C)
1996-1999 by David Turner, Robert
Wilhelm, and Werner Lemberg. All rights
reserved except as specified below. 1. No
Warranty THE FREETYPE ARCHIVE IS
PROVIDED `AS IS' WITHOUT
WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. IN NO EVENT
WILL ANY OF THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR
ANY DAMAGES CAUSED BY THE USE
OR THE INABILITY TO USE, OF THE
FREETYPE PROJECT. As you have not
signed this license, you are not required to
accept it. However, as the FreeType
project is copyrighted material, only this
license, or another one contracted with
the authors, grants you the right to use,
distribute, and modify it. Therefore, by
using, distributing, or modifying the
FreeType project, you indicate that you

understand and accept all the terms of
this license.

2. Redistribution Redistribution and use in

source and binary forms, with or without
modification, are permitted provided that
the following conditions are met: o
Redistribution of source code must retain
this license file (`licence.txt') unaltered;
any additions, deletions or changes to the
original files must be clearly indicated in
accompanying documentation. The
copyright notices of the unaltered, original
files must be preserved in all copies of
source files. o Redistribution in binary
form must provide a disclaimer that states
that the software is based in part of the
work of the FreeType Team, in the
distribution documentation. We also
encourage you to put an URL to the
FreeType web page in your
documentation, though this isn't
mandatory. These conditions apply to any
software derived from or based on the
FreeType code, not just the unmodified
files. If you use our work, you must
acknowledge us. However, no fee need be
paid to us.

3. Advertising The names of FreeType's

authors and contributors may not be used
to endorse or promote products derived
from this software without specific prior
written permission. We suggest, but do
not require, that you use one or more of

the following phrases to refer to this
software in your documentation or
advertising materials: `FreeType Project',
`FreeType Engine', `FreeType library', or
`FreeType Distribution'.

4. Contacts There are two mailing lists

related to FreeType: o
freetype@freetype.org Discusses general
use and applications of FreeType, as well
as future and wanted additions to the
library and distribution. If you are looking
for support, start in this list if you haven't
found anything to help you in the
documentation. o devel@freetype.org
Discusses bugs, as well as engine
internals, design issues, specific licenses,
porting, etc. o http://www.freetype.org
Holds the current FreeType web page,
which will allow you to download our
latest development version and read
online documentation. You can also
contact us individually at: David Turner

<

david.turner@freetype.org

>

 Robert

Wilhelm

<

robert.wilhelm@freetype.org

>

Werner Lemberg

<

werner.lemberg@freetype.org

>

||

DISPLAYS AND VOICE CONTROL

106

Libpng License

This copy of the libpng notices is provided for
your convenience. In case of any discrepancy
between this copy and the notices in the file
png.h that is included in the libpng
distribution, the latter shall prevail.

COPYRIGHT NOTICE, DISCLAIMER, and
LICENSE:

If you modify libpng you may insert additional
notices immediately following this sentence.

libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c)
2000-2002 Glenn Randers-Pehrson and are
distributed according to the same disclaimer
and license as libpng-1.0.6 with the following
individuals added to the list of Contributing
Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the
disclaimer:

There is no warranty against interference with
your enjoyment of the library or against
infringement. There is no warranty that our
efforts or the library will fulfill any of your
particular purposes or needs. This library is
provided with all faults, and the entire risk of

satisfactory quality, performance, accuracy,
and effort is with the user.

libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c)
1998, 1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer
and license as libpng-0.96, with the following
individuals added to the list of Contributing
Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through
0.96, May 1997, are Copyright (c) 1996, 1997
Andreas Dilger Distributed according to the
same disclaimer and license as libpng-0.88,
with the following individuals added to the list
of Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996
Guy Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license,
"Contributing Authors" is defined as the
following set of individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied "AS
IS". The Contributing Authors and Group 42,
Inc. disclaim all warranties, expressed or
implied, including, without limitation, the
warranties of merchantability and of fitness for
any purpose. The Contributing Authors and
Group 42, Inc. assume no liability for direct,
indirect, incidental, special, exemplary, or
consequential damages, which may result
from the use of the PNG Reference Library,
even if advised of the possibility of such
damage.

Permission is hereby granted to use, copy,
modify, and distribute this source code, or
portions hereof, for any purpose, without fee,
subject to the following restrictions:

DISPLAYS AND VOICE CONTROL

}}

107

1. The origin of this source code must not be

misrepresented.

2. Altered versions must be plainly marked

as such and must not be misrepresented
as being the original source.

3. This Copyright notice may not be removed

or altered from any source or altered
source distribution.

The Contributing Authors and Group 42, Inc.
specifically permit, without fee, and encourage
the use of this source code as a component to
supporting the PNG file format in commercial
products. If you use this source code in a
product, acknowledgment is not required but
would be appreciated.

A "png_get_copyright" function is available,
for convenient use in "about" boxes and the
like:

printf("%s",png_get_copyright(NULL));

Also, the PNG logo (in PNG format, of course)
is supplied in the files "pngbar.png" and
(98x31).

Libpng is OSI Certified Open Source
Software. OSI Certified Open Source is a
certification mark of the Open Source
Initiative.

Glenn Randers-Pehrson randeg@alum.rpi.edu
April 15, 2002

MIT License

Copyright (c)

<

year

>



<

copyright holders

>

Permission is hereby granted, free of charge,
to any person obtaining a copy of this
software and associated documentation files
(the "Software"), to deal in the Software
without restriction, including without
limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or
sell copies of the Software, and to permit
persons to whom the Software is furnished to
do so, subject to the following conditions:

The above copyright notice and this
permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR
OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

zlib License

The zlib/libpng License Copyright (c)

<

year

>

<

copyright holders

>

This software is provided 'as-is', without any
express or implied warranty. In no event will
the authors be held liable for any damages
arising from the use of this software.

Permission is granted to anyone to use this
software for any purpose, including
commercial applications, and to alter it and
redistribute it freely, subject to the following
restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that
you wrote the original software. If you use
this software in a product, an
acknowledgment in the product
documentation would be appreciated but
is not required.

2. Altered source versions must be plainly

marked as such, and must not be
misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

||

DISPLAYS AND VOICE CONTROL

108

SGI Free Software B License Version 2.0.

SGI FREE SOFTWARE LICENSE B (Version
2.0, Sept. 18, 2008)

Copyright (C) [dates of first publication]
Silicon Graphics, Inc. All Rights Reserved.
Permission is hereby granted, free of charge,
to any person obtaining a copy of this
software and associated documentation files
(the "Software"), to deal in the Software
without restriction, including without
limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or
sell copies of the Software, and to permit
persons to whom the Software is furnished to
do so, subject to the following conditions: The
above copyright notice including the dates of
first publication and either this permission
notice or a reference to http://oss.sgi.com/
projects/FreeB/ shall be included in all copies
or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN

CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Except as contained in this notice, the name of
Silicon Graphics, Inc. shall not be used in
advertising or otherwise to promote the sale,
use or other dealings in this Software without
prior written authorization from Silicon
Graphics, Inc.

Related information

•

Instrument panel (p. 88)

App menu in instrument panel

The App menu in the instrument panel pro-
vides quick access to commonly used func-
tions for certain apps.

The illustration is generic.

The App menu in the instrument panel can be
used instead of the center display and is then
controlled using the right-side steering wheel
keypad. The app menu makes it easier to
switch between different apps or functions
within the apps without having to let go of the
steering wheel.

App menu functions

Different apps provide access to different
types of functions. The following apps and
their functions can be controlled from the App
menu:

DISPLAYS AND VOICE CONTROL

}}

109

App

Functions

Trip com-
puter

Select a trip odometer,
change instrument panel dis-
play settings, etc.

Media
player

Select active source for
media player.

Phone

Call a contact from the call
list.

Navigation

Guide to destination, etc.

Related information

•

Instrument panel (p. 88)

•

Center display overview (p. 114)

•

Handling the App menu in the instrument
panel (p. 109)

Handling the App menu in the

instrument panel

The App menu in the instrument panel is con-
trolled using the right-side steering wheel
keypad.

App menu and right-side steering wheel keypad. The

illustration is generic.

Open/close

Left/right

Up/down

Confirm

Opening and closing the app menu

–

Tap open/close (1).
> The App men opens/closes.

NOTE

The App menu cannot be opened while
there is an unacknowledged message in
the instrument panel. The message must
be acknowledged before the App menu
can be opened.

The App menu turns off automatically after a
period of inactivity or after certain selections
are made.

Navigating and making selections in
the App menu

1. Navigate between apps by tapping left or

right (2).
> Functions for the previous/next app will

be shown in the App menu.

2. Scroll through the functions for the

selected app using the up or down arrows
(3).

3. Confirm or make a selection for the func-

tion by pressing confirm (4).
> The function will be activated and, for

some selections, the App menu will
then close.
