Adjusting the passenger seat from the
driver's seat

•

(p. 197)

Adjusting front seat lumbar

support

Use the control on the side of the seat cush-
ion to adjust the lumbar support.

Multifunction control, in vehicles with four-way lum-
bar support

Control in vehicles with two-way lumbar support

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

* Option/accessory.

196

Lumbar support is adjusted using the multi-
function control in vehicles with four-way lum-
bar support

, or the round button in vehicles

with two-way lumbar support

. The control is

located on the side of the seat cushion.
Depending on the selected equipment level,
the lumbar support can be adjusted forward/
rearward and up/down (four-way lumbar sup-
port) or forward/backward (two-way lumbar
support).

Adjusting lumbar support in vehicles
with four-way lumbar support

1. Activate the multifunction control by turn-

ing the control

upward/downward. The

seat settings view will appear in the center
display.

2. Select

Lumbar

in the seat settings view.

•

Press the round button up

/down

to move the lumbar support upward/
downward.

•

Press the front part

of the button to

increase lumbar support.

•

Press the rear part

of the button to

decrease lumbar support.

Adjusting lumbar support in vehicles
with two-way lumbar support

1. Press the front part

of the round button

to increase lumbar support.

2. Press the rear part

of the round button

to decrease lumbar support.

Related information

•

Manual front seats (p. 188)

•

•

•

Storing positions for seats, mirrors and
head-up display

(p. 190)

•

Using stored positions for seats, mirrors
and head-up display

(p. 191)

•

Adjusting front seat massage settings

(p. 193)

•

Adjusting

front seat cushion length

(p. 194)

•

Front seat massage

settings (p. 192)

•

Adjusting front seat side bolster settings

Adjusting the passenger seat from the
driver's seat

•

(p. 197)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

* Option/accessory.

197

Adjusting the passenger seat from

the driver's seat

The front passenger seat can be adjusted
from the driver's seat.

Activating the function

The function is activated via the function view
in the center display:

Tap the

Adjust Passenger

Seat

button to activate.

Adjust passenger seat

The driver must adjust the passenger seat
within 10 seconds of activating the function. If
no adjustment is made within this time, the
function will be deactivated.

The driver adjusts the passenger seat using
the controls on the driver's seat:

Move the passenger seat forward/rear-
ward by moving the control forward/rear-
ward.
Change the backrest tilt of the passenger
seat by moving the control forward/back-
ward.

Related information

•

Manual front seats (p. 188)

•

•

•

Storing positions for seats, mirrors and
head-up display

(p. 190)

•

Using stored positions for seats, mirrors
and head-up display

(p. 191)

•

Adjusting front seat massage settings

(p. 193)

•

Adjusting

front seat cushion length

(p. 194)

•

Front seat massage

settings (p. 192)

•

Adjusting front seat side bolster settings

Adjusting front seat lumbar support

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

* Option/accessory.

198

Folding down the rear seat

backrests

The rear seat backrest is split into two sec-
tions. The two sections can be folded forward
individually.

WARNING

•

Adjust the seat and ensure it locks into
position before driving. Use caution
when adjusting the seat. Uncontrolled
or careless adjustments could lead to
injury.

•

Long objects must always be securely
tied down to help prevent injury or
damage in the event of sudden brak-
ing.

•

Always turn off the engine and apply
the parking brake when loading or
unloading the vehicle.

•

Put the gear selector in

to help pre-

vent the gear selector from being inad-
vertently moved.

CAUTION

When the backrest is folded down, make
sure there are no objects in the rear seat,
and the seat belts are not buckled. Other-
wise there is a risk of damage to the
upholstery.

CAUTION

The seat cushion of the integrated child
restraint

must be in the stowed position

before the rear seat backrest can be folded
down.

The armrest

in the center seat must be

raised before the seat backrest is folded
down.

The ski hatch must be closed before the
seat backrest is folded down.

The front seats may need to be pushed for-
ward and/or the backrest adjusted so that
the rear seat backrests can be fully low-
ered.

Folding down the backrests

The vehicle must be stationary and at least
one of the rear doors must be open before a
backrest can be folded down.

Make sure that the rear seat is unoccupied
and that there are no objects on the seat.

Push down the center seat's head
restraint manually.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

}}

* Option/accessory.

199

Pull up the handle on the backrest
while folding down the backrest. The han-
dle for the head restraint will be automati-
cally pulled up when the backrest is low-
ered. A red indicator light near the back-
rest lock

indicates that the backrest is

no longer locked.

Adjusting the rear seat head restraints
(p. 199)

When the backrest is folded down, the
head restraint may come in contact with
the seat cushion of the seat being folded
down. Adjust the head restraints on the
folded seat to help prevent damage to the
fabric.

3. The backrest lock will release and the

backrest will automatically fold down to
the horizontal position.

Folding up the backrest

To fold up the backrest to the upright position
manually:

1. Move the backrest upward/rearward.

2. Press the backrest until it locks into posi-

tion.

3. Fold up the head restraints manually.

4. Adjust the center head restraint if neces-

sary.

WARNING

When the backrest is restored to an

upright position, the red indicator should

no longer be visible. If it is still visible, the

backrest is not locked in place.

WARNING

Make sure that the rear seat backrest and

head restraint are locked securely in place

after the seat is folded up.
The head restraints at the outer seats must

always be raised when there is a passenger

in one of these spots of the rear seat.

Related information

•

•

Private Locking (p. 269)

•

Activating and deactivating private locking
(p. 269)

Adjusting the rear seat head

restraints

Adjust the center head restraint in the rear
seat to the seat occupant's height. Fold down
the outboard head restraints

to improve rear

visibility.

Adjusting the center seat head
restraint

The center head restraint should be adjusted
to suit the passenger's height. The entire back
of the head should be covered if possible.
Manually move the restraint up or down as
needed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

* Option/accessory.

200

To lower the restraint, push and hold the but-
ton (see illustration) while carefully lowering
the head restraint.

WARNING

The center seat head restraint must be in

its lowest position when the seat is not

occupied. When the center seat is occu-

pied, the head restraint must be correctly

adjusted to the passenger's height, cover-

ing the entire back of the head if possible.

Folding the rear seat outboard head
restraints using the center display

The outer head restraints can be folded via the
center display's function view. The head
restraint can be folded down when the vehicle
is in ignition mode

Tap the

Headrest Fold

but-

ton to activate/deactivate
folding.

Manually push the head restraint until it clicks
into position.

WARNING

Do not lower the head restraint if there are

passengers in any of the rear seats.

WARNING

The head restraint must be locked in the

upright position after it has been folded up.

Folding the rear seat outboard head
restraints using the handle

For vehicles with electrically folding

head

restraints, the outboard head restraints can be
folded using the handle on the top of the seat
(see illustration

.) Note that this method

also folds down the backrests. To fold down
only the head restraints, e.g. to improve visibil-
ity, use the center display

instead.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATS AND STEERING WHEEL

* Option/accessory.

201

For vehicles without electrically folding back-
rests, fold the outboard head restraints man-
ually using the inner control on the top of the
seat (see illustration

Related information

•

Folding down the rear seat backrests
(p. 198)

Steering wheel controls and horn

The steering wheel has a horn and controls
for e.g. driver support systems and voice con-
trol.

Steering wheel keypads and paddles

Driver support system controls.

Paddle

for manually shifting gears (auto-

matic transmission).
Controls for voice commands, accessing
menus and messages, and handling
phone calls.

Horn

The horn is located in the center of the steering

wheel.

Related information

•

Adjusting the steering wheel (p. 202)

Cruise Control, Adaptive Cruise Control

, Distance Alert

and Pilot Assist.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

204

Climate

The vehicle is equipped with electronic cli-
mate control. The climate system cools, heats
and dehumidifies the air in the passenger
compartment.

All of the climate system functions are con-
trolled from the center display and the buttons
on the center console.

Certain rear seat functions can also be con-
trolled from the climate controls

on the rear

of the tunnel console.

Climate control sensors (p. 205)

The climate system can be used to cool
down the media system in the center dis-
play if needed. In these cases, the message

Climate system

Cooling the

infotainment system

will be shown in the

instrument panel.

Related information

•

Climate zones (p. 204)

•

•

Perceived temperature (p. 205)

•

Climate control system voice commands
(p. 206)

•

Parking climate (p. 227)

•

Heater (p. 236)

•

Air distribution (p. 210)

•

•

Climate system controls (p. 216)

Climate zones

The vehicle is divided into climate zones to
make it possible to set different temperatures
for different parts of the passenger compart-
ment.

2-zone climate system

Climate zones with 2-zone climate system.

In 2-zone climate systems, the passenger
compartment temperature can be set sepa-
rately for the left and right sides of the vehicle.

Related information

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

205

Climate control sensors

The climate system has a number of sensors
to help regulate the climate settings in the
vehicle. Do not cover or block the sensors
with clothing or other objects.

Location of the sensors

Sunlight sensors - on the upper side of the
dashboard.
Humidity sensor - in the rearview mirror
console.
Passenger compartment temperature sen-
sor - near the buttons in the center con-
sole.
Airborne particulate matter sensor

– on

the underside of the glove compartment.
Ambient temperature sensor - in the right-
side door mirror.

On vehicles equipped with the Interior Air
Quality System

, there is also an air quality

sensor in the climate system's air intake.

Related information

•

•

Perceived temperature

The climate control system regulates the cli-
mate in the passenger compartment based
on perceived temperature, not actual tem-
perature.

The selected passenger compartment tem-
perature is based on the physical perception of
the current ambient temperature, airflow
speed, humidity, sunlight in the passenger
compartment, etc.

The system has a sunlight sensor that detects
which side of the vehicle the sunlight is shin-
ing on and adjusts the temperature accord-
ingly. This means that the temperature of the
air coming out of the vents may be different
for the left and right sides, even if the tem-
perature setting is the same for both sides.

Related information

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

206

Climate control system voice

commands

Voice commands can be used for the climate
control system to e.g. change temperature,
activate seat heating

or change blower

speed.

Tap

and say one of the following com-

mands:

•

Climate

" - starts a command dialog for

climate controls and provides examples of
commands that can be used.

•

Set temperature to X degrees

" - sets

desired temperature.

•

Raise temperature

"/"

Lower

temperature

" - raises/lowers the set tem-

perature.

•

Sync temperature

" - synchronizes the

temperature for all climate zones in the
vehicle with the temperature set for the
driver's side.

•

Air on feet

"/"

Air on body

" - opens the

desired air vent.

•

Air on feet off

"/"

Air on body off

" -

closes the desired air vent.

•

Set fan to max

"/"

Turn off fan

" -

changes blower speed to

Max

Off

•

Raise fan speed

"/"

Lower fan speed

" -

raises/lowers the set blower speed.

•

Turn on auto

" - activates automatic cli-

mate control.

•

Air condition on

"/"

Air condition off

" -

activates/deactivates air conditioning.

•

Recirculation on

"/"

Recirculation off

" -

activates/deactivates air recirculation.

•

Turn on defroster

"/"

Turn off

defroster

" - activates/deactivates win-

dow and door mirror defrosting.

•

Turn on max defroster

"/"

Turn off max

defroster

" - activates/deactivates max

defroster.

•

Turn on rear defroster

"/"

Turn off rear

defroster

" - Activates/deactivates heated

rear window and door mirrors.

•

Turn steering wheel heat on

"/"

Turn

steering wheel heat off

" - activates/

deactivates heated steering wheel

•

Raise steering wheel heat

"/"

Lower

steering wheel heat

" - raises/lowers the

level of steering wheel heating

•

Turn on seat heat

"/"

Turn off seat heat

- activates/deactivates seat heating

•

Raise seat heat

"/"

Lower seat heat

" -

raises/lowers the level of seat heating

•

Turn on seat ventilation

"/"

Turn off

seat ventilation

" - activates/deactivates

seat ventilation

•

Raise seat ventilation

"/"

Lower seat

ventilation

" - raises/lowers the level of

seat ventilation

Not all system languages support voice
control. If a language supports voice con-
trol, it is marked with a

symbol in the

list of available system languages. Read
more about where the information is found
in the section on voice control settings.

Related information

•

Use voice recognition (p. 150)

•

Voice Control (p. 149)

•

•

Voice control settings (p. 154)

Certain markets only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

}}

* Option/accessory.

207

Air quality

The materials used in the passenger compart-
ment and air filtering system have been
selected to ensure a high level of air quality in
the passenger compartment.

Materials used in the passenger
compartment

The materials in the passenger compartment
are designed to be pleasant and comfortable,
even for people with asthma or allergies.

The materials have been developed and tested
to reduce dust in the passenger compartment
and make it easier to keep clean.

The mats in both the passenger compartment
and cargo compartment can be easily
removed for cleaning.

Use Volvo-recommended cleaning agents and
car care products to clean the interior.

Air filtering systems

In addition to the passenger compartment air
filter, the vehicle is also equipped with other
air cleaning systems that help you maintain
high air quality in the passenger compartment.

Related information

•

•

•

•

•

Advanced Air Cleaner

(p. 210)

•

CleanZone

The CleanZone function monitors the condi-
tions affecting good air quality in the passen-
ger compartment and indicates whether they
are fulfilled or not.

The indicator is shown in the center dis-
play's Climate view.
The indicator is shown in the climate bar
when Climate view is not open.

If the conditions are not met, the text

Clean

Zone

will be shown in white. When all the

conditions are met, the text will change to
blue.

The following conditions must be met:

•

All doors and tailgate are closed.

•

All side windows and panoramic roof

are

closed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

208

•

The Interior Air Quality System

is acti-

vated.

•

The blower is activated.

•

Air recirculation is deactivated.

CleanZone does not indicate that the air
quality is good, but only that the conditions
for good air quality have been met.

Related information

•

•

•

•

Clean Zone Interior Package

Clean Zone Interior Package (CZIP) is a series
of modifications that filters even more allergy
and asthma-inducing substances and other
pollutants from the passenger compartment.

CZIP includes the following:

•

An enhanced function that starts the
blower when the vehicle is unlocked using
the remote key. The blower will then fill
the passenger compartment with fresh air.
The function starts when required and
switches off automatically after a period of
time or when one of the passenger com-
partment doors is opened. The amount of
time the blower runs gradually decreases
due to reduced need up until the vehicle is
4 years old.

•

The fully automatic Interior Air Quality
System (IAQS).

Related information

•

•

•

•

Interior Air Quality System

Interior Air Quality System (IAQS) is a fully
automatic air quality system that removes
gases and particles to reduce odors and con-
taminants in the passenger compartment.

IAQS is part of the Clean Zone Interior
Package (CZIP) and removes air contaminants
such as particles, hydrocarbons, nitric oxides
and ground-level ozone.

If the system's air quality sensors detect con-
taminants in the outside air, the air intake
closes and air recirculation is activated.

Activating and deactivating the air quality
sensor

To ensure optimal air quality in the passen-
ger compartment, the air quality sensor
should always be engaged.

Recirculation is limited in cold weather to
prevent fogging.

In the event of fogging, use the defroster
functions for the windshield, side windows
and rear window.

Related information

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

209

•

•

Activating and deactivating the air

quality sensor

The air quality sensor is part of the fully auto-
mated Interior Air Quality System (IAQS).

The air quality sensor can be switched on or
off.

1. Tap

Settings

in the Top view in the center

display.

2. Tap

Climate

3. Select

Air Quality Sensor

to activate/

deactivate the air quality sensor.

Related information

•

Passenger compartment air filter

All air entering the passenger compartment
through the climate control system intake is
filtered.

Replacing the passenger
compartment filter

To maintain the high performance of the cli-
mate control system, the filter must be
replaced regularly. Follow Volvo's service
schedule for recommended replacement inter-
vals. When driving in areas with a lot of smog,
dust, etc., the filter may need to be changed
more frequently.

There are two types of passenger compart-
ment filters. Make sure that the correct fil-
ter is installed.

Related information

•

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE CONTROL

* Option/accessory.

210

Advanced Air Cleaner

Advanced Air Cleaner is a fully automatic air
cleaner that traps airborne particulate matter,
exhaust and other pollutants in the passenger
compartment air filter, which improves the
climate in the passenger compartment.

The function starts automatically when the
blower starts.

Airborne particulate matter are also known as
PM

2.5

(particles smaller than 2.5 µm), and the

concentrations of these particles in the vehicle
are measured by one of the vehicle's climate
control sensors. The concentration in the vehi-
cle is presented in the downloadable app Air
Quality.

Related information

•

•

•

•

•

Climate control sensors (p. 205)

•

Air distribution

The climate system distributes incoming air
through a number of vents in the passenger
compartment.

Automatic and manual air distribution

When the auto-climate feature is on, air distri-
bution is regulated automatically. Air distribu-
tion can also be controlled manually.

Adjustable air vents

Certain air vents in the vehicle are adjustable,
which means they can be opened/closed and
the direction of the air flow from the vent can
be adjusted.

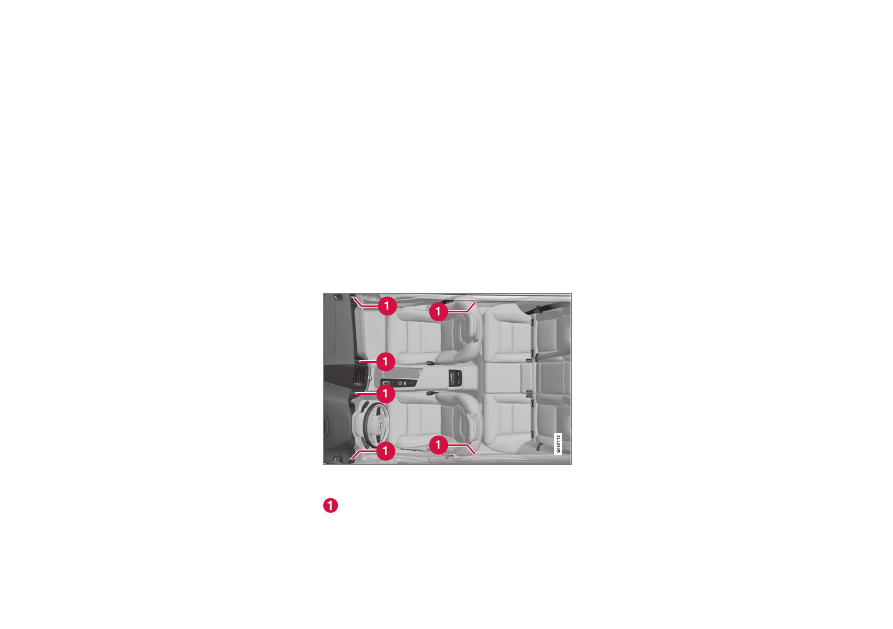

Location of adjustable air vents in the passenger

compartment.

Four vents on the dashboard and one on
each of the pillars between the front and
rear doors.

Related information

•
