MAINTENANCE AND SERVICE

642

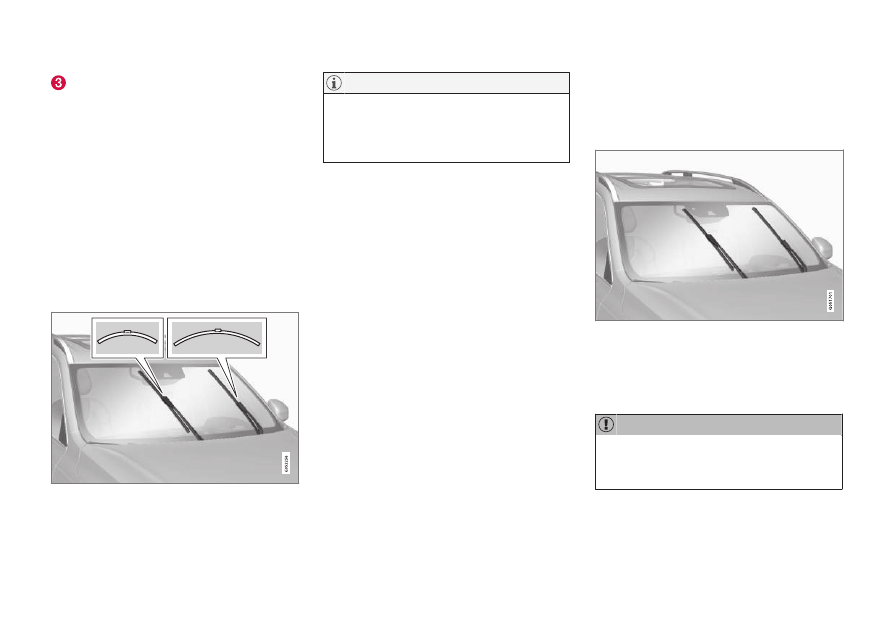

While holding the button down, pull the
blade straight out, parallel with the wiper
arm.

4. Slide in the new wiper blade until it clicks

into place.

5. Fold the blade back toward the arm until it

clicks into place. The blade is no longer in
its removal position and can once again be
moved.

6. Check to make sure the wiper blade is

securely in place.

7. Press the wiper blade back against the

windshield.

Wiper blades come in varying lengths

NOTE

When changing wiper blades, make sure
that the blades are of different lengths. The
blade on the driver's side is longer than the
one on the passenger side.

Related information

•

Using the rain sensor (p. 181)

•

Using the windshield and headlight wash-
ers (p. 183)

•

Using automatic rear window wiping
when backing up (p. 185)

•

Activating and deactivating the rain sen-
sor's memory function (p. 182)

•

Using the rear window wiper/washer
(p. 184)

•

Filling washer fluid (p. 643)

•

Putting the wiper blades in service posi-
tion (p. 642)

•

Changing rear window wipers (p. 640)

•

Using the windshield wipers (p. 180)

•

Wiper blades and washer fluid (p. 180)

Putting the wiper blades in service

position

The windshield wiper blades must be in the
service (vertical) position for certain opera-
tions, e.g. replacing the blades.

Windshield wipers in the service position.

The windshield wipers must be in the service
position when replacing, washing or lifting the
blades (e.g. to scrape ice or snow from the
windshield).

CAUTION

Before placing the wipers in service posi-
tion, ensure that they have not frozen to
the windshield.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

643

Activating/deactivating service
position

The service position can be activated/deacti-
vated when the vehicle is stationary and the
windshield wipers are switched off. Service
position is activated/deactivated via Function
view in the center display:

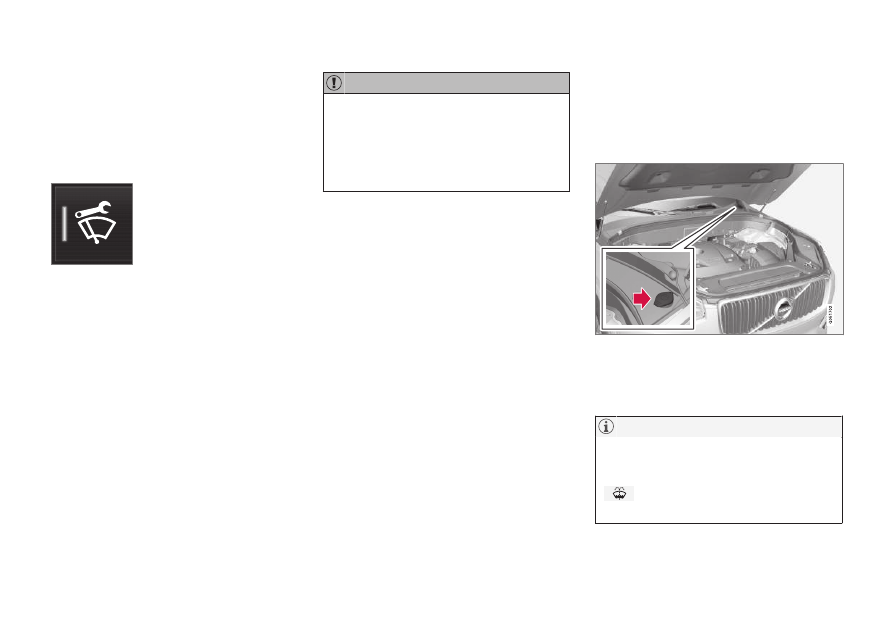

Tap the

Wiper Service

Position

 button. The indica-

tor light in the button will illu-
minate when service position
is activated. The wipers will
move to the service position
when activated. To deactivate

the service position, tap

Wiper Service

Position

 once. The indicator light in the but-

ton will go out when service position is deacti-
vated.

The wiper blades will also move out of the
service position if:

•

The windshield wipers are turned on.

•

The windshield washers are turned on.

•

The rain sensor is activated.

•

The vehicle begins moving.

CAUTION

If the wiper arms in service position are
raised from the windshield, they must be
folded back against the windscreen before
activating wiping, washing or rain sensor
as well as before departure. This is to pre-
vent scratching the paint on the hood.

Related information

•

Using the rain sensor (p. 181)

•

Using the windshield and headlight wash-
ers (p. 183)

•

Using automatic rear window wiping
when backing up (p. 185)

•

Activating and deactivating the rain sen-
sor's memory function (p. 182)

•

Using the rear window wiper/washer
(p. 184)

•

Filling washer fluid (p. 643)

•

Replacing windshield wiper blades
(p. 641)

•

Changing rear window wipers (p. 640)

•

Using the windshield wipers (p. 180)

•

Wiper blades and washer fluid (p. 180)

Filling washer fluid

Washer fluid is used to keep the headlights,
windshield and rear window clean. Washer
fluid containing anti-freeze should be used in
very cold weather (below-freezing tempera-
tures).

Fill washer fluid into the reservoir with the
blue cover. The reservoir is used for the wind-
shield washer, tailgate window washer and
headlight washer

*

.

NOTE

When there is approximately 1 liter (1 qt) of
washer fluid remaining, the message

Washer fluid



Level low, refill

 and the

 symbol will be displayed in the

instrument panel.

||

MAINTENANCE AND SERVICE

644

Recommended grade:

 Washer fluid recom-

mended by Volvo, with frost protection during
cold weather and temperatures below the
freezing point.

CAUTION

Use Volvo's original washer fluid or an
equivalent fluid with the recommended pH
value between 6 and 8, diluted as recom-
mended, e.g. in a 1:1 solution with pH-neu-
tral water.

CAUTION

Use washer fluid with anti-freeze when
temperatures are below the freezing point
to help keep the pump, reservoir and hoses
from freezing.

Volume:

•

Vehicles

with

 headlight washing: 5.3 liters

(5.6 qts).

•

Vehicles

without

 headlight washing: 3.5

liters (3.7 qts).

Related information

•

Using the rain sensor (p. 181)

•

Using the windshield and headlight wash-
ers (p. 183)

•

Using automatic rear window wiping
when backing up (p. 185)

•

Activating and deactivating the rain sen-
sor's memory function (p. 182)

•

Using the rear window wiper/washer
(p. 184)

•

Putting the wiper blades in service posi-
tion (p. 642)

•

Replacing windshield wiper blades
(p. 641)

•

Changing rear window wipers (p. 640)

•

Using the windshield wipers (p. 180)

•

Wiper blades and washer fluid (p. 180)

•

Opening and closing the hood (p. 594)

SPECIFICATIONS

646

Type designations

The decals in the vehicle contain information
such as chassis number, type designation,
color code, etc.

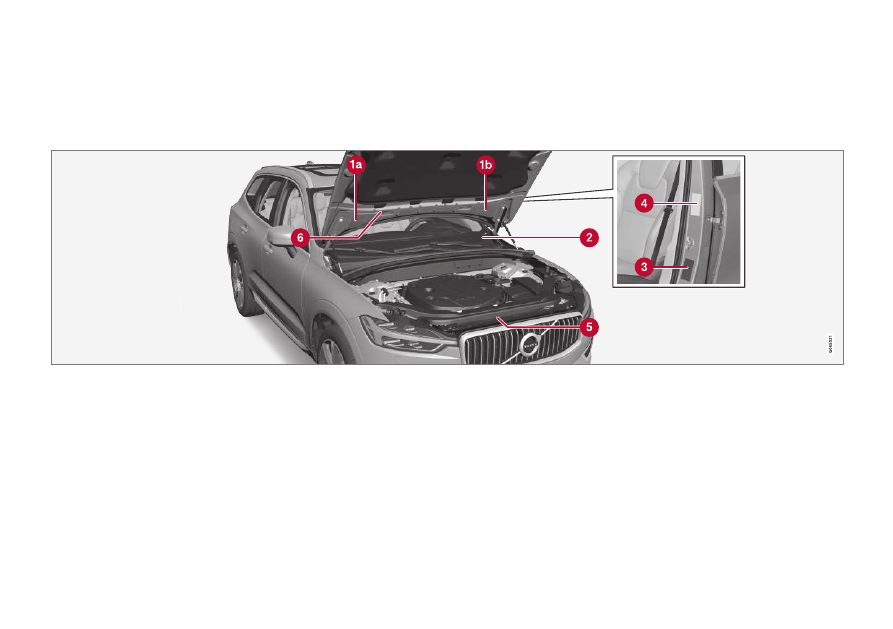

Location of decals

The illustration is general and details may vary depending on market and model.

SPECIFICATIONS

}}

647



Vehicle Emission Control Information.

US models.

 Your Volvo is designed to meet all

applicable emission standards, as evidenced
by the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your Volvo
retailer.



Vehicle Emission Control Information.

Canadian models.

 Your Volvo is designed to

meet all applicable emission standards, as evi-
denced by the certification label on the under-
side of the hood. For further information regar-
ding these regulations, please consult your
Volvo retailer.



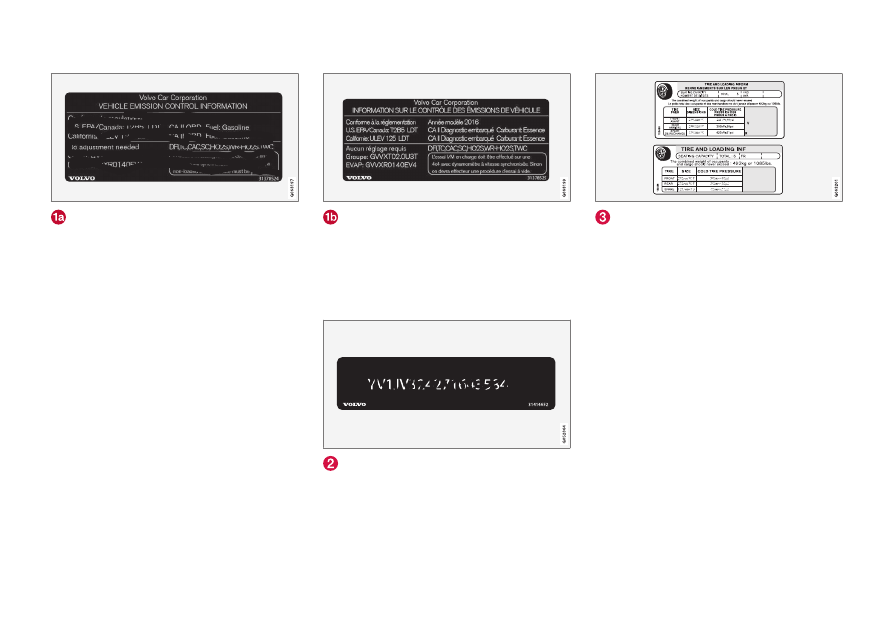

Vehicle Identification Number (VIN).

 The

VIN plate is located on the top left surface of
the dashboard. The Vehicle Identification
Number (VIN) should always be quoted in all
correspondence concerning your vehicle with
the retailer and when ordering parts.



Tire inflation pressures.

 This label indi-

cates the correct inflation pressures for the
tires that were on the vehicle when it left the
factory.

||

SPECIFICATIONS

648



Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry
of Transport (CMVSS) standards (Canada).

Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). This
label also includes codes for paint color, etc.
For further information regarding these regula-
tions, please consult your Volvo retailer. U.S.
models have the upper decal; Canadian mod-
els have the lower one.



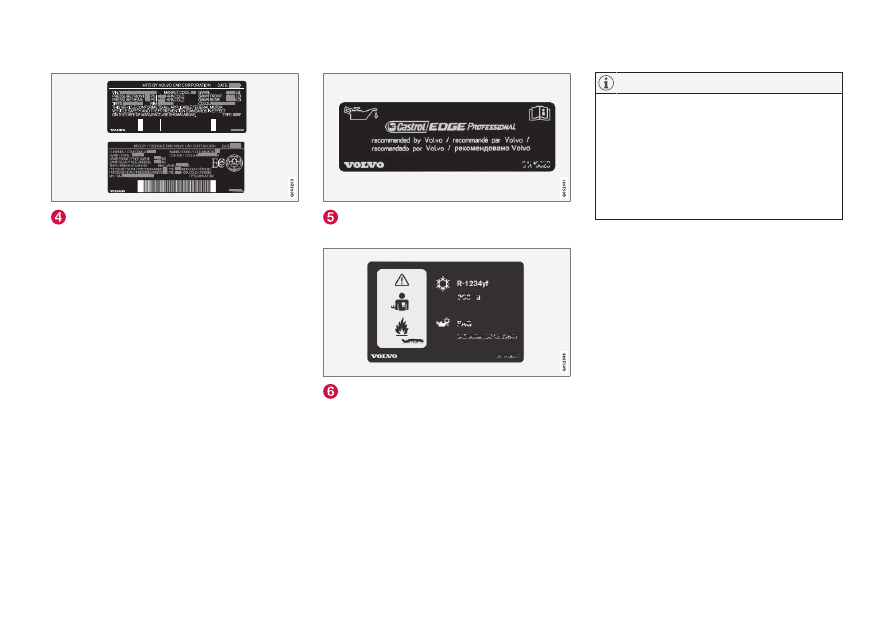

Engine oil.

 This label contains the recom-

mended engine oil specifications.



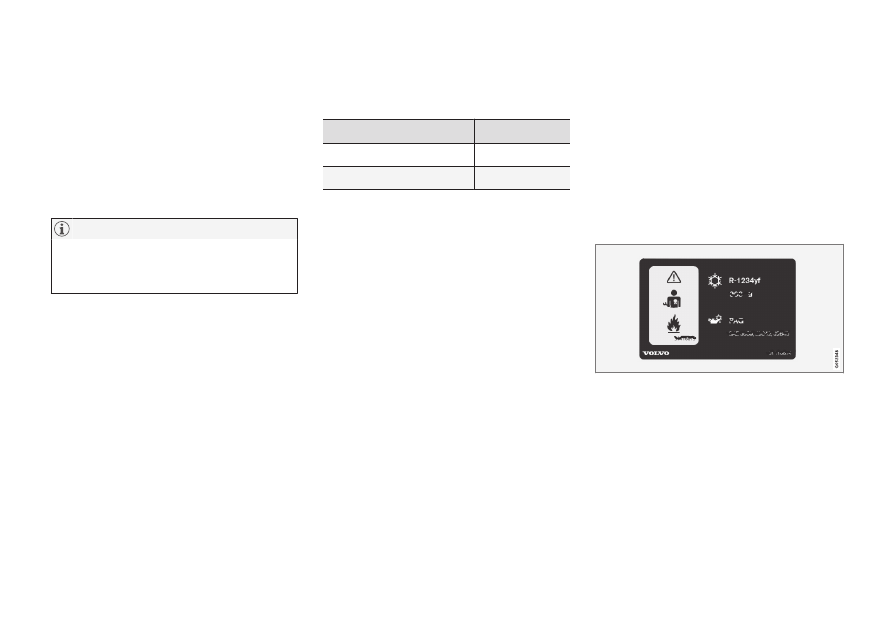

Decal A/C.

 Refrigerant R1234yf.

NOTE

Related information

•

Air conditioning specifications (p. 655)

SPECIFICATIONS

}}

649

Dimensions

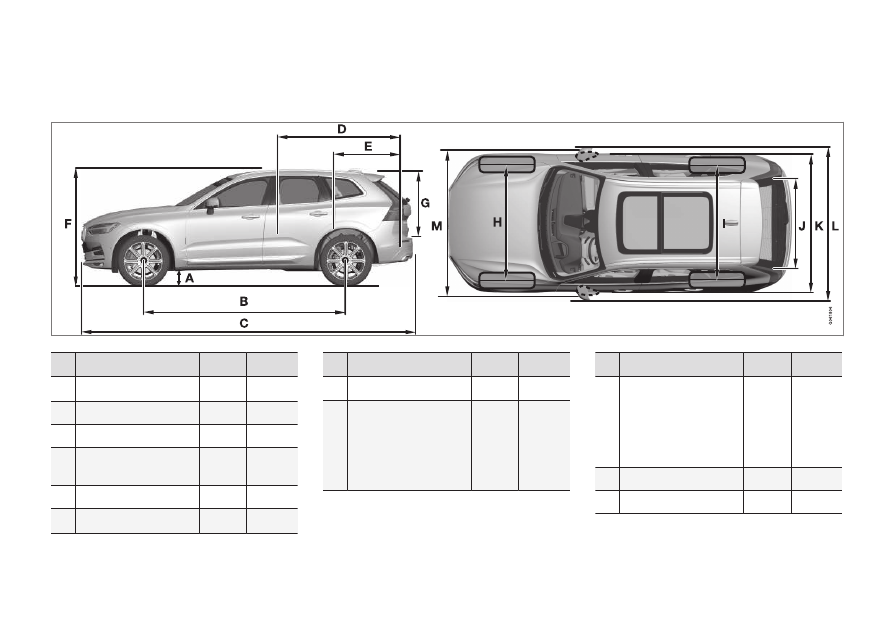

The vehicle's length, height, etc. are shown in
the table.

Dimensions

mm

inches

A

Ground clearance

A

211

8.3

B

Wheelbase

2865

112.8

C

Length

4688

184.6

D

Load length, floor,
folded backrest

1746

68.7

E

Load length, floor

960

37.8

F

Height

B

1658

65.3

Dimensions

mm

inches

G

Load height

776

30.6

H

Wheel track, front

1653

C

1649

D

1655

E

1668

F

65.1

C

64.9

D

65.2

E

65.7

F

Dimensions

mm

inches

I

Wheel track, rear

1657

C

1653

D

1659

E

1673

F

65.2

C

65.1

D

65.3

E

65.9

F

J

Load width, floor

1010

39.8

K

Width

1902

74.9

||

SPECIFICATIONS

650

Dimensions

mm

inches

L

Width incl. rearview
mirrors

2117

83.3

M Width incl. folded

rearview mirrors

1999

78.7

A

For curb weight plus 1 person. (Varies slightly depending on

tire dimensions, chassis variant, etc.).

B

Including roof antenna, at curb weight.

C

Vehicles with 17/19-inch wheels.

D

Vehicles with 20-inch wheels.

E

Vehicles with 21-inch wheels.

F

Vehicles with 22-inch wheels.

Related information

•

Weights (p. 651)

SPECIFICATIONS

651

Weights

The following table lists important weight
data for your vehicle.

Category

Engine

USA

(lbs)

Canada

(kg)

Gross vehicle weight

T5

5225

–

T5 AWD

5360

2430

T6 AWD

5400

2450

Capacity weight

–

950

430

Permissible axle weights, front

T5

2620

–

T5 AWD

2670

1210

T6 AWD

2710

1230

Permissible axle weights, rear

T5

2690

–

T5 AWD

2780

1260

T6 AWD

2780

1260

Curb weight

–

4010–4760

1870–2160

Max. roof load

–

220

100

CAUTION

•

When loading the vehicle, the maxi-
mum gross vehicle weight and permis-
sible axle weights may not be excee-
ded.

Related information

•

Type designations (p. 646)

•

Towing capacity and tongue weight
(p. 652)

SPECIFICATIONS

* Option/accessory.

652

Towing capacity and tongue

weight

Towing capacity and tongue weight are
shown in the table.

Category

USA

(lbs)

Canada

(kg)

Max. trailer weights

Without brakes:

1650

750

With brakes:

3500

1580

Max. tongue weight

–

350

150

CAUTION

•

The maximum trailer weights listed are
only applicable for altitudes up to
3280 ft (1,000 m) above sea level.
With increasing altitude the engine
power and therefore the car's climbing
ability are impaired because of the
reduced air density, so the maximum
trailer weight has to be reduced
accordingly. The weight of the car and
trailer must be reduced by 10% for
every further 3280 ft (1,000 m) (or
part thereof).

Related information

•

Type designations (p. 646)

•

Weights (p. 651)

•

Driving with a trailer (p. 449)

•

Trailer Stability Assist

*

 (p. 451)

SPECIFICATIONS

653

Engine specifications

Engine specifications (output, etc.) for each
engine variant are shown in the table below.

The specifications for Special Edition vehicles
may vary.

NOTE

Not all engines are available on all markets.

Engine

Engine code

A

Output

(kW/rps)

Output

(hp/rpm)

Torque

(Nm/rps)

Torque

(ft. lbs./rpm)

Number of cylinders

T5 / T5 AWD

B4204T23

187/92

250/5500

350/25–80

258/1500-4800

4

T6 AWD

B4204T27

235/95

316/5700

400/37–90

295/2200–5400

4

A

The engine code, component and manufacturer serial numbers can be found on the engine.

Related information

•

Type designations (p. 646)

•

Engine oil specifications (p. 654)

SPECIFICATIONS

654

Engine oil specifications

Engine oil of type VCC RBS0-2AE 0W-20
must be used. Lower oil grades may not offer
the same fuel economy, engine performance
or engine protection.

Volvo recommends:

General

See the Service and warranty booklet for infor-
mation about oil change intervals.

NOTE

This vehicle is delivered from the factory
with synthetic oil.

Do not use oil additives.

Oil viscosity

The wrong oil viscosity can shorten engine
service life during normal use.
VCC RBS0-2AE 0W-20 provides good fuel
economy and engine protection. See the vis-
cosity chart.

Viscosity chart

Oil volume

Engine oil volumes (including oil filter) are
shown in the table.

Liter (approx)

5.6

US qts (approx)

5.9

Related information

•

Type designations (p. 646)

•

Checking and filling engine oil (p. 598)

•

Engine oil (p. 597)

Transmission fluid specifications

Under normal driving conditions, the trans-
mission fluid will not need to be changed dur-
ing the transmission's service life. However,
it may need to be changed if the vehicle is
driven frequently in adverse driving condi-
tions.

Automatic transmission

Prescribed transmission fluid:

AW-1

Related information

•

Type designations (p. 646)

SPECIFICATIONS

}}

655

Brake fluid specifications

The medium in the hydraulic brake system is
called brake fluid and is used to transfer pres-
sure from e.g. a brake pedal via a master
brake cylinder, which in turn actuates the
brake calipers.

Recommended grade:

 Volvo Original or simi-

lar fluid that meets a combination of Dot 4, 5.1
and ISO 4925 class 6.

NOTE

Changing or filling brake fluid should be
entrusted to an authorized Volvo work-
shop.

Related information

•

Engine compartment overview (p. 596)

Fuel tank volume

The fuel tank's refillable volume is shown in
the table below.

All models

Liter (approx)

71

US gallons (approx)

18.8

Related information

•

Refueling (p. 436)

•

Octane rating (p. 438)

Air conditioning specifications

The climate system in the vehicle uses a
freon-free R1234yf refrigerant. For informa-
tion regarding the refrigerant, refer to the
decal located on the inside of the hood.

The prescribed grades and volumes for fluids
and lubricants in the air conditioning system
are shown below.

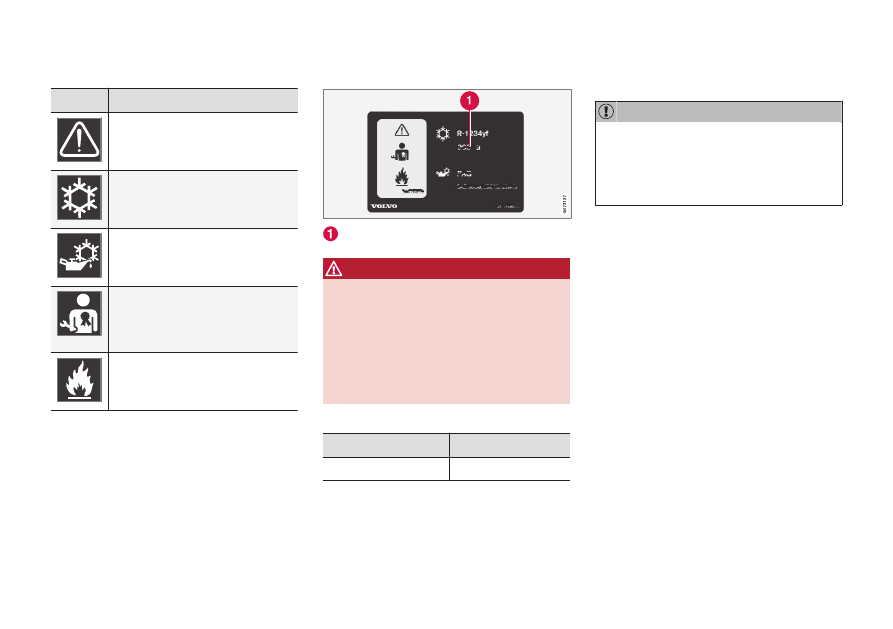

A/C Decal

Decal for R1234yf

||

SPECIFICATIONS

656

Explanation of symbols for R1234yf

Symbol Explanation

Caution

Mobile air condition system
(MAC)

Lubricant

Only a trained and certified tech-
nician can perform service on the
mobile air conditioning system
(MAC)

Flammable refrigerant

Refrigerant

The refrigerant amount (charge level) is prin-
ted on a decal on the inside of the hood.

Vehicles with R1234yf refrigerant

Refrigerant amount.

WARNING

The air conditioning system contains the

refrigerant R1234yf under pressure. In

accordance with SAE J2845 (Technician

Training for Safe Service and Containment

of Refrigerants Used in Mobile A/C Sys-

tem), service and repairs to the refrigerant

system may only be performed by trained

and certified technicians in order to ensure

the safety of the system.

Compressor oil

Volume

Prescribed grade

130 ml (4.40 fl. oz.)

PAG SP-A2

Evaporator

CAUTION

The A/C system evaporator must never be
repaired or replaced with a previously used
evaporator. The new evaporator must be
certified and labeled in accordance with
SAE J2842.

Related information

•

Climate control system service (p. 594)

SPECIFICATIONS

657

Approved tire pressure

The following tire pressures are recom-
mended by Volvo for your vehicle. Refer to

the tire inflation placard for information spe-
cific to the tires installed on your vehicle at
the factory.

Tire dimensions

Cold tire pressure for up to five persons

Front

psi (kPa)

Rear

psi (kPa)

235/60 R18

235/55 R19

255/45 R20

255/40 R21

265/35 R22

35 (240)

35 (240)

Temporary spare tire

T125/80 R18

60 (420)

60 (420)

Related information

•

Type designations (p. 646)

•

Checking tire pressure (p. 543)

•

Recommended tire pressure (p. 545)
