It is important that the towing eye is
screwed in securely as far as possible.

To consider before using the towing eyelet

•

In certain conditions, the towing eyelet
may be used to pull the vehicle onto a flat-
bed tow truck. The vehicle's position and
ground clearance determines if this is pos-
sible.

•

If the incline of the tow truck is too steep
or if the ground clearance under the vehi-
cle is insufficient, attempting to pull it up

using the towing eyelet may result in dam-
age.

•

If necessary, lift the vehicle using the tow
truck's lifting device instead of using the
towing eyelet.

WARNING

No person or object should be behind the

tow truck when the vehicle is lifted onto

the bed of the truck.

Towing using a towline (p. 453)

The towing eyelet is only intended for tow-
ing on roads – not for pulling vehicles from
ditches or any similar purpose involving
severe strain. Call a tow truck for profes-
sional assistance.

Removing the towing eyelet

–

Unscrew the towing eyelet after use and
return it to the foam block.

Replace the cover on the bumper.

Related information

•

•

Recovery (p. 455)

•

Tool kit (p. 552)

Recovery

This section refers to transporting the vehicle
with a tow truck or similar vehicle.

Call a professional towing service for assis-
tance.

In certain conditions, the towing eyelet can be
used to pull the vehicle onto a flatbed tow
truck.

For vehicles equipped with leveling con-
trol

: If the vehicle is equipped with pneumatic

suspension, this feature must be turned off
before the vehicle is lifted onto a tow truck.
Turning off the function in the center display.

1. Tap

Settings

in the Top view.

2. Tap

My Car

Parking Brake and

Suspension

3. Select

Disable Leveling Control

The vehicle's location and ground clearance
determine if it can be lifted onto a tow truck. If
the incline of the tow truck is too steep or if
the ground clearance under the vehicle is
insufficient, attempting to pull it up may result
in damage. In this case, the vehicle should
only be lifted with the tow truck's lifting equip-
ment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

456

WARNING

No person or object should be behind the

tow truck when the vehicle is lifted onto

the bed of the truck.

The towing eyelet is only intended for tow-
ing on roads, and must

not

be used to pull

vehicles from ditches or any similar pur-
pose involving severe strain. Call a tow
truck for professional assistance.

Attaching and removing the towing eyelet
(p. 454)

Note that the vehicle must always be
towed with the wheels rolling forward.

Related information

•

HomeLink

is a programmable remote con-

trol, integrated in the vehicle electrical sys-
tem, that can control up to three different
devices (e.g. garage door opener, alarm sys-
tem, outdoor and indoor lighting) and thereby
replace the remote controls for these.

General

The illustration is generic – the design may vary.

Button 1

Button 2

Button 3

Indicator light

HomeLink

is delivered integrated in the rear-

view mirror. The HomeLink

panel consists of

three programmable buttons and an indicator
light in the mirror.

For more information about HomeLink

please visit: homelink.com or call
1–800–355–3515.

Save the original remote controls for future
programming (e.g. for use in another vehicle).

Type approval for HomeLink

The button programming should be cleared
if the vehicle is sold.

Related information

•

•

•

(p. 459)

Certain markets only.

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

* Option/accessory.

457

Programming HomeLink

Follow these instructions to program
HomeLink

, reset all programming, or pro-

gram individual buttons.

Type approval for HomeLink

In some vehicles, the ignition must be on
or in the "accessory position" before
HomeLink

can be programmed or used. It

can be a good idea to put new batteries in
the remote control being replaced by
HomeLink

for faster programming and

better radio signal transmission. The
HomeLink

buttons should be reset before

programming.

WARNING

While HomeLink

is being programmed,

the garage door or gate being programmed

may be activated. Make sure that no one is

near the door or gate during programming.

When programming a garage door opener,

it is advised to park outside of the garage.

1. Point the remote control at the

HomeLink

button to be programmed and

hold it about 2-8 cm (1-3 inches) from the
button. Do not obstruct the HomeLink

indicator light.

Note:

Some remote controls are more

effective at programming HomeLink

from

a distance of about 15-20 cm (6-12
inches). Keep this in mind if you experi-
ence any programming difficulties.

2. Press and hold both the remote control

button and the HomeLink

button to be

programmed.

3. Do not release the buttons until the indica-

tor light has stopped flashing slowly
(about once a second) and either flashes
quickly (about 10 times a second) or
glows steadily.
>

If the indicator light glows steadily:

Indication that programming is com-
plete. Press the programmed button
twice to activate.

If the indicator light flashes quickly:

The device being programmed with
HomeLink

may have a security func-

tion that requires an extra step. Try
pressing the programmed button twice
to see whether the programming
works. Otherwise, continue with the
following steps.

Certain markets only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

458

4. Locate the "training" button

on the

receiver for the e.g. garage door opener. It
is usually located near the antenna bracket
on the receiver.

5. Press and release the "training" button

once. Programming must be completed
within 30 seconds after pressing the but-
ton.

6. Press and release the HomeLink

button

to be programmed. Repeat the press/
hold/release sequence a second time. For
some receivers, the sequence may need to
be repeated a third time.
> Programming is now completed and

the garage door, gate, etc. should now
be activated when the programmed
button is pressed.

If you experience any difficulties programming,
please contact HomeLink

at: homelink.com,

or call 1–800–355–3515.

Programming individual buttons

To program an individual HomeLink

button:

1. Press and hold the desired button for

about 20 seconds.

2. When the indicator light on HomeLink

starts flashing slowly, it is possible to pro-
gram as usual.

Note:

If the button you are reprogram-

ming does not program with a new
device, it will return to the previously
saved programming.

Resetting the HomeLink

buttons

It is only possible to reset all HomeLink

but-

tons at once. It is not possible to reset individ-
ual buttons. Individual buttons can only be
reprogrammed.

–

Press and hold the outer buttons (1 and 3)
on HomeLink

for about 10 seconds.

> When the indicator light goes from a

steady glow to flashing, the buttons
have been reset and are ready for
reprogramming.

Related information

•

•

•

(p. 459)

Using HomeLink

Once HomeLink

is programmed, it can be

used instead of the separate remote controls.

Press and hold the programming button. The
garage door, gate, alarm system, etc. will be
activated (this may take several seconds). If
the button is held down for more than 20 sec-
onds, reprogramming will begin. The indicator
light will glow steadily or flash when the but-
ton has been pressed. The original remote
controls may be used concurrently with
HomeLink

if desired.

When the ignition is switched off,
HomeLink

will be active for at least

7 minutes.

Type approval for HomeLink

HomeLink

cannot be used if the vehicle is

locked and the alarm is armed

from the

outside.

The name and color of the button varies depending on the manufacturer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

459

WARNING

•

If you use HomeLink

to open a garage

door or gate, be sure no one is near the
gate or door while it is in motion.

•

Do not use HomeLink

with any

garage door opener that lacks safety
stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982). A
garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. For more
information, contact HomeLink at: hom
elink.com.

Related information

•

•

•

(p. 459)

Type approval for HomeLink

FCC (USA) and IC (Canada)

This device complies with FCC rules part 15
and Industry Canada RSS-210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference that may be received including
interference that may cause undesired opera-
tion.

WARNING

The transmitter has been tested and com-

plies with FCC and IC rules. Changes or

modifications not expressly approved by

the party responsible for compliance could

void the user's authority to operate the
device.

Type approval for EU

Gentex Corporation hereby declares that
HomeLink

Model UAHL5 complies with the

Radio equipment directive 2014/53/EU.

Wavelengths within which the radio equip-
ment operates:

•

433.05MHz-434.79MHz <10mW E.R.P.

•

868.00MHz-868.60MHz <25mW E.R.P.

•

868.70MHz-868.20MHz <25mW E.R.P.

•

869.40MHz-869.65MHz <25mW E.R.P.

•

869.70MHz-870.00MHz <25mW E.R.P.

Certificate holder address: Gentex Corpora-
tion, 600 North Centennial Street, Zeeland MI
49464, USA

For further details, search for support informa-
tion on type approval at volvocars.com

Related information

•

HomeLink

(p. 456)

Certain markets only.

The term "IC:" before the certification/registration number only signifies that Industry Canada technical specifications were met.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

460

Compass

An integrated compass

in the upper right

corner of the rearview mirror shows the
direction the vehicle is traveling.

Rearview mirror with compass.

Eight different compass directions are shown
with the abbreviations:

(north),

(north-

east),

(east),

(southeast),

(south),

(southwest),

(west) and

(northwest).

Related information

•

Activating and deactivating the compass

•

Calibrating the compass

Activating and deactivating the

compass

An integrated compass

in the upper right

corner of the rearview mirror shows the
direction the vehicle is traveling.

The compass is automatically activated when
the vehicle is started.

To deactivate/activate the compass manually:

–

Use a paper clip or similar object to press
the button on the bottom of the mirror.
> If the compass is deactivated when the

vehicle is switched off, it will not be
activated the next time the vehicle is
started. The compass will then need to
be activated manually.

Related information

•

Compass

•

Calibrating the compass

Calibrating the compass

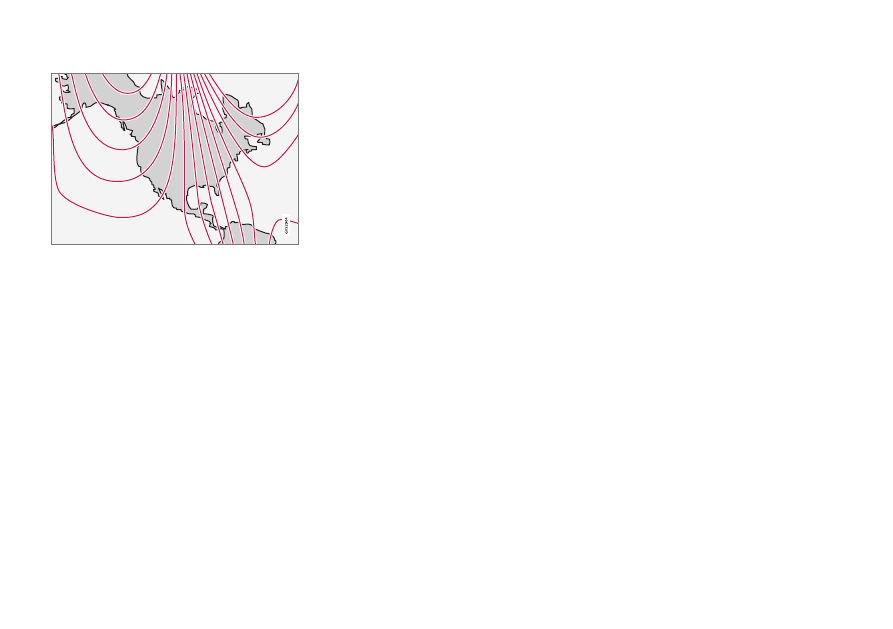

The globe is divided into 15 magnetic zones.
The compass

should be calibrated if the

vehicle is driven from one zone to another.

1. Stop the vehicle in a large, open area away

from steel constructions and high-voltage
power lines.

2. Start the engine and switch off all electri-

cal equipment (climate system, wipers,
etc.) and make sure all doors are closed.

Calibration may fail or not even be initiated
if electrical equipment is not turned off.

3. Hold the button on the bottom of the rear-

view mirror pressed for about 3 seconds
(using e.g. a paper clip). The number of the
current magnetic zone is shown.

Rearview mirror with compass is available as an option only on certain markets and models.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

461

Magnetic zones.

4. Press the button on the underside of the

mirror repeatedly until the desired mag-
netic zone (

1–15

) appears (see the map of

magnetic zones).

5. Wait until the display again shows

, or

press and hold the button on the under-
side of the rearview mirror for approx.
6 seconds until

is displayed.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display. This
indicates that calibration is complete.
Drive in a circle two more times to fine-
tune the calibration.

Vehicles with heated windshields

is shown in the display when the wind-
shield heating function is activated, per-
form step 6 above with the heating func-
tion on.

8. Repeat the above procedure as needed.

Related information

•

Compass

Activating and deactivating the compass

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

464

Audio, media and Internet

The audio and media system consists of a
media player and a radio. A cellular phone can
also be connected through Bluetooth to use
hands-free functions or play music in the
vehicle. When the vehicle is connected to the
Internet, it is also possible to use apps to play
media.

Audio and media overview

The functions can be controlled using voice
commands, the steering wheel keypad or the
center display. The number of speakers and
amplifiers varies depending on the audio sys-
tem installed in the vehicle.

System updates

The audio and media system is continuously
improved. It is recommended to download
system updates as soon as they are available.

Related information

•

Media player (p. 485)

•

•

Phone (p. 501)

•

•

Driver distraction (p. 41)

•

Voice Control (p. 149)

•

Ignition modes (p. 399)

•

•

Handling system updates via Download
Center (p. 587)

•

License agreement for audio and media
(p. 525)

Sound settings

Sound reproduction quality is preset but can
also be adjusted.

The system's volume is normally adjusted
using the volume control below the center dis-
play or the right-side steering wheel keypad.
This applies, for example, when playing music
or the radio or during phone calls and active
traffic messages.

Sound reproduction

The audio system is precalibrated using digital
signal processing. This calibration takes into
account speakers, amplifiers, passenger com-
partment acoustics, listener position, etc. for
each combination of vehicle model and audio
system. There is also a dynamic calibration
that takes into account the volume control set-
ting and the vehicle's speed.

Personal settings

Different settings are available in Top view
under

Settings

Sound

depending on the

vehicle's sound system.

Premium Sound

(Bowers & Wilkins)

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

465

Control

Park Assist

and

Phone

Ringtone

High Performance Pro

(Harman

Kardon)

•

Equalizer

- setting of equalizer.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

High Performance

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

•

Balance

- balance between right/left and

front/rear speakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

Related information

•

Sound experience

(p. 465)

•

Media player (p. 485)

•

Voice control settings (p. 154)

•

Phone settings (p. 508)

•

Audio, media and Internet (p. 464)

•

Navigating in the center display's views
(p. 119)

Sound experience

Sound experience is an app that provides
access to additional sound settings.

Open

Sound Experience

from the center dis-

play's App view. Depending on the sound sys-
tem installed in the vehicle, the following set-
tings are possible:

Premium Sound

(Bowers & Wilkins)

•

Studio

– sound settings can be adjusted

to be primarily adapted for

Driver

All

and

Rear

•

Individual stage

- surround sound mode

with settings for intensity and enclosure.

•

Concert hall

- reproduces the acoustics

of Gothenburg's Concert Hall.

•

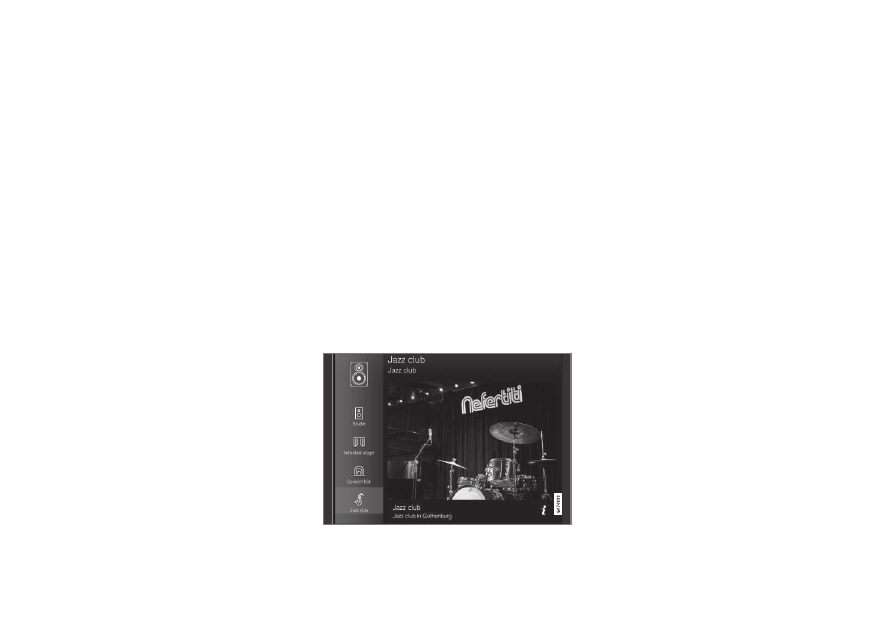

Jazz club

– reproduces the acoustics of

the Nefertiti Jazz Club.

Reproduces the acoustics of the Nefertiti Jazz Club.

High Performance Pro

(Harman

Kardon)

•

Seat Optimization

– sound settings can

be adjusted to be primarily adapted for

Driver

All

and

Rear

•

Surround

- surround sound mode with

level settings.

•

Tone

- setting for e.g. bass, treble, equal-

izer, etc.

Related information

•

Sound settings (p. 464)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

466

Apps

The App view contains apps that provide
access to certain vehicle services.

Swipe the center display screen from right to
left

to access the App view from the Home

view. This view displays downloaded apps
(third-party apps) as well as apps for inte-
grated functions, such as

FM radio

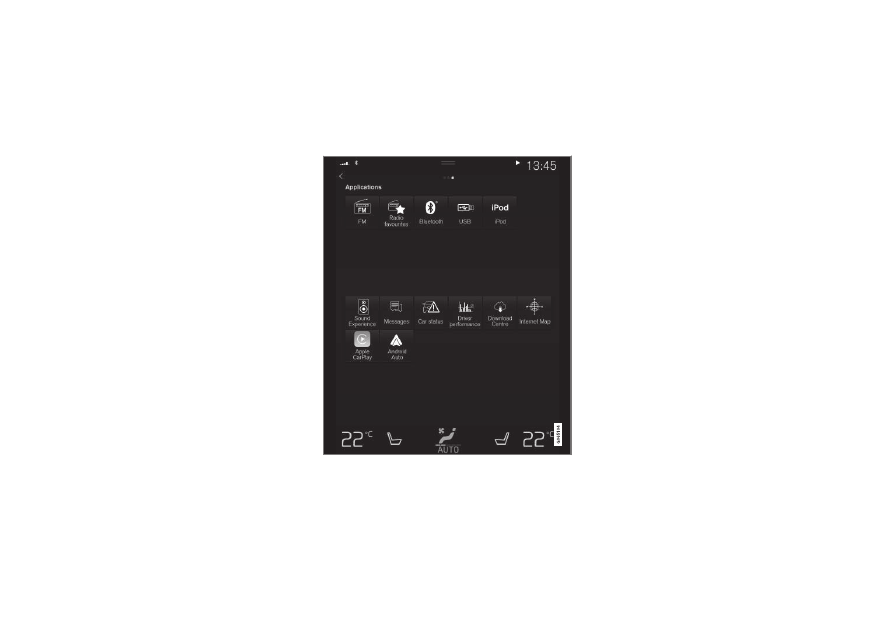

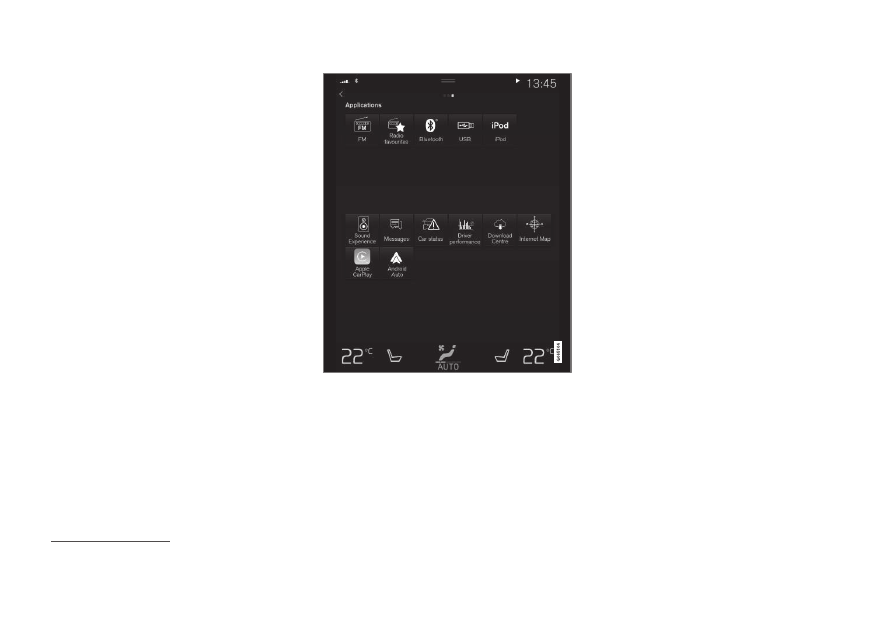

App view. (generic illustration; basic apps vary

depending on market and model)

Several basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Some apps can only be used when the vehicle
is connected to the Internet.

Start an app by pressing the app in the center
display's app view.

All apps used should be updated to the latest
version.

Related information

•

Download apps (p. 467)

•

Updating apps (p. 467)

•

Deleting apps (p. 468)

•

•

•

Hard disk storage space (p. 524)

•

•

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

* Option/accessory.

467

Download apps

New apps can be downloaded when the vehi-
cle is connected to the Internet.

Data downloading can affect other services
such as transfer data, e.g. web radio. If the
affect on other services is experienced as
problematic, the download can be interrup-
ted. Alternatively, it may be appropriate to
switch off or cancel other services.

When downloading using a phone, pay
extra attention to the data traffic costs.

1. Open the

Download Center

app in App

view.

2. Select

New apps

to open a list of apps

that are available but are not installed in
the vehicle.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

to start the download and

installation of the app.
> The current status of the download and

installation will be shown.

If a download cannot be started imme-
diately, a message will be displayed.
The app will remain in the list and it will
be possible to reattempt downloading.

Canceling a download

–

Tap

Abort

to cancel a download in pro-

gress.

Note that only a download can be cancelled.
An installation cannot be cancelled once it has
begun.

Related information

•

•

Updating apps (p. 467)

•

Deleting apps (p. 468)

•

Handling system updates via Download
Center (p. 587)

•

•

Hard disk storage space (p. 524)

Updating apps

Apps can be updated when the vehicle is
connected to the Internet.

When downloading using a phone, pay
extra attention to the data traffic costs.

If an app is being used while an update is in
progress, it will be restarted to complete the
update.

Update all

1. Open the

Download Center

app in App

view.

2. Select

Install all

> The update will begin.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

468

Update certain apps

1. Open the

Download Center

app in App

view.

2. Select

Application updates

to open a list

of all available updates.

3. Find the desired app and select

Install

> The update will begin.

Related information

•

Handling system updates via Download
Center (p. 587)

•

Download apps (p. 467)

•

Deleting apps (p. 468)

•

•

Deleting apps

When the vehicle is connected to the Inter-
net, it is possible to uninstall apps.

If the app is being used, it must be closed
before it can be uninstalled.

1. Open the

Download Center

app in App

view.

2. Select

Application updates

to open a list

of all installed apps.

3. Find the desired app and select

Uninstall

to begin uninstalling the app.
> When the app has been uninstalled, it

will be removed from the list.

Related information

•

Handling system updates via Download
Center (p. 587)

•

Download apps (p. 467)

•

Updating apps (p. 467)

•

•

Starting the radio (p. 469)

Radio

The radio can receive broadcasting from the
FM waveband with HD Radio

™

Technology

and SiriusXM

Satellite radio

. When the

vehicle has an Internet connection, it is also
possible to listen to web radio.

The radio can be controlled
using voice commands, the
right-side steering wheel key-
pad or the center display.

Related information

•

•

Changing waveband and radio station
(p. 470)

•

Storing radio channels in the Radio favor-
ites app (p. 471)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

470

Changing waveband and radio

station

Instructions for changing wavebands, wave-
band lists and radio stations in the selected
list are provided here.

Changing wavebands

Swipe from App view on the center display
and select the desired waveband (e.g.

) or

open the App menu in the instrument panel
with the right-side steering wheel keypad and
make your selection there.

Changing a list in a waveband

1. Tap

Library

2. Select playback from

Stations

Favorites

Genres

3. Tap the desired station in the list.

Favorites

– only plays selected favorite chan-

nels.

Genres

- only plays channels broadcasting the

selected genre or program type, e.g. pop, clas-
sical, etc.

Changing radio stations in a selected
list

–

Press

under the center display

or on the right-side steering wheel key-
pad.
> Move step-by-step through the

selected list.

It is also possible to change radio station in
the selected list via the center display.

Related information

•

Searching for a radio station (p. 470)

•

•

Voice control for radio and media (p. 153)

•

Storing radio channels in the Radio favor-
ites app (p. 471)

•

App menu in instrument panel (p. 108)

•

Searching for a radio station

The radio automatically compiles a list of the
radio stations that are sending out the stron-
gest signals in the vehicle's current location.

Searching is performed in different ways
depending on the waveband selected:

•

FM, stations, genres and frequency.

1. Tap

Library

2. Tap

> Search view will displayed and the key-

board will open.

3. Enter a search word/phrase.

> The search will start and change as

characters are entered. Search results
will be displayed by category.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

471

Searching for a station manually

Searching manually makes it possible to find
and tune to stations that are not on the auto-
matically compiled list of the strongest sta-
tions in the area.

–

Tap

Manual tuning

, drag the control or

tap

. Press and hold to skip to

the next available station in the frequency
band. You can also use the right-side
steering wheel keypad.

Related information

•

Starting the radio (p. 469)

•

•

Changing waveband and radio station
(p. 470)

•

Voice control for radio and media (p. 153)

•

Storing radio channels in the Radio

favorites app

It is possible to add a radio station in the

Radio favorites

app and in the list of favor-

ites for the waveband (e.g. FM). Instructions
for adding and removing radio channels are
provided below.

Radio favorites

The radio favorites app
shows stored radio channels
from all wavebands.

1. Open the

Radio favorites

app from App

view.

2. Tap the desired station in the list to listen.

Adding and deleting radio favorites

1. Tap

to add a radio channel to the

waveband's list of favorites or the Radio
favorites app.

2. Tap

Library

, select

Edit

and tap

delete a radio channel from the list of
favorites.

When you delete a radio channel from the
Radio favorites app, the channel will also be
deleted from that waveband's list of favorites.

Related information

•

Starting the radio (p. 469)

•

•

Searching for a radio station (p. 470)

•

Changing waveband and radio station
(p. 470)

•

Voice control for radio and media (p. 153)

•

App menu in instrument panel (p. 108)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

472

Radio settings

There are a number of different radio func-
tions that can be activated and deactivated.

Canceling a traffic message

A current broadcast (e.g. a traffic message)
can be temporarily interrupted by pressing

in the right-side steering wheel keypad or

tapping

Cancel

in the center display.

Activating and deactivating radio
functions

Pull down Top view and select

Settings

Media

and the desired waveband to see avail-

able functions.

AM/FM Radio

•

HD Radio FM

: HD Radio

™

Technology:

makes it possible to achieve a sound qual-
ity comparable with a CD.

•

Show Broadcast Information

: shows

information on program content, artists,
etc.

•

Freeze Program Name

: select to stop

the program service name from scrolling
continuously. Instead it freezes after 20
seconds.

SiriusXM

Satellite radio

Pull down Top view and select

Settings

Media

SiriusXM

to show a list of available

options.

Related information

•

Symbols in the center display status bar
(p. 128)

•

Settings for SiriusXM

Satellite radio

(p. 479)

•

RBDS

RBDS radio

RBDS (Radio Broadcast Data System) ena-
bles certain functionality

, such as:

•

Searches for program types or new broad-
casts

•

Text information about currently broadcast
programs

Related information

•

•
