STARTING AND DRIVING

* Option/accessory.

479

Fitting and removing the towing

eye

Use the towing eye for towing. The towing
eye is screwed into a threaded socket behind
a cover on the right-hand side of the bumper,
front or rear.

Fitting the towing eye

Take out the towing eye from the foam
block under the floor in the cargo area.

Front: Remove the cover – press the lid.
> The cover pivots around its centre line

and can then be removed.

Rear: Remove the cover – Use a coin, key
or similar to pry the lid out using the mark-
ing.
> Fold out the cover completely and

detach.

4. Screw in the towing eye until it reaches its

end stop.

Screw the eye in firmly. For example,
thread through the wheel bolt wrench

*

 and

use it as a lever.

IMPORTANT

It is important that the towing eye is firmly
screwed into place - right in until it stops.

Removing the towing eye

–

Unscrew and remove the towing eye after
use and return it to its foam block.

Finish by refitting the cover onto the
bumper.

Related information

•

Towing (p. 478)

•

Recovery (p. 480)

•

Tool kit (p. 563)

STARTING AND DRIVING

* Option/accessory.

480

Recovery

For recovery, the car is taken away with the
help of another vehicle.

Call a recovery service for recovery assistance.

The towing eye can be used to pull the car up
onto a recovery vehicle with a flatbed plat-
form.

IMPORTANT

Note that the car must always be transpor-
ted raised up with all the wheels on the
recovery vehicle's platform.

The car's position and ground clearance deter-
mine whether it is possible to pull it up onto a
flatbed platform. If the slope of the recovery
vehicle's ramp is too steep, or if the ground
clearance under the car is inadequate, then
the car may be damaged if you try to pull it up.
The car should then be lifted using the recov-
ery vehicle's lifting device.

WARNING

No one/nothing is allowed to remain

behind the recovery vehicle while the car

pulled up onto the flatbed platform.

Related information

•

Fitting and removing the towing eye
(p. 479)

HomeLink

®

*

12

HomeLink

®

13

 is a programmable remote con-

trol, integrated in the car's electrical system,
which can remotely control up to three differ-
ent devices (e.g. garage door opener, alarm
system, outdoor and indoor lighting) and
thereby replace the remote controls for them.

General

The figure is schematic - the version may vary.

Button 1

Button 2

Button 3

Indicator lamp

HomeLink

®

 is supplied built-in to the interior

rearview mirror. The HomeLink

®

 panel con-

sists of three programmable buttons and one
indicator lamp in the mirror glass.

For more information about HomeLink

®

, visit

homelink.com or call 00 8000 466 354 65
(or the toll number +49 6838 907 277)

14

.

Save the original remote controls for future
programming (e.g. when changing to another
car or for use in another vehicle).

IMPORTANT

The programming for the buttons should
be deleted when the car is sold.

Related information

•

Using HomeLink

®

*

 (p. 483)

•

Programming HomeLink

®

*

 (p. 481)

•

Type approval for HomeLink

®

*

 (p. 483)

STARTING AND DRIVING

}}

* Option/accessory.

481

Programming HomeLink

®

*

15

Follow these instructions to program
HomeLink

®

, reset all programming or repro-

gram individual buttons.

NOTE

In certain vehicles the ignition must be
switched on or in "accessory position"
before HomeLink

®

 can be programmed or

used. If possible, fit new batteries in the
remote control that shall be replaced by
HomeLink

®

 for faster programming and

improved transmission of the radio signal.
The HomeLink

®

 buttons should be reset

before programming.

WARNING

While programming HomeLink

®

, the

garage door or gate being programmed

may activate. For this reason, make sure

that nobody is in the vicinity of the door or

gate while programming is in progress. The

car should be outside the garage while a

garage door opener is being programmed.

1. Aim the remote control towards the

HomeLink

®

 button to be programmed and

hold it approx. 2-8 cm (approx. 1-3 inches)
from the button. Do not obstruct the indi-
cator lamp on HomeLink

®

.

Note:

 The ability of some remote controls

to program HomeLink

®

 is improved at a

distance of approx. 15-20 cm (approx.
6-12 inches). Bear this in mind if problems
occur with the programming.

2. Press and hold depressed both the button

on the remote control and the button to be
reprogrammed on HomeLink

®

.

3. Do not release the buttons until the indica-

tor lamp has switched from flashing
slowly (approx. once per second) to either
flashing quickly (approx. 10 times per sec-
ond) or illuminating with a constant glow.
>

If the indicator lamp illuminates with
a constant glow:

 Indication that the

programming has finished. Press the
programmed button twice to activate.

If the indicator lamp flashes quickly:

The device to be programmed to
HomeLink

®

 may have a security func-

tion that requires extra steps. Test by
pressing the programmed button twice
to see whether the programming is
working. Otherwise, continue with the
following steps.

12

Applies to certain markets.

13

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

14

Note that the toll-free number may not be available depending on operator.

15

Applies to certain markets.

||

STARTING AND DRIVING

* Option/accessory.

482

4. Locate programming button

16

 on the

receiver for the garage door or similar. It is
normally located close to the antenna's
bracket on the receiver.

5. Depress and release the receiver's pro-

gramming button once. The programming
must be completed within 30 seconds of
the button being depressed.

6. Press and release the button on

HomeLink

®

 that you want to program.

Repeat the sequence of pressing/holding/
releasing a second time and, depending
on the receiver model, even a third time.
> Programming is now be complete and

the garage door, gate or similar should
now be activated when the pro-
grammed button is depressed.

In the event of programming problems, con-
tact HomeLink

®

 at homelink.com, or call

00 8000 466 354 65 (or the toll number
+49 6838 907 277)

17

.

Reprogramming individual buttons

To reprogram an individual HomeLink

®

 button,

proceed as follows:

1. Press the desired button and hold it

depressed for approx. 20 seconds.

2. Once the indicator lamp on HomeLink

®

starts to flash slowly, programming can
continue as normal.

Note:

 If the button to be reprogrammed is

not programmed with a new unit, it will
resume the previously saved program-
ming.

Resetting the HomeLink

®

 buttons

It is only possible to reset all of the HomeLink

®

buttons at the same time, not each button
individually. Individual buttons can only be
reprogrammed.

–

Press and hold depressed the outer but-
tons (1 and 3) on HomeLink

®

 for approx.

10 seconds.
> When the indicator lamp changes over

from a constant glow to starting to
flash, the buttons are reset and ready to
be reprogrammed.

Related information

•

Using HomeLink

®

*

 (p. 483)

•

HomeLink

®

*

 (p. 480)

•

Type approval for HomeLink

®

*

 (p. 483)

16

Button designation and colour varies between manufacturers.

17

Note that the toll-free number may not be available depending on operator.

STARTING AND DRIVING

* Option/accessory.

483

Using HomeLink

®

*

18

When HomeLink

®

 is fully programmed it can

be used in place of the separate original
remote controls.

Depress the programmed button. The garage
door, gate, alarm system or similar is activated
(may take a few seconds). If the button is
depressed for more than 20 seconds then the
reprogramming is started. The indicator lamp
illuminates or flashes when the button has
been depressed. Naturally the original remote
controls can still be used in parallel with
HomeLink

®

 if required.

NOTE

When the ignition has been switched off,
HomeLink

®

 works for at least 7 minutes.

NOTE

HomeLink

®

 cannot be used if the car is

locked and the alarm is armed

*

 from the

outside.

WARNING

•

If HomeLink

®

 is used to control a

garage door or gate, ensure that
nobody is near the door or gate while it
is in motion.

•

Do not use HomeLink

®

 for any garage

door that does not have safety stop
and safety reverse.

Related information

•

HomeLink

®

*

 (p. 480)

•

Programming HomeLink

®

*

 (p. 481)

•

Type approval for HomeLink

®

*

 (p. 483)

Type approval for HomeLink

®

*

19

Type approval for EU

Gentex Corporation hereby declares that
HomeLink

®

 Model UAHL5 complies with the

Radio equipment directive 2014/53/EU.

Wavelength within which the radio equipment
functions:

•

433.05MHz-434.79MHz <10mW E.R.P.

•

868.00MHz-868.60MHz <25mW E.R.P.

•

868.70MHz-868.20MHz <25mW E.R.P.

•

869.40MHz-869.65MHz <25mW E.R.P.

•

869.70MHz-870.00MHz <25mW E.R.P.

Certificate holder address: Gentex Corpora-
tion, 600 North Centennial Street, Zeeland MI
49464, USA

For more information, search support informa-
tion on type approval at volvocars.com

Related information

•

HomeLink

®

*

 (p. 480)

18

Applies to certain markets.

19

Applies to certain markets.

STARTING AND DRIVING

* Option/accessory.

484

Compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

20

 in which the front of

the car is pointing.

Rearview mirror with compass.

Eight different compass directions are shown
by their English abbreviations:

N

 (north),

NE

(north east),

E

 (east),

SE

 (south east),

S

(south),

SW

 (south west),

W

 (west) and

NW

(north west).

Related information

•

Activating and deactivating the compass

*

(p. 484)

•

Calibrating the compass

*

 (p. 484)

Activating and deactivating the

compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

21

 in which the front of

the car is pointing.

The compass is activated automatically when
the car is started.

To deactivate/activate the compass manually:

–

Depress the button on the underside of
the rearview mirror using e.g. a paper clip.
> If the compass is deactivated when the

car is switched off, it will not be acti-
vated the next time the car is started. In
this case, the compass needs to be
activated manually.

Related information

•

Compass

*

 (p. 484)

•

Calibrating the compass

*

 (p. 484)

Calibrating the compass

*

The earth is divided into 15 magnetic zones.
The compass

22

 should be calibrated if the car

is moved between several magnetic zones.

1. Stop the car in a large open area free from

steel structures and high-voltage power
lines.

2. Start the car and switch off all electrical

equipment (air conditioning, wipers, etc.)
and ensure that all doors are closed.

NOTE

Calibration may fail or not start at all if
electrical equipment is not switched off.

3. Hold the button on the underside of the

rearview mirror depressed for
approx. 3 seconds (use a paper clip, for
example). The number for the current
magnetic zone is shown.

20

A rearview mirror with a compass is available as an option on certain markets and models only.

21

A rearview mirror with a compass is available as an option on certain markets and models only.

22

A rearview mirror with a compass is available as an option on certain markets and models only.

STARTING AND DRIVING

* Option/accessory.

485

Magnetic zones.

4. Press the button repeatedly until the

required magnetic zone (

1–15

) is shown.

See the map of magnetic zones for the
compass.

5. Wait until the display returns to showing

the character

C

, or hold the button on the

underside of the rearview mirror
depressed for approx. 6 seconds until the
character

C

 is shown.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display,
indicating that calibration is complete.
Then drive a further 2 circles to fine-tune
calibration.

7.

Cars with heated windscreen

*

:

 If the

character

C

 is shown in the display when

the heated windscreen is activated, per-
form the calibration in accordance with
point 6 above with the heated windscreen
activated.

8. Repeat the above procedure as necessary.

Related information

•

Compass

*

 (p. 484)

•

Activating and deactivating the compass

*

(p. 484)

SOUND, MEDIA AND INTERNET

* Option/accessory.

488

Sound, media and Internet

The audio and media system consists of
media player and radio. You can also connect
a phone via Bluetooth to use handsfree func-
tions or play music wirelessly in the car.
When the car is connected to the Internet
you can also use apps for media playback.

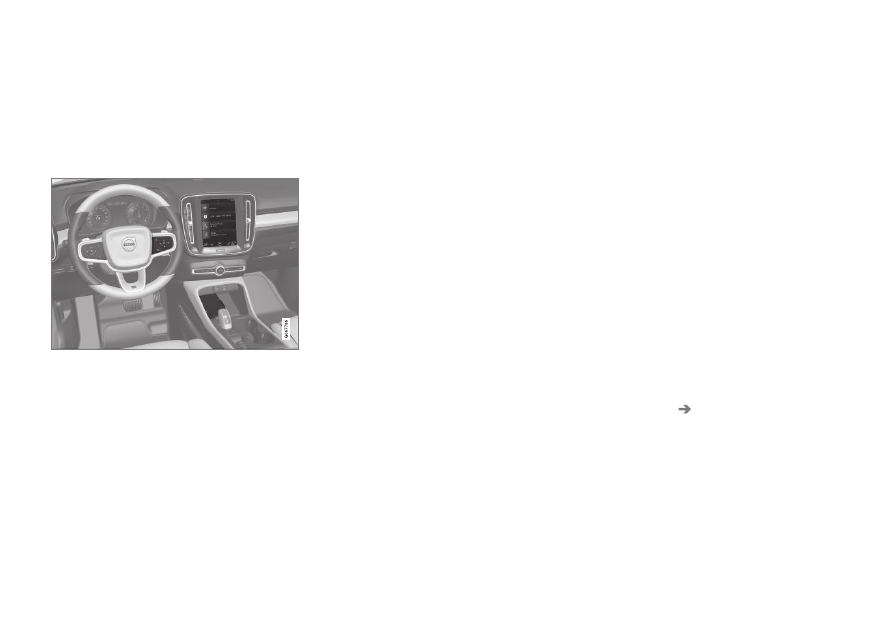

Overview of audio and media

Control the functions with your voice, steering
wheel keypad or the centre display. The num-
ber of speakers and amplifiers depends on
which audio system the car is equipped with.

System updating

The audio and media system is continuously
improved. It is recommended to download
system updates when new ones are available.

Related information

•

Media player (p. 498)

•

Radio (p. 492)

•

Phone (p. 514)

•

Internet-connected car

*

 (p. 529)

•

Apps (p. 489)

•

Voice recognition (p. 132)

•

Ignition positions (p. 432)

•

Driver distraction (p. 40)

•

Managing system updates via the Down-
load Centre (p. 591)

•

License agreement for audio and media
(p. 538)

Audio settings

The sound reproduction quality is preset, but
it can be adjusted as well.

The volume is normally adjusted with the vol-
ume control below the centre display or with
the right-hand steering wheel keypad. This
applies, for example, during playback of music,
radio, ongoing phone calls and active traffic
messages.

Sound reproduction

The sound system is pre-calibrated by means
of digital signal processing. This calibration
takes into account loudspeakers, amplifiers,
passenger compartment acoustics, listener
position, etc., for each combination of car
model and audio system. There is also a
dynamic calibration that takes into account
the setting of the volume control and vehicle
speed.

Personal preferences

Various settings are available in the top view
under

Settings

Sound

 depending on the

car's audio system.

Premium Sound

*

 (Harman Kardon)

•

Equaliser

 – equalizer setting.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

489

Control

,

Park Assist

 and

Phone

Ringtone

.

High Performance

*

•

Tone

 – settings for bass, treble, equalizer,

etc.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

Performance

•

Tone and Balance

 – balance between

speakers and setting of e.g. bass, treble
and equalizer.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

Related information

•

Sound experience

*

 (p. 489)

•

Media player (p. 498)

•

Settings for voice recognition (p. 136)

•

Settings for phone (p. 522)

•

Sound, media and Internet (p. 488)

•

Internet-connected car

*

 (p. 529)

Sound experience

*

Sound experience is an app that provides
access to further audio settings.

Sound Experience

 is opened from the app

view in the centre display. The following set-
tings can be defined, depending on the audio
system fitted to the car:

•

Seat Optimisation

 – the sound can be

adjusted so that it can primarily be adap-
ted for

Driver

,

All

 and

Rear

.

•

Surround

 - surround sound mode with

level settings.

•

Tone

 – settings for bass, treble, equalizer,

etc.

Related information

•

Audio settings (p. 488)

•

Navigating in the centre display's views
(p. 105)

Apps

The app view contains apps that give access
to some of the car's services.

Swipe from right to left

1

 across the centre dis-

play's screen in order to access the app view
from the home view. Apps that have been
downloaded (third-party apps) and apps for
embedded functions, such as

FM radio

, are

found here.

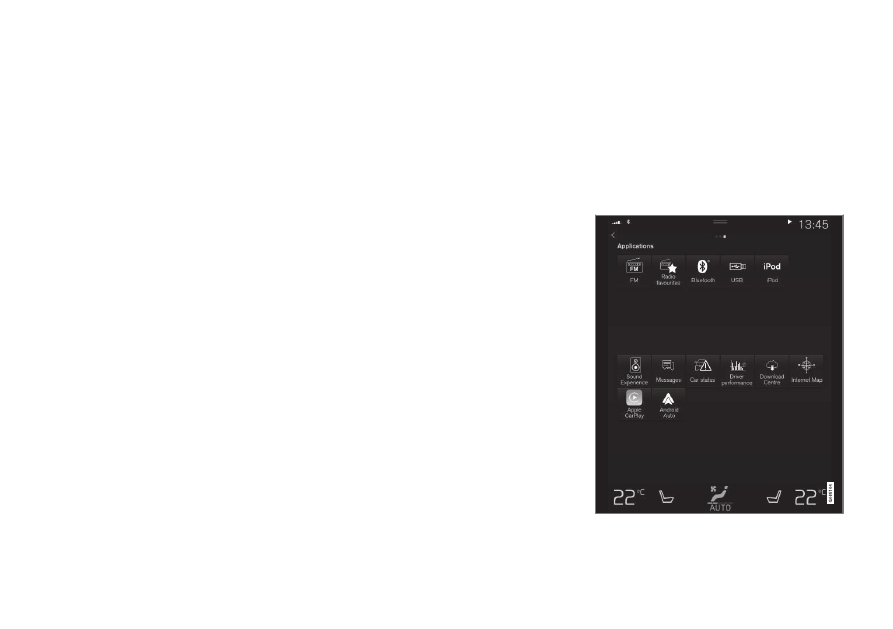

App view (generic image, basic apps vary by market

and model)

||

SOUND, MEDIA AND INTERNET

* Option/accessory.

490

Some basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Certain apps are only available for use if the
car is connected to the Internet.

Start an app by pressing the app in the centre
display's app view.

All the apps used should be updated to the lat-
est version.

Related information

•

Downloading apps (p. 490)

•

Updating apps (p. 491)

•

Deleting apps (p. 491)

•

Apple

®

 CarPlay

®

*

 (p. 507)

•

Android Auto

*

 (p. 511)

•

Internet-connected car

*

 (p. 529)

•

Storage space on hard disk (p. 537)

•

User terms and conditions and data shar-
ing (p. 535)

Downloading apps

New apps can be downloaded when the car
is connected to the Internet.

NOTE

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

NOTE

When downloading using a phone, pay
extra attention to the data traffic costs.

1. Open the

Download Centre

 app in the

app view.

2. Select

New apps

 in order to open a list of

apps that are available but not installed in
the car.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

 in order to start the down-

load and installation of the desired app.
> The status of the download and instal-

lation is shown while it is in progress.

A message is shown if a download can-
not be started for the moment. The app
will remain in the list and it is possible
to try to start a download again.

Cancelling the download

–

Tap on

Abort

 to cancel a download in pro-

gress.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Related information

•

Apps (p. 489)

•

Updating apps (p. 491)

•

Deleting apps (p. 491)

•

Internet-connected car

*

 (p. 529)

•

Managing system updates via the Down-
load Centre (p. 591)

•

Storage space on hard disk (p. 537)

1

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

SOUND, MEDIA AND INTERNET

* Option/accessory.

491

Updating apps

The apps can be updated when the car is
connected to the Internet.

NOTE

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

NOTE

When downloading using a phone, pay
extra attention to the data traffic costs.

If an app is being used during an ongoing
update, it will be restarted in order for the
installation to be completed.

Update all

1. Open the

Download Centre

 app in the

app view.

2. Select

Install all

.

> Updating is started.

Update some

1. Open the

Download Centre

 app in the

app view.

2. Select

Application updates

 in order to

open a list of all available updates.

3. Locate the desired app and select

Install

.

> Updating is started.

Related information

•

Apps (p. 489)

•

Downloading apps (p. 490)

•

Deleting apps (p. 491)

•

Managing system updates via the Down-
load Centre (p. 591)

•

Internet-connected car

*

 (p. 529)

Deleting apps

Apps can be uninstalled when the car is con-
nected to the Internet.

An app that is being used must be closed in
order for the uninstallation to be completed.

1. Open the

Download Centre

 app in the

app view.

2. Select

Application updates

 in order to

open a list of all installed apps.

3. Locate the desired app and select

Uninstall

 in order to start the uninstalla-

tion of the app.
> When the app has been uninstalled, it

disappears from the list.

Related information

•

Apps (p. 489)

•

Downloading apps (p. 490)

•

Updating apps (p. 491)

•

Managing system updates via the Down-
load Centre (p. 591)

•

Internet-connected car

*

 (p. 529)

SOUND, MEDIA AND INTERNET

* Option/accessory.

492

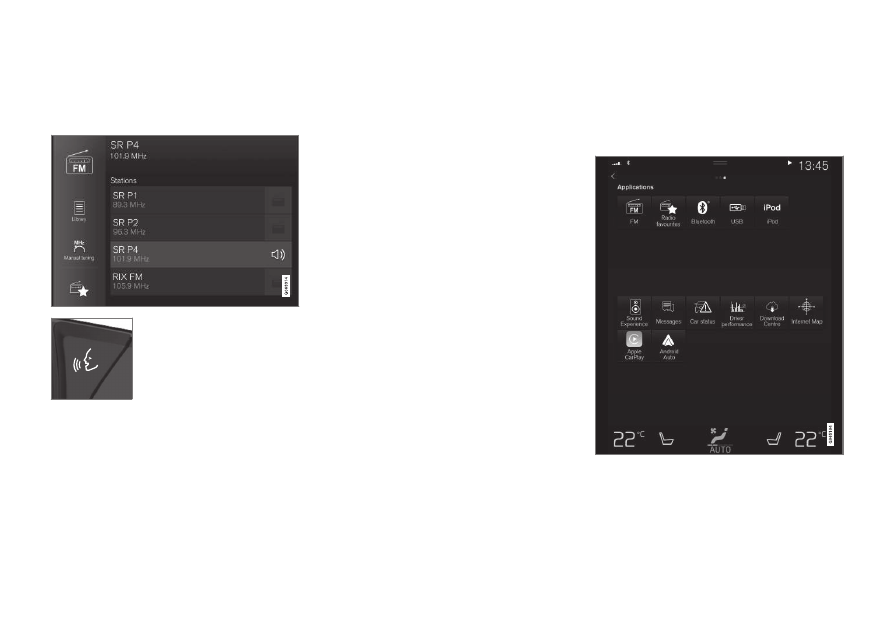

Radio

It is possible to listen to the FM bands and to
digital radio (DAB)

*

. When the car is online, it

is also possible to listen to Internet radio.

The radio can be operated
using voice recognition, the
steering wheel keypad or the
centre display.

Related information

•

Start radio (p. 492)

•

Changing radio band and radio station
(p. 493)

•

Save radio channels in the Radio Favour-
ites app (p. 495)

•

Settings for radio (p. 495)

•

Digital radio

*

 (p. 497)

•

RDS radio (p. 497)

•

Internet-connected car

*

 (p. 529)

•

Voice control of radio and media (p. 136)

•

Media player (p. 498)

Start radio

The radio is started from the centre display
app view.

1. Open the required frequency band (e.g.

FM

) from the app view.

2. Select a radio station.

Related information

•

Radio (p. 492)

•

Searching for radio stations (p. 494)

SOUND, MEDIA AND INTERNET

* Option/accessory.

493

•

Changing radio band and radio station
(p. 493)

•

Save radio channels in the Radio Favour-
ites app (p. 495)

•

Settings for radio (p. 495)

•

Voice control of radio and media (p. 136)

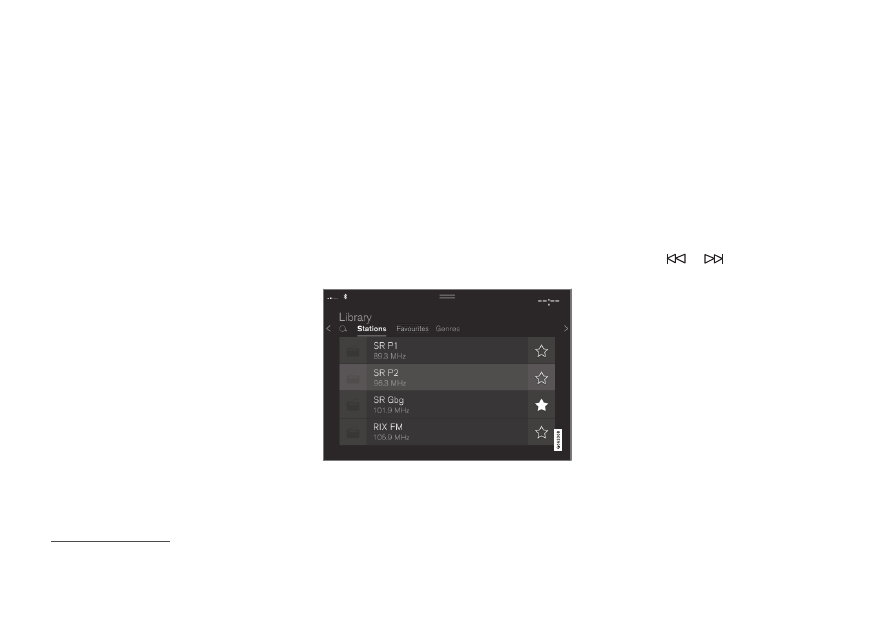

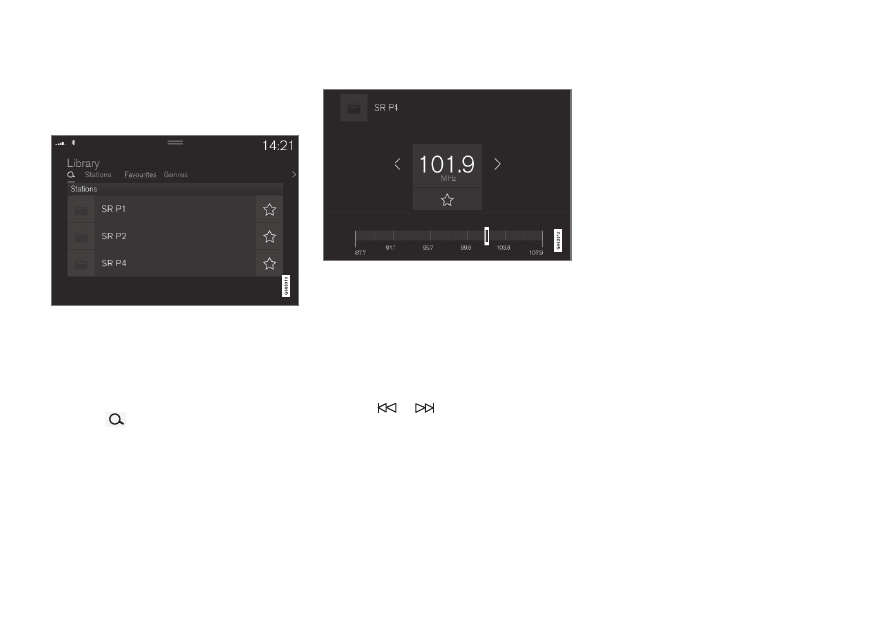

Changing radio band and radio

station

There are instructions here for changing the
radio band, the list in the radio band and the
radio station in the selected list.

Changing radio band

Swipe to show the app view in the centre dis-
play and select the preferred radio band (e.g.

FM

), or open the driver display's app menu

using the right-hand keypad on the steering
wheel and make your selection from there.

Changing lists within the frequency
band

1. Press

Library

.

2. Select playback from

Stations

,

Favourites

,

Genres

 or

Ensembles

2

.

3. Tap on the desired station from the list.

Favourites

 - only plays back selected favour-

ite channels.

Genres

 - only plays back channels broadcast-

ing the selected genre/programme type, e.g.
pop or classical.

Changing stations within the selected
list

–

Press on

 or

 under the centre dis-

play or the steering wheel's right-hand
keypad.
> The highlight moves up or down one

place in the selected playlist.

You can also change radio station in the
selected list via the centre display.

Related information

•

Radio (p. 492)

•

Searching for radio stations (p. 494)

•

Voice control of radio and media (p. 136)

•

Save radio channels in the Radio Favour-
ites app (p. 495)

•

Settings for radio (p. 495)

•

App menu in the driver display (p. 94)

2

Only applies to digital radio (DAB

*

).

SOUND, MEDIA AND INTERNET

* Option/accessory.

494

Searching for radio stations

The radio automatically compiles a station list
of the radio stations within the area that are
transmitting the strongest signals.

The parameters you can search on depend on
the frequency band selected:

•

FM - station, genre and frequency.

•

DAB

*

 - ensembles and stations.

1. Press

Library

.

2. Press

.

> Search view with keyboard is opened.

3. Enter the search terms.

> Searching takes place with each input

of a character and the search results
are shown by category.

Manual tuning

Searching manually makes it possible to find
and tune to stations that are not on the auto-
matically compiled list of the strongest sta-
tions in the area.

On changing over to manual tuning, the radio
no longer changes frequency automatically
when reception is poor.

–

Press

Manual tuning

, pull the control or

press

 or

. With a long press, the

search jumps to the next available station
in the frequency band. It is also possible to
use the right keypad on the steering
wheel.

Related information

•

Radio (p. 492)

•

Start radio (p. 492)

•

Changing radio band and radio station
(p. 493)

•

Voice control of radio and media (p. 136)

•

Settings for radio (p. 495)

SOUND, MEDIA AND INTERNET

}}

495

Save radio channels in the Radio

Favourites app

It is possible to add a radio channel to the

Radio favourites

 app and the favourites list

for the radio band (e.g. FM). Instructions on
how to add and remove radio channels can
be found below.

Radio Favourites

The Radio Favourites app
shows saved radio channels
from all frequency bands.

1. Open the app

Radio favourites

 from the

app view.

2. Tap on the desired station in the list to

start listening.

Adding and removing radio favourites

1. Tap on

 to add a channel to or from

frequency band favourites and the Radio
Favourites app.

2. Tap on

Library

, select

Edit

 and tap on

to remove a radio channel from the favour-
ites.

When a radio channel is saved from a station
list, the radio will automatically search for the
best frequency. But if a radio channel is saved

from a manual station search, the radio does
not automatically change to a stronger fre-
quency.

If a radio channel is removed from the Radio
Favourite app, the channel will also be
removed from the favourites list for the rele-
vant frequency band.

Related information

•

Radio (p. 492)

•

Start radio (p. 492)

•

Searching for radio stations (p. 494)

•

Changing radio band and radio station
(p. 493)

•

Voice control of radio and media (p. 136)

•

Settings for radio (p. 495)

•

App menu in the driver display (p. 94)

Settings for radio

There are various radio functions to activate
and deactivate.

Cancelling traffic messages

The broadcast of traffic messages etc. can be
temporarily interrupted by tapping on

 in

the right-hand steering wheel keypad or by
tapping on

Cancel

 in the centre display.

Activating and deactivating radio
functions

Drag down the top view and select

Settings

Media

 and the desired radio band to view

available functions.

||

SOUND, MEDIA AND INTERNET

* Option/accessory.

496

FM Radio

•

Show Broadcast Information

: shows

information on programme content,
artists, etc.

•

Freeze Program Name

: select to stop

the programme service name from scroll-
ing continuously. Instead it freezes after
20 seconds.

•

Select Announcements

:

3

•

Local Interruptions

: interrupts the

current media playback and broad-
casts information about traffic disrup-
tions in the neighbourhood. Playback
of previous media source is resumed
when the message is finished. The

Local Interruptions

 function is a geo-

graphically restricted version of the

Traffic Announcements

 function.

The

Traffic Announcements

 function

must be activated at the same time.

•

News

: interrupts the current media

playback and broadcasts news. Play-
back of previous media source is
resumed when the news broadcast is
finished.

•

Alarm

: interrupts the current media

playback and sends alerts about major
accidents and disasters. Playback of

previous media source is resumed
when the message is finished.

•

Traffic Announcements

: interrupts

the current media playback and
broadcasts information about traffic
disruptions. Playback of previous
media source is resumed when the
message is finished.

DAB

*

 (digital radio)

•

Sort Services

: option for how channels

will be sorted. Either alphabetically or by
service number.

•

DAB To DAB Handover

: starts the func-

tion for linking within DAB. If reception of
a radio channel is lost, another channel is
found automatically in another channel
group (ensemble).

•

DAB To FM Handover

: starts the func-

tion for linking between DAB and FM. If
reception of a radio channel is lost, an
alternative FM frequency is searched for
automatically.

•

Show Broadcast Information

: select to

show radio text or selected types of radio
text, e.g. artist.

•

Show Program Related Images

: select

whether or not to show images for pro-
grammes on the screen.

•

Select Announcements

: select the types

of messages to be received while DAB is
playing. Selected messages will interrupt
the current media playback to play back
the message. Playback of previous media
source is resumed when the message is
finished.

•

Alarm

: interrupts the current media

playback and sends alerts about major
accidents and disasters. Playback of
previous media source is resumed
when the message is finished.

•

Traffic Flash

: receives information

about traffic disruptions.

•

News Flash

: receives news.

•

Transport Flash

: receives information

about public transport, e.g. ferry and
train timetables.

•

Warning/Services

: receives informa-

tion about incidents of lower signifi-
cance than the Alarm function, e.g.
power failures.

Related information

•

Radio (p. 492)

•

Digital radio

*

 (p. 497)

•

Symbols in the centre display's status bar
(p. 114)

3

Not all stations support all message types.
