Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

284

Display mode for road sign

information

The Road Sign Information function (RSI

)

shows road signs in different ways depend-
ing on the sign and the situation.

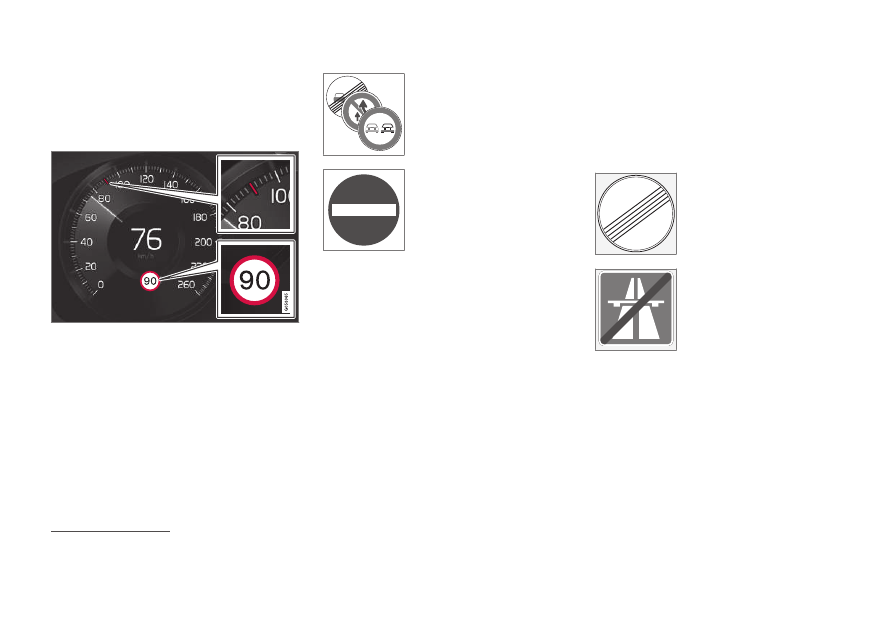

Example

of detected speed information.

When the function detects a road sign with an
imposed speed limit, the driver display shows
the sign as a symbol combined with a col-
oured indication on the speedometer.

If the car is fitted with Sensus Navigation

speed-related information is also obtained
from map data, which means that the driver
display can show or change information on
the speed limit without having passed a
speed-related sign.

An additional sign, such as
"no overtaking", may be
shown together with the
speed limit symbol.

If the driver enters a road
marked with a no-entry sign
at the roadside, the symbol
for this sign flashes on and
off on the driver display as a
warning.

If the car is equipped with Sensus Navigation

information from map data is used to deter-
mine whether the car is being driven in the
wrong direction.

The driver can also get an acoustic warning
when driving towards a road marked with a
no-entry sign if the

Road Sign Audio

Warning

function is activated.

Speed limit or end of motorway

When the function detects an "indirect speed
limit sign" stating the end of the current speed
limit – e.g. at the end of a motorway – a sym-
bol appears with the corresponding road sign
in the driver's display.

If the car is equipped with Sensus Navigation

direct speed limit signs are normally displayed
– indirect speed limit signs are only displayed
if map data has no information on the speed
limit for the road section in question.

Example of indirect speed limit sign:

End of all restrictions.

End of motorway.

The driver display symbol extinguishes after
10-30 seconds and remains so until the next
speed related sign is passed.

Changed speed limit

When passing a direct speed limit sign when a
speed limit changes, a symbol with the corres-
ponding road sign appears in the driver's dis-
play.

Road Sign Information

Road signs are market-dependent - the illustrations in these instructions only show examples.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

285

Example of direct speed limit
sign.

The driver display symbol extinguishes after
about 5 minutes until the next speed-related
sign is passed.

If the car is fitted with Sensus Navigation

speed limit signs are shown in the driver dis-
play when map data contains information on
the speed limit for the road section in ques-
tion, even if no direct sign has been passed. If
there is no information in map data, the sign is
extinguished approx. 3 minutes after the last
passing of a speed limit sign.

Additional signs

Examples of additional signs.

Sometimes different speed limits are signed
for the same road - an additional sign then
indicates the circumstances under which the
different speeds apply. The road section may
be particularly susceptible to accidents in rain
and/or fog, for example.

An additional sign relating to rain is displayed
only if the windscreen wipers are in use.

If a trailer is connected to the car's electrical
system and you pass a speed sign with the
additional sign "trailer", the indicated speed
will appear on the driver display.

Some speed limits only apply
after a certain distance or at a
certain time of day. The driv-
er's attention is drawn to this
fact by means of a symbol for
an additional sign below the
speed symbol. The additional

symbol in the driver display will show either
“DIST” or “TIME”.

Sign for "School" and "Children at
play"

If a warning sign for "School"
or "Children at play" is
included in the satellite navi-
gator's map data

, the driver

display shows a sign of this
type.

Related information

•

•

Only in cars with Sensus Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

286

Road Sign Information and Sensus

Navigation

If the car is equipped with Sensus Navigation

speed information is read from the navigation
unit in the following cases:

•

On detection of signs that indirectly indi-
cate a speed limit, such as motorway, dual
carriageway and city limit signs.

•

If a previously detected speed sign is
assumed not to apply any longer, but no
new sign has been detected.

In certain markets, the Road Sign Informa-
tion function

is only available in combina-

tion with Sensus Navigation

If a downloaded third-party app is used for
navigation then there is no support for
speed-related information.

Related information

•

Warning for speed limitation and

speed camera from road sign

information

Road sign information (RSI

) includes sub-

functions that can warn the driver if a speed
limit has been exceeded or in connection with
speed cameras.

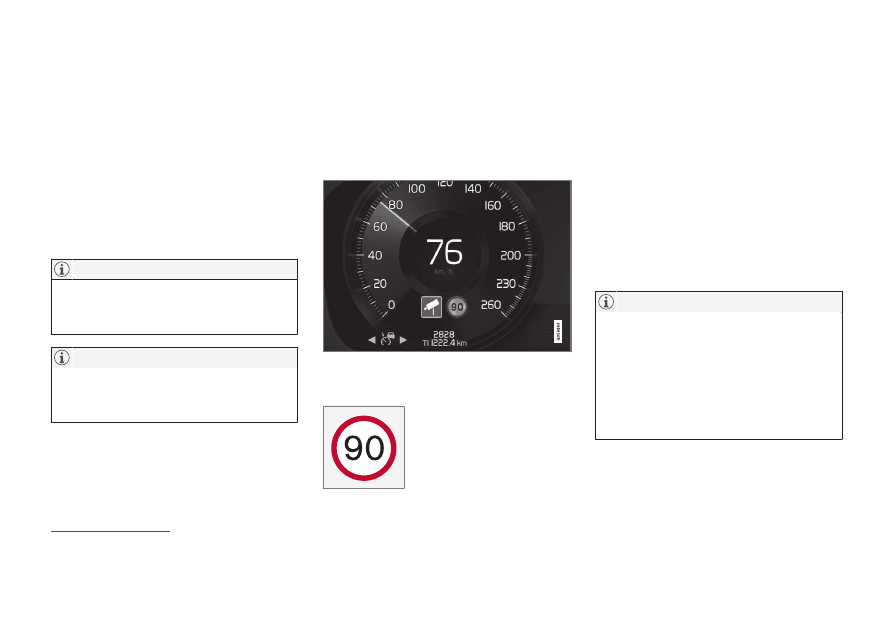

Examples of information on speed camera and speed

limit in the driver display

Warning for speed limit

The speed warning is given
by the driver display symbol

showing the applicable maxi-
mum permitted speed tem-
porarily flashing when this
speed is exceeded.

A speed warning is always given if the speed
limit is exceeded in connection with speed
camera information.

Speed Limit Warning

warns the driver when

the applicable speed limit or stored maximum
speed is exceeded – this warning is repeated
once after approx. 30 seconds within the
same speed limit area unless the driver
reduces the speed.

Another warning is available only when the
driver has reduced the speed by at least
5 km/h (3 mph) and then exceeds the speed
limit again, or when the car reaches a new/
different speed limit area.

To get an acoustic warning if you exceed
the required speed, the

Speed Limit

Warning

function must be activated and

the

Road Sign Audio Warning

subfunc-

tion must be set to

. An acoustic warn-

ing is then given if the car's speed exceeds
the speed indicated by the Road Sign
Information function in the driver display.

Road Sign Information

Road signs are customised for each market – the one shown here is just an example.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

287

Warning for speed camera

A car equipped with road
sign information and Sensus
Navigation can provide infor-
mation on an upcoming
speed camera in the driver
display

If the car exceeds a detected speed limit with
the

Speed Limit Warning

function activated,

a speed warning is given when the car
approaches a speed camera, provided that the
navigation map for the area in question con-
tains information on speed cameras.

An option is available to receive an acous-
tic warning for speed cameras independ-
ently of the car's speed and exceeded
speed limit, even if the

Road Sign Audio

Warning

function is deactivated.

Related information

•

Activating or deactivating warnings from
road sign information

•

(p. 287)

•

Activating or deactivating

warnings from road sign

information

The subfunction

Speed Limit Warning

for

Road Sign Information (RSI

) is optional –

the driver can choose to activate or deacti-
vate this subfunction.

Activating speed warning

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the centre

display's top view.

2. Select

Speed Limit Warning

> The function is activated and a speed

limit selector appears.

Adjust the limit for Speed Warning

The driver can select to receive a warning at a
higher speed than the signed speed.

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the centre

display's top view.

2. Select

Speed Limit Warning

> The function is activated and a speed

limit selector appears.

3. Adjust the limit for Speed Warning by

pressing the up/down arrows on the
screen.

Note that the function does
not give any consideration to
selected limit adjustment
when the driver display
shows the speed camera
symbol.

Activating acoustic warning in
connection with speed warning

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the centre

display's top view.

2. Select/deselect

Road Sign Audio

Warning

to activate/switch off the acous-

tic warning.

With the

Road Sign Audio Warning

function

activated, the driver is also warned when driv-
ing towards one-way traffic/no-entry entrance.

Activate speed camera warning

If the car is fitted with Sensus Navigation

and

map data contains information on speed cam-
eras, the driver can opt to receive an audible
warning when approaching a speed camera.

Information on speed cameras on the navigation map is not available for all markets/areas.

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

288

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the centre

display's top view.

2. Select/deselect

Speed Camera Audio

Warning

to activate/switch off the audi-

ble speed camera warning.

Related information

•

Warning for speed limitation and speed
camera from road sign information

•

(p. 286)

•

Limitations of Road Sign

Information

The Road Sign Information (RSI

) function

may have limitations in certain situations.

Examples of what can reduce the function are
as follows:

•

Faded signs

•

Signs positioned on bends

•

Rotated or damaged signs

•

Signs positioned high above the roadway

•

Fully/partially obscured or poorly posi-
tioned signs

•

Signs completely or partly covered with
frost, snow and/or dirt

•

Digital road maps

are out-of-date, inac-

curate or have no speed information

In certain markets, the Road Sign Informa-
tion function

is only available in combina-

tion with Sensus Navigation

The RSI function may interpret some types
of bicycle rack, connected to the electrical
socket for trailers, as a connected trailer. In
such cases, the driver display may show
incorrect speed information.

This function uses the car's camera and
radar units, which have certain general lim-
itations.

Related information

•

Limitations for camera and radar unit
(p. 399)

•

Road Sign Information

In cars equipped with Sensus Navigation

Map data with speed information does not exist for all areas.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

289

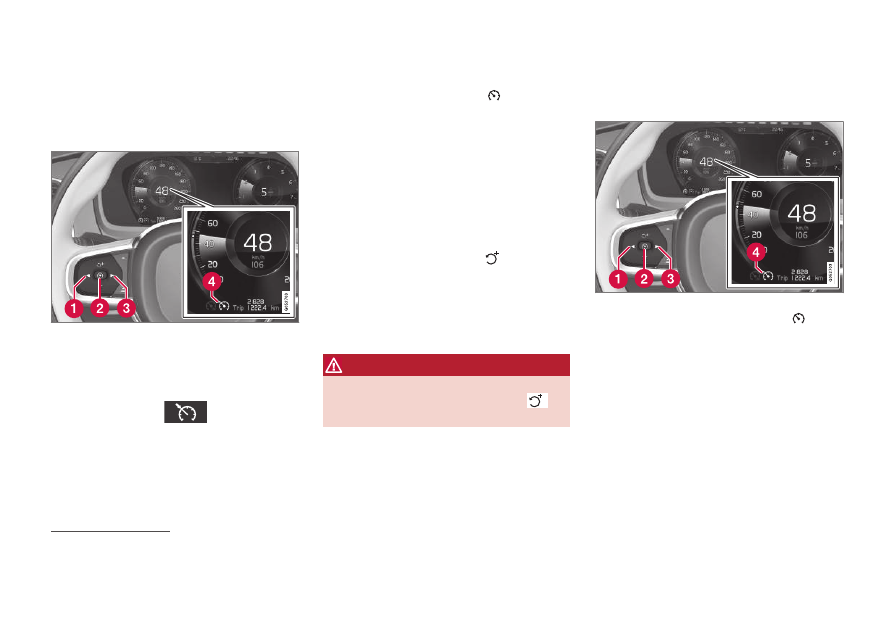

Speed limiter

A speed limiter (SL

) can be likened to a

reverse cruise control - the driver regulates
the speed using the accelerator pedal but is
prevented from accidentally exceeding a pre-
selected/set maximum speed by the speed
limiter.

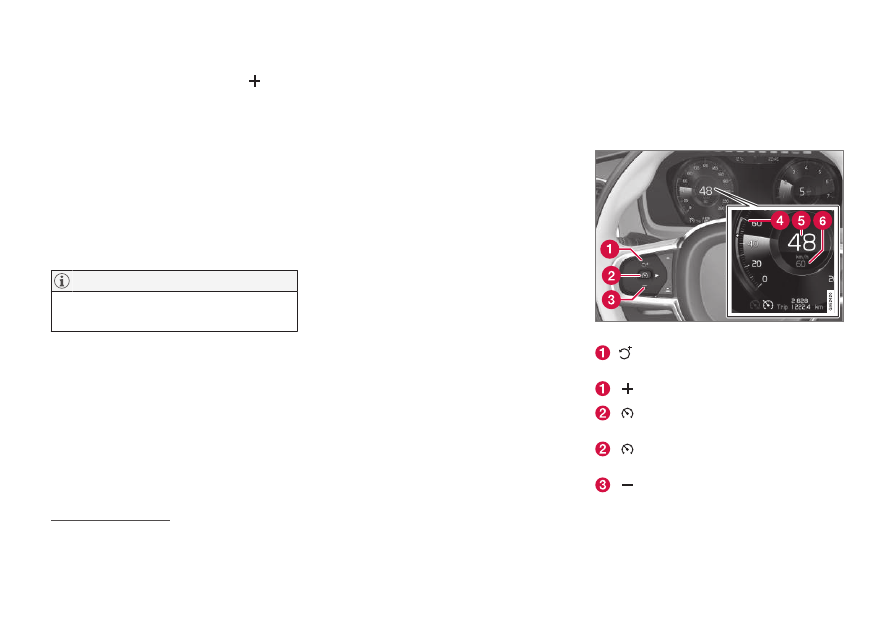

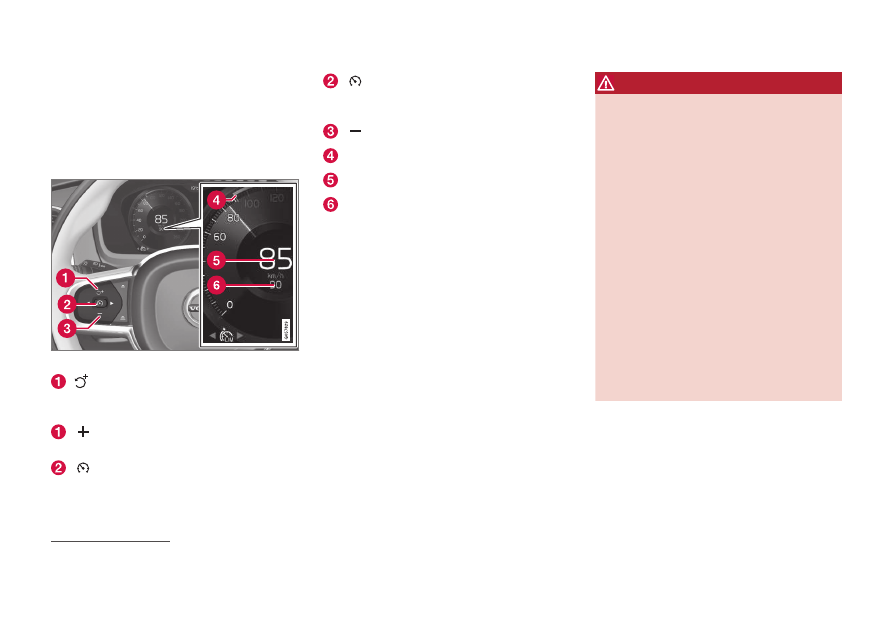

Buttons and symbols for the function.

: Activates the speed limiter from

standby mode and resumes stored maxi-
mum speed

: Increases the stored maximum

speed

From standby mode

– activates the

speed limiter and stores current speed

From active mode

– deactivates/

changes the speed limiter to standby
mode

: Reduces stored maximum speed

Marker for stored max speed

The car's current speed

Stored maximum speed

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Related information

•

Driving support systems (p. 274)

•

Limitations for speed limiter (p. 292)

•

Selecting and activating speed limiter
(p. 290)

•

Deactivating the speed limiter (p. 291)

Speed Limiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

290

•

Temporary deactivation of speed limiter
(p. 291)

•

Set the stored speed for driver support
(p. 323)

•

Selecting and activating speed

limiter

The speed limiter function (SL

) must first

be selected and activated in order to be able
to regulate the speed.

The speed limiter cannot be activated until
after the engine has been started. The lowest
maximum speed that can be stored is
30 km/h (20 mph).

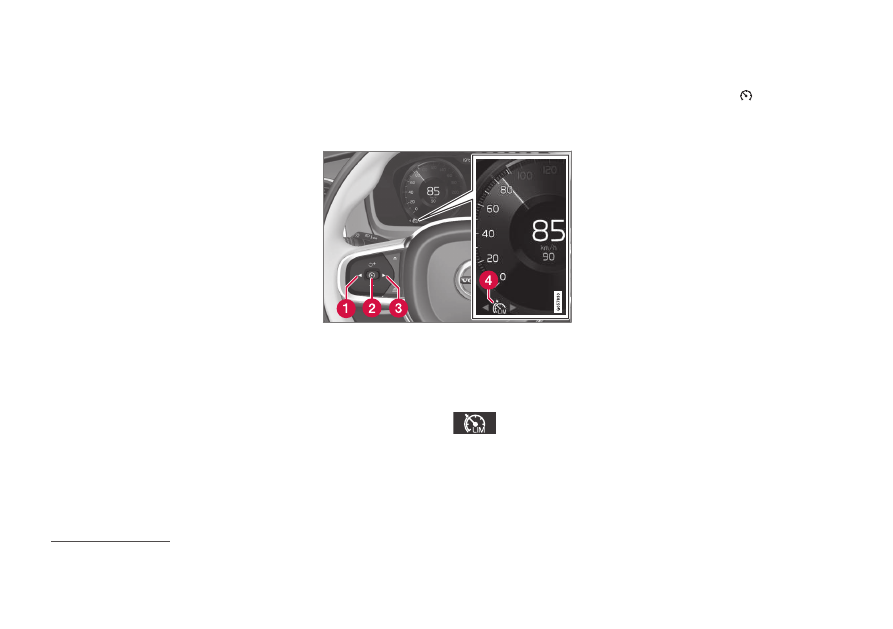

1. Press

◀

(1) or

▶

(3) to scroll to the symbol

for the speed limiter

(4).

> The symbol is grey – the speed limiter

is in standby mode.

2. When speed limiter is selected – press the

steering wheel button

(2) to activate.

> The symbol is white – the speed limiter

is started and the current speed is
stored as maximum speed.

Related information

•

Deactivating the speed limiter (p. 291)

•

•

Temporary deactivation of speed limiter
(p. 291)

Speed Limiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

291

Deactivating the speed limiter

The speed limiter (SL

) can be deactivated

and switched off.

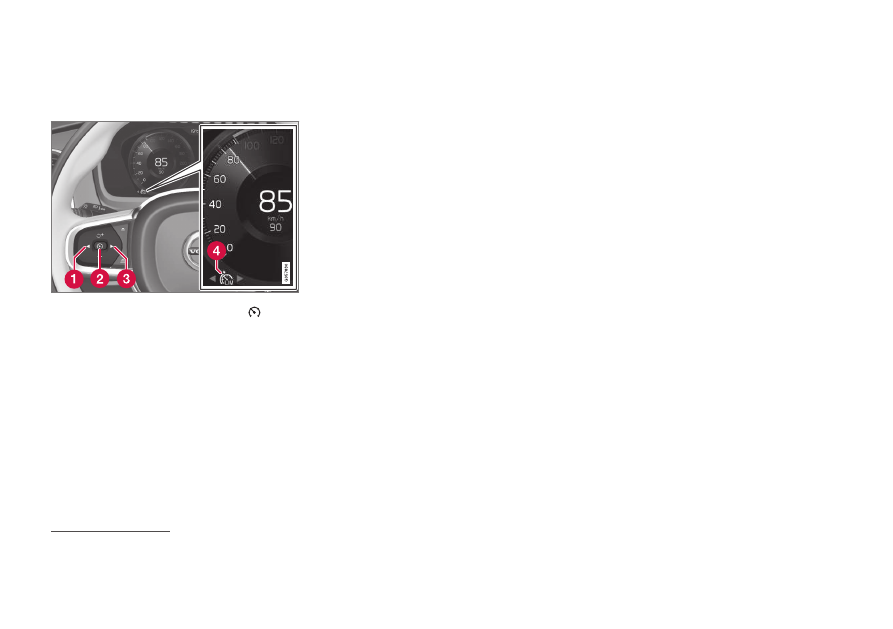

1. Press the steering wheel button

(2).

> The symbol and indicators turn grey –

the speed limiter is set in standby mode
and the driver can exceed the set speed
limit.

2. Press the steering wheel button

◀

(1) or

▶

(3) to change to another function.
> The driver display's symbol and indica-

tor for speed limiter (4) are switched off
– which deletes the stored maximum
speed.

Related information

•

Selecting and activating speed limiter
(p. 290)

•

•

Temporary deactivation of speed limiter
(p. 291)

Temporary deactivation of speed

limiter

The speed limiter (SL

) can be temporarily

deactivated and set in standby mode.

The speed limiter can also be temporarily
deactivated and overridden with the accelera-
tor pedal without the speed limiter first having
to be set in standby mode - e.g. to be able to
quickly accelerate the car out of a situation.

In which case, proceed as follows:

1. Fully depress the accelerator pedal and

release it to interrupt acceleration when
the desired speed has been reached.
> In this mode, the speed limiter is still

activated and the driver display's sym-
bol is therefore WHITE.

2. Fully release the accelerator pedal when

the temporary acceleration is finished.
> The car is then engine-braked automat-

ically to below the last stored maximum
speed.

Related information

•

Selecting and activating speed limiter
(p. 290)

•

•

Deactivating the speed limiter (p. 291)

Speed Limiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

292

Limitations for speed limiter

Speed limiter (SL

) has certain general limi-

tations.

On steep downhill gradients the speed limit-
er’s braking effect may be inadequate and
hence the stored maximum speed may be
exceeded. In this case, the driver is alerted by
the message

Speed limit exceeded

in the

driver display.

A text message that the maximum speed is
exceeded will be activated if the speed has
been exceeded by at least 3 km/h
(approx. 2 mph).

Related information

•

Driving support systems (p. 274)

Automatic speed limiter

The Automatic Speed Limiter (ASL

) func-

tion helps the driver to adapt the car's maxi-
mum speed to the speed shown on the road
signs.

The Speed Limiter function (SL

) can be

changed to Automatic Speed Limiter (ASL).

The automatic speed limiter uses speed infor-
mation from the Road Sign Information

(RSI

) function to automatically adapt the

car's maximum speed.

WARNING

Even if the driver clearly sees the speed-

related road sign, the speed information

from the Road Sign Information

(RSI)

function to ASL may be incorrect – in such

cases the driver must intervene him/herself

and accelerate or brake to a suitable speed.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

Speed Limiter

Automatic Speed Limiter

Speed Limiter

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

293

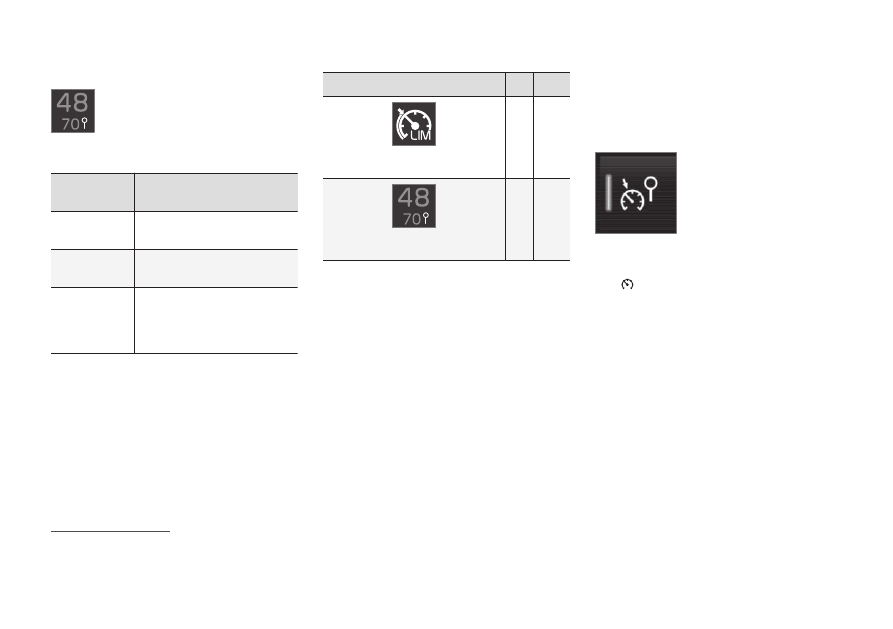

Symbol for automatic speed limiter

The sign symbol (displayed along-
side the stored speed, "70", in the
centre of the speedometer) can be
shown in three colours with the fol-

lowing meanings:

Colour of

sign symbol

Meaning

Greenish yel-

low

The automatic speed limiter
is active.

Grey

The automatic speed limiter
is set in standby mode.

Orange

Automatic speed limiter is
in temporary standby mode
- e.g. due to a road sign not
being read.

Symbol for which speed limiter
function is active

The symbol display in the driver display
changes depending on whether it is cruise
control or automatic cruise control that is
active.

Symbol

SL ASL

WHITE symbol: Function active,

GREY symbol: Standby mode.

✓

Sign symbol after "70" = Automatic

Speed Limiter is activated.

✓

Related information

•

•

Activating or deactivating the automatic
speed limiter (p. 293)

•

Changing the tolerance for the automatic
speed limiter (p. 294)

•

Limitations for automatic speed limiter
(p. 295)

•

•

Activating or deactivating the

automatic speed limiter

The automatic speed limiter function (ASL

)

can be activated and deactivated as a supple-
ment to the speed limiter (SL

Activate or deactivate the
function using this button in
the centre display's function
view.

•

GREEN button indication – the function is
activated. Press the steering wheel button

to start the automatic speed limiter

with the current speed.

•

GREY button indication – the function is
deactivated. Normal speed limiter is acti-
vated instead.

Automatic Speed Limiter

Speed Limiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

294

•

If the automatic speed limiter function
is activated, road sign information
(RSI

) is shown in the driver display

even if the Road Sign Information is
not activated.

•

To remove road sign information from
the driver display, you must deactivate

both

the automatic speed limiter and

Road Sign Information.

•

Deactivating the automatic speed
limiter

To deactivate the automatic speed limiter:

–

Tap on the button in the function view.
> GREY button indication – ASL is

switched off and SL is activated
instead.

WARNING

After switching from ASL to SL the car will

no longer follow the signed speed limit but

only the stored maximum speed.

Related information

•

•

Limitations for automatic speed limiter
(p. 295)

•

•

Changing the tolerance for the

automatic speed limiter

The Automatic Speed Limiter function
(ASL

) can be set for different tolerance lev-

els. The tolerance is adjusted in the same way
as the speed setting is in the speed limiter.

If, for example, the car follows a signed speed
limit of 70km/h (43 mph) the driver can
instead choose to allow the car to maintain
75 km/h (47 mph).

Buttons and symbols for the function

Road Sign Information

Automatic Speed Limiter

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

295

–

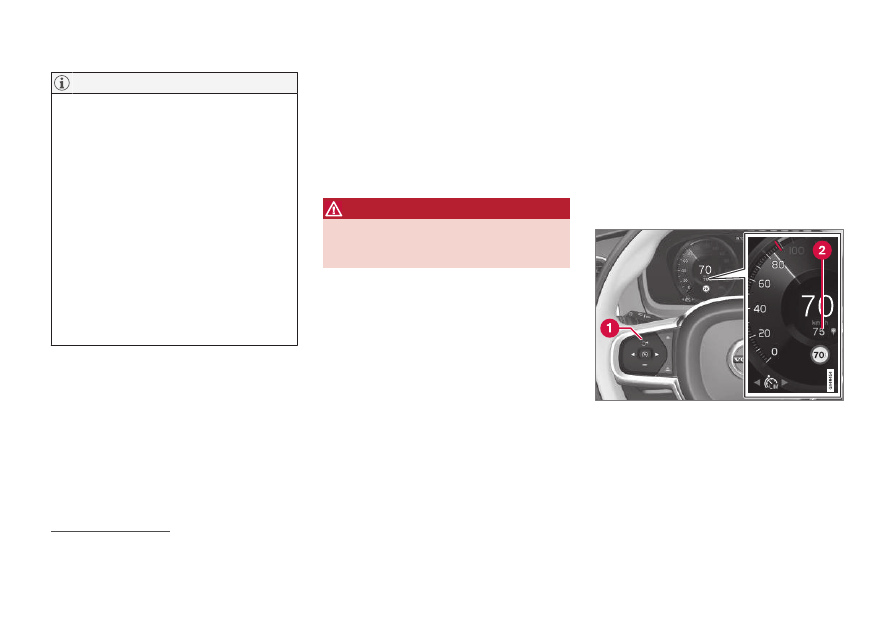

Press the steering wheel button

(1)

until 70 km/h (43 mph) in the centre of
the speedometer (2) changes to 75 km/h
(47 mph).
> After which, the car uses the selected

tolerance 5 km/h (4 mph) as long as
signs passed are showing 70 km/h
(43 mph).

The tolerance is followed until a road sign with
a lower or higher speed is passed - then the
car follows the new signed speed limit instead
and the tolerance is deleted from the memory.

The maximum selectable tolerance is
+/- 10 km/h (5 mph).

Related information

•

Limitations for automatic speed limiter
(p. 295)

•

•

Limitations for automatic speed

limiter

Automatic speed limitation (ASL

) takes

place using speed information from the Road
Sign Information function

(RSI

) – not from

the speed limit road signs that the car
passes.

If road sign information cannot interpret and
provide speed information to the driver sup-
port systems, the automatic speed limiter is
set in standby mode and changes to normal
speed limiter. In such cases the driver must
intervene and brake to a suitable speed.

The automatic speed limiter will be reactivated
when road sign information can once again
interpret and provide speed information.

Related information

•

•

•

Cruise control

The cruise control (CC

) helps the driver

maintain an even speed, which can result in
more relaxed driving on motorways and long,
straight roads in regular traffic flows.

Buttons and symbols for the function

: Activates cruise control from standby

mode and resumes stored speed

: Increases the stored speed

From standby mode

– activates

cruise control and stores current speed

From active mode

– deactivates/

changes cruise control to standby mode

: Reduces stored speed

Automatic Speed Limiter

Road Sign Information – RSI

Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

296

Marker for stored speed

The car's current speed

Stored speed
