LIGHTING

* Option/accessory.

146

Using direction indicators

The car's direction indicators are operated
with the left-hand stalk switch. The direction
indicator lamps flash three times or continu-
ously, depending on how far up or down the
stalk switch is moved.

Direction indicators.

Short flash sequence

Move the stalk switch up or down to the
first position and release. The direction
indicator lamps flash three times. If the
function is deactivated via the centre dis-
play, the lamps will flash once.

NOTE

•

This automatic flashing sequence can
be stopped by moving the stalk switch
immediately in the opposite direction.

•

If the symbol for direction indicators in
the driver display flashes more quickly
than normal - see the message in the
driver display.

Continuous flash sequence

Move the stalk switch up or down to its
end position.

The stalk switch remains in its position and is
moved back manually, or automatically by the
steering wheel movement.

Related information

•

Hazard warning flashers (p. 149)

•

Adjusting light functions via the centre
display (p. 141)

•

Replacing the rear direction indicator bulb
(p. 625)

Active bending lights

*

Active bending lights are designed to provide
additional illumination in bends and junctions.
Cars with LED

3

 headlamps

*

 can have active

bending lights, depending on the car's equip-
ment level.

Headlamp pattern with function deactivated (left)

and activated (right) respectively.

Active bending lights follow steering wheel
movements to provide additional illumination
in bends and junctions and can thereby pro-
vide the driver with improved visibility.

The function is activated automatically when
the car is started. In the event of a fault in the
function, the

 symbol illuminates in the

driver display at the same time as the driver
display shows an explanatory text.

3

LED (Light Emitting Diode)

LIGHTING

}}

* Option/accessory.

147

The function is only active in weak daylight or
darkness and only when the car is moving and
dipped beam is switched on.

Deactivating/activating the function

The function is activated when the car is sup-
plied from the factory and can be deactivated/
activated via the centre display's function
view.

Press the

Active Bending

Lights

 button.

Related information

•

Adjusting light functions via the centre
display (p. 141)

•

Front fog lamps/cornering lights

*

 (p. 147)

Front fog lamps/cornering lights

*

The fog lights are activated manually when
driving in fog and automatically when revers-
ing in order to complement the reversing
light.

If the car is fitted with cornering lights

*

, the

fog lights come on automatically in dull day-
light or darkness in order to light up the area
diagonally in front of the car.

Button for front fog lamps.

The rear fog lamps can only be switched on
when the car's electrical system is in ignition
position

II

 and the rotating ring on the stalk

switch is in position

,

 or

.

Press the button to activate and deactivate.
The

 symbol illuminates in the driver dis-

play when the front fog lamps are switched
on.

The front fog lamps switch off automatically
when the car is switched off or when the
rotating ring on the stalk switch is set to the

 position.

NOTE

Regulations on the use of fog lamps vary
from country to country.

Cornering lights

*

The front fog lamps can include the cornering
lights function, which temporarily illuminates
the area diagonally in front of the car in the
direction the steering wheel is turned on a
sharp bend, or in the direction shown by the
direction indicators.

The function is activated in weak daylight or
darkness when the stalk switch's rotating ring
is in the

 or

 position and the speed

of the car is lower than approx. 30 km/h
(approx. 20 mph).

In addition, both cornering lights are switched
on as a supplement to the reversing lamp dur-
ing reversing.

The function is activated when the car is sup-
plied from the factory and can be activated
and deactivated via the centre display.

||

LIGHTING

* Option/accessory.

148

Related information

•

Lighting control (p. 140)

•

Ignition positions (p. 432)

•

Rear fog lamp (p. 148)

•

Active bending lights

*

 (p. 146)

•

Adjusting light functions via the centre
display (p. 141)

Rear fog lamp

The rear fog lamp is considerably stronger
than the normal rear lights and should only be
used in reduced visibility due to fog, snow,
smoke or dust so that other road users have
an early warning of a vehicle ahead.

Button for rear fog lamp.

The rear fog lamp is a lamp at the rear of the
car, on the driver's side.

The rear fog lamp can only be switched on
when ignition position

II

 is active and the

rotating ring on the stalk switch is in position

 or

.

Press the button to switch the lights on/off.
The

 symbol in the driver display illumi-

nates when the rear fog lamp is switched on.

The rear fog lamp switches off automatically
when the car is switched off or when the

rotating ring on the stalk switch is set to the

 or

 position.

NOTE

Regulations on the use of rear fog lamps
vary from country to country.

Related information

•

Lighting control (p. 140)

•

Front fog lamps/cornering lights

*

 (p. 147)

•

Ignition positions (p. 432)

•

Replacing the rear fog lamp bulb (p. 627)

LIGHTING

}}

149

Brake lights

The brake light automatically comes on dur-
ing braking.

The brake light is illuminated when the brake
pedal is depressed and when the car is braked
automatically by one of the driver support sys-
tems.

Related information

•

Emergency brake lights (p. 149)

•

Brake functions (p. 435)

•

Changing brake light bulb (p. 626)

•

Driving support systems (p. 274)

Emergency brake lights

Emergency brake lights are activated to alert
vehicles behind about heavy braking.

The function means that the brake light
flashes instead of - as in normal braking -
shining with a constant glow.

The emergency brake lights are activated dur-
ing heavy braking or if the ABS system is acti-
vated at high speeds.

After the driver brakes to a low speed and
then releases the brake, the brake light returns
to normal glow.

The car's hazard warning flashers are acti-
vated at the same time. These flash until the
driver accelerates the car to a higher speed
again or switches off the car's hazard warning
flashers.

Related information

•

Brake lights (p. 149)

•

Foot brake (p. 435)

•

Hazard warning flashers (p. 149)

Hazard warning flashers

Hazard warning flashers warn other road
users by means of all of the car's direction
indicators being activated simultaneously.
The function can be used to give a warning in
the event of traffic hazards.

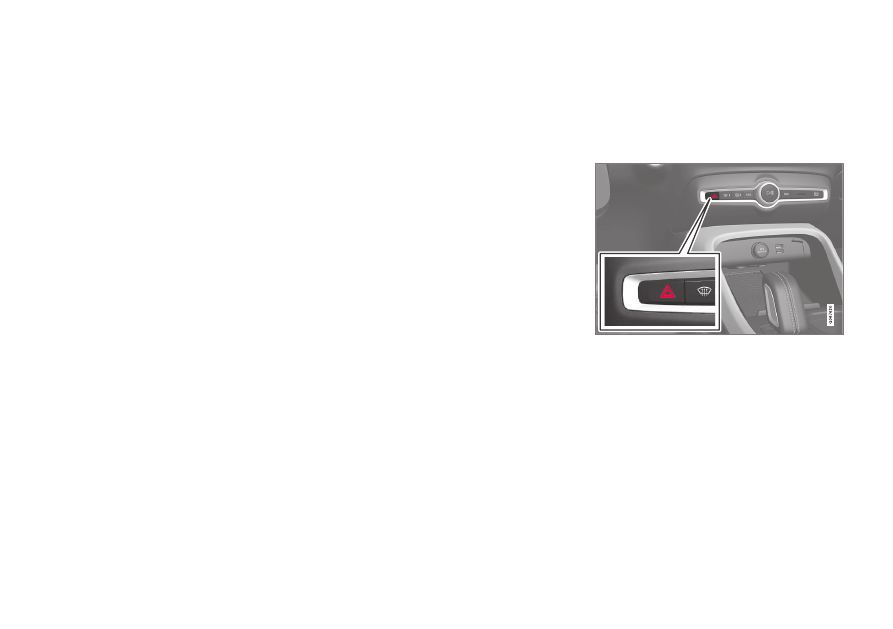

Button for hazard warning flashers.

Press the button to activate the hazard warn-
ing flashers.

The hazard warning flashers are automatically
activated when the car brakes so powerfully
that the emergency brake lights are activated
and the speed is low. The hazard warning
flashers start to flash after the emergency
brake lights have stopped flashing and are
then deactivated automatically when the car
drives away again or are deactivated if the but-
ton is depressed.

||

LIGHTING

* Option/accessory.

150

NOTE

Regulations for the use of hazard warning
flashers may vary between countries.

Related information

•

Emergency brake lights (p. 149)

•

Using direction indicators (p. 146)

Using home safe lighting

Some of the exterior lighting can be kept
switched on to work as home safe lighting
after the car has been locked.

To activate the function:

1. Switch off the car.

2. Move the left-hand stalk switch forward

toward the instrument panel and release.

3. Get out of the car and lock the door.

> A symbol in the driver display is illumi-

nated to indicate that the function is
activated and outer lighting is switched
on: Position lamps, headlamp beams,
number plate lighting and lighting in
outer handles

*

.

The length of time that home safe lighting
remains on can be set via the centre display.

Related information

•

Adjusting light functions via the centre
display (p. 141)

•

Approach light duration (p. 150)

Approach light duration

Approach lighting is switched on when the
car is unlocked and is used to switch on the
car's lighting at a distance.

The function is activated when the remote
control key is used for unlocking. In daylight,
position lamps, interior roof lamps, floor lights
and cargo area lighting are activated. In weak
daylight or darkness, number plate lighting
and lighting in the outer handles are also acti-
vated

*

 with their light source aimed towards

the ground.

The lighting stays on for approx. 2 minutes if
no doors are opened. If a door is opened
within the activation time, the time for the
interior lighting and lighting in the outer han-
dles

*

 will be extended.

The function can be activated and deactivated
via the centre display.

Related information

•

Adjusting light functions via the centre
display (p. 141)

•

Using home safe lighting (p. 150)

•

Remote control key (p. 226)

LIGHTING

}}

* Option/accessory.

151

Interior lighting

The passenger compartment is equipped
with several types of lighting, e.g. general
interior lighting, adjustable decor illumination
and reading lighting.

All lighting in the passenger compartment can
be switched on and off manually at least
5 minutes from when:

•

the car has been switched off and its elec-
trical system is in ignition position

0

•

the car has been unlocked but it has not
yet been started.

Front roof lighting

Controls in roof console for the front reading lamps

and passenger compartment lighting.

Reading lamp, left-hand side

Passenger compartment lighting

Auto function for passenger compartment
lighting
Reading lamp, right-hand side

Reading lighting

The reading lamps on the right and left-hand
sides can be turned on and off by briefly press-
ing the buttons in the roof console. Brightness
is adjusted by holding the button pressed in.

Passenger compartment lighting

The floor lighting and interior roof lighting are
switched on or off with a short press on the
button in the roof console.

Auto function for passenger compartment
lighting

The automatic function is activated by a short
press on the

AUTO

 button in the roof console.

With the automatic system activated, the light
indicator in the button illuminates and the pas-
senger compartment lighting is switched on
and off according to the following.

The passenger compartment lighting comes
on when:

•

The car is unlocked

•

The car is switched off

•

A side door is opened.

The passenger compartment lighting goes off
when:

•

The car is locked

•

The car is started

•

A side door is closed

•

A side door has remained open for approx.
2 minutes.

Rear roof lighting

*

The rear area of the car has reading lighting,
which is also used as passenger compartment
lighting.

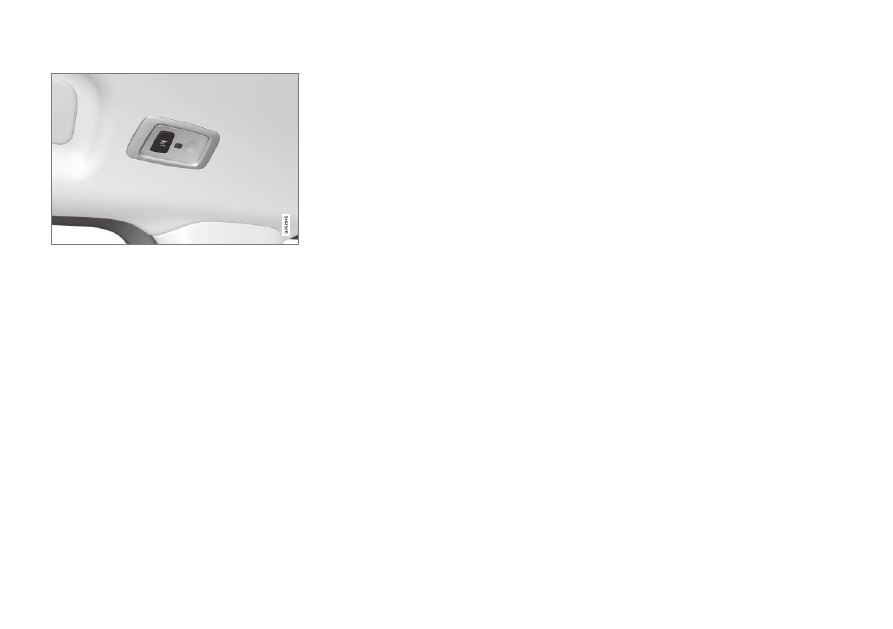

Reading lamps above the rear seat.

||

LIGHTING

* Option/accessory.

152

In cars with panoramic roof

*

 there are two lamp

units, one on each side of the roof.

The reading lamps are switched on or off by
briefly pressing the button on the lamp.
Brightness is adjusted by holding the button
pressed in.

Glovebox lighting

Glovebox lighting is switched on and off
respectively when the lid is opened or closed.

Sun visor mirror lighting

*

The lighting for the mirror in the sun visor is
switched on and off respectively when the
cover is opened or closed.

Ground lighting

*

The ground lighting is switched on or off when
the corresponding door is opened or closed.

Lighting in the cargo area

The lighting in the cargo area is switched on or
off when the tailgate is opened or closed.

Decor lighting

The ambient light is switched on when you
open the doors and is switched off when the
car is locked. The intensity of the decor light-
ing can be adapted in the centre display and
also precisely adjusted using the thumbwheel
in the instrument panel.

Ambience lights

*

The car is equipped with LEDs that make it
possible to change the colour of the light.
These lights are switched on when the car is
running. The ambience light can be adapted in
the centre display and also precisely adjusted
using the thumbwheel in the instrument panel.

Lighting in storage compartments in
doors

The lighting in the storage compartments in
the doors is switched on when you open the
doors and is switched off when the car is
locked. The brightness can be precisely
adjusted using the thumbwheel in the instru-
ment panel.

Lighting in the tunnel console's front
cup holder

The lighting in the front cup holders is
switched on when the car is unlocked and is
switched off when the car is locked. The

brightness can be precisely adjusted using the
thumbwheel in the instrument panel.

Related information

•

Adjusting interior lighting (p. 153)

•

Lighting control (p. 140)

•

Ignition positions (p. 432)

•

Passenger compartment interior (p. 576)

LIGHTING

* Option/accessory.

153

Adjusting interior lighting

The lamps inside the car come on differently
depending on the ignition position used. The
interior lighting can be adjusted with a
thumbwheel in the instrument panel, and cer-
tain light functions can also be adjusted via
the centre display.

The thumbwheel on the
instrument panel, to the left
of the steering wheel, is used
to adjust the brightness of
the display lighting, controls
lighting, ambient decor illumi-
nation and ambience light

*

.

Adjusting ambient decor illumination

1. Press

Settings

 in the top view in the cen-

tre display.

2. Press

My Car

Lights and Lighting

Interior Lighting

.

3. Choose between the following settings:

•

Under

Ambient Light Intensity

, select

from

Off

,

Low

 and

High

.

•

Under

Ambient Light Level

, select

from

Reduced

 and

Full

.

Adjusting ambience light

*

The car is equipped with a number of LEDs
that make it possible to change the colour of
the light. These lights are switched on when
the car is running.

Changing the brightness of the lights

1. Press

Settings

 in the top view in the cen-

tre display.

2. Press

My Car

Lights and Lighting

Interior Lighting

Interior Mood

Lighting

.

3. Under

Interior Mood Light Intensity

,

select from

Off

,

Low

 and

High

.

Changing the colour of the light

1. Press

Settings

 in the top view in the cen-

tre display.

2. Press

My Car

Lights and Lighting

Interior Lighting

Interior Mood

Lighting

.

3. Choose between

By Temperature

 and

By Colour

 in order to change the colour of

the light.

With the

By Temperature

 option, the

light changes according to the set passen-
ger compartment temperature.

With the

By Colour

 option, the

Theme

Colours

 subcategory can be used to

adjust further.

Related information

•

Interior lighting (p. 151)

•

Adjusting light functions via the centre
display (p. 141)

•

Ignition positions (p. 432)

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

156

Windows, glass and mirrors

The car contains several different windows,
glass panes and mirrors. Some of the win-
dows in the car are laminated.

The windscreen has laminated glass, and lami-
nated glass is available as an option for certain
other glass areas. Laminated glass is rein-
forced, which provides better protection
against break-ins and improved sound insula-
tion in the passenger compartment.

The panoramic roof

*

 also has laminated glass.

The symbol is shown on the windows where the
glass is laminated.

1

Related information

•

Pinch protection for windows and sun
blinds (p. 156)

•

Panoramic roof

*

 (p. 162)

•

Power windows (p. 157)

•

Rearview and door mirrors (p. 159)

•

Using windscreen wipers (p. 167)

•

Using windscreen and headlamp washers
(p. 170)

•

Activating and deactivating the heated
windscreen

*

 (p. 203)

•

Activating and deactivating the heated
rear window and door mirrors (p. 205)

Pinch protection for windows and

sun blinds

All power windows and sun blinds

*

 have

pinch protection which is deployed if they are
blocked by any object while opening or clos-
ing.

In the event of blocking, the movement stops
and then reverses automatically to approx.
50 mm (approx. 2 inches) from the blocked
position (or to full ventilation position).

It is possible to force pinch protection when
closing has been cancelled, e.g. when ice is
formed, by continuing to press the control in
one and the same direction.

If any fault arises with the pinch protection, a
reset sequence can be tested.

WARNING

If the starter battery is disconnected, the

automatic opening and closing function

must be reset to work properly. A reset

must take place for pinch protection to

work.

Related information

•

Reset sequence for pinch protection
(p. 157)

•

Operating power windows (p. 158)

•

Operating the panoramic roof

*

 (p. 164)

1

Does not apply to the windscreen or panoramic roof

*

 which are always laminated and thus do not have this symbol.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

157

Reset sequence for pinch

protection

If a problem occurs with the electrical func-
tions for the electric windows, a reset
sequence can be tested.

WARNING

If the starter battery is disconnected, the

automatic opening and closing function

must be reset to work properly. A reset

must take place for pinch protection to

work.

In the event of problems with the panoramic
roof, contact a workshop.

2

Reset the power window

1. Start with the window in closed position.

2. Then operate the controls in the manual

position 3 times upwards to closed posi-
tion.
> The system is initialised automatically.

If problems persist, contact a workshop.

Related information

•

Pinch protection for windows and sun
blinds (p. 156)

•

Operating power windows (p. 158)

Power windows

Each door has a control panel for the electri-
cally-driven power windows. The driver's
door has controls for operating all windows
and also to activate the child safety locks.

Driver's door control panel.

Electric child safety locks

*

 that deactivate

the controls in the rear doors to prevent
doors or windows from being opened
from the inside.
Controls for rear windows.

Controls for front windows.

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

0

, and then take the

key with you when leaving the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

Related information

•

Operating power windows (p. 158)

•

Pinch protection for windows and sun
blinds (p. 156)

•

Reset sequence for pinch protection
(p. 157)

2

An authorised Volvo workshop is recommended.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

158

Operating power windows

Using the driver's door control panel, all
power windows can be operated - using the
control panels in the other doors operates the
power window in the individual door.

The power windows are equipped with pinch
protection. If any fault arises with the pinch
protection, a reset sequence can be tested.

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

0

, and then take the

key with you when leaving the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

Operating the power windows.

Operating without auto. Move one of the
controls gently up or down. The power
windows move up or down as long as the
control is held in position.
Operating with auto. Move one of the con-
trols up or down to the end position and
release it. The window runs automatically
to its end position.

In order for the power windows to be used,
the ignition position must be

I

 or

II

. The power

windows can be operated for a few minutes
after the car has been switched off and after
the ignition has been switched off - although
not after a door has been opened. It is only
possible to operate one control at a time.

It can also be operated using a remote control
key or keyless opening

*

 with the door handle.

WARNING

Check that children or other passengers

are not at risk of crushing when all the win-

dows are closed with a remote control key

or keyless opening

*

 with a door handle.

NOTE

One way to reduce the pulsating wind
noise when the rear windows are open is
to also open the front windows slightly.

NOTE

The windows cannot be opened at speeds
above approx. 180 km/h (approx.
112 mph), but they can be closed.

The driver always bears responsibility for
following traffic regulations in force.

NOTE

It may not be possible to operate windows
at low temperatures.

Related information

•

Power windows (p. 157)

•

Pinch protection for windows and sun
blinds (p. 156)

•

Reset sequence for pinch protection
(p. 157)

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

159

•

Keyless locking and unlocking

*

 (p. 257)

•

Locking and unlocking with the remote
control key (p. 228)

Rearview and door mirrors

The rearview mirrors and door mirrors can be
used to give the driver better visibility to the
rear.

Interior rearview mirror

The interior rearview mirror is equipped with
HomeLink

*

, automatic dimming

*

 and com-

pass

*

.

The interior rearview mirror is adjusted by
angling it manually.

Door mirrors

WARNING

Both mirrors are bent to provide optimal

vision. Objects may appear to be further

away than they actually are.

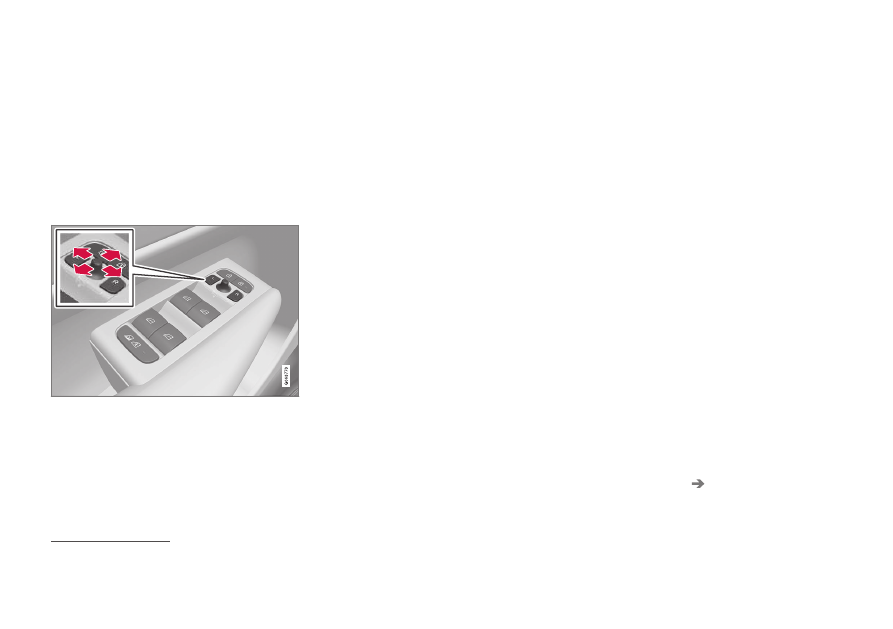

The door mirror positions are adjusted with
the joystick in the driver's door control panel.

There are also a number of automatic settings
that can be linked to the memory function but-
tons for the power seat

*

.

Related information

•

HomeLink

®

*

 (p. 480)

•

Compass

*

 (p. 484)

•

Adjusting rearview mirror dimming
(p. 160)

•

Angling adjustment of the door mirrors
(p. 161)

•

Storing a position for seat and door mir-
rors (p. 176)

•

Activating and deactivating the heated
rear window and door mirrors (p. 205)

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

160

Adjusting rearview mirror dimming

Bright light from behind could be reflected in
the rearview mirrors and dazzle the driver.
Use dimming when disturbed by light from
behind.

Manual dimming

The interior rearview mirror can be dimmed
with a control in the mirror's lower edge.

Control for manual dimming.

1. Use dimming by moving the control in

towards the passenger compartment.

2. Return to normal mode by moving the

control towards the windscreen.

The control for manual dimming is not availa-
ble on mirrors with automatic dimming.

Automatic dimming

*

If bright light comes from behind, the rearview
mirrors automatically dim when it is dark out-
side or when the light is limited, for example
when driving in tunnels. Automatic dimming is
always active while driving, apart from when
gearbox reverse position is selected.

NOTE

When sensitivity is changed there is no
immediately noticeable change in dim-
ming, but the change takes place gradu-
ally.

Dimming sensitivity will affect both the interior
rearview mirror and the door mirrors.

To change dimming sensitivity:

1. Press

Settings

 in the top view in the cen-

tre display.

2. Press

My Car

Mirrors and

Convenience

.

3. Under

Rearview Mirror Auto Dimming

,

select

Normal

,

Dark

 or

Light

.

The interior rearview mirror contains two sen-
sors - one forward facing and one rearward
facing - that work together to identify and
eliminate dazzling light. The forward facing
sensor detects ambient light, while the rear-

ward facing sensor detects the light from vehi-
cle headlights behind.

For the door mirrors to be equipped with auto-
matic dimming, the interior rearview mirror
must also be equipped with automatic dim-
ming.

NOTE

If the sensors are obscured by e.g. parking
permits, transponders, sun visors or
objects in the seats or in the cargo area in
such a way that light is prevented from
reaching the sensors, then the dimming
function of the interior rearview and door
mirrors is reduced.

Related information

•

Rearview and door mirrors (p. 159)

•

Angling adjustment of the door mirrors
(p. 161)

WINDOWS, GLASS AND MIRRORS

}}

* Option/accessory.

161

Angling adjustment of the door

mirrors

To ensure better visibility to the rear, the door
mirrors need to be set to the preferences of
the driver.

There are a number of automatic settings that
can also be linked to the memory function
buttons for the power seat

*

.

Using controls for door mirrors

Controls for door mirrors.

The door mirror positions are adjusted with
the joystick in the driver's door control panel.
Ignition position must be at least

I

.

1. Press the

L

 button for the left-hand door

mirror or the

R

 button for the right-hand

door mirror. The light in the button illumi-
nates.

2. Adjust the position with the joystick in the

centre.

3. Press the

L

 or

R

 button again. The light

should no longer be illuminated.

Folding in rearview mirrors
electrically

*

The mirrors can be retracted for parking/driv-
ing in narrow spaces.

1. Depress the

L

 and

R

 buttons simultane-

ously.

2. Release them after approximately 1 sec-

ond. The mirrors automatically stop in the
fully retracted position.

Fold out the mirrors by pressing down the

L

and

R

 buttons simultaneously. The mirrors

automatically stop in the extended position
with the previous setting.

Resetting to neutral

Mirrors that have been moved out of position
by an external force must be reset electrically
to their original position for electric retracting/
extending

*

 to work correctly.

1. Fold in the door mirrors by pressing down

the

L

 and

R

 buttons simultaneously.

2. Fold them out again by pressing the

L

and

R

 buttons simultaneously.

3. Repeat the above procedure as necessary.

The mirrors are returned to the original posi-
tion.

Angling during parking

3

A door mirror can be angled down for the
driver to view the side of the road when park-
ing, for example.

–

Engage reverse gear and press the

L

 or

R

button.

Note that the button may need to be pressed
twice, depending on whether it was already
preselected. The button flashes when the door
mirror is angled down. When reverse gear is
disengaged, the door mirror automatically
starts to return after approx. 3 seconds and
then reaches its original position after approx.
8 seconds.

Automatic angling during parking

3

With this setting, the door mirror is automati-
cally angled down when reverse gear is
selected. The folded position is preset and
cannot be adjusted.

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Mirrors and

Convenience

.

3

Only in combination with power seat with memory buttons

*

.

||

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

162

3. Under

Exterior Mirror Tilt at Reverse

,

select

Off

,

Driver

,

Passenger

 or

Both

 to

activate/deactivate and to select which
review mirror should be angled.

You can make the door mirror return to its
original position by pressing the

L

 or

R

 button

twice.

Automatic retraction when locking

*

In the centre display, you can set all the rear-
view and door mirrors to retract/extend auto-
matically when the car is locked/unlocked
using the key.

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Mirrors and

Convenience

.

3. Select

Fold Mirror When Locked

 to acti-

vate/deactivate.

NOTE

If you manually fold the mirrors with the

L

and

R

 buttons and then lock the car, they

will not fold out automatically when you
unlock the car, even if this setting has been
made. They must be manually folded out.

Related information

•

Rearview and door mirrors (p. 159)

•

Adjusting rearview mirror dimming
(p. 160)

•

Storing a position for seat and door mir-
rors (p. 176)

•

Activating and deactivating the heated
rear window and door mirrors (p. 205)

Panoramic roof

*

The panoramic roof is divided into two glass
sections. The front section can be opened
vertically at the rear edge (ventilation posi-
tion) or horizontally (open position). The rear
section is fixed roof glass.

The panoramic roof has a wind deflector and
a sun blind made of perforated fabric and
located under the glass roof to provide extra
protection from factors such as strong sun-
light.

The panoramic roof and sun blind are operated
with a control located in the roof.

In order that the panoramic roof and the sun
blind can be operated, the car's electrical sys-
tem must be in ignition position

I

 or

II

.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

163

WARNING

Children, other passengers or objects may

be trapped by the moving parts.

•

Always operate the windows with cau-
tion.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the
power supply to the power windows
by setting the car's electrical system in
ignition position

0

, and then take the

key with you when leaving the car.

•

Never put an object or part of the body
through the windows, even if the car's
electrical system is fully disconnected.

IMPORTANT

•

Do not open the panoramic roof when
load carriers are fitted.

•

Do not place any heavy objects on the
panoramic roof.

IMPORTANT

•

Remove ice and snow before opening
the panoramic roof. Take care not to
scratch surfaces or damage strips.

•

Do not operate the panoramic roof if it
has frozen closed.

Wind deflector

The panoramic roof has a wind deflector that
is raised when the panoramic roof is in the
open position.

Related information

•

Operating the panoramic roof

*

 (p. 164)

•

Automatic closing of the panoramic roof's

*

sun blind (p. 166)

•

Pinch protection for windows and sun
blinds (p. 156)

•

Keyless locking and unlocking

*

 (p. 257)

•

Locking and unlocking with the remote
control key (p. 228)
