(p. 266)

Road Sign Information and Sensus

Navigation

If the vehicle is equipped with Sensus
Navigation

, speed-related information will be

provided in the following situations:

•

In cases where the speed limit is given
indirectly, e.g. signs for highways or other
major roads.

•

If a previously detected speed sign is
deemed to be no longer valid and no new
sign has been passed.

In certain markets, the Road Sign Informa-
tion

function is only available in combina-

tion with Sensus Navigation

If a downloaded third-party app is used for
navigation, there is no support for speed-
related information.

Related information

•

Speed limit and speed camera

warnings from Road Sign

Information

There are subfunctions for Road Sign Infor-
mation (RSI

) that can alert the driver if the

speed limit has been exceeded or if there are
speed cameras nearby.

Example of speed camera and speed limit informa-

tion in the instrument panel

Speed limit warning

When Speed Warning is acti-
vated, the symbol for the cur-
rent speed limit in the instru-
ment panel

will flash tem-

porarily if that speed is excee-
ded.

Only vehicles with Sensus Navigation

Road Sign Information

Road signs differ by market – the illustration shown here is just an example.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

265

The driver can be alerted if the vehicle is
exceeding a detected speed limit and is
approaching a speed camera.

Speed Limit Warning

warns the driver if the

vehicle's speed has exceeded the applicable
speed limit or the stored maximum speed. The
warning will be repeated once after
about 30 seconds in that speed limit area if
the driver does not slow down.

An additional warning will not be provided
unless the vehicle's speed is reduced by at
least 5 km/h (3 mph) and then exceeds the
speed limit again or the vehicle enters a new/
different speed limit area.

For an audible alert to be provided if the
speed is exceeded, the

Speed Limit

Warning

function must be activated and

the

Road Sign Audio Warning

sub-func-

tion must be

. Audible alerts are provi-

ded if the vehicle's speed exceeds the
speed displayed by Road Sign Information
in the instrument panel.

Speed camera warning

Vehicles equipped with Road
Sign Information and Sensus
Navigation can provide infor-
mation on upcoming speed
cameras in the instrument
panel

If the vehicle exceeds a detected speed limit
with the

Speed Limit Warning

function acti-

vated, the driver is given a speed warning
when the vehicle is approaching a speed cam-
era if the navigation map for the vehicle's cur-
rent location contains information on speed
cameras.

It is possible to receive an audible alert for
speed cameras regardless of the vehicle's
speed and whether or not the speed limit is
exceeded, even if the

Road Sign Audio

Warning

function is deactivated.

Related information

•

Activating or deactivating warnings from
Road Sign Information

•

(p. 265)

•

(p. 266)

Activating or deactivating

warnings from Road Sign

Information

The Road Sign Information (RSI

) subfunc-

tion

Speed Limit Warning

is optional – the

driver can choose to have the subfunction
activated or deactivated.

Activating Speed Warning

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the center

display's Top view.

2. Select

Speed Limit Warning

> The function is activated and a speed

limit selector is displayed.

Adjusting the Speed Warning limit

The driver can adjust the settings to be alerted
at a higher speed than the posted speed limit.

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the center

display's Top view.

2. Select

Speed Limit Warning

> The function is activated and a speed

limit selector is displayed.

Information on speed cameras on the navigation map is not available for all markets/areas.

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

266

3. Tap the up/down arrows on the screen to

adjust the speed at which the Speed
Warning will be given.

Please note that the set
warning limit will not be used
when a speed camera symbol
is displayed in the instrument
panel.

Activating audible alert for Speed
Warning

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the center

display's Top view.

2. Select/deselect

Road Sign Audio

Warning

to activate/deactivate the audi-

ble alert.

When

Road Sign Audio Warning

is acti-

vated, the driver will also be alerted if the vehi-
cle is approaching a one-way/"no-entry" road
or entrance.

Activating speed camera alerts

If the vehicle is equipped with Sensus
Navigation

and map data contains informa-

tion on speed cameras, the driver can choose
to receive an audible alert if the vehicle is
approaching a speed camera.

1. Select

Settings

My Car

IntelliSafe

Road Sign Information

in the center

display's Top view.

2. Select/deselect

Speed Camera Audio

Warning

to activate/deactivate the speed

camera audible alert.

Related information

•

Speed limit and speed camera warnings
from Road Sign Information

•

(p. 264)

•

(p. 266)

Road Sign Information

limitations

Road Sign Information (RSI

) functionality

may be reduced in certain situations.

The function could have reduced functionality
due to e.g.:

•

faded road signs

•

signs located in a curve in the road

•

twisted or damaged signs

•

signs positioned high above the road

•

fully/partially obstructed or poorly posi-
tioned signs

•

signs partially or fully covered by frost,
snow and/or dirt

•

digital road maps

that are outdated,

incorrect or do not contain speed informa-
tion

In certain markets, the Road Sign Informa-
tion

function is only available in combina-

tion with Sensus Navigation

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

267

Certain types of bike carriers that are con-
nected to the trailer socket may be inter-
preted as a connected trailer by the RSI
function. In such cases, the instrument
panel may indicate incorrect speed infor-
mation.

The function uses the vehicle's camera and
radar sensor, which has certain general
limitations.

Related information

•

Camera/radar sensor limitations (p. 362)

•

Cruise control

Cruise Control (CC

) can help the driver

maintain an even speed to provide a more
relaxing driving experience on highways and
long, straight roads with even traffic flows.

Function buttons and symbols

: Activates Cruise Control from

standby mode and resumes the set speed

: Increases the set speed

From standby mode

– activates

Cruise Control and sets the current speed

From active mode

– deactivates/

puts Cruise Control in standby mode

: Reduces the set speed

Marker for set speed

The vehicle's current speed

Set speed

Driver support systems (p. 254)

In vehicles equipped with Adaptive Cruise
Control

(ACC

), it is possible to switch

between Cruise Control and Adaptive
Cruise Control.

Vehicles equipped with Sensus Navigation

Map data and speed information is not available for all areas.

Cruise Control

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

268

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and help make it safer – it cannot han-
dle all situations in all traffic, weather
and road conditions.

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgment. The driver is always respon-
sible for ensuring the vehicle is driven
in a safe manner, at the appropriate
speed, with an appropriate distance to
other vehicles, and in accordance with
current traffic rules and regulations.

Using engine braking instead of
applying the brakes

Cruise Control regulates speed by lightly
applying the brakes. On downgrades, it can
sometimes be desirable to roll a bit faster and
let speed be reduced instead by engine brak-
ing alone. The driver can temporarily disen-
gage the Cruise Control braking function.

To disengage CC:

–

Press the accelerator pedal about halfway
down and then release it.
> Cruise Control will automatically disen-

gage the automatic brake function and
speed will only be reduced using the
engine braking function.

Related information

•

•

Selecting and activating cruise control
(p. 268)

•

Deactivating cruise control (p. 269)

•

Cruise control standby mode (p. 270)

•

Adjusting set speed for driver support
(p. 294)

•

Switching between cruise control and
Adaptive Cruise Control

Selecting and activating cruise

control

The Cruise Control (CC

) function must be

selected and activated in order to regulate
speed.

In order to start Cruise Control from standby
mode, the vehicle's current speed must be
30 km/h (20 mph) or higher.

1. Press the

◀

(1) or

▶

(3) button on the

steering wheel keypad and scroll to the

cruise control symbol

(4).

> Gray symbol – cruise control is in

standby mode.

Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

269

2. When cruise control is selected, press

(2) on the steering wheel keypad to acti-
vate.
> White symbol – cruise control starts

and the current speed is stored as the
maximum speed. The lowest speed
that can be set is 30 km/h (20 mph).

Reactivating cruise control to the last
stored speed

–

When cruise control is selected, press
on the steering wheel keypad to activate.
> The Cruise Control marking in the

instrument panel will change from
GRAY to WHITE and the vehicle will
then return to the most recently set
speed.

WARNING

A noticeable increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Deactivating cruise control (p. 269)

•

•

Cruise control standby mode (p. 270)

Deactivating cruise control

Cruise control (CC

) can be deactivated and

switched off.

1. Press the

button on the steering

wheel (2).
> The symbol and markings turn gray –

cruise control goes into standby mode.

2. Press the

◀

(1) or

▶

(3) buttons on the

steering wheel to select another function.
> The cruise control symbol and marking

(4) in the instrument panel will go out
and the stored maximum speed will be
erased.

Related information

•

Switching between cruise control and
Adaptive Cruise Control

•

Selecting and activating cruise control
(p. 268)

•

•

Cruise control standby mode (p. 270)

Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

270

Cruise control standby mode

Cruise control (CC

) can be deactivated and

put in standby mode. This may happen auto-
matically or be due to driver intervention.

Standby mode means that the function is
selected in the instrument panel but not acti-
vated. In standby mode, cruise control will not
regulate speed.

Standby mode due to action by the
driver

Cruise control will be deactivated and put in
standby mode if any of the following occurs:

•

The brakes are applied.

•

The gear selector is moved to

•

The vehicle is driven faster than the set
speed for more than 1 minute.

The driver must then control the vehicle's
speed.

Temporarily increasing speed using the accel-
erator pedal, e.g. when passing another vehi-
cle, will not affect the setting. The vehicle will
return to the set speed when the accelerator
pedal is released.

Automatic standby mode

The function may automatically go into
standby mode if one of the following occurs:

•

The wheels lose traction.

•

The engine speed (rpm) is too low/high.

•

The temperature in the brake system
becomes too high.

•

The vehicle's speed goes below 30 km/h
(20 mph).

The driver must then control the vehicle's
speed.

Related information

•

Selecting and activating cruise control
(p. 268)

•

•

Deactivating cruise control (p. 269)

Adaptive Cruise Control

Adaptive Cruise Control (ACC

) can help the

driver to maintain a constant speed, com-
bined with a preset time interval to the vehi-
cle in front.

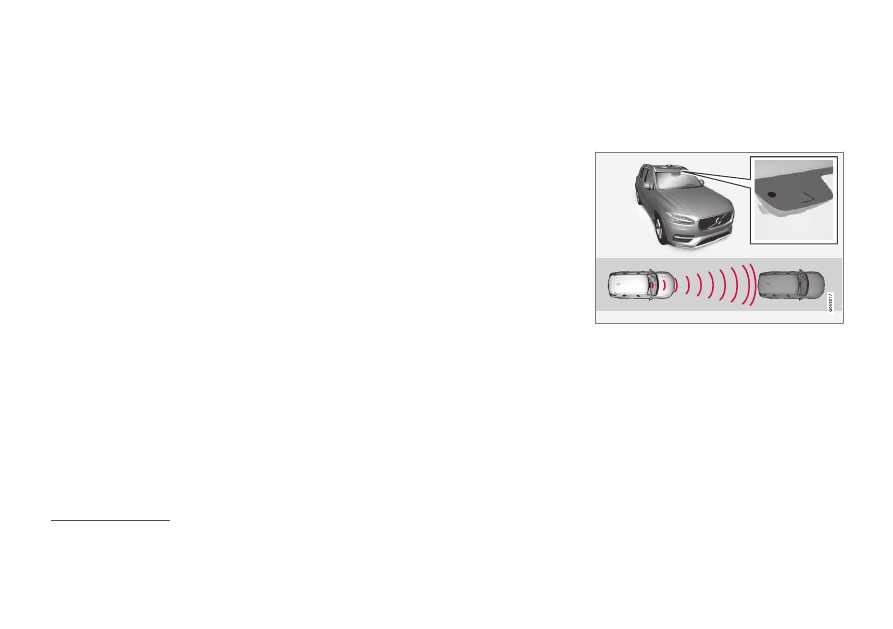

The camera/radar sensor measures the distance to

the vehicle ahead.

Adaptive Cruise Control can help provide a
more relaxed driving experience on long trips
on highways or long, straight roads with even
traffic flows.

The driver sets a speed and a time interval to
the vehicle ahead. If the camera/radar sensor
detects a slower-moving vehicle ahead, your
vehicle's speed will be automatically adapted
according to the set time interval to that vehi-

Cruise Control

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

271

cle. When there are no longer slower-moving
vehicles ahead, the vehicle will return to the
set speed.

Adaptive Cruise Control is designed to:

•

smoothly regulate speed. The driver must
apply the brakes in situations requiring
immediate braking. For example, when
there are great differences in speed
between vehicles or if the vehicle ahead
brakes suddenly. Due to limitations in the
radar sensor, braking may occur unexpect-
edly or not at all.

•

follow a vehicle ahead in the same lane
and maintain a time interval to that vehicle
set by the driver. If the radar sensor does
not detect a vehicle ahead, it will instead
maintain the speed set by the driver. This
will also happen if the speed of the vehicle
ahead exceeds the set speed for your vehi-
cle.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and help make it safer – it cannot han-
dle all situations in all traffic, weather
and road conditions.

•

CAUTION

Only a workshop may perform mainte-
nance on driver support components – an
authorized Volvo workshop is recom-
mended.

Related information

•

Driver support systems (p. 254)

•

controls (p. 272)

•

Selecting and activating Adaptive Cruise
Control

displays (p. 272)

•

(p. 273)

•

Symbols and messages for Adaptive
Cruise Control

•

(p. 278)

•

Collision risk warning from driver support
(p. 293)

•

Setting time interval to the vehicle ahead
(p. 295)

•

Adjusting set speed for driver support
(p. 294)

•

Auto-hold braking with driver support
(p. 297)

•

Switching target vehicles with driver sup-
port (p. 294)

•

Passing assistance

(p. 292)

•

Contacting Volvo (p. 26)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

272

Adaptive Cruise Control

controls

A summary of how Adaptive Cruise Control
(ACC

) is controlled using the left-side steer-

ing wheel keypad and how the function is
shown in the display.

From standby mode

- activates and

sets the current speed

From active mode

- deactivates/

puts in standby mode

: Activates the function from standby

mode and resumes the set speed

: Increases the set speed

: Reduces the set speed

Increases the time interval to the vehicle
ahead
Reduces the time interval to the vehicle
ahead
Target vehicle indicator: the function has
detected and is following a target vehicle
using the set time interval
Symbol for time interval to the vehicle
ahead

Related information

•

•

Adaptive Cruise Control

displays

The following illustrations show how Adap-
tive Cruise Control (ACC

) can appear in the

various displays in different situations.

Speed

Speed indicators

Set speed

Speed of the vehicle ahead

The current speed of your vehicle

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

273

Time interval

Adaptive Cruise Control will
only regulate the time interval
to the vehicle ahead when
the distance symbol shows
two vehicles. A speed interval
will be marked at the same
time.

When driving

In the following illustration, Road Sign Infor-
mation

(RSI

) indicates that the maximum

permitted speed is 130 km/h (80 mph).

The previous illustration shows that Adaptive
Cruise Control is set to maintain a speed of
110 km/h (68 mph) and that there is no target
vehicle ahead to follow.

The previous illustration shows that Adaptive
Cruise Control is set to maintain a speed of
110 km/h (68 mph) and is following a target
vehicle ahead, which is traveling at the same
speed.

Related information

•

•

Selecting and activating Adaptive

Cruise Control

Adaptive Cruise Control (ACC

) must first be

selected and then activated before it can reg-
ulate speed and distance.

To start the function:

•

The driver's seat belt must be buckled and
the driver's door must be closed.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or

Adaptive Cruise Control

Road Sign Information

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

274

your vehicle's current speed must be at
least 15 km/h (9 mph).

1. Press the

◀

(2) or

▶

(3) button on the

steering wheel keypad and scroll to the
Adaptive Cruise Control symbol

(4).

> Gray symbol – Adaptive Cruise Control

is in standby mode.

2. When Speed Limiter is selected, press

(1) on the steering wheel keypad to

activate.
> White symbol – Speed Limiter starts

and the current speed is stored as the
maximum speed.

Reactivating Adaptive Cruise Control
to the last stored speed

–

When Adaptive Cruise Control is selected,
press

on the steering wheel keypad to

activate.
> The Cruise Control marking in the

instrument panel will change from
GRAY to WHITE and the vehicle will
then return to the most recently set
speed.

WARNING

A noticeable increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Deactivating Adaptive Cruise Control

•

(p. 274)

•

Switching between cruise control and
Adaptive Cruise Control

•

Deactivating Adaptive Cruise

Control

Adaptive Cruise Control (ACC

) can be deac-

tivated and switched off.

1. Press the

button on the steering

wheel (1).
> The symbol and markings turn gray –

Adaptive Cruise Control goes into
standby mode. The time interval indica-
tor light and any symbols for the target
vehicle will go out.

Adaptive Cruise Control

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

275

2. Press the

◀

(2) or

▶

(3) buttons on the

steering wheel to select another function.
> The Adaptive Cruise Control symbol

and marking (4) in the instrument panel
will go out and the stored maximum
speed will be erased.

WARNING

•

If Adaptive Cruise Control is in standby
mode, the driver must intervene and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Adaptive Cruise Con-
trol is in standby mode, the driver can
be warned of the short distance by the
Distance Alert

function.

Related information

•

Selecting and activating Adaptive Cruise
Control

•

(p. 273)

•

Switching between cruise control and
Adaptive Cruise Control

•

Adaptive Cruise Control

standby

mode

Adaptive Cruise Control (ACC

) can be deac-

tivated and put in standby mode. This may
happen automatically or be due to driver
intervention.

Standby mode means that the function is
selected in the instrument panel but not acti-
vated. In standby mode, Adaptive Cruise Con-
trol will not regulate speed or distance to the
vehicle ahead.

Standby mode due to action by the
driver

Adaptive Cruise Control will be deactivated
and put in standby mode if any of the follow-
ing occurs:

•

The brakes are applied.

•

The gear selector is moved to

•

The vehicle is driven faster than the set
speed for more than 1 minute.

WARNING

•

If Adaptive Cruise Control is in standby
mode, the driver must intervene and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Adaptive Cruise Con-
trol is in standby mode, the driver can
be warned of the short distance by the
Distance Alert

function.

Automatic standby mode

WARNING

With automatic standby mode, the driver is

warned by an acoustic signal and a mes-

sage on the instrument panel.

•

The driver must then regulate vehicle
speed, apply the brakes if necessary,
and maintain a safe distance to other
vehicles.

The function may automatically go into
standby mode if one of the following occurs:

•

One of the systems that Adaptive Cruise
Control is dependent on stops working,

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

276

such as Electronic Stability Control
(ESC

•

The driver opens the door.

•

The driver unbuckles the seat belt.

•

The engine speed (rpm) is too low/high.

•

One or more of the wheels lose traction.

•

The brake temperature is high.

•

The parking brake is applied.

•

The camera and radar unit is covered by
snow or heavy rain (the camera lens/radar
waves are blocked).

•

Your vehicle's speed goes below 5 km/h
(3 mph) and ACC cannot determine if the
vehicle ahead is stationary or if it is
another object, e.g. a speed bump.

•

Your vehicle's speed goes below 5 km/h
(3 mph) and the vehicle ahead turns so
that ACC no longer has a vehicle to follow.

Related information

•

Selecting and activating Adaptive Cruise
Control

•

(p. 273)

•

Deactivating Adaptive Cruise Control

(p. 274)

•

Adaptive Cruise Control

limitations

Adaptive Cruise Control (ACC

) may have

limited functionality in certain situations.

Steep roads and/or heavy loads

Adaptive Cruise Control is primarily intended
to be driven on flat roads. The function may
not be able to maintain the correct time inter-
val to the vehicle ahead when driving down
steep hills. The driver should be extra attentive
and prepared to apply the brakes.

Do not use Adaptive Cruise Control if the vehi-
cle is carrying a heavy load or towing a trailer.

Drive mode unavailable

The

Off Road

drive mode cannot be selected

if Adaptive Cruise Control is activated.

WARNING

•

This is not a collision avoidance sys-
tem. The driver is always responsible
and must intervene if the system fails
to detect a vehicle ahead.

•

The function does not brake for people
or animals and does not brake for small
vehicles, such as bikes and motorcy-
cles. Similarly, it does not brake for low
trailers, oncoming, slow-moving or sta-
tionary vehicles and objects.

•

Do not use the function in demanding
situations, such as in city traffic, at
intersections, on slippery surfaces,
with a lot of water or slush on the road,
in heavy rain/snow, in poor visibility, on
winding roads, or on on/off ramps.

The function uses the vehicle's camera and
radar sensor, which has certain general
limitations.

Related information

•

Camera/radar sensor limitations (p. 362)

•

Electronic Stability Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

277

Switching between cruise control

and Adaptive Cruise Control

the center display

When the regular cruise control (CC

) is

selected in the instrument panel, you can
switch to Adaptive Cruise Control (ACC

) in

the center display's Function view.

Activate or deactivate the
function using this button in
the center display's Function
view.

•

GREEN button indicator light – Adaptive
Cruise Control is deactivated and the reg-
ular cruise control is in standby mode.

•

GRAY button indicator light – regular
cruise control is deactivated and the
Adaptive Cruise Control is in standby
mode.

A symbol in the instrument panel indicates
which cruise control system is active

Cruise control

(CC)

Adaptive Cruise

Control (ACC)

WHITE symbol: The function is active. GRAY symbol:

Standby mode

Related information

•

•

Adaptive Cruise Control

Depending on market, this function can be either standard or optional.

Cruise Control

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

279

Symbol

Message

Meaning

The symbol is WHITE

The vehicle is maintaining the stored speed.

Adaptive Cruise Contr.

Unavailable

The symbol is GRAY

Adaptive Cruise Control is in standby mode.

Adaptive Cruise Contr.

Service required

The symbol is GRAY

The system is not functioning as intended. Contact a workshop

‒

an authorized Volvo

workshop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

Clean the windshield in front of the camera and radar sensors.

A text message can be erased by briefly press-
ing the

button in the center of the right-

side steering wheel keypad.

If the message persists: Contact a workshop

‒

an authorized Volvo workshop is recom-
mended.

Related information

•
