Filling washer fluid (p. 666)

•

Replacing windscreen wiper blades
(p. 664)

•

Replacing the wiper blade, rear window
(p. 663)

•

Using windscreen wipers (p. 178)

•

Wiper blades and washer fluid (p. 177)

Filling washer fluid

Washer fluid is used for cleaning the head-
lamps as well as the windscreen and rear
window. Washer fluid with antifreeze must
be used when the temperature is under the
freezing point.

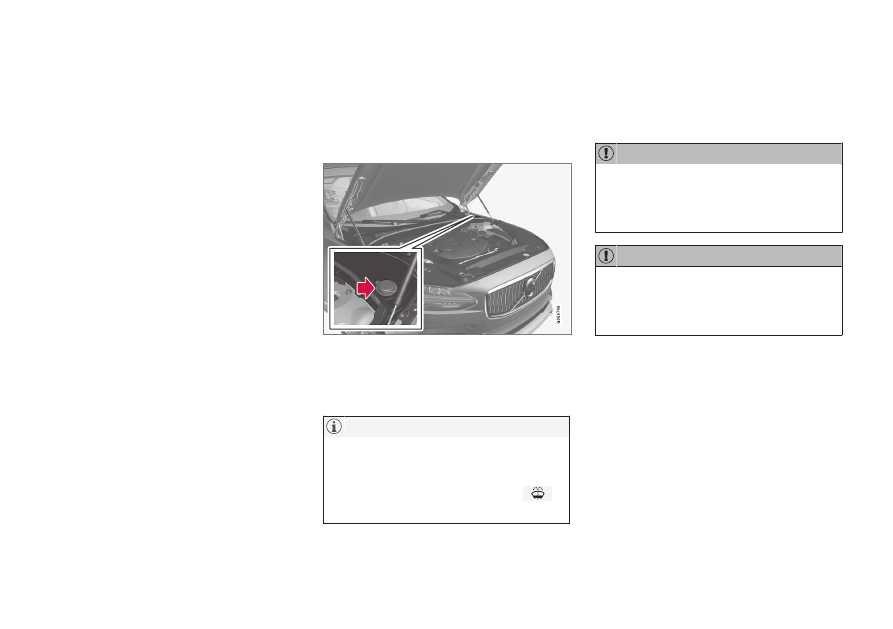

Washer fluid is filled into the reservoir with the
blue cap. The reservoir is used for windscreen
washer, rear window washer and headlamp
washers

*

NOTE

When approx. 1 litre (1 qt) of washer fluid
remains in the reservoir, the message

Washer fluid



Level low, refill

 is shown in

the driver display, together with the
symbol.

Prescribed grade:

 Washer fluid recom-

mended by Volvo – with frost protection dur-
ing cold weather and for temperatures below
freezing point.

IMPORTANT

Use Volvo genuine washer fluid or equiva-
lent with a recommended pH of between 6
and 8, in working dilution (e.g. 1:1 with
neutral water).

IMPORTANT

Use washer fluid with antifreeze when the
temperature is below freezing to avoid the
fluid freezing inside the pump, reservoir
and hoses.

Volume:

•

Cars

with

 headlamp washing: 5.5 litres

(5.8 qts).

•

Cars

without

 headlamp washing: 3.5

litres (3.7 qts).

Related information

•

Using the rain sensor (p. 179)

•

Using windscreen and headlamp washers
(p. 180)

•

Using automatic rear windscreen wiping
when reversing (p. 182)

MAINTENANCE AND SERVICE

667

•

Activating and deactivating the rain sen-
sor's memory function (p. 180)

•

Using the rear window wiper and rear
window washer (p. 181)

•

Set the wiper blades in service position
(p. 665)

•

Replacing windscreen wiper blades
(p. 664)

•

Replacing the wiper blade, rear window
(p. 663)

•

Using windscreen wipers (p. 178)

•

Wiper blades and washer fluid (p. 177)

•

Opening and closing the bonnet (p. 619)

SPECIFICATIONS

670

Type designations

The decals in the car contain information
such as chassis number, type designation,
colour code, etc.

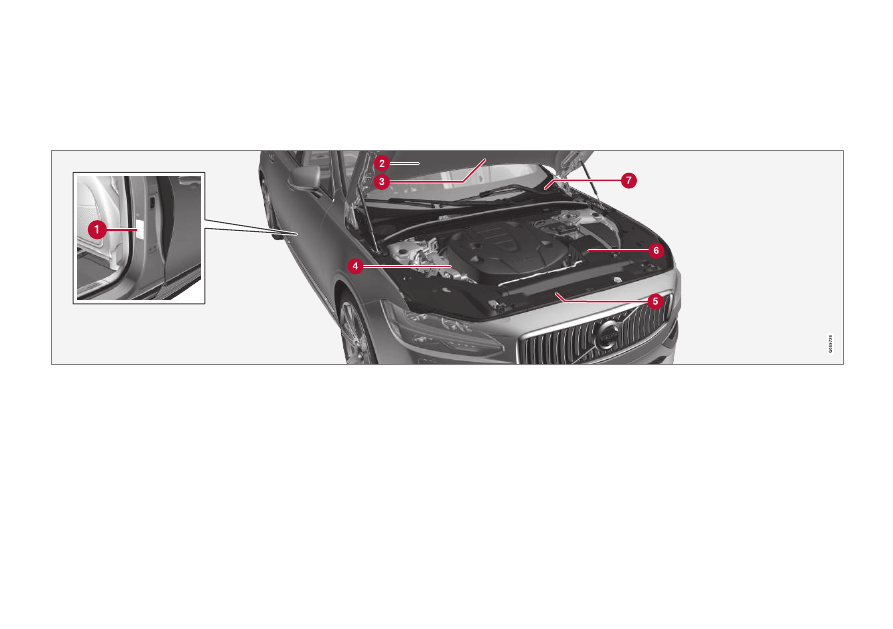

Label location

The illustration is schematic - details may vary depending on market and model.

Knowing the car's type designation, vehicle
identification and engine numbers can facili-
tate all contact with an authorised Volvo
dealer regarding the car and when ordering
spare parts and accessories.

SPECIFICATIONS

}}

671

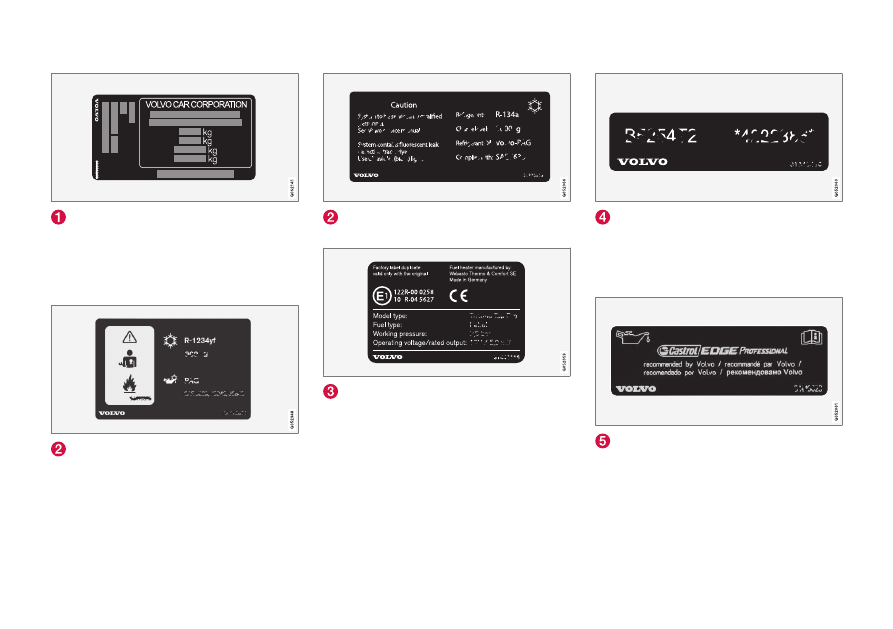

 Decal for type designation, vehicle identifi-

cation number, permissible maximum weights
and code designation for exterior colour and
type approval number. The decal is positioned
on the door pillar, and will be visible when the
right-hand rear door is opened.

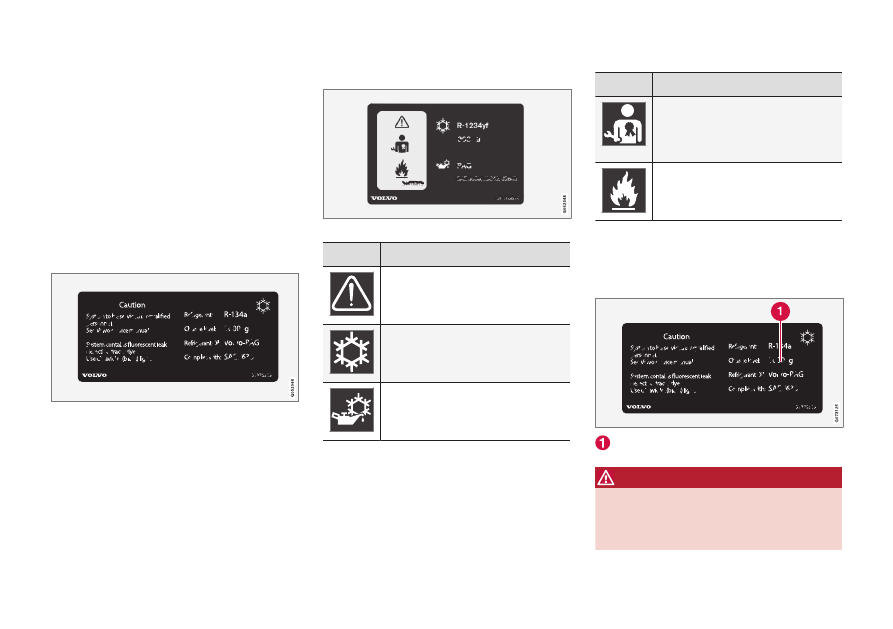

 Decal for A/C system for cars with refriger-

ant R1234yf.

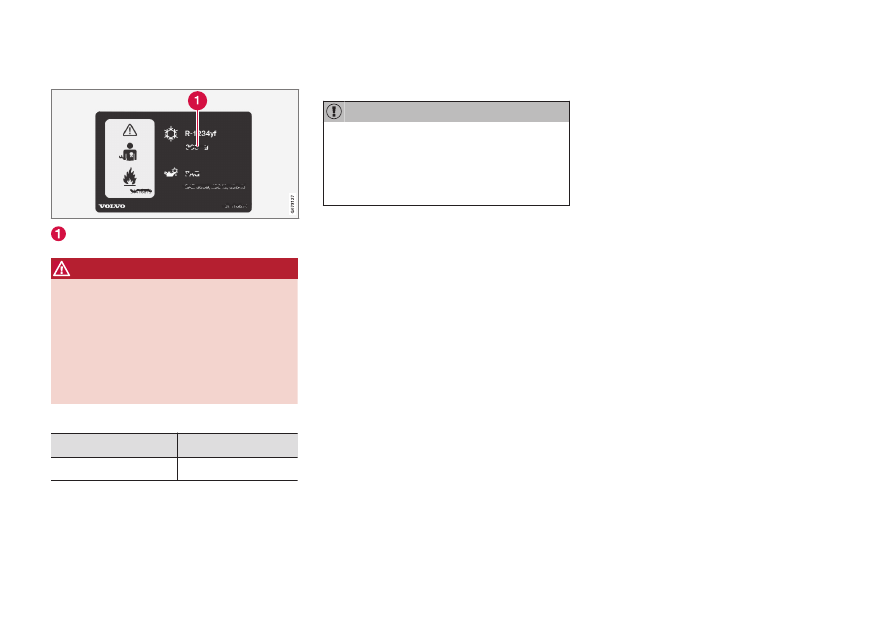

 Decal for A/C system for cars with refriger-

ant R134a.

 Label for parking heater.

 Decal for engine code and the engine's

serial number. For certain engine alternatives
there is no decal. In these cases, the engraved
engine code can be read directly on the engine
instead.

 Label for engine oil.

||

SPECIFICATIONS

672

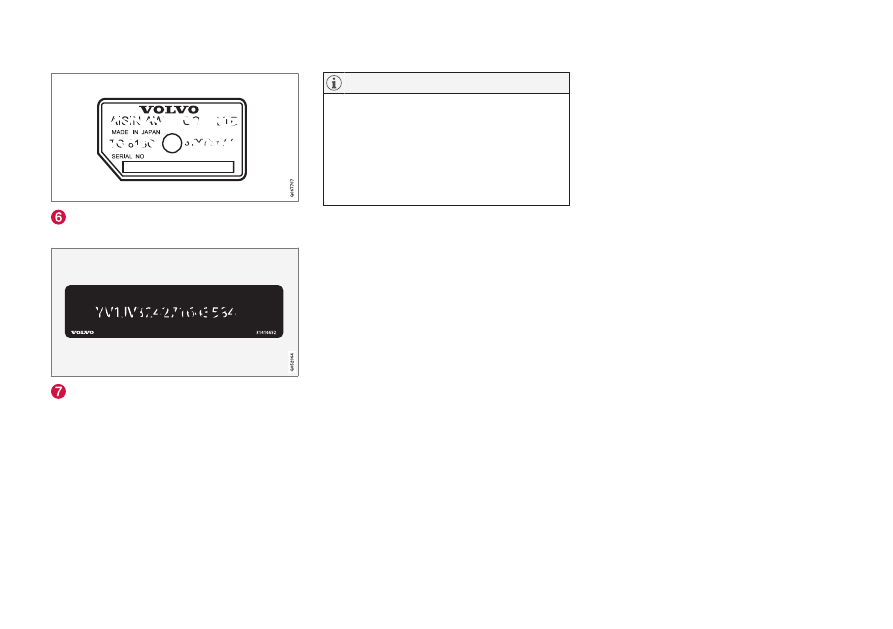

 Decal for gearbox type designation and

serial number.

 Decal for the car's identification number -

VIN (Vehicle Identification Number).

Further information on the car is presented in
the registration document.

NOTE

It is not intended that the decals illustrated
in the owner's manual should be exact rep-
licas of those in the car. They are included
to show their approximate appearance and
locations in the car. The information that
applies to your particular car can be found
on the decal on the car.

Related information

•

Air conditioning — specifications (p. 682)

SPECIFICATIONS

}}

673

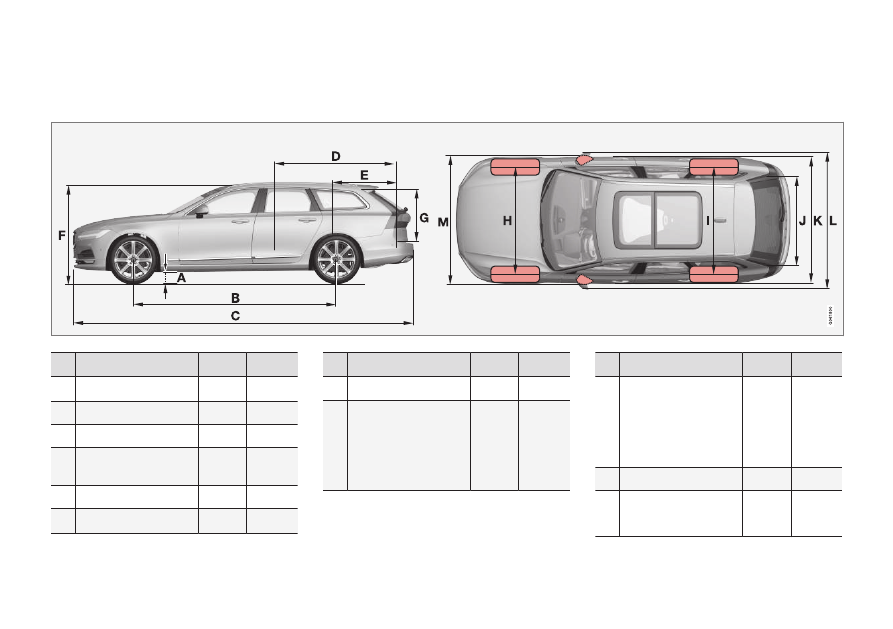

Dimensions

Measurement of car length, height, etc. can
be read in the table.

Dimensions

mm

inches

A

Ground clearance

A

150

5,9

B

Wheelbase

2941

115.8

C

Length

4945

194,7

D

Load length, floor,
folded seat

1988

78.3

E

Load length, floor

1153

45.4

F

Height

B

1478

58.2

Dimensions

mm

inches

G

Load height

704

27.7

H

Front track

1628

C

1618

D

1617

E

1623

F

64.1

C

63.7

D

63.7

E

63.9

F

Dimensions

mm

inches

I

Rear track

1629

C

1619

D

1618

E

1624

F

64.1

C

63.7

D

63.7

E

63.9

F

J

Load width, floor

1130

44.5

K

Width

1879

G

1890

H

74.0

G

74.4

H

||

SPECIFICATIONS

674

Dimensions

mm

inches

L

Width including
door mirrors

2019

79.5

M Width including

folded-in door mir-
rors

1895

74.6

A

At kerb weight plus 1 person. (Varies slightly depending on

tyre dimension, chassis option, etc.)

B

Including roof antenna, for kerb weight.

C

Applies to cars with 17/18 inch wheels.

D

Applies to cars with 19 inch wheels.

E

Applies to cars with 20 inch wheels.

F

Applies to cars with 21 inch wheels.

G

Body width.

H

At door mouldings.

Related information

•

Weights (p. 675)

SPECIFICATIONS

675

Weights

Max. gross vehicle weight, etc. can be read
on a label in the car.

Kerb weight includes the driver, the fuel tank
90% full, plus and all oils and fluids.

The weight of passengers and accessories,
and towball load (when a trailer is hitched)
influence the load capacity and are not
included in the kerb weight.

Permitted max. load = Gross vehicle weight -
Kerb weight.

NOTE

The documented kerb weight applies to
cars in the standard version - i.e. a car
without extra equipment or accessories.
This means that for every accessory added
the loading capacity of the car is reduced
correspondingly by the weight of the
accessory.

Examples of accessories that reduce load
capacity are the different equipment levels
(e.g. Kinetic, Momentum, Summum), as
well as other accessories such as towbar,
load carrier, space box, audio system, auxil-
iary lamps, GPS, fuel-driven heater, safety
grille, carpets, cargo cover, power seats,
etc.

Weighing the car is a certain way of ascer-
taining the kerb weight of your own partic-
ular car.

WARNING

The car's driving characteristics change

depending on how heavily it is loaded and

how the load is distributed.

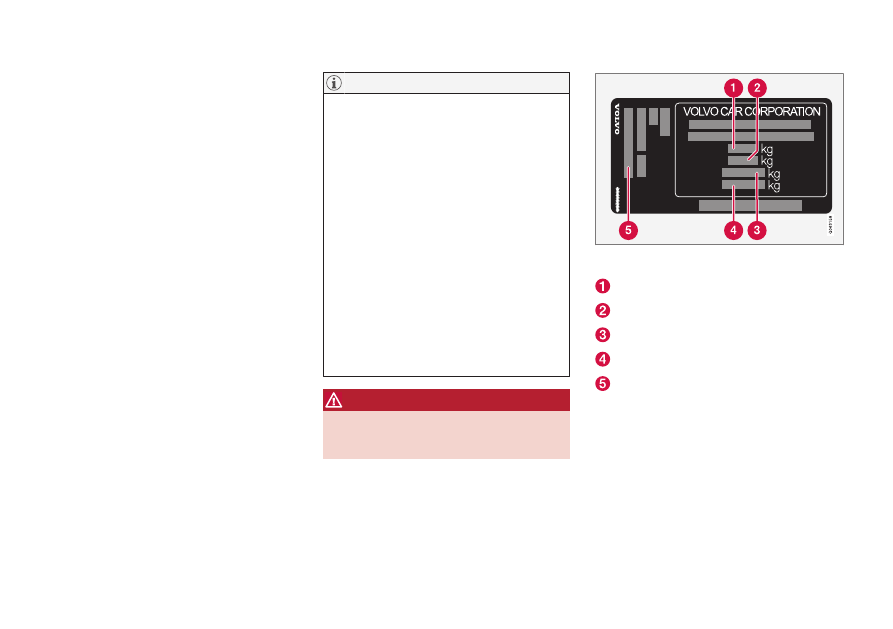

The decal is positioned on the door pillar, and will be

visible when the right-hand rear door is opened.

Max. gross vehicle weight

Max. train weight (car+trailer)

Max. front axle load

Max. rear axle load

Equipment level

Max. load: See registration document.

Max. roof load: 100 kg.

Related information

•

Type designations (p. 670)

•

Towing capacity and towball load
(p. 676)

SPECIFICATIONS

676

Towing capacity and towball load

Towing capacity and towball load for driving
with a trailer can be read in the tables.

Max. weight braked trailer

NOTE

Use of vibration dampers on the towbar is
recommended for trailers heavier than
1800 kg.

Engine

Engine code

A

Gearbox

Max. weight braked trailer (kg)

Max. towball load (kg)

T6 Recharge

B4204T46

Automatic

2100

100

T8 Recharge

B4204T34

Automatic

2100

100

T8 Recharge

B4204T28

Automatic

2100

100

A

The engine code, component number and serial number can be found on the engine.

IMPORTANT

When driving with a trailer, it is permitted
to exceed the vehicle's gross vehicle
weight (including towball load) by a maxi-
mum of 100 kg (220 lbs), provided that
speed is limited to 100 km/h (62 mph).
National legal requirements for the vehicle
combination, such as speed, etc. must be
observed.

NOTE

If there is no weight data in the table, this
is available in an enclosed supplement.

SPECIFICATIONS

* Option/accessory.

677

Max. weight unbraked trailer

Max. weight unbraked trailer (kg)

Max. towball load (kg)

750

50

Related information

•

Type designations (p. 670)

•

Weights (p. 675)

•

Driving with a trailer (p. 497)

•

Trailer stability assist

*

 (p. 499)

SPECIFICATIONS

678

Engine specifications

Engine specifications (power, etc.) for each
respective engine alternative can be found in
the table below.

The Recharge variant is driven both by a pet-
rol engine and an electric drive motor (ERAD
– Electric Rear Axle Drive).

NOTE

Not all engines are available in all markets.

NOTE

If there is no engine data in the table, this
is available in an enclosed supplement.

Engine

Engine code

A

Output

(kW/rpm)

Output

(hp/rpm)

Torque

(Nm/rpm)

No. of cylinders

T6 Recharge

B4204T46

186/5500

253/5500

350/1700–5000

4

T8 Recharge

B4204T34

223/6000

303/6000

400/2200–4800

4

T8 Recharge

B4204T28

233/6000

318/6000

400/2200-5400

4

A

The engine code, component number and serial number can be found on the engine.

Electric drive motor

Max. power output:

 65 kW (87 hp).

Torque:

 240 Nm.

Related information

•

Type designations (p. 670)

•

Engine oil — specifications (p. 679)

SPECIFICATIONS

679

Engine oil — specifications

Engine oil grade and volume for each respec-
tive engine alternative can be read in the
table.

Volvo recommends:

Engine

Engine code

A

Oil grade

Volume, incl. oil filter

(litres, approx.)

T6 Recharge

B4204T46

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

5.6

T8 Recharge

B4204T34

Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20

5.6

T8 Recharge

B4204T28

5.6

A

The engine code, component number and serial number can be found on the engine.

Related information

•

Type designations (p. 670)

•

Adverse driving conditions for engine oil
(p. 680)

•

Checking and filling with engine oil
(p. 623)

•

Engine oil (p. 621)

SPECIFICATIONS

680

Adverse driving conditions for

engine oil

Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consump-
tion. Below are some examples of adverse
driving conditions.

Check the oil level more frequently for long
journeys:

•

towing a caravan or trailer

•

in mountainous regions

•

at high speeds

•

in temperatures colder than -30 °C
(-22 °F) or hotter than +40 °C (+104 °F).

The above also apply to shorter driving dis-
tances at low temperatures.

Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.

Volvo recommends:

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard
to service life, starting characteristics, fuel
consumption and environmental impact.

An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise there is a risk of the service life,
starting characteristics, fuel consumption
and environmental impact of the car being
affected.

If engine oil of the prescribed grade and
viscosity is not used, engine related com-
ponents may become damaged. Volvo dis-
claims any liability for any such damage.

Volvo recommends that oil changes are
carried out at an authorised Volvo work-
shop.

Related information

•

Engine oil — specifications (p. 679)

•

Engine oil (p. 621)

SPECIFICATIONS

681

Transmission fluid – specifications

Under normal driving conditions, the trans-
mission fluid does not need to be changed
during the service life of the gearbox. How-
ever, it may be necessary in adverse driving
conditions.

Automatic gearbox

Prescribed transmission fluid:

AW-1

Related information

•

Type designations (p. 670)

Brake fluid – specifications

Brake fluid is the medium in a hydraulic brake
system that is used to transfer pressure from
e.g. a brake pedal via a master brake cylinder,
which in turn acts on the brake callipers.

Prescribed grade:

 Volvo Original or equiva-

lent fluid compliant with a combination of
Dot 4, 5.1 and ISO 4925 class 6.

NOTE

It is recommended that brake fluid is
changed or filled by an authorised Volvo
workshop.

Related information

•

Engine compartment overview (p. 620)

Fuel tank - volume

The fuel tank's filling capacity can be read in
the table below.

All models

Litres (approx)

60

US gallons (approx)

15.9

Related information

•

Filling fuel (p. 486)

SPECIFICATIONS

682

Air conditioning — specifications

The car's climate control system uses a freon-
free refrigerant either R1234yf or R134a
depending on market. Information about
which refrigerant the car's climate control
system uses is printed on a decal located on
the inside of the bonnet.

Prescribed grades and volumes of fluids and
lubricants in the air conditioning system can
be read below.

A/C decal

Decal for R134a

Decal for R1234yf

Symbol explanation R1234yf

Symbol Meaning

Caution

Mobile air conditioning system
(MAC)

Lubricant type

Symbol Meaning

A trained and certified technician
is required in order to service the
mobile air conditioning system
(MAC)

Flammable refrigerants

Refrigerant

Refrigerant amount is printed on the decal
located on the inside of the bonnet.

Cars with R134a refrigerant

Refrigerant amount.

WARNING

The air conditioning system contains pres-

surised refrigerant R134a. This system

must only be serviced and repaired by an

authorised workshop.

SPECIFICATIONS

683

Cars with R1234yf refrigerant

Refrigerant amount.

WARNING

The air conditioning system contains pres-

surised refrigerant R1234yf. In accordance

with SAE J2845 (Technician Training for

Safe Service and Containment of Refriger-

ants Used in Mobile A/C System), service

and repair of the refrigerant system must

only be performed by trained and certified

technicians in order to ensure the safety of

the system.

Compressor oil

Volume

Prescribed grade

100 ml (3.38 fl. oz.)

PAG SP-A2

Evaporator

IMPORTANT

The A/C system's evaporator must never
be repaired or replaced with a previously
used evaporator. A new evaporator must
be certified and labelled in accordance
with SAE J2842.

Related information

•

Servicing the climate control system
(p. 618)
