Using the glovebox (p. 597)

•

•

Fitting and removing the safety net

(p. 606)

•

Fitting and removing cargo cover

(p. 602)

•

Fitting and removing safety grilles

(p. 604)

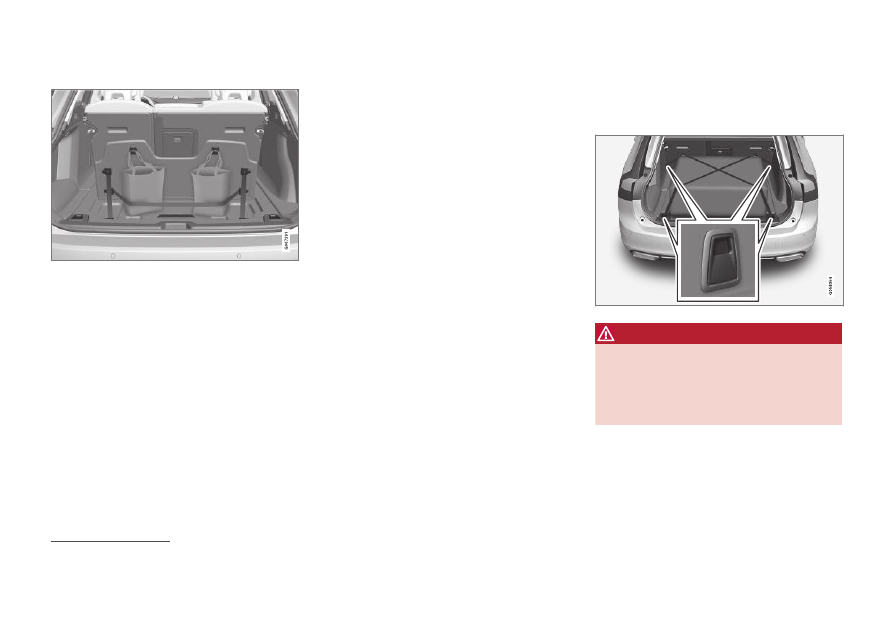

Load retaining eyelets

Use the load retaining eyelets to attach
straps in order to anchor items in the cargo
area.

WARNING

Hard, sharp and/or heavy objects which

protrude may cause injury under violent

braking.
Always secure large and heavy objects

with a seatbelt or cargo retaining straps.

Related information

•

•

Weights (p. 675)

It is possible to reorder additional elastic straps at a Volvo dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

602

Through-load hatch in the rear seat

The hatch in the rear seat's backrest can be
opened to transport long narrow items, e.g.
skis.

The figure is schematic - parts may vary depending

on car model.

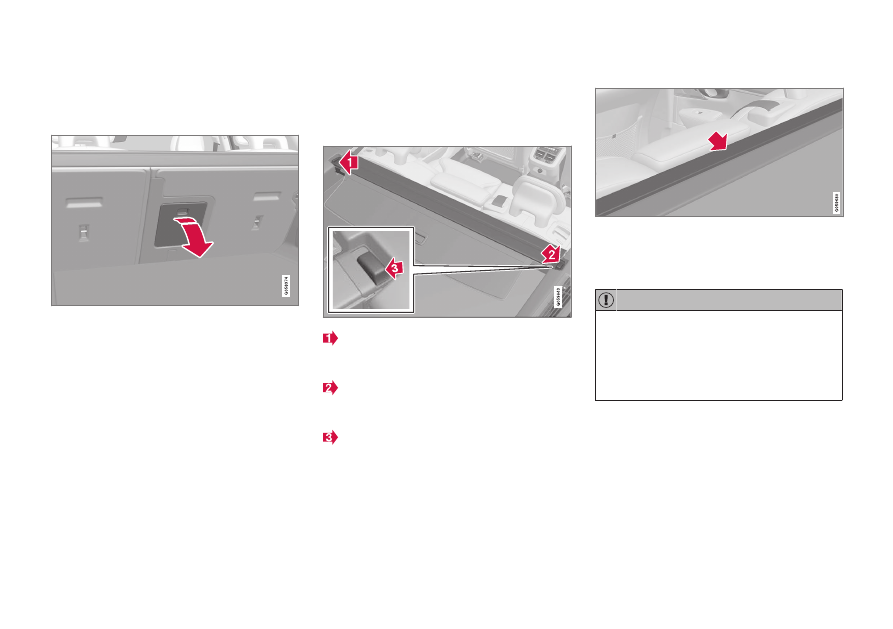

1. In the cargo area, grip the hatch's handle

and fold down the hatch.

2. Fold forward the armrest in the rear seat.

If the private locking function is used then the
through-load hatch must be closed.

Related information

•

Load retaining eyelets (p. 601)

•

Private locking (p. 284)

•

Fitting and removing cargo cover

In the extended position, the cargo cover pre-
vents visual access to the cargo area.

Fitting cargo cover

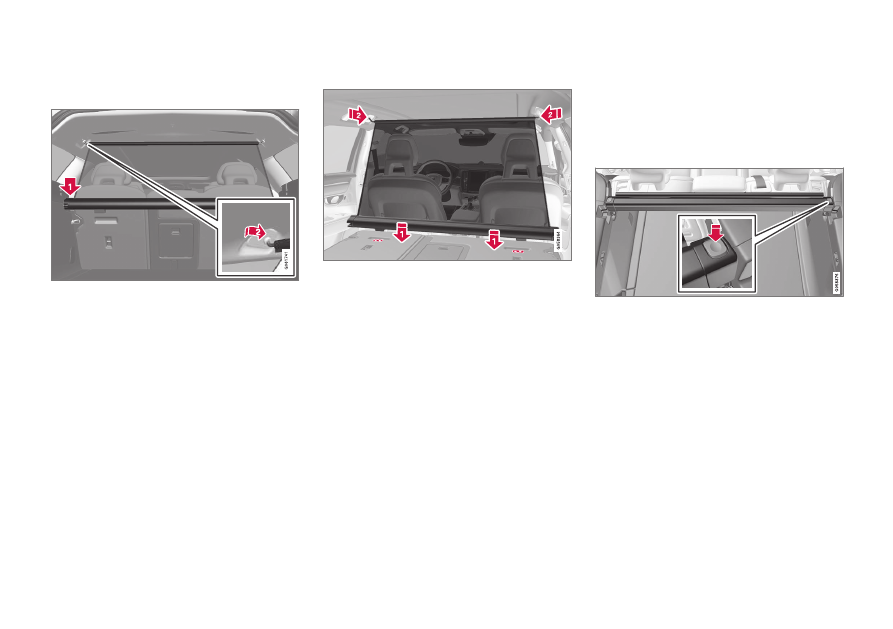

Insert one of the cargo cover's end pieces
in the recess in the side panel in the cargo
area.

Then insert the other end piece in the
recess in the side panel on the opposite
side.

Press down the end pieces on both sides -
one by one.
> When a "click" is heard and the red

marking on each end piece has disap-
peared, the cargo cover is attached -
check that it is affixed securely.

Fold the cargo cover's front panel forward
to eliminate the space between the cargo
cover and the rear seat's backrests.

The cover plate has two plastic parts that
act as support to hold it in place.

The plastic parts must not be used to hang
bags on. They are not designed for this
purpose and may break.

If the safety net

shall be used at the same

time as the cargo cover then the safety net
must be fitted first.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

603

Removing cargo cover

In retracted position:

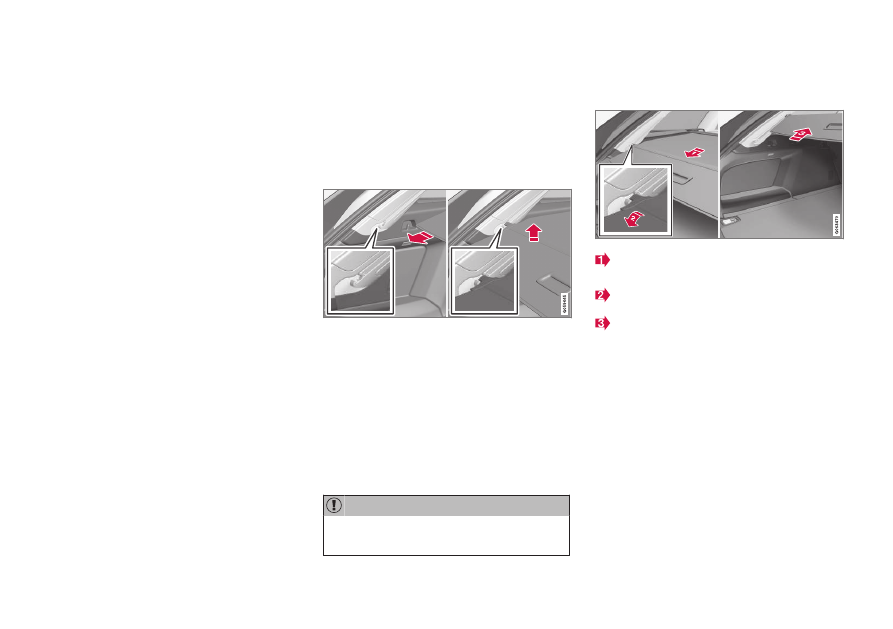

1. Depress the button on one of the retracted

cargo cover's end pieces and lift out that
end.

2. Angle the cover up/out carefully.

> The other end piece loosens automati-

cally and the cover can be lifted out of
the cargo area.

Related information

•

Operating cargo cover

(p. 603)

•

Operating cargo cover

There are two extended positions for the
cargo cover - a full-cover position and a load-
ing position, where it is partially extended to
make it easier to reach further into the cargo
area.

Full-cover position

1. Grip the handle and pull out the cargo

cover so that it slides over the side panels
in the cargo area. Pull to the end position.

2. Guide the cover's attachment pins into the

grooves in the side panels. Release, while
at the same time angling the handle
slightly upwards so that the attachment
pins hook in.
> The cargo cover is locked in the full-

cover position.

Do not load objects on top of the cargo
cover.

Loading mode

From the full-cover position:

Grasp the handle and pull it back until it
stops.

Angle the cover down.

Move the cover and its attachment pins
carefully forward and up over the hooks.
> The cover retracts until it stops in the

loading position.

Returning to full-cover position from loading
position:

1. Grip the handle and pull the cargo cover

out to the end position.

2. Release the handle so that the attachment

pins hook into the hooks.
> The cover is locked in the full-cover

position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

604

With an automatic

cargo cover, the cover will

be retracted from full-cover position to loading
position every time the tailgate is opened, and
extended again when the tailgate is closed.
The cargo cover detects if something is
obstructing its movement and then retracts
automatically.

WARNING

Pay attention to the risk of crushing when

opening and closing with the automatic

cargo cover.

If the cargo area is loaded with a bulky load
then the automatic

cargo cover is moved

to retracted position in order to avoid it
making contact with the load.

Fitting and removing cargo cover

The cargo cover may not operate automati-
cally in low passenger compartment tem-
peratures.

Retracting

1. From the full-cover position:

Lift up the handle and pull it backward to
disengage the cargo cover's attachment
pins and then release.

From loading position:

Grip the handle and pull out the cargo
cover in the grooves - pull to the full-cover
position. Lift up the handle and pull it
backward to disengage the attachment
pins and then release.

2. Retract the cover with its attachment pins

outside of the side panels until it stops in
the retracted position.

Remember that a retracted cargo cover may
obstruct rearward visibility.

Related information

•

(p. 602)

Fitting and removing safety grilles

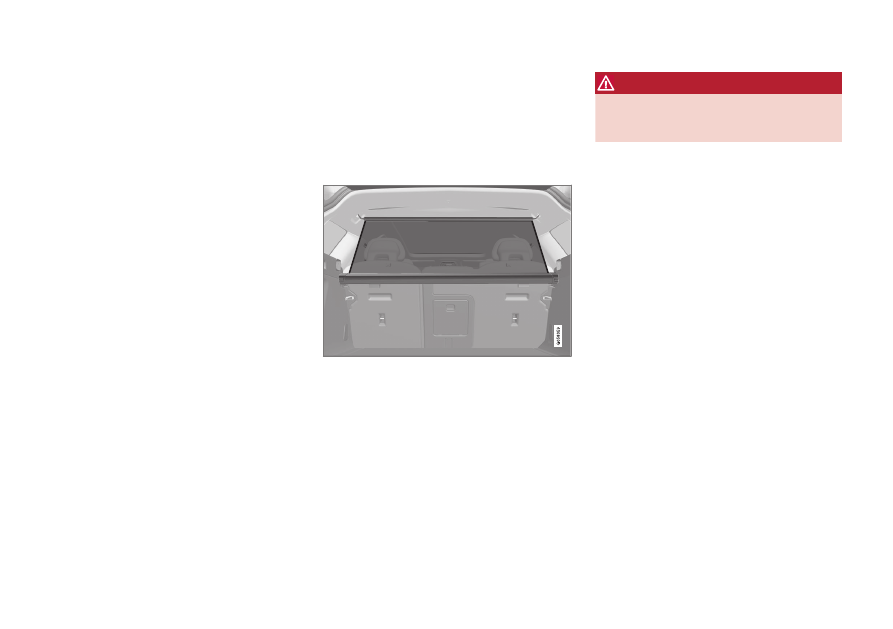

The safety grille prevents loads or pets in the
cargo area from being thrown forward in the
passenger compartment under heavy brak-
ing.

The safety grille is crash-tested in accordance
with the ECE R17 legal requirement and fulfils
Volvo's strength requirements.

For safety reasons, the safety grille must
always be attached and anchored correctly.

WARNING

Under no circumstances may anybody

remain in the cargo area while the car is

moving. This is to avoid injury in the event

of heavy braking or an accident.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

605

Installation

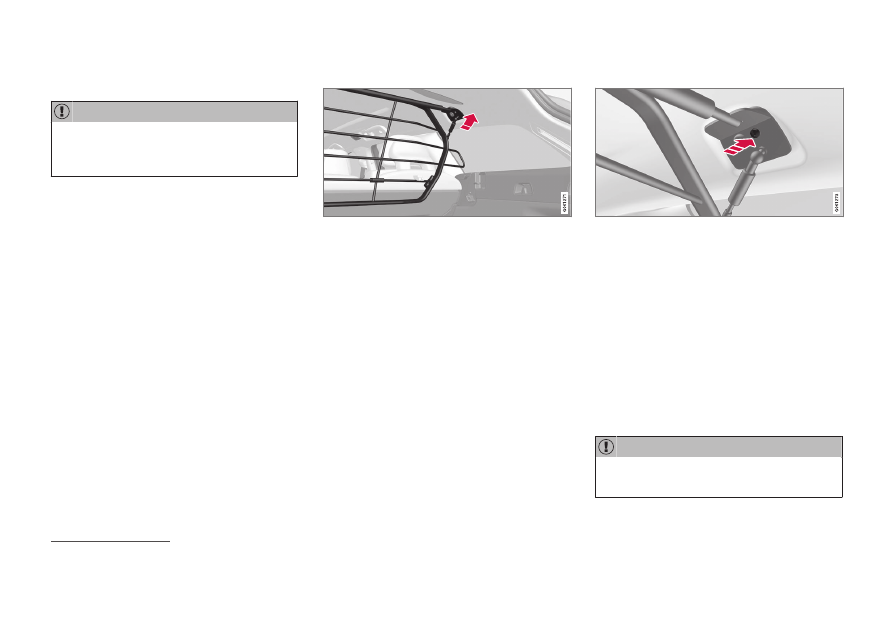

The safety grille must only be used in the
rear position (behind the rear seat) descri-
bed here.

Before first installing the safety grille, the
existing plastic roof mountings must be
replaced with steel roof mountings. Volvo rec-
ommends that replacing roof mountings is
performed at an authorised Volvo workshop or
retailer.

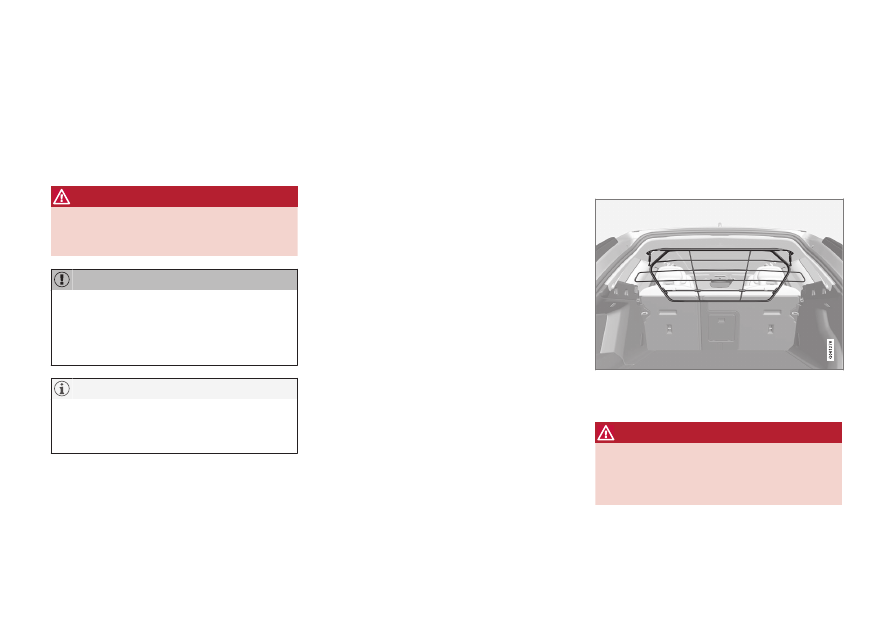

1. Fold the rear seat's backrest forward.

2. Make sure that the safety grille is turned in

the right direction. Lift in the safety grille
through one of the rear side doors.

Position the safety grille's brackets on the
roof mountings.

The next step is facilitated if two people
hold the safety grille in the right position.

Insert the supplied screw and tighten
using the supplied 6 mm Allen key. Repeat
on the other side. Recommended tighten-
ing torque: 20 Nm (15 foot-pounds).
> Check that the safety grille is properly

fitted.

5. Restore the backrest to the upright posi-

tion.

For more information about the tools required
and methods for fitting/removal, see the
installation instructions

that were included

with the initial purchase.

The protective grille cannot be folded up or
down when a cargo cover is fitted.

Installation instructions no. 31659257.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

606

Related information

•

Load retaining eyelets (p. 601)

•

Fitting and removing the safety

net

The safety net prevents loads from being
thrown forward in the passenger compart-
ment in the event of sudden braking.

The safety net is fitted into four mounting
points.

For reasons of safety, the safety net must
always be fastened and anchored as descri-
bed below.

The net is made of a strong nylon fabric and
can be secured two different locations in the
car:

•

Rear fitting - behind the rear seat.

•

Front fitting - behind the front seats.

WARNING

Loads in the luggage compartment must

be anchored well, and also using a cor-

rectly fitted safety net.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

607

Fitting the safety net

Rear fitting

1. If necessary, fold the rear seat backrests

forward in order to facilitate installation.

2. Lower the safety net cassette's end pieces

over the mounting eyelets in the recess of
the side panels. Press down the end piece
one side at a time. Check that the cassette
is properly secured.

3. Pull up the net.

4. Hook one of the safety net's retaining

hooks into the rear roof mounting and
then press it forward to the end position.

5. Hook the other of the safety net's retain-

ing hooks on the opposite side and press
it forward to the end position.

Front fitting

1. Fold the rear seat's backrest forward.

2. Align the safety net cassette's anchor rails

in front of the backrest's attachment lugs.

3. Slide the cassette into the attachment

lugs.

4. Pull up the net.

5. Hook one of the safety net's retaining

hooks into the front roof mounting and
then press it forward to the end position.

6. Hook the other of the safety net's retain-

ing hooks on the opposite side and press
it forward to the end position.

Removing the safety net

1. Undo the safety net from the roof mount-

ings by pressing the retaining hooks back-
wards. Allow the net to roll into the cas-
sette.

Rear fitting:

Press the button on each side of the cas-
sette in order to release the end pieces
from the mounting eyelets. Lift out the
safety net.

Front fitting:

Slide the cassette from the attachment
lugs and lift out the safety net.

Related information

•

Load retaining eyelets (p. 601)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

608

First aid kit

The first aid kit contains first aid equipment.

Store the first aid kit behind the elastic strap, if
the car is equipped with one of these.

Related information

•

Cargo area (p. 598)

Warning triangle

Use the warning triangle to warn other road
users if the car is stationary in traffic.

Also activate the hazard warning flashers.

Storage spaces

The warning triangle is located under the
panel on the inside of the tailgate.

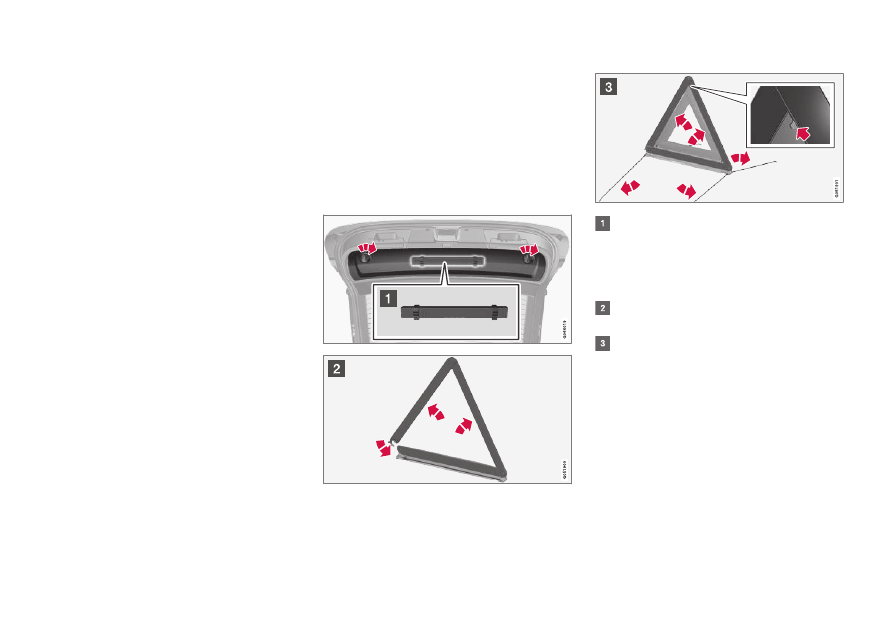

Folding up the warning triangle

Detach the panel on the inside of the tail-
gate by first turning the two knobs a quar-
ter turn and then unhooking the panel.
Place the panel to one side.

Open the latch and take out the case.

Remove the warning triangle from the
case, unfold it and put the ends together.

Fold out the warning triangle's support
legs.

Follow the regulations for the use of a warning
triangle. Position the warning triangle in a suit-
able place with regard to traffic.

Make sure that the warning triangle and case
are properly secured in their storage space
and that the hatch is fully closed after use.

Related information

•

Cargo area (p. 598)

•

Hazard warning flashers (p. 159)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

610

Volvo service programme

To keep the car as safe and reliable as possi-
ble, follow the Volvo service programme as
specified in the Service and Warranty Book-
let.

Volvo recommends engaging an authorised
Volvo workshop to perform the service and
maintenance work. Volvo workshops have the
personnel, special tools and service literature
that can provide the highest quality of service.

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Service and repair

Service the car regularly. Follow Volvo's rec-
ommended service intervals.

If inspection and repair are required then only
an authorised Volvo workshop may carry out
the work.

WARNING

Do not carry out any repairs of your own on

this vehicle. Electrical cables and/or com-

ponents that have detached must only be

rectified by an authorised workshop - an

authorised Volvo workshop is recom-

mended.

Charging cable with control unit

Do not modify the control unit in any way.

Related information

•

Car status (p. 612)

•

Connection of equipment to the car's
diagnostic socket (p. 40)

•

•

Servicing the climate control system
(p. 618)

•

Brake system maintenance (p. 458)

•

Engine compartment overview (p. 620)

Data transfer between car and

workshop via Wi-Fi

Volvo's workshops have a specific Wi-Fi net-
work for data transfer between your car and
the workshop. Your workshop visit will be
simpler and more efficient when the transfer
of diagnostic information and software can
take place via the workshop's network.

During a workshop visit, your service techni-
cian may want to connect your car to the
workshop's network via Wi-Fi to perform
fault-tracing and software download. For this
type of communication, the car only connects
to a workshop's network. It is not possible to
connect the car to another Wi-Fi network,
such as at home, in the same way as to a
workshop's network.

Connection with the remote control
key

Connection is normally handled by the service
technician who then uses the remote control
key buttons. That's why it's important to take
a key with buttons with you for the workshop
visit. Press three times on the lock button on
the remote control key to connect the car to
the workshop's network via Wi-Fi.

When the car is connected to a Wi-Fi net-
work, the

symbol appears in the centre

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

611

WARNING

The car must not be driven when con-

nected to the workshop's networks and

systems.

Related information

•

Managing system updates via the Down-
load Centre (p. 611)

•

Managing system updates via the Down-
load Centre (p. 611)

Download Center

Several of the car's systems can be updated
from the centre display with an online car

The

Download Centre

app is

started from app view in the
centre display and enables:

•

searching for and updating system soft-
ware

•

updating map data for Sensus Navigation

•

downloading, updating and uninstalling
apps.

Related information

•

•

Downloading apps (p. 515)

•

Updating apps (p. 516)

•

Deleting apps (p. 516)

•

•

Managing system updates via the

Download Centre

Functions for online car and infotainment can
be updated via the Download Centre.
Updates can be made one at a time or all at
once.

Searching for update

If an update is available, the
message

New software

updates available See
Download Center

is shown

in the centre display's status
bar.

For system updates to be possible, the car
must be connected to the Internet

–

Go to

Download Centre

in the centre dis-

play's app view.
> If no search has been performed since

the last time the infotainment system
was started, a search is performed. No
search is performed if a software instal-
lation is in progress.

A number on

System updates

shows

how many updates are available. One
tap shows a list of the updates that can
be installed in the car.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

612

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

An update can be interrupted when the
ignition is switched off and the car is left.

However, the update does not have to be
completed before the car is left, this is
because the update is resumed the next
time the car is used.

Update all system software

–

Select

Install all

at the bottom of the list.

If no list is desired, then the

Install all

option

can be selected at

System updates

Update individual system software
programs

–

Select

Install

for the software required.

Cancelling software download

–

Tap on X in the activity indicator that has
replaced

Install

at the start of the down-

load.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Deactivating the background search
for software update

Automatic search for software updates is acti-
vated when the car is delivered from the fac-
tory, but this function can be deactivated.

1. Tap on

Settings

in the centre display's

top view.

2. Press

System

Download Centre

3. Deselect

Auto Software Update

Related information

•

Download Center (p. 611)

•

•

Handling a message saved from the driver
display (p. 105)

Car status

The general status of the car can be shown in
the centre display.

The

Car Status

app is started

from app view in the centre
display and has four tabs:

•

Messages

- status messages

•

Status

- checking engine oil level and

AdBlue level

•

TPMS

- checking the tyre pressure

•

Appointments

- appointment information

and car information

Related information

•

•

Checking and filling with engine oil
(p. 623)

•

Tyre pressure monitoring system

(p. 575)

•

Sending car information to a workshop
(p. 614)

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

613

Book service and repair

This service provides a way to send a booking
request for service and workshop visit
directly in the car.

When it is time for service, and in some cases
when the car is in need of repair, a message
will appear in the driver display and at the top
of the centre display. The service date is deter-
mined by how much time has passed, hours
that the engine has been running, or distance
driven since the last service.

Before the service can be used

•

Create a Volvo ID and register it to the car.

•

To send and receive booking information,
the car must be connected to the Inter-
net

Book a service

Fill in a booking request when so required or
when a message indicating that the car needs
a service or repair is shown.

1. Open the

Car Status

app from the app

view in the centre display.

2. Press

Appointments

3. Press

Request appointment

4. Make sure that the correct

Volvo ID

filled in.

5. Make sure that the desired

Workshop

information

is filled in.

6. Fill in the field

Tap to write information

to the workshop

if there is anything you

would like done during the workshop visit
or any other important information to your
workshop.

7. Press

Send appointment request

> You will receive an appointment sug-

gestion via e-mail within a couple of
days

In certain markets, once you have sent
the appointment request, the message
that the car needs service is extin-
guished in the driver display.

8. Tap on

Cancel request

to cancel your

request.

The booking enquiry sent from the car
includes car information that facilitates work-
shop planning.

The retailer comes back with a digital booking
proposal. Information about your dealer is also
available in the car so that you can contact
your workshop.

Accept the appointment suggestion

When the car has received an appointment
suggestion, a message will be shown at the
top of the centre display.

1. Tap the message.

2. If the suggested booking is acceptable,

tap on

. Otherwise, tap on

Send

new proposal

Decline

For certain markets, the system reminds you
of a scheduled appointment time as it
approaches and the navigation system

can

also guide you to the workshop when the time
comes.

Sending car information to a workshop
(p. 614)

If you experience problems with this serv-
ice – contact your Volvo dealer.

AdBlue Applies to cars with diesel engines.

Applies to certain markets.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

This time frame may vary depending on market.

Applies to Sensus Navigation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

* Option/accessory.

614

Related information

•

Car status (p. 612)

•

•

•

Volvo ID (p. 28)

•

Sending car information to a

workshop

It is possible to send information for the car
at any time, e.g. if you book a workshop
appointment and want to help your workshop
by providing them with better data so that
your visit can be planned. Sending car infor-
mation is not the same as booking a service
appointment.

1. Open the

Car Status

app from the app

view in the centre display.

2. Press

Appointments

3. Press

Send car data

> A message that vehicle data are being

sent is shown at the top of the centre
display. You can cancel data transmis-
sion by tapping the X in the activity
indicator.

The information is sent via the car's
Internet connection

This car information can be accessed by any
retailer if they have the car's identification
number (VIN

Car information content

The data sent is the last information saved (the
last time the car was running) and includes
information in the following areas:

•

service requirement

•

time since last service

•

function status

•

fluid levels

•

meter reading

•

the car's vehicle identification number
(VIN

)

•

the car's software version

•

the car's diagnostics data.

Related information

•

•

Car status (p. 612)

•

•

Applies to certain markets.

Data is transferred (data traffic) when using the Internet, and this may involve a cost.

Vehicle Identification Number.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE

}}

* Option/accessory.

615

Raise the car

When raising the car, it is important that the
jack is fitted in the intended points on the
car's underbody.

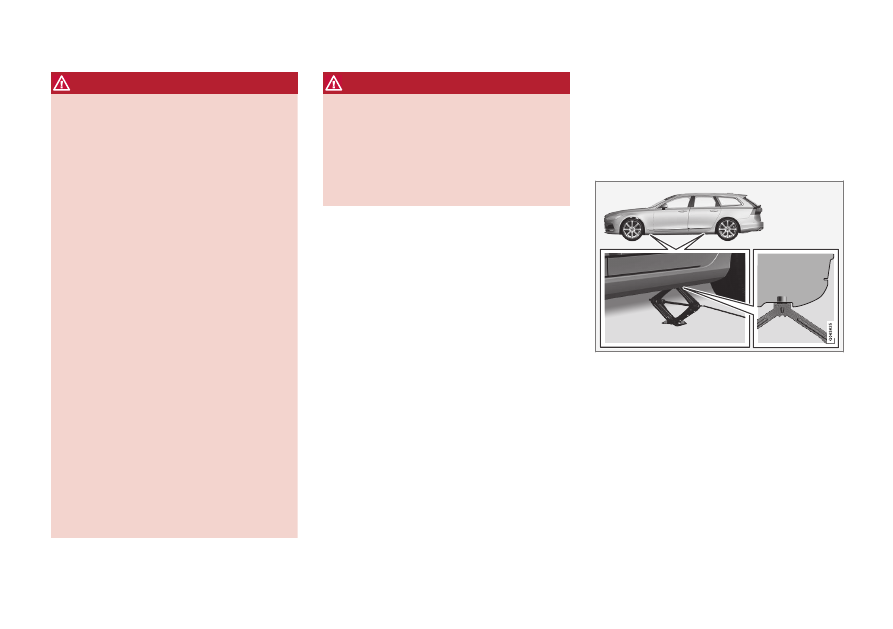

The triangles in the plastic cover indicate the locations of the lifting points (marked in red).

Applies to cars with

Leveling Control

: If

the car is equipped with air suspension,
this must be disabled before the car is
raised.
