MAINTENANCE AND SERVICE

}}

613

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

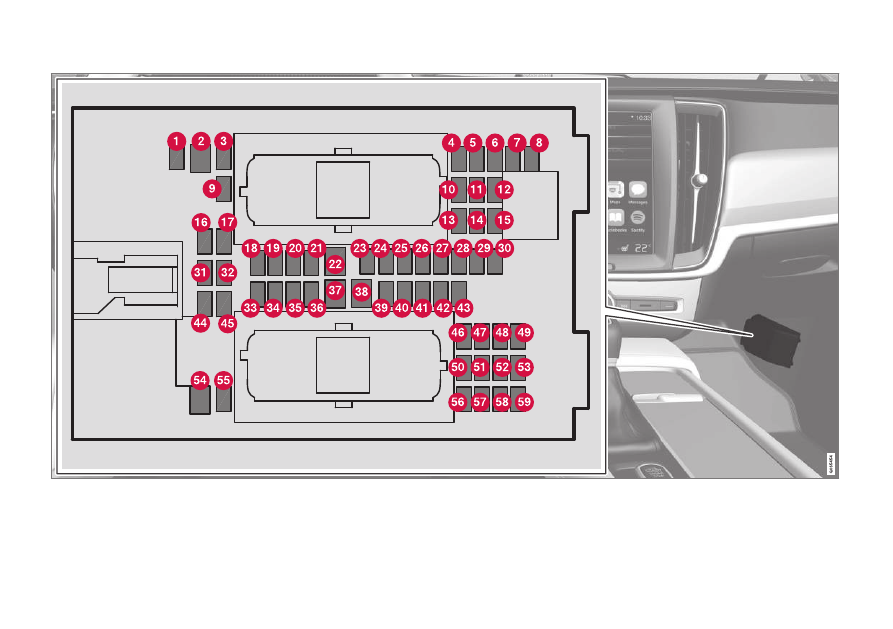

Positions

There is a decal with a diagram of the loca-
tions of the fuses on the inside of the cover.

||

MAINTENANCE AND SERVICE

* Option/accessory.

614

Function

Ampere

Type

Medium voltage module

A

10

Micro

–

–

MCase

B

–

–

Micro

Movement sensor

*

5

Micro

–

–

Micro

Instrument panel

5

Micro

Center console buttons

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and parking brake controls

5

Micro

Heated steering wheel

*

 module

15

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Rear lamp housing control modules

15

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

615

Function

Ampere

Type

Climate system control module

10

Micro

–

–

Micro

Data link connector OBD-II

10

Micro

Center display

5

Micro

Climate system blower module (front)

40

MCase

B

USB HUB

5

Micro

Instrument lighting; Interior lighting; Rearview mirror auto-dim function

*

; Rain and light sensors

*

; Rear tunnel console

keypad, rear seat

*

; Power front seats

*

; Rear door control panels; Climate system blower module left/right

7.5

Micro

Control module for driver support functions

5

Micro

Panoramic roof with sun curtain

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

Wireless charging pad

5

Micro

Ceiling console display (seat belt reminder/front passenger side airbag indicator)

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

616

Function

Ampere

Type

Fuses in the trunk/cargo compartment

10

Micro

Control module for Internet-connected vehicle; Control module for Volvo On Call

5

Micro

Door module in left-side rear door

20

Micro

Infotainment control module (amplifier)

40

MCase

B

–

–

MCase

B

Multi-band antenna module

5

Micro

Front seat massage function

*

5

Micro

–

–

Micro

Rear window wiper

15

Micro

Fuel pump control module

15

Micro

Converter medium voltage; Integrated starter motor

5

Micro

Opening trunk/tailgate with foot movement

*

5

Micro

Driver's seat heating

15

Micro

Front passenger's seat heating

15

Micro

Coolant pump

7.5

Micro

–

–

Micro

Door module in left-side front door

20

Micro

MAINTENANCE AND SERVICE

* Option/accessory.

617

Function

Ampere

Type

Active chassis control module

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Door module in right-side front door

20

Micro

–

–

Micro

TV

*

 (certain markets only)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Vehicles with 48 V support battery only.

B

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 605)

•

Replacing fuses (p. 605)

MAINTENANCE AND SERVICE

* Option/accessory.

618

Fuses in the cargo compartment

The fuses in the cargo compartment help pro-
tect electrical components such as the power
seats

*

, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE

}}

619

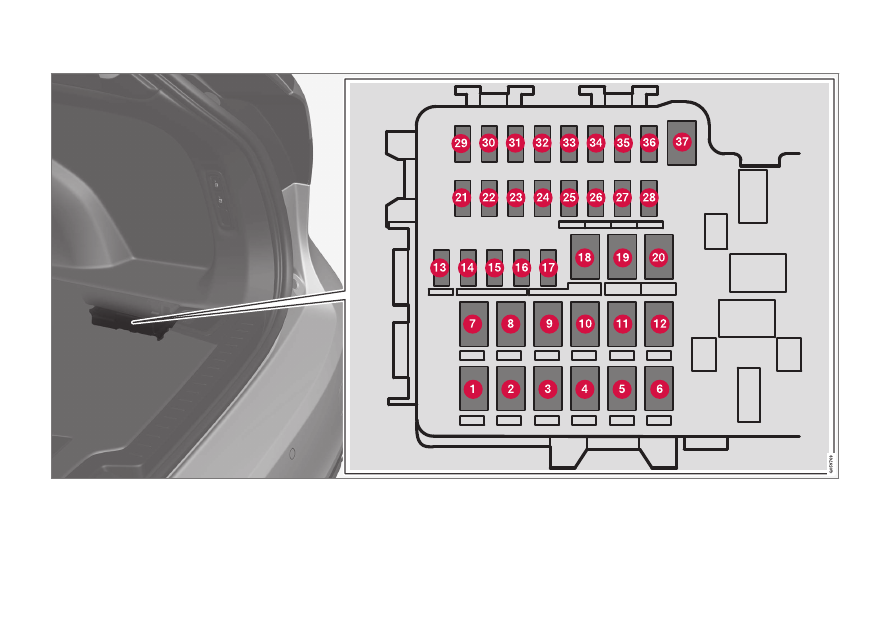

The fuse box is located on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

||

MAINTENANCE AND SERVICE

* Option/accessory.

620

Positions

Function

Ampere

Type

–

–

MCase

A

–

–

MCase

A

Pneumatic suspension

*

 compressor

40

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

Door module right side, rear

20

MCase

A

–

–

MCase

A

–

–

–

–

Power tailgate

*

25

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

621

Function

Ampere

Type

–

–

Micro

–

–

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

–

–

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

Taillight module backup power supply

10

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

622

Function

Ampere

Type

–

–

Micro

Blind Spot Information (BLIS)

*

5

Micro

USB port in cargo compartment

5

Micro

Seat belt tensioner module, left

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 605)

•

Replacing fuses (p. 605)

MAINTENANCE AND SERVICE

* Option/accessory.

623

Replacing bulbs

Bulb types vary depending on model and
equipment level. If a light bulb

14

 breaks, it can

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

15

.

If there is a problem with an LED

16

 light, the

entire lamp unit will normally need to be
replaced.

NOTE

WARNING

The vehicle electrical system must be in

ignition mode

0

 when bulbs are replaced.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

NOTE

If the error message persists after the
defective bulb has been replaced, we rec-
ommend a visit to an authorized Volvo
workshop.

NOTE

Exterior lighting such as headlights and
taillights may develop temporary conden-
sation on the inside of the lens. This is nor-
mal. All exterior lighting is designed to
resist this. Condensation is normally ven-
ted out of the lamp housing once the light
has been lit for some period of time.

NOTE

Bulbs for Active Bending Lights

*

 contain

traces of mercury and should therefore
always be deposited at an authorized Volvo
workshop.

Related information

•

Location of exterior lights (p. 624)

•

Removing the plastic cover to replace
bulbs (p. 624)

•

Replacing the low beam headlight bulbs
(p. 625)

•

Replacing the high beam headlight bulbs
(p. 626)

•

Replacing daytime running lights/front
parking light bulbs (p. 626)

•

Replacing front turn signal bulbs (p. 627)

•

Bulb specifications (p. 628)

14

Some vehicles do not have any light bulbs.

15

An authorized Volvo workshop is recommended.

16

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

* Option/accessory.

624

Removing the plastic cover to

replace bulbs

The headlight bulbs can be replaced without
the assistance of a workshop, but before a
bulb can be replaced, the plastic cover over
the headlight needs to be removed.

–

Release the pins in the plastic cover's four
clips by pressing them down with a
screwdriver or similar object and remove
the covering.

NOTE

To bear in mind when refitting the cover-
ing:

•

The pin in the clip must be pressed
back completely before the clip is rein-
stalled in the covering.

•

When the covering is reinstalled, the
pin must be pressed in until the end
surface is level with the surface of the
clip.

Related information

•

Replacing bulbs (p. 623)

•

Replacing the low beam headlight bulbs
(p. 625)

•

Replacing the high beam headlight bulbs
(p. 626)

•

Replacing daytime running lights/front
parking light bulbs (p. 626)

•

Replacing front turn signal bulbs (p. 627)

•

Bulb specifications (p. 628)

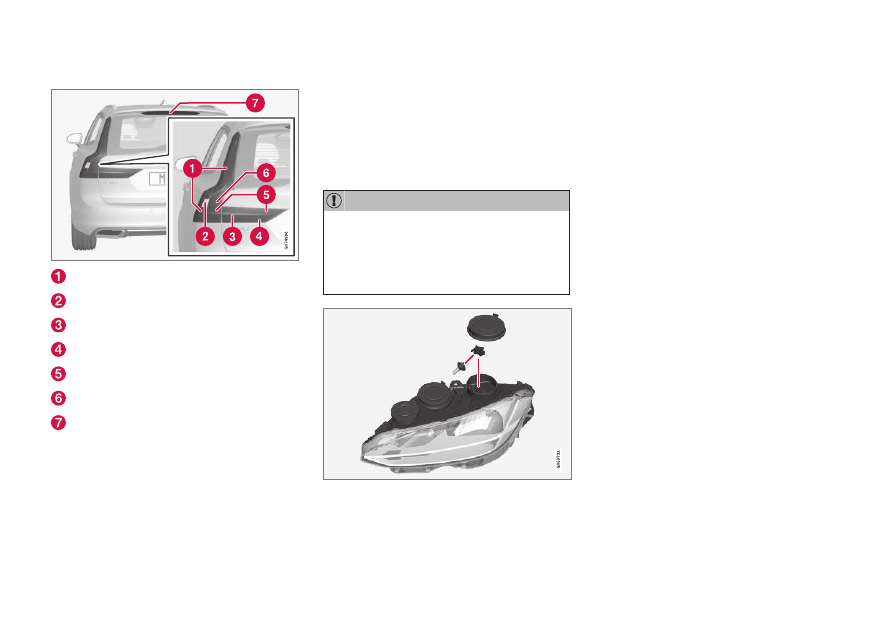

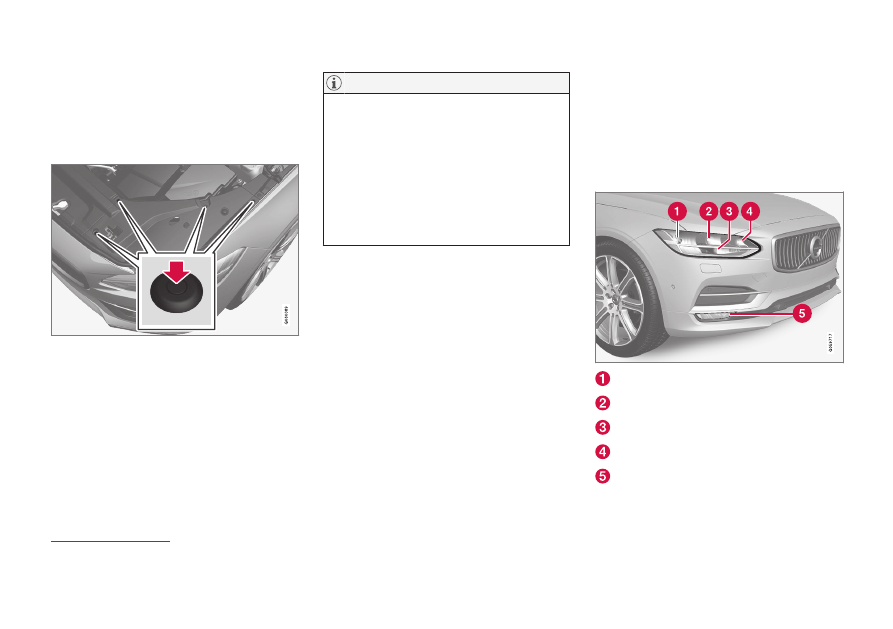

Location of exterior lights

The vehicle's exterior lighting consists of sev-
eral different bulbs. LED

17

 bulbs must be

replaced by a workshop. An authorized Volvo
workshop is recommended.

Front bulbs (vehicles with halogen
headlights)

Low beams

High beams

Daytime running light/parking light

Turn signal

Front fog light/cornering illumination

*

(LED)

17

LED (Light Emmitting Diode)

MAINTENANCE AND SERVICE

625

Rear bulbs

Parking light (LED)

Backup light (LED)

Parking light (LED)

Fog light (LED)

Turn signal (LED)

Brake light (LED)

Brake light

‒

central, high-mounted (LED)

Related information

•

Replacing bulbs (p. 623)

•

Bulb specifications (p. 628)

•

Lighting control and panel (p. 156)

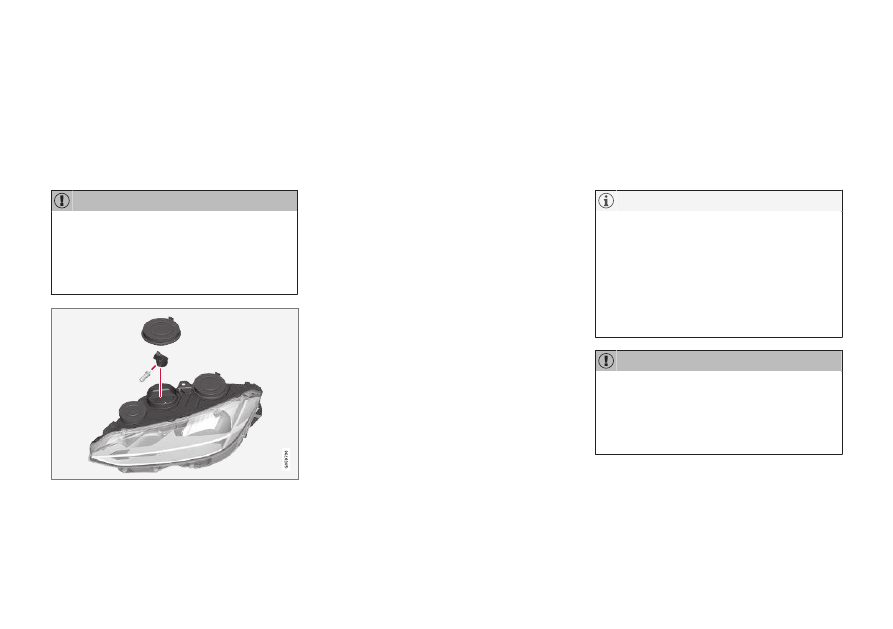

Replacing the low beam headlight

bulbs

The low beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

Left headlight.

1. Remove the low beam rubber cover from

the headlight housing.

2. Remove the connector from the bulb.

3. Remove the bulb by pressing it slightly

upward and then pulling it out.

4. Insert the new bulb in the socket. The

bulb's guiding pin should point straight
up.

5. Press the connector into place.

6. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 624)

•

Removing the plastic cover to replace
bulbs (p. 624)

•

Bulb specifications (p. 628)

MAINTENANCE AND SERVICE

626

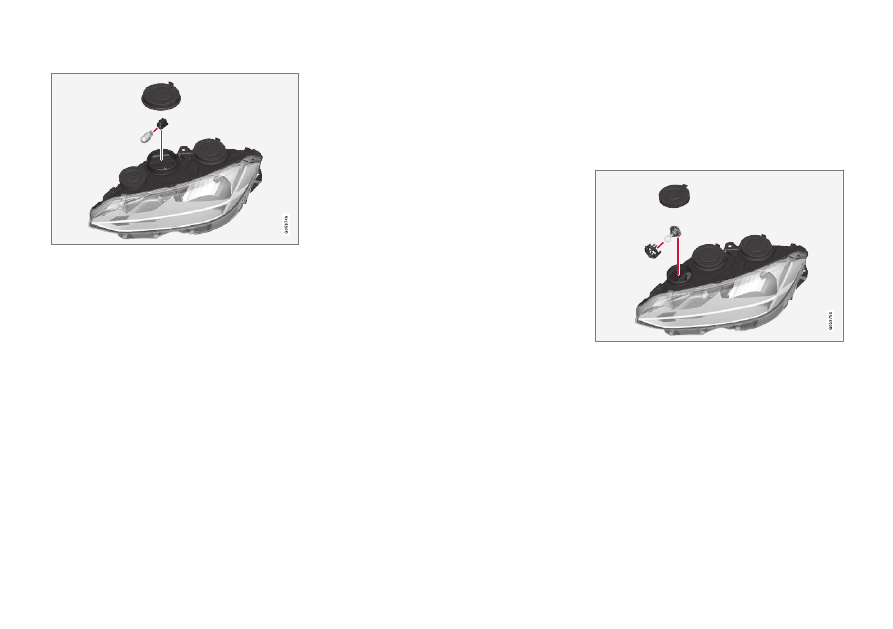

Replacing the high beam headlight

bulbs

The high beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

Left headlight.

1. Remove the high beam rubber cover from

the headlight housing.

2. Remove the bulb by turning the bulb

holder upward and then pulling it straight
out.

3. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

4. Remove the connector from the bulb.

5. Replace the bulb.

6. Position the bulb in the socket and turn it

downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 624)

•

Removing the plastic cover to replace
bulbs (p. 624)

•

Bulb specifications (p. 628)

Replacing daytime running lights/

front parking light bulbs

The daytime running light/parking light bulbs
in the halogen headlights can be changed
without the help of a workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

NOTE

Daytime running lights/parking lights are
easier to reach if the high beam headlight
bulbs are removed. The high beam head-
lights are mounted above and to the side of
the daytime running lights/parking lights.
Remove the high beam headlight bulb by
turning the bulb holder upward and then
pulling it straight out.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

MAINTENANCE AND SERVICE

}}

627

Left headlight.

1. Remove the daytime running light/parking

light rubber cover from the headlight
housing.

2. Pull the daytime running light/parking

light bulb holder straight out.

3. Remove the bulb by pulling it straight out.

4. Replace the bulb.

5. Position the bulb holder in the socket and

push it into place.

6. If the high beam bulb holder has come

loose, position it in the socket and turn
downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 624)

•

Removing the plastic cover to replace
bulbs (p. 624)

•

Bulb specifications (p. 628)

•

Replacing the high beam headlight bulbs
(p. 626)

Replacing front turn signal bulbs

The turn signal bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

Left headlight.

1. Remove the turn signal rubber cover from

the headlight housing.

2. Press the retaining catches together and

pull the bulb holder straight out.

3. The bulb holder and bulb must be

replaced as one unit.

4. Position the bulb holder in the socket and

push it into place.

5. Put the rubber cover back in place.

||

MAINTENANCE AND SERVICE

628

Related information

•

Location of exterior lights (p. 624)

•

Removing the plastic cover to replace
bulbs (p. 624)

•

Bulb specifications (p. 628)

Bulb specifications

Specifications for replaceable light bulbs.

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

18

. If there is a problem with an LED

19

light, the entire lamp unit will normally need
to be replaced.

Function

W

A

Type

Low beams

55

H11

High beams

65

H9

Front turn signal

24

PY24W

PWY24W

Daytime running light/
parking light, front

21/5

W21/5W

A

Watt

Related information

•

Location of exterior lights (p. 624)

•

Replacing bulbs (p. 623)

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

CAUTION

•

Some colored clothing (for example,
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the inte-
rior as this can damage the upholstery
as well as other interior materials.

•

Never spray cleaning agent directly
onto components that have electrical
buttons and controls. Wipe instead
with a damp cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

•

Only use cleaning agent on the type of
material it is intended for.

18

An authorized Volvo workshop is recommended.

19

LED (Light Emitting Diode)
