Fuses in the cargo compartment

The fuses in the cargo compartment help pro-
tect electrical components such as the power
seats

*

, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE

}}

613

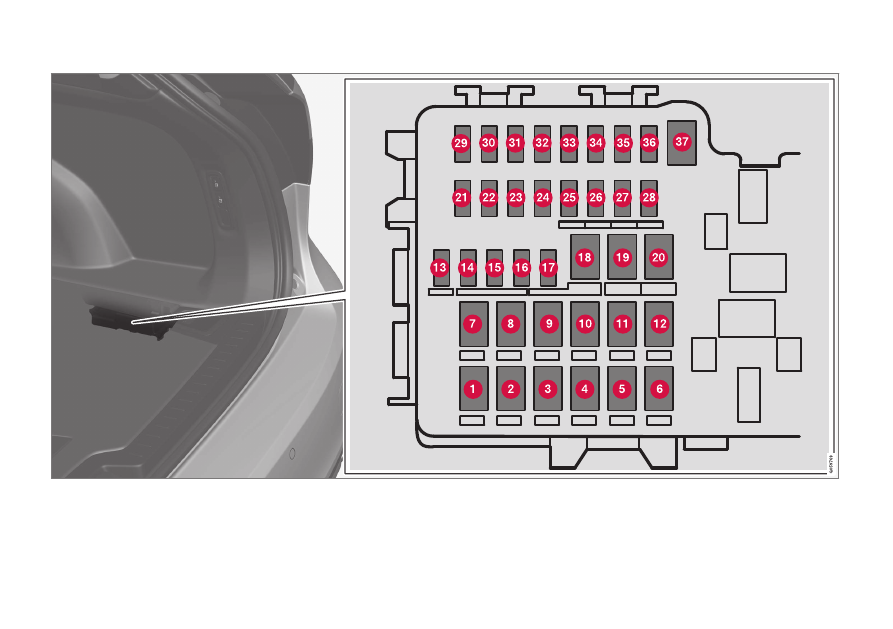

The fuse box is located on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

||

MAINTENANCE AND SERVICE

* Option/accessory.

614

Positions

Function

Ampere

Type

–

–

MCase

A

–

–

MCase

A

Pneumatic suspension

*

 compressor

40

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

Door module right side, rear

20

MCase

A

–

–

MCase

A

–

–

–

–

Power tailgate

*

25

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

615

Function

Ampere

Type

–

–

Micro

–

–

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

–

–

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left side, front

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

Taillight module backup power supply

10

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

616

Function

Ampere

Type

–

–

Micro

Blind Spot Information (BLIS)

*

Exterior reverse signal control module

5

Micro

–

–

Micro

Seat belt tensioner module, left

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 599)

•

Replacing fuses (p. 599)

MAINTENANCE AND SERVICE

* Option/accessory.

617

Replacing bulbs

Bulb types vary depending on model and
equipment level. If a light bulb

14

 breaks, it can

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

15

.

If there is a problem with an LED

16

 light, the

entire lamp unit will normally need to be
replaced.

NOTE

WARNING

The vehicle electrical system must be in

ignition mode

0

 when bulbs are replaced.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

NOTE

If the error message persists after the
defective bulb has been replaced, we rec-
ommend a visit to an authorized Volvo
workshop.

NOTE

Exterior lighting such as headlights and
taillights may develop temporary conden-
sation on the inside of the lens. This is nor-
mal. All exterior lighting is designed to
resist this. Condensation is normally ven-
ted out of the lamp housing once the light
has been lit for some period of time.

NOTE

Bulbs for Active Bending Lights

*

 contain

traces of mercury and should therefore
always be deposited at an authorized Volvo
workshop.

Related information

•

Location of exterior lights (p. 618)

•

Removing the plastic cover to replace
bulbs (p. 618)

•

Replacing the low beam headlight bulbs
(p. 619)

•

Replacing the high beam headlight bulbs
(p. 620)

•

Replacing daytime running lights/front
parking light bulbs (p. 620)

•

Replacing front turn signal bulbs (p. 621)

•

Bulb specifications (p. 622)

14

Some vehicles do not have any light bulbs.

15

An authorized Volvo workshop is recommended.

16

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

* Option/accessory.

618

Removing the plastic cover to

replace bulbs

The headlight bulbs can be replaced without
the assistance of a workshop, but before a
bulb can be replaced, the plastic cover over
the headlight needs to be removed.

–

Release the pins in the plastic cover's four
clips by pressing them down with a
screwdriver or similar object and remove
the covering.

NOTE

To bear in mind when refitting the cover-
ing:

•

The pin in the clip must be pressed
back completely before the clip is rein-
stalled in the covering.

•

When the covering is reinstalled, the
pin must be pressed in until the end
surface is level with the surface of the
clip.

Related information

•

Replacing bulbs (p. 617)

•

Replacing the low beam headlight bulbs
(p. 619)

•

Replacing the high beam headlight bulbs
(p. 620)

•

Replacing daytime running lights/front
parking light bulbs (p. 620)

•

Replacing front turn signal bulbs (p. 621)

•

Bulb specifications (p. 622)

Location of exterior lights

The vehicle's exterior lighting consists of sev-
eral different bulbs. LED

17

 bulbs must be

replaced by a workshop. An authorized Volvo
workshop is recommended.

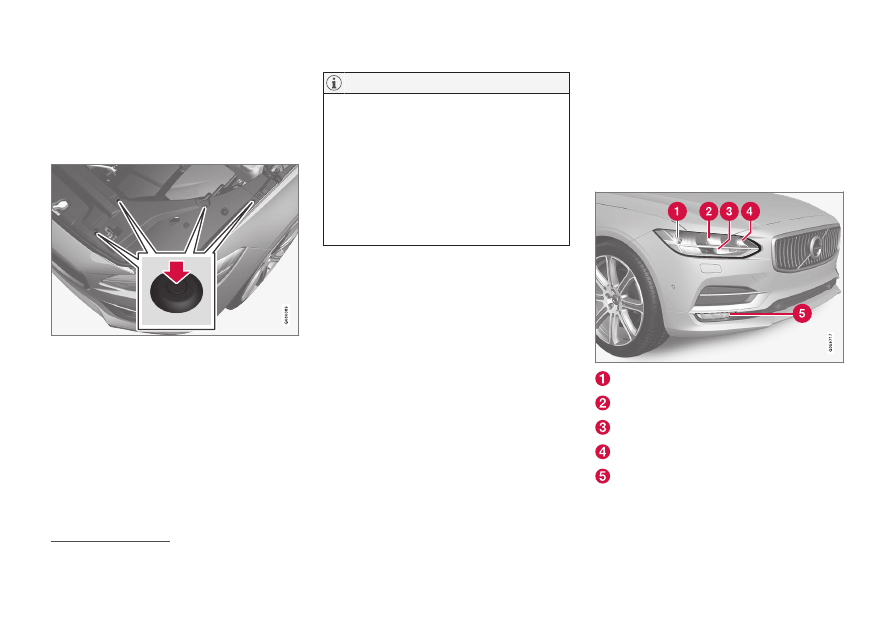

Front bulbs (vehicles with halogen
headlights)

Low beams

High beams

Daytime running light/parking light

Turn signal

Front fog light/cornering illumination

*

(LED)

17

LED (Light Emmitting Diode)

MAINTENANCE AND SERVICE

619

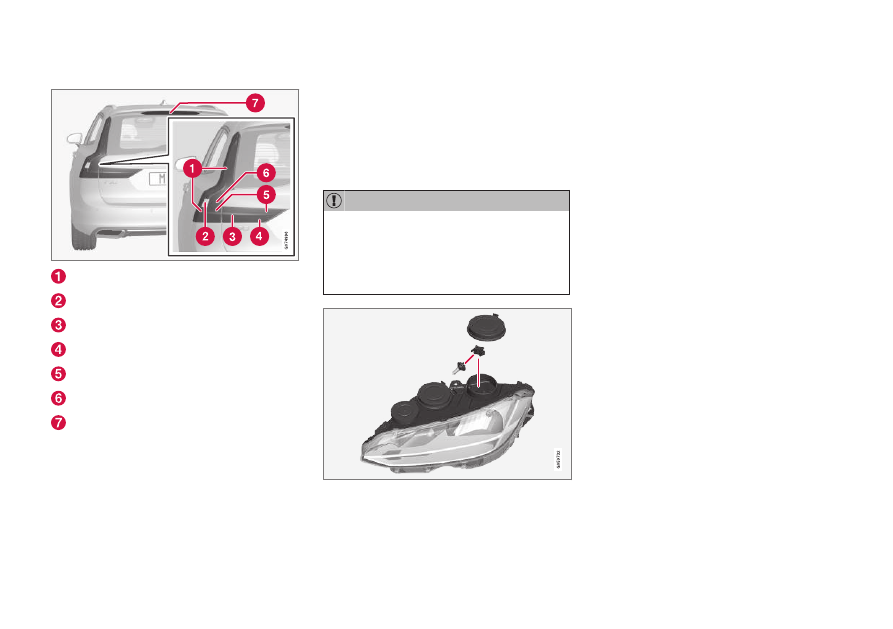

Rear bulbs

Parking light (LED)

Backup light (LED)

Parking light (LED)

Fog light (LED)

Turn signal (LED)

Brake light (LED)

Brake light

‒

central, high-mounted (LED)

Related information

•

Replacing bulbs (p. 617)

•

Bulb specifications (p. 622)

•

Lighting control and panel (p. 156)

Replacing the low beam headlight

bulbs

The low beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

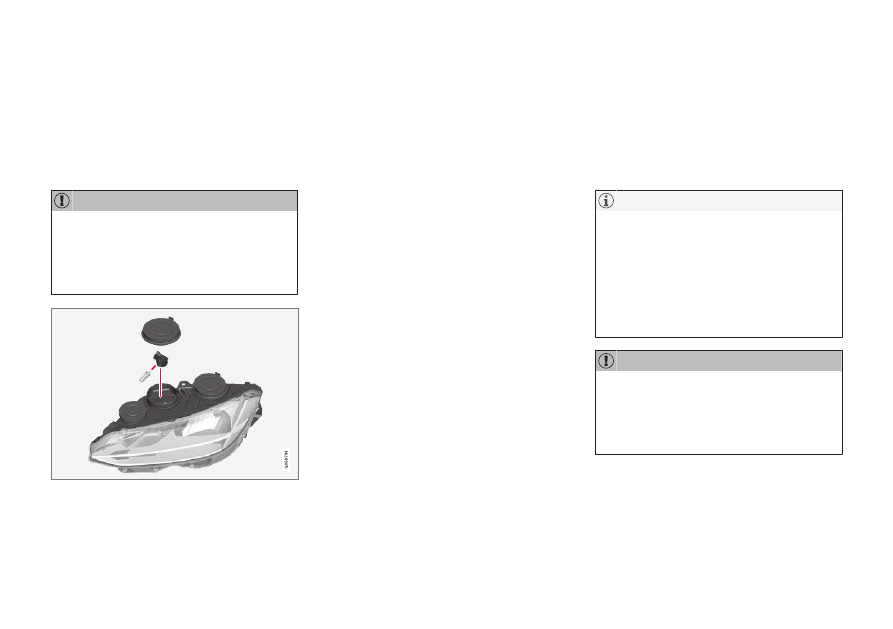

Left headlight.

1. Remove the low beam rubber cover from

the headlight housing.

2. Remove the connector from the bulb.

3. Remove the bulb by pressing it slightly

upward and then pulling it out.

4. Insert the new bulb in the socket. The

bulb's guiding pin should point straight
up.

5. Press the connector into place.

6. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 618)

•

Removing the plastic cover to replace
bulbs (p. 618)

•

Bulb specifications (p. 622)

MAINTENANCE AND SERVICE

620

Replacing the high beam headlight

bulbs

The high beam bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

Left headlight.

1. Remove the high beam rubber cover from

the headlight housing.

2. Remove the bulb by turning the bulb

holder upward and then pulling it straight
out.

3. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

4. Remove the connector from the bulb.

5. Replace the bulb.

6. Position the bulb in the socket and turn it

downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 618)

•

Removing the plastic cover to replace
bulbs (p. 618)

•

Bulb specifications (p. 622)

Replacing daytime running lights/

front parking light bulbs

The daytime running light/parking light bulbs
in the halogen headlights can be changed
without the help of a workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

NOTE

Daytime running lights/parking lights are
easier to reach if the high beam headlight
bulbs are removed. The high beam head-
lights are mounted above and to the side of
the daytime running lights/parking lights.
Remove the high beam headlight bulb by
turning the bulb holder upward and then
pulling it straight out.

CAUTION

Never touch the bulb glass with your bare
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a
deposit on the reflector, which may dam-
age it.

MAINTENANCE AND SERVICE

}}

621

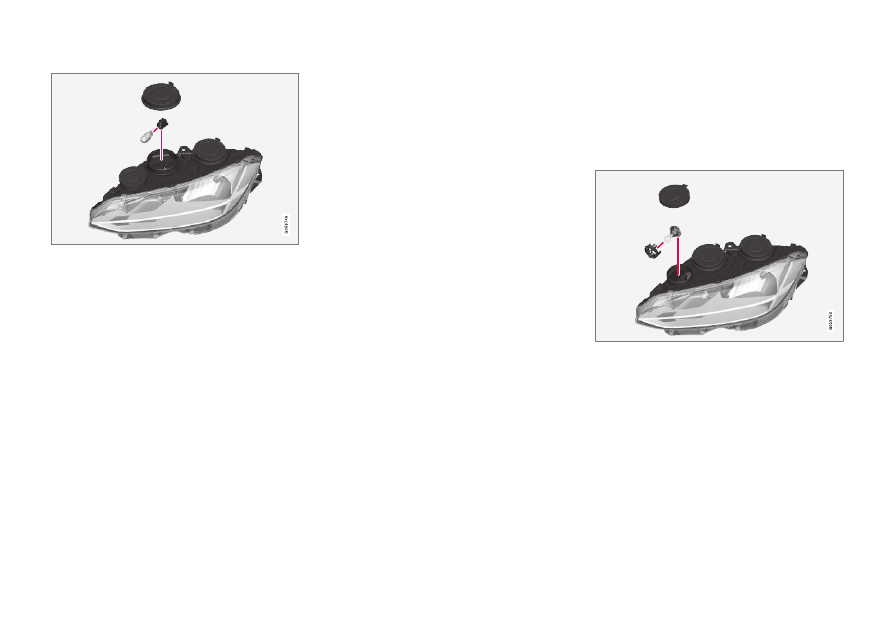

Left headlight.

1. Remove the daytime running light/parking

light rubber cover from the headlight
housing.

2. Pull the daytime running light/parking

light bulb holder straight out.

3. Remove the bulb by pulling it straight out.

4. Replace the bulb.

5. Position the bulb holder in the socket and

push it into place.

6. If the high beam bulb holder has come

loose, position it in the socket and turn
downward.

7. Put the rubber cover back in place.

Related information

•

Location of exterior lights (p. 618)

•

Removing the plastic cover to replace
bulbs (p. 618)

•

Bulb specifications (p. 622)

•

Replacing the high beam headlight bulbs
(p. 620)

Replacing front turn signal bulbs

The turn signal bulbs in the halogen head-
lights can be changed without the help of a
workshop.

Before the bulbs can be replaced, the plastic
covering over the headlight must be removed.

Left headlight.

1. Remove the turn signal rubber cover from

the headlight housing.

2. Press the retaining catches together and

pull the bulb holder straight out.

3. The bulb holder and bulb must be

replaced as one unit.

4. Position the bulb holder in the socket and

push it into place.

5. Put the rubber cover back in place.

||

MAINTENANCE AND SERVICE

622

Related information

•

Location of exterior lights (p. 618)

•

Removing the plastic cover to replace
bulbs (p. 618)

•

Bulb specifications (p. 622)

Bulb specifications

Specifications for replaceable light bulbs.

If you are experiencing problems with any
lights other than light bulbs, contact a work-
shop

18

. If there is a problem with an LED

19

light, the entire lamp unit will normally need
to be replaced.

Function

W

A

Type

Low beams

55

H11

High beams

65

H9

Front turn signal

24

PY24W

PWY24W

Daytime running light/
parking light, front

21/5

W21/5W

A

Watt

Related information

•

Location of exterior lights (p. 618)

•

Replacing bulbs (p. 617)

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

CAUTION

•

Some colored clothing (for example,
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the inte-
rior as this can damage the upholstery
as well as other interior materials.

•

Never spray cleaning agent directly
onto components that have electrical
buttons and controls. Wipe instead
with a damp cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

•

Only use cleaning agent on the type of
material it is intended for.

18

An authorized Volvo workshop is recommended.

19

LED (Light Emitting Diode)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

623

Related information

•

Cleaning the center display (p. 623)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning the seat belt (p. 625)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning leather upholstery

*

 (p. 626)

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

Cleaning the center display

Marks, stains, finger smudges etc. on the
center display may affect its performance and
readability. Clean the screen regularly with a
microfiber cloth.

1. Turn off the center display by pressing and

holding the Home button.

2. Wipe the screen clean with the microfiber

cloth provided or use another microfiber
cloth of similar quality. Wipe the screen
with a clean, dry microfiber cloth using
small, circular motions. If necessary, mois-
ten the cloth slightly.

3. Reactivate the display by pressing the

Home button briefly.

CAUTION

The microfiber cloth must be free of sand
and dirt when cleaning the center display.

CAUTION

When cleaning the center display, apply
only light pressure to the screen. Pressing
too hard could damage the screen.

CAUTION

Do not spray liquid or corrosive chemicals
directly onto the center display. Do not use
window cleaners, cleaning agents, aerosol
sprays, solvents, alcohol, ammonia or
detergents that contain abrasives.

Never use abrasive cloths, paper towels or
tissue paper, as these may scratch the cen-
ter display.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning the seat belt (p. 625)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning leather upholstery

*

 (p. 626)

MAINTENANCE AND SERVICE

* Option/accessory.

624

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

Cleaning the head-up display

*

 and

instrument panel

Carefully wipe the glass covering the head-up
display unit with a clean and dry microfiber
cloth. If necessary, the cloth may be slightly
moistened.

Never use strong stain removers. For difficult
cleaning conditions, a special cleaning agent
can be purchased at a Volvo retailer.

Related information

•

Activating and deactivating the head-up
display

*

 (p. 147)

•

Head-up display

*

 (p. 146)

Cleaning fabric upholstery and

ceiling liner

Use of textile cleaner is recommended when
cleaning textile materials. Clean as needed
and treat stains immediately.

CAUTION

Never scrape or rub a stain because this
may damage the upholstery.

CAUTION

Never use stain removers or strong sol-
vents because these may damage the
upholstery.

Cleaning textile upholstery

1. Start by vacuuming the upholstery.
2. Follow the instructions of the textile

cleaner.

3. When cleaning upholstery, a spray extrac-

tion cleaner is recommended for sucking
up cleaning fluids and rinse water.

CAUTION

Certain dyed clothing (such as denim and
suede garments) may stain the upholstery.
Difficult stains, like oil, can be difficult to
remove.

MAINTENANCE AND SERVICE

* Option/accessory.

625

CAUTION

Always clean all of the upholstery, even if it
only has isolated stains. This helps to pre-
vent permanent water rings.

NOTE

Do not remove the upholstery when clean-
ing.

Cleaning the ceiling liner

1. Carefully brush the ceiling liner using a

soft brush.

2. Follow the instructions of the textile

cleaner.

3. Then use a soft, lint-free cloth to wipe the

ceiling liner.

CAUTION

Failure to take care during cleaning could
lead to damage to the ceiling liner.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning the center display (p. 623)

•

Cleaning the seat belt (p. 625)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning leather upholstery

*

 (p. 626)

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

Cleaning the seat belt

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Use water and a synthetic soap solution. Spe-
cially designed textile cleaning agents are
available for purchase at Volvo retailers. Make
sure the belt is dry before it is retracted.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning the center display (p. 623)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning leather upholstery

*

 (p. 626)

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

MAINTENANCE AND SERVICE

* Option/accessory.

626

Cleaning textile floor and inlay

mats

Use of textile cleaner is recommended when
cleaning textile mats. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Remove the inlay mats to clean the floor mats
and inlay mats separately. Each inlay mat is
secured into place with pins.

1. Remove the inlay mat by grasping the

inlay mat at each pin and lifting the mat
straight up.

2. Use a vacuum to remove dust and dirt.

NOTE

Do not swing or strike the inlay mats vio-
lently against another object to remove dirt
as this could damage the mats.

3. After vacuuming, a specially designed tex-

tile cleaning agent should be used to
remove stains on floor mats.

4. After cleaning, put the inlay mat back into

place by pressing it in at each pin.

WARNING

•

Never use more than one inlay mat at a
time on the driver's floor. If any other
type of floor mat is used, remove the
original mat from the driver's seat floor
before driving. All types of mats must
be securely anchored in the attach-
ment points in the floor. Make sure the
floor mat does not impede the move-
ment of the brake pedal or accelerator
pedal in any way, as this could be a
serious safety hazard.

•

Volvo's floor mats are specially manu-
factured for your vehicle. They must be
properly secured in the attachment
points in the floor to help ensure they
cannot slide and become trapped
under the pedals.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning the center display (p. 623)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning the seat belt (p. 625)

•

Cleaning leather upholstery

*

 (p. 626)

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

Cleaning leather upholstery

*

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Volvo's leather upholstery

*

 is treated to pro-

tect its original appearance. Over time, sun-
light, grease, dirt, etc. could break down the
protective layer. This could result in scratches
and cracking.

Leather upholstery

*

 is a natural product that

changes and acquires a beautiful patina over
time. Regular cleaning and treatments are
required to preserve the qualities and color of
the leather. Volvo offers a comprehensive
product, Volvo Leather Care KitWipes, for
cleaning and treating leather upholstery.
When used as directed, it helps preserve the
leather's protective coating.

For optimal results, Volvo recommends clean-
ing and applying protective cream one to four
times a year (or more often as needed). Volvo
Leather Care Kit 951 0251 and Volvo Leather
Softener 943 7429 are available for purchase
at Volvo retailers.

Cleaning the leather upholstery

1. Apply the leather cleaner to a damp

sponge and squeeze it until the cleaner
foams.

MAINTENANCE AND SERVICE

* Option/accessory.

627

2. Move the sponge in circular motions to

apply the foam to the stain.

3. Dampen the stain thoroughly with the

sponge. Let the sponge absorb the stain
and do not rub.

4. Dry the stain using a soft towel and let the

leather dry completely.

Protecting the leather upholstery

1. Apply a small amount of leather protector

to a cloth and then apply the protector to
the leather using light circular movements.

2. Let it dry for approximately 20 minutes.

> Protecting the leather upholstery

makes it better able to withstand sun-
light's harmful UV rays.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning the center display (p. 623)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning the seat belt (p. 625)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning the leather steering wheel
(p. 627)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)

Cleaning the leather steering

wheel

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

Leather needs to breathe. Never cover the
leather steering wheel with a plastic protector.
Volvo Leather Care Kit 951 0251 and Leather
Softener 943 7429 are recommended for
cleaning the leather steering wheel. First,
remove dirt, dust, etc. with a damp sponge or
cloth.

CAUTION

Sharp objects such as rings could damage
the leather on the steering wheel.

Treating stains on the steering wheel:

Type 1

 (ink, wine, coffee, milk, sweat or blood)

–

Use a soft cloth or sponge. Wipe the
steering wheel using a solution of 5%
ammonia. For blood stains, mix approxi-
mately 2 dl (1 cup) of water with 25 g
(one ounce) of salt and wipe the stain.

Type 2

 (grease, oil, sauces or chocolate)

1. Same procedure as for Type 1 stains.

2. Finish by wiping the wheel with an

absorbent paper or towel.

Type 3

 (dry dirt or dust)

1. Remove the dirt/dust using a soft brush.

2. Same procedure as for Type 1 stains.

Related information

•

Cleaning the interior (p. 622)

•

Cleaning the center display (p. 623)

•

Cleaning fabric upholstery and ceiling liner
(p. 624)

•

Cleaning the seat belt (p. 625)

•

Cleaning textile floor and inlay mats
(p. 626)

•

Cleaning leather upholstery

*

 (p. 626)

•

Cleaning interior plastic, metal and wood
surfaces (p. 628)
