Using the glove compartment

Locking and unlocking the glove box

*

The glove compartment can be locked when
the vehicle is left at a workshop, hotel, etc.
The glove compartment can then only be
locked/unlocked with the glove compartment
key.

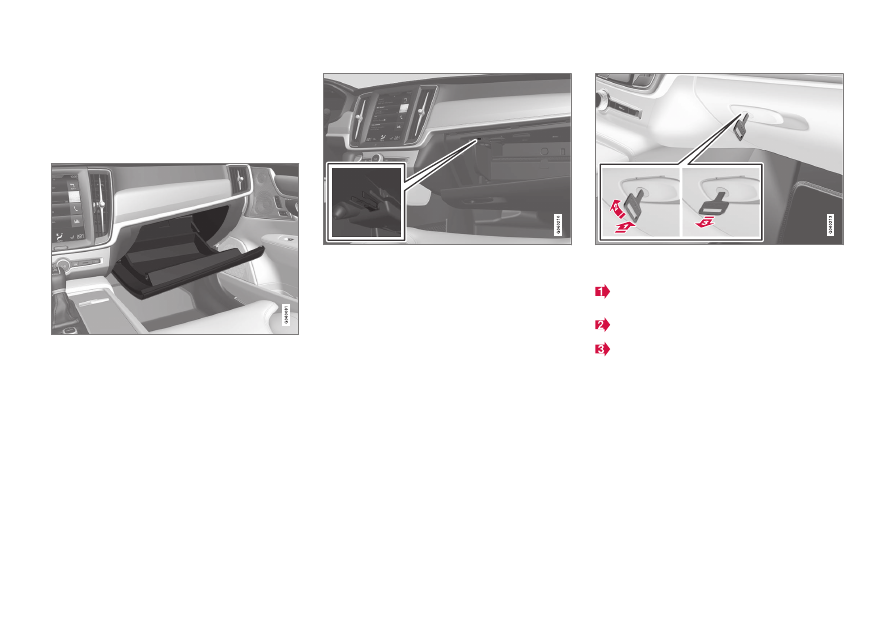

Storage compartment for the key. The illustration is

generic – the design may vary.

The illustration is generic – the design may vary.

To lock the glove compartment:
Insert the key into the lock on the glove
compartment.
Turn the key 90 degrees clockwise.

Remove the key from the lock.

–

To unlock, perform the above steps in
reverse.

Using the glove box as a cooled area

*

The glove compartment can be used to cool
e.g. drinks or food. Cooling is possible when
the climate system is active (i.e. when the
ignition is in mode

II

 or when the engine is

running).

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

563

The illustration is generic – the design may vary.

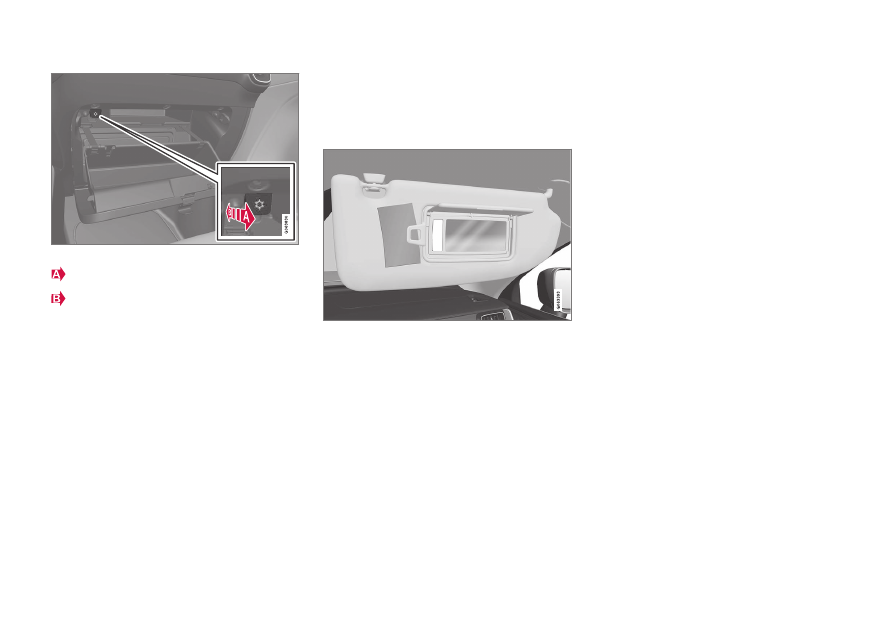

Activate cooling.

Deactivate cooling.

–

Activate or deactivate cooling by moving
the control as far as possible toward the
passenger compartment/glove compart-
ment.

Related information

•

Passenger compartment interior (p. 558)

•

Private Locking (p. 270)

Sun visors

In the ceiling in front of the driver's and front
passenger's seats, there are sun visors that
can be lowered and angled to the side as
necessary.

The illustration is generic – the design may vary.

The mirror lighting

*

 comes on automatically

when the visor is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Passenger compartment interior (p. 558)

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure
large objects.

The cargo capacity of the vehicle can be con-
siderably increased by folding down the rear
seat backrests. Use the load anchoring eyelets
or grocery bag holders to help secure objects
in place, and the retractable cargo compart-
ment cover

*

 to help conceal objects in the

cargo compartment.

The towing eyelet and tire sealing system, or
the temporary spare tire

*

, are located under

the cargo compartment floor.

Related information

•

Loading recommendations (p. 564)

•

Grocery bag holders (p. 565)

•

Load anchoring eyelets (p. 566)

•

Installing and removing the cargo com-
partment cover

*

 (p. 567)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

564

Loading recommendations

There are a number of things that are impor-
tant to consider when carrying loads in or on
the vehicle.

Load-carrying capacity is determined by the
vehicle's curb weight. The total weight of all
passengers and any installed accessories
reduces the vehicle's load-carrying capacity by
the corresponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of

the load.

Loading the cargo compartment/trunk

Keep the following in mind when loading:

•

Position objects so they are pressing
against the rear seat backrests.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects
on folded-down seat backrests.

•

Cover sharp corners with a soft cloth or
similar to help prevent damage to the
upholstery.

•

Use the load anchoring eyelets and ten-
sioning straps or similar to secure all
objects.

WARNING

In a head-on collision at a speed of

50 km/h (30 mph), an unsecured object

weighing 20 kg (44 pounds) can reach a

projectile weight equivalent to 1000 kg

(2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm

(4 in.) space between the objects and the

window. Objects placed closer to this

could impede the function of the inflatable

curtain concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may

shift during heavy braking and injure peo-

ple in the vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long

objects. Otherwise, it is possible for the

load to reach the gear lever or gear selector

and move it to a drive position – which

could cause the vehicle to begin rolling.

Extra cargo space

The rear seat backrests can be folded down to
increase cargo space in the cargo compart-

ment/trunk and simplify loading. If the rear
seat backrests are folded down, make sure
that no objects loaded into the vehicle prevent
the WHIPS system for the front seats from
functioning correctly.

A ski hatch in the rear seat can be folded
down to carry skis or other long, thin objects.

Related information

•

Load anchoring eyelets (p. 566)

•

Folding down the rear seat backrests
(p. 198)

•

Rear seat ski hatch (p. 567)

•

Roof loads and load carriers (p. 565)

•

Leveling control

*

 and suspension (p. 426)

•

Weights (p. 649)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

565

Roof loads and load carriers

Volvo-developed load carriers are recom-
mended for carrying loads on the roof of the
vehicle.

Volvo load carriers are specially designed to
help prevent damage to your vehicle and help
ensure maximum safety while driving. Volvo
load carriers are available from authorized
Volvo retailers.

Carefully follow the installation instructions
provided with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the
bottom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such
as a canoe or kayak, attach the towing
eyelet in its front outlet and secure the tie
straps in it.

•

The vehicle's wind resistance and fuel
consumption increase with the size of the
load.

•

Drive smoothly. Avoid rapid acceleration,
hard braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regar-

ding weights and maximum permitted

load.

Related information

•

Loading recommendations (p. 564)

•

Weights (p. 649)

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from
falling over and spilling their contents in the
cargo compartment.

On the sides of the cargo
compartment

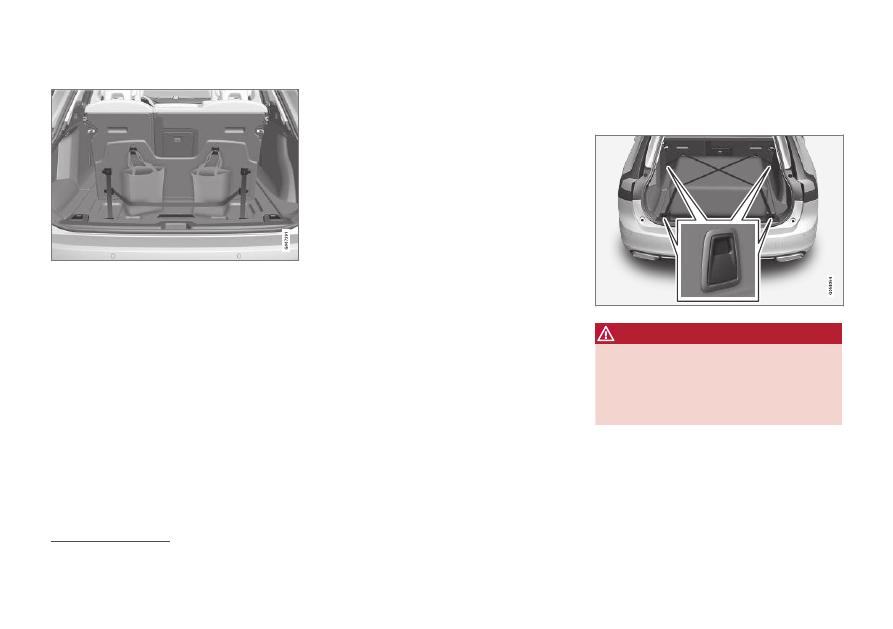

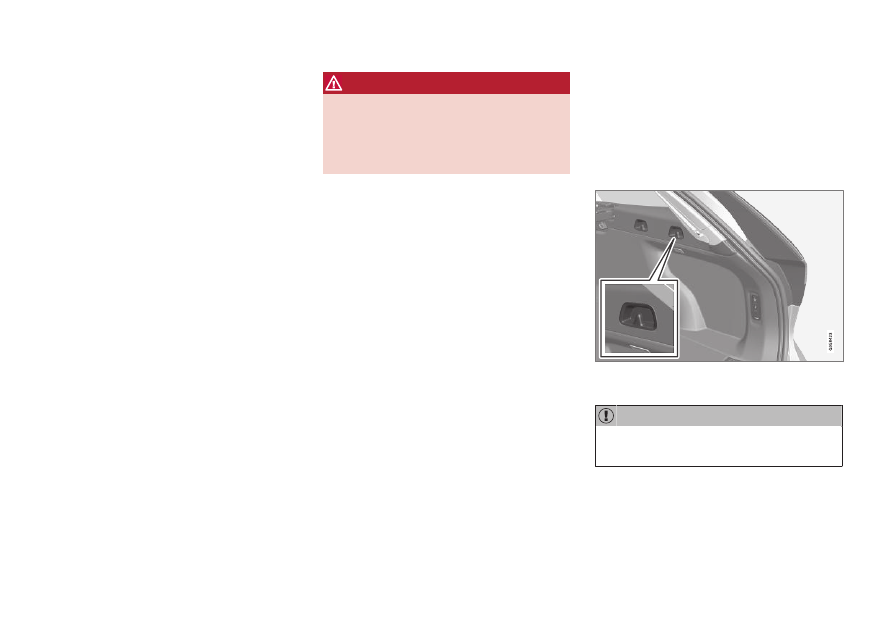

There are two grocery bag holders in the side
panel on each side of the cargo compartment.

CAUTION

The grocery bag holders are only intended
to hold weights up to 5 kg (11 lbs).

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

566

Under the floor hatch

*

There are two grocery bag holders and an
elastic band

2

 in the hatch in the cargo com-

partment floor. The strap can be attached in
four different positions.

Open the hatch to access the grocery bag
holders. Use the provided elastic strap to
secure shopping bags in a suitable position.
Bags with handles of a suitable size can also
be hung on the hooks.

Related information

•

Loading recommendations (p. 564)

•

Using the glove compartment (p. 562)

•

Installing and removing the cargo net

*

(p. 571)

•

Installing and removing the cargo com-
partment cover

*

 (p. 567)

•

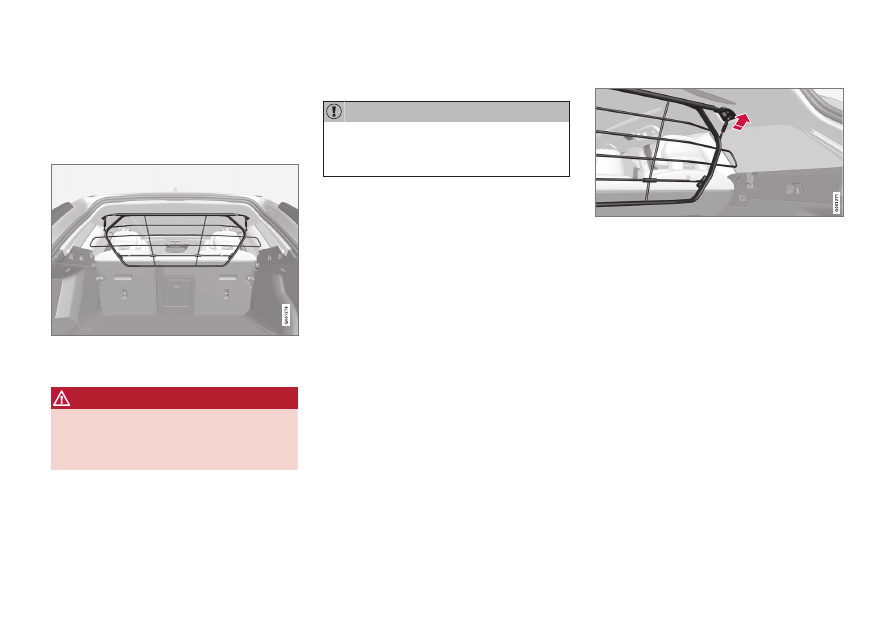

Installing and removing the steel cargo
grid

*

 (p. 570)

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects

with a seat belt or cargo retaining straps.

Related information

•

Loading recommendations (p. 564)

•

Weights (p. 649)

2

Additional elastic straps can be ordered from a Volvo retailer.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

567

Rear seat ski hatch

The hatch in the rear seat backrest can be
opened to transport long, narrow objects
such as skis.

The illustration is generic - details may vary accord-

ing to vehicle model.

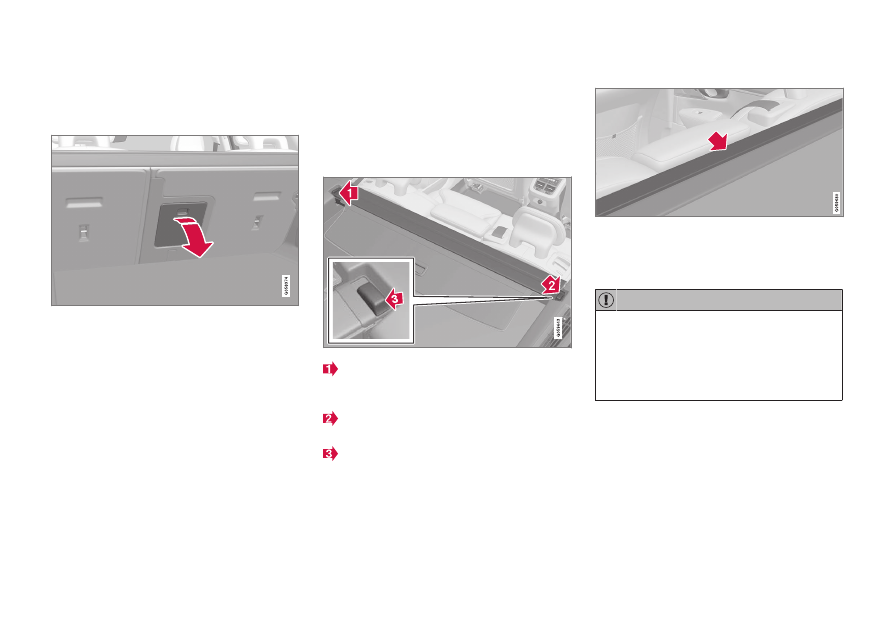

1. In the cargo compartment, grasp the ski

hatch handle and pull it down.

2. Fold down the armrest in the rear seat.

If the private locking function is used, the ski
hatch must be closed.

Related information

•

Loading recommendations (p. 564)

•

Private Locking (p. 270)

•

Load anchoring eyelets (p. 566)

Installing and removing the cargo

compartment cover

*

The cover can be rolled out to conceal objects
in the cargo compartment.

Installing the cargo compartment
cover

Press the end piece on one side of the
cover into the retaining bracket in the side
panel of the cargo compartment.

Then put the other end piece in the recess
in the side panel on the opposite side.

Push the end piece down on both sides,
one at a time.

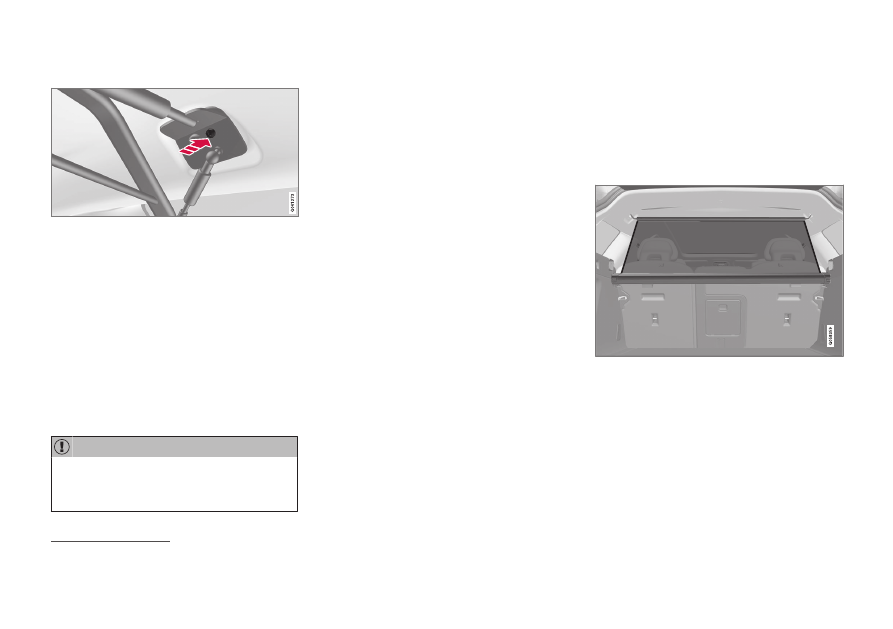

> When a click is heard and the red

marks on each end piece are no longer
visible, the cover is in place. Check that
it is secure.

4.

Fold out the cover's front flap to eliminate
the gap between the cover and the rear
seat backrest.

CAUTION

The flap has two plastic parts that hold it
into place.

Do not hang shopping bags or similar
items on these plastic parts. They are not
designed for this and could break.

If the cargo net

*

 is used at the same time as

the cargo compartment cover, the net has to
be put into place first.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

568

Removing the cargo compartment
cover

In retracted position:

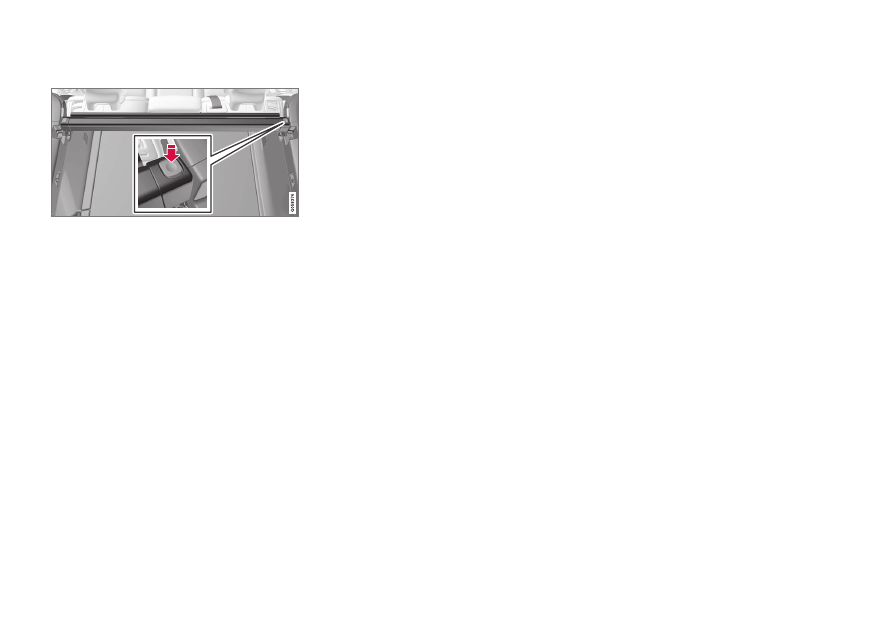

1. Press the button on one of the cover's

ends and lift out that end.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of
the cargo compartment.

Related information

•

Operating the cargo compartment cover

*

(p. 568)

•

Loading recommendations (p. 564)

Operating the cargo compartment

cover

*

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

Fully open

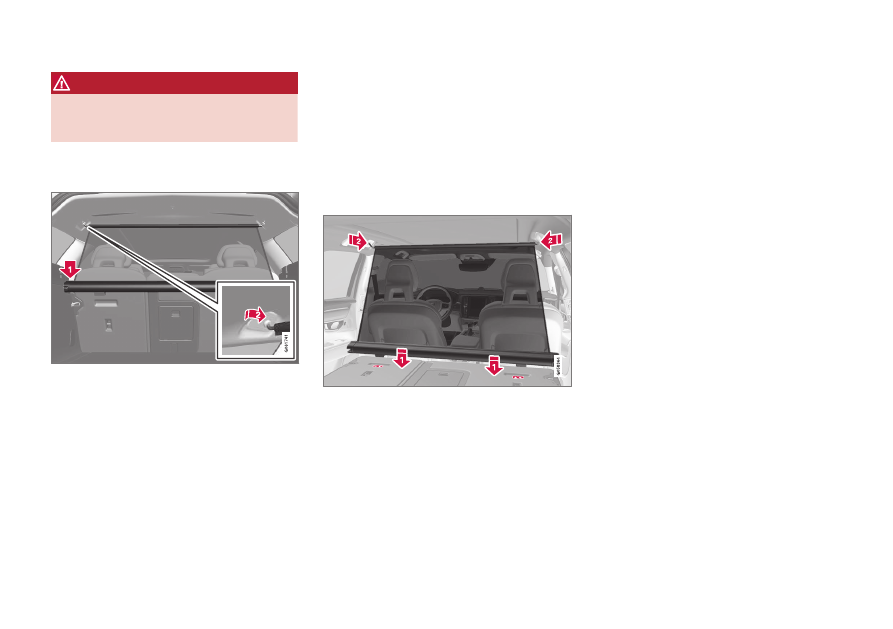

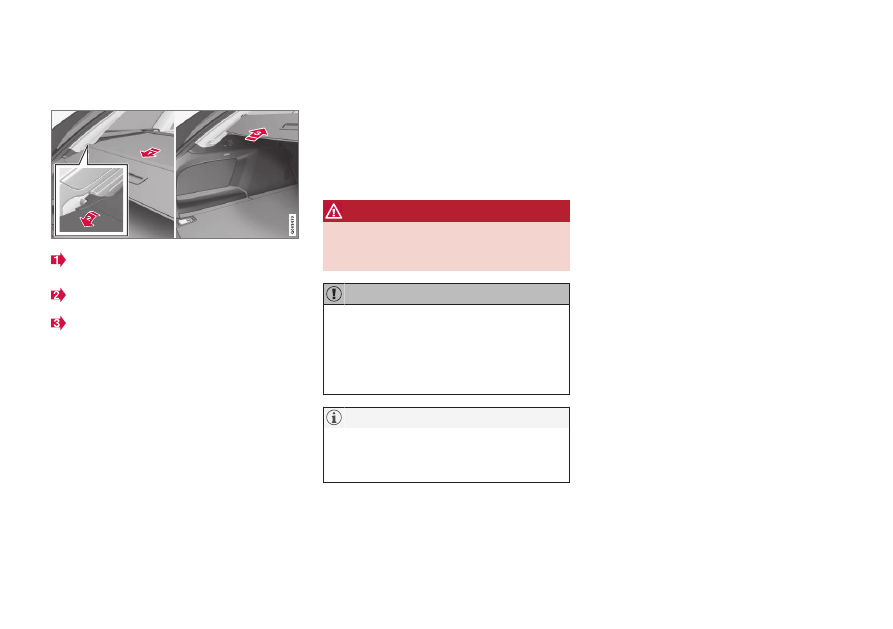

1. Grasp the handle and pull the cover out

and above the side panels in the cargo
compartment. Pull the cover to its end
position.

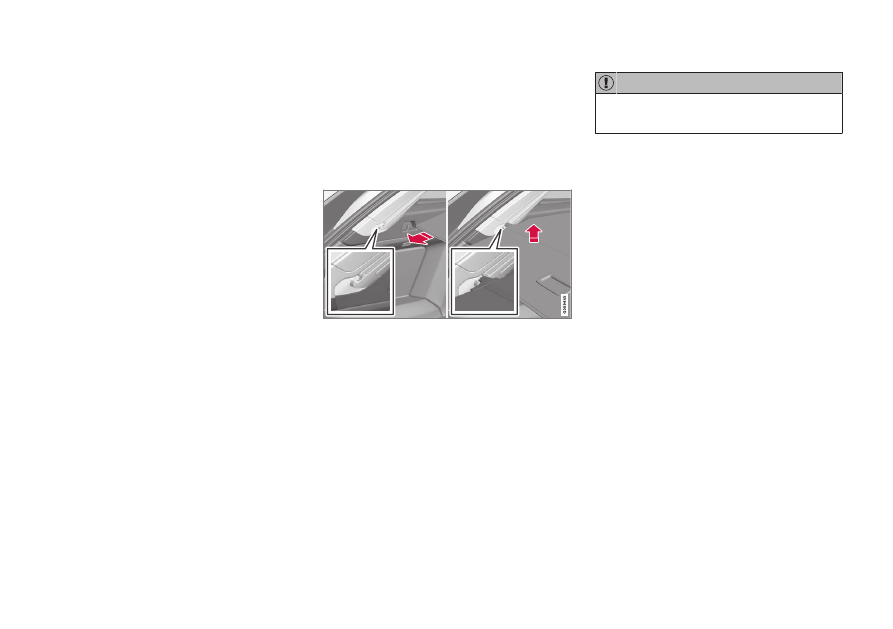

2. Press the cover's attaching pins down into

the grooves in the side panels. Let the
cover retract slightly while pressing the
handle lightly upward to hook the attach-
ing pins into place.
> The cover will be secured in the fully

open position.

CAUTION

Do not place objects on top of the cargo
compartment cover.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

569

Loading mode

From the fully opened position:

Grasp the handle and pull it rearward as
far as possible.

Press the cover slightly downward.

Move the cover and its attaching pins
carefully forward and upward over the
hooks.
> The cover will retract until it stops in

the partially retracted position.

Returning to the fully open position from the
partially retracted position:

1. Grasp the handle and pull the cover out as

far as possible.

2. Release the handle so that the attaching

pins engage into the hooks.
> The cover will be secured in the fully

open position.

In vehicles equipped with the automatic cargo
compartment cover

*

, the cover will retract

from the fully open position to the partially
retracted position every time the tailgate is
opened, and will return to the fully open posi-
tion when the tailgate is closed. The cover will
detect if anything obstructs its movement and
automatically retract.

WARNING

Be aware of the risk of injury when opening

and closing the electrically operated

*

 cargo

compartment cover.

CAUTION

If large or bulky objects are placed in the
cargo compartment, put the automatic

*

cargo compartment cover in the fully
retracted position to help prevent it from
coming into contact with the object.

NOTE

Automatic operation of the cargo compart-
ment cover may not be possible at low
passenger compartment temperatures.

Retracting the cover

1. From the fully opened position:

Lift the cover's handle and pull it rearward
to release the cover's attaching pins from
the grooves. Let the cover retract.

From the partially retracted position:

Grasp the handle and pull the cover out of
the groves to the fully open position. Lift
the handle and pull it rearward to release
the cover's attaching pins from the
grooves. Let the cover retract.

2. Let the cover retract with its attaching

pins above the side panels until it stops in
the fully retracted position.

Keep in mind that a retracted cover could
reduce rearward visibility.

Related information

•

Installing and removing the cargo com-
partment cover

*

 (p. 567)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

570

Installing and removing the steel

cargo grid

*

The steel cargo grid prevents loads or pets in
the cargo compartment from being thrown
forward into the passenger compartment
during hard braking.

For safety reasons, the steel grid must always
be installed and secured correctly.

WARNING

Under no circumstances may a person be

in the cargo compartment when the vehi-

cle is moving. Heavy braking or a collision

could lead to serious injury.

Installation

CAUTION

The steel cargo grid may only be used in
the rear position (behind the rear seat)
described here.

Before installing the steel grid, the existing
plastic ceiling mounting consoles must be
replaced with steel consoles. Volvo recom-
mends that the ceiling consoles are only
replaced by an authorized Volvo workshop or
retailer.

1. Fold down the rear seat backrests.

2. Make sure that the steel grid is facing the

right direction. Lift the grid into the vehicle
through one of the rear doors.

3.

Position the grid's attachment points in
the ceiling consoles.

The next step will be easier if two people
hold the steel grid in the right position.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

571

4.

Screw the provided screw into place using
the provided 6 mm Allen wrench. Repeat
on the other side. Recommended torque:
20 Nm (15 ft-lb).
> Check to make sure the steel grid is

securely in place.

5. Return the backrest to the upright posi-

tion.

For more information on necessary tools and
procedures for installing/removing, see the
assembly instructions

3

 provided with the steel

grid.

CAUTION

The steel cargo grid cannot be folded up or
down when a cargo compartment cover is
mounted.

Related information

•

Loading recommendations (p. 564)

•

Load anchoring eyelets (p. 566)

Installing and removing the cargo

net

*

The cargo net helps prevent objects in the
cargo compartment from entering the pas-
senger compartment in the event of a sudden
stop or hard braking.

The cargo net is attached at four points.

For safety reasons, the cargo net must always
be mounted and secured according to the fol-
lowing description.

The net is made of strong nylon weave and
can be attached in two different locations in
the vehicle:

•

Rear mounting - behind the rear seats.

•

Front mounting - behind the front seats.

3

Assembly instructions no. 31659257.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

572

WARNING

Objects in the cargo compartment must

always be securely anchored, even with a

correctly installed cargo net.

Installing the cargo net

Rear mounting

1. Fold down the rear seat backrests to

make mounting easier.

2. Guide the ends of the cargo net's cassette

over the load anchoring eyelets in the side
panel recesses. Press the ends of the cas-
sette into place on each side. Make sure
the cassette is securely in place.

3. Pull up the net.

4. Insert one of the net's upper attachments

into the corresponding rear ceiling bracket
and press it as far forward into the bracket
as possible.

5. Press the other attachment into the rear

ceiling bracket on the opposite side and
press it as far forward into the bracket as
possible.

Front mounting

1. Fold down the rear seat backrests.

2. Align the cassette's mounting rails above

the mounting brackets on the backrest.

3. Press the cassette into the mounting

brackets.

4. Pull up the net.

5. Insert one of the net's upper attachments

into the corresponding front ceiling
bracket and press it as far forward into the
bracket as possible.

6. Press the other attachment into the rear

ceiling bracket on the opposite side and
press it as far forward into the bracket as
possible.

Removing the cargo net

1. Remove the cargo net from the ceiling

brackets by pressing the hook attach-
ments rearward. Let the net retract into
the cassette.

LOADING, STORAGE AND PASSENGER COMPARTMENT

573

2.

Rear mounting:

Press the button on each side of the cas-
sette to release the ends from the load
anchoring eyelets. Lift out the net.

Front mounting:

Slide the cassette off of the mounting
brackets and lift then net out.

Related information

•

Loading recommendations (p. 564)

•

Load anchoring eyelets (p. 566)

MAINTENANCE AND SERVICE

576

Volvo's service program

To keep the vehicle as safe and reliable as
possible, follow the Volvo service schedule
specified in the Warranty and Maintenance
Records Information booklet.

WARNING

California Proposition 65

Operating, servicing and maintaining a pas-

senger vehicle can expose you to chemi-

cals including engine exhaust, carbon mon-

oxide, phthalates, and lead, which are

known to the State of California to cause

cancer and birth defects or other reproduc-

tive harm. To minimize exposure, avoid

breathing exhaust, do not idle the engine

except as necessary, service your vehicle in

a well ventilated area and wear gloves or

wash your hands frequently when servicing

your vehicle. For more information go to

Volvo recommends having an authorized
Volvo workshop perform service and mainte-
nance. Volvo workshops have the staff, service
literature and special tools that can provide
the highest quality of service.

CAUTION

To ensure the Volvo warranty is not invali-
dated, check and follow the Warranty and
Service Records Information booklet.

Introduction

The maintenance services contain several
checks that require special instruments and
tools and therefore must be performed by a
qualified technician. To keep your Volvo in top
condition, specify time-tested and proven
Genuine Volvo Parts and Accessories.

The Federal Clean Air Act - U.S.

The Federal Clean Air Act requires vehicle
manufacturers to furnish written instructions
to the ultimate purchaser to assure the proper
servicing and function of the components that
control emissions. These services, which are
listed in the "Warranty and Service Records
Information" booklet, are not covered by the
warranty. You will be required to pay for labor
and material used.

Maintenance

Your Volvo passed several major inspections
before it was delivered to you, in accordance
with Volvo specifications. The maintenance
procedures outlined in the Warranty and Serv-
ice Records Information booklet, many of
which will positively affect your vehicle's emis-
sions, should be performed as indicated. It is
recommended that receipts for vehicle emis-
sion maintenance be retained in case ques-
tions arise concerning maintenance. Inspec-
tion and maintenance should also be per-
formed anytime a malfunction is observed or
suspected.

Applicable warranties - U.S./Canada

In accordance with applicable U.S. and Cana-
dian regulations, the following list of warran-
ties is provided.

•

New Vehicle Limited Warranty

•

Parts and Accessories Limited Warranty

•

Corrosion Protection Limited Warranty

•

Seat Belt and Supplemental Restraint
Systems Limited Warranty

•

Emission Design and Defect Warranty

•

Emission Performance Warranty

These are federal warranties; other warranties
are provided as required by state/provincial
law. Refer to your separate Warranty and
Service Records Information booklet for
detailed information concerning each of the
warranties.

MAINTENANCE AND SERVICE

}}

577

Periodic maintenance helps minimize
emissions

NOTE

•

Refer to your Service and Warranty
Booklet for a comprehensive service
and maintenance schedule up to
240,000 km (150,000 miles). This
program contains inspections and ser-
vices necessary for the proper function
of your vehicle and includes compo-
nents that affect vehicle emissions.

•

The Warranty and Service Records
Information booklet also contains
detailed information concerning the
warranties that apply to your vehicle.

On-board Diagnostic System

OBD II is part of your vehicle's computerized
engine management system. It stores diag-
nostic information about your vehicle's emis-
sion controls. It can light the Check Engine
light (MIL) if it detects an emission control
"fault." A "fault" is a component or system
that is not performing within an expected
range. A fault may be permanent or temporary.
OBD II will store a message about any fault.

Emission inspection readiness

How do states use OBD II for emission
inspections?

Many states connect a computer directly to a
vehicle's OBD II system. The inspector can
then read "faults." In some states, this type of
inspection has replaced the tailpipe emission
test.

How can my vehicle fail OBD II emission
inspection?

Your vehicle can fail OBD II emission inspec-
tion for any of the following reasons:

•

If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.

•

If your vehicle's Check Engine light was lit,
but went out without any action on your
part, OBD II will still have a recorded fault.
Your vehicle may pass or fail, depending
on the inspection practices in your area.

•

If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.

How can I prepare for my next OBD II
emission inspection?

•

If your Check Engine (MIL) light is lit or
was lit but went out without service, have

your vehicle diagnosed and, if necessary,
serviced by a qualified Volvo technician.

•

If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a
period of driving is necessary to bring the
OBD II system to "ready" for inspection.
Two half-hour trips of mixed stop-and-go/
highway driving are typically needed to
allow OBD II to reach readiness. Your
Volvo retailer can provide you with more
information on planning a trip.

•

Maintain your vehicle in accordance with
your vehicle's maintenance schedule.

Owner maintenance

Periodic maintenance requirements and inter-
vals are described in your vehicle's Warranty
and Service Records Information booklet.

The following points can be carried out
between the normally scheduled maintenance
services.

Each time the vehicle is refueled:

•

Check the engine oil level.

•

Clean the windshield, windshield wipers,
headlights, and taillights.

||

MAINTENANCE AND SERVICE

578

Monthly:

•

Check cold tire pressure in all tires.
Inspect the tires for wear.

•

Check that engine coolant and other fluid
levels are between the indicated "min"
and "max" markings.

•

Clean interior glass surfaces with a glass
cleaner and soft paper towels.

•

Wipe driver information displays with a
soft cloth.

•

Visually inspect battery terminals for cor-
rosion. Corrosion may indicate a loose ter-
minal connector, or a battery near the end
of its useful service life. Consult your Volvo
retailer for additional information.

As needed:

Wash the vehicle, including the undercarriage,
to reduce wear that can be caused by a
buildup of dirt, and corrosion that can be
caused by salt residues.

Clean leaves and twigs from air intake vents at
the base of the windshield, and from other pla-
ces where they may collect.

NOTE

Complete service information for qualified
technicians is available online for purchase
or subscription at www.volvotechinfo.com.

Related information

•

Vehicle status (p. 580)

•

Scheduling service and repairs (p. 581)

•

Connecting equipment to the vehicle's
data link connector (p. 37)

•

Technician certification (p. 38)

•

Climate control system service (p. 586)

•

Maintenance of the brake system (p. 403)

•

Engine compartment overview (p. 588)

Data transfer between vehicle and

workshop over Wi-Fi

Volvo workshops have a designated Wi-Fi
network for data transfer between your vehi-
cle and the workshop. Your visit to the work-
shop will be easier and more effective when
diagnostics information and software can be
transferred over the workshop's network.

At the workshop, your service technician can
connect your vehicle to the workshop's Wi-Fi
network to perform troubleshooting and
download software. For this type of communi-
cation, the vehicle only connects to a work-
shop's network. It is not possible to connect
the vehicle to another Wi-Fi network (e.g. your
home network) in the same way as to a work-
shop's network.

Connecting with remote key

Connection is usually managed by the service
technician, who will use the remote key but-
tons. It is therefore important to bring a key
with buttons with you when you visit the
workshop. Pressing the lock button on the
remote key three times will connect the vehi-
cle to the workshop's Wi-Fi network.

When the car is connected to a Wi-Fi net-
work, the

 symbol appears in the center

display.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

579

WARNING

The vehicle may not be driven when it is

connected to the workshop's networks and

systems.

Related information

•

Handling system updates via Download
Center (p. 579)

•

Scheduling service and repairs (p. 581)

Download Center

With the vehicle connected to the Internet

1

,

updates for a number of the vehicle's sys-
tems can be downloaded from the center dis-
play.

The

Download Center

 app is

started from the center dis-
play and makes it possible to:

•

search for and update system software

•

update Sensus Navigation

*

 map data

•

download, update and delete apps.

Related information

•

Handling system updates via Download
Center (p. 579)

•

Download apps (p. 459)

•

Updating apps (p. 459)

•

Deleting apps (p. 460)

•

Internet-connected vehicle

*

 (p. 508)

•

Navigating in the center display's views
(p. 119)

Handling system updates via

Download Center

Functions for Internet-connected vehicles
and infotainment can be updated via Down-
load Center. Updates can be done one at a
time or all at the same time.

Searching for update

If an update is available, the
message

New software

updates available See
Download Center

 will be

displayed in the center dis-
play's status field.

In order for system updates to be possible, the
vehicle must have an Internet connection

2

.

–

Go to

Download Center

 in the center dis-

play's App view.
> If no search has been performed since

the last time the infotainment system
was started, a search will be initiated.
No search will begin if a software
download is in progress.

A number in

System updates

 shows

how many updates are available. Tap to
display a list of updates that can be
installed in the vehicle.

1

There may be a charge for transmitting data over the Internet, depending on your service plan.

2

There may be a charge for transmitting data over the Internet, depending on your service plan.
