AUDIO, MEDIA AND INTERNET

506

Country/
Area

US/
Canada

FCC ID : BEJWC510MVV20

IC : 2703H-WC510MVV20

This device complies with part 15 of the FCC rules and with RSS-Gen,RSS-216 rules of Canada. Operation is subject to the following
two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changed or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 15cm between the radiator and your body.

–

IDéclaration d'avertissement ISED

Son fonctionnement est soumis aux deux conditions suivantes:

(1) Cet appareil ne doit pas provoquerd'interferences nuisibles, et

(2) Cet appareil doit accepter toute interference recue, y compris les interferences pouvant entrainerun fonctionnement indesirable.

Les changements ou modifications non expressement approuves par LG Vehicle Components Company pourraient annuler l'autorite
de l'utilisateura utilizer l'equipement.

Déclaration d'exposition aux radiations RF de l'ISED: Cet équipement est conforme aux limites d'exposition aux rayonnements RF de
l'ISED définies pour un environnement non contrôlé. Cet appareil et son antenne ne doivent pas être situés ou fonctionner
conjointement avec une autre antenne ou un autre émetteur.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

508

Internet-connected vehicle

When the vehicle is connected to the Inter-
net, it is possible to use web radio and music
services via apps, download software and
contact retailers from the vehicle.

The vehicle can be connected to the Internet
using Bluetooth, Wi-Fi or the vehicle's inte-
grated modem (SIM card).

When the vehicle is connected to the Internet,
it is possible to share the vehicle's Internet
connection (Wi-Fi hotspot) so that other devi-
ces, e.g. tablets, can access the Internet

The Internet status is shown by a symbol in
the center display's status bar.

NOTE

Data (data traffic) is transfered when using
the internet, which can incur additional
costs.

Activating data roaming can cause addi-
tional charges.

Contact your network operator about data
traffic costs.

NOTE

When using Apple CarPlay, it is only possi-
ble to connect the vehicle to the Internet
using Wi-Fi or the vehicle's modem.

NOTE

When using Android Auto, it is possible to
connect the vehicle to the Internet using
Wi-Fi, Bluetooth or the vehicle's modem.

Before the vehicle is connected to the Inter-
net, search for support information about
terms and conditions for services and the cus-
tomer privacy policy at volvocars.com.

Related information

•

Symbols in the center display status bar
(p. 128)

•

Connecting the vehicle to the Internet via
a Bluetooth-connected phone (p. 509)

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 509)

•

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 510)

•

Apps (p. 458)

•

No or poor Internet connection (p. 513)

•

Sharing Internet from the vehicle via Wi-Fi
hotspot (tethering) (p. 512)

•

Deleting Wi-Fi networks (p. 513)

•

Wi-Fi technology and security (p. 514)

•

Volvo ID (p. 26)

•

This is not possible when the vehicle is connected to another Wi-Fi hotspot.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

* Option/accessory.

509

Connecting the vehicle to the

Internet via a Bluetooth-connected

phone

Establish an Internet connection using
Bluetooth and tethering from a phone and
get access to multiple connected services in
your vehicle.

1. To connect the vehicle to the Internet via a

Bluetooth-connected phone, the phone
must first be paired with the vehicle via
Bluetooth.

2. Make sure that the phone supports Inter-

net sharing (tethering) and that the func-
tion is activated. In an iPhone, the function
is called "personal hotspot". In Android
phones, the function can have different
names, but is often called "hotspot". For
iPhone phones, the "personal hotspot"
menu page must also be open until the
Internet connection has been made.

3. If the phone has been connected via Blue-

tooth previously, tap

Settings

in the cen-

ter display's Top view.

4. Tap

Communication

Bluetooth

Devices

5. Mark the window for

Bluetooth Internet

connection

under the heading

Internet

connection

6. If a different connection is being used,

confirm the connection change.
> Your vehicle is now connected to the

Internet via your Bluetooth-connected
phone.

NOTE

The cellular phone and network operator
must support tethering (sharing of Internet
connection) and the subscription must
include data traffic.

NOTE

When using Apple CarPlay, it is only possi-
ble to connect the vehicle to the Internet
using Wi-Fi or the vehicle's modem.

Related information

•

Internet-connected vehicle

(p. 508)

•

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 510)

•

Connecting a phone to the car via Blue-
tooth for the first time (p. 494)

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 509)

•

Apple

CarPlay

(p. 486)

•

No or poor Internet connection (p. 513)

•

Settings for Bluetooth devices (p. 501)

Connecting the vehicle to the

Internet via a phone (Wi-Fi)

Establish an Internet connection using Wi-Fi
through Internet sharing (tethering) from a
phone and get access to the connected servi-
ces in your vehicle.

1. Make sure that the phone supports Inter-

2. Tap

Settings

in the Top view.

3. Proceed to

Communication

Wi-Fi

4. Activate/deactivate by tapping to check/

uncheck the Wi-Fi box.

5. If a different connection is being used,

confirm the connection change.

6. Tap the name of the network you would

like to connect.

7. Enter the network password.

> The vehicle will connect to the network.

Please note that certain cellular phones will
disable Internet sharing (tethering) when the
connection to the vehicle has been broken,
e.g. when the phone has been removed from

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

510

the vehicle. The phone's tethering function will
then need to be reactivated the next time the
phone's hotspot is used to connect to the
Internet.

When a phone is connected to the vehicle, it
will be saved for future use. To display a list of
saved networks or to manually delete saved
networks, tap

Settings

Communication

Wi-Fi

Saved networks

NOTE

The cellular phone and network operator
must support tethering (sharing of Internet
connection) and the subscription must
include data traffic.

Technical and security requirements for Wi-Fi
connection are described in a separate sec-
tion.

Related information

•

Internet-connected vehicle

(p. 508)

•

Deleting Wi-Fi networks (p. 513)

•

No or poor Internet connection (p. 513)

•

Wi-Fi technology and security (p. 514)

Connecting the vehicle to the

Internet via vehicle modem (SIM

card)

It is possible to establish an Internet connec-
tion via the vehicle modem and a personal
SIM card (P-SIM).

Vehicles equipped with Volvo On Call will use
the vehicle modem Internet connection for the
services.

Insert a personal SIM card in the holder
under the floor of the cargo compartment.

Note that the vehicle's card reader
requires

mini SIM

cards.

2. Tap

Settings

in the Top view.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

511

3. Tap

Communication

Vehicle Modem

Internet

4. Activate/deactivate by tapping to check/

uncheck the

Vehicle modem Internet

box.

5. If a different connection is being used,

confirm the connection change.

6. Enter the SIM card's PIN code.

> The vehicle will connect to the network.

NOTE

Please note that the SIM card used for
Internet connection via P-SIM cannot have
the same telephone number as the SIM
card used in the cellular phone. If the same
card is used for both, phone calls will not
be connected properly to the cellular
phone. Use a SIM card with a separate
phone number for the Internet connection
or a data card that does not handle phone
calls and can therefore not interfere with
phone function.

Related information

•

Internet-connected vehicle

(p. 508)

•

No or poor Internet connection (p. 513)

•

Vehicle modem settings (p. 511)

Vehicle modem settings

Your vehicle is equipped with a modem that
can be used to connect the vehicle to the
Internet. It is also possible to share this Inter-
net connection over Wi-Fi.

1. Tap

Settings

in the Top view.

2. Tap

Communication

Vehicle Modem

Internet

and select settings:

•

Vehicle modem Internet

- select this to

use the vehicle's modem to connect to the
Internet.

•

Data usage.

- tap

Reset

to reset the

counter for the amount of data received
and sent.

•

Network

Select carrier

- select a service provider

manually or automatically.

Data roaming

- if the box is checked, the

vehicle modem will attempt to connect to
the Internet when the vehicle is outside its
home network (e.g. if you are in another
country). Please note that this could entail
additional charges. Consult with your serv-
ice provider for data roaming terms under
your contract.

•

SIM card PIN

Change PIN

- a maximum of 4 digits can

be entered.

Disable PIN

- select whether a PIN code

will be required to access the SIM card.

•

Send request code

- used to e.g. down-

load or check the balance remaining on a
prepaid phone card. This function is spe-
cific to your service provider.

NOTE

Related information

•

Connecting the vehicle to the Internet via
vehicle modem (SIM card) (p. 510)

•

No or poor Internet connection (p. 513)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

512

Sharing Internet from the vehicle

via Wi-Fi hotspot (tethering)

When the vehicle is connected to the Inter-
net, other devices may share the vehicle's
Internet connection

The network service provider (SIM card) must
support Internet sharing (tethering).

1. Tap

Settings

in the Top view.

2. Tap

Communication

Vehicle Wi-Fi

Hotspot

3. Tap

Network name

to assign a name to

the hotspot.

4. Tap

Password

and create a password.

This password can then be used to con-
nect other devices to this hotspot.

5. Tap

Frequency band

and select a fre-

quency for the hotspot to use to transmit
data. Please note that selecting a fre-
quency is not possible on all markets.

6. Activate/deactivate by tapping to check/

uncheck the

Vehicle Wi-Fi Hotspot

box.

7. If Wi-Fi is being used to connect to the

Internet, confirm the change of connec-
tions.
> It is now possible for external devices

to connect to the vehicle's Wi-Fi hot-
spot.

NOTE

Activation of Wi-Fi hotspot can cause addi-
tional charges from your network operator.

Contact your network operator about data
traffic costs.

The connection status is shown by a symbol in
the center display's status bar.

Tap

Connected devices

to see a list of cur-

rently connected devices.

Related information

•

Symbols in the center display status bar
(p. 128)

•

Internet-connected vehicle

(p. 508)

•

No or poor Internet connection (p. 513)

This does not apply when the vehicle is connected to the Internet via Wi-Fi.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

513

No or poor Internet connection

Factors affecting the Internet connection.

The amount of data transmitted depends on
the services or apps currently in use in the
vehicle. Streaming music, for example,
involves the transmission of a large amount of
data, and this requires a good connection and
a strong signal.

Phone to vehicle

Internet connection speed may vary depend-
ing on the location of the cellular phone in the
vehicle. Move the phone closer to the center
display to increase signal strength. Make sure
that nothing is between the phone and center
display that could be blocking the signal.

Phone to network operator

The speed of the mobile network varies
depending on the coverage in the vehicle's
current location. Coverage may be poorer in
e.g. tunnels, mountainous areas, deep valleys
or indoors. Connection speed is also depend-
ent on the subscription you have with your
service provider.

NOTE

If you experience any problems with data
traffic, contact your network service pro-
vider.

Restarting the phone

If you experience any Internet connection
problems, it may help to restart your phone.

Related information

•

Internet-connected vehicle

(p. 508)

•

Wi-Fi technology and security (p. 514)

Deleting Wi-Fi networks

Networks that are not needed can be
deleted.

1. Tap

Settings

in the Top view.

2. Proceed to

Communication

Wi-Fi

Saved networks

3. Tap

Forget

to delete the network.

4. Confirm the selection.

> The vehicle will no longer connect to

the deleted network.

Deleting all networks

All networks can be deleted at once by per-
forming a factory reset. Please note that all
user data and system settings will be restored
to original default factory settings.

Related information

•

Internet-connected vehicle

(p. 508)

•

No or poor Internet connection (p. 513)

•

Resetting center display settings (p. 138)

•

Connecting the vehicle to the Internet via
a phone (Wi-Fi) (p. 509)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

* Option/accessory.

514

Wi-Fi technology and security

Networks must meet certain criteria in order
for the vehicle to connect.

It is possible to connect to the following types
of networks:

•

Frequency - 2.4 or 5 GHz

•

Standards - 802.11 a/b/g/n.

•

Security type - WPA2-AES-CCMP.

The vehicle's Wi-Fi system is designed to han-
dle Wi-Fi devices inside the vehicle.

Performance may be impaired if multiple devi-
ces are using a frequency at the same time.

Related information

•

Internet-connected vehicle

(p. 508)

The first time certain services and apps are
started, a pop-up window with the heading

Terms and conditions

and

Data sharing

may open.

The aim is to inform the user about Volvo's
terms of use and data sharing policy. By
accepting data sharing, the user accepts that
certain information will be sent from the vehi-
cle. This is required for certain services and
apps to work with full functionality.

The data sharing function for connected servi-
ces and apps is disabled by default

. For cer-

tain connected services and apps in the vehi-
cle to work, data sharing must be activated.
Data sharing can be set from the center dis-
play's settings menu or when the services or
apps are started in the center display.

Privacy and data sharing

The software update that became available in
November 2017 introduced privacy and data
sharing settings for connected services and
downloaded apps. These settings can be
found under

Privacy and data

in the settings

menu in the vehicle's center display.

There, you can choose which connected servi-
ces will be allowed to share data. Data sharing
for downloaded apps can also be disabled

there. Note that services and apps cannot be
used as intended if data sharing is disabled.

After a factory reset or e.g. a workshop visit or
a software update, your data sharing preferen-
ces may be reset to default settings. You will
then need to reactivate data sharing for con-
nected services and downloaded apps.

NOTE

Settings for privacy and data sharing are
unique for each driver profile.

Related information

•

Activating and deactivating data sharing
(p. 515)

Selecting a frequency is not possible on all markets.

Does not apply to Volvo On Call.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

515

Activating and deactivating data

sharing

Data sharing for relevant services and apps
can be set via the Settings menu in the center
display.

1. Tap

Settings

in the center display's Top

view.

2. Tap

System

Privacy and data

3. Select to activate or deactivate data shar-

ing for individual services and all apps.

If data sharing for a connected service or
downloaded apps is not activated, this can be
done when they are started in the center dis-
play. If this is the first time that a service is
started, or e.g. after a factory reset or certain
software updates, Volvo's terms and condi-
tions for connected services must be accep-
ted. Note that data sharing will then also be
activated for other services or apps that shar-
ing has already been accepted for.

NOTE

After visiting a Volvo workshop, you may
need to reactivate data sharing so that ser-
vices and apps will work again.

Related information

•

Data sharing for services

If you haven't activated data sharing for a
connected service or for downloaded apps,
you can do this when you start them in your
center display. The first time that you start a
service, or e.g. after a factory reset or certain
software updates, you will also need to
accept Volvo's terms and conditions for con-
nected services.

Enabling data sharing when starting a
service

1. Select the function or service you want to

activate.
> If this is the first time you are using the

service or after e.g. a factory reset or
certain software updates, you will first
need to accept Volvo's terms and con-
ditions for connected services in order
to continue.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

516

2. Accept data sharing for the service or can-

cel.

If you choose to accept, data sharing will be
enabled and you can begin using the service.

Enabling data sharing when starting
an app

To accept data sharing for an app that needs
the function, start the app and tap

the pop-up window.

You can disable data sharing for services and
apps in the settings menu under

System

Privacy and data

Data Sharing

Hard disk storage space

It is possible to view how much space is
remaining on the vehicle's hard disk.

Storage information for the vehicle's hard disk
can be shown, including total capacity, availa-
ble capacity and how much space is used for
installed apps. The information is found under

Settings

System

System Information

Storage

Related information

•

Apps (p. 458)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

517

License agreement for audio and

media

A license is an agreement on the right to con-
duct a certain activity or the right to use
someone else's right according to terms and
conditions specified in the agreement. The
following texts are Volvo's agreements with
manufacturers/developers.

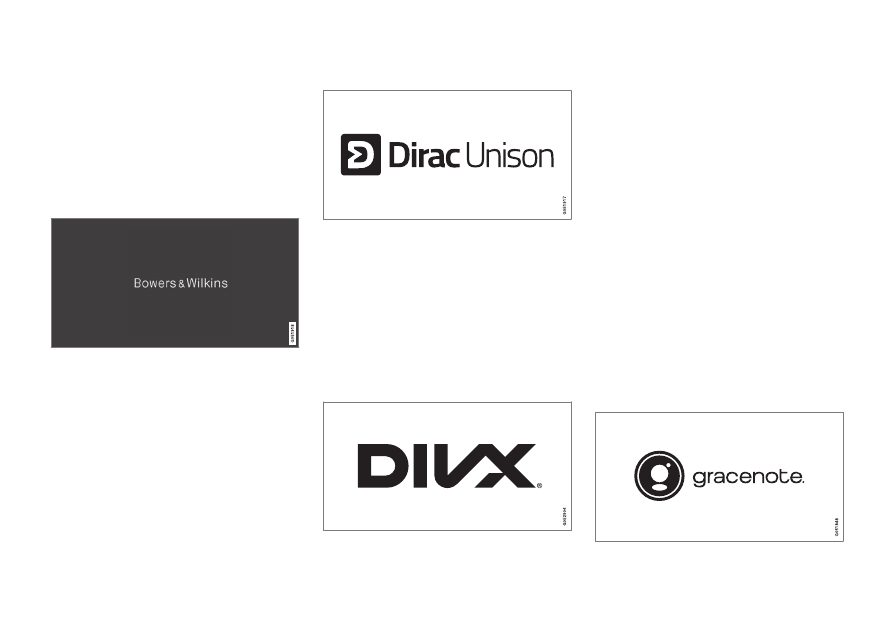

Bowers & Wilkins

Bowers & Wilkins and B&W are trademarks
of the B&W Group Ltd. Nautilus is a trade-
mark of B&W Group Ltd. Continuum is a
trademark of Bowers & Wilkins. Trademarks
of Bowers & Wilkins are applicable in selected
markets.

Dirac Unison

Dirac Unison co-optimizes the loudspeakers in
frequency, time and space for the best possi-
ble bass integration and clarity. It enables a
faithful reproduction of the acoustic characte-
ristics of specific performance venues. Using
advanced algorithms, Dirac Unison controls all
loudspeakers digitally based on acoustic high-
precision measurements. Like a conductor of
an orchestra, it guarantees that the loudspeak-
ers perform in perfect unison.

DivX

, DivX Certified

and associated logos

are trademarks of DivX, LLC and are used
under license.

This DivX Certified

device can play DivX

Home Theater video files up to 576p (includ-
ing .avi, .divx). Download free software at
www.divx.com to create, play and stream digi-
tal video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified

device must be registered in order

to play purchased DivX Video-on-Demand
(VOD) movies. To obtain your registration
code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for
more information on completing the registra-
tion process.

Patent number

Covered by one or more of the following pat-
ents in the US: 7,295,673; 7,460,668;
7,515,710; 8,656,183; 8,731,369; RE45,052.

Gracenote

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

518

Portions of the content are copyright

Gracenote or its providers.

Gracenote, the Gracenote logo and logotype,
"Powered by Gracenote" and Gracenote
MusicID are either registered trademarks or
trademarks of Gracenote, Inc. in the United
States and/or other countries.

Gracenote

End User License Agreement

This application or device contains software
from Gracenote, Inc. in Emeryville, California,
United States (“Gracenote”). The software
from Gracenote (the “Gracenote Software”)
enables this application to perform disc and/or
file identification and obtain music-related
information, including name, artist, track, and
title information (“Gracenote Data”) from
online servers or embedded databases (collec-
tively “Gracenote Servers”) and to perform
other functions. You may use Gracenote Data
only by means of the intended End-User func-
tions of this application or device.

You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote Serv-
ers for your own personal non-commercial use
only. You agree not to assign, copy, transfer or
transmit the Gracenote Software or any
Gracenote Data to any third party. YOU
AGREE NOT TO USE OR EXPLOIT GRACE-
NOTE DATA, THE GRACENOTE SOFTWARE,
OR GRACENOTE SERVERS, EXCEPT AS
EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to
use the Gracenote Data, the Gracenote Soft-
ware, and Gracenote Servers will terminate if
you violate these restrictions. If your license
terminates, you agree to cease any and all use
of the Gracenote Data, the Gracenote Soft-
ware, and Gracenote Servers. Gracenote
reserves all rights in all Gracenote Data, all
Gracenote Software, and all Gracenote Serv-
ers, including all ownership rights. Under no
circumstances will Gracenote become liable
for any payment to you for any information
that you provide. You agree that Gracenote,
Inc. may enforce its rights under this Agree-
ment against you directly in its own name.

The Gracenote service uses a unique identifier
to track queries for statistical purposes. The
purpose of a randomly assigned numeric iden-
tifier is to allow the Gracenote service to count
queries without knowing anything about who
you are. For more information, see the web
page for the Gracenote Privacy Policy for the
Gracenote service.

The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or war-
ranties, express or implied, regarding the
accuracy of any Gracenote Data from in the
Gracenote Servers. Gracenote reserves the
right to delete data from the Gracenote Serv-
ers or to change data categories for any cause
that Gracenote deems sufficient. No warranty

is made that the Gracenote Software or
Gracenote Servers are error-free or that func-
tioning of Gracenote Software or Gracenote
Servers will be uninterrupted. Gracenote is not
obligated to provide you with new enhanced
or additional data types or categories that
Gracenote may provide in the future and is
free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRAN-
TIES EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, IMPLIED WARRAN-
TIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE DOES
NOT WARRANT THE RESULTS THAT WILL
BE OBTAINED BY YOUR USE OF THE
GRACENOTE SOFTWARE OR ANY GRACE-
NOTE SERVER. IN NO CASE WILL GRACE-
NOTE BE LIABLE FOR ANY CONSEQUEN-
TIAL OR INCIDENTAL DAMAGES OR FOR
ANY LOST PROFITS OR LOST REVENUES.

Gracenote, Inc. 2009

Sensus software

This software uses parts of sources from clib2
and Prex Embedded Real-time OS - Source
(Copyright (c) 1982, 1986, 1991, 1993, 1994),
and Quercus Robusta (Copyright (c) 1990,
1993), The Regents of the University of
California. All or some portions are derived
from material licensed to the University of
California by American Telephone and

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

}}

519

Telegraph Co. or Unix System Laboratories,
Inc. and are reproduced herein with the
permission of UNIX System Laboratories, Inc.
Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met: Redistributions of source
code must retain the above copyright notice,
this list of conditions and the following
disclaimer. Redistributions in binary form must
reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution. Neither the
name of the <ORGANIZATION> nor the
names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission. THIS SOFTWARE IS PROVIDED
BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS

OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

This software is based in part on the work of
the Independent JPEG Group.

This software uses parts of sources from
"libtess". The Original Code is: OpenGL
Sample Implementation, Version 1.2.1,
released January 26, 2000, developed by
Silicon Graphics, Inc. The Original Code is
Copyright (c) 1991-2000 Silicon Graphics,
Inc. Copyright in any portions created by third
parties is as indicated elsewhere herein. All
Rights Reserved. Copyright (C) [1991-2000]
Silicon Graphics, Inc. All Rights Reserved.
Permission is hereby granted, free of charge,
to any person obtaining a copy of this
software and associated documentation files
(the "Software"), to deal in the Software
without restriction, including without
limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or
sell copies of the Software, and to permit
persons to whom the Software is furnished to
do so, subject to the following conditions: The
above copyright notice including the dates of

first publication and either this permission
notice or a reference to http://oss.sgi.com/
projects/FreeB/ shall be included in all copies
or substantial portions of the Software. THE
SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE. Except as contained in this
notice, the name of Silicon Graphics, Inc. shall
not be used in advertising or otherwise to
promote the sale, use or other dealings in this
Software without prior written authorization
from Silicon Graphics, Inc.

This software is based in parts on the work of
the FreeType Team.

Linux software

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUDIO, MEDIA AND INTERNET

520

This product contains software licensed under
GNU General Public License (GPL) or GNU
Lesser General Public License (LGPL), etc.

You have the right of acquisition, modification,
and distribution of the source code of the
GPL/LGPL software.

You may download Source Code from the
following website at no charge: http://
www.embedded-carmultimedia.jp/linux/oss/
download/TVM_8351_013

The website provides the Source Code "As Is"
and without warranty of any kind.

By downloading Source Code, you expressly
assume all risk and liability associated with
downloading and using the Source Code and
complying with the user agreements that
accompany each Source Code.

Please note that we cannot respond to any
inquiries regarding the source code.

camellia:1.2.0

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of

conditions and the following disclaimer as
the first lines of this file unmodified.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

THIS SOFTWARE IS PROVIDED BY NTT ``AS
IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL NTT BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

Unicode: 5.1.0

Permission is hereby granted, free of charge,
to any person obtaining a copy of the Unicode
data files and any associated documentation
(the "Data Files") or Unicode software and any
associated documentation (the "Software") to
deal in the Data Files or Software without
restriction, including without limitation the
rights to use, copy, modify, merge, publish,
distribute, and/or sell copies of the Data Files
or Software, and to permit persons to whom
the Data Files or Software are furnished to do
so, provided that (a) the above copyright
notice(s) and this permission notice appear
with all copies of the Data Files or Software,
(b) both the above copyright notice(s) and this
permission notice appear in associated
documentation, and (c) there is clear notice in
each modified Data File or in the Software as
well as in the documentation associated with
the Data File(s) or Software that the data or
software has been modified.

THE DATA FILES AND SOFTWARE ARE
PROVIDED "AS IS", WITHOUT WARRANTY
OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE
WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE
AND NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

528

Tires

The function of the tires is to carry loads, pro-
vide traction on road surfaces, reduce vibra-
tions and protect the wheels from wear.

The tires significantly influence the vehicle's
driving characteristics. The type, dimensions,
tire pressure and speed rating have a consid-
erable impact on how the vehicle performs.

Your vehicle is equipped with tires according
to the vehicle's tire information placard on the
B-pillar (the structural member at the side of
the vehicle, at the rear of the driver's door
opening).

WARNING

A damaged tire could cause the driver to

lose control of the vehicle.

CAUTION

Some Volvo models are equipped with an
Ultra High Performance tire and wheel
combination designed to provide maxi-
mum dry pavement performance with con-
sideration for hydroplaning resistance.
They may be more susceptible to road haz-
ard damage and, depending on driving
conditions, may achieve a tread life of less
than 30,000 km (20,000 miles). Even if
this vehicle is equipped with Volvo's
advanced AWD or stability system, these
tires are not designed for winter driving,
and should be replaced with winter tires
when weather conditions dictate.

The tires have good road holding characteris-
tics and offer good handling on dry and wet
surfaces. It should be noted however that the
tires have been developed to give these fea-
tures on snow/ice-free surfaces.

Most models are equipped with "all-season"
tires, which provide a somewhat higher
degree of roadholding on slippery road surfa-
ces than tires without the "all-season" rating.
However, Volvo recommends using snow tires
on all four wheels for good roadholding on icy
or snow-covered roads.

When replacing tires, be sure that the new
tires are the same size designation, type
(radial) and preferably from the same manu-
facturer, on all four wheels. Otherwise there is
a risk of altering the vehicle's roadholding and
handling characteristics.

Recommended tires

On delivery, the car is equipped with Volvo
original tires that have the VOL

marking on

the side of the tires. These tires have been
designed specifically for your vehicle. It is
therefore important when replacing tires that
the new tires have this same marking to help
maintain the vehicle's driving characteristics,
comfort and fuel consumption.

New tires

This may vary for certain tire dimensions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Volvo V90 (2021 year). Manual in english - page 30
