Selecting and activating Adaptive

Cruise Control

Adaptive Cruise Control (ACC

) must first be

selected and then activated before it can reg-
ulate speed and distance.

To start the function:

•

The driver's seat belt must be buckled and
the driver's door must be closed.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or

Adaptive Cruise Control

Road Sign Information

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

296

your vehicle's current speed must be at
least 15 km/h (9 mph).

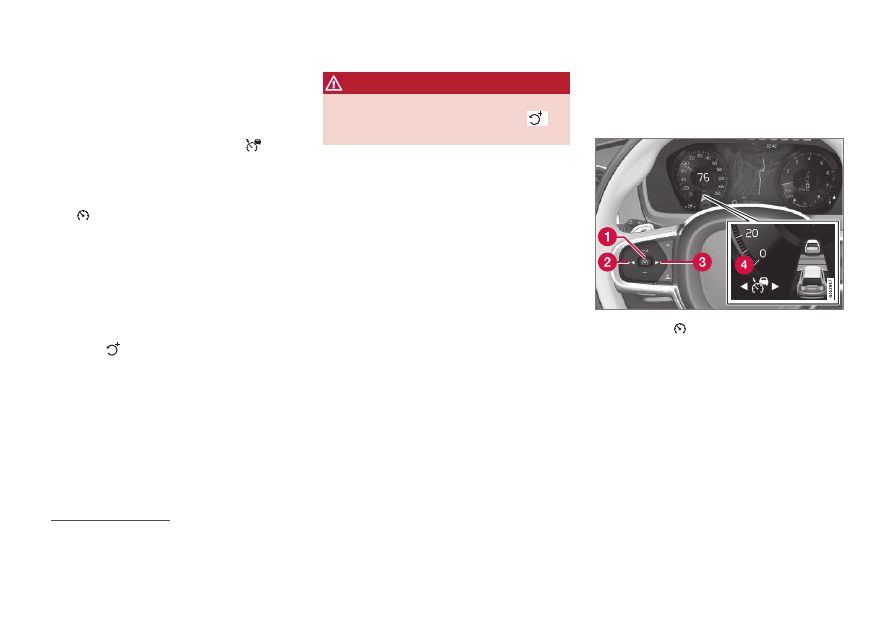

1. Press the

◀

(2) or

▶

(3) button on the

steering wheel keypad and scroll to the
Adaptive Cruise Control symbol

(4).

> Gray symbol – Adaptive Cruise Control

is in standby mode.

2. When Speed Limiter is selected, press

(1) on the steering wheel keypad to

activate.
> White symbol – Speed Limiter starts

and the current speed is stored as the
maximum speed.

Reactivating Adaptive Cruise Control
to the last stored speed

–

When Adaptive Cruise Control is selected,
press

on the steering wheel keypad to

activate.
> The Cruise Control marking in the

instrument panel will change from
GRAY to WHITE and the vehicle will
then return to the most recently set
speed.

WARNING

A noticeable increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Deactivating Adaptive Cruise Control

•

(p. 296)

•

Switching between cruise control and
Adaptive Cruise Control

in the center dis-

play (p. 299)

•

Deactivating Adaptive Cruise

Control

Adaptive Cruise Control (ACC

) can be deac-

tivated and switched off.

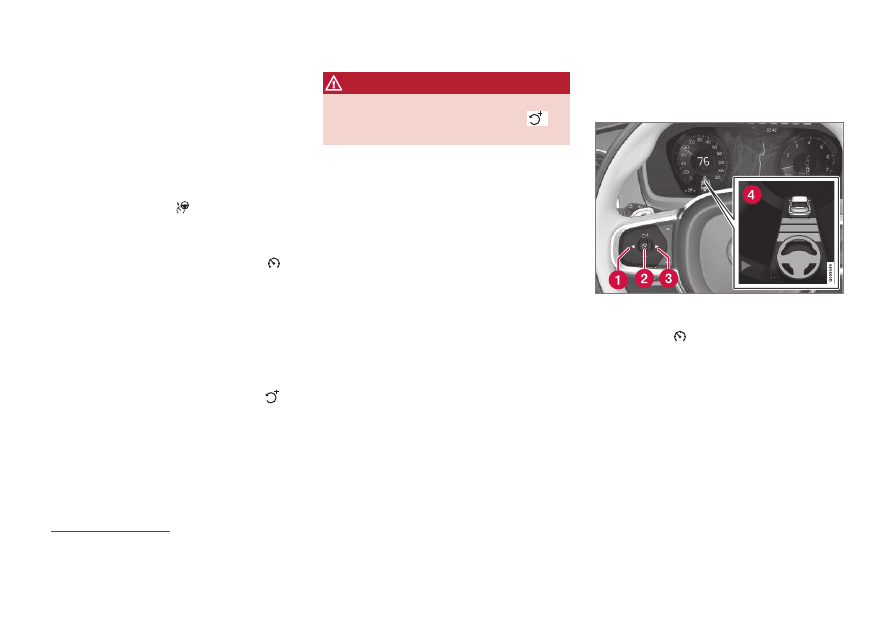

1. Press the

button on the steering

wheel (1).
> The symbol and markings turn gray –

Adaptive Cruise Control goes into
standby mode. The time interval indica-
tor light and any symbols for the target
vehicle will go out.

Adaptive Cruise Control

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

297

2. Press the

◀

(2) or

▶

(3) buttons on the

steering wheel to select another function.
> The Adaptive Cruise Control symbol

and marking (4) in the instrument panel
will go out and the stored maximum
speed will be erased.

WARNING

•

If Adaptive Cruise Control is in standby
mode, the driver must intervene and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Adaptive Cruise Con-
trol is in standby mode, the driver can
be warned of the short distance by the
Distance Alert

function.

Related information

•

Selecting and activating Adaptive Cruise
Control

•

(p. 295)

•

Switching between cruise control and
Adaptive Cruise Control

in the center dis-

play (p. 299)

•

Adaptive Cruise Control

standby

mode

Adaptive Cruise Control (ACC

) can be deac-

tivated and put in standby mode. This may
happen automatically or be due to driver
intervention.

Standby mode means that the function is
selected in the instrument panel but not acti-
vated. In standby mode, Adaptive Cruise Con-
trol will not regulate speed or distance to the
vehicle ahead.

Standby mode due to action by the
driver

Adaptive Cruise Control will be deactivated
and put in standby mode if any of the follow-
ing occurs:

•

The brakes are applied.

•

The gear selector is moved to

•

The vehicle is driven faster than the set
speed for more than 1 minute.

Temporarily increasing speed using the accel-
erator pedal, e.g. when passing another vehi-
cle, will not affect the setting. The vehicle will
return to the set speed when the accelerator
pedal is released.

WARNING

•

If Adaptive Cruise Control is in standby
mode, the driver must intervene and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Adaptive Cruise Con-
trol is in standby mode, the driver can
be warned of the short distance by the
Distance Alert

function.

Automatic standby mode

WARNING

With automatic standby mode, the driver is

warned by an acoustic signal and a mes-

sage on the instrument panel.

•

The driver must then regulate vehicle
speed, apply the brakes if necessary,
and maintain a safe distance to other
vehicles.

The function may automatically go into
standby mode if one of the following occurs:

•

One of the systems that Adaptive Cruise
Control is dependent on stops working,

Depending on market, this function can be either standard or optional.

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

298

such as Electronic Stability Control
(ESC

•

The driver opens the door.

•

The driver unbuckles the seat belt.

•

The engine speed (rpm) is too low/high.

•

One or more of the wheels lose traction.

•

The brake temperature is high.

•

The parking brake is applied.

•

The camera and radar unit is covered by
snow or heavy rain (the camera lens/radar
waves are blocked).

•

Your vehicle's speed goes below 5 km/h
(3 mph) and ACC cannot determine if the
vehicle ahead is stationary or if it is
another object, e.g. a speed bump.

•

Your vehicle's speed goes below 5 km/h
(3 mph) and the vehicle ahead turns so
that ACC no longer has a vehicle to follow.

Related information

•

Selecting and activating Adaptive Cruise
Control

•

(p. 295)

•

Deactivating Adaptive Cruise Control

(p. 296)

•

Adaptive Cruise Control

limitations

Adaptive Cruise Control (ACC

) may have

limited functionality in certain situations.

Steep roads and/or heavy loads

Adaptive Cruise Control is primarily intended
to be driven on flat roads. The function may
not be able to maintain the correct time inter-
val to the vehicle ahead when driving down
steep hills. The driver should be extra attentive
and prepared to apply the brakes.

Do not use Adaptive Cruise Control if the vehi-
cle is carrying a heavy load or towing a trailer.

Drive mode unavailable

The

Off Road

drive mode cannot be selected

if Adaptive Cruise Control is activated.

WARNING

•

This is not a collision avoidance sys-
tem. The driver is always responsible
and must intervene if the system fails
to detect a vehicle ahead.

•

The function does not brake for people
or animals and does not brake for small
vehicles, such as bikes and motorcy-
cles. Similarly, it does not brake for low
trailers, oncoming, slow-moving or sta-
tionary vehicles and objects.

•

Do not use the function in demanding
situations, such as in city traffic, at
intersections, on slippery surfaces,
with a lot of water or slush on the road,
in heavy rain/snow, in poor visibility, on
winding roads, or on on/off ramps.

NOTE

The function uses the vehicle's camera and
radar sensor, which has certain general
limitations.

Related information

•

Camera/radar sensor limitations (p. 388)

•

Electronic Stability Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

299

Switching between cruise control

and Adaptive Cruise Control

the center display

When the regular cruise control (CC

) is

selected in the instrument panel, you can
switch to Adaptive Cruise Control (ACC

) in

the center display's Function view.

Activate or deactivate the
function using this button in
the center display's Function
view.

•

GREEN button indicator light – Adaptive
Cruise Control is deactivated and the reg-
ular cruise control is in standby mode.

•

GRAY button indicator light – regular
cruise control is deactivated and the
Adaptive Cruise Control is in standby
mode.

A symbol in the instrument panel indicates
which cruise control system is active

Cruise control

(CC)

Adaptive Cruise

Control (ACC)

WHITE symbol: The function is active. GRAY symbol:

Standby mode

Related information

•

•

Cruise control (p. 289)

Adaptive Cruise Control

Depending on market, this function can be either standard or optional.

Cruise Control

Adaptive Cruise Control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

301

Symbol

Message

Meaning

The symbol is WHITE

The vehicle is maintaining the stored speed.

Adaptive Cruise Contr.

Unavailable

The symbol is GRAY

Adaptive Cruise Control is in standby mode.

Adaptive Cruise Contr.

Service required

The symbol is GRAY

The system is not functioning as intended. Contact a workshop

‒

an authorized Volvo

workshop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

Clean the windshield in front of the camera and radar sensors.

A text message can be erased by briefly press-
ing the

button in the center of the right-

side steering wheel keypad.

If the message persists: Contact a workshop

‒

an authorized Volvo workshop is recom-
mended.

Related information

•

Driver support systems (p. 276)

•

Contacting Volvo (p. 26)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

302

Pilot Assist

Pilot Assist can help the driver keep the vehi-
cle in the current traffic lane and maintain an
even speed and a set time interval to the
vehicle ahead.

Get to know Pilot Assist

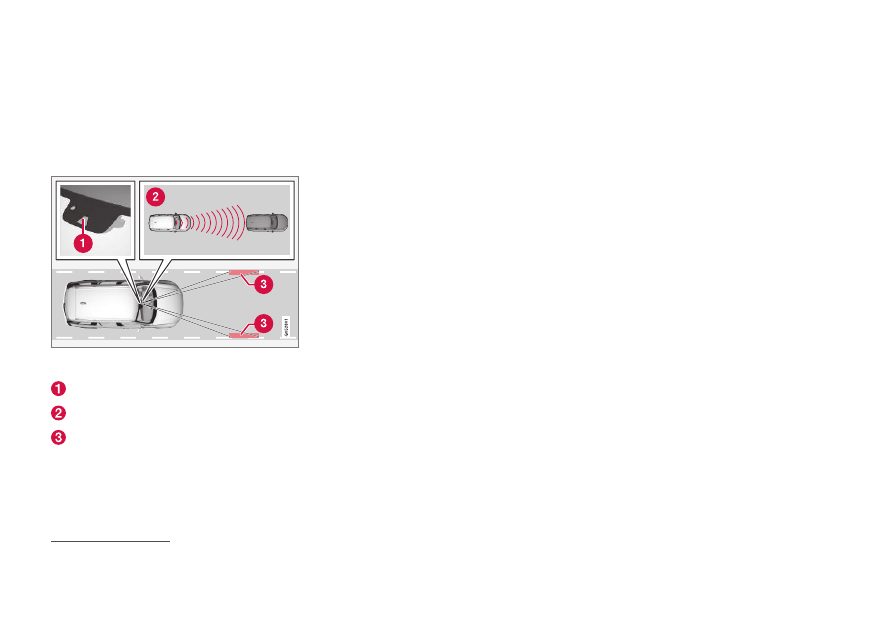

The camera/radar sensor monitors the distance to

the vehicle ahead and detects lane markings.

Camera and radar sensor

Distance monitor

Lane marker line monitors

Pilot Assist helps to steer the vehicle, and you
may need to drive a few miles with Pilot Assist
before you feel completely at home with the
function. It is important to be familiar with all

of the function's applications and limitations in
order to take advantage of all it has to offer.

The Pilot Assist function is primarily intended
for use on highways and other major roads
where it can help provide a more comfortable
and relaxing driving experience.

The driver sets the desired speed and distance
to the vehicle ahead. Pilot Assist monitors the
distance to the vehicle ahead and the traffic
lane's side markers using the camera. The sys-
tem maintains the set time interval to the vehi-
cle ahead by automatically adjusting your vehi-
cle's speed and keeps your vehicle in its lane
by providing steering assistance.

If the Curve Speed Assist (CSA)

function is

activated, it may also affect the vehicle's
speed.

Pilot Assist regulates speed by accelerating
and braking. It is normal for the brakes to emit
a slight sound when they are being used to
adjust speed.

Pilot Assist is designed to:

•

smoothly regulate speed. The driver must
apply the brakes in situations requiring
immediate braking. For example, when
there are great differences in speed
between vehicles or if the vehicle ahead
brakes suddenly. Due to limitations in the

camera and radar sensor, braking may
occur unexpectedly or not at all.

•

follow a vehicle ahead in the same lane
and maintain a time interval to that vehicle
set by the driver. If the radar sensor does
not detect a vehicle ahead, it will instead
maintain the speed set by the driver. This
will also happen if the speed of the vehicle
ahead exceeds the set speed for your vehi-
cle.

The vehicle's position in the traffic
lane

When Pilot Assist helps to steer, it attempts to
position the vehicle halfway between the visi-
ble lane marking lines. For a smoother drive, it
is a good idea to allow the vehicle to find a
good position. The driver can always adjust
the position him/herself by increasing steering
input. It is important for the driver to make
sure the vehicle is positioned safely in the lane.

If Pilot Assist does not position the vehicle
appropriately in the lane, the driver should turn
off Pilot Assist or switch to Adaptive Cruise
Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

303

Steering assistance

The color of the steering
wheel symbol indicates the
current status of steering
assistance:

• GREEN indicates that
steering assistance is active

• GRAY (as shown in illustration) indicates that
steering assistance is deactivated.

Pilot Assist's steering assistance is based on
monitoring the direction of the vehicle ahead
and the traffic lane's side marker lines. The
driver can override Pilot Assist's steering rec-
ommendations at any time and steer in
another direction, e.g. to change lanes or avoid
obstacles on the road.

If the camera/radar sensor cannot detect the
lane's side marker lines or if Pilot Assist is
unable for some other reason to clearly inter-
pret the lane, Pilot Assist will temporarily
deactivate steering assistance until it can once
again interpret the lane markings. However,
the speed and distance warnings will remain
active. The driver will be alerted by slight
vibrations in the steering wheel that the func-
tion has been temporarily deactivated.

WARNING

Pilot Assist is deactivated automatically

and resumes working without prior notice.

In curves and forks in the road

Pilot Assist is designed to interact with the
driver. The driver should never wait for steer-
ing assistance from Pilot Assist, but instead
should always be ready to increase his or her
own steering efforts, particularly in curves.

When the vehicle is approaching an off-ramp
or a fork in the road, the driver should steer
toward the desired lane so that Pilot Assist
can detect the desired direction of travel.

Hands on the steering wheel

Pilot Assist only functions if the driver's hands
are on the steering wheel. It is also important
for the driver to always continue to be active
and alert when driving since Pilot Assist is
unable to read all situations and may toggle
between off and on without prior warning.

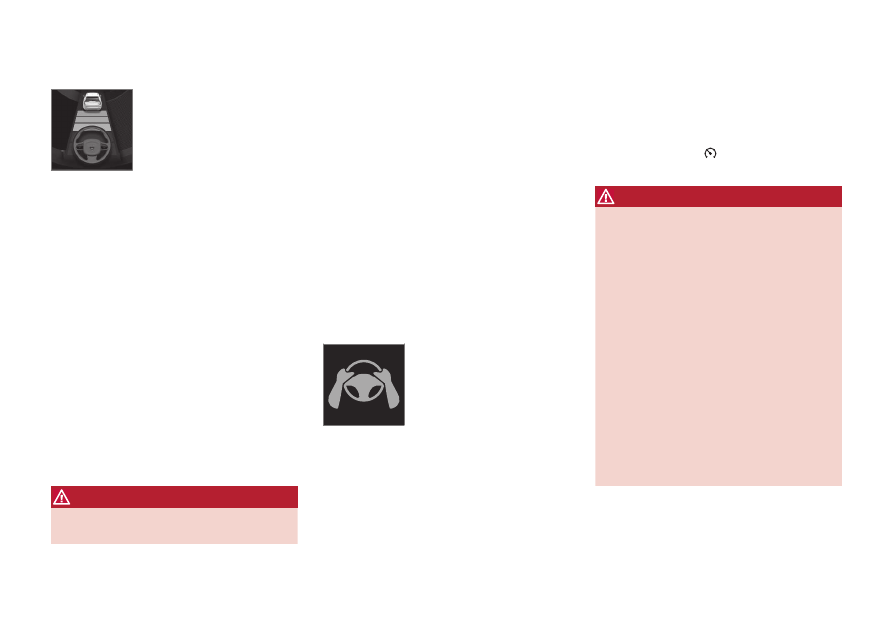

If Pilot Assist detects that the
driver's hands are not on the
steering wheel, the system
will provide a symbol and a
text message in the instru-
ment panel to instruct the
driver to actively steer the

vehicle.

If the driver's hands are still detected on the
steering wheel after a few seconds have
passed, the instructions to actively steer the
vehicle will be repeated, accompanied by an
audible signal.

If Pilot Assist still does not detect the driver's
hands on the steering wheel after a few more
seconds have passed, the audible signal will
become intense and the steering function will
switch off. Pilot Assist must then be reactiva-
ted by pressing the

button on the steering

wheel.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and help make it safer – it cannot han-
dle all situations in all traffic, weather
and road conditions.

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgment. The driver is always respon-
sible for ensuring the vehicle is driven
in a safe manner, at the appropriate
speed, with an appropriate distance to
other vehicles, and in accordance with
current traffic rules and regulations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

304

CAUTION

Only a workshop may perform mainte-
nance on driver support components – an
authorized Volvo workshop is recom-
mended.

Related information

•

•

Selecting and activating Pilot Assist

•

•

•

•

•

Collision risk warning from driver support
(p. 317)

•

Switching target vehicles with driver sup-
port (p. 318)

•

Setting time interval to the vehicle ahead
(p. 320)

•

Adjusting set speed for driver support
(p. 319)

•

Auto-hold braking with driver support
(p. 321)

•

Passing assistance

(p. 316)

•

Contacting Volvo (p. 26)

Pilot Assist

controls

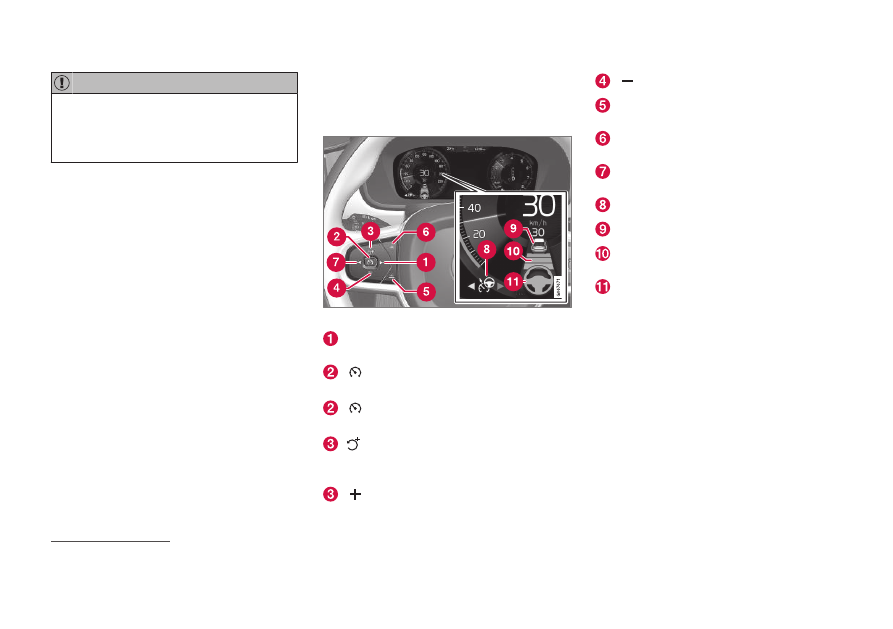

A summary of how Pilot Assist is controlled
using the right-side steering wheel keypad
and how the function is shown in the display.

Function buttons and symbols.

▶

: Switches from Adaptive Cruise Control

to Pilot Assist

From standby mode

- activates Pilot

Assist and sets the current speed

From active mode

- deactivates/

puts Pilot Assist in standby mode

: Activates Pilot Assist from standby

mode and resumes the set speed and time
interval

: Increases the set speed

: Reduces the set speed

Increases the time interval to the vehicle
ahead
Reduces the time interval to the vehicle
ahead

◀

: Switches from Pilot Assist to Adaptive

Cruise Control
Function symbol

Symbols for target vehicle

Symbol for time interval to the vehicle
ahead
Symbol for activated/deactivated steering
assistance

Related information

•

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

305

Pilot Assist

displays

The following illustrations show how Pilot
Assist can appear in the various displays in
different situations.

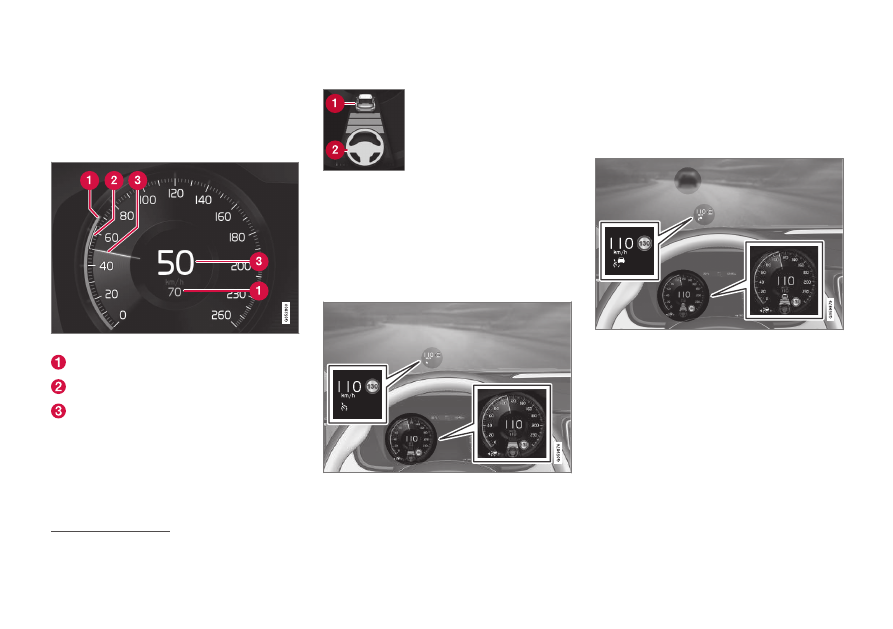

Speed

Speed indicators.

Set speed

Speed of the vehicle ahead

The current speed of your vehicle

Time interval

Pilot Assist will only regulate
the time interval to the vehi-
cle ahead when the distance
symbol shows a vehicle (1)
over the steering wheel sym-
bol.

Pilot Assist's steering assistance is only active
when the steering wheel symbol (2) changes
from GRAY to GREEN.

When driving

In the following illustration, Road Sign Infor-
mation (RSI

) indicates that the maximum

permitted speed is 130 km/h (80 mph).

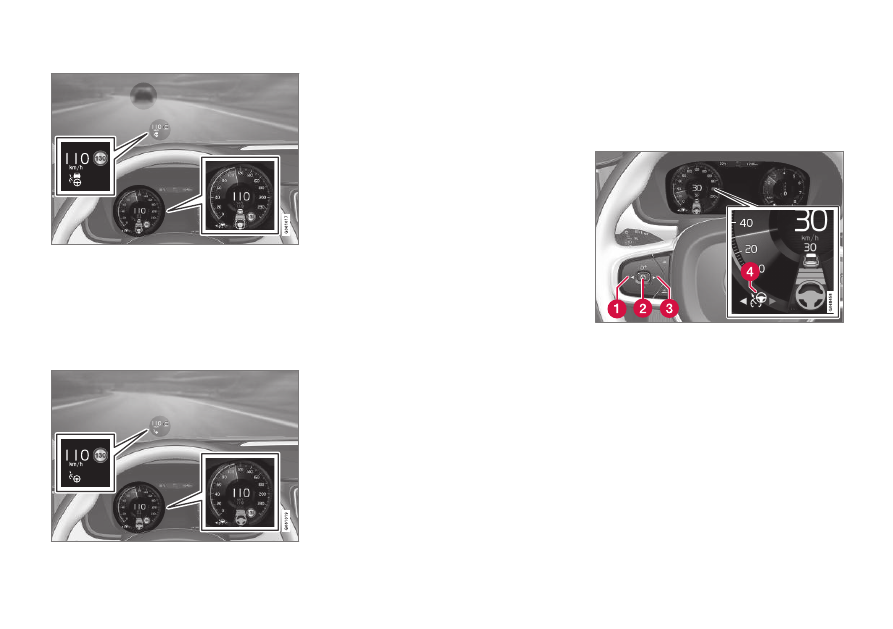

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h

(68 mph) and that there is no target vehicle
ahead to follow.

Pilot Assist will not provide any steering assis-
tance because it cannot detect the lane's side
marking lines.

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and is following a target vehicle
ahead that is traveling at the same speed.

Pilot Assist will not provide any steering assis-
tance because it cannot detect the lane's side
marking lines.

Depending on market, this function can be either standard or optional.

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

306

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and is following a target vehicle
ahead that is traveling at the same speed.

In this example, Pilot Assist will also provide
steering assistance because it can detect the
lane's side marking lines.

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and that there is no target vehicle
ahead to follow.

Pilot Assist will provide steering assistance
because it can detect the lane's side marking
lines.

Related information

•

•

Selecting and activating Pilot

Assist

Pilot Assist must first be selected and then
activated before it can regulate speed and
distance and provide steering assistance.

A green steering wheel indicates that Pilot Assist is

providing steering assistance.

To start Pilot Assist.

•

The driver's seat belt must be buckled and
the driver's door must be closed.

•

The side markings of the lane must be
clearly visible and detected by the vehicle.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or
your vehicle's current speed must be at
least 15 km/h (9 mph).

•

The speed must not exceed 140 km/h (87
mph).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

307

•

The driver must keep their hands on the
steering wheel.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or
your vehicle's current speed must be at
least 15 km/h (9 mph).

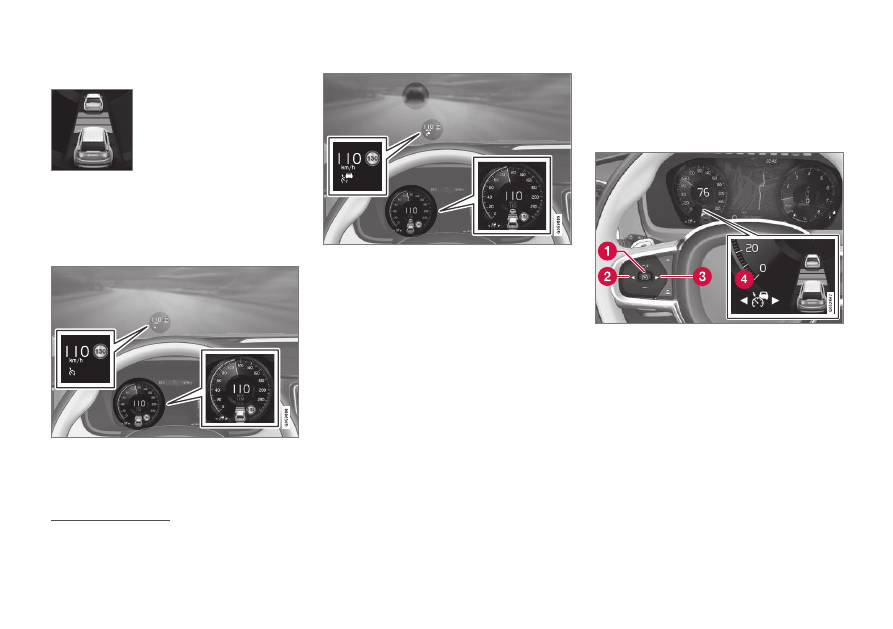

1. Press the

◀

(1) or

▶

(3) button on the

steering wheel keypad and scroll to the
Pilot Assist symbol

(4).

> Gray symbol – Pilot Assist is in standby

mode.

2. When Pilot Assist is selected, press

(2) on the steering wheel keypad to acti-
vate.
> White symbol – Pilot Assist starts and

the current speed is stored as the maxi-
mum speed.

Reactivating Pilot Assist to the last
stored speed

–

When Pilot Assist is selected, press
on the steering wheel keypad to activate.
> The Cruise Control marking in the

instrument panel will change from
GRAY to WHITE and the vehicle will
then return to the most recently set
speed.

WARNING

A noticeable increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Deactivating Pilot Assist

•

(p. 307)

•

limitations (p. 310)

Deactivating Pilot Assist

Pilot Assist can be deactivated and switched
off.

A green steering wheel indicates that Pilot Assist is

providing steering assistance.

1. Press the

button on the steering

wheel (2).
> The symbol and markings turn gray –

Pilot Assist goes into standby mode.
The time interval indicator light and any
symbols for the target vehicle will go
out.

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

308

2. Press the

◀

(1) or

▶

(3) buttons on the

steering wheel to select another function.
> The Pilot Assist symbol and marking (4)

in the instrument panel will go out and
the stored maximum speed will be
erased.

WARNING

•

With Pilot Assist in standby mode, the
driver must intervene and steer and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Pilot Assist is in
standby mode, the driver is instead
warned of the short distance by the
Distance Alert

function.

Related information

•

Selecting and activating Adaptive Cruise
Control

•

(p. 295)

•

Switching between cruise control and
Adaptive Cruise Control

in the center dis-

play (p. 299)

•

Temporarily deactivating steering assis-
tance with Pilot Assist

•

(p. 309)

Pilot Assist

standby mode

Pilot Assist can be deactivated and put in
standby mode. This may happen automati-
cally or be due to driver intervention.

Standby mode means that the function is
selected in the instrument panel but not acti-
vated. In standby mode, Pilot Assist will not
regulate the speed or distance to the vehicle
ahead or provide steering assistance.

Standby mode due to action by the
driver

Pilot Assist will be deactivated and put in
standby mode if any of the following occurs:

•

The brakes are applied.

•

The gear selector is moved to

•

A turn signal is used for more than
1 minute.

•

The vehicle is driven faster than the set
speed for more than 1 minute.

Automatic standby mode

WARNING

With automatic standby mode, the driver is

warned by an acoustic signal and a mes-

sage on the instrument panel.

•

The driver must then regulate vehicle
speed, apply the brakes if necessary,
and maintain a safe distance to other
vehicles.

The function may automatically go into
standby mode if one of the following occurs.

•

One of the systems that Pilot Assist is
dependent on stops working, such as
Electronic Stability Control

•

The driver's hands are not on the steering
wheel.

•

The driver opens the door.

•

The driver unbuckles the seat belt.

•

The engine speed (rpm) is too low/high.

•

One or more of the wheels lose traction.

•

The brake temperature is high.

•

The parking brake is applied.

•

The camera and radar unit is covered by
snow or heavy rain (the camera lens/radar
waves are blocked).

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

309

•

Your vehicle's speed goes below 5 km/h
(3 mph) and Pilot Assist cannot determine
if the vehicle ahead is stationary or if it is
another object, e.g. a speed bump.

•

Your vehicle's speed goes below 5 km/h
(3 mph) and the vehicle ahead turns so
that Pilot Assist no longer has a vehicle to
follow.

Related information

•

Selecting and activating Pilot Assist

•

(p. 306)

•

Deactivating Pilot Assist

(p. 307)

•

limitations (p. 310)

Temporarily deactivating steering

assistance with Pilot Assist

Pilot Assist steering assistance can be tem-
porarily deactivated and reactivated without
prior warning.

When the turn signals are used, Pilot Assist's
steering assistance will be temporarily deacti-
vated. When the direction indicator is turned
off, steering assistance is reactivated automat-
ically if the lane's edge markings can still be
detected.

If Pilot Assist cannot clearly interpret the
lane's side marker lines or if the camera/radar
sensor is unable for some other reason to
clearly interpret the lane, Pilot Assist will tem-
porarily deactivate steering assistance. How-
ever, the speed and distance warnings will
remain active. Steering assistance will resume
when the side marker lines can once again be
interpreted. In these situations, the driver may
be alerted through slight vibrations in the
steering wheel that steering assistance is tem-
porarily deactivated.

Related information

•

Selecting and activating Pilot Assist

•

(p. 306)

•

Deactivating Pilot Assist

(p. 307)

•
