WHEELS AND TIRES

562

WARNING

After using the tire sealing system, the

vehicle should not be driven farther than

approximately 200 km (120 miles).

NOTE

The compressor is an electric device. Fol-
low local regulations for disposal.

Related information

•

Recommended tire pressure (p. 545)

•

Tire sealing system (p. 557)

•

Inflate tires with the compressor included
in the tire sealing system (p. 562)

•

Contacting Volvo (p. 26)

Inflate tires with the compressor

included in the tire sealing system

The vehicle's original tires can be inflated
using the compressor in the tire sealing sys-
tem.

1. The compressor must be switched off.

Make sure that the switch is in the

0

 (Off)

position and take out the electrical cable
and the hose.

2. Unscrew the tire's valve cap and screw

the hose's valve connector as far as possi-
ble onto the valve.

Be sure the air release valve on the com-
pressor's hose is completely closed.

3. Connect the electrical cable to the nearest

12 V outlet and start the vehicle.

WARNING

Inhaling exhaust fumes could lead to seri-

ous injury. Never leave the engine running

in an enclosed space or a space without

sufficient ventilation.

WARNING

Never leave children unattended in the

vehicle while the engine is running.

4. Start the compressor by moving the

switch to the

I

 (On) position.

CAUTION

Risk of overheating. The compressor
should not be running for longer than 10
minutes at a time.

5. Inflate the tire to the pressure specified on

the tire pressure decal on the driver's side
door pillar. If the inflation pressure is too
high, use the air release valve to release
air.

6. Switch off the compressor. Remove the

hose and the electrical cable.

7. Screw the valve cap back onto the tire.

NOTE

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

NOTE

The compressor is an electric device. Fol-
low local regulations for disposal.

WHEELS AND TIRES

}}

563

Related information

•

Recommended tire pressure (p. 545)

•

Using the tire sealing system (p. 558)

•

Tire sealing system (p. 557)

Determining the vehicle's

permitted weight

Properly loading your vehicle will provide
maximum return of vehicle design perform-
ance.

Weight designations

Before loading your vehicle, familiarize your-
self with the following terms for determining
your vehicle's weight ratings, with or without a
trailer, from the vehicle's Federal/Canadian
Motor Vehicle Safety Standards (FMVSS/
CMVSS) label, and the vehicle's tire informa-
tion placard:

Curb weight

The weight of the vehicle including a full tank
of fuel and all standard equipment. It does not
include passengers, cargo, or optional equip-
ment.

Capacity weight

All weight added to the curb weight, including
cargo and optional equipment. When towing,
towbar weight is also part of cargo weight.

Permissible axle weight

The maximum allowable weight that can be
carried by a single axle (front or rear). These
numbers are shown on the Federal/Canadian
Motor Vehicle Safety Standards (FMVSS/
CMVSS) label. The total load on each axle
must never exceed its maximum permissible
weight.

Gross vehicle weight (GVW)

The vehicle's curb weight + cargo + passen-
gers.

Steps for Determining Correct Load
Limit

1. Locate the statement "the combined

weight of occupants and cargo should
never exceed XXX kg or XXX lbs." on your
vehicle's placard.

2. Determine the combined weight of the

driver and passengers that will be riding in
your vehicle.

3. Subtract the combined weight of the

driver and passengers from XXX kg or XXX
lbs.

4. The resulting figure equals the available

amount of cargo and luggage load
capacity. For example, if the "XXX"
amount equals 1400 lbs. and there will be
five 150 lb. passengers in your vehicle, the
amount of available cargo and luggage
load capacity is 650 lbs. (1400 - 750 (5 ×
150) = 650 lbs.)

5. Determine the combined weight of lug-

gage and cargo being loaded on the vehi-
cle. That weight may not safely exceed the
available cargo and luggage load capacity
calculated in Step 4.

||

WHEELS AND TIRES

564

6. If your vehicle will be towing a trailer, load

from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and
luggage load capacity of your vehicle.

WARNING

•

Exceeding the permissible axle weight,
gross vehicle weight, or any other
weight rating limits can cause tire over-
heating resulting in permanent defor-
mation or catastrophic failure.

•

Do not use replacement tires with
lower load carrying capacities than the
tires that were original equipment on
the vehicle because this will lower the
vehicle's GVW rating. Use only tires
with the correct load carrying capacity.
Consult your Volvo retailer for informa-
tion.

Related information

•

Loading recommendations (p. 571)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

566

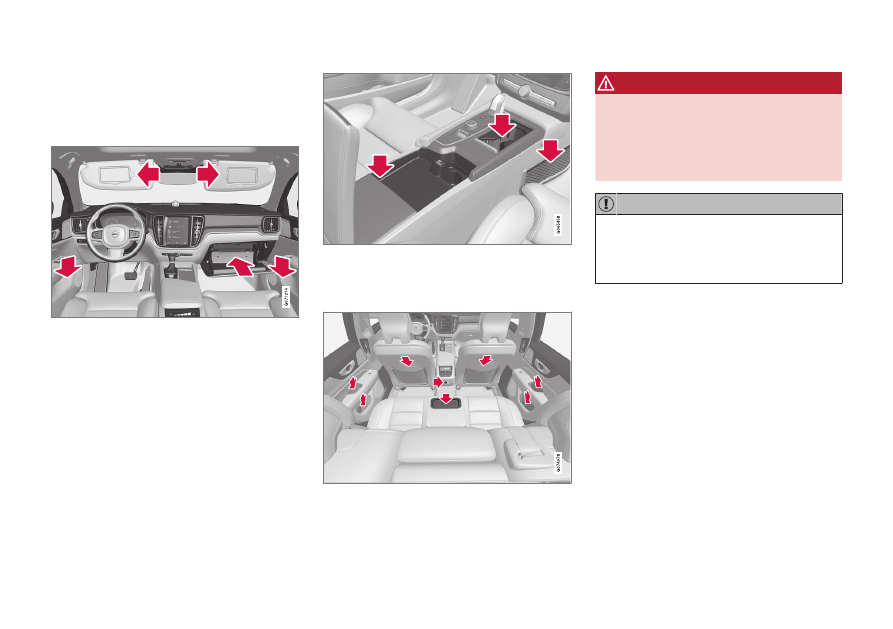

Passenger compartment interior

Overview of the passenger compartment
interior and storage spaces.

Front seats

Storage compartment in door panel, glove compart-

ment and sun visors.

Storage compartments with cup holders, electrical
outlets, net pocket

*

 and USB ports in the tunnel con-

sole.

Rear seat

Storage compartment in the door panel, cup holders

*

in the center seat's backrest, storage pocket

*

 in the

front seat's backrest and USB ports in the tunnel

console.

WARNING

Store loose objects, such as cell phone,

camera, remote control for extra equip-

ment, etc., in the glove compartment or

another compartment. Otherwise, these

could injure people in the vehicle in the

event of hard braking or a collision.

CAUTION

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do
not place keys, phones or similar items on
sensitive surfaces.

Related information

•

Electrical outlets (p. 567)

•

Using the glove compartment (p. 569)

•

Sun visors (p. 570)

•

Tunnel console (p. 567)

•

Connecting a device via the USB port
(p. 498)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

567

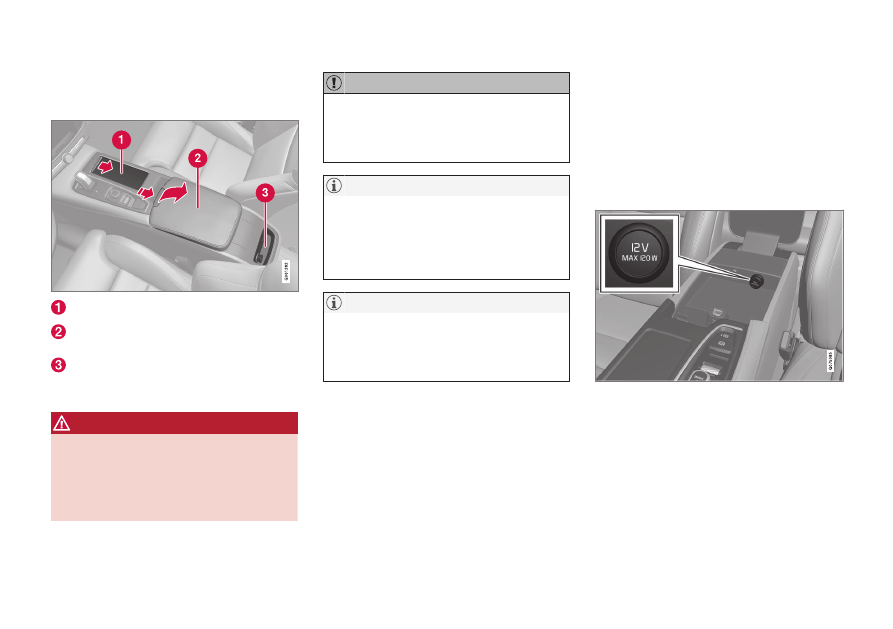

Tunnel console

The tunnel console is located between the
front seats.

Storage compartment with cup holder.

Storage compartment with 12 V outlet
and USB port under the armrest.
Climate control panel for the rear seats

*

 or

storage compartment. There is also a USB
port underneath.

WARNING

Store loose objects, such as cell phone,

camera, remote control for extra equip-

ment, etc., in the glove compartment or

another compartment. Otherwise, these

could injure people in the vehicle in the

event of hard braking or a collision.

CAUTION

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do
not place keys, phones or similar items on
sensitive surfaces.

NOTE

One of the sensors for the alarm

*

 is located

under the cup holder in the center console.
Avoid placing coins, keys and other metal
objects in the cup holder as this could trig-
ger the alarm.

NOTE

The USB port can be used to e.g. charge a
cellular phone or tablet. Only the front USB
port can be used to play media through the
vehicle's speakers.

Related information

•

Passenger compartment interior (p. 566)

•

Electrical outlets (p. 567)

•

Climate system controls (p. 210)

Electrical outlets

There is a 12 V electrical outlet in the tunnel
console and a 12 V electrical outlet

*

 in the

trunk/cargo compartment.

If a problem occurs with an electrical socket,
contact a workshop - an authorized Volvo
workshop is recommended.

12 V outlets

12 V outlet in the tunnel console, front seat.

The 12 V outlets can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

568

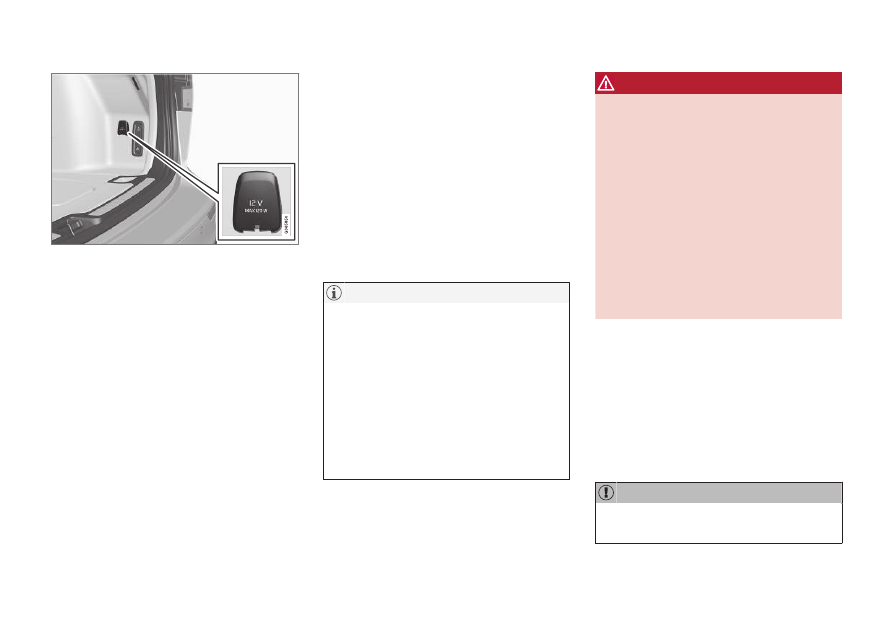

12 V outlet in trunk/cargo compartment

*

.

Related information

•

Passenger compartment interior (p. 566)

•

Using the electrical outlets (p. 568)

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, cool-
ers and cellular phones.

The ignition must be in at least mode

I

 for the

outlets to supply current. The outlets will then
be active as long as there is sufficient charge
in the start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up
to 7 minutes.

NOTE

Bear in mind that using the electrical out-
lets when the engine is off could cause the
starter battery to have too low of a charge
level, which could limit other functionality.

Accessories connected to the electrical
outlets can be activated even when the
vehicle electrical system is off or if precon-
ditioning is used. For this reason, discon-
nect plugs when they are not in use to pre-
vent the starter battery from becoming dis-
charged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the
outlet or come loose while you are driv-
ing.

•

Do not use accessories that could
cause disruptions to e.g. the vehicle's
radio receiver or electrical system.

•

Position the accessory so that there is
no risk of it injuring the driver or pas-
sengers in the event of heavy braking
or a collision.

•

Pay attention to connected accessories
as they can generate heat that could
burn passengers or the interior.

Using 12 V outlets

1. Remove the stopper (tunnel console) or

fold down the cover (trunk/cargo com-
partment) over the socket and plug in the
device.

2. Unplug the device and put the stopper

back in (tunnel console) or fold up the
cover (trunk/cargo compartment) when
the socket is not in use or left unattended.

CAUTION

The maximum power is 120 W (10 A) per
outlet.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

569

Related information

•

Electrical outlets (p. 567)

•

Passenger compartment interior (p. 566)

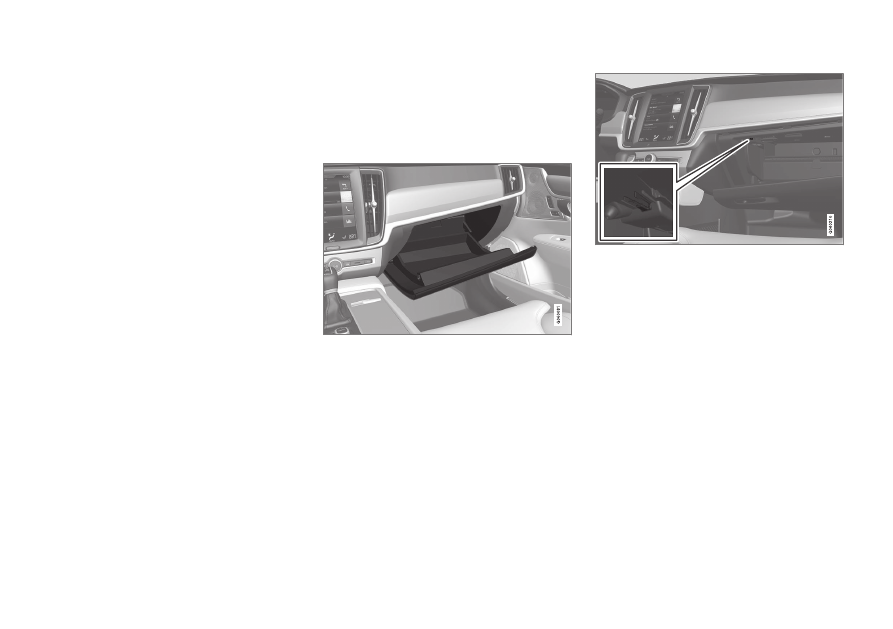

Using the glove compartment

Locking and unlocking the glove box

*

The glove compartment can be locked when
the vehicle is left at a workshop, hotel, etc.
The glove compartment can then only be
locked/unlocked with the glove compartment
key.

Storage compartment for the key. The illustration is

generic – the design may vary.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

570

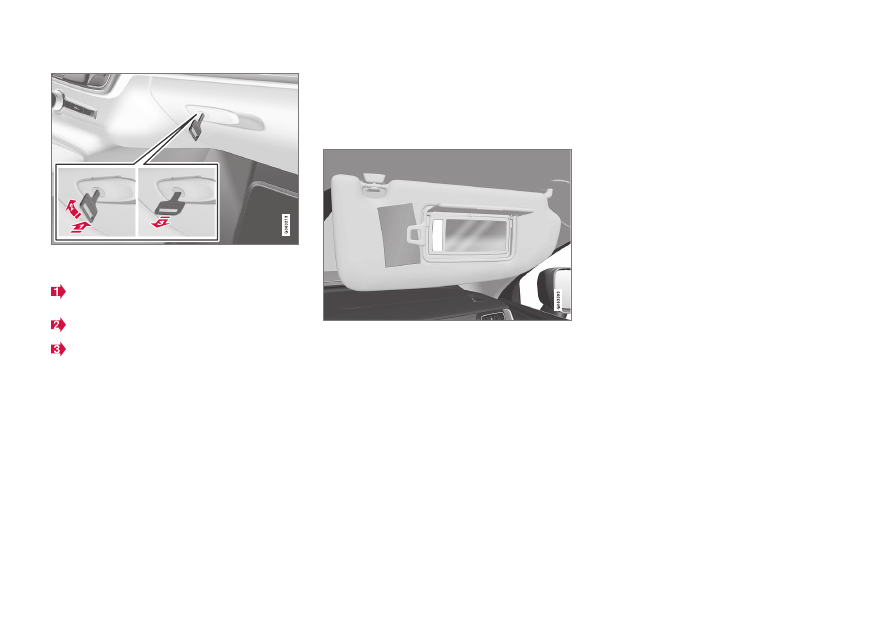

The illustration is generic – the design may vary.

To lock the glove compartment:
Insert the key into the lock on the glove
compartment.
Turn the key 90 degrees clockwise.

Remove the key from the lock.

–

To unlock, perform the above steps in
reverse.

Related information

•

Passenger compartment interior (p. 566)

•

Private Locking (p. 262)

Sun visors

In the ceiling in front of the driver's and front
passenger's seats, there are sun visors that
can be lowered and angled to the side as
necessary.

The illustration is generic – the design may vary.

The mirror lighting

*

 comes on automatically

when the visor is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Passenger compartment interior (p. 566)

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure
large objects.

The cargo capacity of the vehicle can be con-
siderably increased by folding down the rear
seat backrests. Use the load anchoring eyelets
or grocery bag holders to help secure objects
in place, and the retractable cargo compart-
ment cover

*

 to help conceal objects in the

cargo compartment.

If the vehicle is equipped with a temporary
spare tire, this is secured to the cargo com-
partment floor under the cover. The towing
eyelet and tire sealing system are located
under the cargo compartment floor.

Related information

•

Loading recommendations (p. 571)

•

Grocery bag holders (p. 572)

•

Load anchoring eyelets (p. 573)

•

Installing and removing the cargo com-
partment cover

*

 (p. 574)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

571

Loading recommendations

There are a number of things that are impor-
tant to consider when carrying loads in or on
the vehicle.

Load-carrying capacity is determined by the
vehicle's curb weight. The total weight of all
passengers and any installed accessories
reduces the vehicle's load-carrying capacity by
the corresponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of

the load.

Loading the cargo compartment/trunk

Keep the following in mind when loading:

•

Position objects so they are pressing
against the rear seat backrests.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects
on folded-down seat backrests.

•

Cover sharp corners with a soft cloth or
similar to help prevent damage to the
upholstery.

•

Use the load anchoring eyelets and ten-
sioning straps or similar to secure all
objects.

WARNING

In a head-on collision at a speed of

50 km/h (30 mph), an unsecured object

weighing 20 kg (44 pounds) can reach a

projectile weight equivalent to 1000 kg

(2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm

(4 in.) space between the objects and the

window. Objects placed closer to this

could impede the function of the inflatable

curtain concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may

shift during heavy braking and injure peo-

ple in the vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long

objects. Otherwise, it is possible for the

load to reach the gear lever or gear selector

and move it to a drive position – which

could cause the vehicle to begin rolling.

Extra cargo space

The rear seat backrests can be folded down to
increase cargo space in the cargo compart-

ment/trunk and simplify loading. If the rear
seat backrests are folded down, make sure
that no objects loaded into the vehicle prevent
the WHIPS system for the front seats from
functioning correctly.

A ski hatch in the rear seat can be folded
down to carry skis or other long, thin objects.

Related information

•

Load anchoring eyelets (p. 573)

•

Folding down the rear seat backrests
(p. 192)

•

Rear seat ski hatch (p. 574)

•

Roof loads and load carriers (p. 572)

•

Leveling control

*

 and suspension (p. 440)

•

Weights (p. 651)

LOADING, STORAGE AND PASSENGER COMPARTMENT

572

Roof loads and load carriers

Volvo-developed load carriers are recom-
mended for carrying loads on the roof of the
vehicle.

Volvo load carriers are specially designed to
help prevent damage to your vehicle and help
ensure maximum safety while driving. Volvo
load carriers are available from authorized
Volvo retailers.

Carefully follow the installation instructions
provided with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the
bottom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such
as a canoe or kayak, attach the towing
eyelet in its front outlet and secure the tie
straps in it.

•

The vehicle's wind resistance and fuel
consumption increase with the size of the
load.

•

Drive smoothly. Avoid rapid acceleration,
hard braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regar-

ding weights and maximum permitted

load.

Related information

•

Loading recommendations (p. 571)

•

Weights (p. 651)

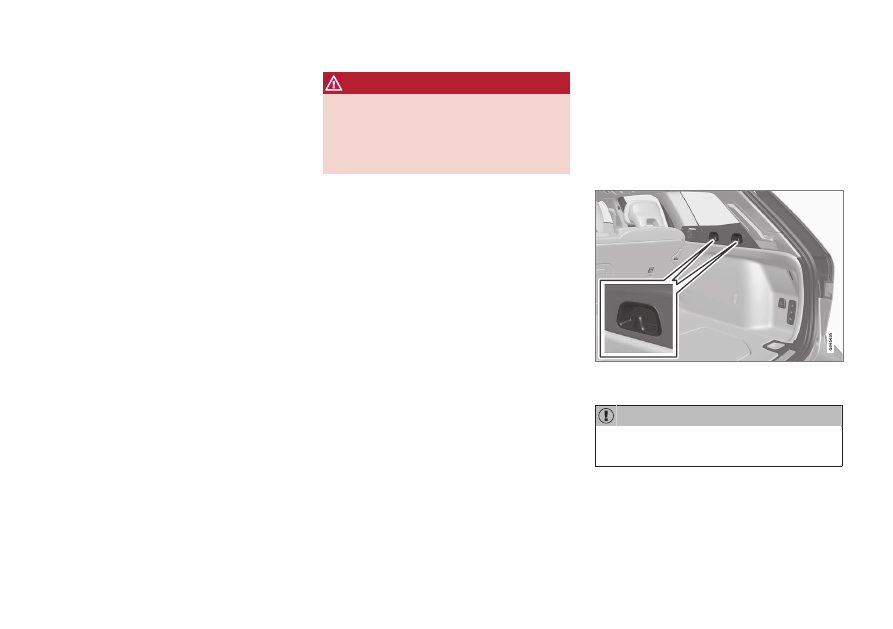

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from
falling over and spilling their contents in the
cargo compartment.

On the sides of the cargo
compartment

There are two grocery bag holders in the side
panel on each side of the cargo compartment.

CAUTION

The grocery bag holders are only intended
to hold weights up to 5 kg (11 lbs).

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

573

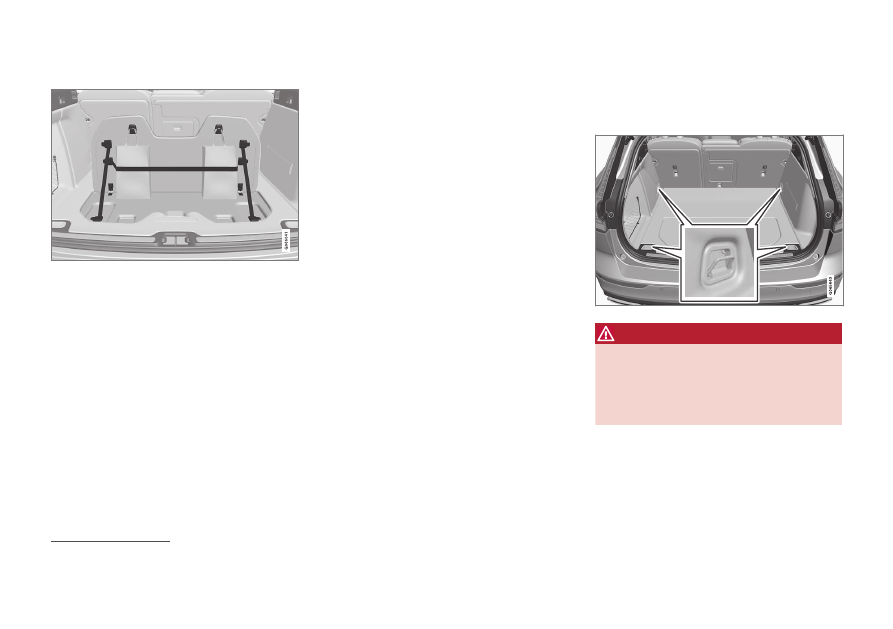

Under the floor hatch

*

There are two grocery bag holders and an
elastic band

1

 in the hatch in the cargo com-

partment floor. The strap can be attached in
four different positions.

Open the hatch to access the grocery bag
holders. Use the provided elastic strap to
secure shopping bags in a suitable position.
Bags with handles of a suitable size can also
be hung on the hooks.

Related information

•

Loading recommendations (p. 571)

•

Using the glove compartment (p. 569)

•

Installing and removing the cargo net

*

(p. 578)

•

Installing and removing the cargo com-
partment cover

*

 (p. 574)

•

Installing and removing the steel cargo
grid

*

 (p. 576)

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects

with a seat belt or cargo retaining straps.

Related information

•

Loading recommendations (p. 571)

•

Weights (p. 651)

1

Additional elastic straps can be ordered from a Volvo retailer.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

574

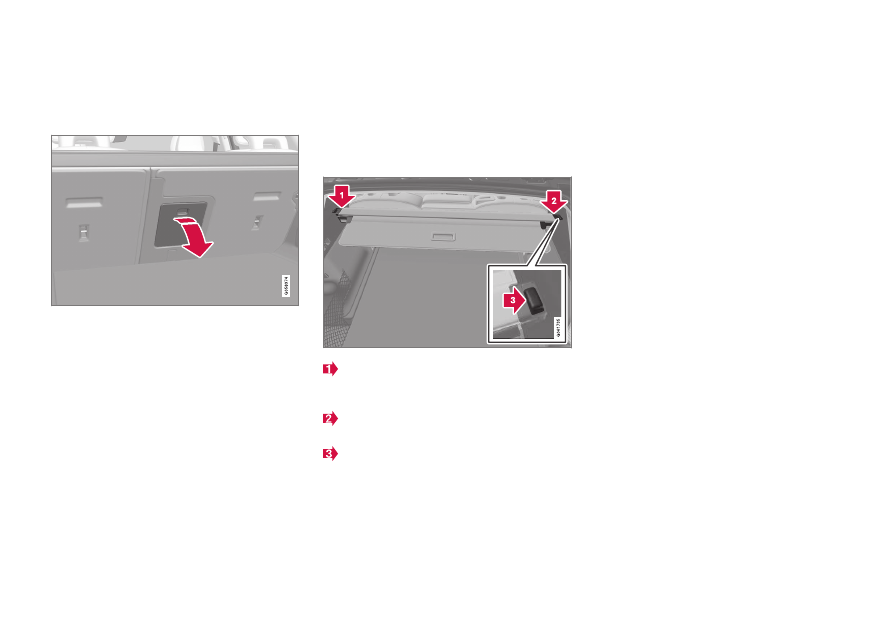

Rear seat ski hatch

The hatch in the rear seat backrest can be
opened to transport long, narrow objects
such as skis.

The illustration is generic - details may vary accord-

ing to vehicle model.

1. In the cargo compartment, grasp the ski

hatch handle and pull it down.

2. Fold down the armrest in the rear seat.

If the private locking function is used, the ski
hatch must be closed.

Related information

•

Loading recommendations (p. 571)

•

Private Locking (p. 262)

•

Load anchoring eyelets (p. 573)

Installing and removing the cargo

compartment cover

*

The cover can be rolled out to conceal objects
in the cargo compartment.

Installing the cargo compartment
cover

Press the end piece on one side of the
cover into the retaining bracket in the side
panel of the cargo compartment.

Then put the other end piece in the recess
in the side panel on the opposite side.

Push the end piece down on both sides,
one at a time.
> When a click is heard and the red

marks on each end piece are no longer
visible, the cover is in place. Check that
it is secure.

Removing the cargo compartment
cover

In retracted position:

1. Press the button on one of the cover's

ends and lift out that end.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of
the cargo compartment.

Related information

•

Operating the cargo compartment cover

*

(p. 575)

•

Loading recommendations (p. 571)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

575

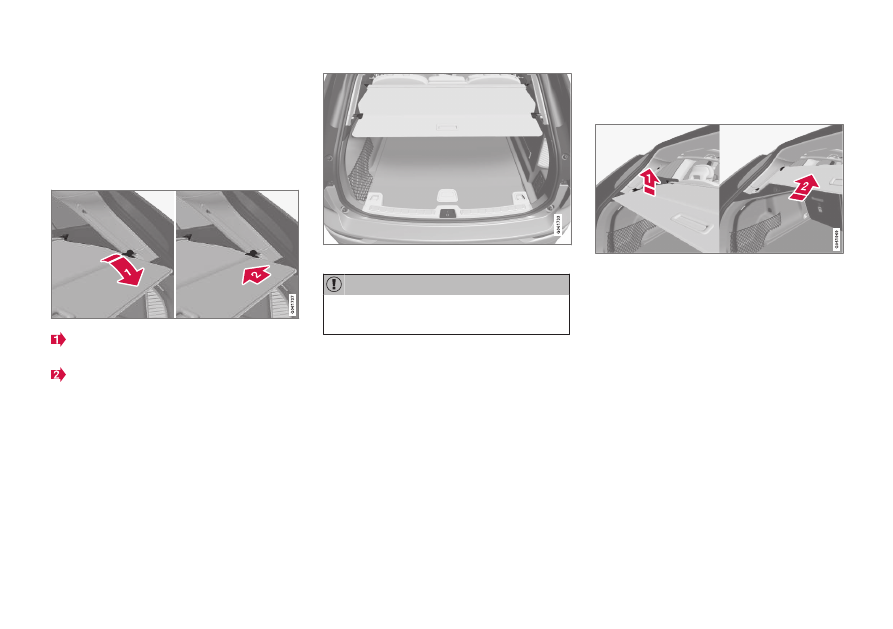

Operating the cargo compartment

cover

*

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

Fully open

Grasp the handle and pull the cover out as
far as possible.

Press the attachment pins in the recesses
in the rear pillars of the cargo compart-
ment.
> The cover will be secured in the fully

open position.

Cover in the fully open position.

CAUTION

Do not place objects on top of the cargo
compartment cover.

Loading mode

From the fully opened position:

–

Press the handle section of the cargo com-
partment slightly upward.
> The cover will move up until it stops in

the partially retracted position.

Returning to the fully open position from the
partially retracted position:

1. Grasp the handle and pull the cover down

as far as possible. Angle the handle
slightly upward so that the attaching pins
can more easily move past the first set of
grooves.

2. Release the handle so that the attaching

pins engage into the grooves.
> The cover will be secured in the fully

open position.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

576

CAUTION

When in the loading position, the cargo
compartment cover can obstruct visibility
to the rear. Make sure that the cargo com-
partment cover is fully extended or fully
retracted during driving.

Retracting the cover

1. From the fully opened position:

Lift the cover's handle and pull it rearward
to release the cover's attaching pins from
the grooves. Let the cover retract.

From the partially retracted position:

Grasp the handle and pull the cover out of
the groves to the fully open position. Lift
the handle and pull it rearward to release
the cover's attaching pins from the
grooves. Let the cover retract.

2. Let the cover retract with its attaching

pins above the side panels until it stops in
the fully retracted position.

Related information

•

Installing and removing the cargo com-
partment cover

*

 (p. 574)

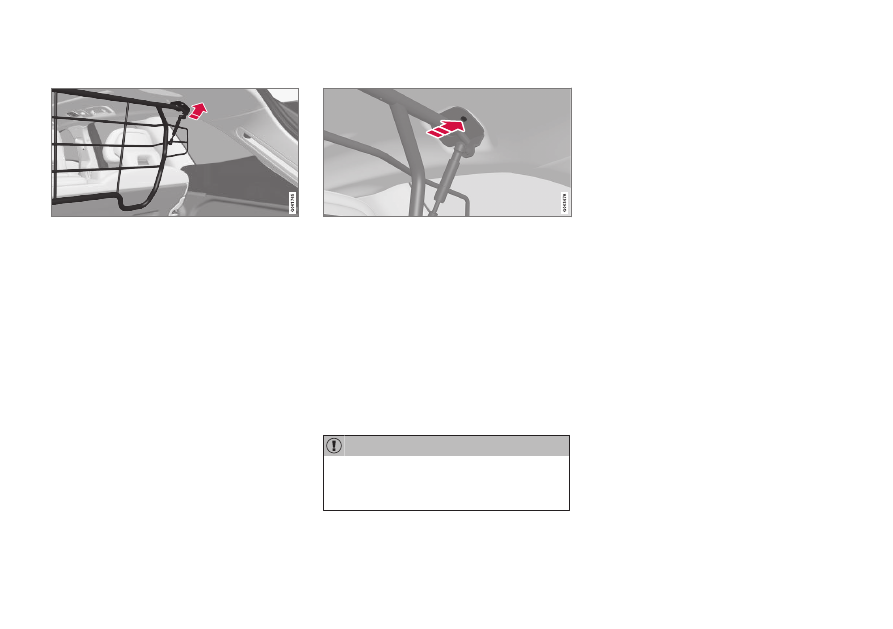

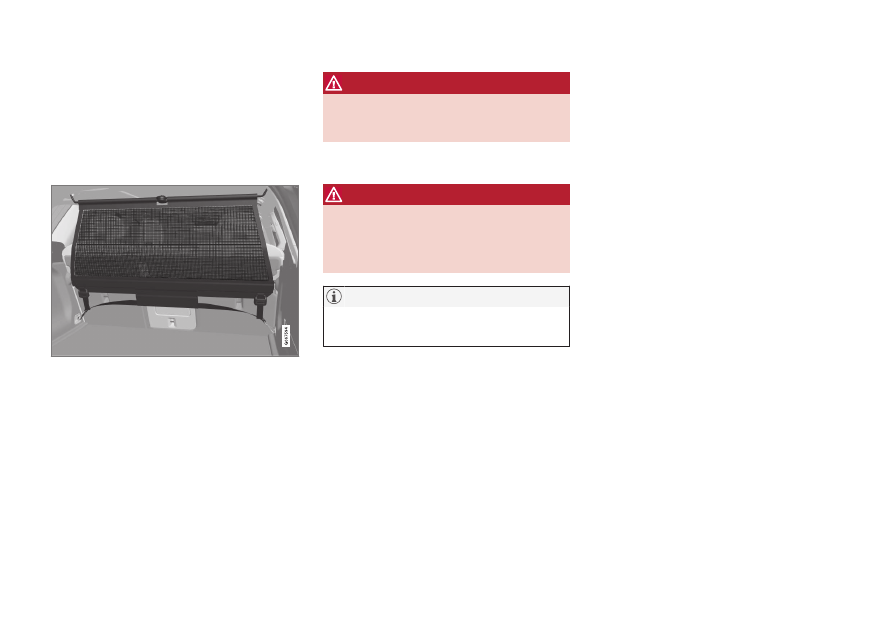

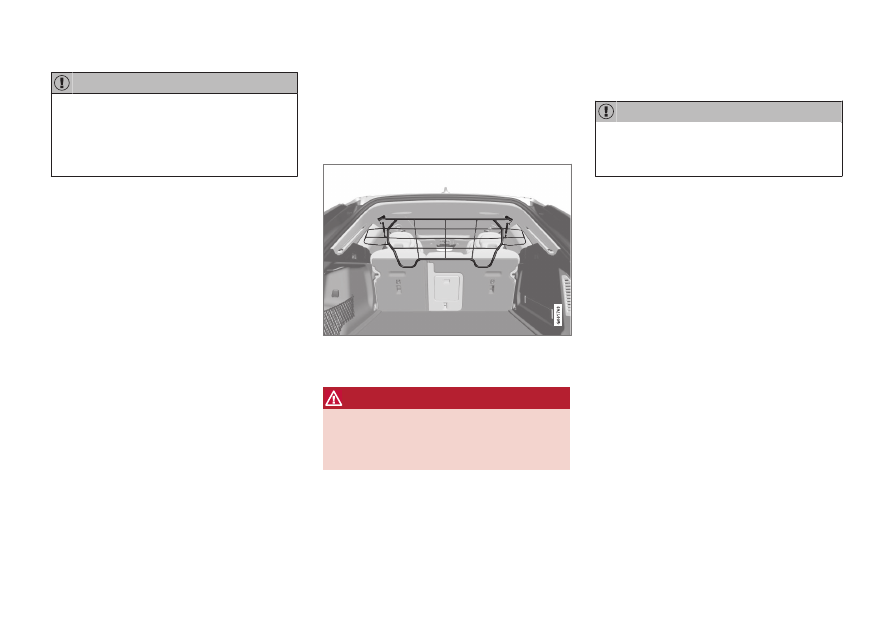

Installing and removing the steel

cargo grid

*

The steel cargo grid prevents loads or pets in
the cargo compartment from being thrown
forward into the passenger compartment
during hard braking.

For safety reasons, the steel grid must always
be installed and secured correctly.

WARNING

Under no circumstances may a person be

in the cargo compartment when the vehi-

cle is moving. Heavy braking or a collision

could lead to serious injury.

Installation

CAUTION

The steel cargo grid may only be used in
the rear position (behind the rear seat)
described here.

Before installing the steel grid, the existing
plastic ceiling mounting consoles must be
replaced with steel consoles. Volvo recom-
mends that the ceiling consoles are only
replaced by an authorized Volvo workshop or
retailer.

1. Fold down the rear seat backrests.

2. Make sure that the steel grid is facing the

right direction. Lift the grid into the vehicle
through one of the rear doors.

LOADING, STORAGE AND PASSENGER COMPARTMENT

577

3.

Position the grid's attachment points in
the ceiling consoles.

The next step will be easier if two people
hold the steel grid in the right position.

4.

Screw the provided screw into place using
the provided 6 mm Allen wrench. Repeat
on the other side. Recommended torque:
20 Nm (15 ft-lb).
> Check to make sure the steel grid is

securely in place.

5. Return the backrest to the upright posi-

tion.

For more information on necessary tools and
procedures for installing/removing, see the
assembly instructions provided with the steel
grid.

CAUTION

The steel cargo grid cannot be folded up or
down when a cargo compartment cover is
mounted.

Related information

•

Loading recommendations (p. 571)

•

Load anchoring eyelets (p. 573)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

578

Installing and removing the cargo

net

*

The cargo net helps prevent objects in the
cargo compartment from entering the pas-
senger compartment in the event of a sudden
stop or hard braking.

The cargo net is attached at four points.

For safety reasons, the cargo net must always
be mounted and secured according to the fol-
lowing description.

The net is made of strong nylon weave and
can be attached in two different locations in
the vehicle:

•

Rear mounting - behind the rear seats.

•

Front mounting - behind the front seats.

WARNING

Objects in the cargo compartment must

always be securely anchored, even with a

correctly installed cargo net.

Installing the cargo net

WARNING

All of the cargo net's upper consoles,

hooks and straps must be securely moun-

ted and attached before the net is used.
Never use the net if it is damaged.

NOTE

With front mounting, the cargo net is most
easily installed via a rear door.

1. Fold out the cargo net and make sure that

the upper rod folds out and locks into
position.

2. Insert one of the net's hooks into the front

or rear ceiling mounting point with the
strap lock facing you.

3. Insert the net's other upper hook into the

ceiling mounting point on the opposite
side.

The telescopic spring-loaded hooks make
mounting easier.

Make sure that the net's hooks are pushed
forward as far as possible into their
respective mounting points.
