Volvo V60 (2021 year). Manual in english - page 17

Driver support systems (p. 270)

(p. 286)

•

Contacting Volvo (p. 26)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

296

Pilot Assist

Pilot Assist can help the driver keep the vehi-
cle in the current traffic lane and maintain an
even speed and a set time interval to the
vehicle ahead.

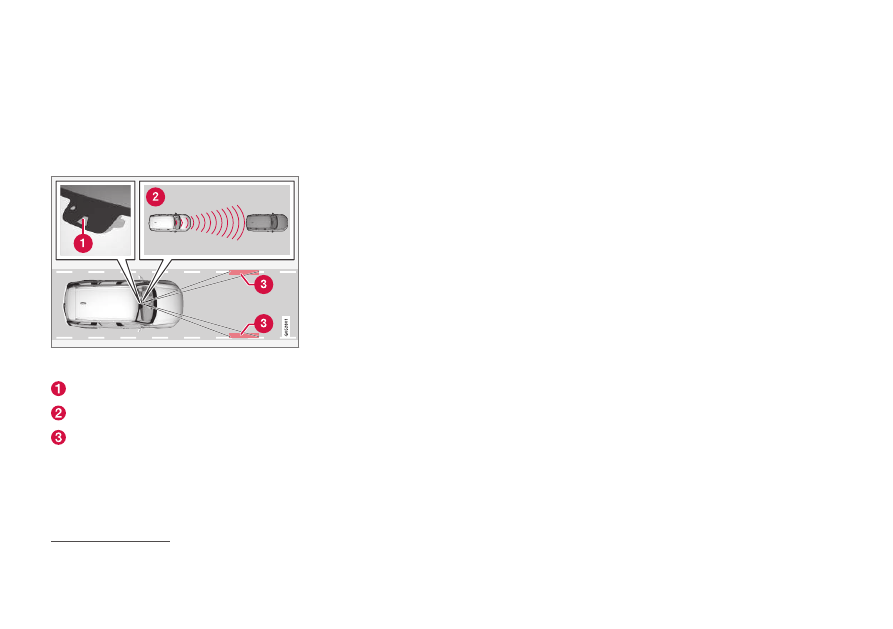

Get to know Pilot Assist

The camera/radar sensor monitors the distance to

the vehicle ahead and detects lane markings.

Camera and radar sensor

Distance monitor

Lane marker line monitors

Pilot Assist helps to steer the vehicle, and you
may need to drive a few miles with Pilot Assist
before you feel completely at home with the
function. It is important to be familiar with all

of the function's applications and limitations in
order to take advantage of all it has to offer.

The Pilot Assist function is primarily intended
for use on highways and other major roads
where it can help provide a more comfortable
and relaxing driving experience.

The driver sets the desired speed and distance
to the vehicle ahead. Pilot Assist monitors the
distance to the vehicle ahead and the traffic
lane's side markers using the camera. The sys-
tem maintains the set time interval to the vehi-
cle ahead by automatically adjusting your vehi-
cle's speed and keeps your vehicle in its lane
by providing steering assistance.

If the Curve Speed Assist (CSA)

function is

activated, it may also affect the vehicle's
speed.

Pilot Assist regulates speed by accelerating
and braking. It is normal for the brakes to emit
a slight sound when they are being used to
adjust speed.

Pilot Assist is designed to:

•

smoothly regulate speed. The driver must
apply the brakes in situations requiring
immediate braking. For example, when
there are great differences in speed
between vehicles or if the vehicle ahead
brakes suddenly. Due to limitations in the

camera and radar sensor, braking may
occur unexpectedly or not at all.

•

follow a vehicle ahead in the same lane
and maintain a time interval to that vehicle
set by the driver. If the radar sensor does
not detect a vehicle ahead, it will instead
maintain the speed set by the driver. This
will also happen if the speed of the vehicle
ahead exceeds the set speed for your vehi-
cle.

The vehicle's position in the traffic
lane

When Pilot Assist helps to steer, it attempts to
position the vehicle halfway between the visi-
ble lane marking lines. For a smoother drive, it
is a good idea to allow the vehicle to find a
good position. The driver can always adjust
the position him/herself by increasing steering
input. It is important for the driver to make
sure the vehicle is positioned safely in the lane.

If Pilot Assist does not position the vehicle
appropriately in the lane, the driver should turn
off Pilot Assist or switch to Adaptive Cruise
Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

297

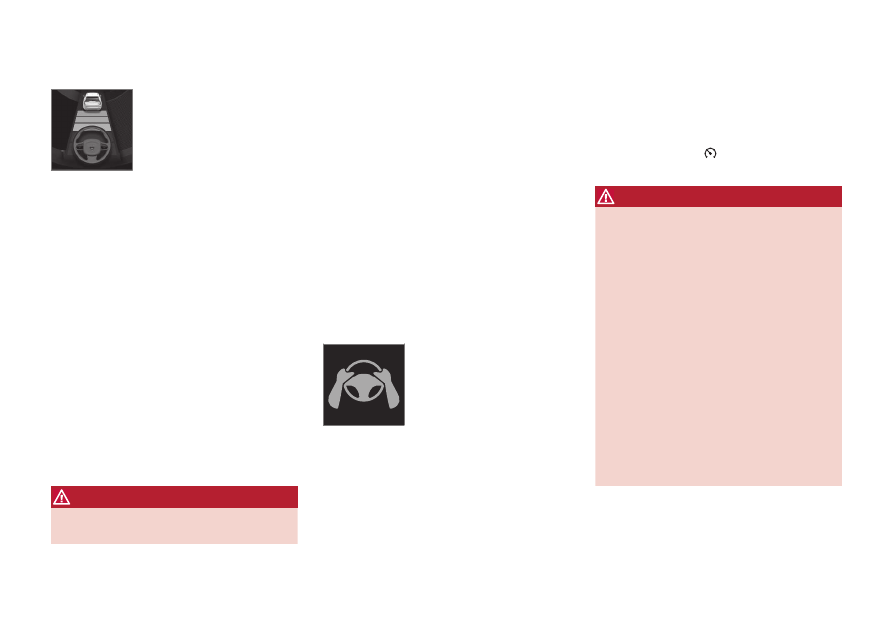

Steering assistance

The color of the steering
wheel symbol indicates the
current status of steering
assistance:

• GREEN indicates that
steering assistance is active

• GRAY (as shown in illustration) indicates that
steering assistance is deactivated.

Pilot Assist's steering assistance is based on
monitoring the direction of the vehicle ahead
and the traffic lane's side marker lines. The
driver can override Pilot Assist's steering rec-
ommendations at any time and steer in
another direction, e.g. to change lanes or avoid
obstacles on the road.

If the camera/radar sensor cannot detect the
lane's side marker lines or if Pilot Assist is
unable for some other reason to clearly inter-
pret the lane, Pilot Assist will temporarily
deactivate steering assistance until it can once
again interpret the lane markings. However,
the speed and distance warnings will remain
active. The driver will be alerted by slight
vibrations in the steering wheel that the func-
tion has been temporarily deactivated.

WARNING

Pilot Assist is deactivated automatically

and resumes working without prior notice.

In curves and forks in the road

Pilot Assist is designed to interact with the
driver. The driver should never wait for steer-
ing assistance from Pilot Assist, but instead
should always be ready to increase his or her
own steering efforts, particularly in curves.

When the vehicle is approaching an off-ramp
or a fork in the road, the driver should steer
toward the desired lane so that Pilot Assist
can detect the desired direction of travel.

Hands on the steering wheel

Pilot Assist only functions if the driver's hands
are on the steering wheel. It is also important
for the driver to always continue to be active
and alert when driving since Pilot Assist is
unable to read all situations and may toggle
between off and on without prior warning.

If Pilot Assist detects that the
driver's hands are not on the
steering wheel, the system
will provide a symbol and a
text message in the instru-
ment panel to instruct the
driver to actively steer the

vehicle.

If the driver's hands are still detected on the
steering wheel after a few seconds have
passed, the instructions to actively steer the
vehicle will be repeated, accompanied by an
audible signal.

If Pilot Assist still does not detect the driver's
hands on the steering wheel after a few more
seconds have passed, the audible signal will
become intense and the steering function will
switch off. Pilot Assist must then be reactiva-
ted by pressing the

button on the steering

wheel.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and help make it safer – it cannot han-
dle all situations in all traffic, weather
and road conditions.

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgment. The driver is always respon-
sible for ensuring the vehicle is driven
in a safe manner, at the appropriate
speed, with an appropriate distance to
other vehicles, and in accordance with
current traffic rules and regulations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

298

CAUTION

Only a workshop may perform mainte-
nance on driver support components – an
authorized Volvo workshop is recom-
mended.

Related information

•

•

Selecting and activating Pilot Assist

•

•

•

•

•

Collision risk warning from driver support
(p. 311)

•

Switching target vehicles with driver sup-
port (p. 312)

•

Setting time interval to the vehicle ahead
(p. 314)

•

Adjusting set speed for driver support
(p. 313)

•

Auto-hold braking with driver support
(p. 315)

•

Passing assistance

(p. 310)

•

Contacting Volvo (p. 26)

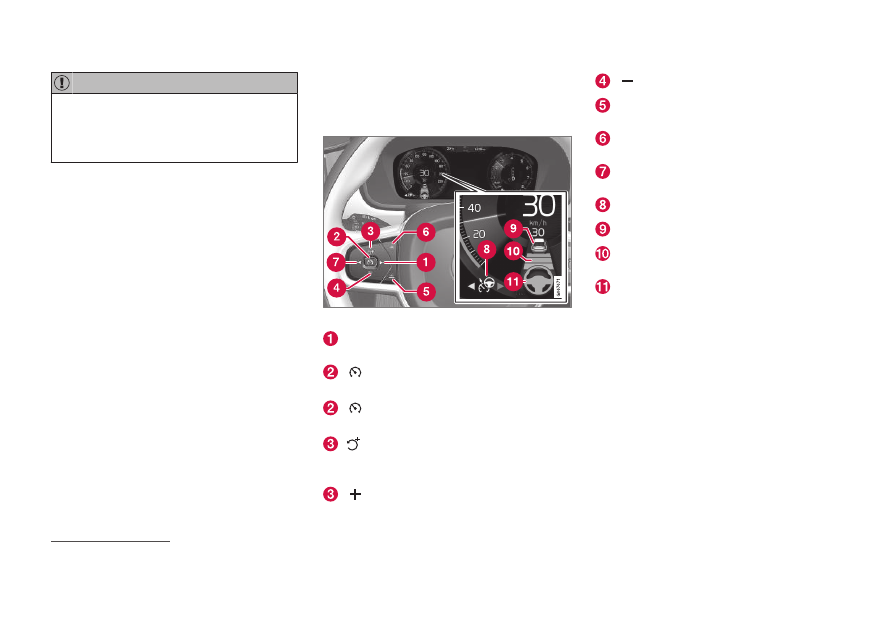

Pilot Assist

controls

A summary of how Pilot Assist is controlled
using the right-side steering wheel keypad
and how the function is shown in the display.

Function buttons and symbols.

▶

: Switches from Adaptive Cruise Control

to Pilot Assist

From standby mode

- activates Pilot

Assist and sets the current speed

From active mode

- deactivates/

puts Pilot Assist in standby mode

: Activates Pilot Assist from standby

mode and resumes the set speed and time
interval

: Increases the set speed

: Reduces the set speed

Increases the time interval to the vehicle
ahead
Reduces the time interval to the vehicle
ahead

◀

: Switches from Pilot Assist to Adaptive

Cruise Control
Function symbol

Symbols for target vehicle

Symbol for time interval to the vehicle
ahead
Symbol for activated/deactivated steering
assistance

Related information

•

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

299

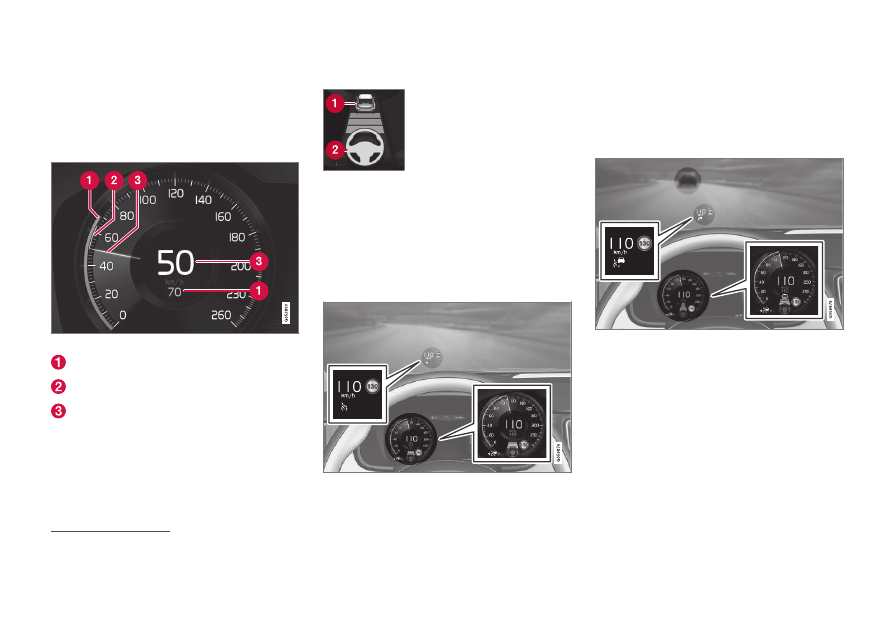

Pilot Assist

displays

The following illustrations show how Pilot
Assist can appear in the various displays in
different situations.

Speed

Speed indicators.

Set speed

Speed of the vehicle ahead

The current speed of your vehicle

Time interval

Pilot Assist will only regulate
the time interval to the vehi-
cle ahead when the distance
symbol shows a vehicle (1)
over the steering wheel sym-
bol.

Pilot Assist's steering assistance is only active
when the steering wheel symbol (2) changes
from GRAY to GREEN.

When driving

In the following illustration, Road Sign Infor-
mation (RSI

) indicates that the maximum

permitted speed is 130 km/h (80 mph).

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h

(68 mph) and that there is no target vehicle
ahead to follow.

Pilot Assist will not provide any steering assis-
tance because it cannot detect the lane's side
marking lines.

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and is following a target vehicle
ahead that is traveling at the same speed.

Pilot Assist will not provide any steering assis-
tance because it cannot detect the lane's side
marking lines.

Depending on market, this function can be either standard or optional.

Road Sign Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

300

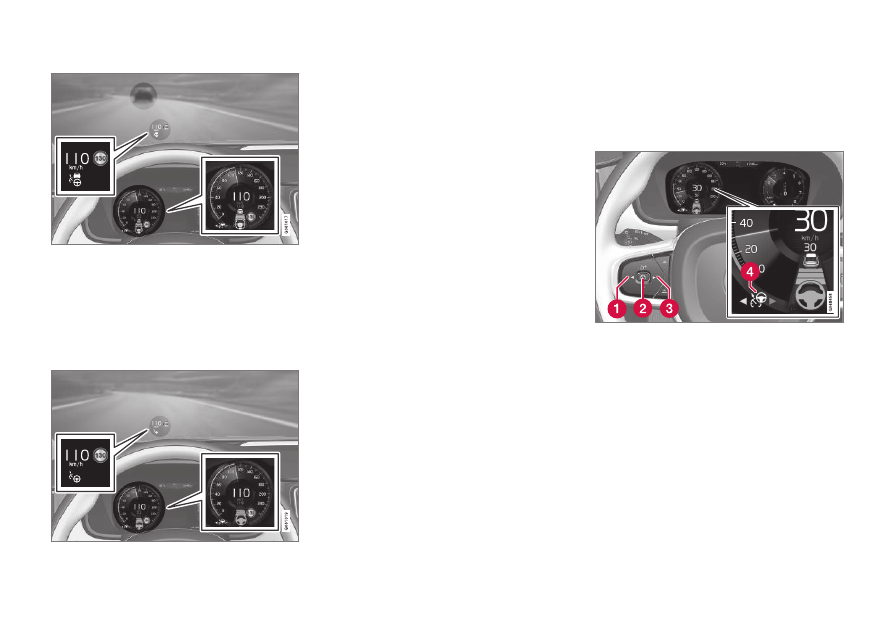

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and is following a target vehicle
ahead that is traveling at the same speed.

In this example, Pilot Assist will also provide
steering assistance because it can detect the
lane's side marking lines.

The previous illustration shows that Pilot
Assist is set to maintain a speed of 110 km/h
(68 mph) and that there is no target vehicle
ahead to follow.

Pilot Assist will provide steering assistance
because it can detect the lane's side marking
lines.

Related information

•

•

Selecting and activating Pilot

Assist

Pilot Assist must first be selected and then
activated before it can regulate speed and
distance and provide steering assistance.

A green steering wheel indicates that Pilot Assist is

providing steering assistance.

To start Pilot Assist.

•

The driver's seat belt must be buckled and
the driver's door must be closed.

•

The side markings of the lane must be
clearly visible and detected by the vehicle.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or
your vehicle's current speed must be at
least 15 km/h (9 mph).

•

The speed must not exceed 140 km/h (87
mph).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

}}

* Option/accessory.

301

•

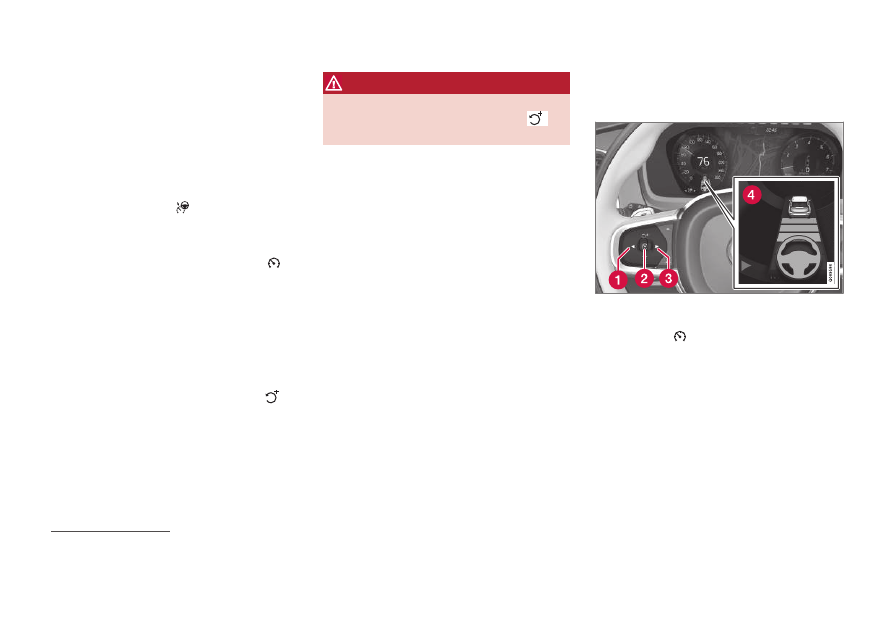

The driver must keep their hands on the
steering wheel.

•

There must be a vehicle ahead (target
vehicle) within a reasonable distance or
your vehicle's current speed must be at
least 15 km/h (9 mph).

1. Press the

◀

(1) or

▶

(3) button on the

steering wheel keypad and scroll to the
Pilot Assist symbol

(4).

> Gray symbol – Pilot Assist is in standby

mode.

2. When Pilot Assist is selected, press

(2) on the steering wheel keypad to acti-
vate.
> White symbol – Pilot Assist starts and

the current speed is stored as the maxi-
mum speed.

Reactivating Pilot Assist to the last
stored speed

–

When Pilot Assist is selected, press
on the steering wheel keypad to activate.
> The Cruise Control marking in the

instrument panel will change from
GRAY to WHITE and the vehicle will
then return to the most recently set
speed.

WARNING

A noticeable increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Deactivating Pilot Assist

•

(p. 301)

•

limitations (p. 304)

Deactivating Pilot Assist

Pilot Assist can be deactivated and switched
off.

A green steering wheel indicates that Pilot Assist is

providing steering assistance.

1. Press the

button on the steering

wheel (2).
> The symbol and markings turn gray –

Pilot Assist goes into standby mode.
The time interval indicator light and any
symbols for the target vehicle will go
out.

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

302

2. Press the

◀

(1) or

▶

(3) buttons on the

steering wheel to select another function.
> The Pilot Assist symbol and marking (4)

in the instrument panel will go out and
the stored maximum speed will be
erased.

WARNING

•

With Pilot Assist in standby mode, the
driver must intervene and steer and
regulate both speed and distance to
the vehicle ahead.

•

If the vehicle comes too close to a vehi-
cle ahead when Pilot Assist is in
standby mode, the driver is instead
warned of the short distance by the
Distance Alert

function.

Related information

•

Selecting and activating Adaptive Cruise
Control

(p. 286)

•

(p. 289)

•

Switching between cruise control and
Adaptive Cruise Control

in the center dis-

play (p. 293)

•

Temporarily deactivating steering assis-
tance with Pilot Assist

limitations

(p. 292)

•

(p. 303)

Pilot Assist

standby mode

Pilot Assist can be deactivated and put in
standby mode. This may happen automati-
cally or be due to driver intervention.

Standby mode means that the function is
selected in the instrument panel but not acti-
vated. In standby mode, Pilot Assist will not
regulate the speed or distance to the vehicle
ahead or provide steering assistance.

Standby mode due to action by the
driver

Pilot Assist will be deactivated and put in
standby mode if any of the following occurs:

•

The brakes are applied.

•

The gear selector is moved to

•

A turn signal is used for more than
1 minute.

•

The vehicle is driven faster than the set
speed for more than 1 minute.

Automatic standby mode

WARNING

With automatic standby mode, the driver is

warned by an acoustic signal and a mes-

sage on the instrument panel.

•

The driver must then regulate vehicle
speed, apply the brakes if necessary,
and maintain a safe distance to other
vehicles.

The function may automatically go into
standby mode if one of the following occurs.

•

One of the systems that Pilot Assist is
dependent on stops working, such as
Electronic Stability Control

•

The driver's hands are not on the steering
wheel.

•

The driver opens the door.

•

The driver unbuckles the seat belt.

•

The engine speed (rpm) is too low/high.

•

One or more of the wheels lose traction.

•

The brake temperature is high.

•

The parking brake is applied.

•

The camera and radar unit is covered by
snow or heavy rain (the camera lens/radar
waves are blocked).

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

303

•

Your vehicle's speed goes below 5 km/h
(3 mph) and Pilot Assist cannot determine
if the vehicle ahead is stationary or if it is
another object, e.g. a speed bump.

•

Your vehicle's speed goes below 5 km/h
(3 mph) and the vehicle ahead turns so
that Pilot Assist no longer has a vehicle to
follow.

Related information

•

Selecting and activating Pilot Assist

•

(p. 300)

•

Deactivating Pilot Assist

(p. 301)

•

limitations (p. 304)

Temporarily deactivating steering

assistance with Pilot Assist

Pilot Assist steering assistance can be tem-
porarily deactivated and reactivated without
prior warning.

When the turn signals are used, Pilot Assist's
steering assistance will be temporarily deacti-
vated. When the direction indicator is turned
off, steering assistance is reactivated automat-
ically if the lane's edge markings can still be
detected.

If Pilot Assist cannot clearly interpret the
lane's side marker lines or if the camera/radar
sensor is unable for some other reason to
clearly interpret the lane, Pilot Assist will tem-
porarily deactivate steering assistance. How-
ever, the speed and distance warnings will
remain active. Steering assistance will resume
when the side marker lines can once again be
interpreted. In these situations, the driver may
be alerted through slight vibrations in the
steering wheel that steering assistance is tem-
porarily deactivated.

Related information

•

Selecting and activating Pilot Assist

•

(p. 300)

•

Deactivating Pilot Assist

(p. 301)

•

limitations (p. 304)

Electronic Stability Control

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

304

Pilot Assist

limitations

Pilot Assist functionality may be reduced in
certain situations.

Pilot Assist is a driver support function
designed to simplify driving and assist the
driver in many situations. However, the driver
is always responsible for maintaining a suita-
ble distance to vehicles or objects around it
and ensuring that the vehicle is correctly posi-
tioned in the traffic lane.

WARNING

In some situations, Pilot Assist may have

trouble helping the driver properly or may

be deactivated automatically – we advise

against using Pilot Assist in such cases.

Examples of such situations include:

•

the lane markings are unclear, worn,
missing, cross each other, or there are
multiple sets of road markings.

•

the lane division changes, e.g. when
lanes split or merge, and at off-ramps.

•

when there is road construction and
sudden changes to the road surface,
e.g. when the lines may no longer mark
the correct route.

•

edges or other lines than lane markings
are present on or near the road, e.g.
curbs, joints or repairs to the road sur-
face, edges of barriers, roadside edges
or strong shadows.

•

the lane is narrow or winding.

•

the lane contains ridges or holes.

•

weather conditions are poor, e.g. rain,
snow or fog or slush or reduced visibil-

ity with poor light conditions, back-
lighting, wet road surface, etc.

The driver should also note that Pilot Assist

has the following limitations:

•

High curbs, roadside barriers, tempo-
rary obstacles (traffic cones, safety bar-
riers, etc.) are not detected. Alterna-
tively, they may be detected incorrectly
as lane markings, with a subsequent
risk of contact between the vehicle and
such obstacles. The driver is responsi-
ble for ensuring that the vehicle main-
tains a suitable distance from such
obstacles.

•

The camera and radar sensors do not
have the capacity to detect all oncom-
ing objects and obstacles in traffic
environments, e.g. potholes, stationary
obstacles or objects that completely or
partially block the route.

•

Pilot Assist does not "see" pedestrians,
animals, etc.

•

The steering assistance is limited in
force, which means that Pilot Assist
cannot always help the driver to steer
and keep the vehicle within the lane.

•

In vehicles equipped with Sensus
Navigation

, the function is able to use

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

305

information from map data, which
could cause variations in performance.

•

Pilot Assist will be switched off if the
speed-dependent power steering
wheel resistance is working at reduced
power, e.g. during cooling due to over-
heating.

WARNING

Pilot Assist should only be used if there are

clear lane lines painted on each side of the

lane. All other use will increase the risk of

contact with nearby obstacles that cannot

be detected by the functions.

WARNING

•

This is not a collision avoidance sys-
tem. The driver is always responsible
and must intervene if the system fails
to detect a vehicle ahead.

•

The function does not brake for people
or animals and does not brake for small
vehicles, such as bikes and motorcy-
cles. Similarly, it does not brake for low
trailers, oncoming, slow-moving or sta-
tionary vehicles and objects.

•

Do not use the function in demanding
situations, such as in city traffic, at
intersections, on slippery surfaces,
with a lot of water or slush on the road,
in heavy rain/snow, in poor visibility, on
winding roads, or on on/off ramps.

The driver can always correct or adjust steer-
ing assistance provided by Pilot Assist by turn-
ing the steering wheel to the desired position.

Steep roads and/or heavy loads

Pilot Assist is primarily intended to be driven
on flat roads. The function may not be able to
maintain the correct time interval to the vehi-
cle ahead when driving down steep hills. The
driver should be extra attentive and prepared
to apply the brakes.

Do not use Pilot Assist if the vehicle is carrying
a heavy load or towing a trailer.

NOTE

Pilot Assist cannot be activated if a trailer,
bike carrier or similar is connected to the
vehicle electrical system.

Drive mode unavailable

The

Off Road

drive mode cannot be selected

when Pilot Assist is activated.

NOTE

The function uses the vehicle's camera and
radar sensor, which has certain general
limitations.

Related information

•

Camera/radar sensor limitations (p. 383)

•

•

Speed-dependent steering wheel resis-
tance (p. 270)

•

Drive modes

(p. 413)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

306

Pilot Assist

symbols and

messages

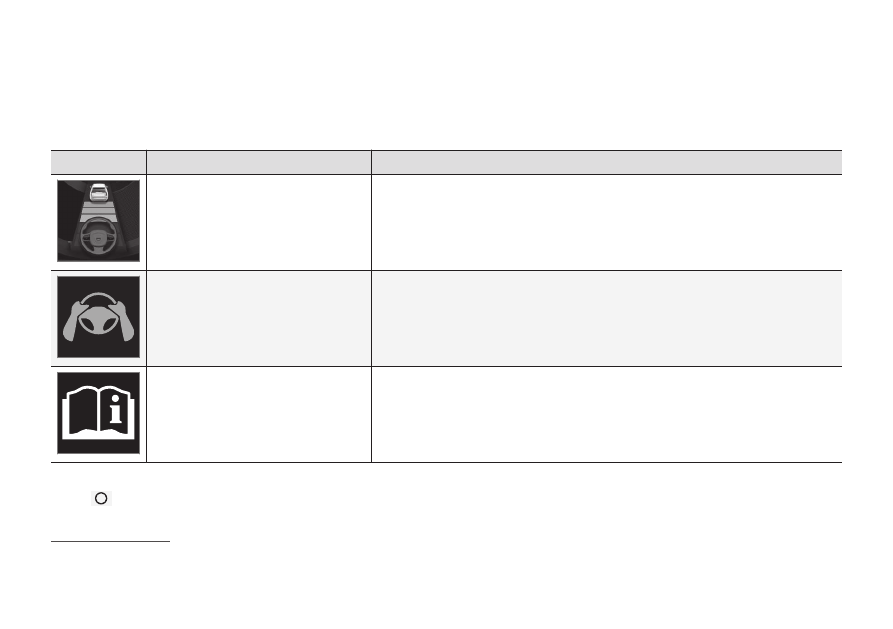

A number of symbols and messages relating
to Pilot Assist may be displayed in the instru-
ment panel and/or the head-up display

Symbol

Message

Meaning

Gray steering wheel symbol

Indicates that steering assistance is deactivated. When Pilot Assist is providing steer-
ing assistance, the steering wheel is green.

Symbol for hands on the steering wheel

The system cannot detect the driver's hands on the steering wheel. Place your hands
on the steering wheel and actively steer the vehicle.

Windscreen sensor

Sensor blocked, see Owner's man-
ual

Clean the windshield in front of the camera and radar sensors.

A text message can be erased by briefly press-
ing the

button in the center of the right-

side steering wheel keypad.

If the message persists: Contact a workshop

‒

an authorized Volvo workshop is recom-
mended.

Depending on market, this function can be either standard or optional.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

308

Curve Speed Assist (CSA)

Curve Speed Assist

can help the driver

reduce speed before sharp turns if the preset
speed for the driver support function Adap-
tive Cruise Control

or Pilot Assist

is deter-

mined to be too high.

As the function reduces the
vehicle's speed, this symbol
will be displayed in the instru-
ment panel.

This assessment is performed using informa-
tion from map data in the vehicle's navigation
system, Sensus Navigation

. After the turn,

the vehicle will resume the previously set
speed.

The driver can cancel the function at any time
by braking or using the accelerator pedal.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and help make it safer – it cannot han-
dle all situations in all traffic, weather
and road conditions.

•

Drive modes

Cornering assistance varies depending on the
selected drive mode. If drive mode cannot be
selected, the function will use the

Comfort

option. In

Dynamic

mode, cornering will be

sporty, with slightly more powerful accelera-
tion coming out of curves.

Related information

•

Activating or deactivating Curve Speed
Assist (CSA)

•

limitations

Driver support systems (p. 270)

•

•

•

•

This function is only available on some markets.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

* Option/accessory.

309

Activating or deactivating Curve

Speed Assist (CSA)

The Curve Speed Assist (CSA) function can
be activated as a supplement to Adaptive
Cruise Control

or Pilot Assist

. The driver can

also deactivate the function.

Activate or deactivate the
function using this button in
the center display's Function
view.

•

GREEN button indicator light – the func-
tion is activated.

•

GRAY button indicator light – the function
is deactivated.

The next time the engine is started, the last
used setting is reactivated or the key's driver
profile settings are followed

Related information

•

(p. 308)

•

limitations

Curve Speed Assist (CSA)

limitations

Curve Speed Assist (CSA) functionality may
be reduced in certain situations. The driver
should be aware of the following limitations:

•

Curve Speed Assist (CSA) may have lim-
ited performance on small roads and in
densely populated areas.

•

At off-ramps or intersections, Curve
Speed Assist (CSA) may temporarily
switch off.

•

If the satellite navigator's

map data is

not updated, Curve Speed Assist (CSA)
may have limited functionality.

•

Curve Speed Assist (CSA) functionality
may be limited if the satellite navigator

has lost contact with the satellite system.

•

On new or rebuilt roads, map data may be
incorrect.

•

The risk of reduced grip due to adverse
weather or road conditions is not taken
into account when calculating suitable
cornering speed.

NOTE

The function uses the vehicle's camera and
radar sensor, which has certain general
limitations.

Related information

•

Activating or deactivating Curve Speed
Assist (CSA)

(p. 308)

•
