DISPLAYS AND VOICE CONTROL

* Option/accessory.

109

Function view

‒

vehicle functions that can

be activated or deactivated with one tap.
Certain functions, called "trigger func-
tions", open windows with settings
options. One example is the

Camera

. Set-

tings for the head-up display

*

 are also

started from Function view, but adjusted
using the right-side steering wheel key-
pad.
Home view

‒

the initial view displayed

when the screen is turned on.
App view – shows downloaded apps
(third-party apps) as well as apps for inte-
grated functions, such as

FM radio

. Tap

an app icon to open that app.
Status bar

‒

current vehicle activities are

shown at the top of the screen. Network
and connection information is shown to
the left of the status bar. Media-related
information, the clock and information
about background activities are shown to
the right.
Top view

‒

pull the tab down to open Top

view. From here, you can access

Settings

,

Owner's manual

,

Profile

 and messages

stored in the vehicle. In certain cases, con-
textual setting (e.g.

Navigation Settings

)

Navigation Manual

) can also be accessed

in Top view.

Navigation

‒

takes you to map navigation

with e.g. Sensus Navigation

*

. Tap the tile

to expand it.
Media

‒

most recently used media-related

apps. Tap the tile to expand it.
Phone

‒

used to access phone-related

functions. Tap the tile to expand it.
Fourth tile

‒

most recently used apps or

vehicle functions not associated with the
other tiles. Tap the tile to expand it.
Climate row - information and direct inter-
action to set temperature and seat heating
for example

*

. Tap the symbol in the center

of the climate bar to open Climate view
and additional setting options.

NOTE

The climate system can be used to cool
down the media system in the center dis-
play if needed. In these cases, the message

Climate system



Cooling the

infotainment system

 will be shown in the

instrument panel.

Related information

•

Handling the center display (p. 110)

•

Navigating in the center display's views
(p. 113)

•

Function view in the center display
(p. 120)

•

Apps (p. 450)

•

Symbols in the center display status bar
(p. 122)

•

Changing settings in the center display's
Top view (p. 130)

•

Opening contextual setting in the center
display (p. 131)

•

•

Media player (p. 469)

•

Phone (p. 485)

•

Climate system controls (p. 210)

•

Turning off and adjusting the volume of
the center display system sounds
(p. 129)

•

Changing the appearance of the center
display (p. 129)

•

Changing system language (p. 130)

•

Changing system units of measurement
(p. 130)

•

Cleaning the center display (p. 608)

•

Messages in the center display (p. 138)

7

In right-hand drive vehicles, these views are mirror images of the ones shown here.

DISPLAYS AND VOICE CONTROL

110

Handling the center display

Many of the vehicle's functions and features
can be controlled and adjusted from the cen-
ter display. The center display is a
touchscreen that reacts to taps and other
gestures.

Using the center display's
touchscreen

The screen reacts differently depending on
whether it is touched by dragging, swiping or

tapping. It is possible to e.g. move between
different views, mark objects and scroll in a
list by touching the screen in various ways.

An infrared light curtain just above the surface
of the screen enables the screen to detect
when a finger is directly in front of the screen.
This technology makes it possible to use the
screen even while wearing gloves.

Two people can interact with the screen at the
same time, e.g. to adjust climate system set-
tings for both the driver and passenger sides.

CAUTION

Do not use sharp objects on the screen as
this could cause scratches.

The following table presents the various pro-
cedures for using the screen:

Procedure

Gesture

Result

Tap once.

Marks an object, confirms a selection or activates a function.

Double-tap.

Zooms in on a digital object, such as a map.

Press and hold.

Grabs hold of an object so it can be moved. Can be used to move apps or points on a map. Press and hold
your finger on the screen and drag the object to the desired position.

Tap once with two
fingers.

Zooms out from a digital object, such as a map.

DISPLAYS AND VOICE CONTROL

}}

111

Procedure

Gesture

Result

Drag

Moves between screen views or scrolls in a list, text or a view. Press and hold to drag apps or points on a
map. Drag horizontally or vertically over the screen.

Swipe

Moves between screen views or scrolls in a list, text or a view. Drag horizontally or vertically over the
screen.

Note that touching the upper part of the screen could cause Top view to open.

Stretch

Zooms in.

Pinch

Zooms out.

||

DISPLAYS AND VOICE CONTROL

112

Returning to Home view from another
view

1. Briefly press the home button below the

center display.
> The most recent Home view mode will

be displayed.

2. Press briefly again.

> All of the Home view's tiles will return

to standard mode.

NOTE

In Home view's standard mode – short
press on the Home button. An animation
describing access to the various views is
shown on the screen.

Scrolling in lists, articles or views

A scroll indicator is displayed on the screen
when it is possible to scroll up or down in the
view. Swipe down/up anywhere in the view.

The scroll indicator will be shown in the center dis-

play when it is possible to scroll in the view.

Using the center display controls

Temperature control.

Digital controls are available for many of the
vehicle's functions. For example, to set the
temperature:

•

drag the control to the desired tempera-
ture,

•

tap

+

 or

−

 to raise or lower the tempera-

ture by degrees, or

•

tap the desired temperature on the con-
trol.

Related information

•

Activating and deactivating the center dis-
play (p. 113)

•

Moving apps and buttons in the center
display (p. 122)

•

Using the center display keyboard
(p. 124)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

113

Activating and deactivating the

center display

The center display can be temporarily
switched off and reactivated using the home
button under the screen.

Center display's home button.

When the home button is used, the screen will
go dark and the touchscreen no longer reacts
to touch. The climate bar will remain visible.
All functions connected to the screen continue
to operate, such as climate, audio, guiding

*

and apps. The center display screen can be
cleaned when the display is dimmed. The dim-
ming function can also be used to darken the
screen so it is not a distraction while driving.

1. Press and hold the button beneath the

screen.
> The screen will go dark (the climate bar

will remain visible). All functions con-
nected to the screen continue to oper-
ate.

2. To reactivate the screen, briefly press the

Home button.
> The view that was displayed before the

screen was turned off will be displayed
again.

NOTE

The screen cannot be turned off when a
prompt to perform an action is being dis-
played on the screen.

NOTE

The center display is turned off automati-
cally when the engine is off and the driver's
door is opened.

Related information

•

Cleaning the center display (p. 608)

•

Changing the appearance of the center
display (p. 129)

•

Center display overview (p. 108)

Navigating in the center display's

views

There are five different basic views in the cen-
ter display: Home view, Top view, Climate
view, App view and Function view. The
screen is automatically activated when the
driver's door is opened.

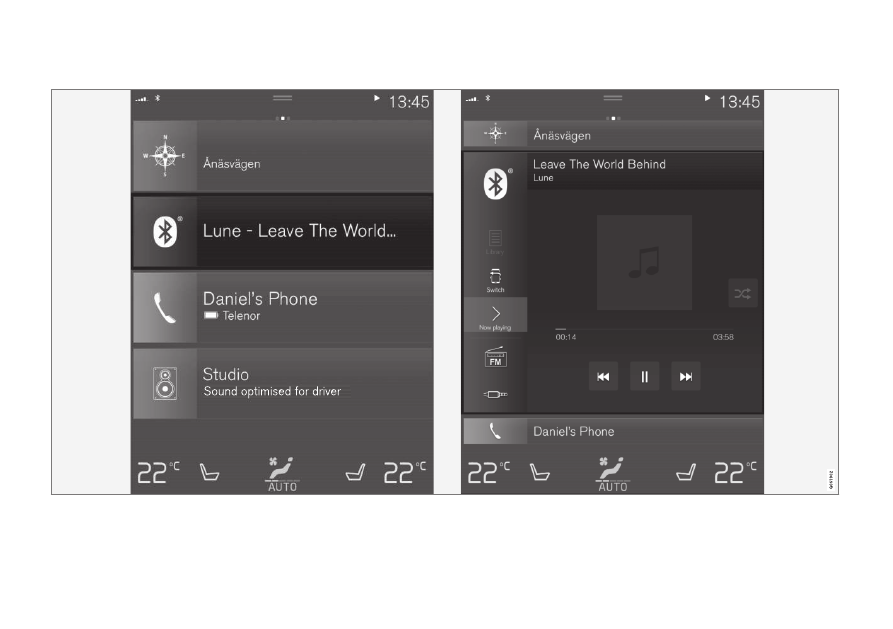

Home view

Home view is the view displayed when the
screen is activated. It consists of four tiles:

Navigation

,

Media

,

Phone

 and a fourth tile.

An app or vehicle function selected from the
App or Function views will start in the respec-
tive tile in Home view.

FM radio

, for example,

will start in the

Media

 tile.

The extra tile displays the most recently used
app or vehicle function that is not related to
the other three tiles.

The tiles display brief information about the
respective apps.

NOTE

When the vehicle is started, information on
the current status of apps will be displayed
in the respective tile in Home view.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

114

NOTE

In Home view's standard mode – short
press on the Home button. An animation
describing access to the various views is
shown on the screen.

NOTE

When the vehicle is moving:

•

Certain functions (e.g. using the center
display's keyboard) may be deacti-
vated.

•

Certain texts (e.g. those generated by
apps) will be shortened to three rows.
Tap the

Read out

 button to have the

entire message read aloud.

•

Text messages will be shortened to
one row. Tap the

Read out

 button to

have the entire message read aloud.

Status bar

Current vehicle activities are shown at the top
of the screen in the status bar. Network and
connection information is shown to the left of
the status bar. Media-related information, the
clock and information about background activ-
ities are shown to the right.

Top view

Top view when expanded.

There is a tab in the center of the status bar at
the top of the screen. Open Top view by tap-
ping the tab or by dragging/swiping from the
top of the screen downward.

Top view always provides access to:

•

Settings

•

Owner's manual

•

Profile

•

The vehicle's stored messages.

In certain cases, Top view provides access to:

•

Contextual setting (e.g.

Navigation

Settings

). Change settings directly in Top

view when an app (e.g. navigation) is
being used.

•

Navigation Manual

). Access articles in

To exit Top view, tap the screen outside Top
view, press the Home button or tap the screen
at the bottom of Top view and swipe upward.
The views behind will become visible again
and can be used.

NOTE

The top view is not available at start-up/
shutdown or when a message is being
shown on the screen. Similarly, it is not
available when the climate view is shown.

Climate view

The climate bar is always visible at the bottom
of the screen. The most common climate set-
tings can be made directly there, such as set-
ting temperature and seat heating

*

.

Tap the symbol in the center of the
climate bar to open Climate view
and access additional climate sys-
tem settings.

Tap the symbol to close Climate
view and return to a previous view.

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

115

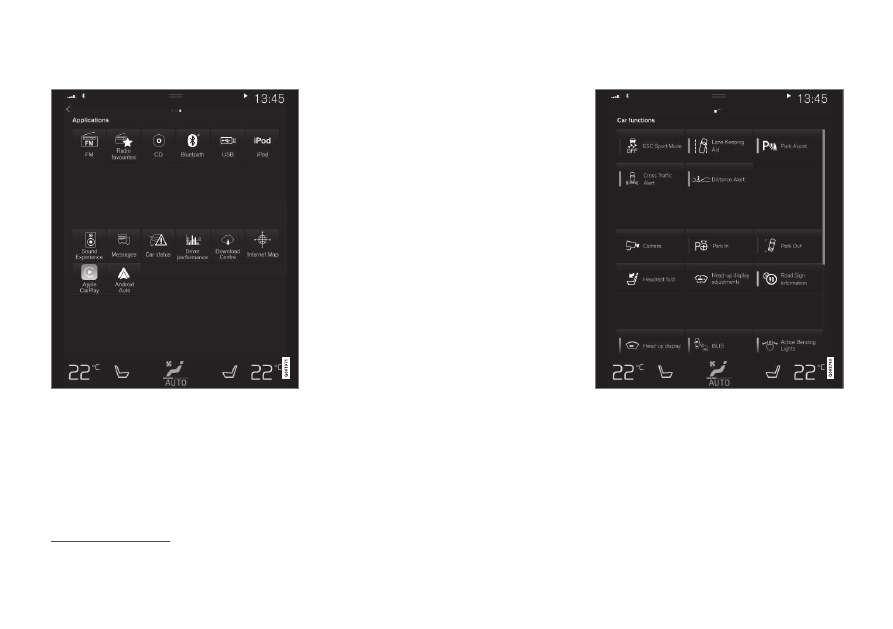

App view

App view showing the vehicle's apps.

Swipe the screen from right to left

8

 to access

the App view from the Home view. This view
displays downloaded apps (third-party apps)
as well as apps for integrated functions, such
as

FM radio

. Brief information will be dis-

played directly in App view for certain apps,
such as unread text messages for

Messages

.

Tap an app to open it. It will then be opened in
its associated tile, e.g.

Media

.

Depending on the number of apps, it is possi-
ble to scroll down in App view. This is done by
sweeping/dragging from the bottom upwards.

To return to Home view, swipe the screen
from left to right

8

 or press the Home button.

Function view

Function view with buttons for various vehicle func-

tions.

Swipe the screen from left to right

8

 to access

Function view from Home view. From Func-
tion view, you can activate or deactivate vari-
ous vehicle functions such as

BLIS

*

,

Lane

Keeping Aid

*

 and

Park Assist

*

.

8

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

||

DISPLAYS AND VOICE CONTROL

116

If there are many functions, you can also scroll
downward through the view. This is done by
sweeping/dragging from the bottom upwards.

Unlike in App view, where you tap an app to
open it, in Function view, tapping a function
activates or deactivates it. Certain functions
(trigger functions) open in their own window
when tapped.

To return to Home view, swipe the screen
from right to left

8

 or press the Home button.

Related information

•

Handling tiles in the center display
(p. 117)

•

Symbols in the center display status bar
(p. 122)

•

Changing settings in the center display's
Top view (p. 130)

•

Opening contextual setting in the center
display (p. 131)

•

•

Driver profiles (p. 134)

•

Climate system controls (p. 210)

•

Apps (p. 450)

•

Function view in the center display
(p. 120)

•

Center display overview (p. 108)

8

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

DISPLAYS AND VOICE CONTROL

}}

117

Handling tiles in the center display

Home view consists of four tiles:

Navigation

,

Media

,

Phone

 and a fourth tile. These views

can be expanded.

||

DISPLAYS AND VOICE CONTROL

118

Expanding a tile from standard mode

Standard mode and expanded mode of a tile in the center display.

DISPLAYS AND VOICE CONTROL

119

Expanding a tile:

–

For tiles

Navigation

,

Media

 and

Phone

:

Tap the screen anywhere in the tile. When
a tile is expanded, the extra tile in Home
view will be temporarily hidden. The other
two tiles will be minimized and only show
certain information. When the extra tile is
tapped, the other three tiles are minimized
and only certain information is displayed.

Expanded view provides access to the
basic functions of the respective apps.

Closing an expanded tile:

–

The tile can be closed in three different
ways:

•

Tap the top section of the expanded
tile.

•

Tap another tile (it will then be opened
in expanded mode instead).

•

Press briefly on the Home button under
the center display.

Opening or closing a tile in full-screen
mode

The fourth tile

9

 and tile for

Navigation

 can be

opened in full-screen mode to show additional
information and possible settings.

When a tile is opened in full-screen mode, no
information from the other tiles is displayed.

In expanded mode, open the
app in full-screen mode. Tap
the symbol.

To return to expanded mode,
tap the symbol or press the
Home button under the
screen.

Center display's home button.

You can always press the Home button to
return to Home view. To return to Home
view's standard view from full-screen mode,
press the Home button twice.

Related information

•

Handling the center display (p. 110)

•

Activating and deactivating the center dis-
play (p. 113)

•

Navigating in the center display's views
(p. 113)

9

Does not apply to all apps or vehicle functions opened via the fourth tile.

DISPLAYS AND VOICE CONTROL

120

Function view in the center display

Function view, which is one of the center dis-
play's basic views, contains all of the vehi-
cle's function buttons. From the Home view,

navigate to Function view by swiping from
left to right over the screen

10

.

Different types of buttons

There are three different types of buttons for
vehicle functions; see below:

Type of button

Functions

Vehicle function affected

Function buttons Have On/Off modes.

When a function is active, an LED indicator light will illuminate to the left of the but-
ton's icon. Press the button to turn the function on or off.

Most buttons in Function view are
function buttons.

Trigger buttons

Do not have On/Off modes.

Pressing a trigger button opens a window for the function. This can be, for example, a
window to change seat position.

•

Camera

•

Headrest Fold

•

Head-up Display Adjustments

Parking buttons

Have On/Off and scanning modes.

Similar to function buttons, but have an extra mode for parking scanning.

•

Park In

•

Park Out

10

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

DISPLAYS AND VOICE CONTROL

121

Button modes

When a function or parking button's LED indi-
cator is green, the function is activated (on).
For some functions, an additional text explain-
ing the function will be shown when the func-
tion is initially activated. The text will be dis-
played for a few seconds and then the button
will be displayed with the LED indicator illumi-
nated.

For

Lane Keeping Aid

, for example, the text

Works only at certain speeds

 will be dis-

played when the button is pressed.

Press the button once briefly to activate or
deactivate the function.

The function is deactivated when the LED
indicator light is switched off.

A warning triangle in the right-hand section of
the button indicates that something is not
working correctly.

Related information

•

Handling the center display (p. 110)

•

Navigating in the center display's views
(p. 113)

DISPLAYS AND VOICE CONTROL

122

Moving apps and buttons in the

center display

The apps and buttons for vehicle functions
can be moved and organized in the App and
Function views.

1. Swipe from right to left

11

 to access App

view or swipe from left to right

11

 to access

Function view.

2. Press and hold an app or button.

> The app or button will change size and

become slightly transparent. It can then
be moved.

3. Drag the app or button to an available

position in the view.

A maximum of 48 rows can be used to posi-
tion apps or buttons. To move an app or but-
ton outside the visible view, drag it to the bot-
tom of the view. New rows will be added and
the app or button can be placed in one of
these.

Apps or buttons placed below the view's nor-
mal display will not be visible on the screen.

Swipe the screen to scroll up or down in the
view to display information outside the view.

NOTE

Hide the apps that are rarely or never used
by moving them far down, outside of the
visible view. This makes it easier to find the
apps used more frequently.

NOTE

Apps and vehicle function buttons cannot
be situated at spots already in use.

Related information

•

Function view in the center display
(p. 120)

•

Apps (p. 450)

•

Handling the center display (p. 110)

Symbols in the center display

status bar

Overview of symbols displayed in the center
display status bar.

The status bar shows current vehicle activities
and in certain cases, also their status. Due to
the limited space in the status bar, not all sym-
bols will be displayed at all times.

Symbol Meaning

Connected to the Internet.

Roaming activated.

Cell phone network signal
strength.

Bluetooth device connected.

Bluetooth activated but no
device connected.

Information sent to and from
GPS.

Connected to Wi-Fi network.

11

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

123

Symbol Meaning

Tethering activated (Wi-Fi hot-
spot). This means that the vehi-
cle shares an available Internet
connection.

Vehicle modem activated.

USB sharing active.

Phone is wirelessly charging.

Action in progress.

Timer for preconditioning active.

A

Audio source being played.

Audio source paused.

Phone call in progress.

Audio source muted.

News broadcasts from current
radio station.

B

Symbol Meaning

Traffic information being
received.

B

Clock.

A

Only hybrid models.

B

Not available in all markets.

Related information

•

Navigating in the center display's views
(p. 113)

•

Messages in the center display (p. 138)

•

Internet-connected vehicle

*

 (p. 500)

•

Connecting a device via the USB port
(p. 476)

•

Wireless phone charger

*

 (p. 494)

•

Phone (p. 485)

•

Date and time (p. 92)

DISPLAYS AND VOICE CONTROL

124

Using the center display keyboard

You can use the keyboard in the center dis-
play to enter characters or to switch to hand-
writing mode to "write" letters and charac-
ters on the screen.

The keyboard will only appear when it is possi-
ble to enter text on the screen.

NOTE

The keyboard cannot be used while the
vehicle is moving.
