STARTING AND DRIVING

* Option/accessory.

494

IMPORTANT

When the engine is switched off, the con-
stant battery voltage to the trailer connec-
tor can be switched off automatically so as
not to drain the starter battery.

Trailer weights

WARNING

Follow the stated recommendations for

trailer weights. Otherwise, the car and

trailer may be difficult to control in the

event of sudden movement and braking.

NOTE

The stated maximum permitted trailer
weights are those permitted by Volvo.
National vehicle regulations can further
limit trailer weights and speeds. Towbars
can be certified for higher towing weights
than the car can actually tow.

Level control

*

The car's system for level control endeavours
to maintain a constant height regardless of
load (up to the maximum permissible weight).
When the car is stationary the rear of the car
lowers slightly, which is normal.

When driving in hilly terrain and hot
climates

Under certain circumstances, there may be a
risk of overheating when towing a trailer. If the
engine and drive system overheats, a warning
symbol comes on in the driver display and a
message is displayed.

The automatic gearbox adapts the gears
depending on load and engine speed.

Steep inclines

Do not lock the automatic gearbox in a higher
gear than the engine "can cope with" - it is not
always a good idea to drive at a high gear with
low engine speed.

Parking on a hill

1. Depress the brake pedal fully.

2. Activate the parking brake.

3. Select gear position

P

.

4. Release the brake pedal.

Block the wheels with chocks when parking a
car with hitched trailer on a hill.

Starting on a hill

1. Depress the brake pedal fully.

2. Select gear position

D

.

3. Releasing the parking brake.

4. Release the brake pedal and start driving

off.

Related information

•

Trailer stability assist

*

 (p. 495)

•

Checking trailer lamps (p. 496)

•

Towing capacity and towball load
(p. 664)

•

Overheating in the engine and drive sys-
tem (p. 486)

•

Adverse driving conditions for engine oil
(p. 668)

•

Extendable and retractable towbar

*

(p. 491)

STARTING AND DRIVING

* Option/accessory.

495

Trailer stability assist

*

The function of trailer stability assist (TSA

12

),

which is included in the stability system
ESC

13

, is to stabilise cars towing trailers in

situations where they begin snaking. The
function is available with towbar installation,
contact a Volvo dealer for more information.

Reasons for snaking

The snaking phenomenon can occur with any
car/trailer combination. Snaking normally
occurs at high speeds. However, there is a risk
of it occurring at lower speeds if the trailer is
overloaded or the load is improperly distrib-
uted, e.g. too far back.

In order for snaking to occur, there must be a
triggering factor, e.g.:

•

Car with trailer subjected to a sudden and
powerful side wind.

•

Car with trailer drives on an uneven road
surface or in a pothole.

•

Sweeping steering wheel movements.

If snaking has started, it could be difficult or
even impossible to suppress. This makes the
car/trailer combination difficult to control and
there is a risk that you could, for example, end
up in the wrong lane or leave the carriageway.

Trailer stability assist function

The trailer stability assist function continually
monitors the car's movements, particularly lat-
eral movements. If snaking is detected, the
front wheels are individually braked. This
serves to stabilise the car/trailer combination.
This is often enough to help the driver regain
control of the car.

If snaking is not eliminated the first time that
trailer stability assist intervenes, the car/trailer
combination is braked with all wheels and
engine power is reduced. Once snaking has
been gradually suppressed and the car/trailer
combination is stable once again, the system
stops regulating and the driver once again has
full control of the car.

NOTE

The stability function is deactivated if the
driver chooses to activate

ESC Sport

Mode

 via the menu system in the centre

display.

Trailer stability assist may fail to intervene if
the driver uses severe steering wheel move-
ments to try to rectify the snaking because in
such a situation the system cannot determine
whether it is the trailer or the driver causing
the snaking.

When Trailer Stability Assist
(TSA) is operating, the ESC
symbol flashes in the driver
display.

NOTE

Retrofitting a towbar requires an update of
the car's software, contact a Volvo dealer.

Related information

•

Driving with a trailer (p. 493)

•

Electronic stability control (p. 287)

12

Trailer Stability Assist

13

Electronic Stability Control

STARTING AND DRIVING

* Option/accessory.

496

Checking trailer lamps

When connecting a trailer - check that all the
trailer lamps work before departure.

Direction indicators and brake lights
on the trailer

If one or more of the trailer's direction indica-
tors or brake light bulbs is broken, the driver
display shows a symbol and a message. Other
lights on the trailer must be checked manually
by the driver before setting off.

Symbol Message

•

Trailer turn indicator



Right

turn indicator malfunction

•

Trailer turn indicator



Left

turn indicator malfunction

•

Trailer brake light



Malfunc-

tion

If any lamp for the trailer's direction indicators
is broken, the driver display symbol for direc-
tion indicators will also flash more quickly than
normal.

Rear fog lamp on trailer

When connecting the trailer, the rear fog lamp
may not light up on the car. In such cases, the
rear fog lamp function switches to the trailer.
Upon activation of the rear fog lamp, check

therefore that the trailer is equipped with a
rear fog lamp to travel safely.

Checking trailer lamps

*

Automatic checking

After a trailer is connected electrically, it is
possible to check that the trailer lamps are
working via an automatic lamp activation. The
function helps the driver check that the trailer
lamps are working before starting off.

The car must be switched off to perform the
check.

1. When a trailer is connected to the towbar,

the

Automatic Trailer Lamp Check

 mes-

sage is shown in the driver display.

2. Confirm the message by pressing the

right-hand steering wheel keypad's

O

 but-

ton.
> The lamp check starts.

3. Exit the car to check lamp functionality.

> All trailer lamps start to flash - then the

lamps are switched on one at a time.

4. Visually check that all lamps available on

the trailer are operational.

5. After a moment, all lamps on the trailer

flash again.
> The check is complete.

Switching off automatic checking

The automatic checking function can be
switched off in the centre display.

1. Press

Settings

 in the top view.

2. Press

My Car

Lights and Lighting

.

3. Deselect

Automatic Trailer Lamp

Check

.

Manual checking

If the automatic checking is switched off then
it is possible to start the check manually.

1. Press

Settings

 in the top view.

2. Press

My Car

Lights and Lighting

.

3. Select

Manual Trailer Lamp Check

.

> The lamp check starts. Exit the car to

check lamp functionality.

Related information

•

Driving with a trailer (p. 493)

STARTING AND DRIVING

* Option/accessory.

497

Towbar-mounted bicycle rack

*

When using a bicycle rack, the bicycle racks
that Volvo has developed are recommended.

This is in order to avoid damage to the car and
in order to achieve the maximum possible
safety during a journey. Volvo's bicycle racks
are available for purchase at authorised Volvo
dealers.

Carefully follow the instructions enclosed with
the bicycle rack.

•

Bicycle rack including load must weigh a
maximum of 75 kg (165 pounds).

•

The bicycle rack may be designed for a
maximum of three bicycles.

WARNING

Incorrect use of the bicycle rack may cause

damage to the towbar and car.
The bicycle rack can loosen from the tow-

bar if it

•

is incorrectly fitted on the towball

•

is overloaded, see the bicycle rack's
instructions for maximum load weight

•

is used for carrying something other
than bicycles.

The car's driving characteristics are affected
when a bicycle rack is fitted on the towbar.
For example due to:

•

increased weight

•

reduced acceleration capacity

•

reduced ground clearance

•

changed braking capacity.

Recommendations for loading
bicycles on the bicycle rack

The larger the distance between the load's
centre of gravity and the towball, the greater
the load on the towbar.

Load according to the following recommenda-
tions:

•

Fit the heaviest bicycle furthest in, closest
to the car.

•

Keep the load symmetrical and as close to
the centre of the car as possible e.g. by
loading the bicycles facing alternately if
several bicycles are loaded.

•

Remove loose objects from the bicycle for
transportation, e.g. bicycle basket, battery,
child seat. Partly to reduce the load on the
towbar and bicycle rack, and partly to
reduce the wind resistance, which affects
fuel consumption.

•

Do not use protective covers on the bicy-
cles. This may affect manoeuvrability,
impair visibility and increase fuel con-

sumption. It may also lead to an increased
load on the towbar.

Related information

•

Towbar

*

 (p. 489)

STARTING AND DRIVING

498

Towing

During towing, the car is towed by another
vehicle by means of a towline.

Towing the car is not permitted as this will
damage the electric motor. Instead, the car
must be transported raised with all the wheels
on a recovery vehicle's platform, neither of the
wheel pairs may have road contact.

When towing another car

Towing a car requires a lot of energy - use the

Constant AWD

 drive mode. This then

charges the hybrid battery, in combination
with improving the car's driving characteristics
and roadholding.

Find out the statutory maximum speed limit
for towing before the towing begins.

Jump starting

Tow-starting the motor is not permitted as
this will damage the electric motor. Use a
donor battery if the starter battery is dis-
charged and the engine does not start.

IMPORTANT

The electric drive motor and the catalytic
converter may be damaged during
attempts to tow-start the car.

Related information

•

Fitting and removing the towing eye
(p. 498)

•

Hazard warning flashers (p. 159)

•

Recovery (p. 499)

•

Using jump starting with another battery
(p. 488)

•

Selecting ignition mode (p. 449)

•

Gearbox (p. 460)

Fitting and removing the towing

eye

Use the towing eye if the car shall tow
another vehicle. The towing eye is screwed
into a threaded socket behind a cover on the
right-hand side of the rear bumper.

NOTE

If the car is equipped with a towbar, there
is no rear mounting for a towing eye.

Fitting the towing eye

Take out the towing eye from the foam
block under the floor in the cargo area

14

.

14

The shape and location of the foam block may vary depending on car model.

STARTING AND DRIVING

}}

* Option/accessory.

499

Remove the cover – press on the marking
with a finger while you fold out the oppo-
site side/corner.
> The cover pivots around its centre line

and can then be removed.

3. Screw in the towing eye until it reaches its

end stop.

Screw the eye in firmly. For example,
thread through the wheel bolt wrench

*

 and

use it as a lever.

IMPORTANT

It is important that the towing eye is firmly
screwed into place - right in until it stops.

Removing the towing eye

–

Unscrew and remove the towing eye after
use and return it to its foam block.

Finish by refitting the cover onto the
bumper.

Related information

•

Towing (p. 498)

•

Recovery (p. 499)

•

Tool kit (p. 577)

Recovery

For recovery, the car is taken away with the
help of another vehicle.

Call a recovery service for recovery assistance.

The towing eye can be used to pull the car up
onto a recovery vehicle with a flatbed plat-
form.

IMPORTANT

Note that the car must always be transpor-
ted raised up with all the wheels on the
recovery vehicle's platform.

Applies to cars with level control

*

: If the car

is equipped with air suspension, this must be
disabled before the car is raised. Deactivating
the function via the centre display.

1. Press

Settings

 in the top view.

2. Press

My Car

Parking Brake and

Suspension

.

3. Select

Disable Leveling Control

.

The car's position and ground clearance deter-
mine whether it is possible to pull it up onto a
flatbed platform. If the slope of the recovery
vehicle's ramp is too steep, or if the ground
clearance under the car is inadequate, then
the car may be damaged if you try to pull it up.
The car should then be lifted using the recov-
ery vehicle's lifting device.

||

STARTING AND DRIVING

* Option/accessory.

500

WARNING

No one/nothing is allowed to remain

behind the recovery vehicle while the car

pulled up onto the flatbed platform.

Related information

•

Fitting and removing the towing eye
(p. 498)

HomeLink

®

*

15

HomeLink

®

16

 is a programmable remote con-

trol, integrated in the car's electrical system,
which can remotely control up to three differ-
ent devices (e.g. garage door opener, alarm
system, outdoor and indoor lighting) and
thereby replace the remote controls for them.

General

The figure is schematic - the version may vary.

Button 1

Button 2

Button 3

Indicator lamp

HomeLink

®

 is supplied built-in to the interior

rearview mirror. The HomeLink

®

 panel con-

sists of three programmable buttons and one
indicator lamp in the mirror glass.

For more information about HomeLink

®

, visit

homelink.com or call 00 8000 466 354 65
(or the toll number +49 6838 907 277)

17

.

Save the original remote controls for future
programming (e.g. when changing to another
car or for use in another vehicle).

IMPORTANT

The programming for the buttons should
be deleted when the car is sold.

Related information

•

Using HomeLink

®

*

 (p. 503)

•

Programming HomeLink

®

*

 (p. 501)

•

Type approval for HomeLink

®

*

 (p. 503)

15

Applies to certain markets.

16

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

17

Note that the toll-free number may not be available depending on operator.

STARTING AND DRIVING

}}

* Option/accessory.

501

Programming HomeLink

®

*

18

Follow these instructions to program
HomeLink

®

, reset all programming or repro-

gram individual buttons.

NOTE

In certain vehicles the ignition must be
switched on or in "accessory position"
before HomeLink

®

 can be programmed or

used. If possible, fit new batteries in the
remote control that shall be replaced by
HomeLink

®

 for faster programming and

improved transmission of the radio signal.
The HomeLink

®

 buttons should be reset

before programming.

WARNING

While programming HomeLink

®

, the

garage door or gate being programmed

may activate. For this reason, make sure

that nobody is in the vicinity of the door or

gate while programming is in progress. The

car should be outside the garage while a

garage door opener is being programmed.

1. Aim the remote control towards the

HomeLink

®

 button to be programmed and

hold it approx. 2-8 cm (approx. 1-3 inches)
from the button. Do not obstruct the indi-
cator lamp on HomeLink

®

.

Note:

 The ability of some remote controls

to program HomeLink

®

 is improved at a

distance of approx. 15-20 cm (approx.
6-12 inches). Bear this in mind if problems
occur with the programming.

2. Press and hold depressed both the button

on the remote control and the button to be
reprogrammed on HomeLink

®

.

3. Do not release the buttons until the indica-

tor lamp has switched from flashing
slowly (approx. once per second) to either
flashing quickly (approx. 10 times per sec-
ond) or illuminating with a constant glow.
>

If the indicator lamp illuminates with
a constant glow:

 Indication that the

programming has finished. Press the
programmed button twice to activate.

If the indicator lamp flashes quickly:

The device to be programmed to
HomeLink

®

 may have a security func-

tion that requires extra steps. Test by
pressing the programmed button twice
to see whether the programming is
working. Otherwise, continue with the
following steps.

18

Applies to certain markets.

||

STARTING AND DRIVING

* Option/accessory.

502

4. Locate programming button

19

 on the

receiver for the garage door or similar. It is
normally located close to the antenna's
bracket on the receiver.

5. Depress and release the receiver's pro-

gramming button once. The programming
must be completed within 30 seconds of
the button being depressed.

6. Press and release the button on

HomeLink

®

 that you want to program.

Repeat the sequence of pressing/holding/
releasing a second time and, depending
on the receiver model, even a third time.
> Programming is now be complete and

the garage door, gate or similar should
now be activated when the pro-
grammed button is depressed.

In the event of programming problems, con-
tact HomeLink

®

 at homelink.com, or call

00 8000 466 354 65 (or the toll number
+49 6838 907 277)

20

.

Reprogramming individual buttons

To reprogram an individual HomeLink

®

 button,

proceed as follows:

1. Press the desired button and hold it

depressed for approx. 20 seconds.

2. Once the indicator lamp on HomeLink

®

starts to flash slowly, programming can
continue as normal.

Note:

 If the button to be reprogrammed is

not programmed with a new unit, it will
resume the previously saved program-
ming.

Resetting the HomeLink

®

 buttons

It is only possible to reset all of the HomeLink

®

buttons at the same time, not each button
individually. Individual buttons can only be
reprogrammed.

–

Press and hold depressed the outer but-
tons (1 and 3) on HomeLink

®

 for approx.

10 seconds.
> When the indicator lamp changes over

from a constant glow to starting to
flash, the buttons are reset and ready to
be reprogrammed.

Related information

•

Using HomeLink

®

*

 (p. 503)

•

HomeLink

®

*

 (p. 500)

•

Type approval for HomeLink

®

*

 (p. 503)

19

Button designation and colour varies between manufacturers.

20

Note that the toll-free number may not be available depending on operator.

STARTING AND DRIVING

* Option/accessory.

503

Using HomeLink

®

*

21

When HomeLink

®

 is fully programmed it can

be used in place of the separate original
remote controls.

Depress the programmed button. The garage
door, gate, alarm system or similar is activated
(may take a few seconds). If the button is
depressed for more than 20 seconds then the
reprogramming is started. The indicator lamp
illuminates or flashes when the button has
been depressed. Naturally the original remote
controls can still be used in parallel with
HomeLink

®

 if required.

NOTE

When the ignition has been switched off,
HomeLink

®

 works for at least 7 minutes.

NOTE

HomeLink

®

 cannot be used if the car is

locked and the alarm is armed

*

 from the

outside.

WARNING

•

If HomeLink

®

 is used to control a

garage door or gate, ensure that
nobody is near the door or gate while it
is in motion.

•

Do not use HomeLink

®

 for any garage

door that does not have safety stop
and safety reverse.

Related information

•

HomeLink

®

*

 (p. 500)

•

Programming HomeLink

®

*

 (p. 501)

•

Type approval for HomeLink

®

*

 (p. 503)

Type approval for HomeLink

®

*

22

Type approval for EU

Gentex Corporation hereby declares that
HomeLink

®

 Model UAHL5 complies with the

Radio equipment directive 2014/53/EU.

Wavelength within which the radio equipment
functions:

•

433.05MHz-434.79MHz <10mW E.R.P.

•

868.00MHz-868.60MHz <25mW E.R.P.

•

868.70MHz-868.20MHz <25mW E.R.P.

•

869.40MHz-869.65MHz <25mW E.R.P.

•

869.70MHz-870.00MHz <25mW E.R.P.

Certificate holder address: Gentex Corpora-
tion, 600 North Centennial Street, Zeeland MI
49464, USA

For more information, search support informa-
tion on type approval at volvocars.com

Related information

•

HomeLink

®

*

 (p. 500)

21

Applies to certain markets.

22

Applies to certain markets.

STARTING AND DRIVING

* Option/accessory.

504

Compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

23

 in which the front of

the car is pointing.

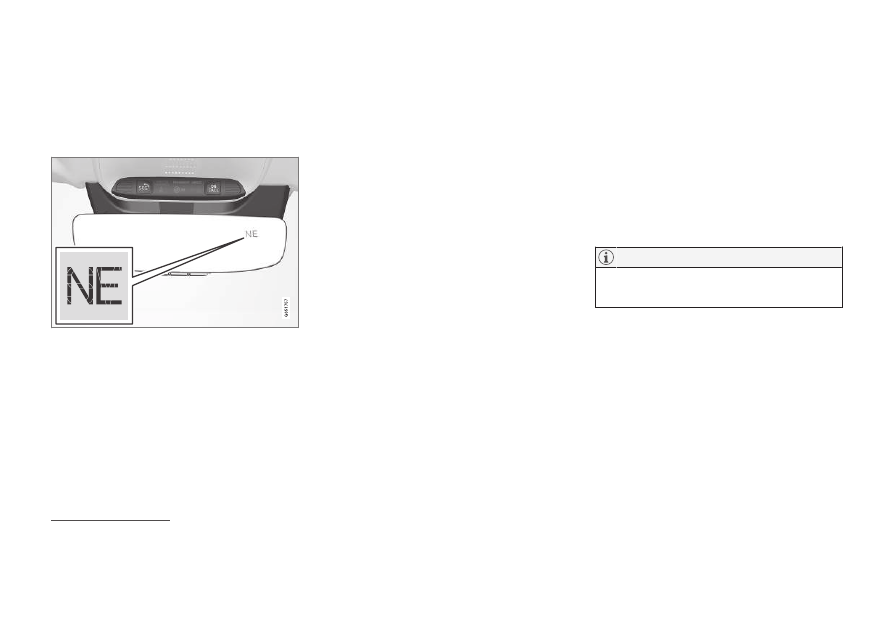

Rearview mirror with compass.

Eight different compass directions are shown
by their English abbreviations:

N

 (north),

NE

(north east),

E

 (east),

SE

 (south east),

S

(south),

SW

 (south west),

W

 (west) and

NW

(north west).

Related information

•

Activating and deactivating the compass

*

(p. 504)

•

Calibrating the compass

*

 (p. 504)

Activating and deactivating the

compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

24

 in which the front of

the car is pointing.

The compass is activated automatically when
the car is started.

To deactivate/activate the compass manually:

–

Depress the button on the underside of
the rearview mirror using e.g. a paper clip.
> If the compass is deactivated when the

car is switched off, it will not be acti-
vated the next time the car is started. In
this case, the compass needs to be
activated manually.

Related information

•

Compass

*

 (p. 504)

•

Calibrating the compass

*

 (p. 504)

Calibrating the compass

*

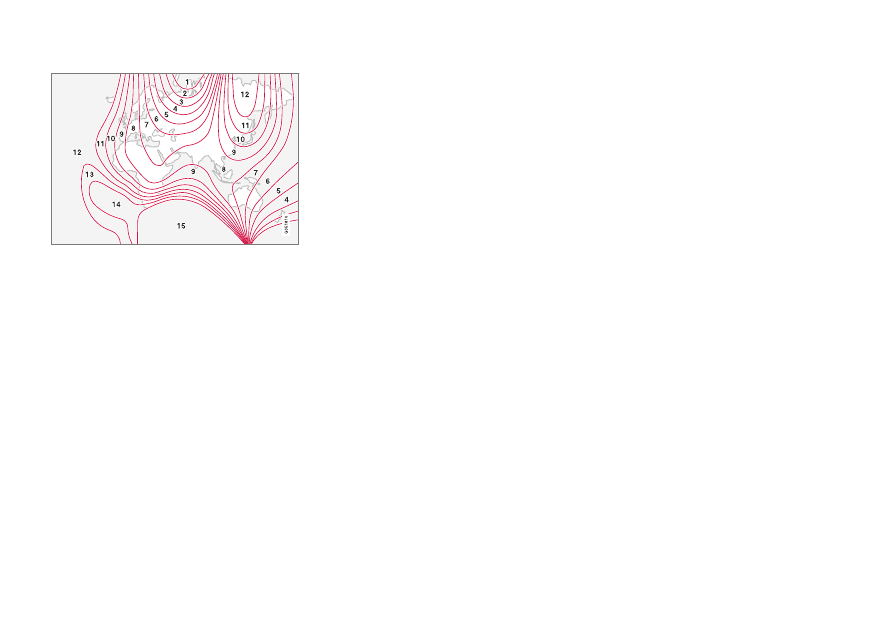

The earth is divided into 15 magnetic zones.
The compass

25

 should be calibrated if the car

is moved between several magnetic zones.

1. Stop the car in a large open area free from

steel structures and high-voltage power
lines.

2. Start the car and switch off all electrical

equipment (air conditioning, wipers, etc.)
and ensure that all doors are closed.

NOTE

Calibration may fail or not start at all if
electrical equipment is not switched off.

3. Hold the button on the underside of the

rearview mirror depressed for
approx. 3 seconds (use a paper clip, for
example). The number for the current
magnetic zone is shown.

23

A rearview mirror with a compass is available as an option on certain markets and models only.

24

A rearview mirror with a compass is available as an option on certain markets and models only.

25

A rearview mirror with a compass is available as an option on certain markets and models only.

STARTING AND DRIVING

* Option/accessory.

505

Magnetic zones.

4. Press the button repeatedly until the

required magnetic zone (

1–15

) is shown.

See the map of magnetic zones for the
compass.

5. Wait until the display returns to showing

the character

C

, or hold the button on the

underside of the rearview mirror
depressed for approx. 6 seconds until the
character

C

 is shown.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display,
indicating that calibration is complete.
Then drive a further 2 circles to fine-tune
calibration.

7.

Cars with heated windscreen

*

:

 If the

character

C

 is shown in the display when

the heated windscreen is activated, per-
form the calibration in accordance with
point 6 above with the heated windscreen
activated.

8. Repeat the above procedure as necessary.

Related information

•

Compass

*

 (p. 504)

•

Activating and deactivating the compass

*

(p. 504)

SOUND, MEDIA AND INTERNET

* Option/accessory.

508

Sound, media and Internet

The audio and media system consists of
media player and radio. You can also connect
a phone via Bluetooth to use handsfree func-
tions or play music wirelessly in the car.
When the car is connected to the Internet
you can also use apps for media playback.

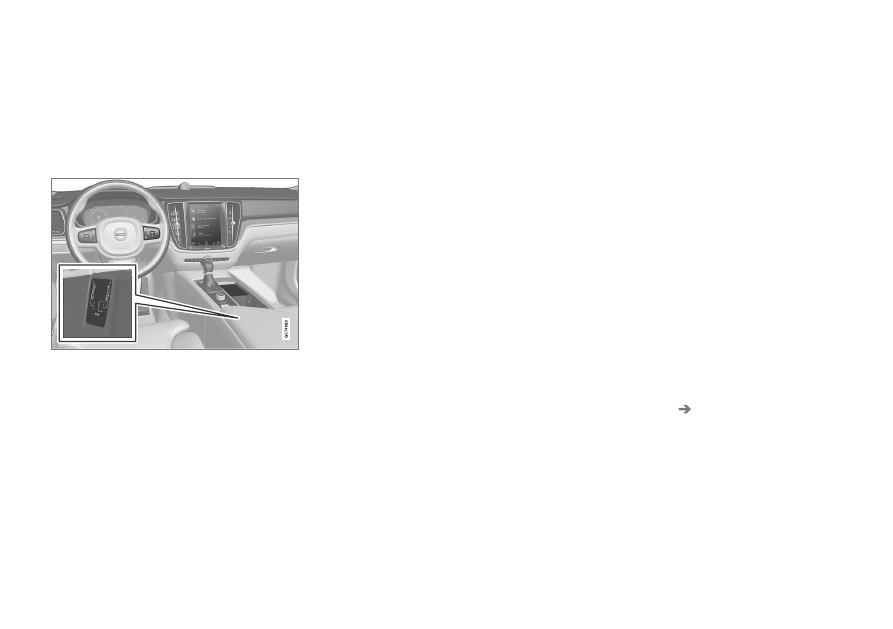

Overview of audio and media

Control the functions with your voice, steering
wheel keypad or the centre display. The num-
ber of speakers and amplifiers depends on
which audio system the car is equipped with.

System updating

The audio and media system is continuously
improved. It is recommended to download
system updates when new ones are available.

Related information

•

Media player (p. 519)

•

Radio (p. 513)

•

Phone (p. 535)

•

Internet-connected car

*

 (p. 544)

•

Apps (p. 510)

•

Voice recognition (p. 143)

•

Ignition positions (p. 448)

•

Driver distraction (p. 42)

•

Managing system updates via the Down-
load Centre (p. 601)

•

License agreement for audio and media
(p. 553)

Audio settings

The sound reproduction quality is preset, but
it can be adjusted as well.

The volume is normally adjusted with the vol-
ume control below the centre display or with
the right-hand steering wheel keypad. This
applies, for example, during playback of music,
radio, ongoing phone calls and active traffic
messages.

Sound reproduction

The sound system is pre-calibrated by means
of digital signal processing. This calibration
takes into account loudspeakers, amplifiers,
passenger compartment acoustics, listener
position, etc., for each combination of car
model and audio system. There is also a
dynamic calibration that takes into account
the setting of the volume control and vehicle
speed.

Personal preferences

Various settings are available in the top view
under

Settings

Sound

 depending on the

car's audio system.

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

509

Premium Sound

*

 (Bowers & Wilkins)

•

Tone

 – settings for bass, treble, equalizer,

etc.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

High Performance Pro

*

 (Harman

Kardon)

•

Equaliser

 – equalizer setting.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

High Performance

•

Tone

 – settings for bass, treble, equalizer,

etc.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

Related information

•

Sound experience

*

 (p. 509)

•

Media player (p. 519)

•

Settings for voice recognition (p. 148)

•

Settings for phone (p. 543)

•

Sound, media and Internet (p. 508)

•

Internet-connected car

*

 (p. 544)

Sound experience

*

Sound experience is an app that provides
access to further audio settings.

Sound Experience

 is opened from the app

view in the centre display. The following set-
tings can be defined, depending on the audio
system fitted to the car:

Premium Sound

*

 (Bowers & Wilkins)

•

Studio

 – the sound can be adjusted so

that it can primarily be adapted for

Driver

,

All

 and

Rear

.

•

Individual stage

 - surround sound mode

with settings for intensity and enclosure.

•

Concert hall

 - reproduces the acoustics

from Gothenburg's Concert Hall.

•

Jazz club

 – reproduces the acoustics

from the Nefertiti Jazz Club.

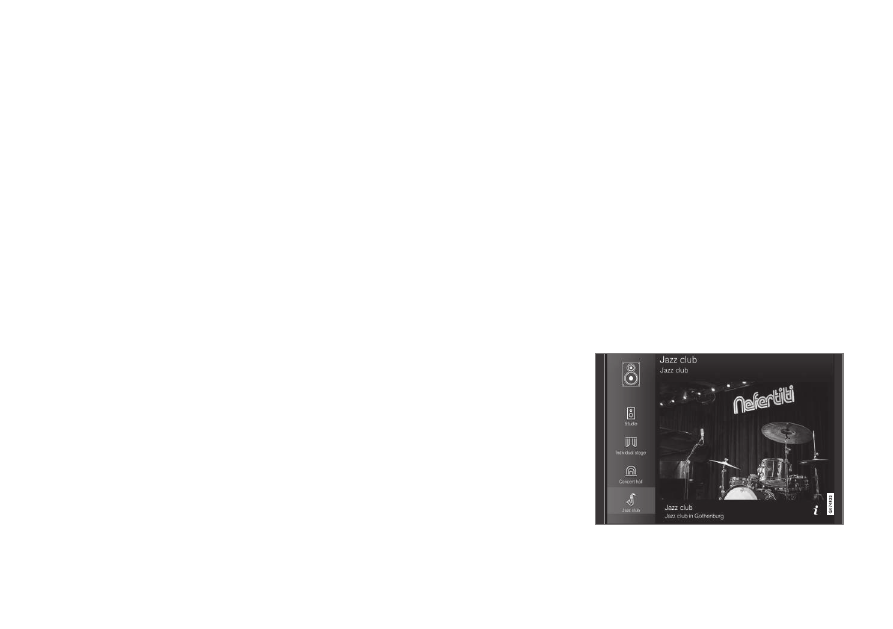

Recreate the acoustics from Nefertiti Jazz Club.

||

SOUND, MEDIA AND INTERNET

* Option/accessory.

510

High Performance Pro

*

 (Harman

Kardon)

•

Seat Optimisation

 – the sound can be

adjusted so that it can primarily be adap-
ted for

Driver

,

All

 and

Rear

.

•

Surround

 - surround sound mode with

level settings.

•

Tone

 – settings for bass, treble, equalizer,

etc.

Related information

•

Audio settings (p. 508)

•

Navigating in the centre display's views
(p. 113)

Apps

The app view contains apps that give access
to some of the car's services.

Swipe from right to left

1

 across the centre dis-

play's screen in order to access the app view
from the home view. Apps that have been
downloaded (third-party apps) and apps for
embedded functions, such as

FM radio

, are

found here.

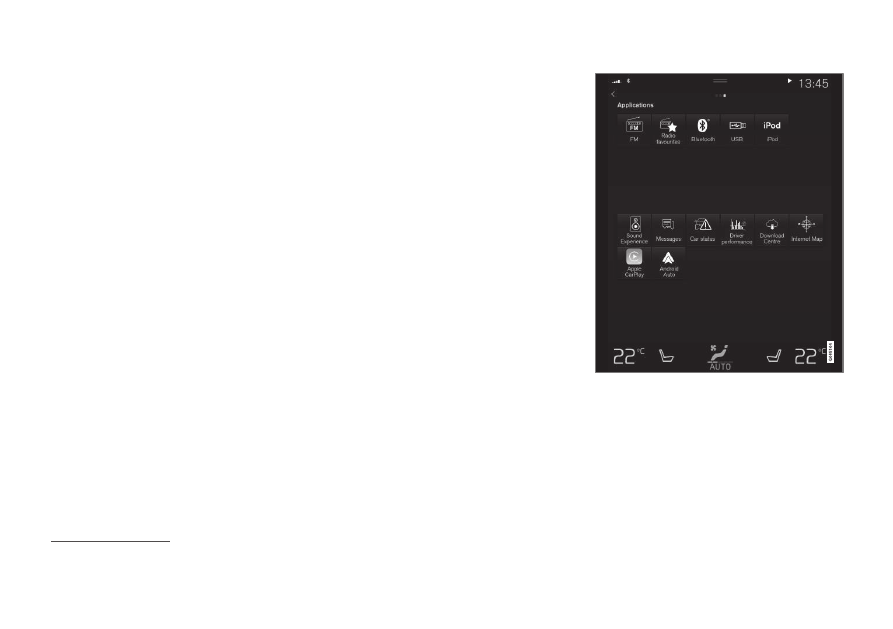

App view (generic image, basic apps vary by market

and model)

Some basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Certain apps are only available for use if the
car is connected to the Internet.

1

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

SOUND, MEDIA AND INTERNET

* Option/accessory.

511

Start an app by pressing the app in the centre
display's app view.

All the apps used should be updated to the lat-
est version.

Related information

•

Downloading apps (p. 511)

•

Updating apps (p. 512)

•

Deleting apps (p. 512)

•

Apple

®

 CarPlay

®

*

 (p. 528)

•

Android Auto

*

 (p. 532)

•

Internet-connected car

*

 (p. 544)

•

Storage space on hard disk (p. 552)

•

User terms and conditions and data shar-
ing (p. 550)

Downloading apps

New apps can be downloaded when the car
is connected to the Internet.

NOTE

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

NOTE

When downloading using a phone, pay
extra attention to the data traffic costs.

1. Open the

Download Centre

 app in the

app view.

2. Select

New apps

 in order to open a list of

apps that are available but not installed in
the car.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

 in order to start the down-

load and installation of the desired app.
> The status of the download and instal-

lation is shown while it is in progress.

A message is shown if a download can-
not be started for the moment. The app
will remain in the list and it is possible
to try to start a download again.

Cancelling the download

–

Tap on

Abort

 to cancel a download in pro-

gress.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Related information

•

Apps (p. 510)

•

Updating apps (p. 512)

•

Deleting apps (p. 512)

•

Internet-connected car

*

 (p. 544)

•

Managing system updates via the Down-
load Centre (p. 601)

•

Storage space on hard disk (p. 552)
