DISPLAYS AND VOICE CONTROL

* Option/accessory.

Driver display settings

Settings for the driver display's display
options can be made via the driver display's
app menu and via the centre display's set-
tings menu.

Settings via the driver display's app
menu

The figure is schematic - parts may vary depending

on car model.

The app menu is opened and controlled using
the right-hand keypad on the steering wheel.

In the app menu, you can choose which infor-
mation is shown on the driver display from:

•

trip computer

•

media player

•

phone

•

navigation system

Settings via the centre display

Selecting information type

1. Tap on

Settings

in the centre display's

top view.

2. Press

My Car

Displays

Driver

Display Information

3. Select what should be shown in the back-

ground:

•

Show no information in background

•

Show information for current
playing media

•

Show navigation even if no route is
set

Selecting theme

1. Tap on

Settings

in the centre display's

top view.

2. Tap on

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the driver

display:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Selecting language

1. Tap on

Settings

in the centre display's

top view.

2. Tap on

System

System Languages

and Units

System Language

to select

language.
> A change will affect the language in all

displays.

These settings are personal and are saved
automatically to the active driver profile.

Related information

•

Managing the app menu in the driver dis-
play (p. 103)

•

•

Other settings in the centre display's top
view (p. 130)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Fuel gauge

The fuel gauge in the driver display shows the
fuel level in the tank.

The figure is schematic - parts may vary depending

on car model.

The beige zone in the fuel gauge indicates the
quantity of fuel in the tank.

When the fuel level is low, the fuel pump sym-
bol illuminates and turns amber colour. The
trip computer also shows the distance to
empty tank.

Related information

•

Hybrid battery gauge (p. 87)

•

•

Filling fuel (p. 482)

•

Fuel tank - volume (p. 669)

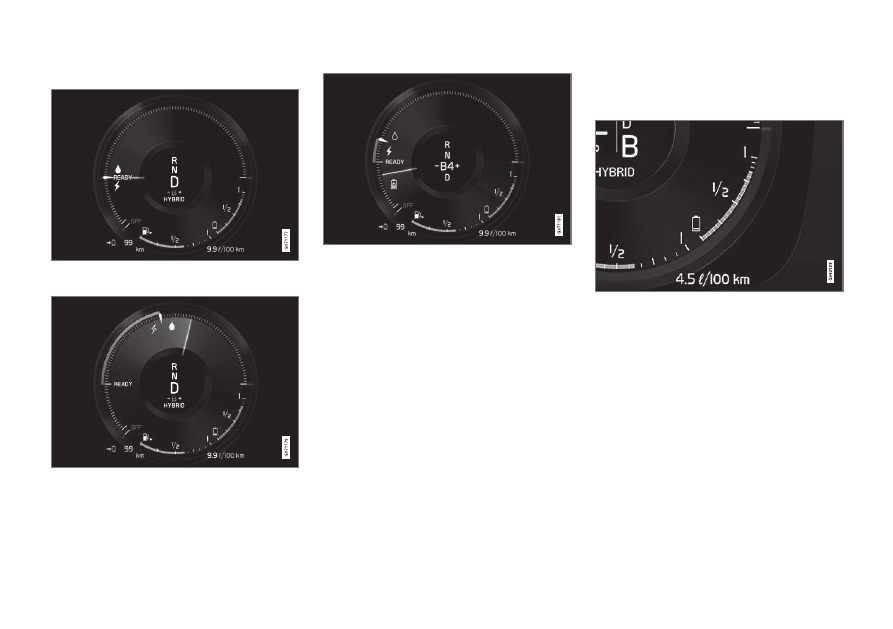

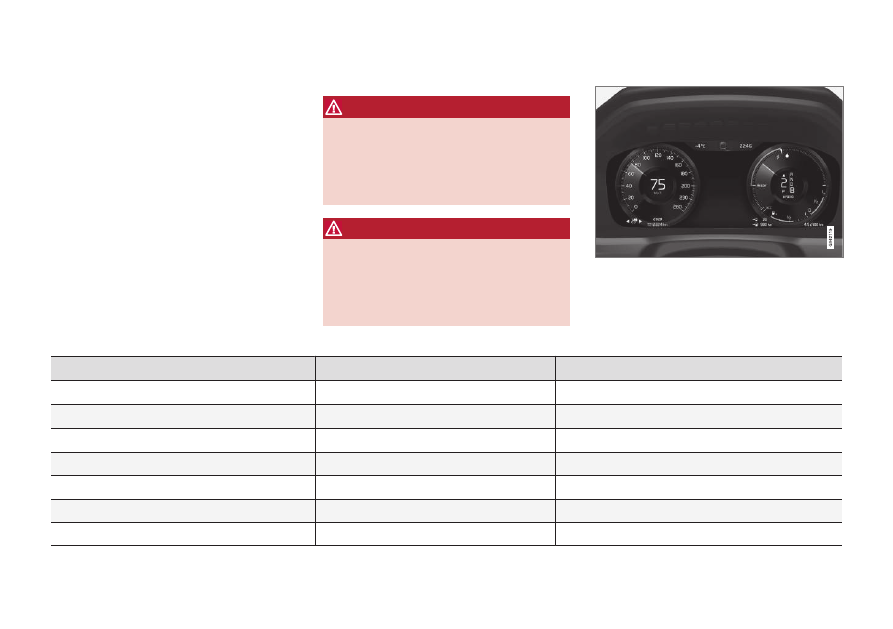

Hybrid gauge

In drive modes Hybrid and Pure, the driver
display shows a hybrid gauge that can help
the driver to drive the car in a more energy-
efficient way.

The hybrid gauge shows in different ways the
relationship between how much power is
being taken from the electric motor and how
much power is available.

Symbols in the hybrid gauge

Indicates current level for available
electric motor power. If the symbol
is filled in, it means that the electric
motor is in use.

If the symbol is not filled in, it means
that the electric motor is not in use.

Indicates the power level when the
combustion engine starts. If the
symbol is filled in, it means that the
combustion engine is in use.

Indicates the power level when the
internal combustion engine is due to
start. If the symbol is not filled in, it
means that the combustion engine is

not in use.

Indicator that shows that the hybrid
battery is being charged e.g. if the
brake pedal is gently depressed.

Driver-requested power

The pointer in the hybrid gauge indicates the
amount of engine power requested by the
driver by regulating the accelerator pedal. The
higher the reading on the scale, the more
power is requested by the driver in the current
gear. The marker between the lightning flash
and the drop shows the point at which the
internal combustion engine starts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

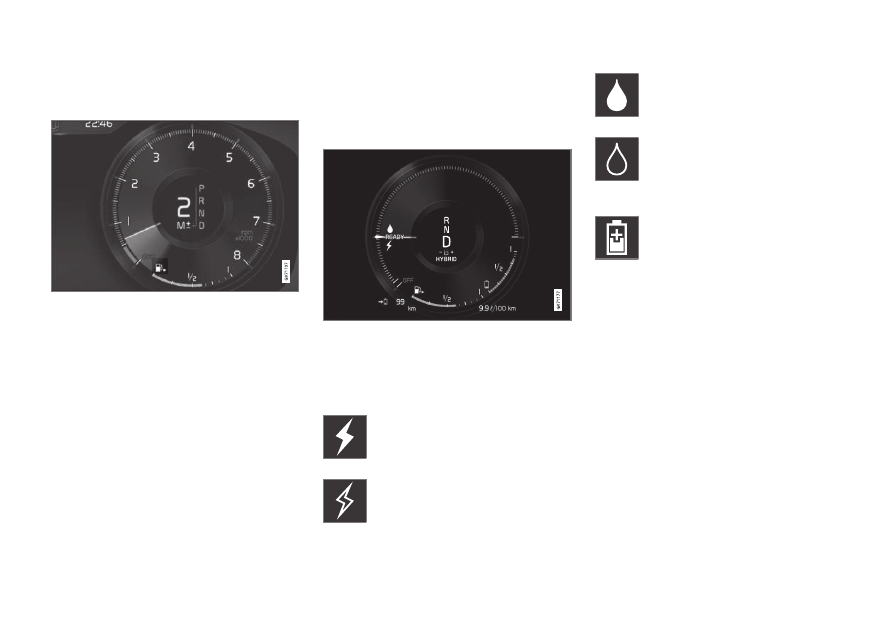

Example:

The car is started but stationary, no power is reques-

ted.

The electric motor cannot supply the amount of

engine power requested and the internal combustion

engine starts.

The car generates current to the battery, the battery

is charged, e.g. when the brake pedal is pressed

lightly or during engine braking down a hill.

Related information

•

Drive modes (p. 467)

•

Starting and stopping the combustion
engine (p. 467)

•

Foot brake (p. 451)

•

Range (p. 477)

•

Hybrid battery gauge

The hybrid battery gauge shows how much
energy there is in the hybrid battery.

The energy in the hybrid battery is used for the
electric motor, but also to cool or heat the car.
The trip computer calculates an approximate
distance for the energy left in the hybrid bat-
tery.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

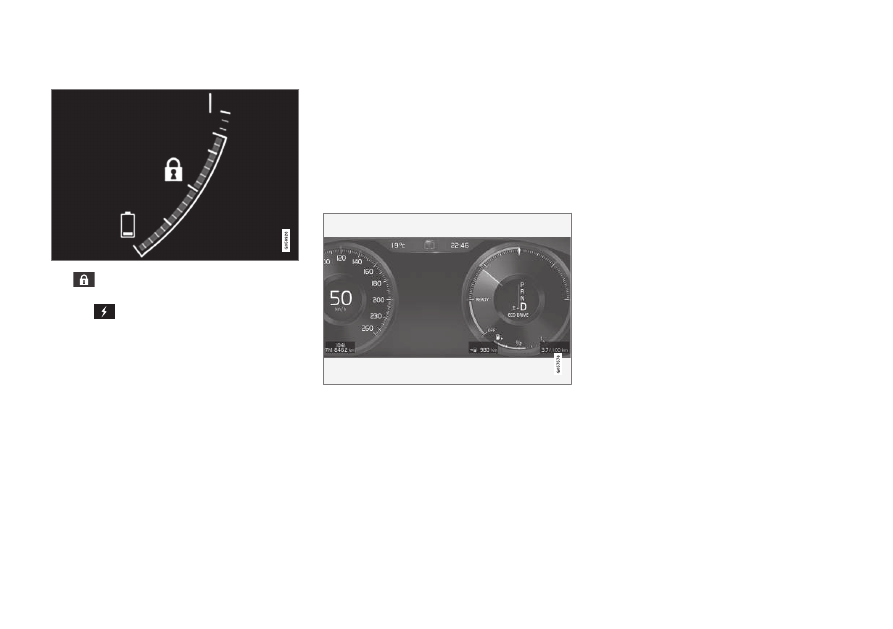

Symbols in the hybrid battery gauge

The

symbol in the hybrid battery gauge

indicates that the

Hold

function is activated,

and the

symbol indicates that the

Charge

function is activated.

Related information

•

Charging the hybrid battery (p. 425)

•

•

Hold and Charge (p. 478)

Trip computer

The car's trip computer records vales such as
e.g. distance, fuel consumption and average
speed whilst driving.

In order to facilitate fuel-efficient driving, infor-
mation is recorded about both instantaneous
and average fuel consumption. The informa-
tion from the trip computer can be shown in
the driver display.

Examples of trip computer information in the driver

display. The figure is schematic - parts may vary

depending on car model.

The following meters are included in the trip
computer:

•

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Distance to empty battery

•

Tourist - alternative speedometer

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Trip meter

There are two trip meters, TM and TA.

TM can be reset manually and TA is reset
automatically if the car is not used for at least
four hours.

The following information is registered while
driving:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The values apply from the trip meter's latest
reset.

Odometer

The odometer records the car's total mileage.
This value cannot be reset to zero.

Instantaneous fuel consumption

This gauge shows the fuel consumption that
the car has at the moment. The value is upda-
ted approximately every second.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Distance to empty tank

The trip computer calculates the
remaining mileage with the fuel
available in the tank.

The calculation is based on the average fuel
consumption over the last 30 km (20 miles)
and the remaining drivable fuel quantity.

When the gauge shows "----", there is not
enough fuel left to be able to calculate the
remaining mileage. Refuel as soon as possible.

There may be a slight deviation if the driv-
ing style has been changed.

An economic driving style generally results in a
longer driving distance.

Distance to empty battery

The approximate distance that can
be driven with the remaining amount
of energy in the hybrid battery is
indicated adjacent to this symbol.

The calculation is based on the average con-
sumption of normally loaded vehicle, during
normal driving and taking into account
whether the air conditioning (AC) is switched
on or off. When changing between the

Hybrid

and

Pure

drive modes, the calculated distance

increases since the

Pure

mode has reduced

climate settings (ECO climate).

No guaranteed range on electric power
remains when the gauge shows "----".

There may be a slight deviation if the driv-
ing style has been changed.

An economic driving style generally results in a
longer driving distance.

Start value for fully charged hybrid battery

Since it is difficult to anticipate driving style
and other factors that affect the range for
electric operation, Volvo has decided to use a
start value when the car is fully charged. The
start value indicates an up-to figure instead of
a forecast for the range for electric operation.
The difference in start value between

Hybrid

and

Pure

is due to the car being allowed to

use more energy from the hybrid battery in

Pure

mode, as well as that the car changes

over to ECO climate.

Mileage for electric operation

In order to achieve the longest possible mile-
age for electric operation, the driver of an elec-
trically powered car also has to think about
energy conservation. The more consumers
there are (stereo, electric heating in windows/
mirrors/seats, very cold air from the climate

control system, etc.) that are active - the
shorter the potential mileage.

Show trip data in the driver display
(p. 90)

In addition to high current take-off in the
passenger compartment, sudden accelera-
tion and braking, high speed, heavy loads,
low outside temperature and uphill gradi-
ents also reduce the possible driving dis-
tance.

Tourist - alternative speedometer

The alternative digital speedometer makes it
easier to drive in countries where speed limit
signs are in a different unit than that shown in
the car's instruments.

The digital speed is then shown in the oppo-
site unit to that shown in the analogue speed-
ometer. If the analogue speedometer is gradu-
ated in

mph

, the digital speedometer shows

the corresponding speed in

km/h

and vice

versa.

Related information

•

•

Resetting the trip meter (p. 91)

•

Show trip statistics in the centre display
(p. 91)

•

Changing system units (p. 130)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Show trip data in the driver display

The trip computer's recorded and calculated
values can be shown in the driver display.

The values are saved in a trip computer app.
Via the app menu, you can choose which
information is shown on the driver display.

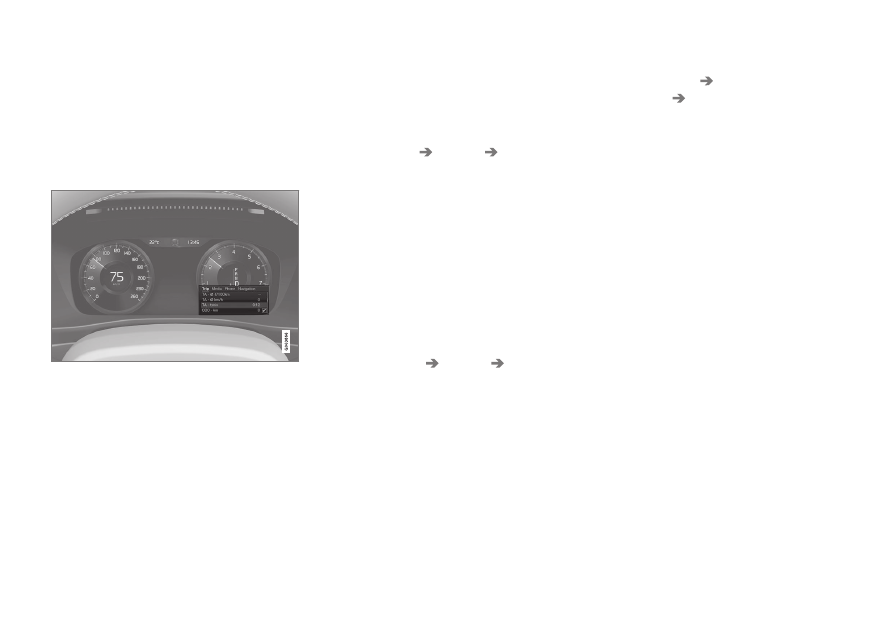

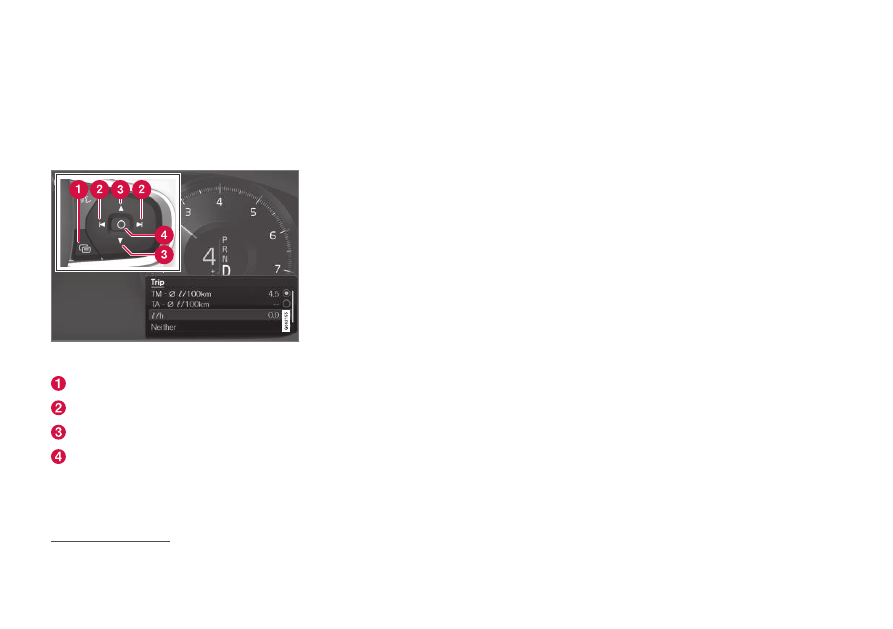

Open and navigate in the app menu

using the right-

hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the driver display

by pressing (1).

(It is not possible to open the app menu
while there is an unacknowledged mes-
sage in the driver display. The message
first has to be confirmed by pressing the

button (4) before the app menu can be
opened.)

2. Navigate to the trip computer app to left

or right with (2).
> The top four menu rows show meas-

ured values for trip meter TM. The next
four menu rows show measured values
for trip meter TA. Scroll up or down in
the list with (3).

3. Scroll down to the option buttons to

select which information to show in the
driver display:

•

Odometer

•

Distance to empty tank

•

Distance to empty battery

•

Tourist (alternative speedometer)

•

Mileage for trip meter TM, TA, or no
display of mileage

•

Instantaneous fuel consumption, aver-
age consumption for TM or TA, alterna-
tively, no display of fuel consumption

Select or deselect an option with the

button (4). The change is made immedi-
ately.

Related information

•

Resetting the trip meter (p. 91)

•

The figure is schematic - parts may vary depending on car model.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

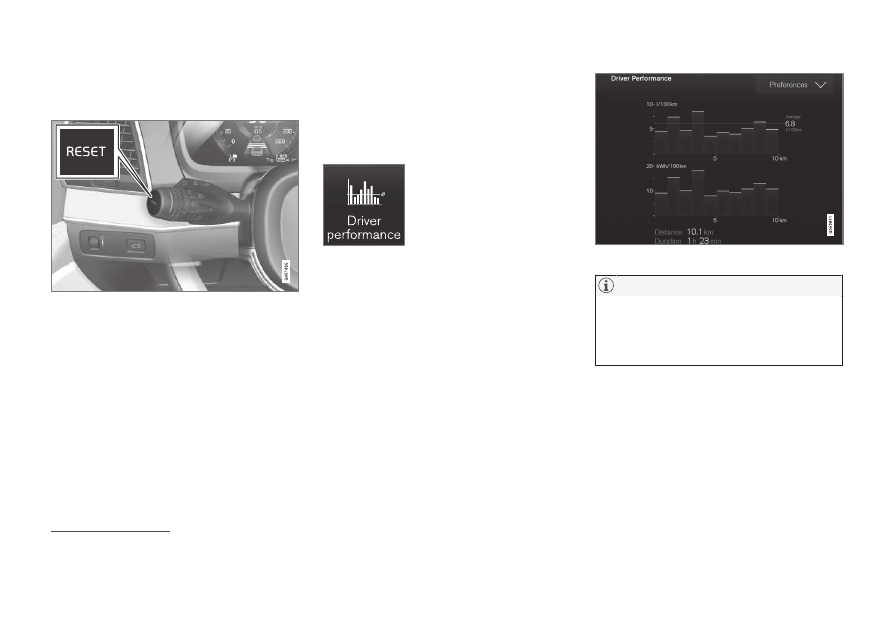

Resetting the trip meter

Reset the trip meter using the left-hand stalk
switch.

–

Reset all information in trip meter TM (i.e.
mileage, average consumption, average
speed and driving time) with a long press
on the

RESET

button on the left-hand

stalk switch.

Pressing the

RESET

button resets only

the mileage.

The trip meter TA can only be reset automati-
cally when the car has not been used for four
or more hours.

Related information

•

Show trip statistics in the centre

display

Trip statistics from the trip computer are dis-
played graphically in the centre display and
provide an overview that facilitates more fuel-
efficient driving.

Open the

Driver

performance

app in app

view in order to show the trip
statistics.

Each bar in the diagram sym-
bolises a distance of 1, 10 or

100 km, alternatively miles. The bars are filled
in from the right as driving progresses. The bar
on the far right shows the value for the current
distance.

The average fuel consumption and total driv-
ing time are calculated since the last time the
trip statistics were reset.

Fuel and electricity consumption are shown in
separate graphs. Electricity consumption is
"net" consumption, i.e. energy consumed
minus regenerated energy created during
braking.

Trip statistics from the trip computer

Settings for trip statistics (p. 92)

When driving with electric operation, fuel
consumption can be indicated in the trip
statistics if the additional heater

is run-

ning.

Related information

•

•

Show trip statistics in the centre display
(p. 91)

The figure is schematic - parts may vary depending on car model.

Applicable to fuel-driven auxiliary heater.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

Settings for trip statistics

Reset or adjust settings for trip statistics.

1. Open the

Driver performance

app in app

view in order to show the trip statistics.

2. Press

Preferences

•

change graph scale. Select resolution 1,
10 or 100 km/miles for the bar.

•

reset data after every trip. Performed
when the car has been stationary for
more than 4 hours.

•

reset data for the current trip.

Trip statistics, calculated average con-
sumption and total driving time are always
reset simultaneously.

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Related information

•

•

Resetting the trip meter (p. 91)

•

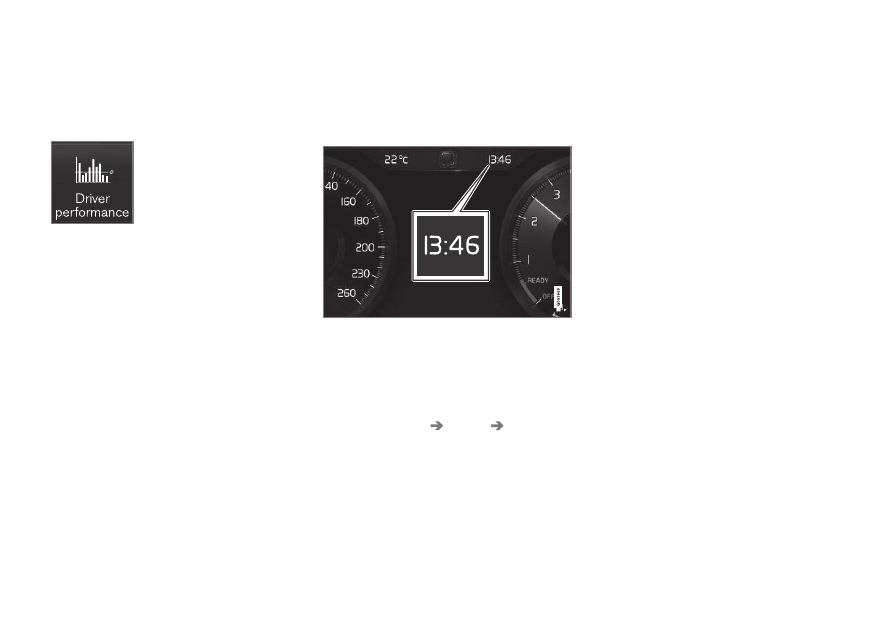

Date and time

The clock is shown in both the driver display
and the centre display.

Clock location

In certain situations, messages and informa-
tion may cover the clock in the driver display.

In the centre display, the clock is located at
the top right of the status bar.

Date and time settings

–

Select

Settings

System

Date and

Time

in the centre display's top view to

change settings for time and date format.

Adjust the date and time by pressing the
up or down arrow on the touch screen.

Automatic time for cars with GPS

When the car is equipped with a navigation
system,

Auto Time

can be selected. The time

zone is then adjusted automatically based on
the location of the car. For certain types of
navigation systems, the current location
(country) must also be set to obtain the right
time zone. If

Auto Time

is not selected, time

and data are adjusted with arrow up or arrow
down on the touch screen.

Summer time

In certain countries, it is possible to select the

Auto Daylight Saving Time

setting for auto-

matic setting of summer time. For other coun-
tries, the

Daylight Saving Time

setting can

be selected manually.

Related information

•

Other settings in the centre display's top
view (p. 130)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

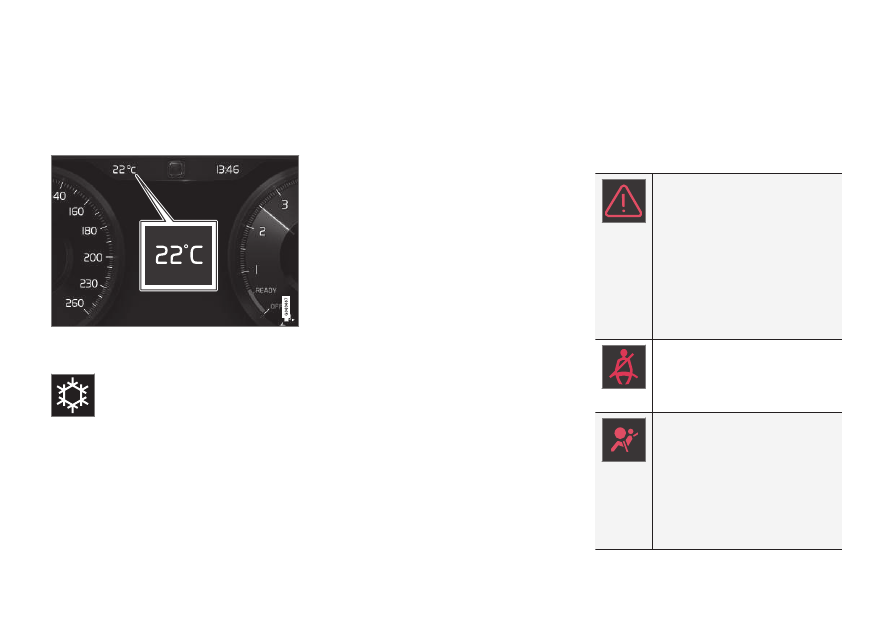

Outside temperature gauge

The outside temperature is shown in the
driver display.

A sensor detects the temperature outside of
the car.

If the car has been stationary, the gauge may
display a temperature reading that is too high.

When the outside temperature is in
the range –5 °C to +2 °C (23

F to

F), a snowflake symbol lights up

that warns of potentially slippery

conditions.

The symbol is also illuminated briefly in the
head-up display

, if the car is equipped with

one.

Change the unit for the temperature gauge,
etc. via system settings in the centre display's
top view.

Related information

•

Changing system units (p. 130)

•

Indicator and warning symbols

The indicator and warning systems alert the
driver to the fact that a function is activated, a
system is working, or a defect or serious error
has occurred.

Red symbols

Warning

The red warning symbol illumi-
nates when a fault has been
detected which could affect the
safety or drivability of the car. An
explanatory text is shown on the
driver display at the same time.

The warning symbol can also illu-
minate in conjunction with other
symbols.

Seatbelt reminder

Illuminates or flashes when
someone in the car is not wear-
ing a seatbelt.

Airbags

An error has been detected in
any of the car's safety systems.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

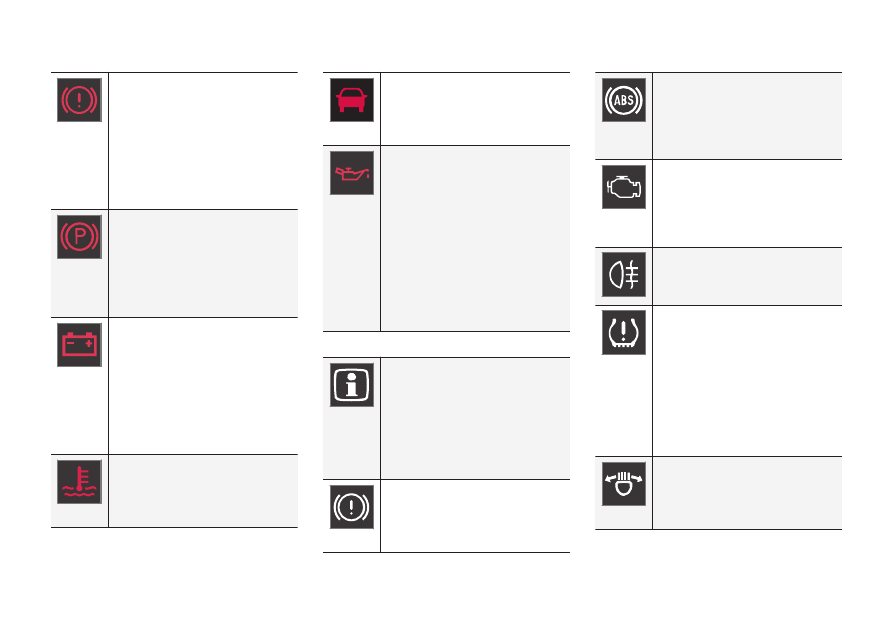

Fault in brake system

An error has occurred on the
braking system.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

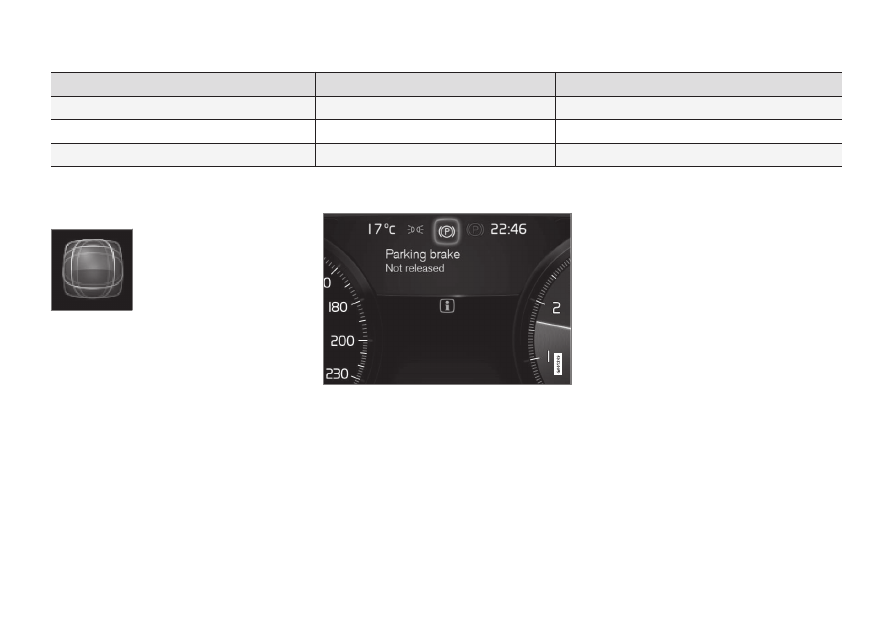

Parking brake

Light illuminated permanently:
The parking brake is activated.

Flashing: an error has occurred
with the parking brake. Read the
message in the driver display.

Faults in the electrical system

An error has occurred on the
electrical system.

Read the message on the driver
display and contact a workshop.
Volvo recommends that an
authorised Volvo workshop is
contacted.

High engine temperature

The engine temperature is too
high. Read the message in the
driver display.

Collision risk

City Safety warns of a risk of col-
lision with other vehicles, pedes-
trians, cyclists or large animals.

Low oil pressure

The engine oil pressure is too
low. Stop the engine immedi-
ately and check the engine oil
level, top up if necessary.

If the symbol lights up and the oil
level is normal, read the message
on the display and contact a
workshop. Volvo recommends
that an authorised Volvo work-
shop is contacted.

Amber symbols

Information

A fault has occurred in one of the
car's systems. Read the message
in the driver display.

The information symbol can also
illuminate in conjunction with
other symbols.

Fault in brake system

An error has occurred on the
braking system. Read the mes-
sage in the driver display.

ABS fault

The system is disengaged. The
car's regular brake system con-
tinues to work, but without the
ABS function.

Emissions system

Emissions systems fault. Drive to
a workshop for checking. Volvo
recommends that an authorised
Volvo workshop is contacted.

Rear fog lamp

The rear fog lamp is illuminated.

Tyre pressure system

Low tyre pressure.

If there is a fault in the tyre pres-
sure system, the symbol will
flash for approx. 1 minute and
then illuminate with a constant
glow. This may be because the
system cannot detect or warn of
low tyre pressure as intended.

Fault in the headlamp system

A fault has occurred on the head-
lamp system. Read the message
in the driver display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DISPLAYS AND VOICE CONTROL

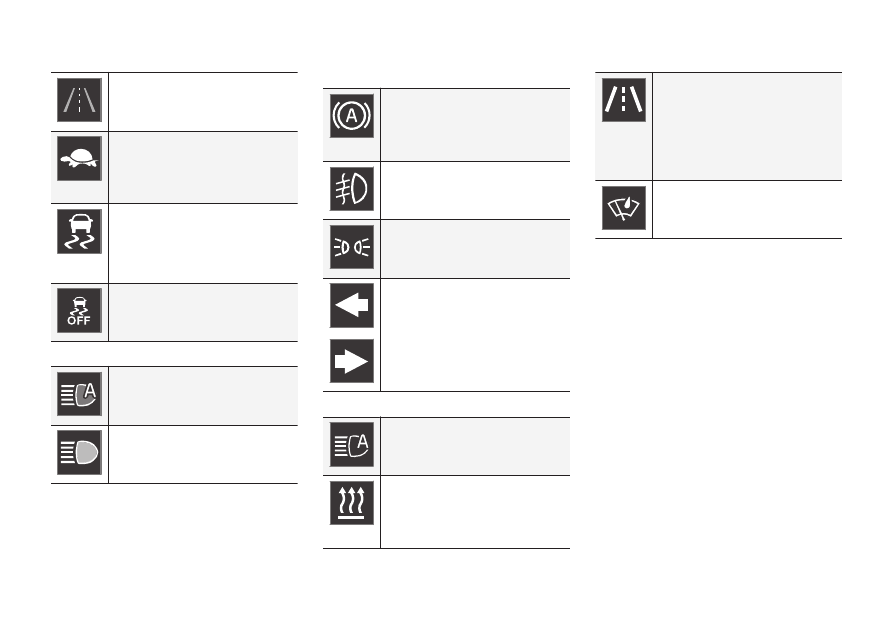

Lane assistance

Lane assistance warns/inter-
venes.

Reduced performance

Temporary fault on drivetrain.
Read the message in the driver
display.

Stability system

Light on permanently: a fault has
occurred in the system.

Flashing: the system is working.

Stability system, sport mode

Sport mode is selected.

Blue symbols

Active main beam

Active main beam is activated
and switched on.

Main beam

Main beam is switched on.

Green symbols

Automatic brake

The function is activated and the
service brake or parking brake is
operating.

Front fog lamps

The front fog lamp is switched
on.

Position lamps

The position lamps are switched
on.

Left and right-hand direction
indicator

The direction indicator is being
used.

White/grey symbols

Active main beam

Active main beam is activated,
but does not come on.

Preconditioning

Engine and compartment
heater/air conditioning pre-con-
dition the car.

Lane assistance

White symbol: Lane assistance is
on and road lines are detected.

Grey symbol: Lane assistance is
on but road lines are not
detected.

Rain sensor

The rain sensor is activated.

Related information

•
