DRIVER SUPPORT

* Option/accessory.

394

The sides

The side cameras are positioned in each door mirror.

The side cameras can show what is along
each side of the car.

Related information

•

Park assist camera

*

 (p. 391)

•

Activate park assist camera (p. 398)

•

Limitations for camera and radar unit
(p. 419)

Park assist lines for park assist

camera

*

The Park assist cameras (PAC

125

) indicate the

position of the car in relation to its surround-
ings by displaying lines on the screen.

Example of park assist lines

Park assist lines show the intended route for
the car's external dimensions with the current
steering wheel angle - this can facilitate paral-

lel parking, reversing into tight spaces and
when connecting a trailer.

The lines on the screen are projected as if they
were at ground level behind the car and
respond directly to steering wheel move-
ments, showing the driver the path the car will
take - also when the car is turning.

These park assist lines include the car's most
protruding parts, e.g. towbar, door mirrors and
corners.

NOTE

•

When reversing with a trailer which is
not connected electrically to the car,
the park assist lines on the display
show the route the

car

 will take – not

the trailer.

•

The screen shows no park assist lines
when a trailer is connected electrically
to the car's electrical system.

•

Park assist lines are not shown when
zooming in.

125

Park Assist Camera

DRIVER SUPPORT

}}

* Option/accessory.

395

IMPORTANT

•

Remember, that with the rear camera
view selected, the monitor only dis-
plays the area behind the car. Be
aware of the sides and front of the car
when manoeuvring in reverse.

•

The same applies vice versa - note
what happens to the rear parts of the
car when the front camera view is
selected.

•

Note that the park assist lines show
the

shortest

 route. Therefore, pay extra

attention to the car's sides so that they
do not go against/over something
when the steering wheel is turned
when driving forward or that the front
sweeps against/over something when
the steering wheel is turned when
reversing.

Park assist lines in 360° view

*

360° view with park assist lines

With the 360° view, park assist lines are
shown behind, in front of and at the side of the
car (depending on the direction of travel):

•

When driving forwards: Front lines

•

When reversing: Side lines and reversing
lines

With front or rear camera selected, the park
assist lines appear regardless of the car's
direction of travel.

With one side camera selected, the park assist
lines only appear when reversing.

Towbar assist line

*

Towbar with park assist line

Towbar

 - activates the towbar assist line.

Zoom

 - zoom in/out.

To use the camera for connecting a trailer:

||

DRIVER SUPPORT

* Option/accessory.

396

1. Press

Towbar

 (1).

> The park assist lines for the towbar's

intended path appear - the car's park
assist lines will disappear at the same
time.

Park assist lines for both car and tow-
bar cannot be shown at the same time.

2. Press

Zoom

 (2) when a more precise

manoeuvring is required.
> The camera view zooms in.

Related information

•

Park assist camera

*

 (p. 391)

•

Park assist camera locations and surveil-
lance areas

*

 (p. 392)

•

Limitations for camera and radar unit
(p. 419)

•

Towbar

*

 (p. 483)

Sensor fields for parking

assistance system

If the car is equipped with the Parking Assis-
tance System (PAS

126

) then the distance is

shown in the Parking Assistance Camera
(PAC

127

) 360° view with coloured fields for

each sensor that registers an obstacle.

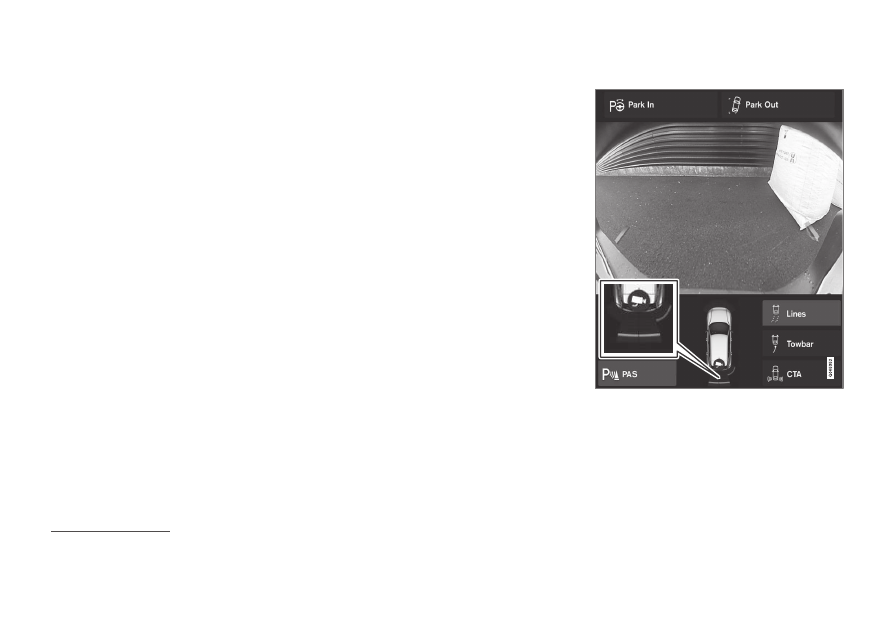

Sensor fields backwards and forwards

The screen can show coloured sensor fields on the

car symbol.

The fields for the sensors for forwards and
reverse change colour as the distance to the

126

Park Assist System

127

Park Assist Camera

DRIVER SUPPORT

* Option/accessory.

397

obstacle decreases – from AMBER through
ORANGE to RED.

Field colour

reverse

Distance in metres

(feet)

Yellow

0.6-1.5 (2.0-4.9)

Orange

0.3–0.6 (1.0–2.0)

Red

0-0.3 (0-1.0)

Field colour

forwards

Distance in metres

(feet)

Yellow

0.6–0.8 (2,0–2.6)

Orange

0.3–0.6 (1.0–2.0)

Red

0-0.3 (0-1.0)

For RED sensor fields, the pulsating acoustic
signal changes over to a constant tone.

Sensor field to the sides

Warning signals depend on the intended route
of the car. When the steering wheel is turned,
therefore, there may also be a warning for
obstacles diagonally in front of or diagonally
behind the car, not just straight ahead or
directly behind.

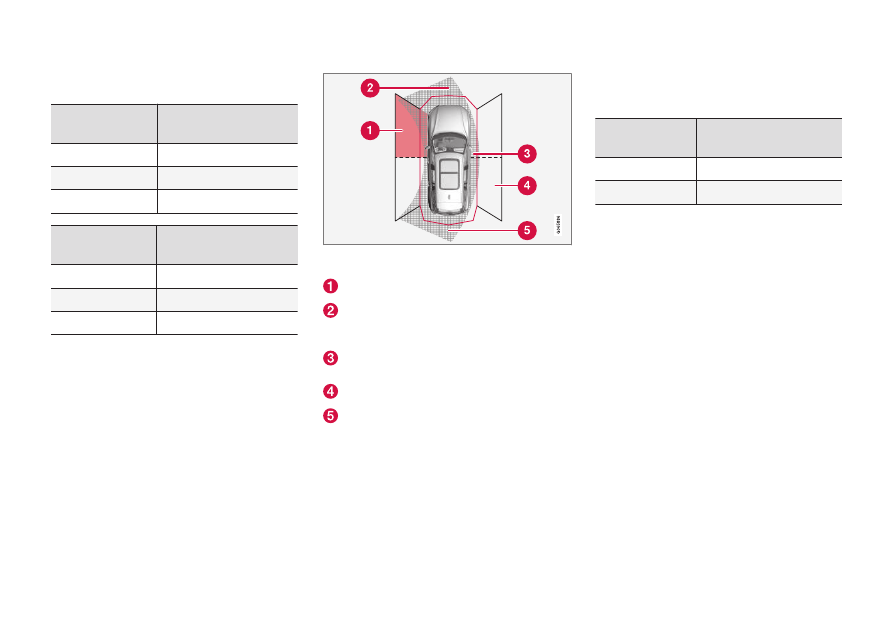

Parking sensor sectors where obstacles can be

detected.

Left-hand side front sensor field

Obstacle sector in the car's intended route
forwards – depending on steering wheel
angle
Sector with RED field colour and inten-
sively pulsing tone
Right-hand side rear sensor field

Obstacle sector in the car's intended route
in reverse – depending on steering wheel
angle.

The colour of the side fields changes with
reduced distance to the obstacle – from
AMBER to RED.

Colour of side

fields

Distance in metres

(feet)

Yellow

0.25–0.9 (0.8–3.0)

Red

0–0.25 (0–0.8)

In the case of RED sensor fields, the acoustic
signal changes from pulsing to intensively
pulsing.

Related information

•

Park Assist

*

 (p. 385)

•

Park assist camera

*

 (p. 391)

•

Park assist camera locations and surveil-
lance areas

*

 (p. 392)

•

Limitations for camera and radar unit
(p. 419)

DRIVER SUPPORT

* Option/accessory.

398

Activate park assist camera

The park assist camera (PAC

128

) is activated

automatically when reverse gear is engaged
or manually with one of the centre display's
function buttons.

Camera view when reversing

When reverse gear is engaged, the screen
shows the 360° view if it or any of the side
views was the last used camera view, other-
wise the rear view is shown.

Camera view for manual camera
activation

Activate the parking camera
with this button in the centre
display's function view.

The screen then initially
shows the last used camera
view. However, after each

engine start, the previously shown side view is
replaced by the 360° view and the previously
shown zoomed rear view is replaced by the
rear view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

Automatic deactivation of camera

The front view extinguishes at 25 km/h
(16 mph) to avoid distracting the driver – it
reactivates automatically if the speed drops to
22 km/h (14 mph) within 1 minute, on the con-
dition that the speed has not exceeded
50 km/h (31 mph).

Other camera views are extinguished at
15 km/h (9 mph) and not reactivated.

Related information

•

Park assist camera

*

 (p. 391)

•

Limitations of Parking assistance (p. 388)

•

Limitations for camera and radar unit
(p. 419)

128

Park Assist Camera

DRIVER SUPPORT

}}

399

Symbols and messages for Park

assist camera

Symbols and messages for Park assist cam-
era (PAC

129

) can be shown in the driver dis-

play and/or the centre display. Here are some
examples.

Symbol

Message

Specification

The rearward parking assistance sensors are

deactivated

, so there are no acoustic warnings

and field marks for obstacles/objects.

The camera is disengaged.

Park Assist System

Sensors blocked, cleaning nee-
ded

One or more of the function's sensors are blocked - check and correct as soon as possible.

Park Assist System

Unavailable Service required

The system does not function as it should. A workshop should be contacted

A

.

A

An authorised Volvo workshop is recommended.

129

Park Assist Camera

||

DRIVER SUPPORT

* Option/accessory.

400

A text message can be cleared by briefly
pressing the

 button, located in the centre

of the steering wheel's right-hand keypad.

If a message persists, contact a workshop

A

.

Related information

•

Park assist camera

*

 (p. 391)

•

Limitations for camera and radar unit
(p. 419)

DRIVER SUPPORT

* Option/accessory.

401

Park Assist Pilot

*



Park Assist Pilot (PAP

130

) can assist the

driver to manoeuvre the car while parking.
The function can also assist with steering
when driving out from parallel parking.

The function first checks if a space is large
enough and if so then assists the driver to
steer the car into the space.

The centre display indicates with symbols,
graphics and text the various operations to be
carried out and when to do so.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Related information

•

Driving support systems (p. 290)

•

Parking variants with Park Assist Pilot

*

(p. 402)

•

Using Park Assist Pilot

*

 (p. 403)

•

Leaving parallel parking with Park Assist
Pilot

*

 (p. 406)

•

Limitations of Park Assist Pilot

*

 (p. 406)

•

Messages for Park Assist Pilot

*

 (p. 409)

130

Park Assist Pilot

DRIVER SUPPORT

* Option/accessory.

402

Parking variants with Park Assist

Pilot

*

Park Assist Pilot (PAP

131

) can be used for

both parallel and perpendicular parking.

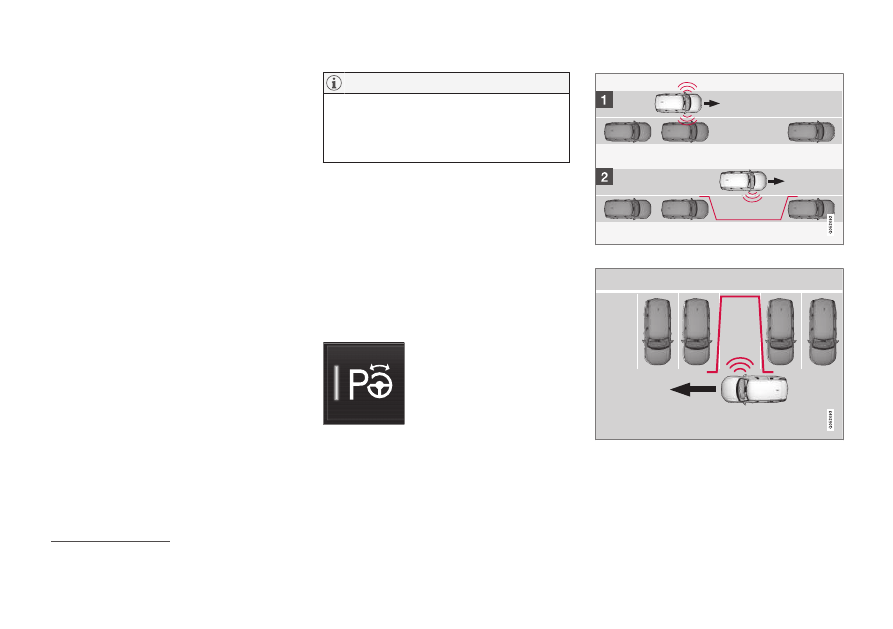

Parallel parking

The principal of parallel parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space.
3. The car is positioned in the space by

means of driving forward/backward.

With the

Park Out

 function, a parallel-parked

car can also get help from the function with
leaving the parking space.

Perpendicular parking

Principle for perpendicular parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space and

then positioned in the space by means of
driving forward/backward.

NOTE

When leaving a parking space, the

Park

Out

 function must only be used for a paral-

lel-parked car - it does not work for a per-
pendicular-parked car.

Related information

•

Park Assist Pilot

*

 (p. 401)

•

Leaving parallel parking with Park Assist
Pilot

*

 (p. 406)

131

Park Assist Pilot

DRIVER SUPPORT

}}

* Option/accessory.

403

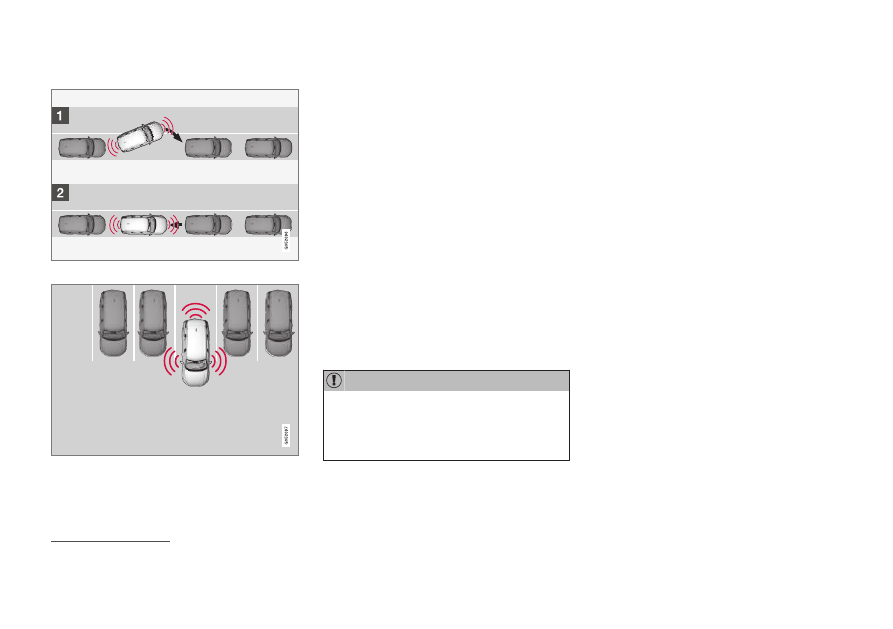

Using Park Assist Pilot

*

Park Assist Pilot (PAP

132

) helps the driver

park via three steps. The function can also
help the driver to leave a parking space.

This function measures space and steers the
car – the driver's job is to:

•

keep an eye on what is happening around
the car

•

follow the instructions in the centre dis-
play

•

select a gear (reverse/forward) – an
acoustic signal indicates when the driver
should change gear

•

regulate and maintain a safe speed

•

brake and stop.

Symbols, graphic and/or text appear on the
centre display when the different steps are to
be performed.

The function can be activated if the following
criteria are met once the engine has been
started:

•

No trailer is attached to the car

•

Speed is lower than 30 km/h (20 mph).

NOTE

The distance between the car and parking
spaces should be 0.5–1.5 metres
(1.6–5.0 ft) while the function is searching
for a parking space.

Parking with Park Assist Pilot

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space.
3. The car is positioned into the space - the

system may then request that the driver
changes gear and brakes.

Find and measure parking spaces

The function can be activated
in the centre display's func-
tion view.

It can also be accessed from
the camera views.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

Principle for searching before parallel parking.

Principle for searching before perpendicular parking.

Drive no faster than 30 km/h (20 mph) for
parallel parking or 20 km/h (12 mph) for per-
pendicular parking.

132

Park Assist Pilot

||

DRIVER SUPPORT

404

1. Tap on the

Park In

 button in the function

view or in the camera view.
> The function searches for a parking

space and checks whether it is big
enough.

2. Be prepared to stop the car when the

graphic and message on the centre dis-
play state that a suitable parking space
has been found.
> A pop-up window is shown.

3. Select

Parallel parking

 or

Perpendicular

parking

 and select reverse gear.

NOTE

The function searches the area for parking,
displays instructions and guides the car in
on its passenger side. But if required the
car can also be parked on the driver's side
of the street:

•

Activate the direction indicator to the
driver's side - then the system
searches for a parking space on that
side of the car instead.

Reversing in to the parking space

Principle for reversing into parallel parking.

Principle for reversing into perpendicular parking.

1. Check that the area behind the car is clear,

then engage reverse gear.

2. Reverse slowly and carefully without

touching the steering wheel - and no
faster than 7 km/h (4 mph).

3. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display.

NOTE

•

Keep your hands away from the steer-
ing wheel when the function is acti-
vated.

•

Make sure that the steering wheel is
not hindered in any way and can rotate
freely.

•

To achieve optimum results - wait until
the steering wheel is fully turned
before starting to drive backward/
forward.

DRIVER SUPPORT

* Option/accessory.

405

Positioning the car in the parking space

Principle for positioning during parallel parking.

Principle for positioning during perpendicular park-

ing.

1. Move the gear selector to the gear posi-

tion as instructed by the system, wait until
the steering wheel has been turned and
drive forward slowly.

2. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display.

3. Select reverse gear and drive slowly back-

wards.

4. Be prepared to brake the car when

instructed by the graphic and message on
the centre display.

The function is deactivated automatically and
the graphics and message show that parking
is complete. It may be necessary for the driver
to correct the car’s position. Only the driver
can determine whether the car is properly
parked.

IMPORTANT

The warning distance is shorter when the
sensors are used by Park Assist Pilot
(PAP

133

) compared with when Park Assist

System uses the sensors.

Auto-brake during parking sequence

If the parking sensors detect a vehicle or
pedestrian within the intended route in front of

or behind the car during a parking manoeuvre,
the car is auto-braked to stationary.

The driver display then shows a pop-up mes-
sage where the driver can choose to cancel
the parking manoeuvre by tapping on

Cancel

,

or tap

Resume

 to continue the parking

sequence.

Proceed as follows after selecting

Resume

:

–

Check that there is free space around the
car and follow the instructions in the cen-
tre display, such as:

To continue

 –

Gently accelerate away

from object

.

Related information

•

Park Assist Pilot

*

 (p. 401)

•

Limitations of Park Assist Pilot

*

 (p. 406)

133

Park Assist Pilot

DRIVER SUPPORT

* Option/accessory.

406

Leaving parallel parking with Park

Assist Pilot

*

The

Park Out

 function can help the driver to

leave a parking space when the car is parallel
parked.

NOTE

When leaving a parking space, the

Park

Out

 function must only be used for a paral-

lel-parked car - it does not work for a per-
pendicular-parked car.

The

Park Out

 function is acti-

vated in the centre display's
function view or in the cam-
era view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

1. Tap on the

Park Out

 button in the func-

tion view or in the camera view.

2. Use the direction indicator to select the

direction in which the car should leave the
parking space.

3. Be prepared to stop the car when instruc-

ted by the graphic and message on the
centre display - follow the instructions in
the same way as for the parking proce-
dure.

Note the steering wheel can "spring" back
when the function is completed - the driver
may then need to turn the steering wheel back
to the maximum steering angle in order to
leave the parking space.

If the function considers that the driver can
leave the parking space without any extra
manoeuvring then the function will be stop-
ped, even if the driver may consider that the
car is still in the parking space.

Related information

•

Park Assist Pilot

*

 (p. 401)

•

Limitations of Park Assist Pilot

*

 (p. 406)

Limitations of Park Assist Pilot

*



The Park Assist Pilot (PAP

134

) function cannot

detect everything in all situations and may
therefore have limited functionality.

A driver should be aware about the following
examples of Park Assist Pilot limitations.

WARNING

•

The parking sensors have blind spots
where obstacles cannot be detected.

•

Pay particular attention if there are
people and animals near the car.

•

Bear in mind that the front of the car
may swing out towards oncoming traf-
fic during the parking manoeuvre.

IMPORTANT

Objects situated higher than the sensor
detection area are not included when cal-
culating the parking manoeuvre, which
could cause the function to swing into the
parking space too early – such parking
spaces should be avoided for this reason.

134

Park Assist Pilot

DRIVER SUPPORT

}}

407

Parking is discontinued

A parking sequence will be discontinued:

•

if the driver moves the steering wheel

•

if the car is driven too quickly - above
7 km/h (4 mph)

•

if the driver presses

Cancel

 in the centre

display

•

when the anti-lock brakes or the Elec-
tronic stability control are engaged - e.g.
when a wheel loses grip on a slippery road

•

as the steering servo for speed-dependent
steering wheel resistance is working at
reduced power – e.g. when cooling due to
overheating

Where applicable, a message in the centre
display states the reason for a parking
sequence being discontinued.

IMPORTANT

Under certain circumstances, the function
is unable to find parking spaces - one rea-
son for this may be the fact that there is
interference with the sensors from external
sound sources which emit the same ultra-
sound frequencies as those with which the
system works.

Examples of such sources include horns,
wet tyres on asphalt, pneumatic brakes
and exhaust noises from motorcycles etc.

NOTE

Dirt, ice and snow covering the sensors
will reduce their function and may prevent
measurement.

Driver responsibility

The driver should bear in mind that the func-
tion is an aid – not an infallible, fully-automatic
function. The driver must therefore be pre-
pared to interrupt a parking step.

There are also a few details to bear in mind
while parking, e.g.:

•

The driver is always responsible for deter-
mining whether the space selected by the
function is suitable for parking.

•

Do not use the function if snow chains or
a spare wheel are fitted.

•

Do not use the function if cargo items are
protruding from the car.

•

Heavy rain or snow may cause the system
to measure the parking space incorrectly.

•

During the search and check-measure-
ment of the parking space, the function
may miss objects positioned deep in the
parking space.

•

Parking spaces on narrow streets are not
always feasible, since the space required
for manoeuvring may not be sufficient.

•

Use approved tyres

135

 with the correct

tyre pressure - this affects the ability of
the function to park the car.

•

The function bases itself on the locations
of vehicles already parked nearby – if they
are inappropriately parked, your own car's
tyres and wheel rims may be damaged by
contact with the kerb.

•

Perpendicular parking spaces may be
missed or offered unnecessarily if one

135

"Approved tyres" refers to tyres of the same type and make as those fitted on delivery from the factory.

||

DRIVER SUPPORT

* Option/accessory.

408

parked car is protruding more than other
parked cars.

•

The function is designed for parking on
straight streets – not sharp curves or
bends. For this reason, make sure the car
is parallel to the potential parking spaces
when the function measures the space.

Related information

•

Park Assist Pilot

*

 (p. 401)

•

Speed-dependent steering force (p. 290)

•

Limitations for camera and radar unit
(p. 419)

DRIVER SUPPORT

* Option/accessory.

409

Messages for Park Assist Pilot

*

Messages for Park Assist Pilot (PAP

136

) can

be shown in the driver display and/or the
centre display. Here are some examples.

Message

Specification

Park Assist System

Sensors blocked, cleaning needed

One or more of the function's sensors are blocked - check and correct as soon as possible.

Park Assist System

Unavailable Service required

The system does not function as it should. A workshop should be contacted

A

.

A

An authorised Volvo workshop is recommended.

A text message can be cleared by briefly
pressing the

 button, located in the centre

of the steering wheel's right-hand keypad.

If a message persists, contact a workshop

A

.

Related information

•

Park Assist Pilot

*

 (p. 401)

•

Limitations of Park Assist Pilot

*

 (p. 406)

136

Park Assist Pilot
