KEY, LOCKS AND ALARM

* Option/accessory.

248

Unlocking the boot lid with the

remote control key

It is possible to unlock just the boot lid using
a button on the remote control key.

–

Press the remote control key's

 but-

ton.
> The boot lid is unlocked but remains

closed.

The side doors are still locked and the
alarm is armed

*

. The lock and alarm

indicator on the instrument panel extin-
guishes in order to show that the entire
car is not locked.

If the boot lid is not opened within 2 minutes
then it is relocked and the alarm is re-armed.

Power operated boot lid

*

–

Hold the remote control key

 button

depressed (approx. 1.5 seconds).
> The boot lid opens mechanically while

the side doors remain locked and their
alarm functions armed.

Related information

•

Locking and unlocking with the remote
control key (p. 246)

Remote control key range

In order for the remote control key to work
properly it needs to be within a certain dis-
tance from the car.

For manual use

The remote control key's functions for e.g.
locking/unlocking that are activated by press-
ing on

 or

 have a range that extends

approx. 20 metres (65 feet) from the car.

If the car does not verify a button being
pressed - move closer and try again.

For keyless

*

 use

The marked area in the illustration shows areas cov-

ered by the system's antennas.

For keyless use, a remote control key or the
button-less key (Key Tag) must be within a
semicircular area with a radius of approx.

KEY, LOCKS AND ALARM

}}

* Option/accessory.

249

1.5 metres (5 feet) on both long sides and
approx. 1 metre (3 feet) from the boot lid.

NOTE

The remote control key functions may be
disrupted by surrounding radio waves,
buildings, topographical conditions, etc.
The car can always be locked/unlocked
with the key blade.

If the remote control key is removed
from the car

If the remote control key is removed
from the car when the engine is run-
ning, the warning message

Car key

not found



Removed from car

 is

shown in the driver display and an acoustic
reminder sounds when the last door is closed.

The message extinguishes when the key is
returned to the car, followed by a press of the
right-hand keypad's

O

 button, or when the last

door is closed.

Related information

•

Remote control key (p. 244)

•

Antenna locations for the start and lock
systems (p. 276)

•

Keyless and touch-sensitive surfaces

*

(p. 273)

Replacing the battery in the

remote control key

The battery in the remote control key needs
to be replaced when it has become dis-
charged.

NOTE

All batteries have a limited service life and
must eventually be replaced (does not
apply to Key Tag). The service life of the
battery varies depending on how often the
vehicle/key is used.

The battery for the remote control key should
be replaced if

•

the information symbol illuminates and the
message

Car key battery low

 is shown in

the driver display

•

the locks repeatedly do not react to sig-
nals from the remote control key within
20 metres (65 feet) of the car.

NOTE

Always try moving closer to the car and
making another unlock attempt.

The battery in the button-less key

6

 (Key Tag)

cannot be replaced - a new key can be
ordered from an authorised Volvo workshop.

IMPORTANT

A discharged Key Tag must be handed
over to an authorised Volvo workshop. The
key must be deleted from the car since it is
still possible to use it to start the car via
back-up start.

6

Supplied with cars equipped with keyless locking/unlocking

*

.

||

KEY, LOCKS AND ALARM

250

Opening the key and changing the
battery

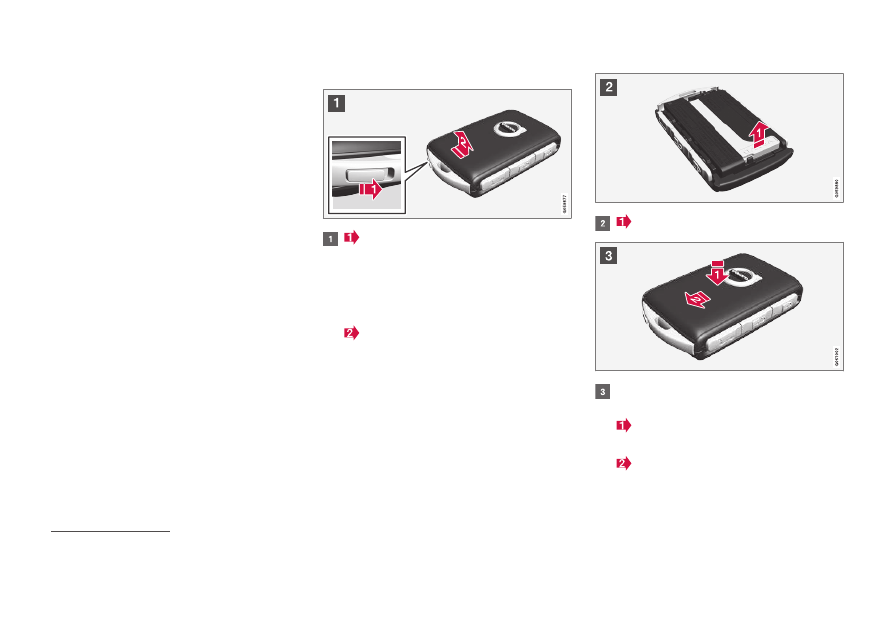

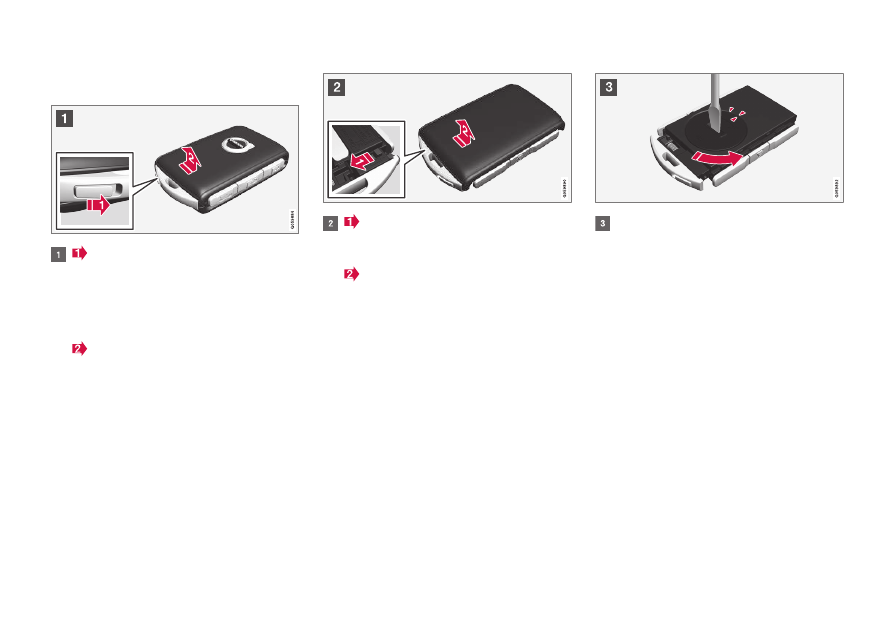

 Hold the remote control key with the

front visible and the Volvo logo facing the
right way - slide the button at bottom
edge by the key ring to the right. Slide the
front side's shell a few millimetres
upwards.

 The shell will then come free and can

be lifted off the key.

 Turn the key, move the button to the

side and slide the back shell a few milli-
metres upwards.

 The shell will then come free and can

be lifted off the key.

Use a screwdriver or similar to turn the
battery cover anticlockwise until the mark-
ings meet at the

OPEN

 text.

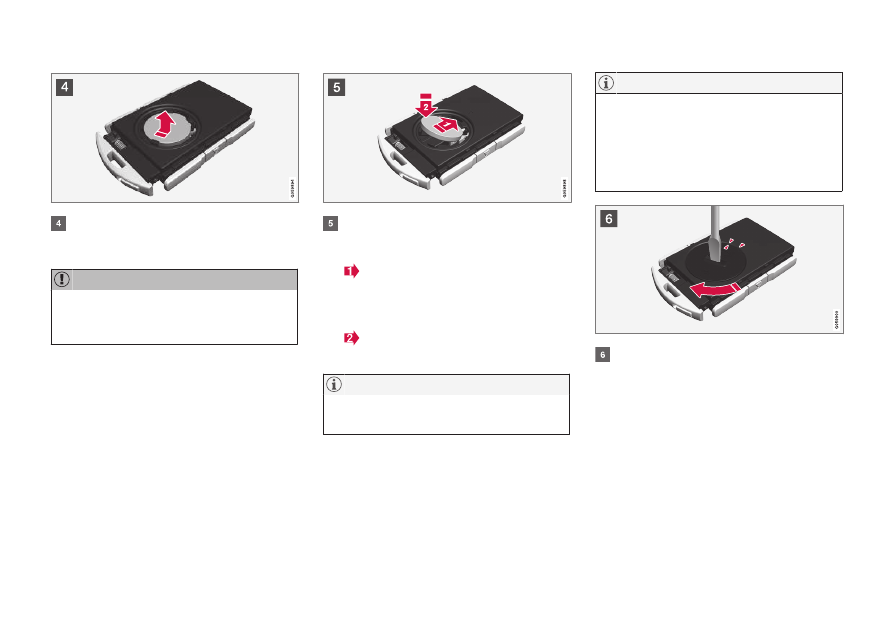

Carefully lift away the battery cover by
pressing e.g. a fingernail into the recess.

Then prize the battery cover upwards.

KEY, LOCKS AND ALARM

}}

251

The battery (

+

) side is facing upwards.

Then carefully prize loose the battery as
illustrated.

IMPORTANT

Avoid touching new batteries and their
contact surfaces with your fingers as this
may impair their function.

Install a new battery with the (

+

) side up.

Avoid touching the remote control key's
battery contacts with your fingers.

 Place the battery in the holder with the

edge down. Then slide the battery for-
wards so that it fastens under the two
plastic catches.

 Press the battery down so that it fas-

tens under the upper black plastic catch.

NOTE

Use batteries with the designation
CR2032, 3 V.

NOTE

Volvo recommends that the batteries to be
used in the remote control key fulfil UN
Manual of Test and Criteria, Part III, sub-
section 38.3. Batteries fitted in the factory
or replaced by an authorised Volvo work-
shop fulfil the above criteria.

Refit the battery cover and turn it clock-
wise until the marking aligns with the

CLOSE

 text.

||

KEY, LOCKS AND ALARM

252

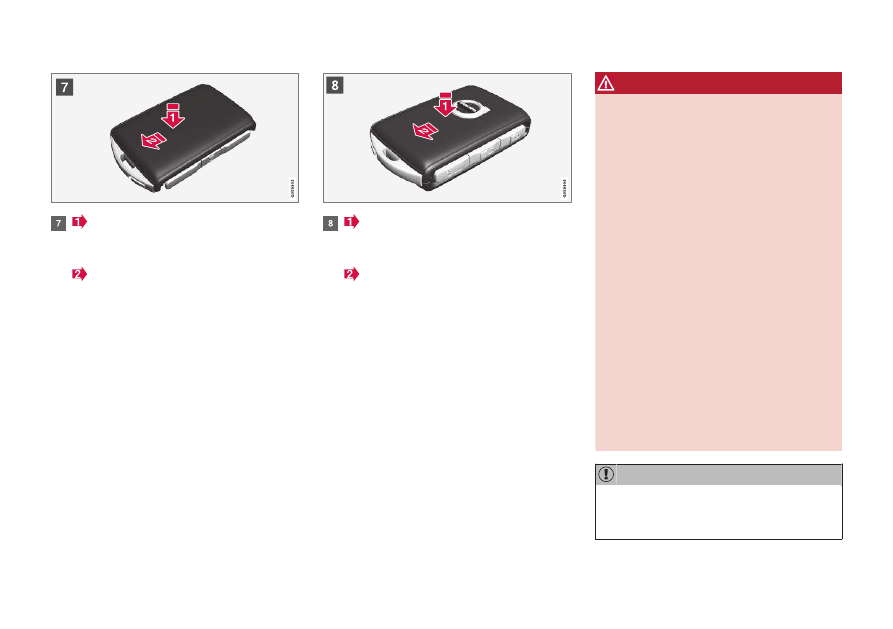

 Reposition the rear side's shell and

press it down until a clicking sound can be
heard.

 Then slide the shell back.

> A further click will indicate that the

shell is properly positioned and securely
attached.

 Turn the remote control key over and

refit the front side's shell by pressing it
down until a clicking sound can be heard.

 Then slide the shell back.

> A further click will indicate that the

shell is securely attached.

WARNING

Check that the battery is fitted correctly

with the correct polarity. If the remote con-

trol key shall not been used for a long time,

remove the battery to avoid battery leakage

and damage. Batteries with damage or

leaks may cause corrosive injury on contact

with the skin. Therefore, use protective

gloves when handling damaged batteries.

•

Keep batteries out of the reach of chil-
dren.

•

Do not leave batteries lying around
since they can be swallowed by chil-
dren or pets.

•

Batteries must not: be dismantled,
short-circuited or thrown into open
flames.

•

Do not charge non-rechargeable bat-
teries, this may cause an explosion.

Before use, the remote control key should

be checked to avoid causing damage. If

damage is discovered, e.g. if the battery

cover cannot be closed properly, then the

product should not be used. Keep defec-

tive products out of the reach of children.

IMPORTANT

Make sure that exhausted batteries are dis-
posed of in a manner which is kind to the
environment.

KEY, LOCKS AND ALARM

}}

* Option/accessory.

253

Related information

•

Locking and unlocking with the detacha-
ble key blade (p. 256)

•

Starting the car (p. 428)

•

Remote control key (p. 244)

Ordering more remote control keys

The car is supplied with two remote control
keys. A button-less key is supplied if the car
is equipped with keyless locking and unlock-
ing

*

. Additional keys can be ordered.

A total of twelve keys can be programmed and
used for one single car. If additional keys are
ordered, additional driver profiles are added -
one per new remote control key. This also
applies for the key tag.

Loss of a remote control key

If you lose a remote control key then a new
one can be ordered at a workshop - an author-
ised Volvo workshop is recommended. The
remaining remote control keys must be taken
to the workshop. The code of the missing key
must be erased from the system as a theft
prevention measure.

The current number of keys registered to the
car can be checked via driver profiles in the
centre display's top view, select

Settings

System

Driver Profiles

.

Related information

•

Remote control key (p. 244)

Care Key - restricted remote

control key

A Care Key allows the car owner to set a limit
for the speed of the car. The limitation is
intended to encourage the car to be driven in
a safe manner such as when being loaned
out, for example.

For a Care Key, you can set your car's maxi-
mum speed. Other functions of the key are the
same as those of a normal remote control key.

The limits are intended to act as measures to
reduce the risk of accidents, thereby making it
feel safer to hand over the car to e.g. young
drivers, valet parking or a workshop.

Ordering Care Key

One or more Care Key can be ordered from a
Volvo dealer. A total of eleven keys with
restrictions can be programmed and used for

||

KEY, LOCKS AND ALARM

254

a single car - at least one must be a normal
remote control key.

Limitations of Care Key

The key is linked to a special Care Key driver
profile, and when it is active, the key's settings
cannot be changed. It is not possible to
change to another driver profile either; this
requires a normal remote control key.

The driver profile is activated when the car is
unlocked with a Care Key without a normal
remote control key in the vicinity.

NOTE

In the event of a change of driver, the car
must be locked and unlocked in order to
activate a new driver profile.

Setting options

The following limitations are available to be
set:

•

speed interval: 50-180 km/h
(30-112 mph)

•

Increments: 1 km/h (1 mph)

Symbol

Specification

Speed limitation is active.

Related information

•

Care Key settings (p. 254)

•

Remote control key (p. 244)

Care Key settings

Change the maximum speed of a Care Key
via the centre display.

1. Unlock the car with the normal remote

control key.

2. Tap on

Settings

 in the centre display's

top view.

3. Press

System

Driver Profiles

Care

Key

.

4. Change the settings you want.

Related information

•

Care Key - restricted remote control key
(p. 253)

KEY, LOCKS AND ALARM

}}

* Option/accessory.

255

Detachable key blade

The remote control key contains a detachable
key blade of metal with which a number of
functions can be activated and some opera-
tions carried out.

The key blade's unique code is provided by
authorised Volvo workshops, which are rec-
ommended when ordering new key blades.

The key blade's application areas

Using the remote control key's detachable key
blade

•

the left-hand

7

 front door can be opened

manually if central locking cannot be acti-
vated with the remote control key

•

all doors are emergency-locked

•

the rear doors' mechanical child lock can
be activated and deactivated.

The button-less key

8

 does not have a detacha-

ble key blade. If necessary, use the detachable
key blade from the normal remote control key.

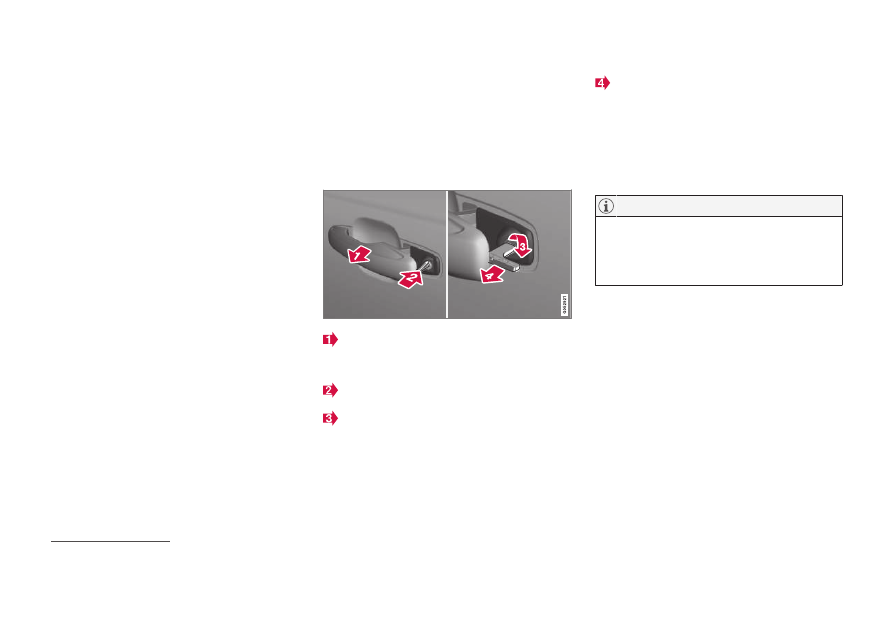

Detaching the key blade

 Hold the remote control key with the

front visible and the Volvo logo facing the
right way - slide the button at bottom
edge by the key ring to the right. Guide
the front side's shell a few millimetres
upwards.

 The shell will then come free and can

be lifted off the key.

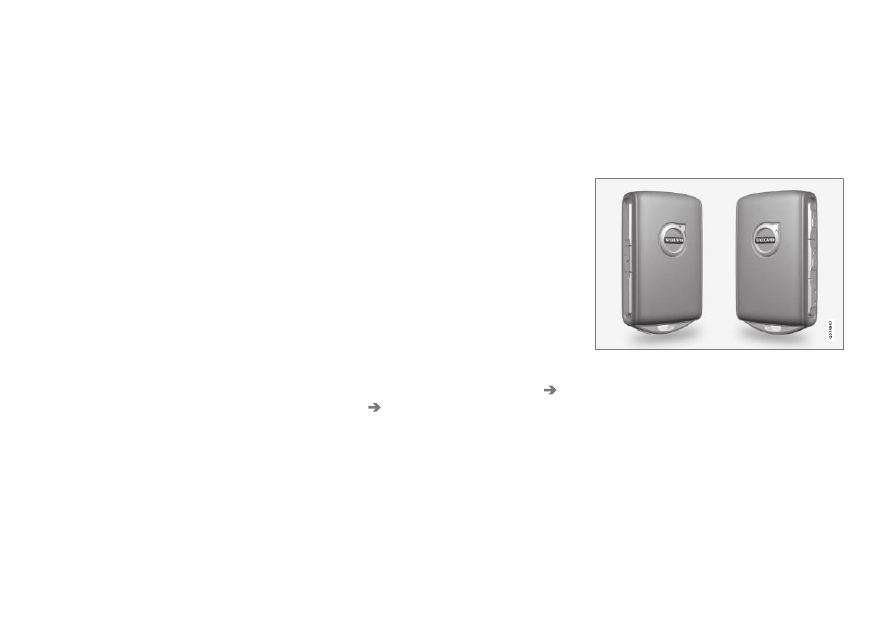

 Detach the key blade by angling it up.

Return the key blade to its intended posi-
tion in the remote control key after use.

 Refit the shell by pressing it downward

until a clicking sound is heard.

 Then slide the shell back.

> A further click will indicate that the

shell is securely attached.

7

This applies whether the car is left-hand drive or right-hand drive.

8

Supplied with cars equipped with keyless locking/unlocking

*

.

||

KEY, LOCKS AND ALARM

256

Related information

•

Locking and unlocking with the detacha-
ble key blade (p. 256)

•

Remote control key (p. 244)

Locking and unlocking with the

detachable key blade

Amongst other things, the detachable key
blade can be used to unlock the car from the
outside - e.g. if the remote control key's bat-
tery has become discharged.

Unlocking

Pull out the front door handle on the left-
hand side to its end position so that the
lock cylinder becomes visible

9

.

Insert the key in the lock cylinder.

Turn clockwise 45 degrees so that the key
blade is pointing straight back.

Turn the key back 45 degrees to its star-
ting position. Remove the key from the
lock cylinder and release the handle so
that the rear section of the handle is rest-
ing against the car again.

5. Pull out the handle.

> The door opens.

NOTE

When the door is unlocked using the key
blade and is then opened, the alarm is trig-
gered. The alarm must be deactivated
manually, see separate section.

Locking

The left-hand front door can be locked with its
lock cylinder and the detachable key blade.

The other doors have a locking switch at the
end that must be pushed in using the key
blade – then they are mechanically locked/
inhibited from opening from outside.

The doors can still be opened from the inside.

9

This applies whether the car is right-hand drive or left-hand drive.

KEY, LOCKS AND ALARM

* Option/accessory.

257

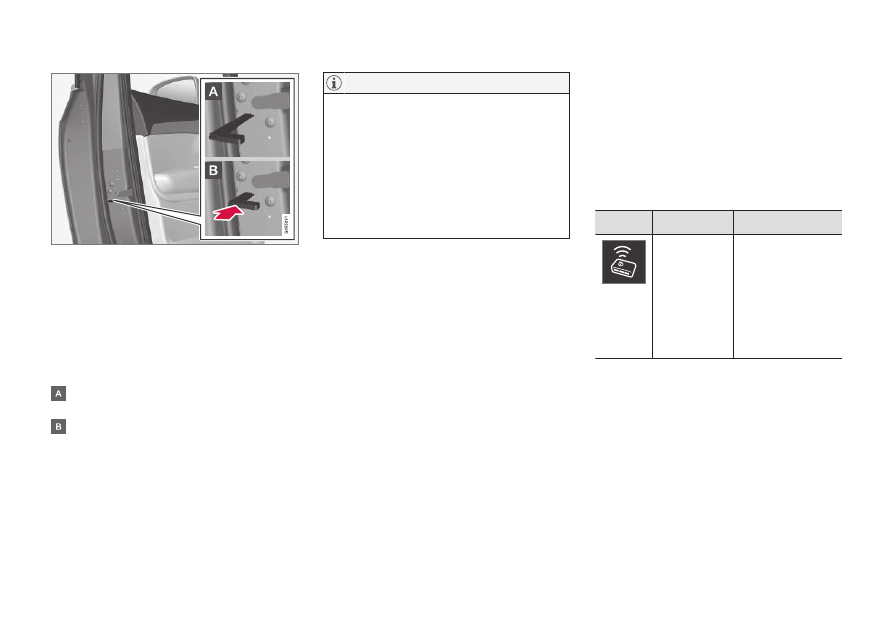

Manual locking of the door. Not to be confused with

the child safety lock.

1. Remove the detachable key blade from

the remote control key.

2. Insert the key blade in the hole for lock

reset.

3. Press in the key until the key bottoms,

approximately 12 mm (0.5 inches).

The door can be opened from both the
outside and the inside.
The door is blocked against opening from
the outside. To return to position A, the
inner door handle must be opened.

NOTE

•

A door's lock reset only locks that par-
ticular door - not all doors simultane-
ously.

•

A manually locked rear door with child
lock activated cannot be opened from
inside or outside. The door can then
only be unlocked with the key buttons,
central locking button, the keyless
locking system

*

 or Volvo On Call

*

.

Related information

•

Detachable key blade (p. 255)

•

Activating and deactivating alarms

*

(p. 286)

•

Starting the car (p. 428)

•

Replacing the battery in the remote con-
trol key (p. 249)

•

Remote control key (p. 244)

Immobiliser

The electronic immobiliser is a theft protec-
tion system that prevents an unauthorised
person from starting the car.

The car can only be started with the correct
remote control key.

The following error message in the driver dis-
play is related to the electronic immobiliser:

Symbol Message

Specification

Car key not
found

See
Owner's
manual

Error reading the
remote control
key during star-
ting - place the
key on the key
symbol in the cup
holder and try
again.

Related information

•

Remote control key (p. 244)

•

Ordering more remote control keys
(p. 253)

KEY, LOCKS AND ALARM

* Option/accessory.

258

Type approval for the remote

control key system

Type approval for the car's remote key sys-
tem can be seen in the following tables.

For detailed information on type approval, go
to volvocars.com.

Lock system keyless start (Passive
Start) and keyless locking/unlocking
(Passive Entry

*

)

CEM marking for the remote control key system. For

supplementary type approval numbers, see following

tables.

Country/Area

Type approval

Argentina

CNC ID: C-14771

Brazil

MT-3245/2015

KEY, LOCKS AND ALARM

}}

259

Country/Area

Type approval

Europe

Delphi Deutschland GmbH, 42367 Wuppertal hereby declares that
this VO3-134TRX conforms to the essential property requirements
and other relevant provisions contained in directive 2014/53/EU
(RED).

The full text of the EU declaration of conformity can be found at
volvocars.com

The United Arab Emi-
rates

ER37847/15

DA0062437/11

Indonesia

Nomor: 38301/SDPPI/2015

Jordan

TRC/LPD/2014/250

Malaysia

RDBV/30A/1118/S(18-4232)

Mexico

IFETEL: RLVDEVO15-0396

Namibia

TA-2016-02

||

KEY, LOCKS AND ALARM

260

Country/Area

Type approval

Russia

Serbia

P1614120100

South Africa

TA-2014-1868

KEY, LOCKS AND ALARM

}}

261

Remote control key

Country/Area

Type approval

Europe

Huf Hülsbeck & Fürst GmbH & Co. KG hereby declares that this type of radio
equipment HUF8423MS conforms to directive 2014/53/EU.

The full text of the EU declaration of conformity can be found at volvocars.com

Wavelength: 433.92 MHz

Maximum radiated transmission power: 10 mW

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG, Steeger Str. 17, 42551
Velbert, Germany

Argentina

CNC ID: H-23694

Brazil

Anatel: 06768-19-06643

Modelo: HUF8423MS

Este equipomento opera em caráter secundário isto é não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e
não pode causar interferência a sistemas operando em caráter primário.

||

KEY, LOCKS AND ALARM

262

Country/Area

Type approval

Philippines

ESD-1919938C

The United
Arab Emirates

Ghana

NCA Approved: ZRO-M8-7E3-138

Indonesia

A

Sertifikat Nomor: 65073/SDPPI/2019

PLG ID: 8093

KEY, LOCKS AND ALARM

}}

263

Country/Area

Type approval

CU (Customs
Union)

Kazakhstan,
Russia

Morocco

AGREE PAR L'ANRT MAROC

Numéro d’agrément: MR 20402 ANRT 2019

Date d’agrément: 10/07/2019

Moldova

Nigeria

Connection and use of this communication equipment is permitted by the
Nigerian Communications Commission

Oman
